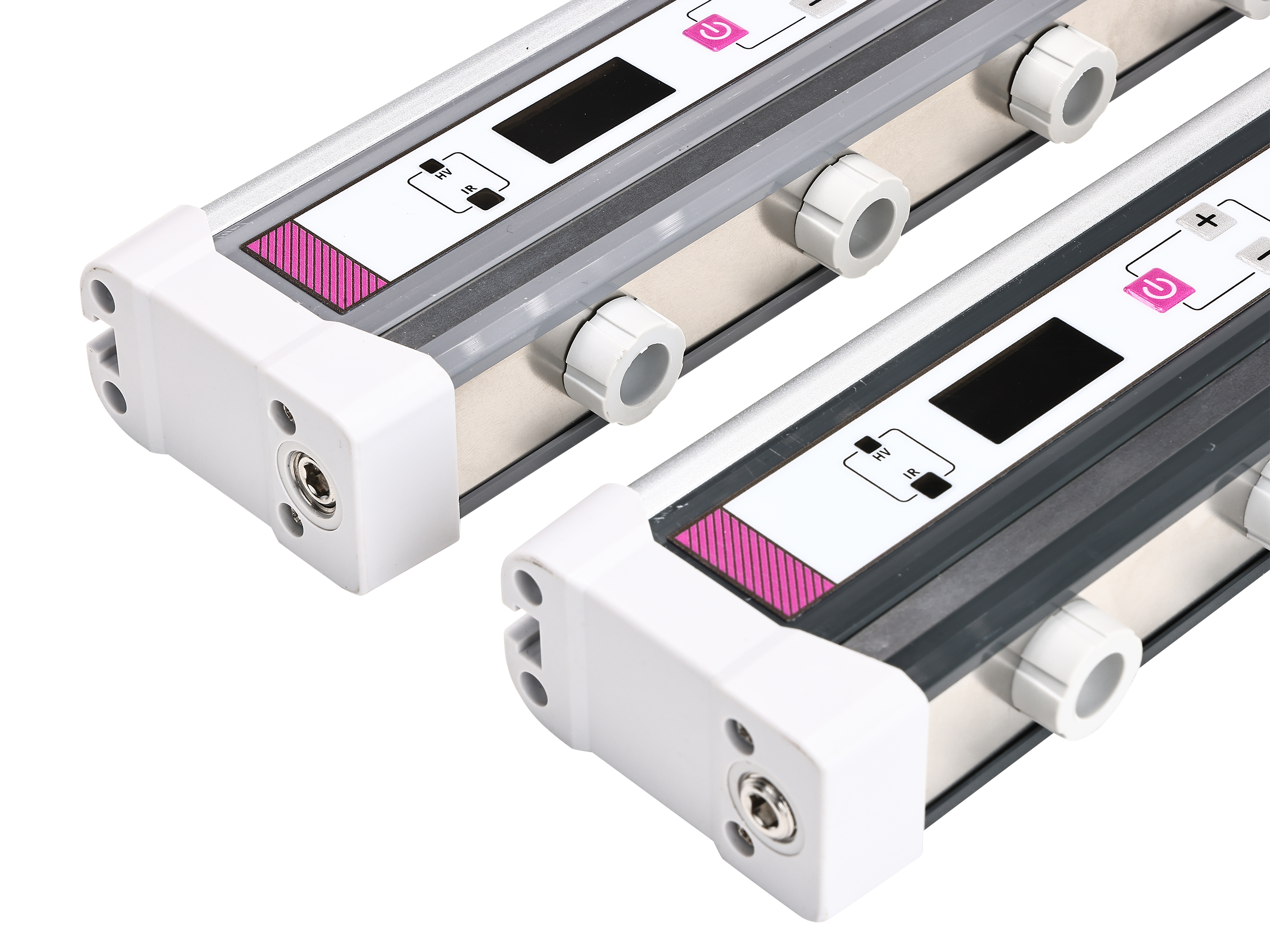

Ionizing air bars (also known as ionizing bars or ion wind bars) play a critical role in electrostatic discharge (ESD) control across semiconductor manufacturing, flat panel display (FPD) production, lithium battery assembly, precision electronics, printing, and optical industries. While ion balance and discharge time are often highlighted in product specifications, long-term performance stability is the true determinant of real-world effectiveness, customer satisfaction, and total cost of ownership.
This white paper presents a comprehensive, industry-oriented yet technically rigorous framework for verifying and communicating the performance stability of ionizing air bars. Designed as a marketing + technical hybrid, it enables manufacturers to:
Demonstrate measurable reliability and consistency to customers
Differentiate products beyond initial performance claims
Align validation methods with international ESD standards
Translate engineering test data into customer-understandable value
The document integrates laboratory verification methods, production-line validation, accelerated aging models, and statistical evaluation techniques, while maintaining a clear narrative suitable for sales engineers, quality managers, and procurement decision-makers.
Most ionizing air bars can meet ion balance and decay time requirements when brand new. However, real production environments expose ionizers to:
Dust and particulate contamination
Process vapors and chemical residues
Humidity and temperature fluctuations
Continuous high-voltage operation
Without stability verification, customers face gradual performance drift, resulting in undetected ESD risks, yield loss, and increased maintenance costs.
Customers increasingly expect evidence that:
Ion balance remains within tolerance over time
Discharge performance does not degrade unpredictably
Maintenance intervals are predictable and justifiable
Performance stability verification transforms an ionizing air bar from a "component" into a validated ESD control solution.
To evaluate stability meaningfully, performance must be quantified using consistent KPIs.
Ion balance refers to the offset voltage measured at a defined distance from the ionizing air bar. Stability focuses on:
Mean offset voltage drift (ΔV)
Standard deviation over time
Symmetry between positive and negative ions
Typical marketing claim: ±30 V
Stability-oriented claim: ±30 V maintained over 2,000 operating hours under controlled conditions
Decay time measures how quickly a charged plate is neutralized.
Stability metrics include:
Percentage increase in decay time over aging
Variability across multiple test positions
Sensitivity to airflow changes
Uniformity ensures consistent neutralization across the entire effective length of the bar.
Measured by:
Spatial ion balance mapping
Edge vs. center performance deviation
A controlled chamber provides repeatability and credibility.
Key design parameters:
Temperature: 23 ± 2 °C
Relative humidity: 40–60%
Airflow: <0.1 m/s background
Shielded grounding reference
Marketing translation: "All stability data is generated under internationally recognized ESD test conditions."
To reflect real usage, supplementary tests are performed in semi-open environments simulating production lines.
This dual approach allows manufacturers to claim:
"Verified both in laboratory conditions and in real production-like environments."
Each ionizing air bar undergoes baseline measurement after burn-in.
Measurements include:
Ion balance at multiple distances
Positive and negative decay times
Uniformity mapping along the bar length
Instead of raw tables, results are summarized as:
Performance envelopes
Graphical trend baselines
Compliance badges (e.g., "ESD STM3.1 Verified")
Purpose: identify early-life drift and manufacturing variability.
Test protocol:
Continuous powered operation
Periodic measurements every 12–24 hours
Key outputs:
Drift slope (V/hour)
Early stabilization time
Customer-facing message:
"Every unit stabilizes before shipment—no surprises after installation."
Long-term tests simulate months or years of use.
Monitoring includes:
Ion balance drift trend
Decay time degradation
Onset of instability indicators
Accelerated testing uses elevated stress levels:
Increased temperature
Elevated humidity
Higher duty cycles
Arrhenius-based models extrapolate expected service life.
Marketing translation:
"Engineered for multi-year stability—validated through accelerated life testing."
Simulated particulate environments evaluate electrode contamination sensitivity.
Metrics:
Rate of ion balance shift
Recovery after cleaning
Common in battery and semiconductor fabs.
Stability verification demonstrates:
Resistance to chemical adsorption
Consistent performance between maintenance cycles
Stability is incomplete without considering cleaning.
Tests evaluate:
Performance recovery after standardized cleaning
Cumulative degradation after repeated cycles
Customer value statement:
"Designed for predictable maintenance without performance surprises."
Key tools:
Control charts
Moving averages
Drift rate comparison
Applying SPC to ion balance and decay time demonstrates manufacturing maturity.
Marketing advantage:
"Not just tested—statistically controlled."
Testing multiple units across batches ensures claims are representative.
"Every bar meets the same stability standard—not just a lab sample."
Ion stability depends on high-voltage generation and feedback control.
Verification includes:
Voltage ripple monitoring
Feedback loop response over time
EMI immunity testing
Performance mapping across environmental ranges supports deployment guidance.
"Stable performance across real factory conditions."
Selected customers participate in pilot installations.
Data collected:
On-site ion balance
Maintenance frequency
Yield impact correlation
Examples:
Reduced recalibration frequency
Lower downtime risk
Predictable ESD control
Recommended assets:
Stability trend charts
Before/after aging comparisons
Lifetime cost graphs
Although marketing-focused, all methods align with:
ANSI/ESD STM3.1
IEC 61340 series
ISO 9001 validation principles
This alignment enhances credibility without overwhelming non-technical audiences.
Many competitors focus on peak performance.
Stability-focused messaging enables claims such as:
"Performance you can rely on after year one"
"Validated beyond initial specifications"
Standardized reports include:
Executive summary
Key stability metrics
Lifecycle performance projection
Suitable for customers, auditors, and internal sales teams.
A consumer electronics assembly line implemented stability-verified ionizing air bars and achieved:
30% reduction in ESD-related defects
Extended maintenance intervals
Improved audit confidence
Emerging directions include:
Smart ionizers with self-diagnostics
Remote stability monitoring
Predictive maintenance algorithms
Performance stability verification is no longer optional—it is a competitive necessity. By combining rigorous testing with clear, customer-focused communication, ionizing air bar manufacturers can:
Build long-term trust
Reduce customer risk
Differentiate in a crowded market
A stability-validated ionizing air bar is not just a product—it is a promise of consistent ESD control throughout its lifecycle.
Ionizing air bars rely primarily on corona discharge to generate positive and negative ions. Over extended operating periods, several physical mechanisms influence long-term stability:
Electrode tip erosion caused by continuous micro-arcing
Surface oxidation altering local electric field strength
Deposition of airborne contaminants changing discharge geometry
These effects lead to gradual ion output imbalance if not properly engineered. High-stability ionizing air bars mitigate these risks through optimized electrode materials, controlled discharge current, and balanced high-voltage waveforms.
From a marketing perspective, this enables claims such as:
"Optimized corona physics for long-term balance—not just short-term performance."
Electrode and housing materials play a decisive role in stability.
Key considerations include:
Corrosion resistance in high-humidity environments
Low surface energy to reduce particle adhesion
Thermal expansion compatibility to maintain alignment
Stability verification programs explicitly correlate material selection with drift rates observed during aging tests, reinforcing design credibility.
Different high-voltage generation methods influence long-term consistency:
Transformer-based AC ionization
Pulsed DC ionization
Feedback-controlled hybrid architectures
Stability-focused verification evaluates not only output voltage magnitude but waveform symmetry and temporal consistency.
Advanced ionizing air bars incorporate closed-loop ion balance feedback.
Verification metrics include:
Feedback response time over aging
Control loop stability margins
Drift compensation effectiveness
Customer-facing value:
"Self-correcting ion balance that maintains stability automatically."
Stability verification feeds into reliability engineering by identifying dominant failure modes:
Electrode degradation
Power supply component aging
Insulation breakdown
Using collected long-term data, Mean Time Between Failures (MTBF) models are developed.
Accelerated life test data is normalized to nominal conditions, enabling realistic service-life projections that resonate strongly with industrial customers.
Ionizing air bars rarely operate in isolation. Stability verification considers interaction with:
Grounding systems
Airflow management
Other ionization devices
This system-level approach allows manufacturers to position their products as part of a complete ESD control ecosystem.
Stability documentation simplifies customer audits by providing:
Traceable verification records
Clearly defined acceptance criteria
Evidence of continuous improvement
For manufacturers with multiple production sites, stability verification ensures consistency across locations.
Tests compare:
Drift characteristics
Baseline performance envelopes
Long-term degradation trends
Critical components influencing stability are subject to supplier qualification and change control, reinforcing long-term consistency claims.
Different industries prioritize different stability aspects:
Semiconductor fabs: ultra-low offset voltage stability
Battery manufacturing: contamination resistance
Printing and packaging: wide-area uniformity
Verification protocols are tailored accordingly, allowing targeted marketing messages.
Stability is evaluated across various mounting distances and angles, ensuring consistent performance despite installation variability.
Next-generation ionizing air bars integrate sensors to monitor:
Ion output trends
Internal voltage stability
Environmental exposure
Data-driven models forecast maintenance needs before instability impacts production.
Customer value framing:
"From reactive cleaning to predictive stability management."
Stable ionization must be balanced with energy consumption.
Verification includes:
Ion output per watt consistency over time
Efficiency degradation trends
Long-term stability directly supports sustainability goals by reducing replacement frequency and electronic waste.
Stability benchmarking compares products under identical conditions:
Same test chamber
Same aging profile
Same acceptance criteria
Rather than naming competitors, results are framed as:
Percent improvement over market average
Extended stability windows
Stable ionization reduces:
ESD-induced latent defects
Process variability
Unexpected downtime
Stability data informs warranty terms and service intervals, enabling confident commercial commitments.
Stability verification results are distilled into:
Sales training modules
Application guidelines
Objection-handling tools
Educated customers better appreciate long-term value, strengthening partnerships.
Stability-verified ionizing air bars maintained ion balance within ±15 V over 18 months, supporting high-yield production.
Resistance to electrolyte vapor contamination enabled predictable maintenance cycles and reduced unplanned stoppages.
Manufacturers should treat stability verification as an evolving process.
Key roadmap elements include:
Periodic re-validation
Design feedback loops
Customer field data integration
By extending performance stability verification beyond basic compliance, ionizing air bar manufacturers elevate their offerings from commodities to trusted process safeguards.
A well-documented, data-driven stability program supports marketing differentiation, strengthens customer confidence, and ensures long-term success in increasingly demanding industrial environments.
End of White Paper
