Emission needles are the core functional components of ion wind bars, directly responsible for corona discharge, ion generation, and subsequent electrohydrodynamic airflow. Their condition has a decisive influence on ion output stability, neutralization efficiency, airflow strength, ozone generation, and long‑term reliability. However, due to continuous exposure to high electric fields, ozone, dust, moisture, and industrial contaminants, emission needles inevitably degrade over time. This article provides a comprehensive and systematic discussion of periodic maintenance methods for ion wind bar emission needles. Covering physical degradation mechanisms, contamination sources, performance degradation indicators, maintenance cycles, cleaning techniques, inspection standards, safety considerations, and application‑specific strategies, this work aims to serve as a long‑term engineering reference for manufacturers, maintenance engineers, and end users seeking to maximize performance and service life.
Ion wind bar, emission needle, corona discharge, periodic maintenance, cleaning methods, electrostatic neutralization, EHD systems

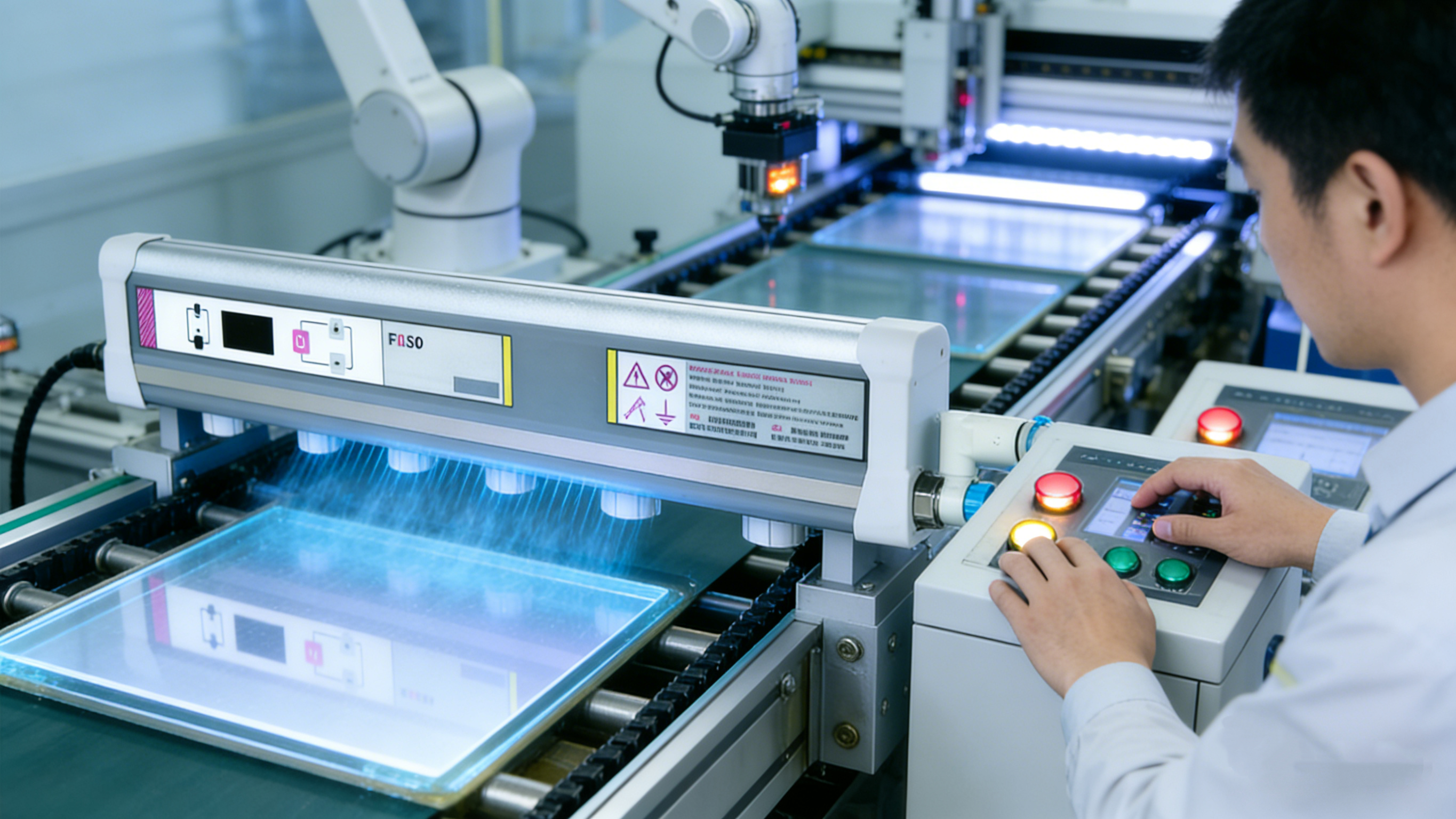

Ion wind bars, also referred to as ionic air bars or electrohydrodynamic (EHD) ionizers, are widely used in electronics manufacturing, cleanrooms, semiconductor processing, printing, packaging, and industrial airflow control. Their advantages—no moving parts, low noise, and compact structure—are largely enabled by the use of high‑voltage corona discharge at emission needles.
The emission needle is the primary site of ion generation. A sharp tip geometry concentrates the electric field, enabling corona discharge at relatively low voltages. However, this same concentration of electric field makes emission needles highly sensitive to surface condition, contamination, and material degradation. Even minor changes at the needle tip can significantly alter ion output and system behavior.
Despite this importance, emission needle maintenance is often underestimated in practice. Many performance complaints—such as reduced neutralization speed, unstable ion balance, increased ozone smell, or unexpected shutdowns—can be traced back to inadequate or improper needle maintenance.
This article systematically addresses periodic maintenance of ion wind bar emission needles from a physics‑based and engineering‑oriented perspective. Rather than offering generic cleaning advice, it explains why maintenance is necessary, how degradation occurs, how to detect early warning signs, and how to implement scientifically grounded maintenance procedures.
Emission needles rely on sharp curvature to intensify the local electric field. The corona onset voltage is inversely related to the radius of curvature at the needle tip. Any blunting, contamination, or coating alters this radius and shifts corona characteristics.
Depending on applied polarity, emission needles generate either positive or negative ions. Stable ion generation requires consistent surface condition to ensure predictable electron emission and ionization behavior.
Needle condition directly affects:
Ion output density
Ion balance and offset voltage
Airflow (ion wind) strength
Ozone and by‑product generation
Electrical stability and noise
Continuous corona discharge causes gradual material erosion at the needle tip due to ion bombardment and micro‑arcing. Over time, this increases the effective tip radius.
Ozone and nitrogen oxides generated during corona discharge react with needle materials, especially in humid environments, forming oxide layers.
Dust, fibers, and process particles are attracted electrostatically to the needle tip, forming insulating or semi‑conductive layers.
High humidity and airborne contaminants can form conductive films that alter discharge behavior.
Slower charge decay time and weaker airflow indicate reduced ion generation efficiency.
Contaminated needles often produce asymmetric ion output, leading to offset voltage drift.
Crackling sounds or fluctuating current are signs of irregular corona behavior.
Higher ozone concentration may result from uneven discharge caused by contamination.
Maintenance intervals depend on:
Operating voltage and duty cycle
Ambient dust and humidity
Process contamination level
Needle material and coating
Cleanroom environments: every 3–6 months
General industrial environments: monthly to quarterly
High‑contamination processes: weekly or bi‑weekly
Preventive maintenance ensures stable performance and avoids unexpected downtime.
Magnified visual inspection reveals contamination, corrosion, and tip damage.
Changes in discharge current and voltage indicate needle condition changes.
Faraday cups and ion balance meters provide quantitative performance assessment.
Dry air blowing and soft brushes remove loose particles without introducing moisture.
Isopropyl alcohol (IPA) and deionized water are commonly used for removing residues.
Ultrasonic baths effectively remove stubborn contamination but require careful control.
Advanced methods remove organic residues without physical contact.
Needles should be replaced when erosion or deformation exceeds acceptable limits.
Some designs allow controlled re‑sharpening under strict quality control.
Tungsten, stainless steel, and coated alloys offer different durability profiles.
Always power down and discharge the system before maintenance.
Adequate ventilation and personal protective equipment are essential.
ESD‑safe tools and procedures prevent damage to nearby equipment.
Strict contamination control and frequent inspection are required.
Ink mist and paper dust necessitate more aggressive cleaning schedules.
Thermal cycling accelerates needle degradation.
Detailed records help correlate performance trends with maintenance actions.
Monitoring current and ion output enables condition‑based maintenance.
Proper training reduces maintenance‑induced damage.
Clear SOPs ensure consistency across maintenance cycles.
Future trends include:
Self‑cleaning needle coatings
Real‑time condition monitoring
Modular needle replacement systems
Regular maintenance reduces downtime, extends service life, and lowers total cost of ownership.
Periodic maintenance of emission needles is essential for sustaining the performance, reliability, and safety of ion wind bars. Understanding degradation mechanisms and implementing structured maintenance strategies allow users to maintain stable ion output, minimize ozone generation, and extend equipment lifespan.
Rather than treating maintenance as a reactive task, manufacturers and users should integrate emission needle care into overall system design and operational planning. A disciplined, physics‑informed maintenance approach ultimately transforms ion wind bars from consumable devices into long‑term, high‑value industrial assets.
