Electrostatic discharge (ESD) remains one of the most critical reliability threats in modern electronic research laboratories, semiconductor fabrication facilities, aerospace electronics assembly areas, and precision metrology environments. As device geometries shrink into the nanometer scale and dielectric thicknesses approach atomic dimensions, tolerance to electrostatic potentials has dramatically decreased. Even discharges below 50 volts can induce latent defects, parametric drift, or catastrophic failure.

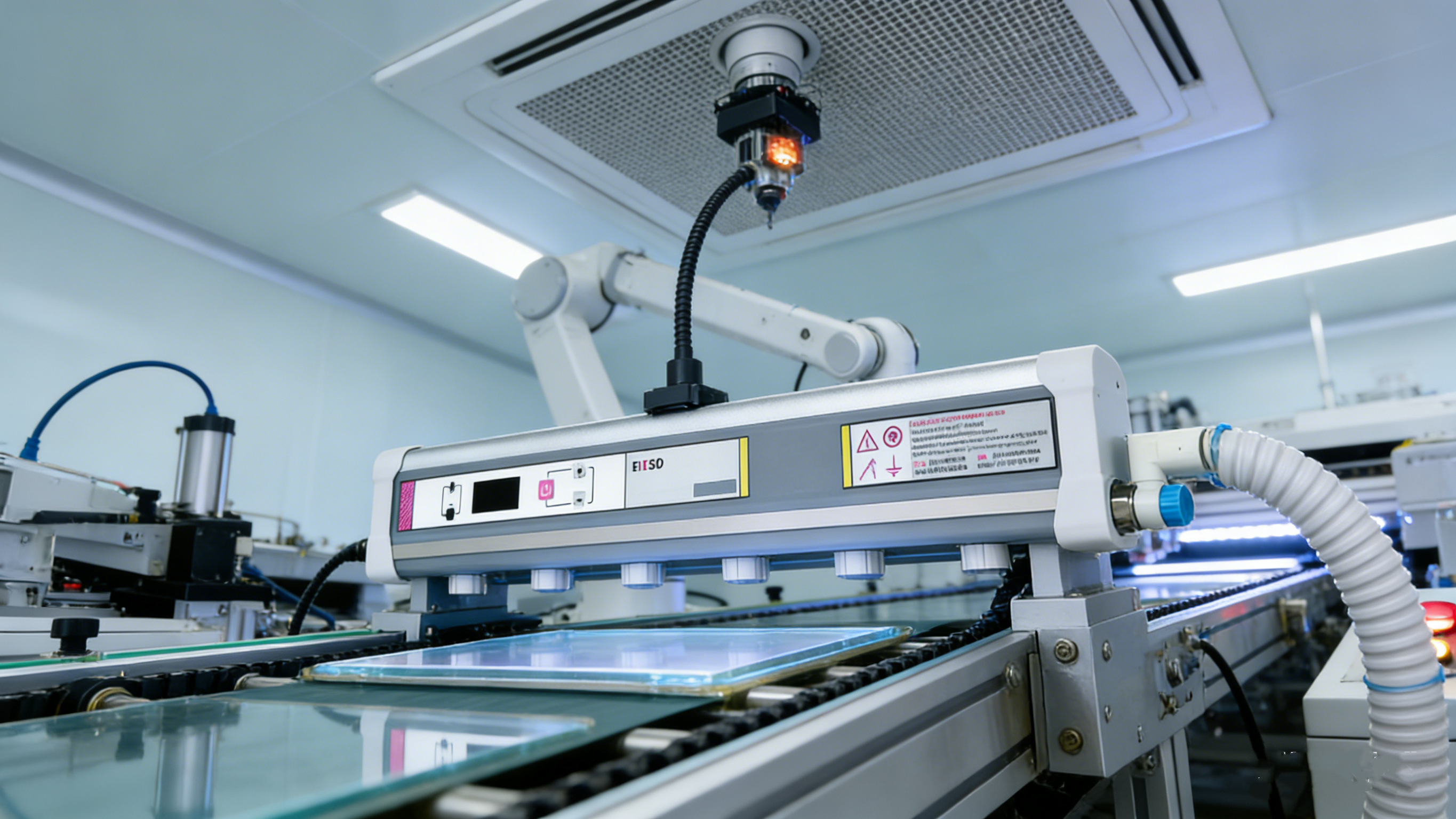

Ionizing air bars—commonly referred to as ion bars—are active static control devices designed to neutralize charges on insulating and isolated conductive surfaces. In ESD-sensitive laboratories, their precision performance directly determines process yield, device reliability, and compliance with international electrostatic control standards.
This paper presents a comprehensive technical analysis of precision requirements for ionizing air bars used in ESD-sensitive laboratories. It systematically examines performance metrics including ion balance (offset voltage), discharge time, spatial uniformity, ion current stability, environmental adaptability, airflow interaction, long-term drift, calibration methodology, compliance with global standards, reliability modeling, risk assessment, and future intelligent ionization technologies. The objective is to provide a rigorous engineering framework for specifying, testing, validating, and maintaining high-precision ion bars in advanced laboratory environments.
Historically, electronic components tolerated electrostatic voltages exceeding 1,000 V under the Human Body Model (HBM). Modern semiconductor devices fabricated at 7 nm, 5 nm, and below exhibit significantly reduced ESD robustness. Gate oxides are only a few atomic layers thick, making them vulnerable to electrical overstress at very low potentials.
Laboratory environments handling:
Bare silicon wafers
MEMS devices
CMOS image sensors
RF front-end modules
Aerospace microelectronics
Medical implant electronics
must control static to levels previously considered negligible.
Conventional ESD control measures include:
Grounded workstations
Conductive flooring
Wrist straps
ESD garments
Grounded shelving
Static dissipative materials
These methods effectively control conductive objects but fail to neutralize charges on:
Plastics
Glass
Ceramics
Composite materials
Floating metal parts
Wafer carriers
Photomasks
Ionization becomes essential when insulators are present.
Most ion bars generate ions using corona discharge. A high-voltage electric field applied to sharp emitter needles ionizes surrounding air molecules. Positive or negative ions are formed and transported toward charged surfaces by electrostatic forces and airflow.
Key processes include:
Electron avalanche formation
Ion drift
Recombination
Surface charge neutralization
The balance between positive and negative ion generation determines system precision.
Alternating current systems switch polarity at line frequency. Simpler but less precise.
Separate high-voltage supplies produce positive and negative ions continuously.
Alternates polarity at programmable frequencies for improved symmetry.
Uses low-energy X-rays to ionize air without corona needles; suitable for ultra-clean labs.
Ion balance refers to the residual voltage remaining after charge neutralization.
Measured using a Charged Plate Monitor (CPM) in accordance with ANSI / ESDA STM3.1 methodology.
| Environment | Offset Requirement |
|---|---|
| General lab | ±30 V |
| Aerospace lab | ±15 V |
| Semiconductor backend | ±10 V |
| Wafer fab front-end | ±5 V |
| Advanced nanodevice R&D | ±2–3 V |
Offset stability over time must remain within ±3 V between calibration cycles.
Measured from ±1000 V to ±100 V.
Typical requirements:
Standard lab: ≤1.5 s
High-performance lab: ≤1.0 s
Wafer handling area: ≤0.5 s
Symmetry between positive and negative decay times must remain within 10%.
Ion distribution across working width:
Industrial: ±20%
Precision lab: ±10%
Semiconductor critical zone: ±5%
Uniformity ensures consistent neutralization across entire process areas.
Fluctuation limits:
±5% over 8 hours (industrial)
±2% (advanced lab)
±1% (closed-loop systems)
Optimal range: 40–60% RH.
Below 30% RH:
Ion recombination behavior changes
Offset drift increases
Neutralization time lengthens
High-end ion bars integrate compensation algorithms.
Acceptable drift: ±3 V over 20–30°C range.
Cleanrooms (ISO Class 5) operate at ~0.45 m/s vertical laminar airflow.
Precision ion bars must maintain balance within ±5 V under airflow variation.
Defines system-level ESD control programs.
International ESD protection framework.
Specifies ionizer performance in semiconductor manufacturing.
Front-end fabs often require SEMI E78 compliance.
Charged Plate Monitor
Electrostatic field meter
High-voltage probe
General lab: every 6 months
Semiconductor fab: every 3 months
Ultra-precision R&D: monthly
Dust and oxidation alter corona characteristics.
Component drift affects output symmetry.
Gradual degradation changes ion production ratio.
Acceptable annual drift:
Offset ≤ ±5 V
Decay time ≤ 10% variation
Corona discharge produces ozone (O₃).
Laboratory limits typically:
≤0.05 ppm (8-hour exposure)
Precision systems optimize emitter geometry to reduce ozone output.
High-quality ion bars: >50,000 operating hours.
Power supply failure
Emitter breakage
Feedback sensor malfunction
Internal contamination
Redundant ionization systems are recommended in critical wafer transport zones.
Offset drift above 20 V may cause:
Latent oxide damage
Parametric shifts
Yield reduction
Reliability degradation
Hypothetical modeling indicates:
3% yield loss in 300 mm wafer fab may result in multi-million-dollar annual losses.
Modern systems integrate:
Real-time offset sensors
Automatic voltage compensation
Environmental sensing
IoT monitoring
Precision achievable: ±2 V.
Specification:
Offset ≤ ±5 V
Decay time ≤ 0.5 s
Uniformity ≤ ±5%
Monthly calibration
After implementation of closed-loop pulsed DC system:
Yield improved by 1.8%
Latent failure rate reduced
Static-related excursions eliminated
Cost of high-end ionization system:
$3,000–$10,000 per unit.
Potential loss from ESD excursion in advanced fab:
$1M per event.
Return on investment is highly favorable.
AI-driven adaptive ionization
Needle-free plasma emitters
Ultra-low ozone architecture
Integrated cleanroom monitoring networks
Sub-±1 V balance capability
For advanced ESD-sensitive laboratories:
Offset Voltage: ≤ ±5 V
Decay Time: ≤ 0.5 s
Uniformity: ≤ ±5%
Ion Current Stability: ±2%
Drift Between Calibration: ≤ ±3 V
Ozone Emission: ≤ 0.05 ppm
MTBF: ≥ 50,000 hours
Closed-loop control required
Precision requirements of ionizing air bars in electrostatic discharge-sensitive laboratories have evolved significantly due to the extreme vulnerability of modern semiconductor devices. Ion balance, discharge time, spatial uniformity, environmental robustness, and long-term stability are no longer secondary performance characteristics but critical determinants of process integrity and yield stability.
Advanced laboratories—particularly semiconductor front-end wafer fabrication facilities—require ionization systems capable of maintaining ±5 V or better balance with rapid decay times under laminar airflow conditions. Closed-loop pulsed DC systems represent the current state-of-the-art solution for achieving these stringent precision levels.
Proper specification, calibration, maintenance, and monitoring of ion bars are essential engineering practices in modern ESD-sensitive laboratory environments.
