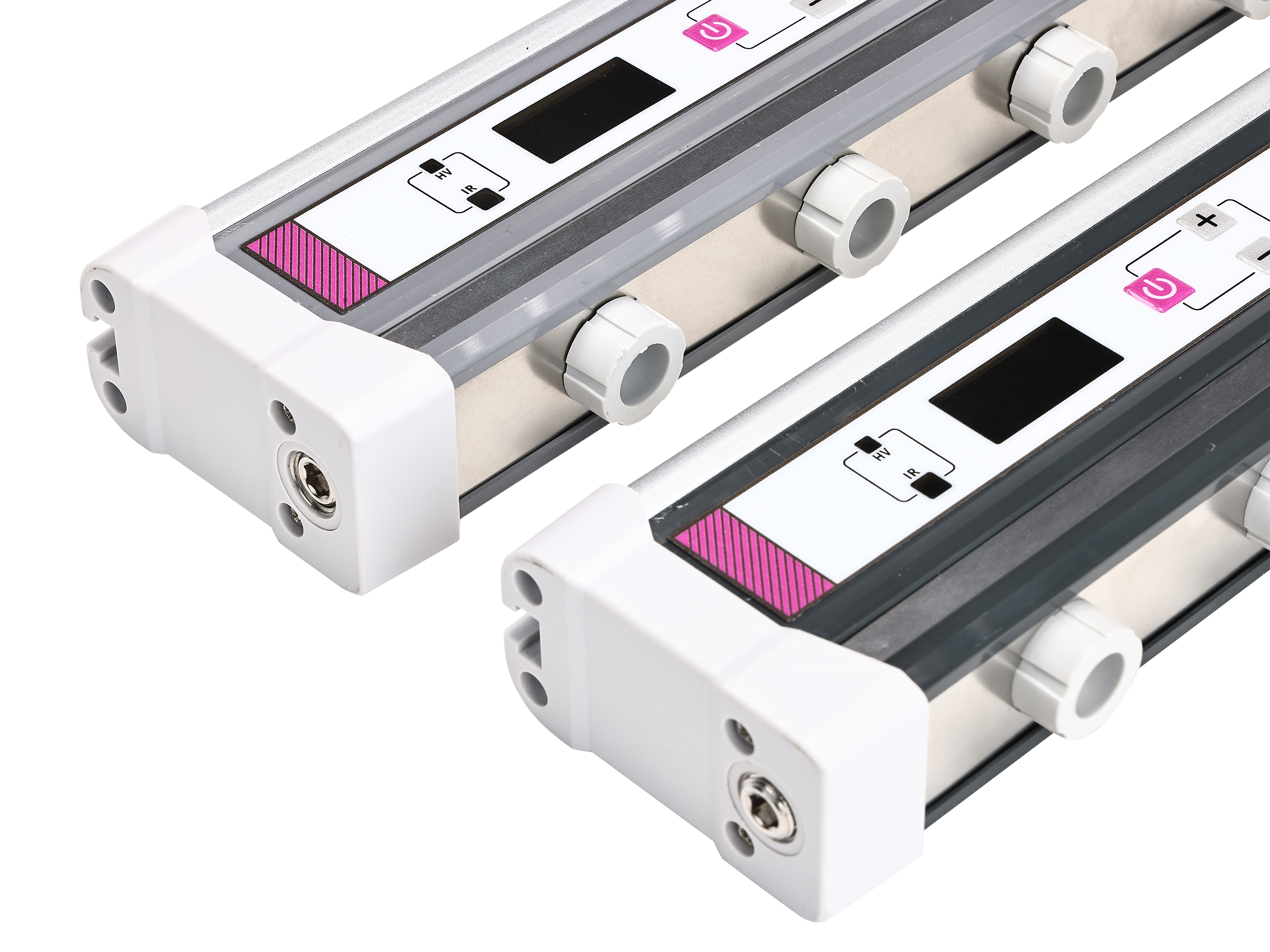

Ion emitter needles are the core functional components of ionizing air bars and ionizing air blowers. Their material properties directly determine ionization efficiency, ion balance stability, ozone generation, service lifetime, and long-term reliability. As manufacturing processes move toward higher precision, smaller feature sizes, and stricter contamination control, nano-scale ion emitter needle materials have emerged as a critical enabler for next-generation ionization systems.
Recent advances in nanomaterials, surface engineering, and microfabrication have fundamentally changed how ion emitter needles are designed and manufactured. This white paper reviews the latest developments in nano-scale ion emitter needle materials, focusing on material classes, fabrication technologies, performance mechanisms, and future application trends.
Ion emitter needles generate ions through corona discharge when a high electric field is applied at their tips. The local electric field strength is strongly dependent on the radius of curvature of the needle tip.
A smaller tip radius results in:
Lower corona onset voltage
Higher ionization efficiency
Improved response speed
Traditional ion emitter needles are typically manufactured from stainless steel or tungsten with micron-scale tip radii. These designs face several limitations:
Higher operating voltage
Faster tip degradation
Greater sensitivity to contamination
Limited control over ion emission symmetry
Nano-scale ion emitter needles refer to emitter structures with effective tip radii on the order of tens to hundreds of nanometers. At this scale, electric field enhancement effects become significantly stronger and more controllable.
Key advantages include:
Reduced corona voltage
More uniform ion emission
Lower ozone generation
Enhanced stability over time
Nanostructured tungsten remains a leading candidate due to its high melting point, mechanical strength, and resistance to erosion.
Recent progress includes:
Electrochemical etching for nano-tip formation
Grain refinement to improve durability
Surface passivation to reduce oxidation
CNTs exhibit extremely small tip radii and exceptional electrical conductivity. Their high aspect ratio enables ion emission at very low voltages.
Challenges include:
Tip-to-tip uniformity
Long-term mechanical stability
Integration into industrial-scale devices
Graphene-based emitters offer excellent electrical and thermal properties, though large-scale manufacturing remains complex.
Silicon nano-tips fabricated using MEMS techniques allow precise control of geometry and emitter arrays. However, their erosion resistance is generally lower than metallic alternatives.
Advanced ceramics and metal–ceramic composites combine high hardness with improved chemical stability, making them attractive for harsh environments.
Controlled electrochemical etching enables reproducible nano-tip formation in metals such as tungsten.
Photolithography and deep reactive ion etching (DRIE) allow the creation of dense nano-emitter arrays with high uniformity.
Emerging additive techniques enable complex emitter geometries and material gradients at the nano-scale.
Ultra-thin coatings, such as diamond-like carbon (DLC) and metal oxides, protect nano-tips from erosion and contamination.
Surface treatments can tailor work function and emission characteristics, improving ion balance stability.
Nano-scale tips achieve corona discharge at lower voltages, reducing power consumption and thermal stress.
More uniform emission reduces asymmetry between positive and negative ions.
Lower voltage operation correlates with reduced ozone formation, critical for cleanroom environments.
Nano-scale emitters face unique wear mechanisms, including ion bombardment and chemical attack.
Advanced materials and coatings improve resistance to particle adhesion and chemical contamination.
Nano-scale ion emitter needles support ultra-low ion balance requirements and contamination-sensitive processes.
Stable ion emission enhances both safety and yield.
Key challenges include cost, manufacturability, and consistency across large production volumes.
New materials require updated test methods to evaluate durability, emission stability, and contamination risk.
Patents increasingly focus on nano-structured emitter designs and surface treatments.
Future research will emphasize:
Hybrid material systems
Self-healing emitter surfaces
AI-assisted material optimization
Advances in nano-scale ion emitter needle materials are reshaping the performance boundaries of ionization technology. By enabling lower voltage operation, enhanced stability, reduced ozone generation, and longer service life, these materials form the foundation of next-generation intelligent ionizing systems. Continued progress in materials science, fabrication, and surface engineering will further expand their industrial adoption and strategic importance.
At nanometer-scale radii of curvature, electric field enhancement follows a highly non-linear relationship. Compared with micron-scale emitters, nano-scale tips can generate equivalent ionization strength at significantly lower applied voltages. This reduces electrical stress on the high-voltage supply and minimizes secondary discharge phenomena.
Nano-scale field concentration leads to more stable corona discharge regimes, reducing micro-arcing events that contribute to noise, ozone generation, and long-term erosion.
Experimental studies consistently show a 20–50% reduction in corona onset voltage when nano-scale emitter needles are employed.
Nano-structured emitters exhibit improved spatial uniformity, supporting tighter ion balance tolerances in precision applications.
Lower operating voltages and stabilized discharge significantly reduce ozone generation, a critical requirement for cleanroom and semiconductor environments.
Nano-scale features are inherently susceptible to mechanical damage. Reinforcement strategies include gradient structures and composite layering.
Core–shell nano-emitter designs combine a mechanically robust core with a nano-engineered emission surface.
Nano-scale emitters operate with lower thermal load, but localized heating effects require careful material selection and thermal pathways.
Sustained ion bombardment can alter surface morphology over time. Advanced coatings slow these processes.
Surface passivation layers significantly improve resistance to oxidation and chemical attack.
Nano-scale surfaces interact differently with airborne particles and molecular contaminants. Hydrophobic and anti-adhesion coatings reduce fouling risk.
Nano-scale emitter materials enhance the responsiveness and stability of closed-loop ion balance control systems by providing predictable emission characteristics.
Stable nano-scale emission supports accurate sensing and reliable data generation for wireless monitoring ionizing systems.
Scaling nano-emitter production from laboratory to mass manufacturing requires tight process control and inline inspection strategies.
Although nano-scale emitters may carry higher initial costs, extended lifetime and reduced maintenance often result in lower total cost of ownership.
New accelerated life tests are being developed to characterize nano-emitter durability under realistic operating conditions.
Nano-emitter materials must meet stringent outgassing, particle shedding, and chemical compatibility requirements.
Patent activity indicates increasing focus on hybrid materials, surface treatments, and manufacturing processes.
Lower power consumption and longer service life contribute to improved sustainability metrics.
Near-term adoption will focus on high-end semiconductor and display manufacturing, with broader adoption as costs decline.
Collaboration between materials science, plasma physics, and control engineering will accelerate innovation.
The rapid advancement of nano-scale ion emitter needle materials represents a foundational shift in ionization technology. By addressing long-standing limitations of traditional emitters, nano-engineered materials unlock new levels of performance, stability, and integration capability. Their synergy with intelligent control, wireless monitoring, and smart manufacturing architectures positions nano-scale emitters as a critical enabling technology for the next generation of ionizing air bars and ESD control systems.
Beyond achieving an ultra-small average tip radius, future nano-scale ion emitter needle development focuses on controlling the distribution of tip radii across production batches. A narrow statistical distribution ensures consistent corona onset voltage, predictable ion current output, and uniform aging behavior across large arrays of emitters.
Advanced process control techniques, including in-situ monitoring and post-fabrication metrology, are increasingly employed to manage this variability.
High aspect ratio nano-emitters improve field enhancement but may introduce directional emission effects. Optimized geometries balance emission efficiency with spatial ion distribution to support uniform ionization across wide process areas.
While early nano-emitter concepts focused on individual needles, modern designs increasingly employ nano-emitter arrays. Arrays distribute emission load, reduce stress on individual tips, and enhance redundancy.
Array architectures inherently tolerate partial emitter degradation without catastrophic performance loss, significantly improving system robustness.
Nano-scale emitters respond differently to various excitation waveforms. Pulsed and asymmetric waveforms can further reduce ozone generation while maintaining ionization efficiency.
Optimized waveforms minimize peak stress on nano-tips, slowing erosion and extending operational lifetime.
Future ionizing systems will increasingly adopt a co-design philosophy, where emitter material properties and high-voltage electronics are developed as an integrated system rather than independently.
Inspecting nano-scale emitter features at production scale presents significant challenges. Techniques such as SEM sampling, optical scatterometry, and electrical proxy measurements are being combined to ensure quality.
Manufacturing data analytics enable early detection of process drift, improving yield and consistency.
Despite extended lifetimes, nano-emitter assemblies must be designed for safe replacement. Modular emitter cartridges reduce downtime and contamination risk during service.
The adoption of nano-scale emitters influences certification processes and customer qualification. Clear documentation and performance validation accelerate acceptance in conservative industries.
Nano-scale emitters provide stable, low-noise ionization data, enhancing the effectiveness of smart manufacturing analytics, SPC, and AI-driven optimization.
In the long term, nano-scale ion emitter materials will converge with intelligent control, wireless monitoring, and autonomous maintenance to form fully self-optimizing ESD control ecosystems.
The continued evolution of nano-scale ion emitter needle materials represents more than an incremental materials improvement—it is a systemic enabler for the next generation of ionization technology. Through optimized geometry, array-based architectures, waveform co-design, and data-driven manufacturing control, nano-scale emitters deliver unprecedented performance consistency, reliability, and integration potential. As these materials mature and scale, they will underpin intelligent, connected, and autonomous ionization systems that meet the escalating demands of advanced manufacturing environments.
