Part I: Physical Foundations and Fundamental Transport Mechanisms

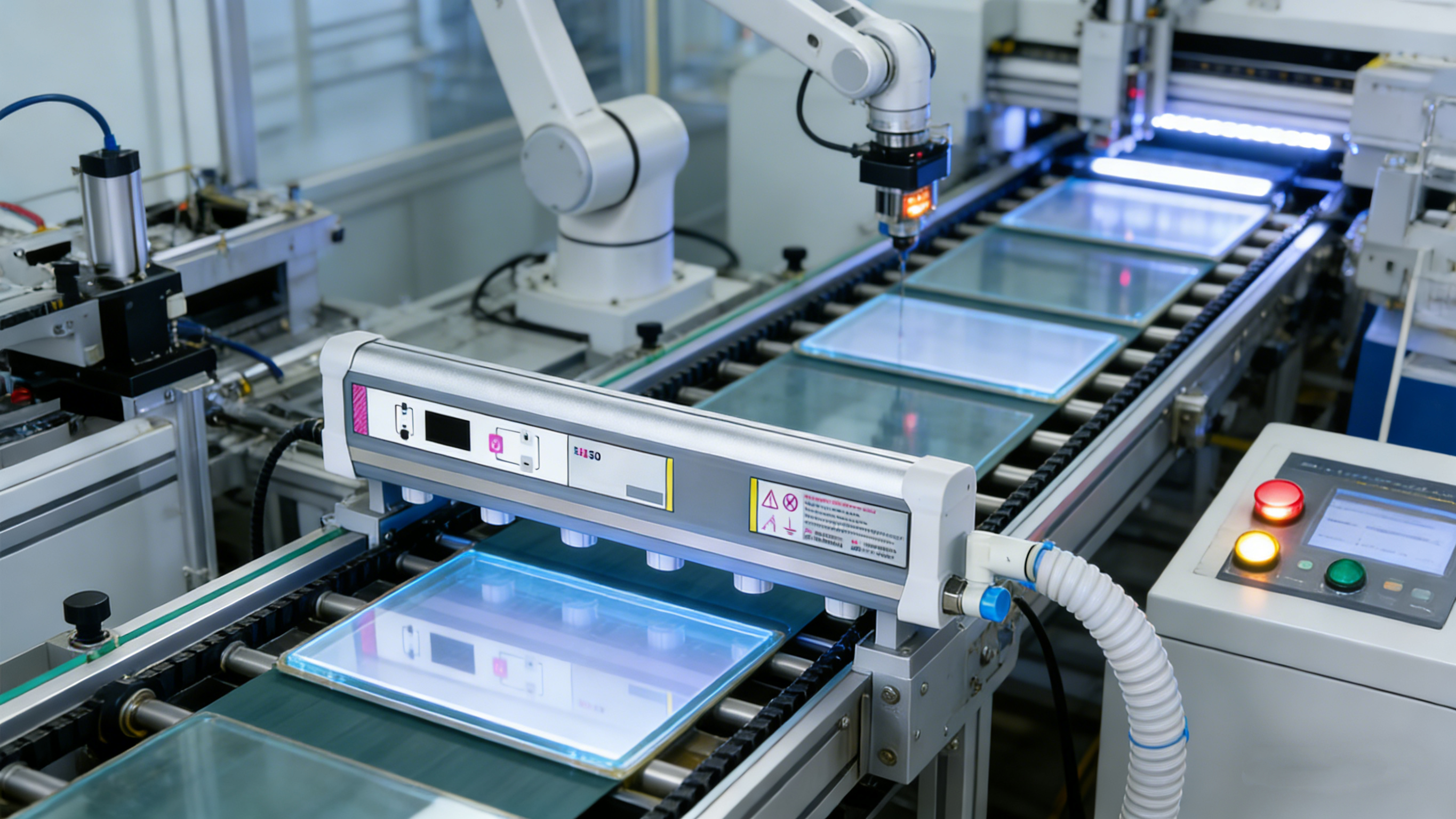

Ion wind bars are widely used for electrostatic charge neutralization in industrial environments such as semiconductor manufacturing, flat panel display production, pharmaceutical packaging, and precision assembly. One of the most critical performance indicators of an ion wind bar is the charge neutralization speed, commonly quantified by ion decay time. While ion generation mechanisms have been extensively studied, the role of airflow velocity—both its magnitude and spatial variation—remains insufficiently understood despite its dominant influence on ion transport.
This article presents a comprehensive investigation into the relationship between airflow velocity variation and charge neutralization speed in ion wind bars. Part I focuses on the physical foundations of ion transport under forced airflow, examining the interplay between convection, electric-field-driven drift, diffusion, and ion loss mechanisms. The fundamental reasons why airflow velocity often dominates neutralization performance are analyzed, setting the stage for quantitative modeling and experimental validation in subsequent parts.
Ion wind bar; airflow velocity; charge neutralization speed; ion transport; electrostatic discharge; forced convection
Electrostatic charge accumulation poses persistent challenges in modern industrial environments, particularly in sectors where product miniaturization, high sensitivity, and contamination control are critical. Ion wind bars—also referred to as ionizing air bars or ionizers—have become indispensable tools for mitigating electrostatic hazards by generating and delivering streams of positive and negative ions to charged objects.
In practice, users frequently observe that changes in airflow velocity—whether due to supply pressure variation, fan speed adjustment, nozzle design, or environmental airflow interference—produce disproportionately large changes in charge neutralization speed. In many cases, variations in airflow velocity exert a stronger influence on neutralization performance than changes in ion generation voltage or emitter geometry.
Despite this empirical importance, airflow velocity is often treated as a secondary or purely auxiliary parameter in ionizer design and performance specifications. This oversight has led to misunderstandings, suboptimal system configurations, and inconsistent real-world performance.
This paper aims to systematically analyze the relationship between airflow velocity variation and charge neutralization speed in ion wind bars. Part I establishes the physical and conceptual framework necessary to understand why airflow velocity plays a dominant role in ion-based charge neutralization.
Ion wind bars typically employ high-voltage corona discharge at sharp emitter points to ionize surrounding air molecules. Depending on the power supply design, ions may be generated via:
Alternating current (AC) corona
Pulsed DC corona
Steady-state DC corona with polarity switching
The ion generation rate is primarily governed by emitter geometry, applied voltage, and local electric field intensity.
Unlike passive ionizers that rely on diffusion and electric drift alone, ion wind bars intentionally introduce forced airflow to transport ions from the emitter region to the target surface. This airflow may be generated by:
Compressed air supply
Integrated fans or blowers
External airflow systems
In most practical systems, forced convection becomes the dominant ion transport mechanism.
Charge neutralization speed is commonly quantified using a charged plate monitor (CPM). The neutralization process is characterized by the decay of surface voltage from an initial value V0V_0V0 to a specified lower threshold.
For many systems, the decay can be approximated as exponential:
V(t)=V0exp(−t/τ)V(t) = V_0 \exp(-t / \tau)V(t)=V0exp(−t/τ)
where τ\tauτ is the decay time constant.
The decay time constant is inversely proportional to the net ion flux reaching the charged surface:
τ∝1Φion\tau \propto \frac{1}{\Phi_{\text{ion}}}τ∝Φion1
Airflow velocity directly controls this ion flux by determining how efficiently ions are transported before recombination or loss.
Ions experience a drift velocity under an electric field:
vd=μEv_d = \mu Evd=μE
where μ\muμ is ion mobility and EEE is electric field strength.
However, in ion wind bars, the electric field outside the immediate emitter region is often weak compared to aerodynamic forces.
Ion diffusion contributes to transport only over short distances or in low-flow conditions. In most industrial ion wind bars, diffusion plays a secondary role compared to convection.
The convective transport velocity vcv_cvc is approximately equal to the local airflow velocity. When:
vc≫vdv_c \gg v_dvc≫vd
ion motion becomes airflow-dominated, making airflow velocity the primary determinant of transport efficiency.
Consider an ion traveling a distance LLL from the emitter to the target.
Drift time:
td=LμEt_d = \frac{L}{\mu E}td=μEL
Convective transport time:
tc=Lvairt_c = \frac{L}{v_{\text{air}}}tc=vairL
In typical ion wind bars, tc≪tdt_c \ll t_dtc≪td, highlighting the dominance of airflow.
Ions have finite lifetimes due to recombination and attachment. Faster airflow reduces residence time in the air, increasing the probability that ions reach the target before being lost.
Higher airflow velocity increases ion delivery rate but also dilutes ion concentration by expanding the airflow volume. The net effect depends on the balance between transport speed and dilution.
Spatial ion density n(x)n(x)n(x) is governed by:
dndx=−nvairτloss\frac{dn}{dx} = -\frac{n}{v_{\text{air}} \tau_{\text{loss}}}dxdn=−vairτlossn
indicating that higher airflow velocity flattens ion density decay profiles.
Ion–ion recombination probability increases with residence time. Increasing airflow velocity reduces residence time, suppressing recombination losses.
At excessively high airflow velocities, turbulence and enhanced mixing can increase ion loss to surrounding surfaces, partially offsetting gains.
Near the target surface, airflow velocity decreases due to boundary layer formation. Ion transport into this region becomes diffusion- and field-assisted.
If airflow velocity is insufficient to penetrate the boundary layer, ion delivery to the surface becomes inefficient, slowing neutralization.
Misaligned airflow reduces effective ion flux even at high velocities.
Variations in airflow velocity along the length of an ion wind bar lead to non-uniform neutralization performance.
Differences in mobility between positive and negative ions can cause airflow-dependent imbalance.
Changing airflow velocity alters relative transport efficiency of ion species, impacting balance stability.
Field observations consistently show:
A threshold airflow velocity below which neutralization is ineffective
A quasi-linear improvement regime
A saturation regime where further velocity increases yield diminishing returns
Manufacturer-specified decay times often assume fixed airflow conditions. Without airflow normalization, such metrics lack portability across installations.
Part II: Quantitative models linking airflow velocity to ion flux and decay time
Part III: Experimental methods and empirical results
Part IV: Engineering optimization and design guidelines
Airflow velocity is a primary control parameter governing charge neutralization speed in ion wind bars. By dominating ion transport time scales, influencing recombination losses, and shaping ion density distributions, airflow velocity exerts a decisive influence on real-world performance. Understanding this relationship is essential for both accurate performance evaluation and effective system design.
