Metallized plastic components are widely used across consumer electronics, automotive interiors, aerospace applications, and high-precision manufacturing due to their lightweight, cost-effectiveness, and decorative or functional conductive coatings. However, these components are prone to residual static accumulation resulting from molding, metallization processes, handling, and environmental interactions. Residual static can lead to electrostatic discharge (ESD), dust attraction, handling difficulties, and even functional failure in sensitive applications. This article presents a comprehensive analysis of residual static phenomena in metallized plastics, including charge generation mechanisms, material and coating considerations, measurement techniques, static dissipation methods, grounding strategies, ionization, process integration, environmental management, simulation and modeling, and best practices for production and quality assurance. The aim is to provide engineers, designers, and manufacturing specialists with a systematic framework for managing and mitigating residual static in metallized plastic components.
Keywords: metallized plastic, residual static, electrostatic discharge, static dissipation, ESD control, ionization, conductive coating
Metallized plastic components combine the lightweight properties of polymers with the conductive and decorative qualities of metal coatings. Common applications include:
Consumer electronics casings (smartphones, laptops)
Automotive interior and exterior parts
Aerospace panels and instrumentation
High-precision mechanical assemblies
Despite their advantages, metallized plastics are inherently susceptible to static accumulation. Factors contributing to residual static include:
Triboelectric effects during handling and assembly
Electrostatic induction from nearby charged objects
Residual charges from electroplating, vacuum metallization, or sputtering processes
Insulating properties of the underlying plastic substrate, which limit natural charge dissipation
Residual static can have several negative consequences:
Electrostatic discharge (ESD) damaging sensitive electronics
Dust and particle attraction impacting aesthetics or assembly precision
Adverse interaction during robotic or automated handling
Safety risks in explosive or flammable environments
Given the prevalence of metallized plastics and their sensitivity to electrostatic phenomena, a robust approach to residual static management is essential.
Triboelectric charging occurs when two materials come into contact and separate, resulting in electron transfer. In metallized plastics, triboelectric effects can occur between:
Components and handling gloves
Conveyor belts and carrier trays
Robotic grippers and surfaces
The magnitude of charge is influenced by the polymer substrate, metal coating, surface finish, humidity, and contact pressure.
Residual charges can arise via electrostatic induction when metallized components are exposed to external electric fields from adjacent equipment, high-voltage sources, or charged personnel. Induced charge distribution can be non-uniform, leading to localized high-voltage regions.
Manufacturing processes can impart significant residual charges:
Vacuum metallization introduces charges during metal deposition
Electroplating processes may leave net charges on the surface
Injection molding can generate charge due to material flow and contact with molds
Low relative humidity and dry environments exacerbate charge retention. Static dissipation is slower in dry conditions due to higher surface resistivity, which can prolong exposure to electrostatic hazards.
Plastic substrates influence residual static behavior. Common polymers include ABS, polycarbonate, PMMA, and blends. Factors affecting static accumulation include:
Bulk resistivity
Surface roughness
Additives and fillers
Various metallization techniques affect surface conductivity and residual charge dissipation:
Vacuum Metallization: Evaporation or sputtering creates thin metallic coatings with moderate conductivity
Electroless Plating: Chemical deposition of metals for uniform coverage
Electroplating: Adds thicker metal layers with excellent conductivity but may introduce localized charge points
Metallic Paints or Sprays: Conductivity depends on metal particle concentration and binder properties
Uniform, continuous metallic coatings facilitate rapid charge dissipation. Discontinuities, scratches, or thin areas can act as high-resistivity zones, trapping residual charges.
Surface treatments such as antistatic coatings, conductive topcoats, or plasma treatment can enhance charge dissipation without compromising appearance or functionality.
Electrostatic voltmeters and non-contact field meters are used to measure surface potential. High spatial resolution allows identification of localized high-charge regions.
Charge decay tests evaluate how rapidly accumulated charge dissipates. Standardized methods include the use of corona chargers or controlled triboelectric charging, followed by measurement of voltage decay over time.
Surface and volume resistivity measurements determine the effectiveness of conductive coatings. Lower resistivity corresponds to faster natural charge dissipation.
High-speed production lines benefit from continuous monitoring using inline sensors, enabling real-time detection of high static conditions and adaptive mitigation.
Connecting metallized plastic components to a grounded path allows residual charges to safely dissipate. Considerations include:
Flexible grounding leads for handling and transport
Conductive carriers or trays
Proper interface with robotic or automated handling systems
Ionizers neutralize charges by generating positive and negative ions that recombine with surface charges. Applications include:

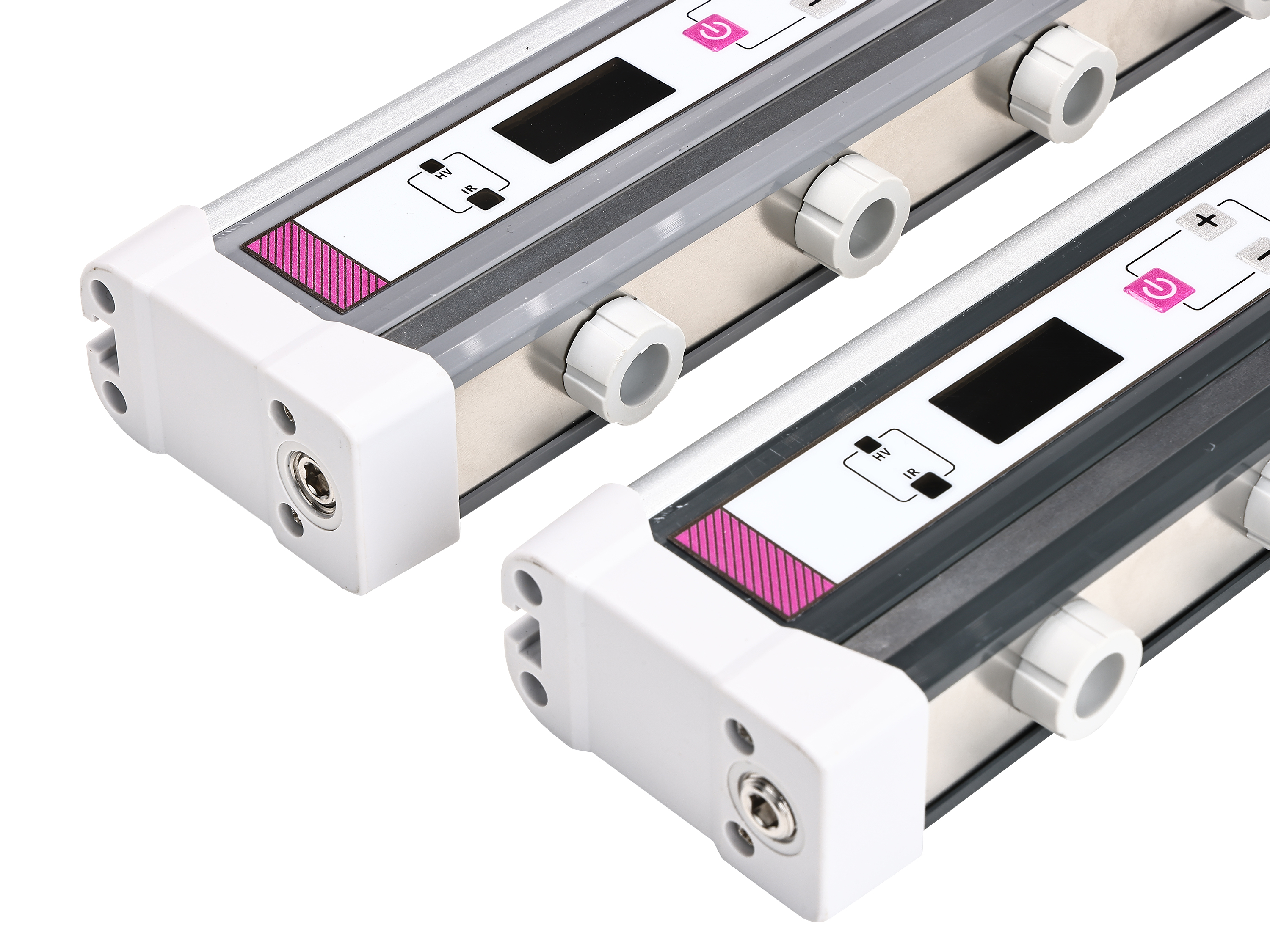

Overhead ion bars for batch processes
Tool-integrated ionizers for robotic pick-and-place systems
Conveyor-mounted ionization for continuous production
Balanced ionization with low offset voltage ensures effective neutralization without introducing additional charge.
Applying antistatic or dissipative coatings to plastic substrates or metallic surfaces reduces surface resistivity and facilitates charge decay. Materials include polymer blends with conductive fillers or thin conductive films.
Humidity control, temperature regulation, and airflow management can significantly influence static accumulation. Target humidity is typically 40–60% RH, balancing charge dissipation and condensation prevention.
Incorporating conductive fillers (carbon black, metal flakes, conductive polymers) within the substrate or coating can enhance bulk conductivity. Careful selection ensures minimal impact on mechanical or aesthetic properties.
Strategic ordering of handling, metallization, and assembly steps minimizes opportunities for charge accumulation. For example, grounding or ionization may be applied immediately after metallization before further handling.
Mold design, gate location, and injection parameters influence charge generation. Conductive molds or antistatic coatings on mold surfaces can reduce triboelectric effects.
Proper grounding of fixtures, transport carriers, and plating baths prevents residual charge accumulation. Controlled ionization near deposition areas reduces localized high voltage spots.
Robotic handling systems should integrate ionizers, grounding paths, and dissipative grippers to manage residual static on metallized components. High-speed motion control and alignment accuracy are maintained while minimizing electrostatic risk.
Dissipative trays, conductive bags, and static-shielding materials prevent charge build-up during storage and shipping. Proper labeling and handling protocols ensure continued ESD protection throughout the supply chain.
FEM can model electric field distribution on complex metallized plastic geometries. Critical regions prone to high surface potential are identified for targeted mitigation.
Simulating charge dissipation over time under various environmental conditions informs ionizer placement, grounding design, and coating requirements.
Predictive models simulate contact and separation events between plastics and other materials, estimating charge generation rates and identifying high-risk interactions.
Combining triboelectric, field, and decay models with production line simulation allows optimization of static control strategies across the entire manufacturing workflow.
Components and assemblies are subjected to ESD testing to evaluate susceptibility and validate mitigation measures. Both human-body model (HBM) and charged-device model (CDM) tests are applicable.
Sensors on conveyors, robotic tools, and assembly stations provide continuous measurement of surface potential, ionization effectiveness, and environmental parameters.
Adherence to ANSI/ESD standards (S20.20, S541, IEC 61340) ensures industry-recognized protection levels. Proper documentation supports audits and traceability.
Exposure to environmental cycles, mechanical handling, and operational conditions ensures that residual static management strategies remain effective over the component’s lifecycle.
Integration of ionization, grounding carriers, and antistatic coatings reduced dust attraction and ESD-related defects by 80% in smartphone assembly lines.
Grounded handling systems and dissipative coatings prevented spark-induced surface damage and improved cosmetic quality in high-volume production.
Vacuum metallized panels with integrated ionization and monitoring ensured residual static remained below 50 V, meeting stringent reliability standards.
Combination of conductive fillers in substrate, ionization, and environmental control reduced component misalignment due to static forces during assembly.
Real-time feedback systems adjust ionizer output based on measured surface potential, ensuring rapid neutralization without introducing contamination.
Development of nanoscale conductive coatings enhances charge dissipation while maintaining optical and aesthetic properties of metallized plastics.
Machine learning algorithms predict residual static behavior based on process, material, and environmental data, enabling proactive control strategies.
IoT-enabled sensors and MES integration provide continuous monitoring, real-time alerts, and adaptive static mitigation across manufacturing lines.
Research into water-based conductive coatings, recyclable conductive fillers, and low-energy ionization supports environmental sustainability while maintaining effective static control.
Managing residual static in ultra-thin or flexible metallized plastics
Balancing conductivity, aesthetics, and mechanical properties
Minimizing contamination and chemical interactions from coatings or ionization
Developing universal predictive models applicable across diverse materials and processes
Optimizing process integration for automated and high-speed assembly environments
Residual static in metallized plastic components presents significant challenges across electronics, automotive, aerospace, and precision manufacturing applications. Understanding charge generation mechanisms, selecting appropriate materials and coatings, implementing ionization and grounding strategies, controlling environmental factors, and integrating these measures into the production process are essential for effective static management. Advanced modeling, inline monitoring, and smart control systems further enhance residual static mitigation. By adopting a systematic approach, manufacturers can ensure product reliability, reduce ESD-related failures, and improve handling, assembly, and aesthetic outcomes in metallized plastic components.
