Safety labeling is a fundamental requirement for any equipment operating with high voltage, electrostatic discharge control, or electrical ionization mechanisms. Ionizing air bars—commonly used in electronics manufacturing, printing, packaging, semiconductors, and precision assembly lines—must include clear, durable, standardized safety labels to ensure safe installation, operation, and maintenance. This document presents a comprehensive, in‑depth guide outlining the safety labeling standards, design principles, regulatory requirements, hazard classifications, and best practices for implementing safety labels on ionizing air bar systems.
Safety labels communicate essential warnings, operational restrictions, and hazard awareness to users. They:
Prevent improper handling of high‑voltage components.
Reduce risk of electric shock, ESD damage, and arc discharge accidents.
Communicate environmental and maintenance limitations.
Ensure compliance with international safety regulations.
Serve as permanent, visible reminders of equipment risks.
In ionizing air bars, labeling is especially critical because the hazards are not always visually apparent—high voltage corona discharge is invisible, and internal power circuits may remain energized even when airflow appears inactive.
Ionizing air bar safety labels must comply with the following standards and regulatory guidelines:
ISO 7010: Standardized safety symbols and graphical hazard warnings.
IEC 61010 / IEC 61340: Electrical and ESD equipment safety requirements.
ANSI Z535 Series: Safety colors, signal words, and label formatting.
UL/CE Marking Requirements: Certification labels and compliance markings.
RoHS/REACH: Material safety, toxicity restrictions on labeling substrates.
OSHA Standards: Workplace hazard communication requirements.
These standards provide definitions for warning colors, hazard levels, text formatting, and minimum label dimensions.
Ionizing bars present several distinct hazard categories:
High Voltage Hazard: Corona discharge electrodes typically operate at 3–7 kV.
Electrical Shock Risk: Internal power supplies retain charge after shutdown.
ESD‑Sensitive Zones: Improper contact may disrupt sensitive electronic components.
Pinch/Mechanical Install Risk: Sharp electrode tips may puncture skin.
Moisture/Condensation Hazard: Can cause short circuits or arcing.
Fire Hazard: Damage to insulation or wiring may result in ignition.
Each hazard classification requires specific symbols and warnings.
The following standardized symbols are recommended:
High Voltage (ISO 7010–W012): Triangle with lightning bolt.
Electrical Shock Hazard: Hand with lightning symbol.
ESD Protective Symbol (IEC 61340): Reaching hand over electrostatic triangle.
Mandatory Disconnect Symbol: Unplug before service.
General Warning Symbol: Exclamation mark in a yellow triangle.
No Liquids Symbol: Droplet crossed out.
Do Not Touch Symbol: Hand crossed out.
Symbols must be vector‑sharp, high contrast, and resistant to wear.
High voltage represents the most critical hazard associated with ionizing air bars.
According to ANSI Z535:
DANGER: Indicates immediate hazard—use only if accidental contact is likely.
WARNING: Appropriate for most ionizing bar applications.
CAUTION: Used for lower‑risk models or enclosed systems.
A typical high‑voltage label should include:
Signal word (e.g., WARNING)
Hazard description (e.g., HIGH VOLTAGE)
Consequence statement (e.g., Can cause electric shock or injury.)
Avoidance procedure (e.g., Disconnect power before servicing.)
Labels must be placed:
Near emitter electrodes.
Near cable entry points.
On top or front surfaces visible during installation.
Because ionizing bars operate within ESD‑sensitive zones, additional labels are required.
These labels inform workers that:
Improper contact may disrupt sensitive electronic products.
The device must not be touched without grounding.
Some ionizers emit electromagnetic noise; labels must warn:
Keep distance from sensitive RF devices.
Maintain shielding when installed near sensors.
Ionizing air bars require label guidance for correct installation.
Labels may include:
Direction arrows.
Alignment guides.
Clearance indicators showing minimum safe distances.
Symbols indicating:
Use insulated tools only.
Do not mount while power is applied.
Proper grounding is essential for ESD safety.
Labels must indicate:
Grounding screw location.
Mandatory grounding requirements.
Labels must instruct operators on safe everyday usage.
Indicating airflow helps prevent:
Misalignment.
Reverse installation.
These labels protect users from accidental contact with energized points.
Certain installations require:
Keep hands clear.
Do not place conductive objects near emitter.
Maintenance safety labeling prevents accidents.
Before cleaning emitter needles, users must:
Disconnect power.
Discharge capacitors.
Confirm LED indicators are off.
Cleaning instructions may include:
Use non‑metallic brushes only.
Avoid touching electrode tips.
Indicate which screws may be opened by:
Users.
Trained service technicians.
Certified personnel only.
Environmental safety warnings are crucial because ionizing bars are sensitive to moisture.
Indicate humidity ranges such as:
20%–85% RH non‑condensing.
Typical marking:
0°C to 50°C operating range.
May read:
Do not operate in environments with condensation.
Avoid installing near cold air ducts.
Labels must remain legible for the entire product lifetime.
Labels must be:
UV‑resistant.
Chemical‑resistant.
Moisture‑resistant.
Tear‑proof.
Rated for high‑temperature environments.
ANSI and ISO require specific color codes:
Yellow background for warnings (Pantone 109 or equivalent).
Red background for danger.
Blue for mandatory actions.
Black symbol outlines.
Labels must withstand:
Abrasion cycles.
Chemical exposure (isopropyl alcohol, acetone, oils).
UV exposure cycles.
Adhesion tests.
Proper placement ensures labels are always visible.
Labels must be visible:
From front or top view.
Without removing protective covers.
Without tools.
Eye‑level visibility is recommended in many installations.
Labels must not be placed where:
They can be blocked by wiring.
They may peel due to mechanical stress.
For global deployment, labels should:
Include multilingual text.
Use universal pictograms.
Follow region‑specific rules (EU, US, Japan, China).
ISO‑compliant symbols help reduce language dependency.
Safety labels must be supported by documentation.
Manuals must reproduce labels and explain:
Meaning.
Location.
Associated risks.
Modern labels may include QR codes linking to:
Maintenance guides.
Online safety training.
Digital manuals.
In future systems, digital models of ionizing bars may contain:
Virtual safety labels.
Augmented‑reality hazard indicators.
This section reviews real examples of labeling success and failure.
A semiconductor factory reduced ESD incidents by 42% after:
Enlarging ESD warning labels.
Adding humidity restriction markers.
A print shop avoided electrical accidents by clearly labeling:
High‑voltage cables.
Electrode access areas.
Using non‑durable labels that fade.
Placing labels on curved surfaces.
Mixing inconsistent color codes.

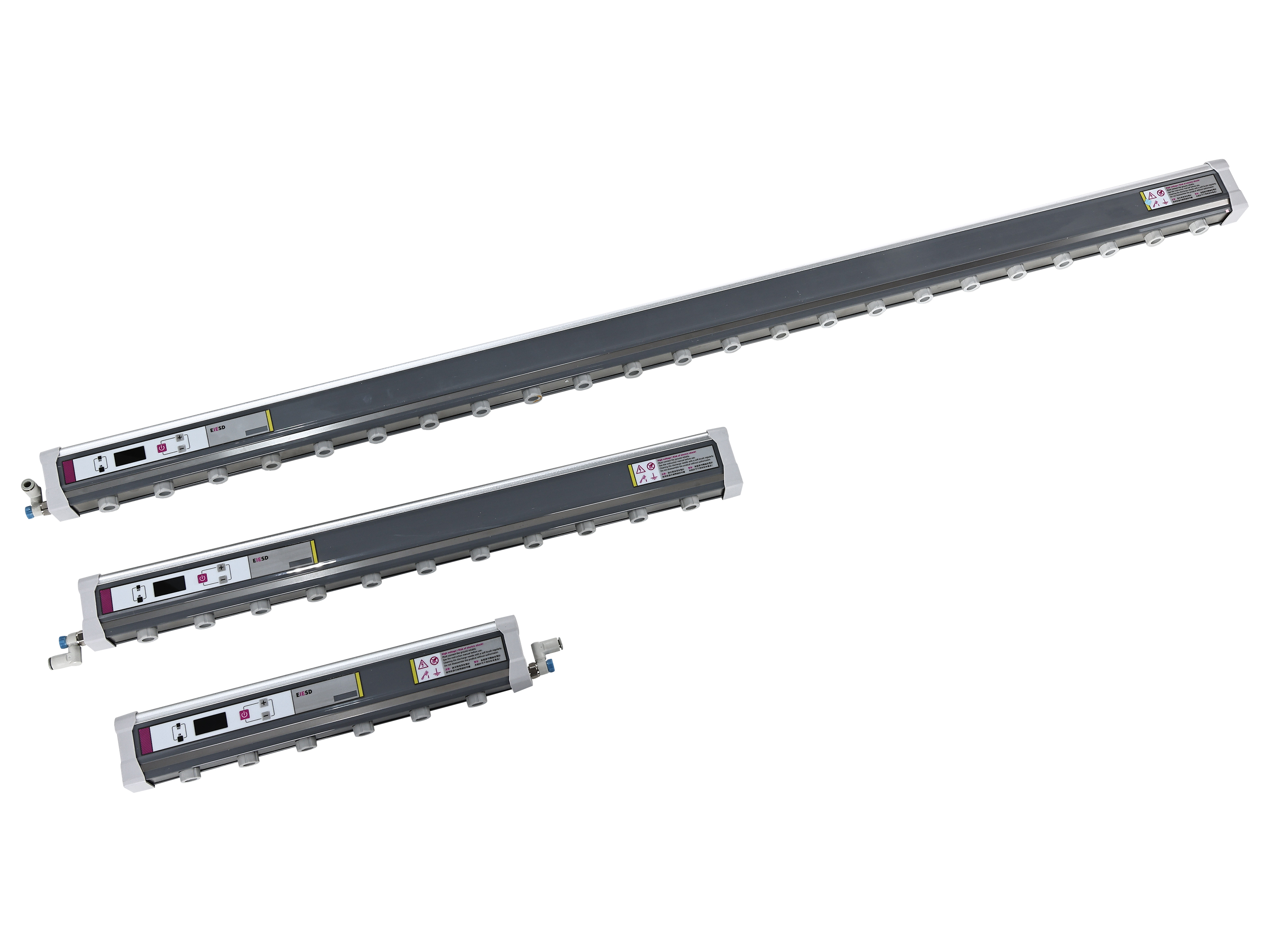

Well‑labeled bars include:
A high‑voltage warning near emitters.
ESD zone warnings near cable exits.
Humidity and temperature limit signs.
Mandatory ground symbols.
Service access restriction labels.
Illustrations normally accompany this section in printed manuals.
Emerging labeling trends include:
Smart labels with NFC chips.
Labels that change color when overheated.
QR‑linked dynamic hazard updates.
Integration with facility safety monitoring systems.
Safety labeling is not merely a regulatory requirement—it is an essential component of risk reduction, operational safety, and equipment longevity. For ionizing air bars, proper labeling protects operators from invisible high‑voltage hazards, ensures correct handling, and improves long‑term reliability. By following the detailed specifications in this document, manufacturers and facility managers can create safer, more compliant, and more effective working environments.
