Standardization of Charge Decay Time Measurement for Ionizing Air Bars

Abstract

Charge decay time is one of the most critical performance indicators of ionizing air bars used in industrial static electricity control systems. It quantitatively describes the ability of an ionizing air bar to neutralize electrostatic charges within a defined period under specified conditions. Despite its widespread use in performance evaluation, charge decay time measurement is often subject to inconsistent test setups, varying environmental conditions, and non-unified data interpretation methods. These inconsistencies reduce comparability between test results and weaken their value for quality assurance, product development, and regulatory compliance.

This paper presents a comprehensive study on the standardization of charge decay time measurement for ionizing air bars. It analyzes the physical principles underlying charge decay, reviews existing measurement practices, identifies sources of variability, and proposes standardized test conditions, procedures, data processing methods, and acceptance criteria. The objective is to establish a repeatable, objective, and application-relevant measurement framework that supports reliable performance comparison and long-term quality control of ionizing air bars.

Keywords: Ionizing air bar, charge decay time, static elimination, performance testing, standardization, ESD control

---

1. Introduction

1.1 Significance of Charge Decay Time in Static Control

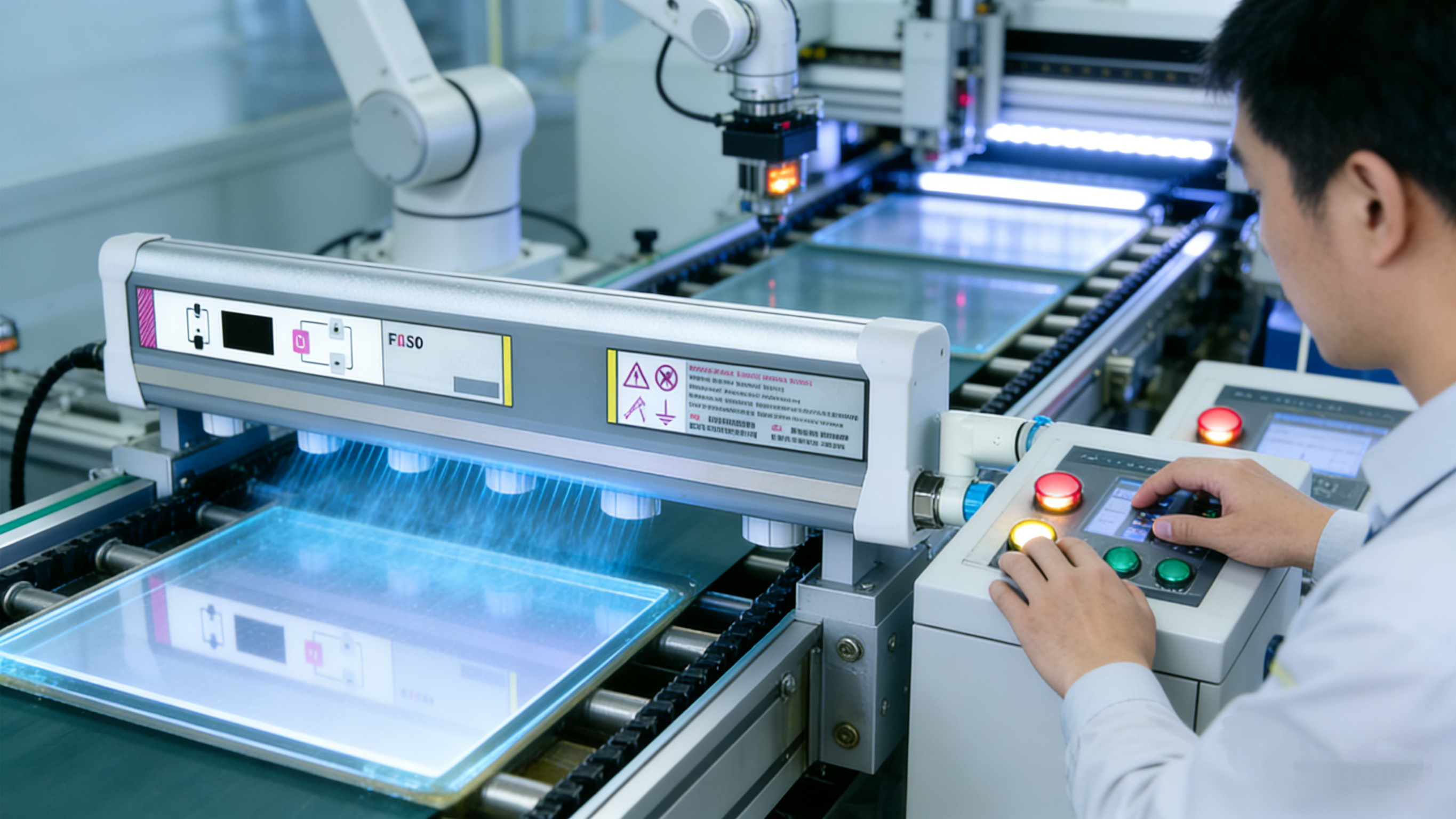

In industrial environments, static electricity can accumulate rapidly on product surfaces, tools, and materials due to friction, separation, and handling processes. If not properly neutralized, these charges may cause dust attraction, material sticking, electrostatic discharge (ESD) damage, or safety hazards. Ionizing air bars are widely deployed to mitigate these risks by generating positive and negative ions that neutralize surface charges.

Among various performance indicators, charge decay time is considered the most application-relevant metric because it directly reflects how quickly an ionizing air bar can neutralize a defined electrostatic charge under specified conditions. In practice, charge decay time strongly influences process stability, product quality, and ESD risk level.

---

1.2 Challenges in Current Measurement Practices

Although charge decay time is widely referenced in product specifications and technical documentation, its measurement practices vary significantly across manufacturers, laboratories, and end users. Common challenges include:

• Non-unified test geometries

• Inconsistent initial charge levels

• Varying environmental conditions

• Differences in airflow and ion transport

• Ambiguous data processing and reporting methods

As a result, charge decay time values reported by different sources are often not directly comparable, even when measured on similar equipment.

---

1.3 Motivation for Standardization

Standardization of charge decay time measurement is essential for several reasons:

1. Objective performance comparison

2. Reliable quality verification

3. Meaningful acceptance testing

4. Support for industry standards and audits

Without standardized methods, charge decay time risks becoming a nominal parameter rather than a robust engineering metric.

---

1.4 Scope and Structure of This Study

This paper focuses on:

• Physical principles of electrostatic charge decay

• Definition and classification of charge decay time

• Measurement instrumentation and setup

• Environmental and geometric standardization

• Data acquisition and interpretation methods

The goal is to establish a structured foundation for standardized measurement practices applicable across industries.

---

2. Physical Principles of Electrostatic Charge Decay

2.1 Electrostatic Charging and Neutralization

Electrostatic charges accumulate when materials gain or lose electrons due to triboelectric effects, induction, or separation processes. The resulting surface charge creates an electric field that persists until neutralized.

Ionizing air bars neutralize these charges by introducing oppositely charged ions into the surrounding air. The ions migrate toward charged surfaces under the influence of electric fields and airflow, recombining with surface charges and reducing net potential.

---

2.2 Definition of Charge Decay Process

Charge decay refers to the reduction of surface potential over time due to ion neutralization. The decay process is influenced by:

• Ion density and mobility

• Distance between ion source and charged object

• Airflow velocity and direction

• Environmental humidity and temperature

The decay curve typically follows a nonlinear profile rather than a simple exponential function.

---

2.3 Mathematical Representation of Charge Decay

In simplified models, surface potential decay may be approximated as:

V(t)=V0⋅e−ktV(t) = V_0 \cdot e^{-kt}V(t)=V0⋅e−kt

where:

• $V(t)$ is surface voltage at time $t$

• V0V_0V0 is initial surface voltage

• $k$ is an effective decay constant

While useful for conceptual understanding, real-world decay behavior often deviates from idealized models due to environmental and system complexities.

---

3. Definition and Classification of Charge Decay Time

3.1 Basic Definition

Charge decay time is defined as the time required for a charged test object to decay from a specified initial voltage to a defined lower voltage level under the influence of an ionizing air bar.

Common decay ranges include:

• ±1000 V to ±100 V

• ±5000 V to ±500 V

The chosen range must be clearly specified to ensure clarity and comparability.

---

3.2 Positive and Negative Charge Decay

Because ionizing air bars generate both positive and negative ions, charge decay time should be measured separately for:

• Positive charge decay

• Negative charge decay

Asymmetry between the two may indicate ion imbalance or electrode condition issues.

---

3.3 Initial Voltage Selection

The initial charging voltage affects decay behavior. Higher initial voltages may:

• Enhance ion attraction

• Mask low-level performance deficiencies

Standardization requires fixed and clearly defined initial voltage levels.

---

3.4 End-Point Voltage Criteria

The end-point voltage determines when decay is considered complete. Selection of the end-point should balance:

• Measurement sensitivity

• Application relevance

• Noise immunity

Ambiguous end-point definitions are a major source of inconsistency.

---

4. Measurement Instrumentation

4.1 Charge Plate Monitor (CPM)

The charge plate monitor is the most commonly used instrument for decay time measurement. It typically consists of:

• A conductive test plate with defined capacitance

• An electrostatic voltmeter

• Charging and discharge circuitry

The capacitance of the plate directly influences decay behavior and must be standardized.

---

4.2 Plate Capacitance and Its Influence

Common plate capacitance values include:

• 20 pF

• 100 pF

Higher capacitance plates exhibit slower decay, affecting absolute decay time values. Standardization requires explicit specification of plate capacitance.

---

4.3 Instrument Calibration and Verification

Reliable measurement depends on proper calibration of:

• Voltage measurement accuracy

• Time resolution

• Plate capacitance tolerance

Calibration intervals and verification methods should be defined within standardized procedures.

---

4.4 Data Acquisition and Sampling Rate

Adequate sampling rate is required to capture rapid decay events. Insufficient sampling may distort decay curves and introduce timing errors.

---

5. Standardized Test Environment

5.1 Environmental Conditions

Environmental factors significantly influence ion behavior. Standardized conditions should define:

• Temperature range

• Relative humidity range

• Atmospheric pressure (if applicable)

Humidity is particularly influential due to its effect on ion mobility and surface conductivity.

---

5.2 Airflow Control

Airflow affects ion transport efficiency. Test setups should specify:

• Presence or absence of forced airflow

• Air velocity range

• Direction relative to the ionizing air bar

Uncontrolled airflow is a major source of measurement variability.

---

5.3 Electrical Noise and Shielding

External electric fields and electromagnetic interference may affect measurements. Test environments should minimize noise through:

• Grounding

• Shielding

• Controlled layout

---

6. Standardized Test Geometry

6.1 Distance Between Ionizing Air Bar and Test Plate

Distance directly affects ion density at the test plate. Standard distances must be defined, such as:

• 100 mm

• 300 mm

Measurement results are not comparable unless distance is controlled.

---

6.2 Alignment and Orientation

The relative orientation between the air bar and test plate influences ion distribution. Standard alignment ensures repeatability.

---

6.3 Test Zone Definition

The effective test zone should be defined to avoid edge effects and non-uniform ion exposure.

---

7. Measurement Procedure Standardization

7.1 Pre-Test Stabilization

Before measurement:

• Ionizing air bar should reach thermal and electrical stability

• Environmental conditions should be stabilized

Insufficient stabilization can distort initial results.

---

7.2 Charging Procedure

The charging method must be consistent in:

• Voltage level

• Polarity

• Charging duration

Variability in charging introduces uncertainty.

---

7.3 Decay Measurement Sequence

A standardized sequence includes:

1. Charge application

2. Charge stabilization

3. Ion exposure

4. Voltage decay recording

Each step should be precisely timed.

---

8. Data Processing and Result Reporting

8.1 Decay Curve Analysis

Rather than reporting a single value, decay curves provide richer information about performance behavior.

---

8.2 Averaging and Repeatability

Multiple measurements should be performed to evaluate repeatability and reduce random error.

---

8.3 Reporting Format

Standardized reports should include:

• Test conditions

• Instrument details

• Decay time values

• Uncertainty considerations

---

9. Sources of Measurement Uncertainty

Key uncertainty sources include:

• Instrument accuracy

• Environmental variability

• Geometric tolerances

• Operator influence

Standardization must address these factors explicitly.

---

10. Conclusion

Charge decay time is a cornerstone metric for evaluating ionizing air bar performance. However, without standardized measurement methods, its value is significantly diminished. This study establishes a structured framework for standardizing charge decay time measurement, encompassing definitions, instrumentation, environment, procedures, and data interpretation. Adoption of such standardized practices will enhance comparability, reliability, and industrial relevance of ionizing air bar performance evaluation.
