With the rapid development of additive manufacturing technologies, 3D printing has expanded from prototyping to large-scale industrial production. Among the various materials used in 3D printing, resin pellets and polymer granules have become increasingly important for high-performance printing systems, pellet-based extrusion printers, and advanced manufacturing processes.
However, one persistent challenge in the handling, storage, and feeding of resin pellets during 3D printing production is static electricity.
Static charge accumulation can cause numerous problems in production environments, including:
Pellet adhesion to equipment surfaces
Feeding instability in extrusion systems
Dust attraction and contamination
Safety hazards in explosive environments
Reduced printing quality and consistency
To solve these issues, many manufacturers adopt ionizing air bars (also called ionizing bars or ion wind bars) to neutralize static charges during material handling.
This article provides a comprehensive guide to:
Static electricity in resin pellets
Why static occurs in 3D printing materials
The impact of static on production
How ionizing air bars work
Applications in resin pellet handling
Installation strategies
Industrial benefits and ROI
Static electricity is the buildup of electrical charges on the surface of materials due to friction, separation, or contact between different materials.
In industrial environments, static electricity is generated when:
Plastic pellets move through pipes
Materials are poured into hoppers
Pellets rub against conveyor belts
Materials are transported pneumatically
Packaging materials are separated
Since resin pellets are typically made from non-conductive polymers, they easily accumulate and retain electrostatic charges.
Several characteristics make resin pellets particularly susceptible to static buildup.
Most 3D printing resin materials such as:
ABS
PLA
PETG
Nylon
Polycarbonate
are electrical insulators. This means charges cannot dissipate naturally.
During transportation and feeding, pellets constantly rub against:
Metal hopper walls
Plastic feeding tubes
Conveyor systems
Other pellets
This triboelectric effect generates electrostatic charges.
Many manufacturing environments maintain low humidity levels to protect materials. Unfortunately, dry air significantly increases static buildup.
Pellet transport systems using air pressure often create strong friction between pellets and pipes, which accelerates static accumulation.
Static electricity may seem harmless, but in industrial 3D printing production it can cause serious operational problems.
Electrostatically charged pellets can stick together or adhere to hopper walls. This results in:
Irregular feeding
Material flow interruptions
Printing inconsistencies
Stable feeding is critical for pellet-based 3D printers.
Static charges attract airborne particles such as:
Dust
Fibers
Micro contaminants
These contaminants can degrade printing quality and damage sensitive components.
Pellets may stick to:
Machine surfaces
Conveyor belts
Sensor systems
Over time, this buildup leads to equipment inefficiencies and maintenance costs.
In environments handling fine polymer powders or volatile substances, electrostatic discharge can ignite flammable dust or vapors.
Though resin pellets are larger particles, electrostatic sparks remain a potential hazard in certain industrial environments.

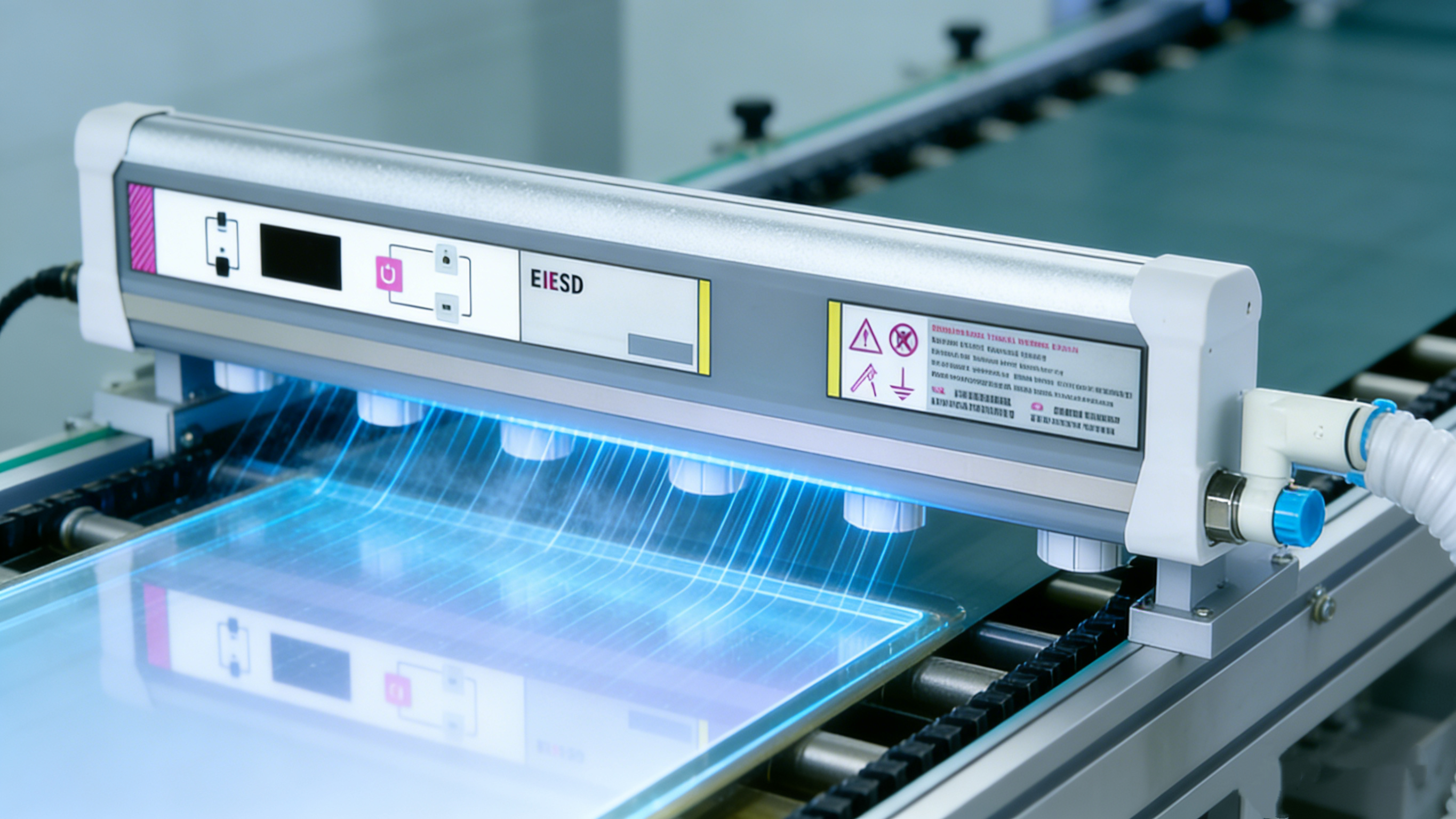

An ionizing air bar is an industrial static elimination device designed to neutralize electrostatic charges on material surfaces.
It works by generating positive and negative ions that combine with charged particles, effectively neutralizing static electricity.
Ionizing air bars are widely used in industries such as:
Plastics manufacturing
Electronics assembly
Printing and packaging
Semiconductor production
Automotive manufacturing
Ionizing bars contain high-voltage electrodes that ionize surrounding air molecules.
These electrodes generate:
Positive ions
Negative ions
Both types of ions are released into the surrounding air.
When static-charged pellets pass near the ionizing air bar:
Positive charges attract negative ions
Negative charges attract positive ions
This process balances the electrical charge on the material surface.
Many ionizing air bars combine ion generation with compressed air flow.
The airflow helps:
Transport ions toward the target surface
Increase neutralization speed
Remove dust particles
Using ionizing air bars provides several benefits for 3D printing material handling.
Ion bars can neutralize static charges within milliseconds, ensuring continuous production.
With static eliminated:
Pellets move freely
Hopper flow improves
Feeding systems become more stable
Ion airflow helps blow away dust and neutralize electrostatic attraction.
This significantly improves material cleanliness.
Consistent material flow ensures:
Stable extrusion
Uniform layer deposition
Improved final part quality
Reducing static-related problems minimizes:
Machine downtime
Material waste
Maintenance costs
Ionizing air bars can be installed at multiple stages of pellet processing.
During pellet loading into hoppers, static charges are generated due to friction.
Installing an ionizing air bar above the loading point neutralizes charges immediately.
Ion bars mounted near hopper outlets prevent pellets from sticking to hopper walls.
This ensures smooth gravity feeding.
For conveyor-based pellet transport, ionizing bars remove static charges generated during movement.
In pneumatic systems, static elimination reduces pellet adhesion inside pipelines.
During final packaging, ionizing air bars prevent pellets from sticking to packaging materials.
Correct installation is crucial for optimal performance.
Typical recommended distance:
50 mm – 300 mm
Closer distances provide faster neutralization.
Ion bars should be placed:
Across the full width of the pellet stream
At key friction points
Near hopper entry points
Compressed air pressure usually ranges between:
0.3 – 0.7 MPa
Proper adjustment ensures effective ion distribution.
Static elimination systems must be properly grounded to ensure safe operation.
Regular maintenance ensures consistent performance.
Dust and polymer particles may accumulate on emitter pins.
Regular cleaning prevents performance degradation.
Ion balance should be periodically measured to ensure equal positive and negative ion output.
High-voltage power supplies must be checked for stable operation.
When choosing a static elimination solution, manufacturers should consider several factors.
Higher production speeds require stronger ion output.
Consider:
Humidity
Temperature
Dust levels
Ionizing bars are available in different lengths to match conveyor or hopper width.
Modern systems include:
Pulsed DC ionizers
AC ionizers
Intelligent ion balancing systems
As additive manufacturing continues to evolve, static control technology is also advancing.
Key trends include:
Smart ionization systems
IoT monitoring
Automatic ion balance control
Energy-efficient ion generators
These technologies will further improve reliability and automation in industrial 3D printing.
Static electricity is a common but often underestimated challenge in 3D printing resin pellet handling. From pellet transport to hopper feeding and packaging, electrostatic charges can disrupt production, contaminate materials, and reduce product quality.
Ionizing air bars provide an efficient and reliable solution for static elimination. By generating balanced ions that neutralize surface charges, these devices ensure smooth material flow, cleaner production environments, and higher printing consistency.
For manufacturers seeking to optimize pellet-based 3D printing systems, integrating ionizing air bars into production lines is a practical and cost-effective investment.
Proper installation, maintenance, and system selection will maximize performance and help ensure long-term operational efficiency.
