Flexible printed circuit boards (FPCs) have become essential components in modern electronic devices. Their lightweight structure, flexibility, and compact design make them widely used in industries such as consumer electronics, medical devices, automotive electronics, aerospace systems, and wearable technology.
Unlike rigid PCBs, flexible circuit boards are often produced, transported, and processed in roll form. These continuous rolls enable high-speed automated production processes such as roll-to-roll manufacturing, automated inspection, and high-volume assembly.
However, one critical challenge in the handling of flexible circuit board rolls is electrostatic discharge (ESD). Static electricity can accumulate easily during production, transport, and winding processes. If not properly controlled, electrostatic charges can damage sensitive circuits, contaminate materials, interrupt production, and reduce product reliability.
To ensure stable manufacturing conditions and protect delicate electronic components, static protection solutions for FPC rolls are essential.
This article provides a comprehensive guide covering:
The causes of static electricity in flexible circuit board rolls
Risks associated with electrostatic discharge
Industrial static protection technologies
Ionization and grounding solutions
Best practices for roll-to-roll FPC production lines
Benefits of effective ESD control systems
Flexible printed circuit boards are electronic circuits manufactured on flexible insulating substrates such as polyimide or polyester films. These materials allow the circuit to bend, fold, or twist without damaging the electrical pathways.
Common features of FPCs include:
Thin and lightweight structure
High wiring density
Excellent heat resistance
Ability to bend repeatedly
Reduced space requirements
Because of these characteristics, flexible PCBs are widely used in compact electronic systems.
Flexible circuit boards play a critical role in many modern electronic devices.
Major applications include:
Flexible circuits are widely used in:
Smartphones
Tablets
Laptops
Cameras
Wearable devices
They allow manufacturers to design thinner and more compact products.
Modern vehicles contain numerous flexible circuits used in:
Dashboard displays
Camera modules
Battery management systems
Sensor systems
Automotive environments require highly reliable circuits, making ESD protection extremely important.
Flexible circuits are used in sensitive medical devices such as:
Diagnostic equipment
Imaging systems
Portable monitoring devices
Electrostatic discharge can cause malfunction in such critical systems.
Flexible PCBs are also used in aerospace electronics where space and weight constraints are critical.
These industries demand extremely high reliability and strict ESD control.
During roll-to-roll manufacturing and handling, flexible circuit board materials are continuously moving and interacting with machinery. This movement generates electrostatic charges through various mechanisms.
One of the most common sources of static electricity is friction between different materials.
Examples include:
Film layers sliding over rollers
Copper foil contacting guiding structures
FPC substrates moving along conveyors
Protective films being peeled off
These friction interactions generate electrostatic charges due to the triboelectric effect.
Flexible circuit boards are typically stored and transported in roll form.
During:
Roll winding
Roll unwinding
Rewinding operations
large amounts of static electricity can accumulate due to rapid material movement and separation.
Electronics manufacturing facilities often maintain low humidity environments to protect materials and ensure production stability.
However, dry air significantly increases static generation and reduces natural charge dissipation.
Most flexible circuit substrates are made of insulating polymers such as:
Polyimide (PI)
Polyester (PET)
Polyethylene naphthalate (PEN)
These materials do not conduct electricity, allowing static charges to accumulate and persist.
Electrostatic discharge can have serious consequences in flexible circuit manufacturing.
Sensitive semiconductor components connected to flexible circuits can be damaged by even small electrostatic discharges.
This damage may include:
Gate oxide breakdown
Junction damage
Latent defects
Latent damage is particularly dangerous because the circuit may initially pass testing but fail later in the field.
Static charges attract airborne particles such as:
Dust
Fibers
Micro debris
These contaminants can adhere to the surface of flexible circuits and affect soldering, bonding, or coating processes.
Static electricity can cause flexible materials to stick to machine surfaces or rollers.
This can lead to:
Misalignment
Wrinkles in materials
Machine stoppages
Such disruptions reduce productivity and increase manufacturing costs.
Electrostatic discharge may interfere with sensitive electronic testing equipment, resulting in inaccurate measurement results.
To prevent electrostatic damage, manufacturers must implement effective static protection strategies.
These strategies typically involve a combination of:
Ionization systems
Grounding methods
Environmental control
Antistatic materials

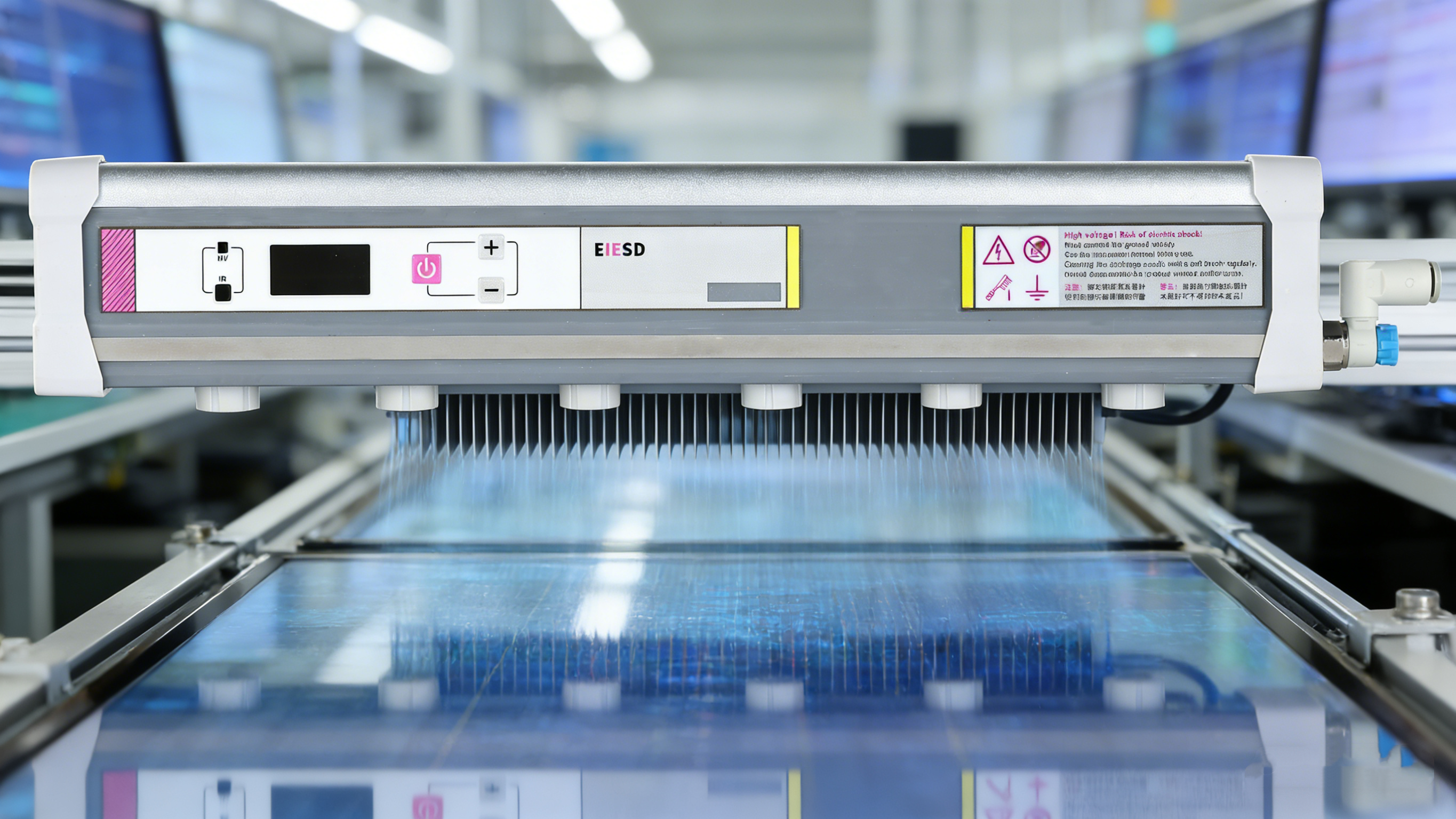

One of the most effective technologies for static elimination is the ionizing air bar.
Ionizing air bars generate balanced positive and negative ions that neutralize electrostatic charges on material surfaces.
Ionizing bars contain high-voltage emitters that ionize surrounding air molecules.
These emitters produce:
Positive ions
Negative ions
When charged surfaces pass near the ionizing bar, the ions neutralize electrostatic charges quickly and safely.
Ionizing systems provide several advantages in FPC production environments.
Ionizers eliminate static charges within milliseconds.
Ionizing bars neutralize charges without touching sensitive materials.
This prevents mechanical damage to delicate circuits.
Ionizers operate continuously and provide consistent static control throughout production.
Proper placement of ionizing devices is critical for effective static protection.
Key installation points include:
Static electricity is commonly generated when FPC rolls are unwound at high speed.
Installing ionizing bars near the unwinding point neutralizes charges immediately.
Before key processes such as circuit printing or chemical etching, ionizers ensure surfaces are free of static and dust.
Optical inspection systems require clean surfaces for accurate detection of defects.
Ionizing bars remove electrostatic charges that attract dust.
When finished circuits are rewound into rolls, static charges can accumulate again.
Ionizers installed near rewinding rollers prevent charge buildup.
Grounding is another essential element of electrostatic protection.
All conductive equipment should be properly grounded to provide a safe path for charge dissipation.
Production machines such as:
Rollers
Conveyors
Metal frames
must be connected to reliable grounding systems.
Personnel working in FPC production lines should use:
ESD wrist straps
Conductive footwear
Grounded workstations
These measures prevent static discharge from human bodies.
Environmental conditions also influence static generation.
Maintaining relative humidity between 40% and 60% helps reduce static buildup.
Many FPC production lines operate in cleanroom environments.
Air filtration systems help remove particles that might be attracted by static charges.
In addition to ionization systems, antistatic materials can reduce static generation.
Examples include:
Antistatic rollers
Conductive conveyor belts
Static-dissipative packaging materials
These materials help control electrostatic charge accumulation during material transport.
Regular maintenance ensures reliable static protection.
Maintenance tasks include:
Cleaning ionizer emitters
Checking ion balance
Verifying grounding connections
Inspecting power supplies
Proper maintenance ensures optimal performance and long-term reliability.
Implementing comprehensive static protection systems provides significant benefits.
Reducing electrostatic damage improves circuit reliability and reduces defect rates.
Stable material transport minimizes machine downtime and production interruptions.
Static elimination prevents dust attraction, resulting in cleaner manufacturing environments.
Preventing ESD damage reduces scrap rates and warranty claims.
As electronics manufacturing continues to advance, static protection technologies are also evolving.
Future trends include:
Smart ionization systems with automatic feedback control
IoT-enabled static monitoring
Energy-efficient ion generators
Integrated ESD control platforms
These innovations will further improve manufacturing reliability and efficiency.
Flexible printed circuit boards are critical components in modern electronics, and their production often involves roll-to-roll manufacturing processes. While this production method offers high efficiency, it also creates conditions where static electricity can accumulate rapidly.
Electrostatic discharge poses serious risks, including circuit damage, contamination, production interruptions, and reduced product reliability. To address these challenges, manufacturers must implement comprehensive static protection strategies.
Ionizing air bars, grounding systems, environmental control, and antistatic materials all play important roles in protecting flexible circuit board rolls from electrostatic damage.
By investing in effective static control solutions, electronics manufacturers can ensure higher product quality, improved production efficiency, and greater long-term reliability in flexible circuit board manufacturing.
