Printed circuit boards (PCBs) are the foundation of modern electronic devices. From smartphones and laptops to automotive electronics and industrial control systems, PCBs enable complex electronic functionality through interconnected circuits and components.
Before PCBs are assembled into final electronic products, they must undergo extensive testing to ensure proper functionality and reliability. One of the most important testing stages is the probe test process, where specialized probe stations contact test points on the PCB to measure electrical performance.
However, during PCB testing operations, electrostatic charge accumulation can become a serious concern. Static electricity generated in the testing environment may interfere with measurement accuracy, damage sensitive electronic components, or disrupt automated testing equipment.
To prevent these issues, manufacturers increasingly use ionizing air bars to neutralize electrostatic charges at PCB probe test stations.
This article provides a comprehensive technical overview of:
Electrostatic challenges in PCB testing environments
Sources of static electricity at probe stations
Risks of electrostatic discharge during PCB testing
Ionizing air bar technology for static suppression
Installation strategies for PCB testing equipment
Benefits of ionization-based ESD control
By implementing effective static control solutions, manufacturers can significantly improve testing reliability and protect delicate electronic circuits.
A PCB probe test station is a specialized testing platform used to verify electrical connections and circuit functionality on printed circuit boards.
Probe stations typically use spring-loaded test probes or needles to contact specific test pads or vias on the PCB. These probes connect the board to automated testing systems that measure parameters such as:
Electrical continuity
Resistance
Voltage levels
Signal integrity
Component functionality
Probe testing is widely used in both bare PCB testing and assembled circuit board testing.
Different types of probe systems are used depending on production requirements.
Flying probe testers use movable probe heads that automatically position themselves over test points on the PCB.
Advantages include:
High flexibility
No need for custom fixtures
Ideal for low-volume or prototype production
However, flying probe systems are sensitive to environmental conditions such as static electricity.
In high-volume manufacturing environments, ICT fixtures use hundreds or thousands of test probes simultaneously.
These fixtures allow rapid testing but require precise mechanical alignment.
Electrostatic discharge during testing can damage integrated circuits connected to the board.
Functional testing simulates real operating conditions for assembled PCBs.
During this process, probe stations interact with active circuits, making static protection even more important.
Static electricity can originate from multiple sources in PCB probe testing areas.
Human operators can accumulate electrostatic charges through simple movements such as walking, clothing friction, or handling materials.
If not properly grounded, these charges may discharge into sensitive circuits during testing.
When PCBs are transported along conveyors or manually handled, friction between materials generates electrostatic charges.
Examples include:
PCB sliding on trays
Contact with plastic holders
Movement across conveyor belts
Some PCBs include protective films during manufacturing.
Removing these films can generate significant static charges due to rapid material separation.
Electronics manufacturing facilities often maintain low humidity levels to protect materials and ensure stable processes.
Low humidity significantly increases static generation and reduces natural charge dissipation.
PCB substrates and protective coatings are typically made from insulating materials such as:
FR-4 epoxy laminate
Polyimide films
Solder mask coatings
These materials can hold electrostatic charges for long periods.
Electrostatic discharge (ESD) during testing operations can cause multiple problems.
Many semiconductor devices are extremely sensitive to electrostatic discharge.
Components such as:
MOSFETs
Microcontrollers
Integrated circuits
Memory chips
can be permanently damaged by even small static discharges.
In some cases, electrostatic discharge may not immediately destroy a component.
Instead, it causes microscopic damage that leads to failure later during product operation.
This phenomenon is known as latent ESD damage, which is particularly dangerous in electronics manufacturing.
Electrostatic charges can interfere with testing signals, resulting in inaccurate measurement results.
This may cause:
False test failures
Undetected circuit defects
Inconsistent testing outcomes
Static discharge may also affect testing equipment itself, potentially damaging sensors, probe electronics, or control systems.
Ionizing air bars are among the most effective solutions for eliminating static electricity in PCB testing environments.
An ionizing air bar is a static elimination device designed to neutralize electrostatic charges on surfaces using balanced ions.
These devices generate both positive and negative ions, which interact with charged surfaces to neutralize electrostatic buildup.
Ionizing bars are widely used in industries such as:
Semiconductor manufacturing
Electronics assembly
PCB production
Optical component manufacturing
Understanding how ionizing air bars work helps manufacturers optimize their use in PCB testing environments.
Ionizing bars contain emitter points connected to a high-voltage power supply.
These emitters ionize surrounding air molecules, creating charged ions.
To neutralize both positive and negative static charges, ionizers generate a balanced mixture of:
Positive ions
Negative ions
These ions are carried through the air toward charged surfaces.
When ions reach a charged object such as a PCB surface, they neutralize the charge by combining with opposite polarity charges.
This process quickly reduces static voltage levels.
Ionizing bars offer several advantages in PCB testing environments.
Ionizers neutralize charges without touching delicate circuit boards.
This prevents mechanical damage to sensitive components.
Modern ionizing bars can eliminate static charges within milliseconds.
This ensures continuous protection during high-speed testing operations.
By removing electrostatic interference, ionizers help ensure more accurate electrical measurements.
Static charges attract airborne particles.
Ionization reduces this effect, keeping PCB surfaces cleaner.
Proper installation of ionizing air bars is essential for optimal performance.
Ionizing bars can be mounted above the testing area to neutralize static charges on PCB surfaces before probes make contact.
Installing ionizers where boards enter the testing station helps remove static charges generated during transport.

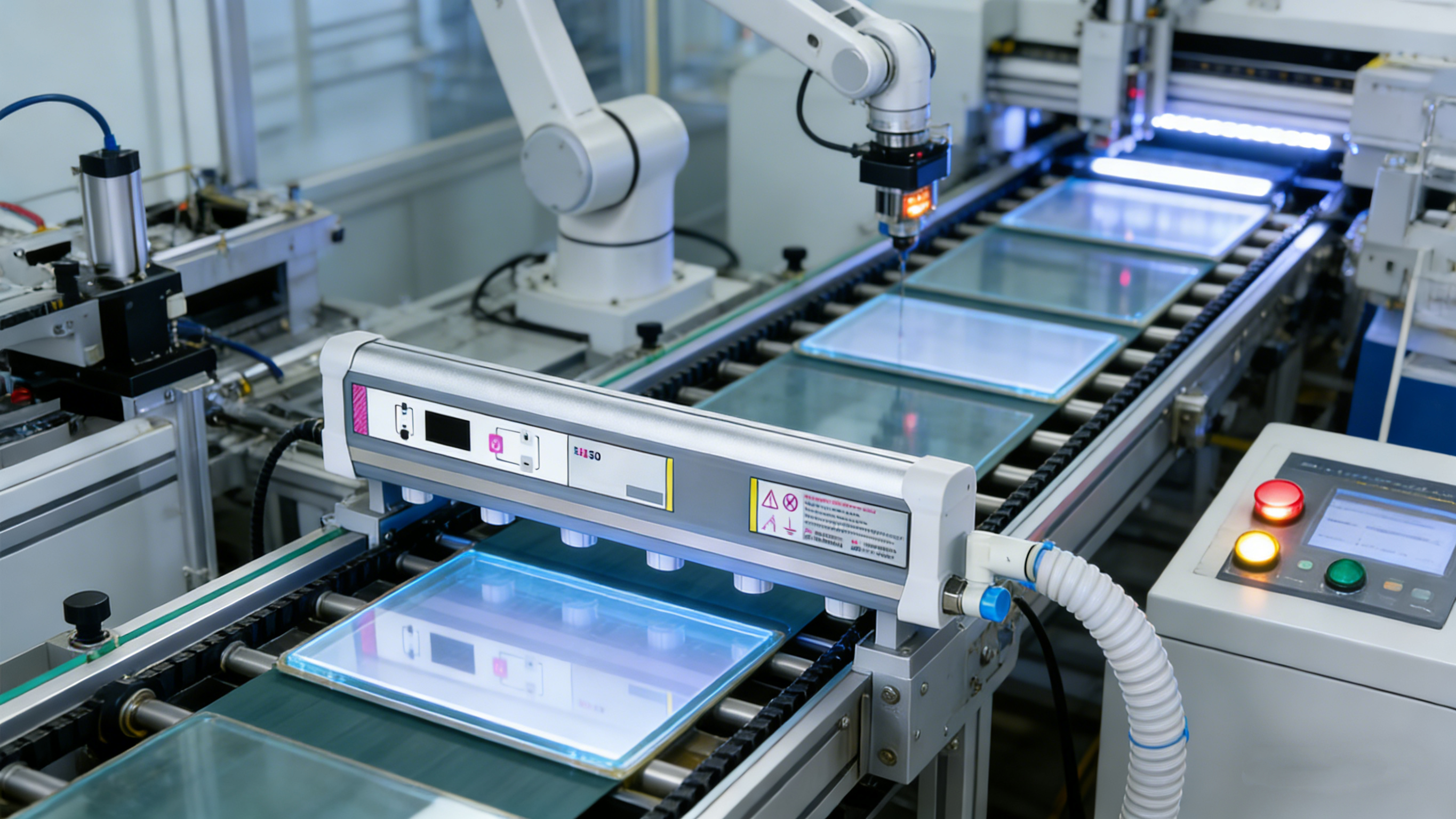

If PCBs are transported using conveyors, ionizing bars can be installed along the conveyor path.
Ionizers can also be placed near manual test stations to protect boards during operator handling.
While ionizing bars are highly effective, comprehensive ESD control systems should include additional protective measures.
All equipment in PCB testing areas should be properly grounded.
This includes:
Test fixtures
Workstations
Conveyor systems
Machine frames
Operators should work at ESD-safe workstations equipped with:
Conductive table mats
Wrist straps
Grounded tools
Special ESD flooring materials prevent static accumulation from operator movement.
Maintaining relative humidity between 40% and 60% helps reduce static generation.
To ensure reliable performance, ionizing bars require periodic maintenance.
Dust and debris may accumulate on emitter tips.
Regular cleaning ensures stable ion output.
Ion balance should be checked regularly using specialized electrostatic measurement instruments.
High-voltage power supplies should be inspected to ensure stable operation.
Implementing effective static control systems provides significant advantages for electronics manufacturers.
Preventing electrostatic damage improves the long-term reliability of electronic devices.
Stable testing conditions result in more consistent and accurate measurement results.
Minimizing ESD damage reduces warranty claims and product returns.
Reliable static control reduces downtime and improves production throughput.
Static control technologies continue to evolve as electronics manufacturing becomes more advanced.
Future developments include:
Smart ionizers with automatic ion balance control
Real-time static monitoring systems
IoT-integrated ESD protection platforms
Energy-efficient ionization technologies
These innovations will further enhance the reliability of PCB testing environments.
PCB probe testing is a critical stage in electronics manufacturing that ensures circuit functionality and product quality. However, static electricity generated in testing environments poses serious risks to sensitive electronic components and testing equipment.
Electrostatic discharge can cause component damage, testing errors, equipment malfunction, and long-term reliability issues. To address these challenges, manufacturers must implement effective static suppression systems.
Ionizing air bars provide a highly efficient solution for eliminating electrostatic charges on PCB surfaces during testing operations. By generating balanced ions that neutralize static charges, these devices help maintain stable testing conditions and protect sensitive circuits.
When combined with proper grounding, ESD-safe workstations, environmental control, and regular maintenance, ionizing air bars form a key component of a comprehensive electrostatic protection strategy for PCB probe stations.
By investing in reliable static control solutions, electronics manufacturers can improve product quality, enhance testing accuracy, and ensure long-term reliability in modern electronic devices.
