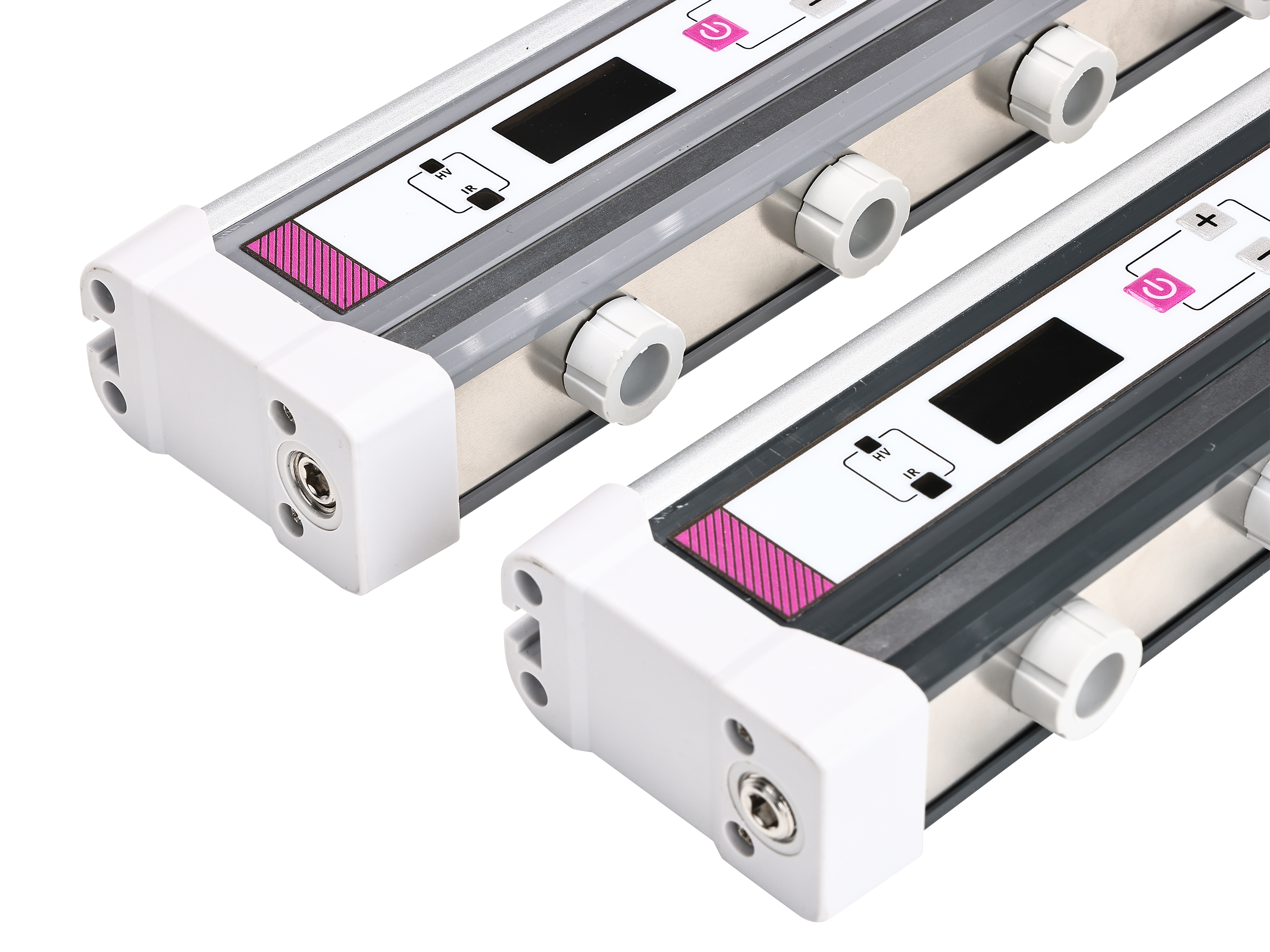

Ionizing air bars, commonly known as ion bars or ionizing bars, are critical electrostatic discharge (ESD) control devices widely used in electronics manufacturing, flat panel display production, semiconductor fabrication, printing, packaging, and advanced automated assembly lines. With the increasing sensitivity of microelectronic devices and the rapid evolution of automated and intelligent manufacturing systems, traditional fixed-output ion bars are no longer sufficient to meet diverse process requirements. Adjustable output voltage ionizing air bars have emerged as an important technological direction, enabling more precise, adaptive, and energy-efficient electrostatic neutralization. This article presents a comprehensive review of the technology trends of adjustable output voltage ionizing air bars. It covers fundamental ionization principles, design architectures, power supply technologies, control strategies, sensing and feedback mechanisms, integration with Industry 4.0 systems, safety and standards considerations, application-driven requirements, and future development directions. The objective is to provide engineers, researchers, and equipment designers with an in-depth technical reference for understanding current capabilities and future trends in adjustable output voltage ion bar technology.
Ionizing Air Bar, Adjustable Output Voltage, Electrostatic Discharge (ESD), Static Neutralization, High-Voltage Power Supply, Industry 4.0
Static electricity has long been recognized as a major source of defects, contamination, and reliability issues in industrial manufacturing. As product feature sizes shrink and process windows narrow, the tolerance for uncontrolled electrostatic charge has decreased dramatically. Ionizing air bars are widely deployed to neutralize static charges on insulated or isolated objects where grounding alone is insufficient.
Traditional ionizing air bars typically operate at fixed high-voltage output levels, optimized for general-purpose applications. However, modern manufacturing environments demand greater flexibility. Different products, materials, speeds, distances, and environmental conditions require different ionization intensities and ion balance characteristics. Excessive ion output may introduce risks such as electrostatic over-neutralization, electromagnetic interference, ozone generation, and accelerated emitter degradation. Insufficient output, on the other hand, results in inadequate static control.
Adjustable output voltage ionizing air bars address these challenges by allowing dynamic control of ion generation intensity. This article explores the technological trends driving their development, the engineering solutions enabling adjustable output, and the future role of such devices in smart manufacturing ecosystems.
Ionizing air bars typically generate ions through corona discharge. When a sufficiently high electric field is applied to a sharp emitter electrode, air molecules near the electrode become ionized, producing positive or negative ions depending on the polarity of the applied voltage.
In alternating current (AC) ion bars, positive and negative ions are generated alternately using a high-frequency AC voltage. In pulsed DC or bipolar DC designs, positive and negative ions are generated in controlled time sequences. The output voltage amplitude directly influences ion density, ion mobility, and effective neutralization range.
The performance of an ionizing air bar is commonly evaluated using several parameters:
Ion balance (offset voltage)
Charge decay time
Ion current density
Effective working distance
Ozone generation
Power consumption
Adjustable output voltage directly affects all of these parameters, making voltage control a central design consideration.
Fixed-output ion bars are typically designed for worst-case scenarios. As a result, they may operate at unnecessarily high voltages for many applications, leading to inefficiencies and potential side effects.
Higher corona discharge voltages increase the likelihood of ozone and nitrogen oxide generation, which can be harmful to both products and personnel.
Operating continuously at maximum voltage accelerates emitter erosion, contamination, and performance drift, increasing maintenance frequency.
Fixed high-voltage operation consumes more energy than required for many processes, conflicting with sustainability and energy-saving goals.
Modern microelectronic devices can be damaged by extremely low electrostatic potentials. Fine control of ionization intensity helps avoid charge overshoot and electrostatic stress.
Ion bars are used in a wide range of industries, each with unique requirements. Adjustable output enables a single platform to support multiple applications.
As line speeds increase, ionization must be precisely matched to exposure time and distance. Adjustable voltage allows optimization for dynamic conditions.
Stricter regulations on ozone emission and energy consumption encourage the adoption of controllable, efficient ionization solutions.
Modern ion bars increasingly use high-frequency switching power supplies instead of traditional line-frequency transformers. These designs allow precise digital control of output voltage amplitude and waveform.
Resonant converters reduce switching losses and electromagnetic interference while enabling smooth voltage adjustment over a wide range.
Modular architectures allow independent control of multiple output channels, improving scalability and fault tolerance.
Early adjustable ion bars provided manual voltage adjustment via potentiometers or DIP switches. While simple, this approach lacks precision and repeatability.
Modern designs incorporate microcontrollers or digital signal processors to regulate output voltage based on feedback signals. This enables stable, repeatable, and programmable operation.
In pulsed DC systems, output intensity can be controlled by adjusting pulse width, frequency, or duty cycle rather than peak voltage alone.
Advanced ion bars use adaptive algorithms to automatically adjust output based on measured performance, environmental conditions, or process requirements.
Integrated or external sensors measure ion balance at the target area, providing feedback for closed-loop control.
Some systems monitor charge decay performance directly, allowing real-time optimization of ion output.
Temperature, humidity, and airflow sensors help compensate for environmental effects on ionization efficiency.
As equipment footprints shrink, ion bars are becoming more compact while maintaining adjustable performance.
Advanced emitter shapes and materials improve ion generation efficiency across a wider voltage range.
Adjustable ion bars increasingly integrate controlled airflow to enhance ion transport and uniformity.
Materials such as tungsten alloys, conductive ceramics, and coated stainless steel improve durability and stability under variable voltage operation.
Surface treatments and self-cleaning designs reduce performance drift caused by contamination.
Adjustable output systems require robust insulation, interlocks, and fault detection to ensure safe operation across the entire voltage range.
Dynamic voltage control helps minimize ozone generation and electromagnetic interference when full output is not required.
Ion bars must comply with standards such as ANSI/ESD S20.20 and IEC 61340, which increasingly emphasize performance verification rather than fixed design parameters.
Compliance with IEC, UL, and CE requirements influences adjustable output design choices.
Modern adjustable ion bars support industrial communication protocols such as RS-485, Ethernet, and fieldbus systems.
Real-time data on voltage settings, ion balance, and alarms enables predictive maintenance and process optimization.
Machine learning algorithms can analyze historical data to predict optimal voltage settings for different products and conditions.
Extremely sensitive devices require precise, low-level ionization with minimal disturbance.
Large-area uniformity and long-distance ion transport drive demand for high-power yet finely adjustable systems.
Variable materials and speeds benefit from fast-adjusting ion output to maintain consistent static control.
Despite their advantages, adjustable output ion bars face challenges including increased system complexity, cost, and the need for sophisticated calibration and validation procedures.
Future trends include fully autonomous ionization systems, tighter integration with digital twins, improved emitter longevity, lower ozone operation, and standardized performance metrics for adjustable output devices.
Adjustable output voltage ionizing air bars represent a significant evolution in static control technology. By enabling precise, adaptive, and efficient ion generation, they address the limitations of traditional fixed-output designs and align with the needs of modern automated and intelligent manufacturing. As electronics continue to scale and manufacturing systems become more interconnected, adjustable ion bar technology will play an increasingly critical role in ensuring product quality, reliability, and sustainability.
A clearer understanding of the value of adjustable output voltage technology can be achieved through direct comparison with conventional fixed-output ion bars. Fixed-output systems are typically optimized for a narrow operating window and rely on conservative design margins. While this approach ensures basic functionality, it often results in excessive ionization under normal conditions. Adjustable output ion bars, in contrast, allow engineers to tailor ionization performance to actual process needs.
From a performance standpoint, adjustable systems demonstrate superior control of ion balance and charge decay, particularly in applications involving variable distances, speeds, or materials. Energy consumption is also significantly reduced when ion output is matched to demand. Furthermore, adjustable designs extend emitter lifespan by avoiding continuous operation at maximum voltage, thereby lowering total cost of ownership.
Proper calibration is essential to realize the benefits of adjustable output ion bars. Initial calibration typically involves setting baseline voltage levels for specific applications, verifying ion balance, and measuring charge decay times under controlled conditions. Advanced systems may store multiple calibration profiles for different products or processes.
Over time, emitter wear, contamination, and environmental changes can alter ionization performance. Periodic validation using portable field meters or integrated sensors ensures that adjustable output settings continue to deliver the desired static control performance.
By tracking operational data such as voltage settings, runtime, and maintenance events, manufacturers can optimize the lifecycle of ion bars. Predictive maintenance strategies reduce unplanned downtime and improve overall equipment effectiveness.
Sustainability has become a key consideration in equipment design and factory operation. Adjustable output voltage ion bars contribute to sustainability goals by minimizing unnecessary power consumption and reducing ozone generation. Lower operating voltages translate directly into reduced electrical losses and less stress on high-voltage components.
In addition, extended emitter life reduces material waste and the environmental impact associated with replacement parts. As sustainability metrics become increasingly important in supplier evaluation, adjustable ionization technology offers measurable advantages.
Future research and development in adjustable output voltage ionizing air bars are expected to focus on several areas. These include further miniaturization of high-voltage power supplies, improved real-time sensing of electrostatic conditions, and tighter integration with factory-level control systems. Advances in materials science may yield new emitter technologies with higher efficiency and lower byproduct generation.
Another promising direction is the development of standardized performance metrics and test methods specifically tailored to adjustable output systems. Such standards would facilitate objective comparison between products and accelerate industry adoption.
