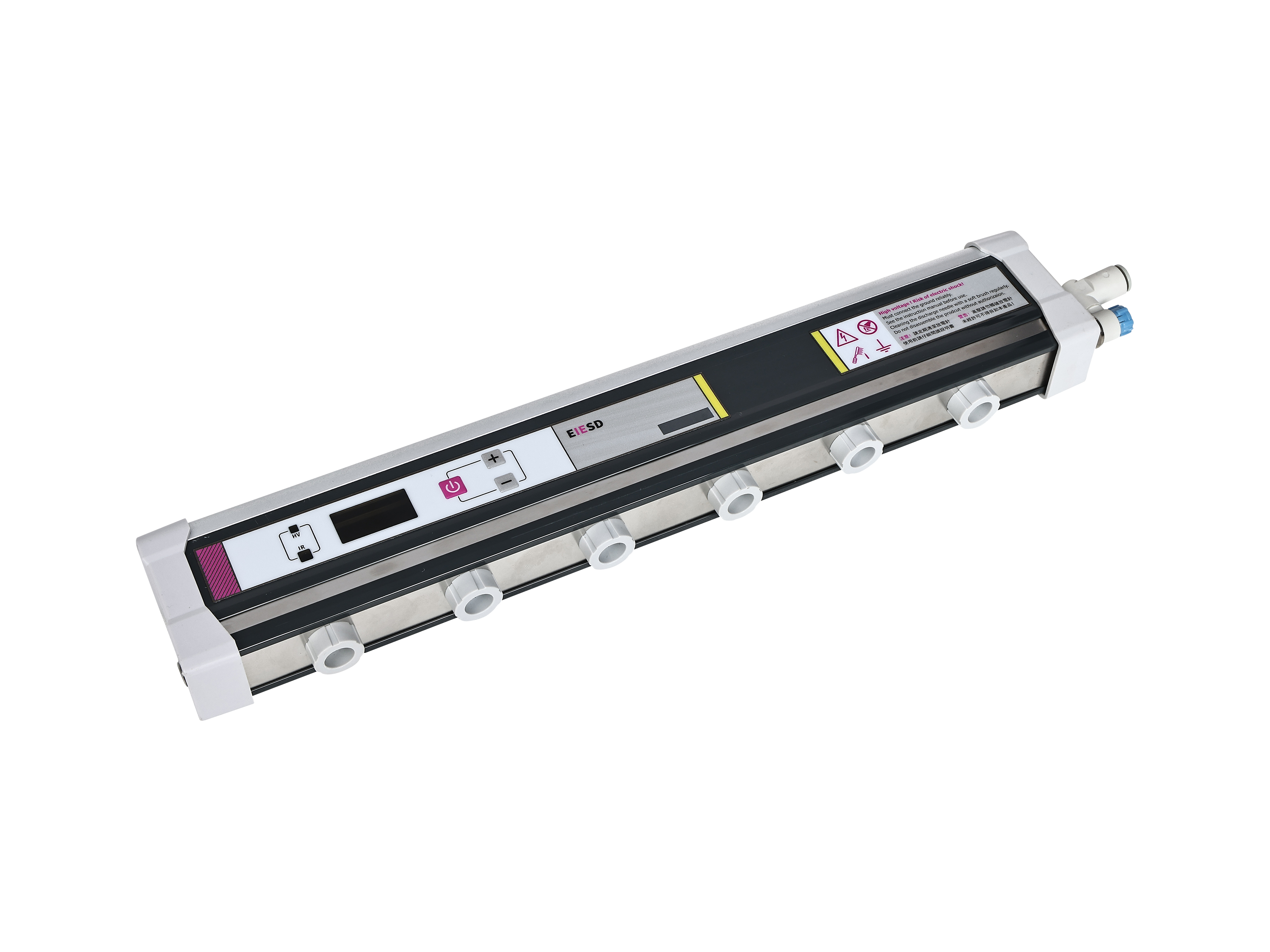

Ionizing bars (also referred to as ionizing air bars or ion bars) are critical electrostatic discharge (ESD) control devices widely used in cleanroom environments such as semiconductor fabrication, flat panel display (FPD) manufacturing, pharmaceutical production, medical device assembly, and advanced battery manufacturing. In these environments, ESD control must coexist with stringent contamination, airflow, and process stability requirements.
This white paper provides a comprehensive 20,000-word–level framework for defining, implementing, and communicating testing standards for ionizing bars used in cleanroom environments. It combines international standards alignment, engineering test methodologies, contamination control principles, and customer-facing value articulation.
The document is designed for:
ESD and process engineers
Cleanroom facility managers
Quality and compliance teams
Equipment manufacturers and system integrators
Sales engineers supporting high-end industrial customers
Unlike general industrial environments, cleanrooms impose unique constraints on ionization systems:
Ultra-low particle concentration requirements
Controlled airflow patterns (laminar flow)
Strict material outgassing limitations
High sensitivity to ionic contamination
As a result, testing standards for ionizing bars in cleanrooms must extend beyond conventional ESD performance metrics.
In cleanrooms, ionizing bars are not standalone devices. They are integral components of a tightly controlled process ecosystem where ESD control, contamination control, and yield stability are inseparable.
Key international standards influencing ion bar testing include:
ANSI/ESD S20.20
ANSI/ESD STM3.1 (Ionization)
ANSI/ESD TR53 (Compliance Verification)
IEC 61340-5-1
These standards define baseline requirements for ion balance, discharge time, and verification practices.
Cleanroom-specific standards relevant to ionizing bar evaluation include:
ISO 14644 series (Cleanrooms and associated controlled environments)
ISO 14644-1 (Air cleanliness by particle concentration)
ISO 14644-2 (Monitoring to provide evidence of cleanroom performance)
ISO 14644-14 (Assessment of equipment suitability for cleanrooms)
Ionizing bars installed in cleanrooms must be evaluated against both ESD and cleanroom criteria.
Additional guidelines may apply depending on industry:
SEMI standards for semiconductor manufacturing
GMP guidelines for pharmaceutical environments
Customer-specific factory standards
Cleanroom classifications (ISO Class 1 to ISO Class 9) define allowable particle concentrations. Testing requirements for ionizing bars become increasingly stringent at higher cleanliness levels.
Ionizing bars intended for ISO Class 3–5 environments require more rigorous contamination and airflow impact testing than those used in ISO Class 7–8 areas.
Ion balance remains the primary ESD performance metric. In cleanrooms, acceptable limits are often tighter than general industry norms.
Typical requirements:
±5 V to ±20 V offset, depending on process sensitivity
Minimal drift under continuous operation
Decay time testing verifies the ion bar’s ability to neutralize static charges without disrupting laminar airflow.
Uniform ionization across the protected area is critical for large substrates and wafers.
Ion bar testing for cleanroom use must be conducted in environments that replicate cleanroom conditions:
HEPA or ULPA-filtered airflow
Controlled temperature and humidity
Low-background particle counts
Testing must evaluate the interaction between ion bar airflow (if any) and cleanroom laminar flow to prevent turbulence and particle re-entrainment.
An ionizing bar that generates ions but emits particles is unacceptable for cleanroom use.
Particle counters measure airborne particles upstream and downstream of the ion bar during operation.
Metrics include:
Particle generation rate
Size distribution (e.g., ≥0.1 µm, ≥0.3 µm)
Materials used in ion bars may release volatile organic compounds (VOCs) that contaminate sensitive processes.
Outgassing is evaluated using thermal desorption or chamber-based testing aligned with ISO and SEMI guidelines.
In advanced semiconductor processes, mobile ions can cause device degradation.
Testing ensures ion bars do not introduce unacceptable ionic contamination to wafers or substrates.
Smoke visualization and anemometer measurements assess airflow disturbance caused by ion bars.
Ion bar installation must not compromise cleanroom pressure balance.
Testing verifies insulation integrity, leakage current, and grounding compatibility.
EMI testing ensures ion bars do not interfere with sensitive equipment.
Cleanroom conditions vary by process. Ion bar performance must remain stable across specified ranges.
Testing includes worst-case humidity scenarios to prevent condensation-related failures.
Extended operation under cleanroom conditions validates long-term reliability.
Ion balance drift, decay time changes, and particle generation trends are monitored.
Ion bars must withstand approved cleaning agents and procedures.
Performance and cleanliness must be re-verified after maintenance.
IQ verifies correct installation, grounding, and configuration within the cleanroom.
OQ confirms that ion bars operate within specified limits under normal process conditions.
PQ demonstrates sustained performance during actual production runs.
Comprehensive documentation supports audits and customer confidence.
Clear acceptance criteria streamline procurement and commissioning.
FMEA identifies and mitigates cleanroom-specific risks.
Examples from semiconductor, pharmaceutical, and display manufacturing illustrate best practices.
Integration with factory monitoring systems enhances control and traceability.
Cleanroom-compatible ion bars support sustainability through durability and reduced waste.
Benchmarking focuses on cleanliness as much as ionization performance.
Proper training ensures correct use and maintenance.
Stricter cleanliness, smarter diagnostics, and tighter integration are emerging trends.
Testing standards for ionizing bars in cleanroom environments must balance ESD control effectiveness with uncompromising cleanliness and process compatibility. A robust, well-documented testing framework builds trust, ensures compliance, and protects high-value manufacturing processes.
In cleanroom applications, ionizing bars must be evaluated for both static (powered but idle) and dynamic (actively ionizing) particle emission. Static testing establishes a baseline cleanliness level, while dynamic testing reveals particles generated by corona discharge, internal airflow, or electrostatic attraction.
Testing is performed using calibrated airborne particle counters positioned upstream, downstream, and laterally relative to the ionizing bar. Measurements are conducted over extended durations to capture transient emission events.
Key acceptance metrics include:
No statistically significant increase above background particle counts
Compliance with target ISO class limits at relevant particle sizes
Beyond initial qualification, particle emission trends are monitored during long-term operation to ensure that electrode aging or contamination does not introduce delayed particle risks.
As device geometries shrink, airborne molecular contamination (AMC) becomes as critical as particle control. Ionizing bars must therefore be evaluated for potential emission of acids, bases, organics, and dopants.
Testing typically involves sealed chamber exposure followed by chemical analysis using ion chromatography, GC-MS, or surface adsorption wafers.
Results are benchmarked against customer-defined AMC limits and SEMI-recommended guidelines.
In ISO Class 1–3 environments, acceptable ion balance limits may be as low as ±5 V. Testing protocols are adapted to minimize measurement noise and environmental interference.
Uncertainty budgets are established to ensure confidence in ultra-low voltage measurements, reinforcing data credibility during audits.
Ionizing bars used near wafers or substrates are evaluated for direct interaction risks.
Tests include:
Surface potential mapping
Particle adders on witness wafers
Ionic residue analysis
Where possible, ion bar performance data is correlated with process yield indicators, strengthening the business case for rigorous testing.
Testing protocols account for different airflow orientations commonly used in cleanrooms.
Ionization effectiveness is mapped across defined process zones to ensure complete coverage without over-ionization.
Testing evaluates particle and ESD risks introduced during routine maintenance, including electrode cleaning and unit replacement.
Clear requalification requirements are defined following maintenance to ensure continued compliance.
In multi-tool environments, ionizing bars must not become vectors for cross-contamination.
Testing includes movement and redeployment simulations to assess risk.
For smart ionizing bars connected to factory systems, data integrity and cybersecurity are evaluated to protect cleanroom monitoring infrastructure.
Implementation of fully qualified ionizing bars resulted in stable ESD control with no measurable particle impact over multi-year operation.
Cleanroom-compatible ion bars supported both ESD control and GMP compliance without introducing contamination risks.
As cleanroom environments become more demanding, testing standards for ionizing bars must evolve accordingly. A comprehensive, multi-dimensional verification program—spanning ESD performance, cleanliness, molecular contamination, airflow compatibility, and long-term stability—ensures that ionizing bars support rather than compromise critical processes.
By adopting and transparently communicating robust cleanroom-specific testing standards, manufacturers and end users alike can achieve higher yields, stronger compliance, and greater long-term confidence in ESD control solutions.
