In the ultra-precise world of semiconductor manufacturing, where modern chips feature nanometer-scale circuits and billions of transistors, even the tiniest disturbances can lead to catastrophic failures. Among the numerous threats to production yield and product quality, electrostatic discharge (ESD) stands out as a silent yet devastating enemy. Industry statistics reveal that over 30% of chip defects stem from ESD-related damage, costing the semiconductor industry billions of dollars annually. This is where ion fans—also known as ionization blowers—emerge as indispensable workhorses, providing critical ESD protection, contamination control, and process stability across the entire chip manufacturing workflow. This article explores the fundamental principles, key applications, and far-reaching benefits of ion fans in semiconductor fabrication, highlighting why they are non-negotiable for advanced chip production.
Before diving into ion fans, it is essential to grasp why ESD poses such a severe risk to chips. Static electricity builds up naturally when materials rub against each other—during wafer handling, machine operation, or even human movement. In semiconductor cleanrooms, where humidity is tightly controlled (typically 40–60%) to minimize contamination, static charges accumulate rapidly on surfaces like silicon wafers, photomasks, and finished chips.
The danger lies in ESD events: when accumulated static voltage (often reaching ±5,000V or higher) discharges suddenly. For modern chips with delicate 3nm, 5nm, or 7nm nodes, even a minor ESD pulse can:
Puncture nanometer-thin dielectric layers, causing permanent short circuits.
Degrade transistor performance, leading to latent defects that cause premature failure in the field (30% of ESD-damaged chips fail within 3–6 months).
Attract airborne contaminants: Static charges act like magnets, pulling micron and submicron dust particles onto wafer surfaces. These particles ruin lithography patterns, block etching processes, and create yield-killing defects.
Unlike physical damage, ESD damage is often invisible, making it hard to detect until chips fail during testing or customer use. This makes proactive ESD control not just a quality issue, but a business imperative for semiconductor manufacturers.

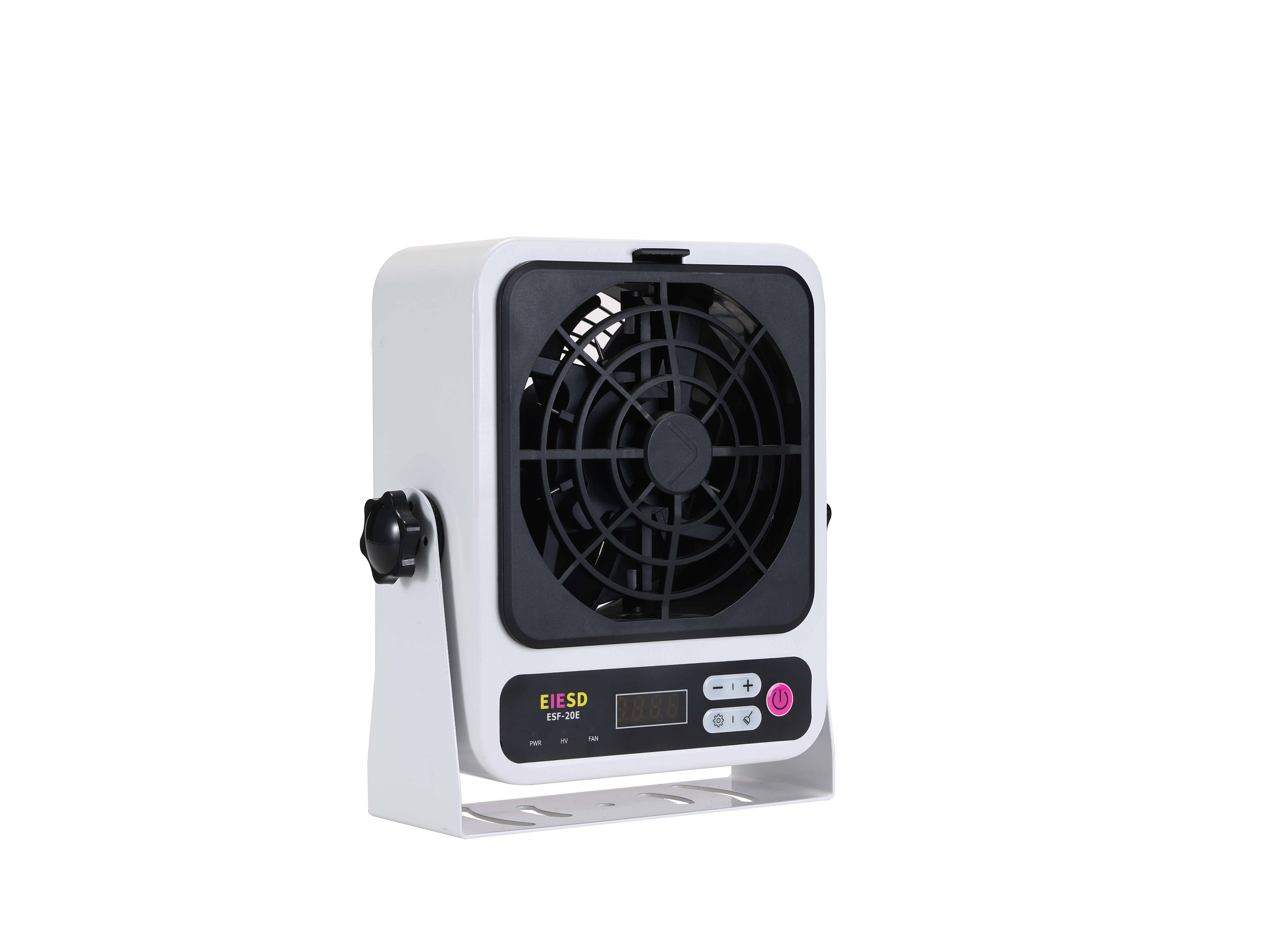

Ion fans are specialized ESD control devices designed to neutralize static charges and reduce contamination in cleanroom environments. Their operation relies on a simple yet highly effective four-step process:
High-Voltage Ionization: Inside the fan, a high-voltage power supply delivers low-current, high-voltage electricity to sharp emitter needles. This creates a strong electric field that ionizes surrounding air molecules, splitting them into a balanced mix of positive (H⁺) and negative (O₂⁻) ions.
Airflow Delivery: A built-in fan blows this ion-rich airflow toward the target area (e.g., a wafer processing station or assembly line). The airflow ensures ions reach every surface, even in hard-to-access corners.
Charge Neutralization: When positive ions contact a negatively charged surface (and vice versa), they bind together, canceling out the static charge. This rapidly reduces surface voltage to safe levels (typically ±5V to ±10V), well below the ESD damage threshold for sensitive components.
Ion Balance Control: Advanced ion fans feature built-in sensors that monitor and adjust the ratio of positive to negative ions. This prevents over-ionization, which could create new static charges, and ensures consistent neutralization across varying production conditions.
Beyond static elimination, ion fans offer a secondary benefit: their ionized airflow gently blows away dust particles that would otherwise adhere to static-charged surfaces. This dual action—ESD neutralization + particle removal—makes them uniquely valuable for semiconductor cleanrooms, where even a single micron-sized particle can ruin a $10,000 wafer.
Semiconductor manufacturing is a complex, 500+ step process spanning wafer fabrication, lithography, etching, deposition, and packaging. Ion fans play critical roles in every stage where static or contamination risks arise. Below are their most vital applications:
Wafer fabrication is the most sensitive and expensive stage of chip production, where silicon wafers are transformed into functional chips. Ion fans are deployed in cleanrooms (ISO Class 5/6) to protect wafers during:
Wafer Slicing & Grinding: When silicon ingots are cut into thin wafers, friction generates massive static charges. Ion fans neutralize these charges to prevent wafer cracking and dust adhesion.
Lithography: Lithography is the "photography" step that imprints circuit patterns onto wafers using photomasks and UV light. Even tiny dust particles or static-induced pattern distortions can ruin entire batches. Ion fans installed above lithography stations maintain static-free surfaces and remove airborne particles, ensuring precise pattern transfer.
Etching & Deposition: Processes like plasma etching and chemical vapor deposition (CVD) involve high-energy environments that generate static. Ion fans prevent static buildup on wafer surfaces, avoiding uneven etching or film deposition that causes electrical defects.
Wafer Transfer & Storage: Wafers are moved between processes using automated equipment (e.g., EFEM, sorters). Ion fans installed at transfer points neutralize static on wafer carriers and surfaces, reducing the risk of ESD during handling.
After fabrication, wafers are diced into individual chips, packaged, and tested. This stage involves more manual handling and mechanical movement, increasing ESD risks. Ion fans are critical for:
Die Attachment & Wire Bonding: During packaging, chips (dice) are attached to substrates, and gold wires connect dice to package pins. Static charges can damage delicate wire bonds or cause misalignment. Ion fans installed near bonders eliminate static, ensuring reliable connections.
Component Handling & Assembly: Pick-and-place machines, conveyors, and operators generate static during chip assembly. Ion fans at workstations and along production lines neutralize static on chips, packages, and equipment surfaces.
Testing & Inspection: Static interference can cause false test results (e.g., incorrect resistance or voltage readings). Ion fans stabilize the electrical environment around test stations, ensuring accurate performance validation of finished chips.
Semiconductor cleanrooms require strict control of both particles and static. Ion fans contribute to overall cleanroom performance by:
Reducing Particle Contamination: By neutralizing static, ion fans eliminate the electrostatic attraction that keeps dust particles stuck to surfaces. Their airflow also carries away loose particles, reducing defect rates by 30–50% in high-risk areas.
Supporting Humidity Control: While humidifiers reduce static, high humidity can cause corrosion or mold. Ion fans work alongside humidity systems to maintain static control at lower humidity levels, balancing contamination risk and equipment longevity.
The integration of ion fans into chip production lines delivers tangible, bottom-line benefits that directly impact profitability and competitiveness:
By eliminating ESD damage and particle contamination, ion fans reduce defect rates by up to 50% in critical processes. For a semiconductor factory producing 10,000 wafers monthly, this translates to thousands more functional chips, avoiding millions in scrap costs.
ESD damage often causes latent defects that lead to product failures in the field. Ion fans eliminate this risk, ensuring chips meet strict reliability standards (e.g., automotive AEC-Q100 or aerospace MIL-STD-883). This reduces warranty claims and protects brand reputation.
Static-related defects often require time-consuming troubleshooting and rework. By preventing these issues, ion fans minimize unplanned downtime. Modern smart ion fans also feature remote monitoring and self-diagnosis, simplifying maintenance and reducing labor costs.
Compared to other ESD measures (e.g., specialized coatings or expensive grounding systems), ion fans offer a cost-effective, scalable solution. They can be easily installed at key workstations or integrated into existing production lines without major infrastructure changes.
Semiconductor manufacturers must adhere to strict ESD and cleanroom standards (e.g., ANSI/ESD S20.20, ISO 14644). Ion fans help facilities meet these requirements, ensuring eligibility for high-value contracts in automotive, aerospace, and consumer electronics sectors.
Not all ion fans are created equal. For semiconductor cleanrooms, manufacturers must select models designed for high-precision, low-contamination environments. Key selection criteria include:
Ion Balance: Look for fans with ultra-tight ion balance (±5V or better) to avoid over-ionization.
ESD Elimination Speed: Fast decay times (≤1 second for ±5,000V to ±100V) ensure rapid static neutralization.
Cleanroom Compatibility: Choose fans with non-shedding materials, sealed motors, and low ozone emissions (critical for ISO Class 5/6 cleanrooms).
Smart Features: Remote monitoring, Wi-Fi connectivity, and automatic cleaning alerts simplify integration into Industry 4.0 semiconductor factories.
Form Factor: Select from bench-top, overhead, or conveyor-mounted models to fit specific production line layouts.
In the unforgiving world of semiconductor manufacturing, where precision is measured in nanometers and defects in parts per million, ion fans are far more than just "anti-static devices"—they are foundational to production success. By neutralizing ESD, reducing particle contamination, and ensuring process stability, these unassuming devices protect billions of dollars in wafer and chip inventory, improve yield, and guarantee the reliability of the chips powering modern technology.
As semiconductor technology advances toward smaller nodes (2nm, 1nm) and more complex architectures (3D stacking, chiplets), the importance of ion fans will only grow. For any manufacturer looking to stay competitive in the global semiconductor market, investing in high-quality ion fans is not just a choice—it is a necessity.
