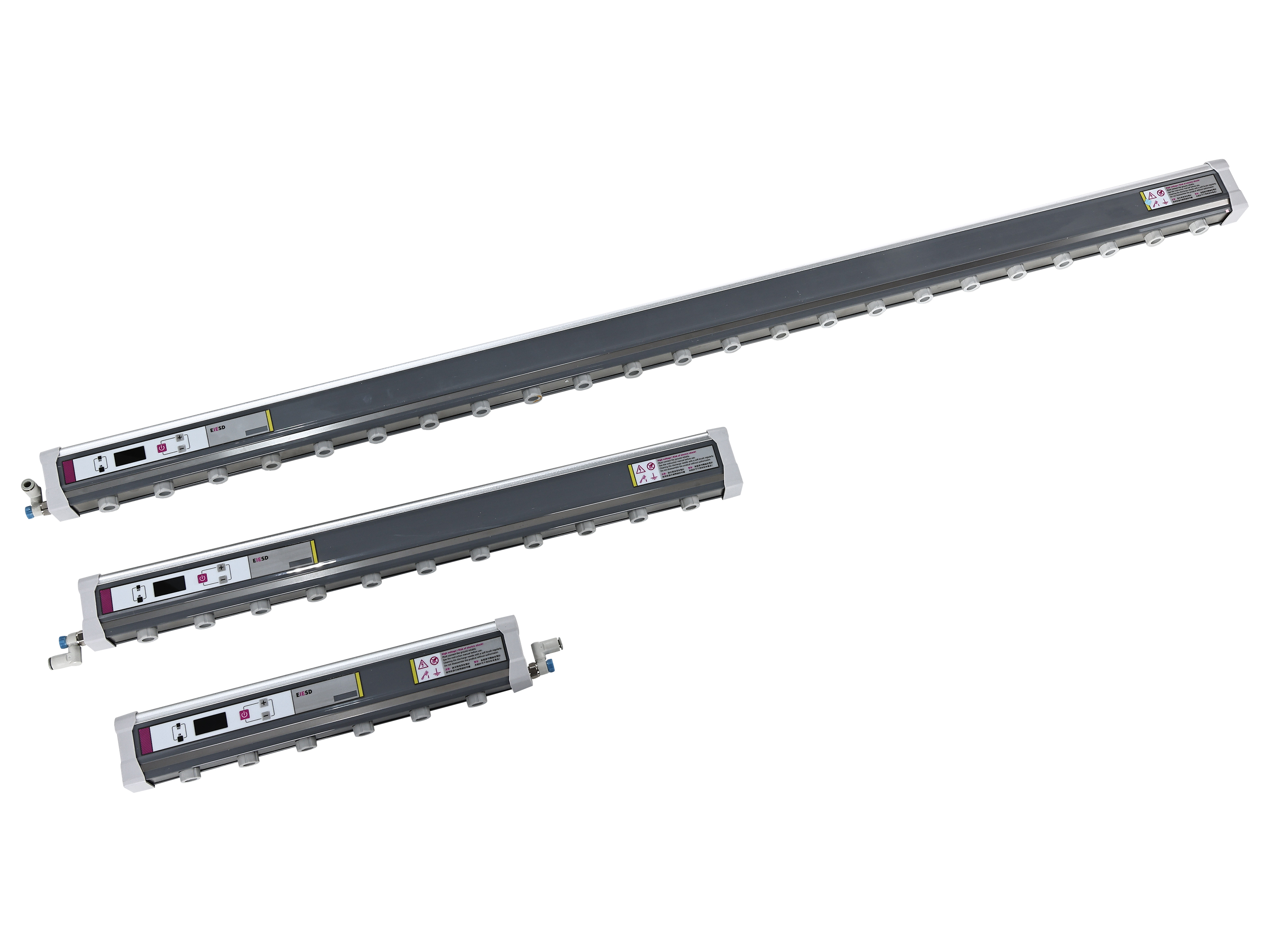

Ionizing air bars are widely used in industrial environments to eliminate static electricity on product surfaces during manufacturing processes. Applications include electronics assembly, semiconductor fabrication, printing, packaging, plastics processing, and film production. At the core of an ionizing air bar is the corona discharge system, in which high-voltage electrodes—commonly referred to as corona needles or emitter pins—generate positive and negative ions that neutralize electrostatic charges.
Among all components of an ionizing air bar, the corona needle is the most critical and the most vulnerable to degradation. The material selection of the corona needle directly affects ion generation efficiency, discharge stability, contamination resistance, maintenance frequency, and most importantly, service life. In harsh industrial environments, inappropriate material selection can result in rapid needle erosion, oxidation, unstable ion balance, and frequent system failures.
This article provides an in-depth technical analysis of how different corona needle materials influence the service life of ionizing air bars. By examining discharge physics, material properties, failure mechanisms, and real-world operating conditions, this paper aims to provide engineers, designers, and procurement specialists with clear guidelines for material selection.
Corona discharge occurs when a high electric field is concentrated at a sharp electrode tip, ionizing nearby air molecules without forming a complete electrical arc. In ionizing air bars, this effect is intentionally used to generate a controlled flow of ions.
The corona needle geometry—particularly the sharpness of the tip—plays a crucial role in electric field concentration. However, material properties determine whether this geometry can be maintained over time. Even the sharpest needle will lose effectiveness if erosion or oxidation blunts the tip.
Key characteristics of corona discharge relevant to needle lifespan include:
Continuous exposure to high voltage (typically 4–7 kV AC or pulsed DC)
Localized heating at the needle tip
Chemical reactions with ozone (O₃) and nitrogen oxides (NOₓ)
Bombardment by charged particles and ions
These factors collectively impose severe stress on the needle material, making material selection a decisive factor in service life.
Before comparing materials, it is essential to understand how corona needles fail in real-world applications.
Ion bombardment and micro-arcing gradually remove material from the needle tip. Softer metals experience faster erosion, resulting in a rounded tip and reduced electric field strength. Once the field weakens, ion output drops significantly.
Corona discharge produces ozone and reactive nitrogen species. These oxidizing agents aggressively attack susceptible materials, forming oxide layers that increase electrical resistance and disrupt stable discharge.
Although corona discharge does not produce large-scale heating, localized temperatures at the needle tip can be high. Materials with low melting points or poor thermal stability degrade faster.
Dust, oil mist, and organic vapors can accumulate on the needle surface. Some materials promote carbon tracking and conductive contamination, accelerating electrical breakdown.
Each of these failure modes interacts differently with specific material properties, which explains the large variation in service life observed across different corona needle materials.
The service life of a corona needle is governed by a combination of electrical, mechanical, thermal, and chemical properties.
High conductivity ensures stable voltage delivery to the needle tip. Poor conductivity results in uneven discharge and localized overheating, accelerating degradation.
Materials with high melting points and hardness resist erosion and thermal deformation. This is especially critical for maintaining tip sharpness over long operating periods.
Resistance to oxidation and chemical attack from ozone directly affects long-term stability. Materials that form stable, protective oxide layers perform better than those that form flaky or insulating oxides.
While hardness is beneficial, excessive brittleness can lead to cracking or chipping, particularly during cleaning or maintenance.
Stainless steel is one of the most commonly used materials for corona needles due to its low cost, availability, and ease of machining. Typical grades include SUS304 and SUS316.
Low material cost
Good corrosion resistance in mild environments
Easy manufacturing and replacement
Despite its popularity, stainless steel has several drawbacks:
Moderate melting point compared to refractory metals
Susceptibility to ozone-induced oxidation over time
Relatively fast tip erosion under continuous high-voltage operation
In clean, low-duty-cycle environments, stainless steel needles may last 6–12 months. However, in high-humidity or high-contamination environments, lifespan can drop below 3–6 months.
Tungsten is widely regarded as the benchmark material for high-performance corona needles. It has the highest melting point of all metals (≈3422°C) and exceptional hardness.
The properties of tungsten directly translate into superior longevity:
Extremely low erosion rate
Excellent resistance to thermal degradation
Stable tip geometry over long periods
In industrial environments where stainless steel needles require frequent replacement, tungsten needles often last 3–5 times longer, with typical service lives exceeding 2–3 years under continuous operation.
The main disadvantages of tungsten are higher material cost and increased brittleness. However, for applications prioritizing uptime and stability, tungsten is often the most cost-effective choice over the equipment’s lifetime.
Titanium offers a balance between corrosion resistance and mechanical strength. Its natural oxide layer provides excellent resistance to chemical attack, but this same oxide layer can slightly reduce electrical conductivity at the surface.
In practice, titanium needles exhibit:
Better oxidation resistance than stainless steel
Longer lifespan in chemically aggressive environments
Slightly lower ion output compared to tungsten
Titanium needles are often selected for environments with chemical vapors where stainless steel degrades rapidly.
Carbon-based needles are sometimes used in specialized applications. They offer good resistance to oxidation and contamination but suffer from lower mechanical durability and inconsistent discharge behavior under high humidity.
Their service life is highly application-dependent and generally shorter than that of tungsten or titanium in high-voltage continuous-duty systems.
Even the best material will degrade faster under adverse conditions:
High humidity accelerates oxidation and surface leakage
Chemical vapors attack susceptible metals
Oil mist and dust promote contamination and carbonization
Material selection must therefore be matched not only to electrical requirements but also to the operating environment.
| Material | Typical Service Life | Relative Cost | Stability |
|---|---|---|---|
| Stainless Steel | 3–12 months | Low | Medium |
| Titanium | 1–2 years | Medium | Good |
| Tungsten | 2–5 years | High | Excellent |
The material of the corona needle is the single most important factor determining the service life of an ionizing air bar. While stainless steel offers low upfront cost, tungsten and titanium provide significantly longer lifespans, reduced maintenance, and more stable ionization performance.
For high-demand industrial applications, investing in advanced corona needle materials results in lower total cost of ownership, higher system reliability, and improved static control effectiveness.
Accurately evaluating the service life of corona needle materials requires more than short-term laboratory testing. Because corona discharge degradation is a cumulative process, long-term and accelerated aging tests are essential for meaningful comparison.
One of the most common evaluation methods is continuous high-voltage operation under controlled environmental conditions. In this test, ionizing air bars equipped with different needle materials are operated at rated voltage for extended periods, often exceeding 3,000 to 10,000 hours.
Key performance indicators monitored during the test include:
Ion output decay rate
Corona onset voltage shift
Discharge current stability
Visual and microscopic changes at the needle tip
Materials such as tungsten consistently demonstrate slower performance degradation, while stainless steel shows noticeable tip rounding and oxidation within the first 1,000–2,000 hours.
To simulate harsh industrial environments, accelerated aging tests expose corona needles to elevated humidity, temperature, and reactive gases.
Typical conditions include:
Relative humidity above 85%
Ambient temperatures of 40–60°C
Elevated ozone concentration
Presence of solvent or acidic vapors
Under these conditions, differences in oxidation resistance and chemical stability become highly pronounced. Titanium and noble-metal-coated needles often outperform uncoated stainless steel by a significant margin.
Post-test analysis using optical microscopy and scanning electron microscopy (SEM) reveals the dominant degradation mechanisms:
Micro-pitting caused by ion bombardment
Oxide layer formation and cracking
Carbonized contamination layers
Grain boundary erosion in softer alloys
These observations provide direct evidence linking material properties to observed lifespan differences.
Beyond bulk material selection, surface engineering plays an increasingly important role in extending corona needle lifespan.
Gold, platinum, and palladium coatings are occasionally applied to corona needles to improve oxidation resistance and surface stability.
Benefits include:
Excellent chemical inertness
Reduced surface oxidation
Stable discharge characteristics
However, noble metal coatings are typically very thin. Once worn through by erosion, the underlying base material becomes exposed. As a result, these coatings are most effective when applied to already durable substrates such as tungsten.
Advanced ceramic coatings, including alumina and zirconia-based layers, provide excellent thermal and chemical resistance. When properly engineered, these coatings can significantly reduce erosion rates.
Challenges include:
Maintaining sufficient electrical conductivity
Avoiding coating delamination
Ensuring consistent tip geometry
Improper coating design can actually reduce ion output or cause unstable discharge behavior.
Emerging technologies use nano-scale surface texturing or composite coatings to enhance electric field concentration while minimizing material loss.
Although still primarily used in high-end or experimental systems, these treatments show promise for dramatically extending service life without sacrificing ionization efficiency.
Material selection alone does not determine corona needle longevity. Maintenance practices can either preserve or drastically shorten service life, regardless of material quality.
Regular cleaning removes contaminants that accelerate electrical degradation. However, aggressive cleaning methods can damage needle tips, especially for brittle materials.
Recommended practices include:
Non-abrasive air blowing
Alcohol-based wiping for oil contamination
Avoiding mechanical scraping
Tungsten needles tolerate cleaning better than softer metals, but even tungsten can chip if mishandled.
Rather than replacing needles on a fixed schedule, advanced users monitor performance indicators such as ion balance drift and discharge current instability.
Different materials exhibit distinct degradation signatures:
Stainless steel: gradual ion output decline
Titanium: surface resistance increase
Tungsten: sudden performance drop only near end-of-life
Understanding these patterns allows for predictive maintenance and reduced downtime.
In electronics manufacturing, stable ion balance and low particle generation are critical. Tungsten needles are strongly preferred due to their minimal erosion and consistent discharge behavior.
These environments often contain ink vapors and paper dust. Titanium or coated stainless steel needles offer a balance between cost and chemical resistance.
Cleanroom environments demand ultra-low contamination and long service intervals. Tungsten or noble-metal-coated tungsten needles are typically the only acceptable solutions.
While initial material cost often drives procurement decisions, total cost of ownership (TCO) provides a more accurate economic comparison.
Factors included in TCO analysis:
Initial needle cost
Replacement frequency
Labor cost for maintenance
Production downtime
Performance stability impact
In many cases, tungsten needles—despite higher upfront cost—result in lower overall expense due to extended lifespan and reduced maintenance.
The demand for higher reliability and lower maintenance is driving innovation in corona needle materials.
Key trends include:
Hybrid metal-ceramic composites
Advanced surface coatings with self-healing properties
Additive manufacturing for optimized tip geometry
Environment-specific material customization
These developments are expected to further widen the performance gap between advanced materials and traditional stainless steel solutions.
Based on material behavior, environmental factors, and economic considerations, the following recommendations can be made:
Use tungsten needles for continuous-duty, high-reliability applications
Avoid uncoated stainless steel in high-humidity or chemically aggressive environments
Consider titanium or coated solutions when chemical resistance is critical
Align maintenance procedures with material characteristics
Evaluate lifecycle cost rather than initial price alone
The service life of corona needles in ionizing air bars is fundamentally governed by material selection. Electrical stress, chemical attack, thermal effects, and environmental contamination all interact with material properties to determine degradation rate.
Advanced materials such as tungsten and engineered coatings offer substantial improvements in durability, stability, and total cost of ownership. As industrial static control requirements continue to rise, thoughtful material selection will remain a critical factor in ionizing air bar design and application.
