The Influence of High-Voltage Power Supply on Ion Emission Efficiency

The Influence of High-Voltage Power Supply on Ion Emission Efficiency

1. Introduction

The high-voltage power supply (HVPS) is the core component of any ionization system, including ionizing air bars, blowers, and nozzles.

It provides the electrical energy required to generate a corona discharge at the ionizing needle tips — the process by which air molecules are ionized to produce positive and negative ions.

The stability, waveform, and magnitude of the applied high voltage directly determine the ion emission rate, ion balance, and static neutralization efficiency.

2. Basic Principle: Ion Generation by Corona Discharge

When a high voltage is applied to a sharp metal needle, an extremely strong electric field forms at the tip (typically above 3 × 10⁶ V/m).

This field accelerates free electrons in the surrounding air, causing collision ionization:

N

2

+

−

→

N

2

+

+

2

−

N

2

+e

−

→N

2

+

+2e

−

This chain reaction produces positive ions (cations) and free electrons, which in turn generate negative ions (anions) when captured by neutral gas molecules (O₂⁻, N₂⁻, etc.).

The strength and stability of this process depend entirely on the quality of the high-voltage supply.

3. Key High-Voltage Parameters Affecting Ion Emission Efficiency

1️⃣ Output Voltage Amplitude

Definition: The magnitude of the AC or DC high voltage applied to the ion needles (typically 3–10 kV).

Effect:

Higher voltage → stronger electric field → more intense corona discharge → greater ion production.

However, excessively high voltage increases the risk of arcing, ozone generation, and needle wear.

Typical Optimization Range:

AC ionizer: 4–7 kV RMS

DC ionizer: ±5–10 kV

The voltage must be high enough for efficient ionization, but below the breakdown threshold of air.

2️⃣ Voltage Stability (Ripple and Drift)

Definition: The degree to which the output voltage remains constant over time.

Effect:

Voltage fluctuations cause unstable ion density and poor ion balance.

Drift in output voltage (especially in DC systems) may shift polarity output, leaving residual charge on the target surface.

Ideal Condition: Ripple < 1% and drift < ±0.1 kV

Stable voltage = consistent ion emission and balance.

3️⃣ Frequency and Waveform Type

AC Ionizers:

Alternate positive and negative voltage cycles (50–60 Hz or higher).

Ion generation alternates between polarities; efficiency depends on waveform symmetry.

DC Ionizers:

Continuous output from separate positive and negative electrodes.

Provides steady ion flow but requires active balance control.

Pulsed DC Ionizers:

Emit alternating bursts of positive and negative ions.

Adjustable pulse frequency and duty ratio control ion density and balance precisely.

Waveform design determines ion polarity balance and emission control.

4️⃣ Discharge Current and Limiting Resistance

Definition: The small corona current (usually microampere level) that flows through the discharge path.

Effect:

Higher current indicates stronger ionization but also greater risk of electrode wear.

The HVPS includes current-limiting resistors to prevent arc discharges.

Typical Range: 1–10 μA per electrode.

Controlled current ensures efficient yet safe ion generation.

5️⃣ Power Supply Design and Insulation

Importance: High-voltage modules must be well insulated to prevent leakage or arcing.

Design Features:

Resin encapsulation or potting to resist humidity.

Shielding to minimize electromagnetic interference (EMI).

Built-in overload and short-circuit protection.

A well-designed HVPS ensures long-term reliability and stable ion output.

4. Quantitative Relationship: Voltage vs. Ion Density

Empirical data show a near exponential relationship between applied voltage and ion density up to a certain limit:

∝

(

/

0

)

for

<

ℎ

ℎ

n

i

∝e

(V/V

0

)

for V<V

threshold

Where:

n

i

= ion concentration

V = applied voltage

0

V

0

= characteristic voltage (typically 2–3 kV)

Beyond a critical voltage (~8–10 kV), the curve flattens due to space-charge effects — excessive ions begin to repel further ion generation.

More voltage increases ion output only up to a saturation point.

5. Influence on Key Performance Metrics

Performance Metric Impact of HVPS Quality Explanation

Ion Balance High Voltage asymmetry between + and – cycles directly shifts ion balance.

Decay Time High Stronger and more stable HV output shortens static neutralization time.

Ion Density High Directly proportional to voltage amplitude and waveform efficiency.

Needle Lifetime Medium Excessive voltage or unstable waveform accelerates tip erosion.

Ozone Generation Medium–High Higher voltage and current increase ozone production.

6. Real-World Example

A pulsed DC ionizing bar operates at ±7 kV.

If the high-voltage supply drifts to +7.5 kV and –6.5 kV, the ion balance shifts by about +50 V, resulting in a residual negative charge on the target surface.

Regular HV calibration or feedback control restores ±7.0 kV symmetry and recovers neutral performance.

7. Design and Maintenance Recommendations

Use high-quality, regulated HV modules with low ripple and thermal drift.

Implement feedback control for automatic ion balance adjustment.

Ensure proper grounding and shielding of the HV circuit.

Periodically check output voltage using an electrostatic voltmeter or HV probe.

Keep ion needles clean to maintain stable discharge current.

8. Conclusion

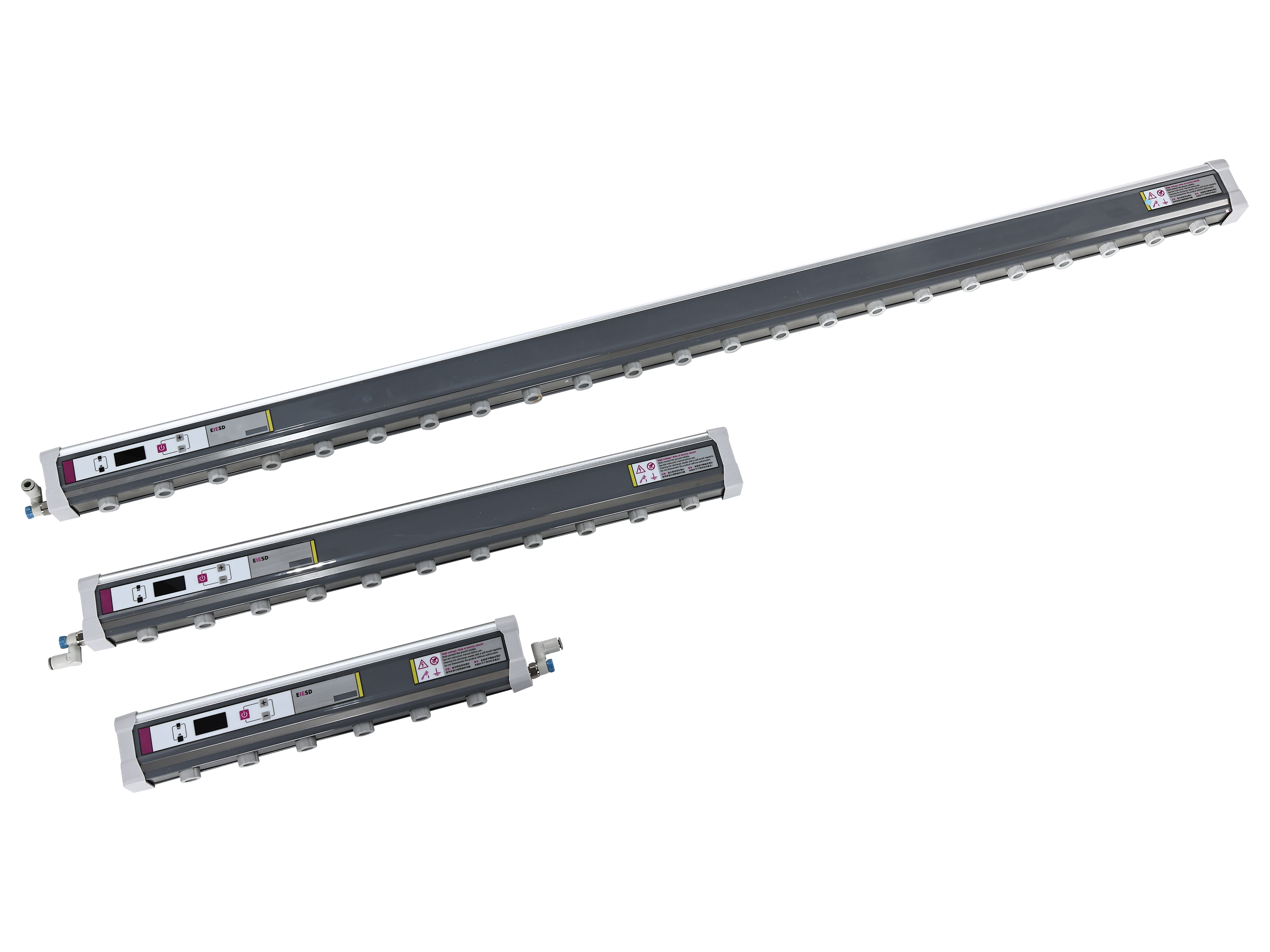

The high-voltage power supply is the heart of an ionizing air bar.

Its voltage amplitude, stability, and waveform characteristics directly determine the ion emission efficiency, ion balance, and static elimination speed.

A well-regulated, symmetrical, and stable high-voltage system ensures:

High ion density

Short decay time

Accurate ion balance

Long electrode life

Reliable ESD protection

In short —

Stable high voltage = stable ionization = superior static control.
