The Influence of Microstructure of Ionizing Air Bar Emitter Needle Surfaces on Service Life

Abstract

Ionizing air bars (also called ionizing blowers or static elimination bars) are widely used in electronics manufacturing, semiconductor fabrication, precision coating, printing, packaging, and explosive environments to neutralize electrostatic charges. The emitter needle, typically made of stainless steel, tungsten, titanium, or special alloys, is the core functional component responsible for corona discharge and ion generation. While macro-level parameters such as material type and electrical design are well studied, the microstructure of the emitter needle surface plays a critical yet often underestimated role in determining operational stability and service life.

This article systematically analyzes how surface microstructure—including grain size, phase distribution, surface roughness, oxide layer characteristics, coating morphology, and defect distribution—affects corona discharge behavior, erosion rate, contamination resistance, oxidation dynamics, and mechanical degradation. Mechanisms of failure are examined, and engineering optimization strategies are proposed.

---

1. Introduction

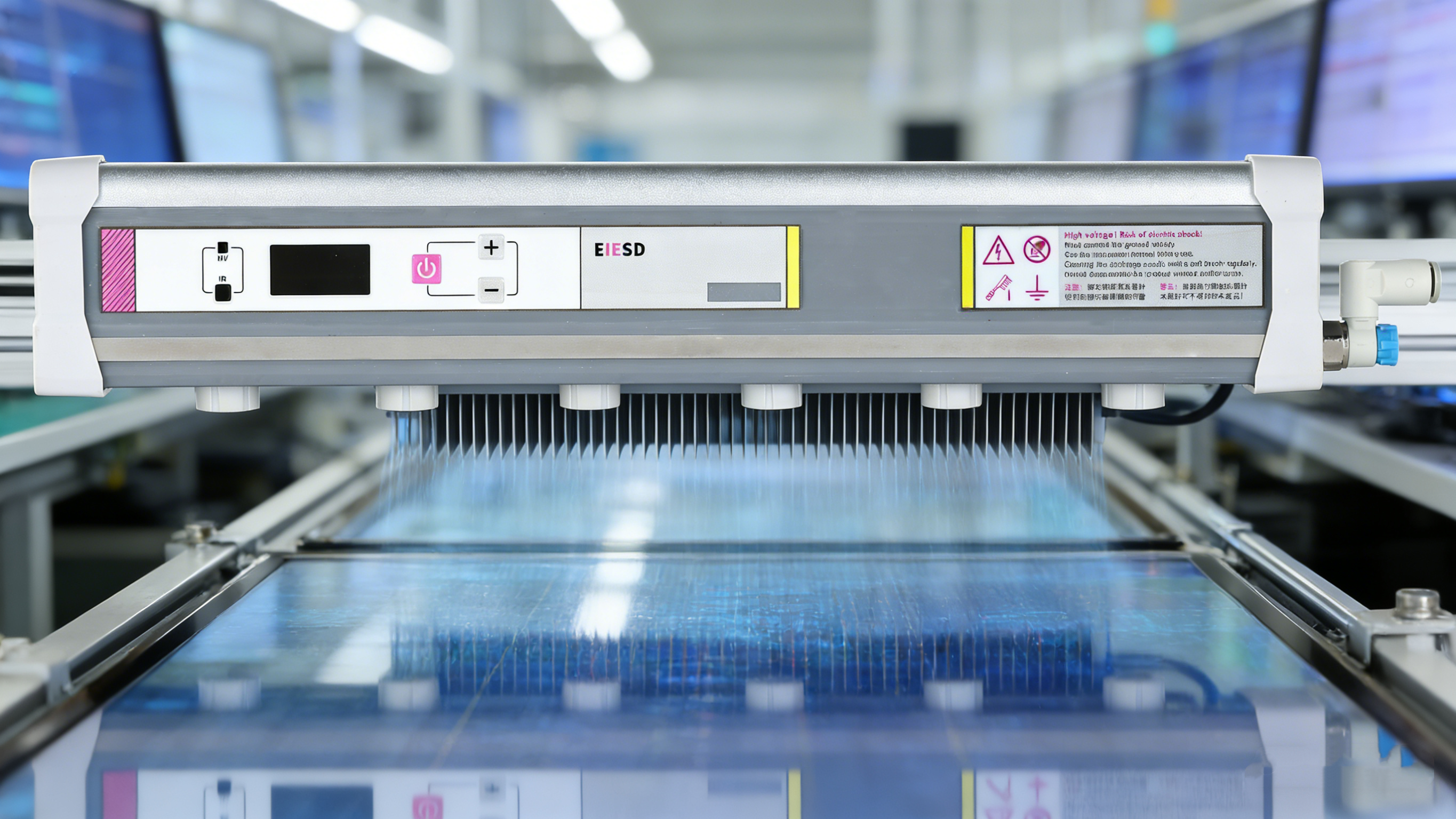

Ionizing air bars function by applying high voltage to sharp emitter needles, generating corona discharge at the needle tip. The electric field intensity at the tip must exceed the breakdown threshold of air (~3 × 10^6 V/m). The geometry and surface condition of the emitter directly determine electric field enhancement, discharge uniformity, and ion output stability.

Over time, emitter needles degrade due to:

• Electrical erosion

• Ion bombardment

• Oxidation

• Contamination accumulation

• Thermal fatigue

• Mechanical stress

Among these factors, the microstructural characteristics of the needle surface strongly influence degradation mechanisms and thus service life.

---

2. Microstructural Characteristics of Emitter Needles

2.1 Grain Size and Grain Boundary Distribution

Metals consist of crystalline grains separated by grain boundaries. Grain size affects:

• Electrical conductivity

• Mechanical hardness

• Corrosion resistance

• Diffusion rate of atoms

Fine-grained materials typically exhibit:

• Higher hardness (Hall–Petch relationship)

• Higher grain boundary density

• Increased diffusion paths for oxidation

In ionizing emitter needles, fine grains improve mechanical strength but may accelerate oxidation due to increased grain boundary diffusion.

2.2 Surface Roughness and Microtopography

At microscopic scale, even polished needles contain:

• Micro-asperities

• Grooves

• Machining marks

• Micro-cracks

Surface roughness influences:

• Local electric field enhancement

• Corona onset voltage

• Discharge uniformity

• Hot spot formation

Excessive micro-protrusions lead to localized high field intensity, causing uneven erosion and accelerated tip blunting.

2.3 Phase Composition and Precipitation

Alloy emitter materials may contain:

• Carbides

• Intermetallic phases

• Second-phase precipitates

Heterogeneous phase distribution creates:

• Local differences in electrical conductivity

• Variations in corrosion potential

• Differential erosion rates

This can cause micro-pitting and structural instability over time.

2.4 Oxide Layer Microstructure

During operation, high voltage discharge produces ozone and reactive oxygen species. These react with the metal surface forming oxide films.

Oxide film characteristics:

• Thickness

• Porosity

• Adhesion

• Crystallinity

Dense and stable oxide layers may protect the base metal, while porous or brittle oxides can spall off and expose fresh metal to further oxidation.

---

3. Mechanisms Linking Microstructure to Service Life

3.1 Electric Field Concentration and Micro-Protrusions

The electric field intensity near a sharp tip is approximately:

E ≈ V / r

Where:

• V = applied voltage

• r = radius of curvature

Micro-scale protrusions drastically reduce local radius, increasing local electric field strength beyond design expectations.

Consequences:

• Micro-arcing

• Thermal spikes

• Local melting

• Rapid erosion

Needles with highly irregular microtopography show faster degradation due to unstable discharge distribution.

3.2 Electrical Erosion and Material Removal

Corona discharge generates:

• Electron bombardment

• Ion impact

• UV radiation

• Micro-heating

These processes cause sputtering and surface atom removal.

Microstructure influences sputtering rate:

• Fine grains: higher boundary energy → increased erosion susceptibility

• Coarse grains: more stable but lower hardness

Uniform grain structure reduces differential erosion.

3.3 Oxidation and Grain Boundary Diffusion

Oxidation in corona environments is accelerated by:

• Ozone (O₃)

• Nitrogen oxides

• UV radiation

Grain boundaries serve as rapid diffusion pathways for oxygen. Fine-grained structures may oxidize more quickly due to increased boundary density.

However, certain alloying elements (e.g., chromium in stainless steel) form protective passive films, reducing oxidation rate if microstructure is optimized.

3.4 Thermal Fatigue and Micro-Cracking

Discharge pulses create cyclic thermal loading at the tip. Differences in:

• Phase composition

• Grain orientation

• Residual stresses

lead to thermal mismatch and micro-crack formation.

Cracks propagate along:

• Grain boundaries

• Phase interfaces

• Machining defects

Once initiated, cracks accelerate material loss and tip deformation.

---

4. Surface Treatments and Their Microstructural Impact

4.1 Mechanical Polishing

Polishing reduces surface roughness and removes machining marks.

Effects:

• More uniform electric field

• Lower localized erosion

• Improved discharge stability

However, excessive polishing may induce residual tensile stress, promoting crack initiation.

4.2 Electrochemical Polishing

Electropolishing selectively dissolves micro-peaks, producing:

• Smoother surface

• Reduced micro-defects

• Improved corrosion resistance

It also forms a thin passive oxide layer with improved uniformity.

4.3 Coatings

Common coatings include:

• Titanium nitride (TiN)

• Diamond-like carbon (DLC)

• Tungsten carbide

Coating microstructure influences:

• Hardness

• Electrical conductivity

• Adhesion strength

• Oxidation resistance

Dense nanocrystalline coatings provide high erosion resistance but must maintain sufficient conductivity to sustain corona discharge.

---

5. Failure Modes Related to Surface Microstructure

5.1 Tip Blunting

Erosion and oxidation increase tip radius, reducing electric field strength.

Symptoms:

• Higher corona onset voltage

• Reduced ion output

• Uneven ion balance

Microstructure that resists sputtering prolongs sharpness retention.

5.2 Surface Contamination Adhesion

Rough microstructure traps:

• Dust particles

• Oil residues

• Ionic contaminants

Contamination reduces ion generation efficiency and may create leakage paths.

Smooth, dense surfaces show lower contamination adhesion.

5.3 Micro-Pitting and Corrosion

Heterogeneous microstructure promotes galvanic microcells between phases.

Result:

• Localized pitting

• Structural weakening

• Accelerated failure

---

6. Comparative Analysis of Materials

6.1 Stainless Steel

Advantages:

• Good corrosion resistance

• Moderate cost

Limitations:

• Moderate hardness

• Grain boundary oxidation risk

Microstructure control through annealing improves lifetime.

6.2 Tungsten

Advantages:

• High melting point

• Excellent erosion resistance

• Stable microstructure

Limitations:

• Brittle behavior

• Higher cost

Fine-grained tungsten improves mechanical strength but must avoid excessive boundary oxidation.

6.3 Titanium Alloys

Advantages:

• Lightweight

• Strong oxide passivation

Limitations:

• Lower electrical conductivity

Microstructure refinement enhances fatigue resistance.

---

7. Optimization Strategies

7.1 Grain Size Engineering

Balanced grain size is required:

• Too fine → increased oxidation

• Too coarse → reduced hardness

Controlled thermomechanical processing can achieve optimal microstructure.

7.2 Surface Roughness Control

Target:

• Nanometer-scale smoothness

• Minimal micro-protrusions

• Uniform curvature at tip

Laser finishing and precision electro-polishing are effective methods.

7.3 Advanced Coating Design

Key considerations:

• Conductive yet erosion-resistant

• Strong adhesion

• Low residual stress

• Dense nanostructure

Multilayer nano-coatings improve durability.

---

8. Experimental Evaluation Methods

To evaluate microstructure impact:

1. Scanning Electron Microscopy (SEM)

2. Atomic Force Microscopy (AFM)

3. X-ray Diffraction (XRD)

4. Surface profilometry

5. Ion output stability testing

6. Accelerated corona aging tests

Correlation between microstructural parameters and lifetime can be quantified through statistical modeling.

---

9. Future Research Directions

Emerging areas include:

• Nano-engineered emitter tips

• Self-healing conductive coatings

• Plasma-resistant composite materials

• Microstructure modeling via finite element analysis

• AI-based lifetime prediction systems

Integration of microstructural design with electrical field simulation will further optimize ionizer durability.

---

10. Conclusion

The microstructure of ionizing air bar emitter needle surfaces significantly influences service life through multiple coupled mechanisms:

• Electric field distribution

• Electrical erosion

• Oxidation kinetics

• Thermal fatigue resistance

• Contamination behavior

Optimal service life is achieved through:

• Controlled grain size

• Uniform phase distribution

• Minimal surface roughness

• Stable protective oxide layers

• High-adhesion conductive coatings

Rather than focusing solely on material type, advanced engineering should emphasize microstructural optimization and surface engineering to enhance performance stability and operational longevity.

A comprehensive understanding of microstructure–property–lifetime relationships enables the development of next-generation ionizing air bars with improved reliability, lower maintenance frequency, and reduced total cost of ownership.
