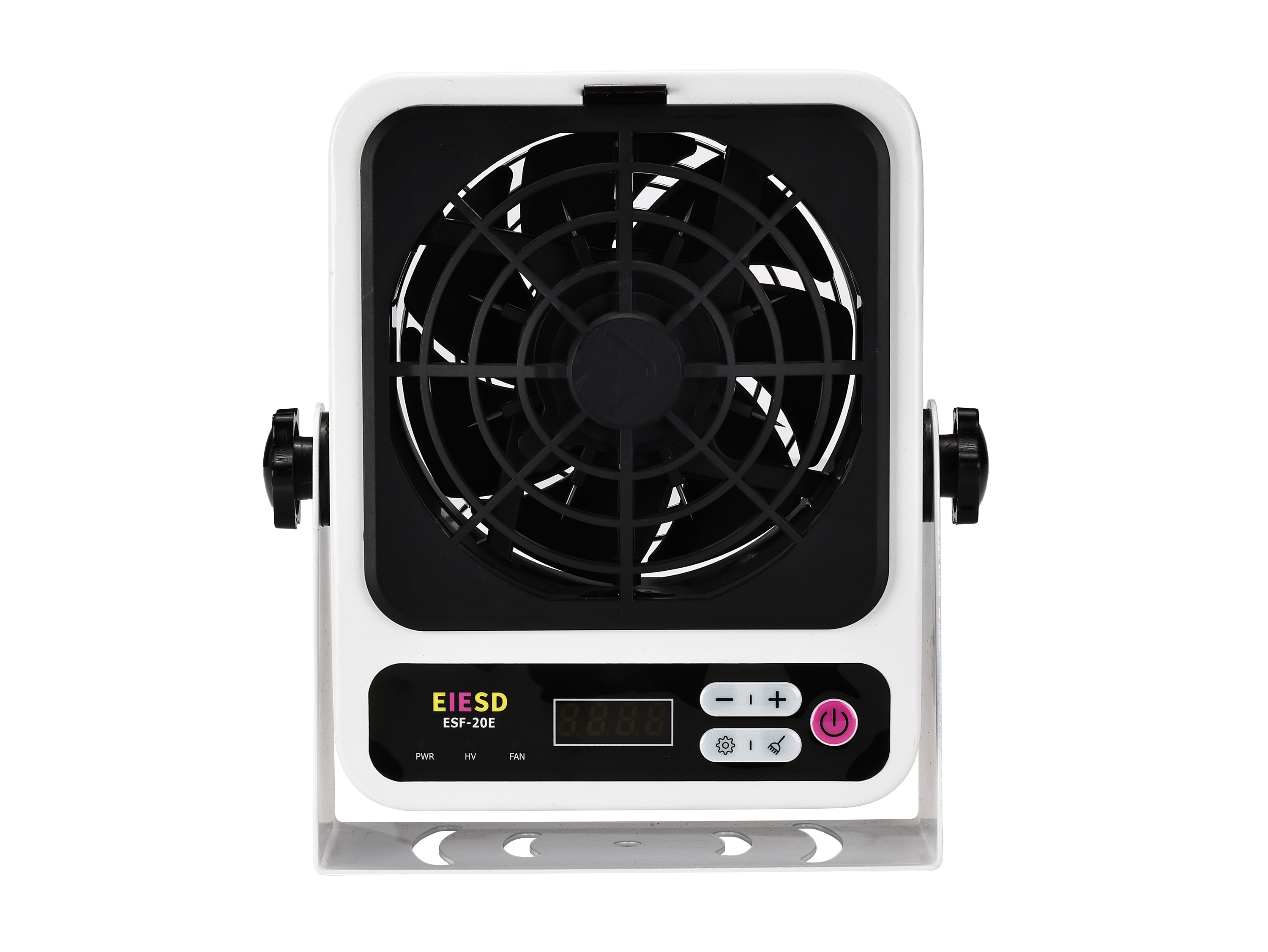

The Specific Roles of Ion Fans in Mobile Phone Production
In the highly precise and fast-paced mobile phone manufacturing industry, every link from component processing to final assembly requires strict quality control to ensure the performance, reliability, and service life of the final products. Modern smartphones integrate a large number of ultra-sensitive electronic components, including microchips, printed circuit boards (PCBs), 5G radio frequency components, CMOS camera sensors, and OLED displays. These components are extremely vulnerable to electrostatic discharge (ESD) and dust contamination, which are the main causes of product defects, reduced yield, and increased production costs. As a core ESD protection and dust control device, ion fans play an irreplaceable role in the entire mobile phone production process. Their specific functions run through every key production link, effectively solving the pain points of static damage and dust pollution, and providing strong guarantee for the stable operation of the production line and the improvement of product quality. This article will elaborate on the specific roles of ion fans in mobile phone production in detail, combining the actual production process, to help readers fully understand the importance of ion fans in modern mobile phone manufacturing.
Static electricity is an inevitable by-product in the mobile phone production process. It is generated in a variety of links, such as the friction between plastic parts and molds during injection molding, the contact and separation between workers' gloves and components, the movement of conveyor belts, and the packaging and transportation of components. For the ultra-sensitive electronic components in mobile phones, even a static charge of a few hundred volts is enough to cause irreversible damage—this is far lower than the static voltage that can be generated in the production environment (which can reach 5,000 to 10,000 volts in dry conditions). Ion fans solve this problem fundamentally by continuously generating a balanced stream of positive and negative ions, which can quickly neutralize the static charge on the surface of the production station, products, and components, thereby completely eliminating the risk of ESD damage.
Specifically, the role of ion fans in preventing ESD damage is reflected in the following three aspects:
First, it avoids the scrapping of core components due to electrostatic breakdown. The core components of mobile phones, such as microchips, capacitors, resistors, 5G RF chips, and CMOS sensors, have extremely thin dielectric layers and delicate internal structures. Once they are subjected to ESD, the internal transistors will be burned, the dielectric layers will be broken, and the components will be directly scrapped, resulting in direct economic losses. Ion fans can neutralize the static charge on the surface of these components in 0.3 to 3 seconds, reducing the surface voltage to near zero (usually ±5V or less), thus effectively protecting the core components from electrostatic damage.
Second, it prevents hidden quality problems caused by static electricity. Some ESD events will not cause immediate damage to components, but will leave hidden defects inside the components. These hidden defects will not be found in the initial inspection, but will gradually appear during the use of the product by the end user, such as frequent crashes, signal abnormalities, battery leakage, touch failure, and other problems. These hidden quality problems not only affect the user experience but also increase the after-sales cost and brand reputation loss of the manufacturer. Ion fans maintain a static-free environment throughout the production process, fundamentally eliminating the possibility of hidden defects caused by static electricity.
Third, it ensures the accuracy of component placement. In the SMT (Surface Mount Technology) patch link, the static charge on the surface of the PCB and the nozzle of the placement machine will attract small components (such as 0402 size resistors and capacitors, which are only 1mm × 0.5mm), leading to problems such as component sticking, flying, and offset. This not only affects the production efficiency but also causes poor soldering and circuit short circuits. Ion fans installed above the SMT production line continuously blow ionized air to neutralize the static charge on the PCB and the nozzle, ensuring that the placement machine can accurately pick up and place components, reducing the rejection rate and rework rate.
Mobile phone production has extremely high requirements for cleanliness, especially in links such as display lamination, camera module assembly, and PCB soldering. Even micro dust particles (1-10 microns) can cause obvious product defects. Static electricity has a strong adsorption effect, just like a magnet, which can adsorb micro dust, lint, and debris in the air onto the surface of components and products. This kind of dust contamination is difficult to remove manually and often leads to unqualified products. Ion fans play a dual role in dust control: on the one hand, they neutralize the static charge on the surface, eliminating the adsorption force of static electricity on dust; on the other hand, the airflow generated by the fan can blow away the micro dust that has not yet adhered to the surface, achieving the effect of dust removal and pollution prevention, and greatly improving the yield of products.
In different production links, the role of ion fans in dust control is specifically reflected as follows:
In the screen lamination and cover plate assembly link, the surface of the OLED/LCD screen, tempered film, and touch panel is extremely sensitive. If dust is adsorbed, it will cause defects such as black spots, bubbles, and poor lamination after lamination. These defects are irreversible and will directly lead to the scrapping of the screen. Ion fans installed at the lamination station blow ionized air to neutralize the static charge on the surface of the screen and the cover plate, and blow away the micro dust in time, ensuring that the lamination surface is clean and free of impurities, and reducing the defect rate of screen lamination by 30-50%.
In the camera module assembly link, the lens, photosensitive element (CMOS/CCD), and micro motor of the camera are extremely sensitive to dust. Even a tiny dust particle adhering to the lens or photosensitive element will cause problems such as blurred photos, dirty spots, and reduced image quality. Ion fans are used to neutralize the static charge on the surface of the camera components and blow away the dust, ensuring the cleanliness of the lens and photosensitive element, and ensuring the imaging effect of the camera module.
In the production and assembly of plastic/metal casings, the surface of the casing will generate a lot of static electricity during injection molding, cutting, and polishing. Static electricity will adsorb dust in the air, resulting in dirty spots, scratches, and other appearance defects on the surface of the casing. Ion fans can eliminate the static charge on the surface of the casing, prevent dust adsorption, and ensure that the appearance of the casing is clean and flawless, meeting the quality requirements of the product.
Mobile phone production is a complex systematic project, which includes multiple key links such as SMT patch, PCB assembly, display assembly and lamination, camera module assembly, casing production and assembly, whole machine assembly, testing, and packaging. Ion fans are widely used in each of these links, playing a targeted role to ensure the smooth progress of the production process and the stability of product quality.
The PCB is the "brain" of the mobile phone, carrying all electronic components, and its production quality directly determines the performance of the mobile phone. The SMT patch link is the core link of PCB assembly, and it is also the link most vulnerable to static electricity and dust. The specific roles of ion fans in this link are as follows:
First, it eliminates the static charge on the PCB and carrier tape components. During the production, packaging, and transportation of PCBs and components, a lot of static electricity will accumulate on their surfaces. If not neutralized in time, it will cause ESD damage to the components during the patch process. Ion fans installed at the unpacking station and the front end of the patch line can quickly neutralize the static charge on the surface of the PCB and components, laying a foundation for the smooth progress of the patch work.
Second, it prevents the placement machine from throwing materials and offsetting. The nozzle of the placement machine will generate static electricity during the high-speed operation process, which will adsorb small components, leading to the failure of the nozzle to pick up components, or the components to fly off during the transfer process, or the offset during placement. Ion fans installed above the placement machine continuously blow ionized air to neutralize the static charge on the nozzle and the PCB, ensuring that the placement machine can accurately pick up and place components, improving the patch efficiency and accuracy.
Third, it protects core components such as IC, CPU, and memory chips. These components are extremely sensitive to ESD, and even a small static discharge can cause permanent damage. Ion fans maintain a static-free environment in the entire patch area, effectively protecting these core components from electrostatic damage, reducing the scrapping of components, and reducing production costs.
The display is one of the core components of the mobile phone, and its quality directly affects the user's visual experience. The assembly and lamination of the display have extremely high requirements for static control and cleanliness, and ion fans play a key role in this link:
First, it eliminates the static charge on the surface of the display and related components. The OLED/LCD screen, touch panel, and tempered film will generate static electricity during production and handling. Static electricity will not only damage the pixel structure and touch circuit of the screen but also adsorb dust. Ion fans can quickly neutralize the static charge on the surface of these components, avoiding static damage and dust adsorption.
Second, it eliminates bubbles and bright/dark spots caused by dust. During the lamination process, if there is dust on the surface of the screen or the cover plate, bubbles will be generated after lamination, and bright spots or dark spots will appear on the display surface, affecting the display effect. Ion fans blow ionized air to remove dust and neutralize static electricity before lamination, ensuring that the lamination surface is clean, and fundamentally eliminating the defects caused by dust.
Third, it avoids static damage to the screen. The pixel structure of the OLED screen and the touch circuit of the LCD screen are extremely delicate. Static discharge can damage the pixel electrodes and touch lines, leading to dead pixels, color distortion, and touch failure. Ion fans maintain a static-free environment throughout the assembly and lamination process, effectively protecting the screen from static damage.
With the continuous improvement of mobile phone camera performance, the requirements for the assembly precision and cleanliness of camera modules are getting higher and higher. The camera module includes delicate components such as lenses, CMOS image sensors, and micro motors, all of which are vulnerable to ESD and dust. The specific roles of ion fans in this link are:
First, it protects the CMOS image sensor and micro motor. The CMOS image sensor is the core component of the camera, and its pixel array is extremely sensitive to ESD. Even a minor static discharge can damage the pixel array, leading to blurred photos, color distortion, and other problems. The micro motor is used to adjust the focus of the camera, and static electricity can affect its normal operation, leading to focus failure. Ion fans neutralize the static charge on the surface of these components during handling and installation, ensuring their normal performance.
Second, it ensures the cleanliness of the lens. The lens of the camera requires extremely high transparency and cleanliness. If dust adheres to the surface of the lens, it will affect the light transmittance, leading to blurred photos and dirty spots. Ion fans blow ionized air to remove dust and static electricity from the lens before assembly, ensuring that the lens is clean and transparent, and ensuring the imaging quality of the camera.
The mobile phone casing not only plays a role in protecting the internal components but also affects the appearance of the product. The production and assembly of the casing involve links such as injection molding, cutting, polishing, spraying, and bonding, and static electricity is generated in each link. Ion fans play an important role in solving static problems in these links:
In the injection molding process, the friction between the molten plastic and the mold will generate a lot of static electricity, which will cause the plastic casing to stick to the mold, making it difficult to demold, and even causing scratches on the surface of the casing. Ion fans installed near the injection molding machine blow ionized air to neutralize the static charge on the surface of the mold and the casing, improving the demolding effect and ensuring the surface quality of the casing.
In the spraying, silk-screen, and bonding links of the casing, static electricity on the surface of the casing will affect the adhesion of ink and glue. For example, static electricity will cause the ink to be unevenly sprayed, easy to fall off, and the glue to bond weakly, leading to the shell falling off. Ion fans eliminate the static charge on the surface of the casing before spraying and bonding, improve the adhesion of ink and glue, ensure that the sprayed surface is uniform and firm, and the bonded part is firm and not easy to fall off.
In the whole machine assembly link, workers need to assemble various components such as the PCB, display, camera module, and casing into a complete mobile phone. During this process, the human body, conveyor belt, and assembly tools will generate static electricity, which will affect the assembly accuracy and damage the internal components. Ion fans installed at the assembly workstation continuously neutralize the static charge in the working area, ensuring that the assembly process is carried out in a static-free environment.
In the functional testing link, static electricity can interfere with the testing results, leading to false failures. For example, static electricity may cause the mobile phone to restart automatically, the touch screen to fail, or the signal to be abnormal during testing, making the tester misjudge the product as unqualified. Ion fans maintain a static-free testing environment, ensuring the accuracy of the testing results, reducing false failures, and improving testing efficiency.
Even after the mobile phone is assembled and tested, it still faces the risk of static damage during packaging, warehousing, and shipping. The static charge on the surface of the finished mobile phone and packaging materials (such as anti-static bags, cartons) will adsorb dust, and may even cause ESD damage to the internal components during transportation. Ion fans installed at the packaging station neutralize the static charge on the surface of the finished mobile phone and packaging materials, preventing dust adsorption and static damage during transportation, ensuring that the product reaches the hands of the end user in a pristine condition.
In addition to the direct role in each production link, ion fans also play an important role in production management, helping manufacturers improve production efficiency, reduce costs, and meet quality certification requirements:
First, it reduces the defect rate, rework rate, and scrap cost. By eliminating static damage and dust contamination, ion fans can reduce the product defect rate by 30-50% in key links, minimizing the number of scrapped parts and rework workload, thereby reducing production costs. For high-volume mobile phone manufacturers that produce millions of mobile phones every month, this can save millions of yuan in costs every year.
Second, it reduces production line failures and shutdowns caused by static electricity. Static electricity can interfere with the normal operation of automated equipment (such as placement machines, lamination machines), leading to production line shutdowns and affecting production progress. Ion fans eliminate static problems at the source, ensure the stable operation of automated equipment, reduce production line failures and shutdown time, and improve production efficiency.
Third, it meets the requirements of the cleanroom and ESD anti-static system certification of mobile phone factories. Modern mobile phone production requires a cleanroom environment (usually ISO Class 5-7), and the ESD anti-static system is an important part of the factory quality management system. Ion fans are designed to be compatible with cleanrooms, with low ozone emissions and non-dusting materials, which can meet the relevant certification requirements and help manufacturers pass quality system audits.
Fourth, it stabilizes production capacity and improves product consistency and service life. By ensuring a static-free and dust-free production environment, ion fans make the product quality more stable, reduce the differences between products, and improve product consistency. At the same time, by avoiding static damage to components, the service life of the product is prolonged, improving user satisfaction and brand reputation.
In the modern mobile phone manufacturing industry, where precision and quality are the core competitiveness, ion fans are no longer optional equipment but an indispensable part of the production line. Their specific roles run through every key link of mobile phone production, from component processing to finished product packaging, covering static elimination, dust control, component protection, and production efficiency improvement. By providing a stable static-free and dust-free production environment, ion fans not only reduce production costs and improve product yield but also ensure the performance and reliability of mobile phones, helping manufacturers gain an advantage in the fierce market competition.
With the continuous development of mobile phone technology, the components are becoming smaller and more sensitive, and the requirements for production environment are getting higher and higher. The role of ion fans in mobile phone production will become more and more important. For mobile phone manufacturers, choosing high-quality ion fans and reasonably arranging them in each production link is an important measure to improve product quality, reduce costs, and enhance core competitiveness.
