What Are the Specific Roles of Ion Fans in Chip Manufacturing?
In the high-precision and high-stakes field of semiconductor chip manufacturing, even the smallest imperfection can lead to irreversible product failure and massive economic losses. As chips become increasingly miniaturized—with current advanced nodes reaching 2nm, 3nm, and 5nm—the sensitivity of semiconductor components to external interference has reached an unprecedented level. Among the many challenges facing chip manufacturers, electrostatic discharge (ESD) and particle contamination are two of the most destructive and pervasive threats. Ion fans, also known as ionization blowers, have emerged as essential equipment in chip production lines, playing a series of specific, irreplaceable roles in protecting sensitive components, ensuring process stability, and improving production yield. This article will detail the specific functions of ion fans in each key link of chip manufacturing, explain their working principles, and highlight their critical value for modern semiconductor production—tailored for industry professionals, manufacturers, and decision-makers seeking reliable ESD and contamination control solutions.

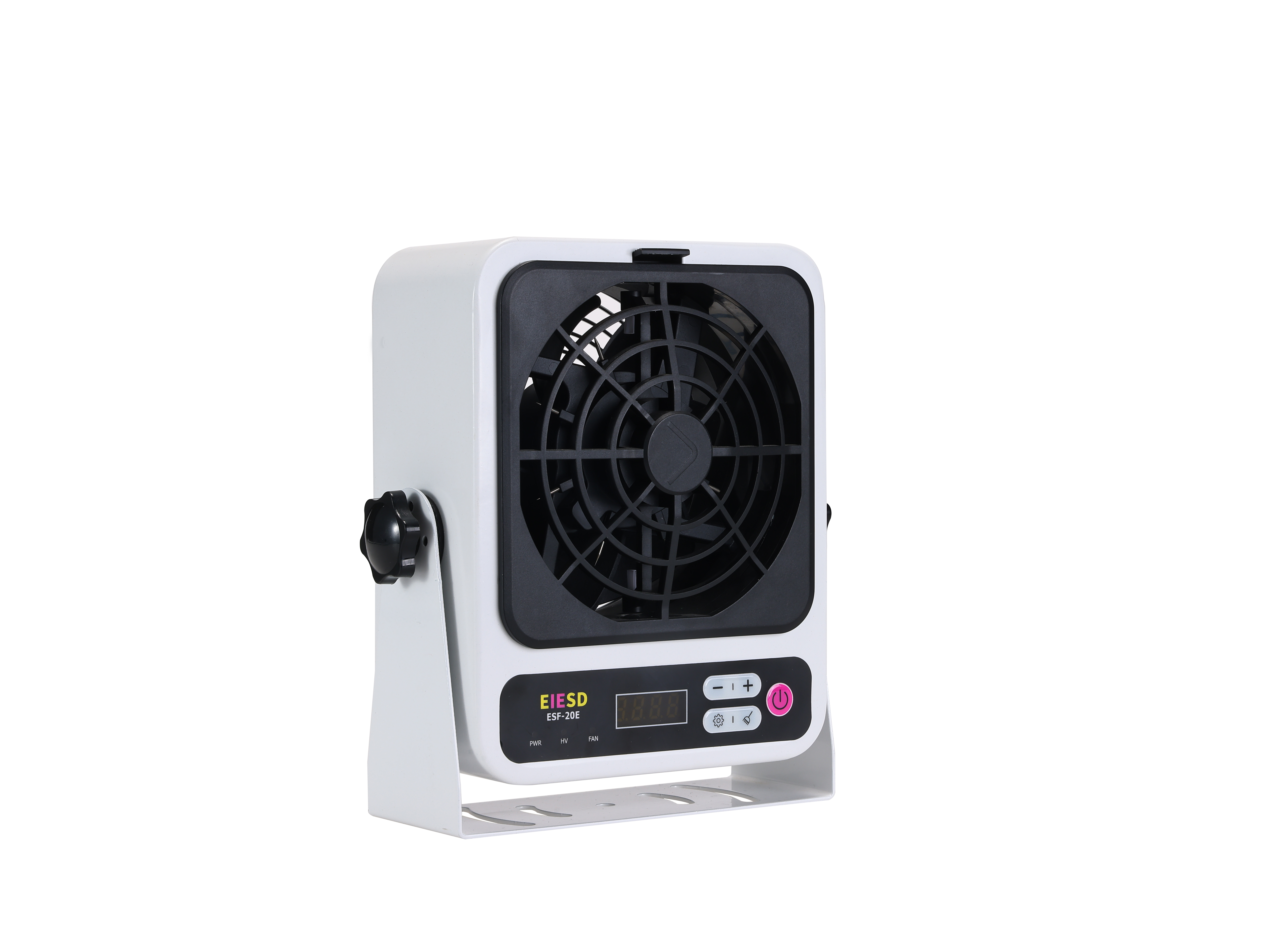

To understand the specific roles of ion fans in chip manufacturing, it is first necessary to clarify how they work. Unlike ordinary fans that only circulate air, ion fans integrate high-voltage ionization technology and airflow delivery, achieving dual effects of static neutralization and particle removal—two core needs in chip production.
The working process of ion fans can be divided into four key steps: First, the built-in high-voltage power supply generates a low-current, high-voltage electric field, which acts on the sharp emitter needles inside the fan. This electric field ionizes the surrounding air molecules, splitting them into a balanced mixture of positive ions (such as H⁺) and negative ions (such as O₂⁻). Second, the fan’s airflow system blows this ion-rich air evenly toward the target area—whether it is a silicon wafer, a photomask, or a chip assembly workstation. Third, when positive ions come into contact with negatively charged surfaces (and vice versa), they combine to neutralize the static charge, quickly reducing the surface voltage to a safe range (usually ±5V to ±10V), which is far below the ESD damage threshold of sensitive semiconductor components. Finally, advanced ion fans are equipped with built-in ion balance sensors that real-time monitor and adjust the ratio of positive and negative ions, avoiding over-ionization that could generate new static charges and ensuring stable performance in complex production environments.
This unique working principle enables ion fans to address two major pain points in chip manufacturing simultaneously, laying the foundation for their wide application in the entire production process. For semiconductor manufacturers, choosing a high-quality ion fan with stable ion balance and fast static elimination speed is the first step to ensuring production quality.
Chip manufacturing is a complex process involving more than 500 steps, roughly divided into front-end wafer fabrication and back-end packaging and testing. Ion fans play specific and critical roles in each key link where static or contamination risks exist, directly affecting product yield and reliability.
Wafer fabrication is the most sensitive and expensive stage of chip production, where silicon ingots are processed into thin wafers and then etched, deposited, and patterned to form functional circuits. Static electricity and particle contamination in this stage can cause irreversible damage to the wafer, leading to the scrapping of the entire batch. Ion fans provide targeted protection in the following key links:
First, in wafer slicing and grinding. When silicon ingots are cut into thin wafers (usually 0.3mm to 0.5mm thick) using diamond blades, the friction between the blade and the silicon generates a large amount of static electricity, which can cause the wafer to stick to the equipment or attract dust particles in the air. Ion fans installed above the slicing and grinding station blow ionized air to neutralize the static charge on the wafer surface in real time, preventing wafer cracking caused by static adhesion and avoiding dust particles from adhering to the wafer surface—this alone can reduce wafer scrap rates by 15% to 20%.
Second, in lithography, the "core step" of chip manufacturing. Lithography uses photomasks and UV light to imprint fine circuit patterns onto wafers; the precision of this step directly determines the performance of the final chip. Even a particle with a diameter of 0.1μm can ruin the entire circuit pattern, while static electricity can cause distortion of the photomask or misalignment of the wafer. Ion fans installed around the lithography machine blow ionized air evenly over the wafer and photomask surfaces, not only neutralizing static charges but also gently blowing away loose particles in the air, ensuring that the lithography process is carried out in a static-free and clean environment. This is particularly critical for advanced nodes (3nm and below), where circuit line widths are only a few nanometers—any tiny interference can lead to circuit short circuits or open circuits.
Third, in etching and deposition processes. Plasma etching and chemical vapor deposition (CVD) are common processes in wafer fabrication, which involve high-energy environments that easily generate static charges. Static electricity on the wafer surface can cause uneven etching or uneven film deposition, leading to inconsistencies in circuit performance. Ion fans installed near the etching and deposition equipment neutralize static charges in real time, ensuring that the etching depth and film thickness meet design standards, thereby improving the uniformity and stability of the wafer.
Fourth, in wafer transfer and storage. Wafers are transferred between different processes using automated equipment (such as EFEM and wafer sorters), and static charges can accumulate on the wafer carrier and the wafer surface during transfer. Ion fans installed at transfer points and storage cabinets neutralize static charges in a timely manner, preventing ESD events during wafer handling and avoiding damage to the wafer’s surface circuits.
After front-end wafer fabrication, wafers are diced into individual chips (dice), which then undergo packaging, wire bonding, and testing—this is the back-end processing stage, where the chips are transformed into finished products that can be used in electronic devices. This stage involves more mechanical movement and manual handling, increasing the risk of ESD and particle contamination. Ion fans play specific roles in the following key links:
First, in die attachment and wire bonding. During packaging, chips are attached to substrates, and gold or copper wires are used to connect the chip’s pads to the package pins—this is a critical step affecting the electrical conductivity and reliability of the chip. Static electricity can cause the chip to misalign during attachment, or damage the delicate wire bonds (which are only a few microns thick), leading to poor contact or open circuits. Ion fans installed near the die attachment and wire bonding machines neutralize static charges on the chip, substrate, and wire bonding tools, ensuring accurate alignment and reliable wire bonding, reducing the defect rate of packaged chips by 25% to 30%.
Second, in chip assembly and handling. Pick-and-place machines, conveyors, and operators all generate static electricity during chip assembly. Static charges on the chip surface can attract dust particles, which can enter the package and cause short circuits, or damage the chip’s internal circuits. Ion fans installed along the assembly line and at workstations blow ionized air to neutralize static charges on the chip and equipment surfaces, preventing dust adhesion and ESD damage.
Third, in chip testing and inspection. Chip testing involves measuring parameters such as voltage, current, and resistance to ensure that the chip meets design specifications. Static interference can cause false test results—for example, static charges on the test probe or chip surface can lead to incorrect resistance readings, resulting in qualified chips being misjudged as defective or vice versa. Ion fans installed around the test station stabilize the electrical environment, eliminate static interference, and ensure the accuracy of test results, reducing the rate of misjudgment and improving testing efficiency.
In addition to protecting chips in key production links, ion fans also play two additional critical roles in chip manufacturing, supporting the normal operation of the entire production line and compliance with industry standards.
The first is supporting cleanroom environment maintenance. Semiconductor chip manufacturing requires a high-level cleanroom environment (usually ISO Class 5 to ISO Class 7), where the number of airborne particles is strictly controlled. Static charges act like magnets, attracting dust particles to surfaces such as wafers, equipment, and walls—even if the cleanroom’s air filtration system is efficient, static-induced particle adhesion can still cause contamination. Ion fans neutralize static charges, eliminating the electrostatic attraction that keeps particles stuck to surfaces, and their airflow carries away loose particles, further reducing the particle concentration in the cleanroom. Studies have shown that installing ion fans in key areas of the cleanroom can reduce particle contamination-related defects by 30% to 50%.
The second is helping manufacturers comply with industry standards. The semiconductor industry has strict standards for ESD control and cleanroom management, such as ANSI/ESD S20.20 (the global standard for ESD control) and ISO 14644 (the standard for cleanroom classification). Ion fans are recognized as an effective ESD control measure by these standards, and their installation and use are essential for manufacturers to pass certification and meet the requirements of high-value customers (such as automotive, aerospace, and consumer electronics companies). Without ion fans, it is difficult for manufacturers to ensure ESD control compliance, which will affect their market competitiveness and ability to secure orders.
The specific roles of ion fans in chip manufacturing ultimately translate into tangible economic and operational value for manufacturers. First, they significantly improve production yield—by eliminating ESD damage and particle contamination, ion fans reduce the defect rate of wafers and chips, avoiding the waste of expensive raw materials (a single 12-inch silicon wafer can cost hundreds of dollars). For a semiconductor factory producing 10,000 wafers per month, ion fans can save millions of dollars in scrap costs annually.
Second, they enhance product reliability. ESD damage often causes latent defects—chips may pass initial testing but fail prematurely during use, leading to warranty claims and damage to the brand’s reputation. Ion fans eliminate latent defects by preventing ESD, ensuring that chips meet strict reliability standards (such as automotive AEC-Q100 and aerospace MIL-STD-883), which is particularly important for chips used in high-reliability fields.
Third, they reduce downtime and maintenance costs. Static-related defects often require time-consuming troubleshooting and rework, leading to unplanned production downtime. Ion fans prevent these issues, minimizing downtime and improving production efficiency. Modern smart ion fans also feature remote monitoring and self-diagnosis functions, simplifying maintenance and reducing labor costs.
In the ultra-precise world of chip manufacturing, ion fans are not just "anti-static devices"—they are indispensable tools that play specific, critical roles in every key link from wafer fabrication to packaging and testing. By neutralizing static charges, removing particle contamination, supporting cleanroom operations, and ensuring compliance with industry standards, ion fans protect the integrity of semiconductor components, improve production yield, and enhance product reliability.
As chip technology continues to advance toward smaller nodes and more complex architectures (such as 3D stacking and chiplets), the sensitivity of chips to static and contamination will only increase, making the role of ion fans even more critical. For semiconductor manufacturers looking to stay competitive in the global market, investing in high-quality ion fans and integrating them into the entire production line is not just a choice—it is a necessary measure to ensure long-term success.
Whether you are optimizing an existing chip production line or building a new facility, understanding the specific roles of ion fans and selecting the right model for your needs is key to achieving stable, high-quality production. With their dual functions of static elimination and contamination control, ion fans will continue to be a cornerstone of modern semiconductor manufacturing.
