Anti-Static Solution Of Ion Air Bar For Display Module Production
The display module production industry is evolving rapidly, with increasing demands for precision, miniaturization, and high performance. From LCD and OLED panels to flexible displays and micro-LED modules, every production link—including substrate cutting, circuit printing, component assembly, and final testing—faces the hidden danger of electrostatic discharge (ESD). ESD not only causes immediate damage to sensitive electronic components such as ITO films and driver ICs but also leads to hidden defects that reduce product yield and long-term reliability. As a core anti-static equipment, ion air bars have become an indispensable part of display module production lines due to their efficient, stable, and easy-to-install characteristics, providing a comprehensive static control solution for enterprises to improve production quality and reduce costs.
The anti-static solution of ion air bars for display module production is a systematic approach that integrates equipment selection, scientific installation, precise parameter adjustment, regular maintenance, and process integration. It uses the ion air bar’s ability to generate positive and negative ions to neutralize static charges on the surface of display modules and production equipment, eliminates static accumulation in key processes, and cooperates with supporting anti-static measures to form a full-process static control system, thereby reducing ESD damage, improving product yield, and ensuring the stability of the production line.
In display module production, even a small static charge can cause irreversible damage. For example, ESD can burn or break ITO traces on LCD panels, leading to bright lines or dead pixels on the display screen, and can also attract dust to the module surface, affecting display clarity and bonding quality. Ion air bars, as a mature and efficient static elimination equipment, can effectively solve these problems, but their application effect depends on scientific solutions rather than simple equipment installation. This article will deeply explore the core principles, application scenarios, selection methods, installation skills, and maintenance strategies of ion air bar anti-static solutions in display module production, helping enterprises optimize their static control systems and gain an advantage in the fierce market competition.
Below is the detailed outline of this article, covering all key aspects of ion air bar anti-static solutions for display module production:
The Impact of Electrostatic Discharge (ESD) on Display Module Production
Working Principle of Ion Air Bars in Anti-Static Protection for Display Modules
Key Application Scenarios of Ion Air Bars in Display Module Production Lines
Selection Criteria of Ion Air Bars for Display Module Production
Scientific Installation and Parameter Adjustment of Ion Air Bars in Display Module Production
Daily Maintenance and Troubleshooting of Ion Air Bars in Display Module Production
Integration of Ion Air Bar Anti-Static Solutions with Other Anti-Static Measures
Case Analysis: Application Effects of Ion Air Bar Anti-Static Solutions in Display Module Production
Electrostatic discharge (ESD) has a destructive and far-reaching impact on display module production, causing direct product damage, reduced yield, increased production costs, and hidden quality risks, which are important factors restricting the efficiency and quality of display module production.
Display modules are composed of a variety of sensitive electronic components, including indium tin oxide (ITO) films, liquid crystal molecules, driver integrated circuits (ICs), flexible substrates, and bonding materials. These components have extremely high sensitivity to static electricity—even static charges with a voltage of a few hundred volts can cause irreversible damage. In the production process, static electricity is generated in almost every link: substrate cutting and polishing will generate static due to friction between materials; circuit printing and coating processes will accumulate static on the surface of the module due to the contact and separation of the printing head and the substrate; even the movement of the conveyor belt and the operation of workers can generate static charges, which are transferred to the display module and cause ESD damage.
The direct damage caused by ESD to display modules is intuitive and serious. For LCD modules, ESD can burn the ITO film layer on the substrate. When there are many sharp peaks in the crystallization of the ITO film, the potential difference caused by static electricity is likely to cause electrostatic discharge, which burns or even breaks the ITO traces, resulting in bright lines, dark spots, or dead pixels on the display screen. According to relevant experimental data, the defective rate of display modules caused by ESD can reach 18.9% without effective anti-static measures, and in severe cases, it can even lead to the scrapping of the entire batch of products. For OLED and flexible display modules, ESD damage is more hidden and serious: static electricity can damage the organic light-emitting layer and flexible circuit, leading to uneven light emission, screen flicker, or even complete failure of the module, and the maintenance cost of such defects is extremely high, which greatly increases the production cost of enterprises.
In addition to direct damage, ESD also brings hidden quality risks to display modules. Some ESD damages do not appear immediately after production but will gradually manifest during the use of the product, such as shortened service life, unstable performance, and easy failure under harsh environments. This not only affects the brand reputation of enterprises but also increases after-sales costs and customer complaints. At the same time, static electricity has a strong adsorption capacity, which can attract dust and particles in the production environment to the surface of the display module. These dust particles will affect the bonding effect of the module, cause poor contact between components, and reduce the display clarity and reliability of the product. In the high-precision display module production (such as micro-LED modules), even tiny dust particles can lead to product scrapping, which further highlights the harm of static electricity.
The impact of ESD on display module production is not only reflected in product quality but also affects production efficiency. When ESD damage occurs, enterprises need to stop the production line for inspection, sort out defective products, and adjust the production process, which leads to extended production cycles and reduced production efficiency. In addition, the cost of replacing damaged components, reworking defective products, and handling after-sales problems also brings a heavy economic burden to enterprises. Therefore, solving the ESD problem in display module production is crucial for improving product yield, reducing costs, and enhancing market competitiveness.
Ion air bars achieve anti-static protection for display modules by generating a large number of positive and negative ions, which are blown to the surface of the display module and production equipment by airflow to neutralize the static charges accumulated on their surfaces, thereby eliminating static electricity and avoiding ESD damage.
The core working principle of ion air bars is based on the corona discharge and ion neutralization theory. Ion air bars are equipped with ion emitters (usually metal needles) inside, which generate a high-voltage electric field under the action of a matching high-voltage generator. When the voltage reaches a certain value, the air around the ion emitters will undergo corona discharge, that is, the air molecules are ionized into positive ions and negative ions. These ions are then blown out by the built-in fan or external compressed air, forming a uniform ion airflow, which covers the surface of the display module and production equipment that need anti-static protection.
When the surface of the display module or equipment accumulates positive static charges, the negative ions in the ion airflow will be attracted to the surface and combine with the positive charges to achieve neutralization; when the surface accumulates negative static charges, the positive ions in the ion airflow will complete the neutralization reaction with the negative charges. This process is rapid and continuous, ensuring that the static charge on the surface of the display module is always maintained at a safe level (usually below ±30V), thus avoiding ESD discharge. Unlike other anti-static methods (such as static elimination mats and anti-static clothing), ion air bars can actively eliminate static electricity on the surface of objects, rather than just preventing static accumulation, which is more suitable for the high-precision and high-efficiency production needs of display modules.
The working process of ion air bars can be divided into three key links: ion generation, ion transmission, and ion neutralization. In the ion generation link, the high-voltage generator provides a stable high voltage (usually 5.6KV) to the ion emitters of the ion air bar. The ion emitters use the principle of tip discharge to ionize the air, generating a large number of positive and negative ions. The number and concentration of ions are directly related to the anti-static effect: the higher the ion concentration, the faster the static neutralization speed. In the ion transmission link, the ion airflow is transmitted to the target surface through the fan or compressed air. The airflow speed and coverage area determine the scope and efficiency of static elimination. For display modules of different sizes and production links, the airflow speed and ion coverage can be adjusted to ensure that every part of the module can be covered by the ion airflow.
In the ion neutralization link, the positive and negative ions in the airflow are combined with the static charges on the surface of the display module. The neutralization speed is affected by factors such as ion concentration, airflow speed, and the distance between the ion air bar and the target surface. Generally, the ion air bar can complete the neutralization of static charges within 0.5-2 seconds, which can fully meet the needs of high-speed display module production lines. In addition, high-quality ion air bars are equipped with an ion balance adjustment function, which can ensure that the number of positive and negative ions is balanced, avoiding the secondary accumulation of static charges on the surface of the display module due to the imbalance of ions.
It should be noted that the normal operation of ion air bars requires matching high-voltage generators. The high-voltage generator converts the ordinary alternating current (110V/60HZ or 220V/50HZ) into high-voltage electricity required by the ion air bar, and at the same time ensures the stability and safety of the output voltage. The ion emitters of the ion air bar need to be grounded reliably to avoid electric shock risks and ensure the safety of the production line and operators. In addition, the ion air bar will generate a small amount of ozone during operation, but the ozone concentration is usually lower than 0.03PPM, which meets the industrial safety standards and will not cause harm to the human body and the environment.

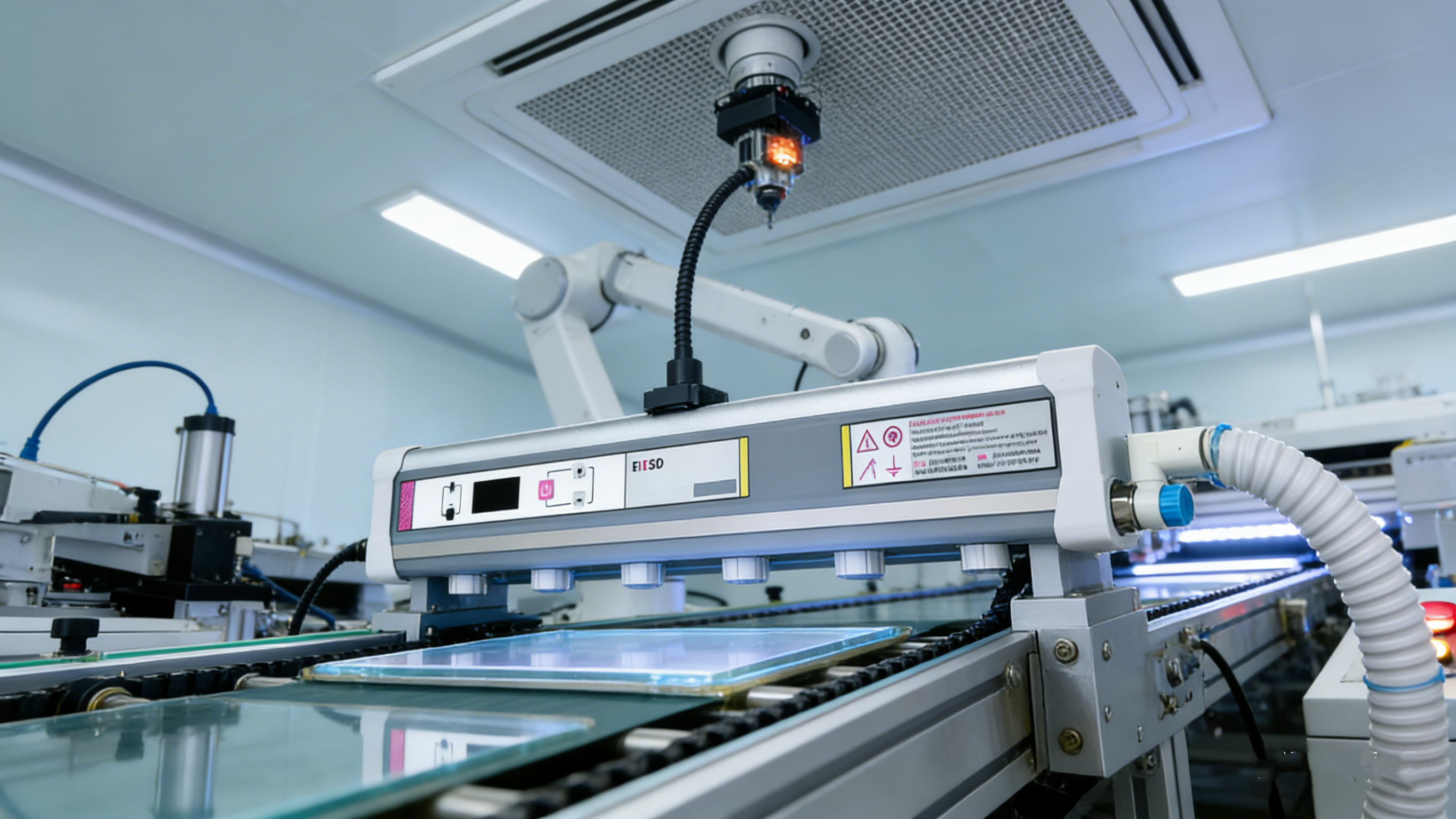

Ion air bars are widely used in various key links of display module production lines, including substrate processing, circuit printing, component assembly, cleaning and testing, and packaging, providing targeted anti-static protection for different production processes and effectively reducing ESD damage.
The substrate processing link is the first link in display module production, including substrate cutting, polishing, and cleaning. In this link, the friction and contact between the substrate (such as glass substrate, flexible substrate) and the processing equipment (such as cutting knife, polishing wheel) will generate a lot of static electricity. The static electricity accumulated on the substrate surface will not only attract dust and affect the subsequent processing accuracy but also may cause damage to the substrate surface when it is discharged. Ion air bars are usually installed above the substrate conveyor belt in this link, and the ion airflow is evenly blown to the surface of the substrate to neutralize the static charges in real time. For example, in the glass substrate cutting process, the ion air bar is installed 10-15cm above the cutting position, which can not only eliminate the static electricity generated during cutting but also blow away the glass debris generated during cutting, ensuring the cleanliness of the substrate surface.
The circuit printing link is a core link in display module production, including ITO circuit printing, OLED organic layer printing, and flexible circuit printing. In this link, the contact and separation between the printing head and the substrate, as well as the friction between the ink and the substrate, will generate static electricity. Static electricity will affect the uniformity of ink coating, lead to ink agglomeration and uneven printing, and even damage the sensitive circuit on the substrate. Ion air bars are installed on both sides of the printing machine in this link, and the ion airflow is directed to the printing area and the substrate surface after printing, which can eliminate the static electricity generated during printing in time, ensure the uniformity of ink coating, and improve the printing quality. For example, in the ITO circuit printing process, the ion air bar can neutralize the static charges on the surface of the ITO film, avoid the occurrence of ESD discharge that burns the ITO traces, and reduce the defective rate of circuit printing.
The component assembly link includes the bonding of driver ICs, the installation of backlight modules, and the bonding of flexible cables. In this link, the contact between the component and the substrate, as well as the operation of workers (even wearing anti-static clothing), will generate static electricity. The static electricity can damage the driver ICs and other sensitive components, leading to poor contact and component failure. Ion air bars are installed above the assembly workbench and the component conveyor belt in this link, forming a uniform ion protection layer around the assembly area, which can eliminate the static electricity on the surface of components and substrates in real time. For example, in the bonding process of driver ICs, the ion air bar is installed 5-10cm above the bonding head, which can neutralize the static charges generated during the bonding process, avoid ESD damage to the driver ICs, and improve the bonding yield.
The cleaning and testing link is an important link to ensure the quality of display modules. In the cleaning link, the friction between the cleaning cloth and the module surface will generate static electricity, which will attract dust again after cleaning, affecting the cleaning effect. Ion air bars are installed at the exit of the cleaning equipment to blow ion airflow to the cleaned module surface, eliminate static electricity, and prevent dust re-adsorption. In the testing link, the static electricity on the surface of the module may affect the testing results, leading to misjudgment of product quality. Ion air bars are installed around the testing platform to ensure that the module surface is in a static-free state during testing, improving the accuracy of testing results.
The packaging link is the last link in display module production. In this link, the friction between the module and the packaging material (such as anti-static film, packaging box) will generate static electricity. The static electricity accumulated on the module surface may cause damage to the module during transportation and storage. Ion air bars are installed above the packaging conveyor belt to eliminate the static electricity on the module surface before packaging, and at the same time, neutralize the static electricity on the packaging material, ensuring that the module is in a static-free state during packaging and transportation, and reducing the hidden quality risks caused by static electricity.
Selecting the appropriate ion air bar for display module production needs to comprehensively consider factors such as static elimination performance, adaptability to the production environment, installation flexibility, safety, and cost-effectiveness, to ensure that the ion air bar can meet the anti-static needs of different production links and improve the overall anti-static effect.
Static elimination performance is the core criterion for selecting ion air bars, which is mainly reflected in ion concentration, static neutralization speed, and ion balance. For display module production, the ion concentration of the ion air bar should be not less than 106 ions/cm³, which can ensure that the static charges on the module surface are neutralized quickly. The static neutralization speed should be within 0.5-2 seconds (measured at a distance of 30cm), which can meet the needs of high-speed production lines. The ion balance should be within ±30V, which can avoid the secondary accumulation of static charges on the module surface. In addition, the static elimination distance of the ion air bar should be matched with the production link: for the substrate processing and packaging links that require a large coverage area, ion air bars with a static elimination distance of 30-50cm should be selected; for the circuit printing and component assembly links that require precise static elimination, ion air bars with a static elimination distance of 10-30cm should be selected.
The adaptability to the production environment is another important selection criterion. Display module production usually requires a clean room environment (class 1000 to class 10000), so the ion air bar should have the characteristics of dust-free design, no dust generation during operation, and easy cleaning. At the same time, the working temperature range of the ion air bar should be -10℃ to 50℃, which can adapt to the temperature environment of the clean room. For the production links involving high humidity (such as cleaning links), the ion air bar should have moisture-proof performance to avoid equipment failure caused by moisture. In addition, for flexible display module production lines, the ion air bar should have a flexible installation design, which can be adjusted according to the shape and movement track of the flexible substrate.
Installation flexibility is also an important factor to consider. Display module production lines have different structures and space sizes, so the ion air bar should be easy to install and adjust. The length of the ion air bar can be customized according to the width of the production line: for small-sized display module production lines (such as mobile phone screen modules), ion air bars with a length of 30-50cm can be selected; for large-sized display module production lines (such as TV screen modules), ion air bars with a length of 1-6 meters can be selected. In addition, the ion air bar should be equipped with a variety of installation accessories (such as brackets, clips), which can be installed in different positions (such as above the conveyor belt, on both sides of the machine, above the workbench) to meet the anti-static needs of different production links.
Safety is crucial for display module production lines, so the ion air bar should have multiple safety protection functions. First, the ion air bar should have a reliable grounding design to avoid electric shock risks to operators and equipment damage caused by leakage. Second, the ion air bar should be equipped with an overvoltage and overcurrent protection function, which can automatically cut off the power supply when the voltage or current is abnormal, ensuring the safety of the production line. Third, the ozone concentration generated by the ion air bar should meet the industrial safety standards (less than 0.03PPM), which will not cause harm to the human body and the environment. In addition, the ion air bar should have a sealed design to prevent the entry of dust and moisture, ensuring the safety and stability of long-term operation.
Cost-effectiveness is also a factor that enterprises need to consider when selecting ion air bars. While ensuring the static elimination performance and safety, enterprises should select ion air bars with reasonable prices and low maintenance costs. It is not advisable to blindly pursue high-end products, nor to select low-quality products with low prices but poor performance. The service life of the ion air bar should be not less than 5 years, and the ion emitters should be easy to replace, which can reduce the maintenance cost and replacement cost in the later period. In addition, the energy consumption of the ion air bar should be low, which can save energy costs for enterprises in long-term operation.
The following table summarizes the key selection criteria of ion air bars for display module production and the recommended indicators, which can help enterprises quickly select the appropriate ion air bar:
Selection Criteria |
Recommended Indicators |
Application Scenario Matching |
|---|---|---|
Ion Concentration |
Not less than 106 ions/cm³ |
All production links, especially high-precision links such as circuit printing |
Static Neutralization Speed |
0.5-2 seconds (30cm distance) |
High-speed production lines such as substrate cutting and packaging |
Ion Balance |
±30V |
All production links, avoiding secondary static accumulation |
Static Elimination Distance |
10-50cm |
10-30cm for precise links (assembly, printing); 30-50cm for large-area links (substrate processing, packaging) |
Working Temperature Range |
-10℃ to 50℃ |
Clean room environment of display module production |
Safety Protection |
Grounding protection, overvoltage/overcurrent protection, ozone concentration <0.03PPM |
All production links, ensuring operator and equipment safety |
Service Life |
Not less than 5 years |
Long-term stable operation of the production line |
The scientific installation and precise parameter adjustment of ion air bars are the key to ensuring their anti-static effect. It is necessary to determine the installation position, height, and angle according to the characteristics of different production links, and adjust parameters such as ion concentration, airflow speed, and working frequency to make the ion air bar achieve the best static elimination effect.
The installation position of ion air bars should be determined according to the production link and the movement track of the display module. In general, the ion air bar should be installed in the position where the display module is most likely to generate static electricity and where the static electricity needs to be eliminated in time. For the substrate cutting and conveyor belt links, the ion air bar should be installed above the conveyor belt, and the ion airflow should be perpendicular to the surface of the substrate to ensure that the entire surface of the substrate can be covered by the ion airflow. For the circuit printing link, the ion air bar should be installed on both sides of the printing machine, one side facing the printing area to eliminate the static electricity generated during printing, and the other side facing the substrate after printing to neutralize the static electricity on the printed surface. For the component assembly link, the ion air bar should be installed above the assembly workbench, and the ion airflow should be directed to the assembly area to form a static-free protection zone.
The installation height and angle of ion air bars directly affect the static elimination effect. The installation height should be matched with the static elimination distance of the ion air bar: for ion air bars with a static elimination distance of 10-30cm, the installation height should be 10-15cm from the surface of the display module; for ion air bars with a static elimination distance of 30-50cm, the installation height should be 20-30cm from the surface of the display module. If the installation height is too high, the ion concentration on the module surface will decrease, resulting in slow static neutralization; if the installation height is too low, it may touch the module surface and cause damage to the module. The installation angle should be adjusted according to the shape of the module and the direction of the airflow: for flat display modules, the ion air bar should be installed horizontally, and the airflow should be perpendicular to the module surface; for curved or flexible display modules, the ion air bar should be installed at an angle of 45°-60° to ensure that the ion airflow can cover the entire surface of the module.
Parameter adjustment is another key link to ensure the anti-static effect of ion air bars. The main adjustable parameters include ion concentration, airflow speed, and working frequency. Ion concentration adjustment should be based on the static electricity generation of the production link: for links with large static electricity generation (such as substrate cutting and polishing), the ion concentration should be adjusted to the maximum; for links with small static electricity generation (such as packaging), the ion concentration can be adjusted to a medium level. Airflow speed adjustment should be matched with the production speed: for high-speed production lines (such as substrate conveyor belts with a speed of more than 1m/s), the airflow speed should be adjusted to 8-10m/sec to ensure that the ion airflow can keep up with the movement speed of the module and neutralize static electricity in time; for low-speed production lines (such as component assembly), the airflow speed can be adjusted to 5-8m/sec to avoid damage to the module caused by excessive airflow.
The working frequency of the ion air bar should be adjusted according to the type of display module. For LCD modules, the working frequency can be adjusted to 50-60Hz, which can meet the static elimination needs; for OLED and micro-LED modules with higher sensitivity, the working frequency should be adjusted to 100-120Hz to improve the static neutralization speed and accuracy. In addition, the ion balance adjustment should be carried out regularly to ensure that the number of positive and negative ions is balanced. The ion balance can be detected by a static tester, and if the ion balance exceeds ±30V, the parameter adjustment should be carried out in time.
It should be noted that the installation and parameter adjustment of ion air bars need to be carried out by professional technicians. Before installation, the production line should be inspected to determine the best installation position and height. After installation, the static elimination effect should be tested with a static tester, and parameters should be adjusted according to the test results until the best effect is achieved. In addition, the ion air bar should be grounded reliably during installation, and the grounding resistance should be less than 1Ω to avoid electric shock risks and ensure the normal operation of the equipment.
Daily maintenance and timely troubleshooting of ion air bars are crucial to ensure their long-term stable operation and good anti-static effect. It is necessary to establish a regular maintenance system, clean and inspect the equipment regularly, and solve common faults in time to avoid affecting the production progress.
Regular cleaning is an important part of the daily maintenance of ion air bars. In the display module production environment, even in a clean room, there will still be a small amount of dust and particles. These dust and particles will accumulate on the ion emitters of the ion air bar, affecting the ion generation effect and reducing the static elimination performance. Therefore, the ion air bar should be cleaned regularly: the ion emitters should be cleaned once a week with a clean cotton swab dipped in alcohol to remove dust and dirt on the surface; the shell and airflow outlet of the ion air bar should be cleaned once a month to ensure the smooth flow of airflow. When cleaning, the power supply of the ion air bar and the high-voltage generator must be cut off to avoid electric shock risks.
Regular inspection is another important content of daily maintenance. The inspection should include the following aspects: first, check the grounding status of the ion air bar to ensure that the grounding is reliable and the grounding resistance is less than 1Ω; second, check the connection between the ion air bar and the high-voltage generator to ensure that the connection is firm and there is no loose or falling off; third, check the ion emitters for damage or wear, and replace the damaged ion emitters in time; fourth, check the airflow speed and ion concentration of the ion air bar with a static tester and anemometer, and adjust the parameters if there is any abnormality; fifth, check the safety protection functions of the ion air bar, such as overvoltage and overcurrent protection, to ensure that they can work normally.
The maintenance cycle of ion air bars should be determined according to the production intensity: for high-intensity production lines (working 24 hours a day), the cleaning frequency should be increased to once every 3-5 days, and the comprehensive inspection should be carried out once a month; for general production lines (working 8-12 hours a day), the cleaning frequency can be once a week, and the comprehensive inspection can be carried out once every two months. In addition, the high-voltage generator matching the ion air bar should also be maintained regularly: check the output voltage and current once a month to ensure that they are within the normal range; clean the surface of the high-voltage generator once a month to avoid dust accumulation affecting heat dissipation.
In the process of using ion air bars, common faults and troubleshooting methods are as follows: First, the static elimination effect is poor. The possible reasons are: the ion emitters are blocked by dust, the ion concentration is too low, the installation height is inappropriate, or the ion balance is abnormal. The troubleshooting methods are: clean the ion emitters, increase the ion concentration, adjust the installation height, and calibrate the ion balance. Second, the ion air bar does not generate ions. The possible reasons are: the high-voltage generator fails, the connection between the ion air bar and the high-voltage generator is loose, or the ion emitters are damaged. The troubleshooting methods are: check the high-voltage generator, re-connect the connection, and replace the damaged ion emitters. Third, the ion air bar generates excessive ozone. The possible reasons are: the ion concentration is too high, or the ion emitters are worn. The troubleshooting methods are: reduce the ion concentration and replace the worn ion emitters. Fourth, the ion air bar has leakage. The possible reasons are: poor grounding, or the shell is damaged. The troubleshooting methods are: check the grounding status and replace the damaged shell.
It is necessary to establish a fault record system for ion air bars, record the occurrence time, fault phenomenon, troubleshooting method, and replacement parts of each fault, so as to summarize experience and avoid the recurrence of the same fault. In addition, the operators should be trained regularly to let them master the basic operation, daily maintenance, and simple troubleshooting methods of ion air bars, so that they can find and solve problems in time during the production process.
The ion air bar anti-static solution cannot work independently in display module production. It needs to be integrated with other anti-static measures to form a full-process, multi-level static control system, so as to achieve comprehensive and effective static elimination and ensure the quality of display modules.
Anti-static measures for the production environment are the foundation of static control. The display module production workshop should be equipped with an anti-static floor, which can effectively guide the static charges on the ground to the ground and avoid static accumulation. The walls and ceilings of the workshop should be made of anti-static materials to reduce the generation and accumulation of static electricity. In addition, the humidity of the workshop should be controlled between 45%-65%. Proper humidity can increase the conductivity of the air, reduce the generation of static electricity, and help the ion air bar to neutralize static charges. It should be noted that the humidity should not be too high, otherwise, it may cause moisture damage to the display module and production equipment.
Anti-static measures for operators are an important part of static control. Operators entering the production workshop must wear anti-static clothing, anti-static shoes, and anti-static gloves. Anti-static clothing and anti-static shoes can guide the static charges on the operator's body to the ground, avoiding the transfer of static charges to the display module. Anti-static gloves can prevent the static electricity generated by the operator's hands from damaging the sensitive components of the module. In addition, operators must wear an anti-static wristband when operating, and the anti-static wristband should be grounded reliably to ensure that the static charges on the operator's hands are discharged in time. Regular training should be carried out for operators to improve their awareness of static protection and ensure that they strictly abide by the anti-static operation specifications.
Anti-static measures for production equipment and tools are also indispensable. All production equipment (such as cutting machines, printing machines, assembly machines) should be grounded reliably to avoid static accumulation on the equipment. The tools used in production (such as tweezers, screwdrivers) should be anti-static tools, which can prevent static electricity generated during the use of tools from damaging the display module. In addition, the conveyor belt in the production line should be an anti-static conveyor belt, which can reduce the static electricity generated by the friction between the conveyor belt and the module.
Anti-static measures for packaging and transportation are the last line of defense for static control. The display module should be packaged with anti-static packaging materials (such as anti-static film, anti-static bubble film, anti-static packaging box) to prevent static electricity from damaging the module during transportation and storage. The packaging materials should be grounded before use to eliminate the static electricity on the surface. In addition, the transportation vehicles should be equipped with anti-static devices to avoid static accumulation during transportation. The storage environment of the display module should also be anti-static, with appropriate humidity and temperature, and the modules should be placed on anti-static pallets.
The integration of ion air bar anti-static solutions with other anti-static measures should follow the principle of "prevention first, elimination supplemented". Through the anti-static measures of the production environment, operators, equipment, and packaging, the generation of static electricity is reduced from the source; through the ion air bar, the static charges generated in the production process are eliminated in time, forming a closed-loop static control system. For example, in the component assembly link, the operator wears anti-static clothing and an anti-static wristband to prevent static electricity from the human body; the assembly workbench is equipped with an anti-static table mat to prevent static accumulation on the workbench; the ion air bar is installed above the workbench to eliminate the static electricity on the surface of components and substrates, and the combination of the three ensures the static-free environment of the assembly link.
The application of ion air bar anti-static solutions in actual display module production can effectively reduce ESD damage, improve product yield, and reduce production costs. The following two practical cases are used to illustrate the application effects of ion air bar anti-static solutions.
Case 1: Application in LCD Module Production Line. A display module manufacturer mainly produces LCD modules for mobile phones. Before applying the ion air bar anti-static solution, the defective rate of the production line due to ESD damage was 12.3%, mainly manifested as bright lines and dead pixels on the display screen. The main reasons were that a large amount of static electricity was generated during the substrate cutting and ITO circuit printing links, and the static charges could not be eliminated in time, leading to the burning of ITO traces. To solve this problem, the enterprise adopted the ion air bar anti-static solution: installed ion air bars above the substrate conveyor belt, on both sides of the printing machine, and above the assembly workbench; selected ion air bars with an ion concentration of 1.2×106 ions/cm³, a static neutralization speed of 1 second, and an ion balance of ±20V; adjusted the installation height to 12-15cm, the airflow speed to 8m/sec, and the working frequency to 60Hz; at the same time, strengthened the anti-static measures of the production environment and operators, including controlling the workshop humidity at 50%-60%, requiring operators to wear anti-static clothing and wristbands, and grounding all production equipment reliably.
After three months of application, the defective rate of the production line due to ESD damage dropped to 0.8%, a decrease of 11.5 percentage points. The product yield increased from 87.7% to 99.2%, and the production efficiency increased by 15% because the time spent on sorting defective products and reworking was reduced. In addition, the after-sales complaint rate caused by ESD hidden defects decreased by 90%, which greatly improved the brand reputation of the enterprise. The investment in the ion air bar anti-static solution was recovered within 6 months through the reduction of defective product losses and the improvement of production efficiency.
Case 2: Application in Flexible OLED Module Production Line. A manufacturer specializing in flexible OLED module production faced the problem of high defective rate in the component assembly link, with the ESD-related defective rate reaching 15.7%. The main reason was that the flexible substrate was easy to generate static electricity during the movement and assembly process, and the static electricity damaged the flexible circuit and organic light-emitting layer. The enterprise adopted a targeted ion air bar anti-static solution: selected flexible ion air bars with customizable length, installed them above the flexible substrate conveyor belt and around the assembly area, with an installation angle of 50° to ensure that the ion airflow could cover the entire surface of the flexible substrate; adjusted the ion concentration to 1.5×106 ions/cm³, the airflow speed to 7m/sec (to avoid damage to the flexible substrate), and the working frequency to 110Hz; at the same time, used anti-static conveyor belts and anti-static packaging materials, and strengthened the training of operators.
After the application of the solution, the ESD-related defective rate in the component assembly link dropped to 1.2%, a decrease of 14.5 percentage points. The product yield increased by 14.3%, and the production cost per unit product decreased by 8%. The flexible ion air bars also showed good adaptability in the production line, which could be adjusted according to the movement track of the flexible substrate, ensuring the stability of the static elimination effect. The enterprise also found that the service life of the ion air bars was more than 5 years, and the maintenance cost was low, which brought long-term economic benefits to the enterprise.
These two cases show that the ion air bar anti-static solution can effectively solve the ESD problem in display module production, improve product yield and production efficiency, and reduce production costs. The key to the success of the solution lies in scientific equipment selection, reasonable installation and parameter adjustment, and integration with other anti-static measures.
In display module production, electrostatic discharge (ESD) is a key factor affecting product quality and production efficiency. As an efficient, stable, and easy-to-use anti-static equipment, ion air bars play an irreplaceable role in static control. The anti-static solution of ion air bars for display module production is a systematic project, which needs to comprehensively consider the working principle of ion air bars, key application scenarios, selection criteria, scientific installation and parameter adjustment, daily maintenance and troubleshooting, and integration with other anti-static measures.
By selecting the appropriate ion air bar according to the characteristics of different production links, installing and adjusting parameters scientifically, establishing a regular maintenance system, and integrating with anti-static measures such as production environment, operators, equipment, and packaging, enterprises can form a full-process, multi-level static control system, effectively neutralize the static charges generated in the production process, reduce ESD damage, improve product yield and reliability, and reduce production costs and after-sales risks.
With the continuous development of display module technology, the requirements for static control will become higher and higher. Ion air bar technology will also continue to innovate, with more efficient static elimination performance, better environmental adaptability, and more intelligent operation. Enterprises should pay attention to the application of ion air bar anti-static solutions, continuously optimize the static control system, and gain an advantage in the fierce market competition. For display module manufacturers, investing in scientific and reasonable ion air bar anti-static solutions is not only an investment in product quality but also an important guarantee for the long-term development of the enterprise.
