Selection And Application Of Ion Air Bar For Lithium Battery Workshop
The lithium battery industry is developing at an unprecedented speed, driving the upgrading of production equipment and process standards. As a core static elimination equipment, ion air bars play an irreplaceable role in ensuring production safety, improving product quality, and complying with industry regulations in lithium battery workshops. Static electricity is a common hidden danger in lithium battery production—from electrode material mixing and coating to cell assembly and packaging, static electricity can not only attract dust and impurities, leading to reduced battery performance and increased defect rates, but also trigger safety accidents such as short circuits, fires, and explosions when it accumulates to a certain extent. With the continuous improvement of safety and quality requirements for lithium batteries, especially the strict norms proposed in industry standards such as SJ/T 11798-2022, the scientific selection and correct application of ion air bars have become key links that lithium battery manufacturers cannot ignore.
The selection and application of ion air bars in lithium battery workshops need to be based on the specific production process, static risk points, and industry safety standards. Firstly, it is necessary to clarify the static elimination needs of different workshop sections, select ion air bars with appropriate technical parameters (such as ion balance, static elimination speed, and ozone emission), and then install and debug them scientifically to ensure full coverage of static risk points. At the same time, regular maintenance and performance testing are required to maintain the stable operation of the equipment, thereby maximizing the static elimination effect, ensuring production safety, and improving product qualification rates.
This article will comprehensively explore the selection principles, key technical parameters, application scenarios, installation and debugging methods, and daily maintenance strategies of ion air bars in lithium battery workshops. Combining the characteristics of lithium battery production processes (such as electrode production, cell assembly, and electrolyte injection) and industry safety requirements, it will provide professional and practical guidance for lithium battery manufacturers, helping enterprises avoid the risks caused by improper selection and application of ion air bars, and promote the standardized and efficient operation of production lines.
The following is the detailed content of this article:
The Role and Importance of Ion Air Bars in Lithium Battery Workshops
Key Technical Parameters for Selecting Ion Air Bars for Lithium Battery Workshops
Selection Principles and Steps of Ion Air Bars for Different Lithium Battery Production Sections
Scientific Installation and Debugging Methods of Ion Air Bars in Lithium Battery Workshops
Daily Maintenance and Performance Testing of Ion Air Bars
Common Problems and Solutions in the Application of Ion Air Bars
Ion air bars are fixed static elimination equipment that generate a large number of positive and negative charged air masses to neutralize the static electricity on the surface of objects in lithium battery production, thereby eliminating static hazards, preventing dust adsorption, and ensuring production safety and product quality. Their importance is reflected in three core aspects: ensuring production safety, improving product quality, and complying with industry standards.
In lithium battery production, static electricity is generated in almost every link. For example, during the mixing and grinding of electrode materials, the friction between powder particles and equipment will generate static electricity; during the coating process, the friction between the electrode sheet and the coating machine will also accumulate static electricity; in the cell assembly link, the contact and separation between the diaphragm, electrode sheet, and shell will produce static charges. These static charges, if not eliminated in time, will bring serious hidden dangers to production. Lithium battery electrolytes are flammable and corrosive. Once static electricity generates sparks, it may ignite the electrolyte, leading to fires or explosions. According to relevant statistics, more than 30% of safety accidents in lithium battery workshops are related to static electricity, which shows the necessity of static elimination equipment such as ion air bars.
In terms of product quality, static electricity will attract dust, metal particles, and other impurities in the air, which will adhere to the surface of electrode sheets, diaphragms, and other key components. These impurities will not only affect the conductivity and energy density of lithium batteries but also cause internal short circuits of cells, reducing the cycle life of batteries and increasing the defect rate. For example, in the electrode coating link, if static electricity causes dust to adhere to the electrode surface, the thickness of the coating will be uneven, leading to inconsistent battery performance; in the diaphragm cutting link, static electricity may cause the diaphragm to curl or adhere, affecting the assembly accuracy. Ion air bars can quickly neutralize static charges, reduce dust adsorption, and effectively improve the qualification rate of lithium battery products. Practice has proved that the rational use of ion air bars can reduce the product defect rate caused by static electricity by more than 40%.
In addition, with the continuous improvement of industry regulations, the control of static electricity in lithium battery production has become a mandatory requirement. The "Safety Requirements for Lithium-Ion Cell and Battery Production" (SJ/T 11798-2022) clearly stipulates that lithium battery production enterprises should set up corresponding anti-static safety facilities in workplaces involving flammable and explosive materials such as electrolytes. Ion air bars, as an important part of anti-static facilities, can help enterprises meet the requirements of industry standards and avoid legal risks and economic losses caused by non-compliance. At the same time, for enterprises that export lithium battery products, complying with international static control standards is also an important prerequisite for entering the global market.
The key technical parameters for selecting ion air bars in lithium battery workshops include ion balance, static elimination speed, operating voltage, air volume, ozone emission, operating temperature range, and service life. These parameters directly determine the static elimination effect, safety, and applicability of ion air bars, and need to be selected according to the specific production environment and process requirements.
Ion balance is one of the most critical parameters for ion air bars, which refers to the balance degree of positive and negative ions generated by the equipment. In lithium battery production, the static electricity on the surface of materials may be positive or negative, so the ion air bar must generate balanced positive and negative ions to effectively neutralize static charges. The ideal ion balance range is ±5V, and the maximum should not exceed ±10V. If the ion balance is too large, it may cause secondary static electricity on the surface of the material, which is counterproductive. For example, in the diaphragm production link, the diaphragm material is extremely sensitive to static electricity. If the ion air bar has poor ion balance, it may cause the diaphragm to be charged again, leading to curling and damage. Some high-performance ion air bars are equipped with an automatic ion balance adjustment function, which can real-time monitor and adjust the ion output to ensure long-term stable ion balance.
Static elimination speed refers to the time required for the ion air bar to neutralize the static electricity on the surface of an object to a safe range, usually expressed in seconds (s). The static elimination speed is related to the ion concentration generated by the ion air bar, the air volume, and the distance between the equipment and the object. In lithium battery production lines with high production speed (such as electrode coating lines with a speed of more than 5m/min), it is necessary to select ion air bars with fast static elimination speed, generally requiring that the static electricity can be reduced from 1000V to 100V within 1-2 seconds at a distance of 30cm. For slow-speed links such as cell assembly, the static elimination speed can be appropriately reduced, but it should not exceed 3 seconds. The static elimination speed can be tested according to the standard of ESD Association ESD STM3.1-2000, using a 6"×6" 20pF metal plate as the test electrode.
Operating voltage and power consumption are important parameters affecting the use cost and safety of ion air bars. Ion air bars usually need to be used with a high-voltage generator. The operating voltage of the high-voltage generator is generally 5.6KV-10KV, and the current consumption is about 200uA-500uA. When selecting, it is necessary to choose equipment with stable voltage output to avoid ion concentration instability caused by voltage fluctuations. At the same time, under the premise of meeting the static elimination effect, equipment with low power consumption should be preferred to reduce long-term operating costs. For example, some ion air bars adopt piezoelectric transformer technology, which can save energy by more than 30% compared with traditional equipment.
Air volume refers to the amount of ionized air blown out by the ion air bar per unit time, which affects the coverage and static elimination efficiency of the ion air bar. In lithium battery workshops, the air volume of ion air bars is generally 0.5m³/min-3.3m³/min. For large-area static elimination scenarios (such as the entire electrode coating line), ion air bars with large air volume should be selected to ensure that the ionized air can cover the entire production area; for small-area and precise static elimination scenarios (such as diaphragm cutting and cell welding), ion air bars with adjustable air volume can be selected to avoid damage to materials caused by excessive air volume. In addition, the air velocity of the ion air bar should also be considered, generally requiring 40~70psi of compressed air pressure to ensure that the ionized air can reach the surface of the object smoothly.
Ozone emission is a key safety parameter for ion air bars. Ozone is a harmful gas that can irritate the respiratory tract and affect the health of operators. At the same time, excessive ozone may react with lithium battery materials and affect product quality. According to industry standards, the ozone emission of ion air bars should be less than 0.03PPM (measured 15cm in front of the equipment). When selecting, it is necessary to check the ozone emission test report of the equipment to ensure that it meets the safety requirements. Some high-end ion air bars adopt advanced discharge technology, which can reduce ozone emission to less than 0.003PPM, ensuring the safety of the working environment.
The following table summarizes the key technical parameters of ion air bars and their recommended ranges for lithium battery workshops:
Technical Parameter | Recommended Range for Lithium Battery Workshops | Impact on Production |
|---|---|---|
Ion Balance | ±5V (max ±10V) | Affects static elimination effect and avoids secondary static electricity |
Static Elimination Speed | 1-2s (30cm distance, 1000V→100V) | Determines whether it can meet the speed requirements of the production line |
Operating Voltage | 5.6KV-10KV | Affects ion concentration and static elimination stability |
Air Volume | 0.5m³/min-3.3m³/min | Determines the coverage of static elimination |
Ozone Emission | <0.03PPM | Affects the health of operators and product quality |
Operating Temperature Range | 0-50℃ | Adapts to the working environment of lithium battery workshops |
The selection of ion air bars for lithium battery workshops should follow the principles of "matching process requirements, ensuring safety and efficiency, and adapting to the environment", and select appropriate ion air bars according to the static characteristics and production requirements of different production sections. The specific selection steps include clarifying static risk points, determining technical parameters, evaluating environmental adaptability, and verifying product performance.
Lithium battery production involves multiple sections, and each section has different static risk points and production requirements, so the selection of ion air bars should be targeted. The following will elaborate on the selection points of ion air bars for key production sections:
The electrode production section includes material mixing, grinding, and coating, which are high-static-risk links. During the mixing and grinding of electrode materials (such as lithium cobalt oxide, graphite), the friction between powder particles and between particles and equipment will generate a large amount of static electricity, which not only attracts dust but also may cause powder agglomeration, affecting the uniformity of the material. In the coating link, the friction between the electrode sheet and the coating machine roller will generate static electricity, which may cause the coating to be uneven and the electrode sheet to curl. For this section, ion air bars with fast static elimination speed, large air volume, and good ion balance should be selected. It is recommended to choose ion air bars with a static elimination speed of ≤1.5s, an air volume of ≥1.5m³/min, and an ion balance of ±5V. At the same time, considering that the section may produce a large amount of powder, the ion air bar should have a dust-proof design to avoid powder entering the equipment and affecting its service life.
The cell assembly section includes diaphragm cutting, electrode sheet lamination, and shell assembly. The diaphragm is a key component of lithium batteries, which is thin and sensitive to static electricity. Static electricity may cause the diaphragm to curl, adhere, or even break, affecting the assembly accuracy and battery safety. The electrode sheet lamination link will generate static electricity due to the contact and separation between the electrode sheet and the diaphragm, which may cause the electrode sheet to shift. For this section, ion air bars with precise static elimination, adjustable air volume, and low ozone emission should be selected. It is recommended to choose ion air bars with a static elimination speed of ≤2s, an air volume of 0.5-1.0m³/min, and an ozone emission of <0.01PPM. In addition, since the assembly section requires high precision, the ion air bar should be installed flexibly to avoid affecting the production operation. Some ion air bars with adjustable installation angles can be selected to ensure that the ionized air can accurately cover the static risk points.
The electrolyte injection section is a high-risk link in lithium battery production. The electrolyte is flammable and explosive, and static electricity sparks may ignite the electrolyte, leading to serious safety accidents. At the same time, static electricity may cause the electrolyte to splash, affecting the injection accuracy. For this section, ion air bars with high safety performance, fast static elimination speed, and stable operation should be selected. It is recommended to choose ion air bars with a static elimination speed of ≤1s, an ion balance of ±3V, and an ozone emission of <0.003PPM. In addition, the ion air bar should have explosion-proof performance, complying with the safety requirements of flammable and explosive environments. It should be noted that the ion air bar in this section should be installed at a safe distance from the electrolyte injection port to avoid the ionized air directly blowing into the electrolyte and causing splashing.
The packaging section includes cell sealing, testing, and packaging. Static electricity in this section may attract dust to the surface of the battery, affecting the appearance quality and sealing performance of the product. For this section, ion air bars with moderate static elimination speed and air volume can be selected. It is recommended to choose ion air bars with a static elimination speed of ≤2.5s, an air volume of 1.0-1.5m³/min, and an ion balance of ±8V. Since the packaging section has high requirements for the cleanliness of the environment, the ion air bar should be easy to clean and maintain to avoid secondary pollution.
The specific selection steps of ion air bars are as follows: First, conduct a static risk assessment of the production workshop, clarify the static generation links, static voltage value, and coverage area, and determine the key static elimination points. Second, according to the static risk assessment results, determine the key technical parameters of the ion air bar, such as static elimination speed, ion balance, and air volume. Third, evaluate the environmental adaptability of the ion air bar, considering factors such as temperature, humidity, dust concentration, and whether it is a flammable and explosive environment in the workshop, to ensure that the equipment can work stably in the target environment. Fourth, verify the product performance, select a number of candidate products, conduct on-site tests, compare their static elimination effect, stability, and noise, and select the most suitable ion air bar. Finally, consider the cost performance of the product, including the purchase cost, operating cost, and maintenance cost, to ensure that the selection of the ion air bar can bring economic benefits to the enterprise.
The scientific installation and debugging of ion air bars are the key to ensuring their static elimination effect. The installation should follow the principles of "full coverage of static risk points, no impact on production operations, and convenient maintenance", and the debugging should focus on adjusting parameters such as ion balance, air volume, and installation distance to ensure that the static elimination effect meets the production requirements.

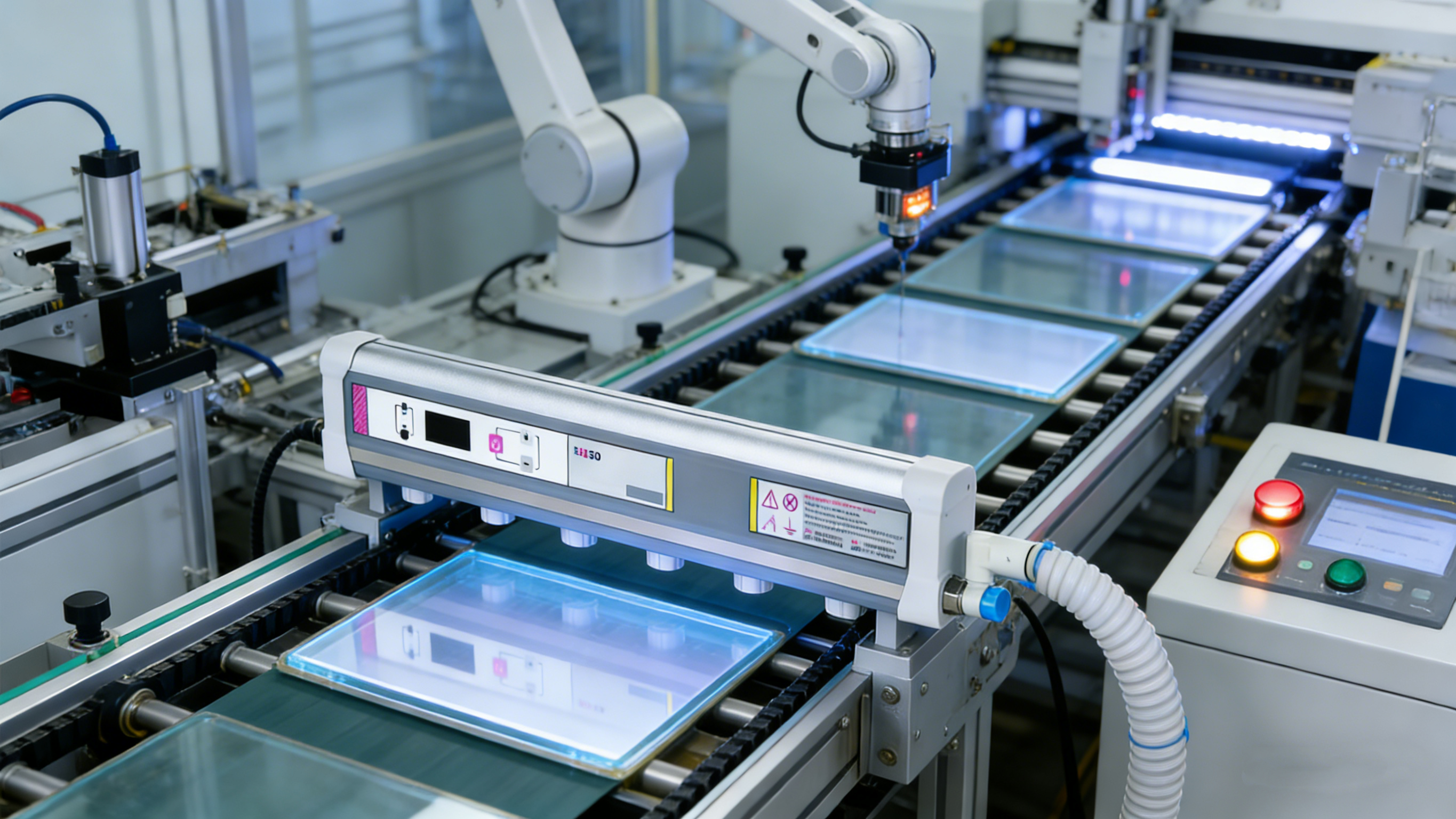

In terms of installation location and height, the ion air bar should be installed directly above or on both sides of the static risk point to ensure that the ionized air can directly cover the surface of the object that needs static elimination. The installation height is generally 30-50cm. If the height is too high, the ion concentration will decrease, affecting the static elimination effect; if the height is too low, it may affect the normal operation of the production line. For example, in the electrode coating line, the ion air bar should be installed above the coating roller, with a distance of 30-40cm from the electrode sheet, to ensure that the ionized air can cover the entire width of the electrode sheet. In the diaphragm cutting link, the ion air bar can be installed on both sides of the cutting knife, with a distance of 20-30cm from the diaphragm, to eliminate static electricity in time and prevent the diaphragm from curling.
The installation density of ion air bars should be determined according to the width of the production line and the static elimination requirements. For production lines with a width of less than 1m, one ion air bar can be installed; for production lines with a width of 1-2m, two ion air bars can be installed symmetrically; for production lines with a width of more than 2m, multiple ion air bars can be installed in parallel, with a spacing of 50-80cm to ensure that there is no dead angle in static elimination. In addition, the ion air bar should be installed firmly to avoid shaking during operation, which may affect the static elimination effect. The installation bracket should be made of anti-corrosion and anti-static materials to adapt to the working environment of the lithium battery workshop.
The wiring of the ion air bar should be standardized to ensure safety and stability. The ion air bar needs to be connected to a high-voltage generator, and the high-voltage cable should be protected to avoid damage and leakage. The grounding wire of the ion air bar and the high-voltage generator must be connected firmly, and the grounding resistance should be less than 4Ω to ensure that the static electricity can be discharged in time and avoid electric shock accidents. It should be noted that the high-voltage cable should not be bent excessively or close to other electrical equipment to avoid interference. The power supply of the ion air bar should be connected to a dedicated circuit to avoid voltage fluctuations caused by other equipment, affecting the stable operation of the ion air bar.
After the installation is completed, debugging work is required to ensure that the ion air bar works in the best state. The debugging steps are as follows: First, turn on the power supply of the ion air bar and the high-voltage generator, and check whether the equipment operates normally, including whether the fan works, whether the ion is generated normally, and whether there is abnormal noise. Second, adjust the ion balance. Use a static tester to measure the ion balance of the ion air bar, and adjust the balance knob on the high-voltage generator to make the ion balance within the range of ±5V. Third, adjust the air volume. According to the static elimination requirements of the production section, adjust the air volume knob of the ion air bar to ensure that the air volume is appropriate. For example, in the electrolyte injection section, the air volume should be adjusted to a moderate level to avoid electrolyte splashing. Fourth, test the static elimination effect. Use a static tester to measure the static voltage on the surface of the object before and after the ion air bar is turned on. The static voltage after static elimination should be less than 100V, which is the safe static voltage range for lithium battery production. Fifth, check the ozone emission. Use an ozone detector to measure the ozone concentration around the ion air bar to ensure that it is less than 0.03PPM.
In addition, during the installation and debugging process, it is necessary to pay attention to the coordination with other equipment in the workshop. For example, the ion air bar should not be installed near the dust removal equipment to avoid the ionized air being sucked by the dust removal equipment, affecting the static elimination effect. At the same time, it should be avoided to install the ion air bar near the precision instruments to avoid interference with the instruments. After the debugging is completed, a debugging record should be made, including the installation location, height, ion balance, air volume, and static elimination effect, for future maintenance and inspection.
The daily maintenance and regular performance testing of ion air bars are crucial to maintaining their stable operation and extending their service life. Daily maintenance mainly includes cleaning, inspection, and troubleshooting, while performance testing focuses on detecting parameters such as ion balance, static elimination speed, and ozone emission to ensure that the equipment meets the production requirements.
Daily maintenance of ion air bars should be carried out once a day before the start of production. First, clean the surface of the ion air bar and the ion emission needle. Use a clean soft cloth to wipe the surface of the equipment to remove dust and dirt. For the ion emission needle, use a cotton swab dipped in alcohol to wipe it to remove the oxide layer and dirt on the needle, which can ensure the normal generation of ions. If the ion emission needle is severely worn or deformed, it should be replaced in time. Second, check the connection of the power supply and the high-voltage cable. Check whether the power plug is loose, whether the high-voltage cable is damaged, and whether the grounding wire is firm. If any abnormality is found, it should be handled immediately to avoid safety accidents. Third, check the operation status of the fan. Listen to the fan noise to see if there is abnormal sound, and check whether the fan speed is stable. If the fan is blocked or the speed is unstable, it should be cleaned or maintained in time.
Regular maintenance should be carried out once a month. First, check the ion emission needle for wear. If the needle is worn, it should be replaced with a new one of the same model to ensure the ion generation effect. Second, check the high-voltage generator. Check whether the voltage output of the high-voltage generator is stable, and whether there is oil leakage or damage to the internal components. If any abnormality is found, it should be repaired or replaced by professional personnel. Third, clean the air filter of the ion air bar. The air filter can prevent dust from entering the equipment and affecting the fan and ion emission needle. The filter should be taken out and cleaned with clean water, and installed back after drying. Fourth, check the installation bracket of the ion air bar. Check whether the bracket is loose or corroded, and tighten or replace it if necessary.
Performance testing of ion air bars should be carried out once a quarter to ensure that the equipment performance meets the requirements. The testing items include ion balance, static elimination speed, ozone emission, and air volume. The specific testing methods are as follows: For ion balance testing, use a static tester to measure the ion balance value at a distance of 30cm from the ion air bar, which should be within ±5V. For static elimination speed testing, use a 6"×6" 20pF metal plate, charge it to 1000V, place it 30cm away from the ion air bar, and measure the time required for the static voltage to drop to 100V, which should be ≤2s. For ozone emission testing, use an ozone detector to measure the ozone concentration 15cm in front of the ion air bar, which should be <0.03PPM. For air volume testing, use an anemometer to measure the air volume at the air outlet of the ion air bar, which should be within the range of the recommended parameters.
In addition, a maintenance record should be established for the ion air bar, including daily maintenance records, regular maintenance records, and performance testing records. The records should include the maintenance time, maintenance content, testing results, and handling measures. This can help enterprises track the operation status of the equipment, find potential problems in time, and extend the service life of the equipment. At the same time, the maintenance personnel should be trained professionally to master the correct maintenance methods and testing skills, ensuring the quality of maintenance and testing.
In the process of using ion air bars in lithium battery workshops, common problems include poor static elimination effect, abnormal ion balance, excessive ozone emission, and equipment failure. These problems can be solved by finding the root cause and taking targeted measures to ensure the normal operation of the equipment.
Poor static elimination effect is one of the most common problems. The main reasons include improper installation location and height, insufficient ion concentration, excessive dust on the ion emission needle, and inappropriate air volume. If the static elimination effect is poor, first check the installation location and height of the ion air bar, adjust it to the appropriate position, and ensure that the ionized air can cover the static risk points. Second, check the ion emission needle. If there is dust or oxide layer on the needle, clean it with alcohol. If the needle is worn, replace it. Third, check the high-voltage generator. Check whether the voltage output is stable. If the voltage is too low, adjust it to the normal range. Fourth, adjust the air volume. Increase the air volume appropriately to improve the coverage and static elimination efficiency of the ionized air. For example, if the static elimination effect of the electrode coating line is poor, you can increase the air volume of the ion air bar and adjust the installation height to 30cm to ensure that the ionized air can fully cover the electrode sheet.
Abnormal ion balance is another common problem, which is mainly manifested in the ion balance exceeding ±10V, leading to secondary static electricity on the surface of the material. The main reasons include damage to the ion emission needle, unstable voltage output of the high-voltage generator, and interference from the surrounding environment. To solve this problem, first, check the ion emission needle. If the needle is damaged or worn, replace it. Second, check the high-voltage generator. Use a multimeter to measure the voltage output, and adjust it to the stable range. If the high-voltage generator is faulty, repair or replace it. Third, check the surrounding environment. Avoid installing the ion air bar near other electrical equipment that may cause interference, and ensure that the grounding is good. Some high-performance ion air bars have an automatic ion balance adjustment function, which can automatically adjust the ion output when the ion balance is abnormal, reducing the occurrence of this problem.
Excessive ozone emission is a safety problem that needs attention. The main reasons include aging of the ion emission needle, excessive voltage output, and poor ventilation in the workshop. If the ozone emission exceeds the standard, first, check the ion emission needle. If the needle is aging, replace it. Second, adjust the voltage output of the high-voltage generator, reduce the voltage appropriately, and reduce the ozone generation. Third, strengthen the ventilation of the workshop. Install exhaust fans to discharge the ozone in time, ensuring that the ozone concentration in the workshop meets the safety requirements. It should be noted that operators should wear protective equipment when working near the ion air bar to avoid damage to the respiratory tract caused by excessive ozone.
Equipment failure is also a common problem in the application process, mainly including fan failure, high-voltage generator failure, and power failure. Fan failure is mainly manifested in the fan not working or the speed being unstable. The reasons include fan blockage, motor damage, and poor contact of the power supply. To solve this problem, first, clean the fan to remove dust and dirt. If the motor is damaged, replace the motor. Check the power supply connection to ensure good contact. High-voltage generator failure is mainly manifested in no voltage output or unstable voltage. The reasons include internal component damage, oil leakage, and poor grounding. This problem should be handled by professional personnel, who can disassemble and inspect the high-voltage generator, replace damaged components, and ensure stable voltage output. Power failure is mainly caused by loose power plugs, damaged power cables, or power supply failures. Check the power plug and cable, and repair or replace them if necessary. If there is a power supply failure, contact the power supply department to solve it.
In addition, in the process of using ion air bars, it is necessary to pay attention to the following points to avoid the occurrence of problems: First, avoid using the ion air bar in a high-humidity environment, which may cause short circuits in the equipment. Second, avoid collision and damage to the ion air bar during use. Third, do not disassemble the equipment without permission, which may cause safety accidents. Fourth, regularly check the equipment and handle abnormalities in time to avoid small problems developing into major failures.
The selection and application of ion air bars in lithium battery workshops are crucial to ensuring production safety, improving product quality, and complying with industry standards. As a core static elimination equipment, ion air bars can effectively neutralize static charges, eliminate static hazards, and reduce product defect rates. In the selection process, it is necessary to follow the principles of matching process requirements, ensuring safety and efficiency, and adapting to the environment, and select appropriate ion air bars according to the static characteristics of different production sections. In the application process, scientific installation and debugging are required to ensure full coverage of static risk points, and daily maintenance and regular performance testing are carried out to maintain the stable operation of the equipment.
With the continuous development of the lithium battery industry, the requirements for static control are becoming more and more strict. Lithium battery manufacturers should pay full attention to the role of ion air bars, establish a complete static control system, and continuously optimize the selection and application of ion air bars. By doing so, enterprises can not only avoid safety accidents caused by static electricity but also improve product quality and production efficiency, enhancing their core competitiveness in the market. In the future, with the continuous upgrading of ion air bar technology, it will play a more important role in the lithium battery industry, providing stronger support for the healthy and sustainable development of the industry.
