The spraying industry is a critical sector spanning automotive, aerospace, furniture, electronics, and coating manufacturing, where product quality directly depends on the cleanliness of the sprayed surface. Static dust, a pervasive issue in spraying operations, arises from electrostatic charges generated during material handling, spraying, and environmental interactions. This dust adheres tightly to workpieces, equipment, and spraying tools, leading to defects such as uneven coatings, pinholes, and poor adhesion. As global industrial standards become increasingly stringent—with regulations like the Key Industry Volatile Organic Compounds Comprehensive Control Plan promoting automated, high-quality spraying technologies—the demand for effective static dust removal solutions has never been higher. Ion air bars have emerged as a reliable, efficient, and cost-effective solution to address this challenge, helping spraying enterprises improve product qualification rates, reduce waste, and comply with industry norms.

An ion air bar solution removes static dust in the spraying industry by generating a high concentration of positive and negative ions, which neutralize the electrostatic charges on the surface of workpieces, equipment, and dust particles. Once neutralized, the dust particles lose their electrostatic adhesion force, and the built-in airflow of the ion air bar blows the dust away, ensuring a clean surface for spraying. This solution is easy to install, stable in operation, and adaptable to various spraying scenarios, making it the preferred choice for static dust removal in the industry.

Static dust not only affects product aesthetics but also undermines the durability and performance of sprayed products, leading to increased production costs and reduced market competitiveness. Many spraying enterprises initially rely on traditional dust removal methods such as manual cleaning, compressed air blowing, or simple vacuuming, but these methods often fail to address the root cause of static adhesion, resulting in temporary results and frequent dust reattachment. In contrast, ion air bar solutions target the electrostatic charge itself, providing a long-term, consistent dust removal effect. This article will delve into the principles, advantages, application scenarios, selection criteria, installation tips, and maintenance methods of ion air bar solutions for static dust removal in the spraying industry, helping enterprise decision-makers and technical personnel gain a comprehensive understanding of this technology and make informed choices.

Below is the detailed outline of the article, covering all key aspects of ion air bar solutions in the spraying industry:

• Understanding Static Dust in the Spraying Industry: Causes and Impacts

• How Ion Air Bars Work for Static Dust Removal in Spraying Operations

• Key Advantages of Ion Air Bar Solutions Compared to Traditional Dust Removal Methods

• Application Scenarios of Ion Air Bars in Different Spraying Segments

• Key Factors to Consider When Selecting Ion Air Bars for Spraying Industry

• Proper Installation and Operation Guidelines for Ion Air Bars in Spraying Lines

• Maintenance Tips to Extend the Service Life of Ion Air Bars

• Common Problems and Troubleshooting Methods of Ion Air Bar Solutions

Understanding Static Dust in the Spraying Industry: Causes and Impacts

Static dust in the spraying industry is primarily caused by electrostatic charging of workpieces, dust particles, and equipment during production processes, and it negatively impacts product quality, production efficiency, and enterprise costs by causing coating defects, increasing waste, and reducing equipment lifespan.

To effectively address static dust, it is first necessary to understand its root causes and the far-reaching impacts it has on the spraying industry. Static electricity is generated when two different materials come into contact and separate—a phenomenon known as the triboelectric effect, which is ubiquitous in spraying operations. Workpieces (such as metal, plastic, or wood) rub against conveyor belts, gloves, or packaging materials during transportation and handling, accumulating electrostatic charges. Similarly, spraying materials (including paint, powder, and solvents) flow through hoses, nozzles, and other equipment, generating static charges due to friction between the material and the equipment surface. Even the surrounding air, when moving through the spraying workshop, can carry static charges, especially in dry environments where the relative humidity is below 40%—a common condition in many spraying facilities.

The electrostatic charges accumulated on workpieces and equipment create an electric field that attracts dust particles in the air. These dust particles, which are often tiny (ranging from 0.1 to 10 microns), carry opposite charges to the workpiece surface, leading to strong electrostatic adhesion. Unlike ordinary dust, static dust cannot be easily removed by simple blowing or wiping; even if temporarily removed, it will quickly reattach due to the persistent electrostatic charge. This adhesion is particularly problematic in the spraying process, as dust particles on the workpiece surface will be encapsulated by the coating, resulting in a range of quality defects.

The impacts of static dust on the spraying industry are multifaceted and costly. From a product quality perspective, static dust causes uneven coating thickness, pinholes, bubbles, and color inconsistencies, making the product fail to meet industry standards or customer requirements. For example, in the automotive spraying industry, a single dust particle on the car body can lead to rework or scrapping of the entire coating, resulting in significant material and labor losses. In the electronics industry, static dust on circuit boards or electronic components can cause short circuits, affecting product performance and reliability. From a production efficiency perspective, static dust requires frequent manual cleaning of workpieces and equipment, which slows down the production line and increases labor costs. Additionally, static dust can accumulate on spraying nozzles and pipelines, causing blockages and reducing equipment efficiency, leading to unplanned downtime for maintenance.

Furthermore, static dust poses potential safety risks in the spraying industry. Many spraying materials are flammable or explosive, and electrostatic discharge (ESD) caused by static charges can ignite these materials, leading to fires or explosions. Regulatory bodies in many countries have strict requirements for static control in spraying workshops; failure to comply with these requirements can result in fines, production suspensions, or even legal liability. For instance, regulations targeting industrial enterprises with excessive dust concentrations require comprehensive dust control measures, including effective static elimination, to ensure workplace safety and environmental compliance.

How Ion Air Bars Work for Static Dust Removal in Spraying Operations

Ion air bars work by using a high-voltage power supply to ionize air molecules into positive and negative ions, which are then blown to the target surface by an airflow system. The ions neutralize the electrostatic charges on workpieces, equipment, and dust particles, eliminating the electrostatic adhesion force, and the airflow blows the neutralized dust away, achieving efficient static dust removal.

The core working principle of ion air bars revolves around electrostatic neutralization and airflow dust removal, which work together to address the root cause of static dust in spraying operations. At the heart of an ion air bar is a high-voltage generator, which converts ordinary alternating current (AC) or direct current (DC) into high-voltage electricity (typically 5.6KV or higher). This high-voltage electricity is transmitted to the ion emission needles (made of materials such as tungsten or stainless steel) installed along the length of the air bar. When the high-voltage electricity passes through the emission needles, it creates a strong electric field around the needles, which ionizes the surrounding air molecules (oxygen, nitrogen, etc.) into positive and negative ions—a process known as corona discharge.

The ion air bar is equipped with an airflow system, which can be either a built-in fan or an external compressed air connection. The airflow carries the generated positive and negative ions to the target surface (such as workpieces on the production line, spraying nozzles, or conveyor belts). When the ions come into contact with a charged surface (e.g., a workpiece with a negative charge), the positive ions will be attracted to the surface and neutralize the negative charge; conversely, if the surface is positively charged, the negative ions will neutralize it. This neutralization process occurs in a matter of milliseconds, quickly eliminating the electrostatic charge on the surface and breaking the electrostatic adhesion between the surface and dust particles.

Once the electrostatic charge is neutralized, the dust particles lose their adhesion force and become suspended in the air. The airflow from the ion air bar then blows these suspended dust particles away from the target surface, preventing them from reattaching. The airflow rate of ion air bars can be adjusted according to the specific needs of the spraying process, typically ranging from 10 m/sec to 70 m/sec depending on the model and application scenario. For example, in high-speed spraying lines, a higher airflow rate is required to quickly remove dust, while in precision spraying (such as electronic component coating), a lower, more gentle airflow is used to avoid damaging the workpiece.

It is important to note that the effectiveness of ion air bars depends on the balance of positive and negative ions. A high-quality ion air bar will have an ion balance adjustment function, ensuring that the number of positive and negative ions generated is roughly equal (usually within ±30V). This balance prevents the target surface from being recharged with the opposite charge, which would otherwise lead to further dust adhesion. Additionally, the ion emission needles need to be properly maintained to ensure consistent ion generation; over time, dust and debris can accumulate on the needles, reducing ionization efficiency and requiring regular cleaning.

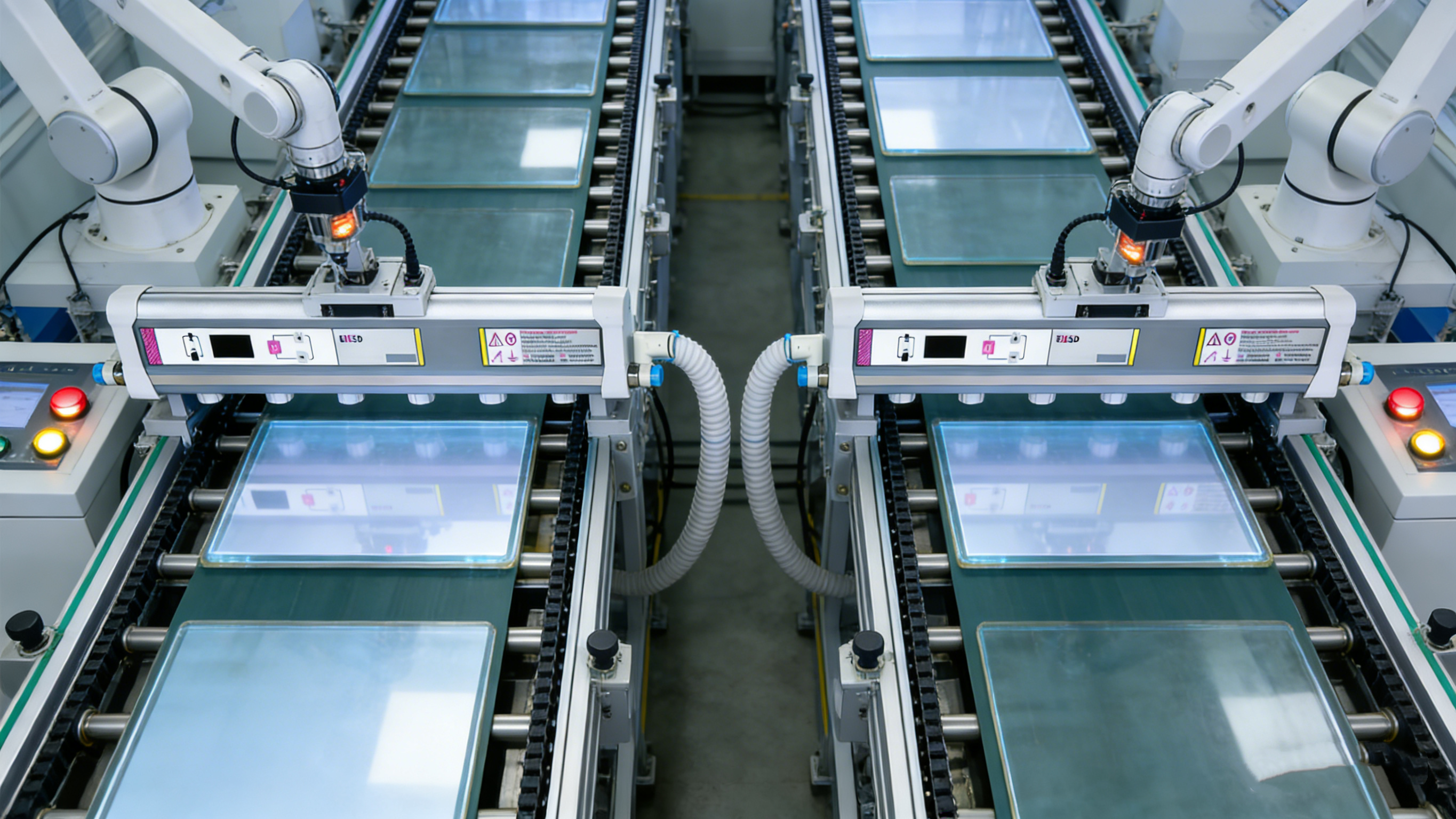

In spraying operations, ion air bars are typically installed above or on both sides of the production line, ensuring that the ionized airflow covers the entire surface of the workpiece. The distance between the ion air bar and the target surface is also critical—too far, and the ions will recombine before reaching the surface (ions typically have a lifespan of about 2 seconds); too close, and the airflow may disrupt the spraying process or damage the workpiece. Most ion air bars are designed with adjustable installation brackets, allowing enterprises to optimize the position and distance based on their specific production line layout.

Key Advantages of Ion Air Bar Solutions Compared to Traditional Dust Removal Methods

Compared to traditional dust removal methods such as manual cleaning, compressed air blowing, and vacuum cleaning, ion air bar solutions offer advantages including more thorough dust removal, higher efficiency, lower operating costs, better compatibility with spraying processes, and enhanced safety, making them more suitable for the modern spraying industry.

The spraying industry has long relied on various traditional dust removal methods, but each of these methods has inherent limitations that prevent them from effectively addressing static dust. Manual cleaning, for example, involves workers using cloths, brushes, or air blowers to wipe or blow dust off workpieces and equipment. While this method is simple and low-cost initially, it is time-consuming, labor-intensive, and inconsistent. Workers may miss dust particles in hard-to-reach areas, and the friction between the cleaning tool and the workpiece can generate additional static charges, leading to further dust adhesion. Additionally, manual cleaning slows down the production line, reducing overall efficiency—especially in high-volume spraying operations.

Compressed air blowing is another common traditional method, which uses high-pressure compressed air to blow dust off surfaces. While this method is faster than manual cleaning, it has several drawbacks. First, compressed air blowing only moves dust from one surface to another rather than removing it from the workshop, leading to secondary pollution. Second, the high-pressure airflow can cause the dust particles to become charged again, making them reattach to other workpieces or equipment. Third, long-term use of compressed air results in high energy consumption, increasing operating costs. In some precision spraying scenarios, the high-pressure airflow can also damage delicate workpieces or disrupt the spraying pattern.

Vacuum cleaning is a more advanced traditional method, which uses a vacuum system to suck up dust particles. While this method can remove dust from the workshop, it is not effective for static dust. The electrostatic adhesion force between dust particles and surfaces is often stronger than the suction force of the vacuum, making it difficult to suck up tightly adhering static dust. Additionally, vacuum systems are large, expensive to install and maintain, and require regular cleaning of the dust collection bags or filters. They also have limited coverage, making it difficult to clean large production lines or hard-to-reach areas.

In contrast, ion air bar solutions address the limitations of traditional methods by targeting the root cause of static dust—electrostatic charges. The following table summarizes the key differences between ion air bar solutions and traditional dust removal methods, highlighting the advantages of ion air bars:

In addition to the advantages listed in the table, ion air bar solutions offer several other benefits for the spraying industry. They are compact and easy to install, requiring minimal space on the production line—unlike large vacuum systems. They can be customized to fit different production line lengths and spraying scenarios, with adjustable ion balance and airflow rate to meet specific needs. Ion air bars also operate automatically, requiring little to no human intervention once installed, freeing up workers to focus on other tasks. Furthermore, they are energy-efficient, consuming significantly less energy than compressed air systems or vacuum cleaners, reducing long-term operating costs for enterprises.

Application Scenarios of Ion Air Bars in Different Spraying Segments

Ion air bars are widely applicable in various spraying segments, including automotive spraying, furniture spraying, electronic product spraying, aerospace spraying, and powder coating, effectively solving static dust problems in different production scenarios and improving product quality.

The spraying industry is diverse, with different segments having unique production processes, workpiece materials, and quality requirements. Ion air bar solutions are highly adaptable, making them suitable for a wide range of spraying scenarios. Below is a detailed overview of their applications in key spraying segments, highlighting how they address specific static dust challenges in each industry.

Automotive spraying is one of the largest and most demanding segments in the spraying industry, where product quality and appearance are critical. Automotive workpieces (such as car bodies, doors, and bumpers) are typically made of metal or plastic, which easily accumulate static charges during transportation and handling. Static dust on the car body surface can lead to defects such as pinholes, orange peel, and color unevenness, which are unacceptable in the automotive industry. Ion air bars are installed at multiple points in the automotive spraying line: before the pre-treatment process to remove dust from the car body surface, before the primer and topcoat spraying to ensure a clean surface, and after spraying to prevent dust from adhering to the wet coating. In automotive spraying workshops, ion air bars are often paired with conveyor belts, with adjustable airflow rates to accommodate the high-speed production line (typically 1-2 meters per second). The ion balance function ensures that the car body surface is not recharged, preventing further dust adhesion and ensuring a smooth, uniform coating.

Furniture spraying is another important application segment, where workpieces include wooden furniture, metal furniture, and plastic furniture. Wooden workpieces, in particular, are prone to generating static charges due to their low conductivity, and dust particles (such as wood dust and paint dust) easily adhere to their surface. This can lead to uneven paint coverage and a rough surface finish. Ion air bars are used in furniture spraying workshops to remove dust from workpieces before spraying and to prevent dust from adhering during the drying process. For large furniture pieces (such as sofas, cabinets, and tables), multiple ion air bars are installed around the production line to ensure full coverage. The gentle airflow of ion air bars is particularly suitable for wooden workpieces, as it does not damage the surface or cause the wood to warp.

Electronic product spraying involves the coating of circuit boards, electronic components, and plastic casings, where precision and cleanliness are paramount. Static dust on electronic components can cause short circuits, poor contact, and reduced product reliability. Additionally, electronic components are often sensitive to electrostatic discharge (ESD), which can damage the components. Ion air bars are used in electronic product spraying to remove static dust from the surface of components and casings before spraying, and to neutralize static charges to prevent ESD damage. In this segment, ion air bars with low airflow rates and precise ion balance are preferred to avoid damaging delicate electronic components. They are often installed in cleanrooms, where the air is filtered to reduce dust, and the ion air bars further ensure that the workpiece surface is free of static dust.

Aerospace spraying is a high-precision segment, where workpieces such as aircraft components, rocket parts, and satellite components require extremely high-quality coatings to withstand harsh environmental conditions (such as high temperatures, pressure, and corrosion). Static dust on these components can lead to coating failure, which can have serious safety consequences. Ion air bars are used in aerospace spraying workshops to remove dust from the surface of components before spraying, ensuring that the coating adheres properly and meets the strict quality standards of the aerospace industry. Due to the large size of many aerospace components, custom-length ion air bars are often used to provide full coverage. The ion air bars are also designed to operate in high-temperature and high-pressure environments, ensuring stability and reliability.

Powder coating is a popular spraying method in many industries, including automotive, furniture, and electronics, due to its environmental friendliness and durability. However, powder particles are prone to generating static charges during transportation and spraying, leading to uneven powder deposition and dust adhesion. Ion air bars are used in powder coating lines to neutralize the static charges on the workpiece surface and the powder particles, ensuring uniform powder deposition and reducing dust waste. They are installed before the powder spraying booth to remove dust from the workpiece surface and inside the booth to prevent dust from adhering to the workpiece during spraying. The ionized airflow also helps to break up clumps of powder, ensuring a smooth, even coating.

Key Factors to Consider When Selecting Ion Air Bars for Spraying Industry

When selecting ion air bars for the spraying industry, key factors to consider include ion balance, ion generation efficiency, airflow rate, installation flexibility, durability, compatibility with the spraying environment, and after-sales support, ensuring that the solution meets the specific needs of the enterprise’s production line.

Choosing the right ion air bar is critical to achieving effective static dust removal in the spraying industry. With a wide range of ion air bars available on the market, enterprises need to carefully evaluate their specific needs and consider several key factors to make an informed decision. The following factors are essential to consider when selecting ion air bars for spraying operations:

Ion balance is one of the most important factors to consider. Ion balance refers to the ratio of positive to negative ions generated by the ion air bar, and it is measured in volts (V). A good ion air bar should have an ion balance within ±30V, ensuring that the target surface is not recharged with the opposite charge after neutralization. If the ion balance is too far from zero, the workpiece surface may become charged again, leading to further dust adhesion. Enterprises should choose ion air bars with adjustable ion balance, allowing them to optimize the balance based on the specific workpiece material and spraying environment. For example, plastic workpieces, which have low conductivity, may require a slightly different ion balance than metal workpieces.

Ion generation efficiency is another critical factor. This refers to the speed at which the ion air bar generates and delivers ions to the target surface. In high-speed spraying lines, a high ion generation efficiency is essential to ensure that the static charge is neutralized quickly before the workpiece moves to the next stage of the production line. Ion generation efficiency is influenced by the number of ion emission needles, the voltage of the high-voltage generator, and the airflow rate. Ion air bars with more emission needles and higher voltage will have higher ion generation efficiency, making them suitable for high-speed production lines. Enterprises should also consider the ion concentration (measured in ions per cubic centimeter), as a higher ion concentration ensures more effective neutralization.

Airflow rate is an important factor that affects the dust removal effect. The airflow rate determines how quickly the neutralized dust particles are blown away from the target surface. In spraying operations, the airflow rate should be adjusted based on the type of workpiece, the speed of the production line, and the size of the dust particles. For example, large workpieces or high-speed production lines require a higher airflow rate to ensure that all dust particles are blown away, while delicate workpieces (such as electronic components) require a lower airflow rate to avoid damage. Most ion air bars have adjustable airflow rates, allowing enterprises to customize the settings to their specific needs. The airflow type (laminar or turbulent) is also important—laminar airflow is preferred for precision spraying, as it provides uniform coverage and does not disrupt the spraying pattern.

Installation flexibility is another key consideration. Spraying production lines come in various sizes and layouts, so ion air bars should be easy to install and adjust. Look for ion air bars with adjustable brackets, which allow for easy positioning and angle adjustment. Some ion air bars are designed to be mounted on walls, ceilings, or production line frames, while others are portable, making them suitable for temporary or mobile spraying operations. The length of the ion air bar should also match the width of the production line—custom-length ion air bars are available for large or irregularly shaped production lines.

Durability is essential for long-term use in the harsh spraying environment. Spraying workshops often have high humidity, chemical fumes (from paint and solvents), and dust, which can damage the ion air bar if it is not properly protected. Choose ion air bars with a durable casing (such as stainless steel or aluminum) that is resistant to corrosion and chemical damage. The ion emission needles should be made of high-quality materials (such as tungsten) that are resistant to wear and tear, as frequent replacement of needles can increase maintenance costs. Additionally, the high-voltage generator should be sealed to prevent dust and moisture from entering, ensuring stable operation.

Compatibility with the spraying environment is also important. Some spraying workshops operate in extreme conditions, such as high temperatures (above 50℃) or low temperatures (below -10℃), so the ion air bar should be able to operate reliably in these conditions. For workshops with flammable or explosive materials (such as paint solvents), ion air bars with explosion-proof features are required to ensure safety. Additionally, ion air bars should be compatible with the existing production line equipment, such as conveyor belts, spraying booths, and dust collection systems.

Finally, after-sales support is a crucial factor to consider. Ion air bars require regular maintenance (such as cleaning the emission needles and checking the ion balance), so enterprises should choose a supplier that provides comprehensive after-sales support, including technical guidance, maintenance services, and replacement parts. A reliable supplier will also offer training for enterprise personnel on how to install, operate, and maintain the ion air bars, ensuring that the solution is used effectively.

Proper Installation and Operation Guidelines for Ion Air Bars in Spraying Lines

Proper installation and operation of ion air bars in spraying lines involve selecting the correct installation position and distance, ensuring proper grounding, adjusting ion balance and airflow rate, and following safety procedures, which are essential to maximizing dust removal efficiency and extending the service life of the equipment.

Even the best ion air bar will not achieve optimal results if it is not installed and operated correctly. Proper installation and operation are critical to ensuring effective static dust removal, preventing equipment damage, and ensuring workplace safety. Below are detailed guidelines for installing and operating ion air bars in spraying lines:

First, select the correct installation position. The ideal installation position for ion air bars in a spraying line is above or on both sides of the conveyor belt, ensuring that the ionized airflow covers the entire surface of the workpiece. The position should be chosen based on the direction of the production line and the shape of the workpiece. For example, if the workpiece is moving horizontally, the ion air bar can be installed above the conveyor belt, pointing downward at a 45-degree angle to ensure that the airflow covers the top and sides of the workpiece. For vertical workpieces, ion air bars can be installed on both sides of the production line, pointing toward the workpiece. It is also important to install the ion air bar before the spraying booth to remove dust from the workpiece surface before spraying, as dust on the surface will be encapsulated by the coating if not removed.

The distance between the ion air bar and the target surface is another critical installation factor. The optimal distance depends on the ion generation efficiency and airflow rate of the ion air bar, but it typically ranges from 100mm to 500mm. If the distance is too close (less than 100mm), the airflow may disrupt the workpiece or the spraying process; if the distance is too far (more than 500mm), the ions will recombine before reaching the target surface, reducing the neutralization effect. Enterprises should test different distances to find the optimal position for their specific production line. Additionally, the ion air bar should be aligned parallel to the conveyor belt to ensure uniform coverage of the workpiece surface.

Proper grounding is essential for the safe and effective operation of ion air bars. The ion air bar, high-voltage generator, and all related equipment must be grounded to prevent electrostatic discharge (ESD) and ensure that the ion balance is maintained. The grounding wire should be connected to a dedicated ground terminal, and the ground resistance should be less than 1 ohm. Poor grounding can lead to unstable ion generation, incorrect ion balance, and even safety hazards (such as electric shocks or fires). Enterprises should regularly check the grounding connection to ensure that it is secure and in good condition.

After installation, adjust the ion balance and airflow rate to meet the specific needs of the spraying process. The ion balance should be adjusted to within ±30V using the adjustment knob on the high-voltage generator. To test the ion balance, use an ion balance tester to measure the charge on the workpiece surface after neutralization. If the charge is positive, increase the number of negative ions; if the charge is negative, increase the number of positive ions. The airflow rate should be adjusted based on the speed of the production line and the size of the dust particles. For high-speed production lines, a higher airflow rate is required to quickly remove dust, while for precision spraying, a lower airflow rate is preferred. It is also important to adjust the airflow direction to ensure that the dust is blown away from the production line and into the dust collection system, preventing secondary pollution.

When operating ion air bars, it is important to follow safety procedures to prevent accidents. Operators should wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, to protect against high-voltage electricity and airflow. The ion air bar should not be touched while it is in operation, as the high-voltage generator can cause electric shocks. Additionally, the ion air bar should be turned off and disconnected from the power supply before cleaning or maintenance. Enterprises should also post safety signs near the ion air bar to remind operators of the potential hazards.

Regular inspection during operation is also important. Operators should check the ion air bar for any signs of damage (such as broken emission needles, loose connections, or corrosion) and ensure that the airflow is consistent. If the ion air bar is not working properly (e.g., no ion generation, uneven airflow), it should be turned off immediately and inspected by a qualified technician. Additionally, the ion balance should be checked regularly (at least once a week) to ensure that it remains within the optimal range.

Maintenance Tips to Extend the Service Life of Ion Air Bars

Regular maintenance of ion air bars, including cleaning the ion emission needles, checking the high-voltage generator, inspecting the airflow system, and maintaining proper grounding, can effectively extend their service life, ensure consistent performance, and reduce operating costs.

Ion air bars are durable pieces of equipment, but regular maintenance is essential to ensure that they operate effectively and have a long service life. The harsh environment of spraying workshops—with dust, chemical fumes, and high humidity—can cause wear and tear on the ion air bar over time, leading to reduced performance or equipment failure. Below are key maintenance tips to extend the service life of ion air bars:

Clean the ion emission needles regularly. The ion emission needles are the core component of the ion air bar, and dust, paint particles, and other debris can accumulate on them over time, reducing ion generation efficiency. It is recommended to clean the needles at least once a week (or more frequently if the spraying environment is particularly dusty). To clean the needles, turn off the ion air bar and disconnect it from the power supply. Use a soft brush (such as a toothbrush) or a cotton swab dipped in alcohol to gently wipe the needles, removing any debris. Do not use sharp tools (such as tweezers or scissors) to clean the needles, as this can damage them. After cleaning, reattach the ion air bar and test the ion generation to ensure that it is working properly.

Check the high-voltage generator regularly. The high-voltage generator is responsible for converting ordinary electricity into high-voltage electricity for ion generation. Over time, the generator may develop loose connections, damaged wires, or internal components, leading to unstable performance. Inspect the generator at least once a month for any signs of damage, such as cracks, corrosion, or loose wires. Check the power cord and plug for wear and tear, and replace them if necessary. Additionally, ensure that the generator is properly grounded and that the voltage output is within the recommended range (typically 5.6KV). If the generator is not working properly, it should be repaired or replaced by a qualified technician.

Inspect the airflow system regularly. The airflow system (fan or compressed air connection) is responsible for delivering ions to the target surface. Over time, the fan blades may accumulate dust, reducing airflow rate, or the compressed air pipeline may become blocked by debris. For ion air bars with built-in fans, clean the fan blades at least once a month using a soft brush or compressed air (turned off and disconnected from power). For ion air bars connected to compressed air, check the pipeline for blockages and leaks, and ensure that the compressed air is clean and dry (moisture in the compressed air can damage the ion air bar). It is also important to check the airflow rate regularly and adjust it as needed to ensure optimal dust removal.

Maintain proper grounding. As mentioned earlier, proper grounding is essential for the safe and effective operation of ion air bars. Regularly check the grounding connection to ensure that it is secure and that the ground resistance is less than 1 ohm. If the grounding wire is loose or damaged, replace it immediately. Poor grounding can lead to unstable ion balance, reduced performance, and safety hazards, so it is important to prioritize this maintenance task.

Store and handle the ion air bar properly. If the ion air bar is not in use for an extended period (such as during maintenance or production shutdowns), it should be stored in a clean, dry, and cool environment, away from dust, chemical fumes, and extreme temperatures. Avoid dropping or撞击 the ion air bar, as this can damage the internal components. When transporting the ion air bar, use a protective case to prevent damage.

Schedule regular professional maintenance. In addition to regular in-house maintenance, it is recommended to have the ion air bar inspected by a professional technician at least once a year. The technician can perform a comprehensive inspection of the ion air bar, including testing the ion balance, checking the high-voltage generator, and replacing any worn or damaged components. Professional maintenance can help identify potential issues before they become major problems, ensuring that the ion air bar operates effectively for a long time.

Common Problems and Troubleshooting Methods of Ion Air Bar Solutions

Common problems with ion air bar solutions in the spraying industry include poor ion generation, uneven airflow, incorrect ion balance, and equipment damage, which can be resolved through systematic troubleshooting, including checking power supply, cleaning components, adjusting settings, and repairing or replacing damaged parts.

Despite proper installation and maintenance, ion air bars may encounter problems from time to time, affecting their performance. Understanding common problems and their troubleshooting methods can help enterprises quickly resolve issues, minimize downtime, and ensure effective static dust removal. Below are the most common problems with ion air bar solutions and their corresponding troubleshooting methods:

Poor ion generation is one of the most common problems. Symptoms include insufficient static neutralization, dust reattachment, and poor dust removal effect. The main causes of poor ion generation include dirty ion emission needles, loose connections, a faulty high-voltage generator, or insufficient power supply. To troubleshoot this problem, first, check the ion emission needles for dust or debris and clean them if necessary. Next, check the connections between the ion air bar and the high-voltage generator, ensuring that they are secure. If the connections are loose, tighten them. Then, check the power supply to ensure that it is providing the correct voltage (typically 110V/60HZ or 220V/50HZ). If the power supply is faulty, replace it. If the high-voltage generator is not outputting the correct voltage, it may need to be repaired or replaced by a qualified technician.

Uneven airflow is another common problem, which can lead to inconsistent dust removal across the workpiece surface. Symptoms include some areas of the workpiece being clean while others have dust residue. The main causes of uneven airflow include a blocked airflow system, damaged fan blades (for built-in fan models), or incorrect installation position. To troubleshoot, first, check the airflow system for blockages—clean the fan blades or compressed air pipeline if necessary. For built-in fan models, check the fan for damage and replace it if needed. Next, check the installation position of the ion air bar, ensuring that it is aligned parallel to the conveyor belt and that the distance from the workpiece is optimal. Adjust the installation position or angle if necessary to ensure uniform airflow coverage.

Incorrect ion balance is a common problem that can lead to recharging of the workpiece surface and further dust adhesion. Symptoms include dust reattaching shortly after removal, or the workpiece surface becoming charged again. The main causes of incorrect ion balance include a faulty ion balance adjustment, poor grounding, or a damaged high-voltage generator. To troubleshoot, first, use an ion balance tester to measure the charge on the workpiece surface. If the ion balance is outside the ±30V range, adjust the ion balance knob on the high-voltage generator. Next, check the grounding connection to ensure that it is secure and that the ground resistance is less than 1 ohm. If the grounding is poor, fix the connection. If the ion balance cannot be adjusted to the optimal range, the high-voltage generator may be faulty and need to be repaired or replaced.

Equipment damage is another problem that can occur, often due to improper use, poor maintenance, or harsh environmental conditions. Symptoms include the ion air bar not working at all, unusual noises, or visible damage (such as cracks or corrosion). The main causes of equipment damage include electric shocks, chemical corrosion, physical impact, or moisture damage. To troubleshoot, first, check the ion air bar for visible damage. If there is physical damage (such as a cracked casing or broken emission needles), replace the damaged parts. If the ion air bar is not working due to moisture damage, dry it thoroughly and check for internal damage. If the ion air bar has been exposed to chemical fumes, clean it with a neutral cleaner and inspect for corrosion. If the damage is severe, the ion air bar may need to be replaced.

Another common problem is excessive ozone generation. Ion air bars generate a small amount of ozone during operation, but excessive ozone can be harmful to human health and the environment. Symptoms include a strong odor in the workshop or worker complaints of respiratory irritation. The main causes of excessive ozone generation include a faulty high-voltage generator, dirty ion emission needles, or incorrect ion balance. To troubleshoot, first, clean the ion emission needles to ensure that they are free of debris. Next, check the high-voltage generator to ensure that it is operating within the recommended voltage range. If the ozone level is still too high, adjust the ion balance or reduce the voltage output. If the problem persists, the ion air bar may be faulty and need to be repaired or replaced.

Conclusion

Static dust is a major challenge in the spraying industry, affecting product quality, production efficiency, and enterprise costs. Ion air bar solutions have emerged as a reliable, efficient, and cost-effective way to address this challenge, by neutralizing electrostatic charges and removing dust particles from workpieces, equipment, and spraying tools. Unlike traditional dust removal methods, ion air bars target the root cause of static dust, providing a long-term, consistent solution that improves product qualification rates, reduces waste, and ensures compliance with industry regulations.

This article has covered all key aspects of ion air bar solutions for static dust removal in the spraying industry, including the causes and impacts of static dust, the working principle of ion air bars, their advantages over traditional methods, application scenarios in different spraying segments, selection criteria, installation and operation guidelines, maintenance tips, and common problems and troubleshooting methods. By understanding these aspects, spraying enterprises can select the right ion air bar solution for their specific needs, install and operate it properly, and maintain it regularly to ensure optimal performance.

As the spraying industry continues to evolve and become more stringent in terms of quality and safety standards, the demand for effective static dust removal solutions will only increase. Ion air bars, with their adaptability, efficiency, and cost-effectiveness, are poised to become an essential piece of equipment in modern spraying workshops. By investing in ion air bar solutions, enterprises can improve their competitiveness, reduce costs, and achieve sustainable development in the long run.
