Corrosion Mechanisms of Ionizing Air Bar Discharge Needle Tips and Strategies for Service Life Extension

Abstract

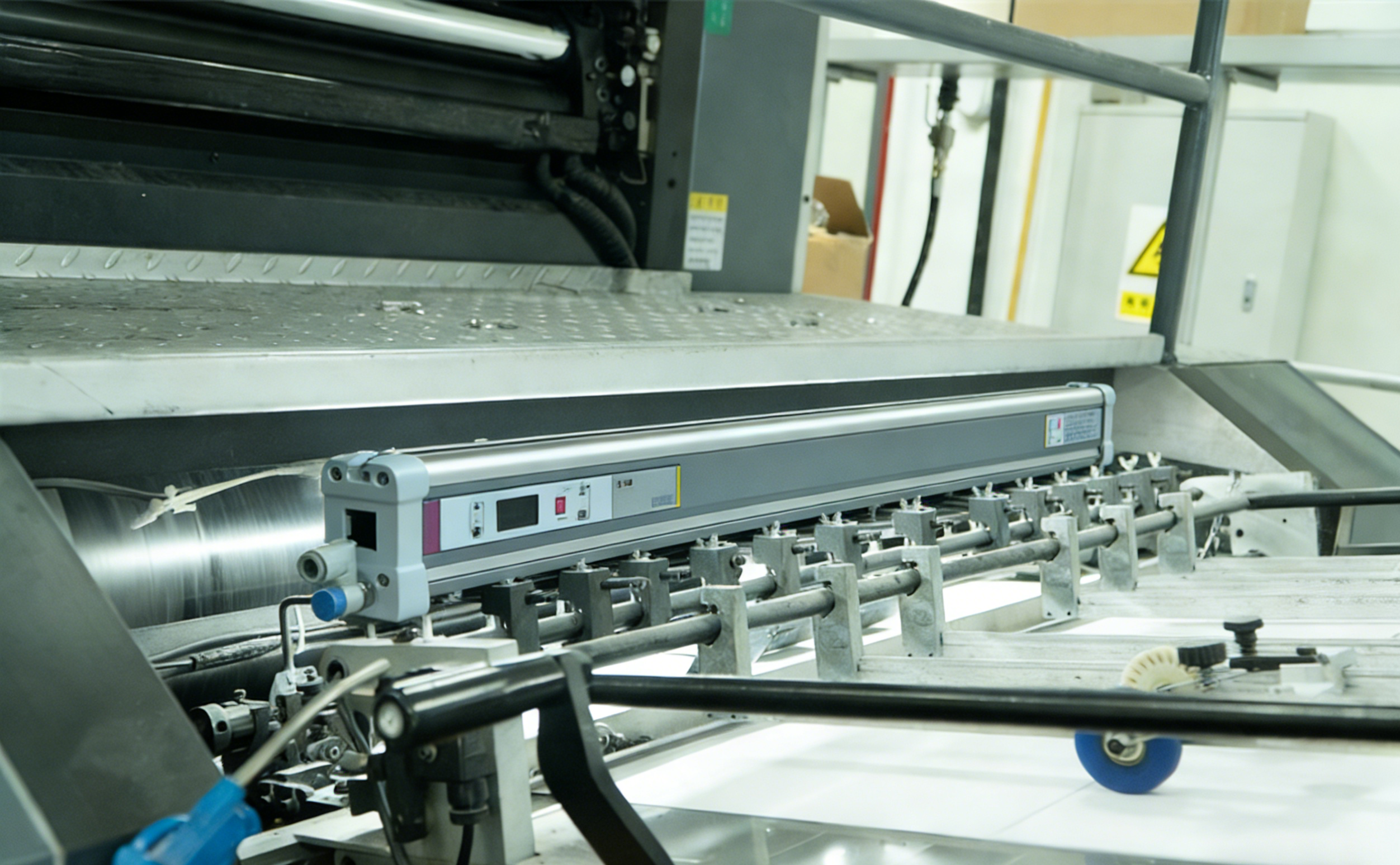

Ionizing air bars are widely applied in electronics manufacturing, semiconductor processing, pharmaceutical packaging, printing, precision coating, and explosive environments to eliminate electrostatic charges. The discharge needle tip is the most critical component responsible for generating corona ions under high electric field intensity. However, during long-term operation, needle tips experience progressive degradation due to electrical erosion, electrochemical corrosion, oxidation, ion bombardment, thermal cycling, and environmental contamination.

This paper provides a comprehensive analysis of corrosion mechanisms affecting ionizing air bar discharge needle tips, including electrochemical reactions, plasma-induced material removal, grain boundary oxidation, pitting formation, and stress-assisted corrosion. Furthermore, advanced lifetime extension strategies are discussed, including material optimization, microstructure engineering, surface finishing, protective coatings, electrical parameter control, environmental management, and predictive maintenance approaches. The goal is to establish a systematic understanding of degradation physics and provide practical engineering solutions for significantly extending operational lifespan.

---

1. Introduction

Ionizing air bars operate by applying high voltage (typically ±3 kV to ±10 kV AC or pulsed DC) to sharply pointed emitter needles. The strong electric field at the tip ionizes surrounding air molecules, creating positive and negative ions that neutralize static charges on nearby objects.

The electric field intensity at a sharp needle tip can be approximated by:

E≈VrE \approx \frac{V}{r}E≈rV

Where:

• $V$ is the applied voltage,

• $r$ is the radius of curvature at the tip.

Because $r$ is extremely small (often below 20 μm), localized electric field intensity can exceed the air breakdown threshold (~3 × 10^6 V/m), initiating corona discharge.

However, the same high-energy plasma environment that enables ion generation also induces aggressive material degradation at the needle tip. Over time, corrosion and erosion processes blunt the tip, reduce ion output, destabilize ion balance, and eventually require replacement.

Understanding corrosion mechanisms is essential for improving reliability and reducing maintenance costs.

---

2. Operational Environment of Discharge Needle Tips

The discharge tip operates under extreme micro-environmental conditions:

• High electric field intensity

• Continuous electron emission

• Ion bombardment

• Ozone (O₃) formation

• Nitrogen oxides (NOx)

• Ultraviolet radiation

• Micro-thermal cycling

• Airborne contaminants (humidity, dust, solvents)

This environment combines plasma physics, electrochemistry, materials science, and thermodynamics.

Corrosion in such conditions is not purely electrochemical; it is a synergistic plasma-assisted corrosion phenomenon.

---

3. Major Corrosion Mechanisms

3.1 Plasma-Induced Oxidation

During corona discharge, oxygen molecules are converted into:

• Atomic oxygen (O)

• Ozone (O₃)

• Reactive oxygen species (ROS)

These species are highly reactive and attack the metallic surface.

For example, iron-based needles undergo:

4Fe+3O2→2Fe2O34Fe + 3O_2 \rightarrow 2Fe_2O_34Fe+3O2→2Fe2O3

Ozone accelerates oxidation even at room temperature. Oxide formation at the tip increases:

• Surface roughness

• Electrical resistance

• Brittleness

If the oxide layer is porous, it continuously spalls and reforms, accelerating degradation.

---

3.2 Ion Bombardment and Sputtering

Positive ions generated in plasma are accelerated back toward the negatively biased needle during part of the AC cycle. High-energy ions strike the surface, causing:

• Physical sputtering

• Atomic displacement

• Surface vacancy formation

The sputtering yield depends on:

• Ion energy

• Atomic mass

• Crystal orientation

• Bonding energy

Repeated bombardment gradually removes material, leading to tip blunting.

---

3.3 Electrochemical Corrosion Under Humidity

When ambient humidity is present, microscopic moisture layers form on the surface. Under high voltage, localized electrochemical cells may develop.

Reactions include:

Anodic reaction:

M→Mn++ne−M \rightarrow M^{n+} + ne^-M→Mn++ne−

Cathodic reaction:

O2+2H2O+4e−→4OH−O_2 + 2H_2O + 4e^- \rightarrow 4OH^-O2+2H2O+4e−→4OH−

High electric fields enhance ion migration in the thin moisture film, accelerating corrosion compared to normal atmospheric exposure.

---

3.4 Grain Boundary Oxidation

Grain boundaries are high-energy regions with enhanced atomic diffusion. Oxygen diffuses preferentially along grain boundaries, causing:

• Intergranular oxidation

• Weakening of cohesion

• Micro-crack formation

Fine-grained materials may oxidize faster due to higher boundary density.

---

3.5 Thermal Fatigue and Micro-Cracking

Corona discharge produces localized heating due to:

• Electron recombination

• Micro-arcing

• Resistive heating

Temperature fluctuations cause cyclic expansion and contraction. Differences in:

• Grain orientation

• Phase composition

• Residual stress

lead to crack initiation at microstructural weak points.

Cracks allow oxygen penetration, accelerating corrosion internally.

---

3.6 Pitting Corrosion

In alloy systems with heterogeneous phase distribution, micro-galvanic cells form between phases.

For example:

• Carbide particles vs. matrix

• Impurity inclusions vs. base metal

Localized potential differences cause pitting corrosion, producing sharp cavities that further intensify electric field concentration, worsening erosion.

---

3.7 Chemical Attack from Industrial Environments

In manufacturing facilities, additional corrosive species may exist:

• Chlorides (from cleaning agents)

• Organic solvents

• Acidic vapors

• Silicone outgassing

Chloride-induced corrosion is particularly aggressive for stainless steel needles, causing rapid pitting.

---

4. Failure Progression

The degradation of a discharge needle tip typically follows stages:

1. Initial surface oxidation

2. Localized pitting and micro-roughening

3. Increased electric field concentration at micro-protrusions

4. Accelerated sputtering and micro-arcing

5. Tip blunting

6. Reduced ion output

7. Electrical instability

8. Functional failure

Service life is defined by acceptable ion output and balance deviation thresholds.

---

5. Material Selection for Corrosion Resistance

5.1 Tungsten

Advantages:

• High melting point (3422°C)

• Strong resistance to sputtering

• Low vapor pressure

• Stable under plasma

Limitations:

• Brittle

• Expensive

Tungsten shows excellent lifetime in high-duty applications.

---

5.2 Stainless Steel (304, 316L)

Advantages:

• Cost-effective

• Good corrosion resistance due to chromium oxide film

Limitations:

• Lower hardness than tungsten

• Susceptible to chloride pitting

Electropolished 316L improves resistance.

---

5.3 Titanium Alloys

Advantages:

• Excellent oxide passivation

• Lightweight

Limitations:

• Lower electrical conductivity

• Lower erosion resistance than tungsten

---

5.4 Specialized Alloys

Nickel-based superalloys or plasma-resistant composites offer improved durability but increase cost.

---

6. Surface Engineering Strategies for Life Extension

6.1 Precision Machining and Tip Geometry Control

Optimized tip radius reduces excessive field concentration while maintaining discharge efficiency.

Recommended:

• Controlled curvature

• Symmetrical geometry

• Absence of burrs

---

6.2 Mechanical Polishing

Removes machining defects.

Benefits:

• Reduced micro-arcing

• More uniform field distribution

• Slower corrosion initiation

---

6.3 Electrochemical Polishing

Provides:

• Nanometer-level smoothness

• Improved passive film formation

• Lower contamination adhesion

---

6.4 Hard Coatings

Common options:

• Titanium Nitride (TiN)

• Chromium Nitride (CrN)

• Diamond-Like Carbon (DLC)

• Tungsten Carbide (WC)

Key requirements:

• High hardness

• Plasma resistance

• Strong adhesion

• Adequate conductivity

Nanocrystalline multilayer coatings significantly improve wear resistance.

---

6.5 Surface Passivation

Controlled chemical passivation enhances chromium oxide formation in stainless steel, improving corrosion resistance.

---

7. Electrical Parameter Optimization

7.1 Voltage Optimization

Excessive voltage increases:

• Ion energy

• Sputtering rate

• Thermal stress

Operating at optimal corona onset margin reduces unnecessary erosion.

---

7.2 Pulsed DC vs AC Operation

Pulsed DC can reduce continuous ion bombardment compared to AC systems.

Lower duty cycles reduce thermal load and extend life.

---

7.3 Current Limiting

Incorporating current-limiting resistors prevents destructive micro-arcing events.

---

8. Environmental Control

8.1 Humidity Management

Maintain relative humidity between 40–60%:

• Too low → static increases

• Too high → corrosion accelerates

---

8.2 Ozone Management

Adequate airflow reduces ozone concentration around needle tips.

---

8.3 Clean Air Supply

HEPA filtration reduces particle contamination and chemical exposure.

---

9. Maintenance and Predictive Monitoring

9.1 Regular Cleaning

Non-abrasive cleaning removes:

• Dust

• Oxide buildup

• Contaminants

Avoid mechanical scraping.

---

9.2 Ion Output Monitoring

Gradual decrease in ion output indicates tip degradation.

Automated feedback systems can alert before failure.

---

9.3 Microscopic Inspection

Periodic SEM or optical inspection in critical industries detects early pitting or cracks.

---

10. Advanced Lifetime Enhancement Technologies

10.1 Nano-Engineered Tips

Controlled nanostructures enhance field uniformity and reduce localized overheating.

---

10.2 Self-Healing Conductive Coatings

Emerging materials capable of re-forming conductive pathways after minor damage.

---

10.3 Composite Metal-Ceramic Structures

Combine:

• Conductive core

• Plasma-resistant outer layer

---

10.4 AI-Based Lifetime Prediction

Using:

• Voltage

• Current

• Ion balance drift

• Environmental data

Machine learning models can predict remaining useful life (RUL).

---

11. Economic Impact of Lifetime Extension

Extending needle life by even 30–50% reduces:

• Replacement cost

• Downtime

• Calibration frequency

• Maintenance labor

Total cost of ownership (TCO) decreases significantly in high-volume manufacturing.

---

12. Conclusion

The corrosion of ionizing air bar discharge needle tips is a complex multi-physics phenomenon involving plasma chemistry, electrochemical reactions, thermal fatigue, and microstructural degradation.

Primary mechanisms include:

• Plasma-induced oxidation

• Ion bombardment sputtering

• Humidity-assisted electrochemical corrosion

• Grain boundary oxidation

• Pitting corrosion

• Thermal micro-cracking

Service life extension requires a systematic approach integrating:

• Optimal material selection

• Microstructure engineering

• Precision surface finishing

• Advanced coatings

• Electrical parameter optimization

• Environmental control

• Predictive maintenance

By addressing corrosion mechanisms at the microstructural and operational levels, manufacturers can significantly enhance reliability, performance stability, and operational lifespan of ionizing air bar systems.
