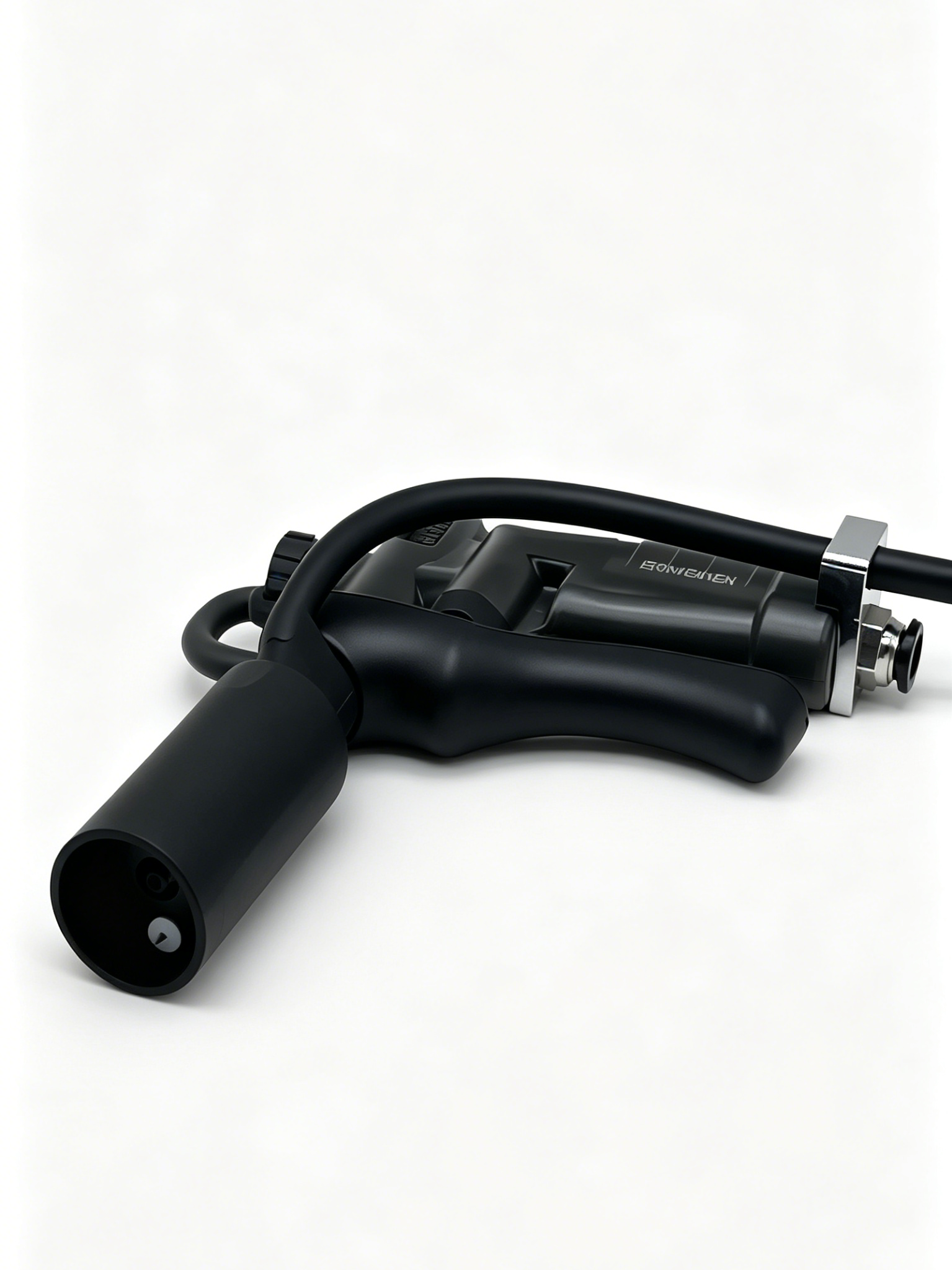

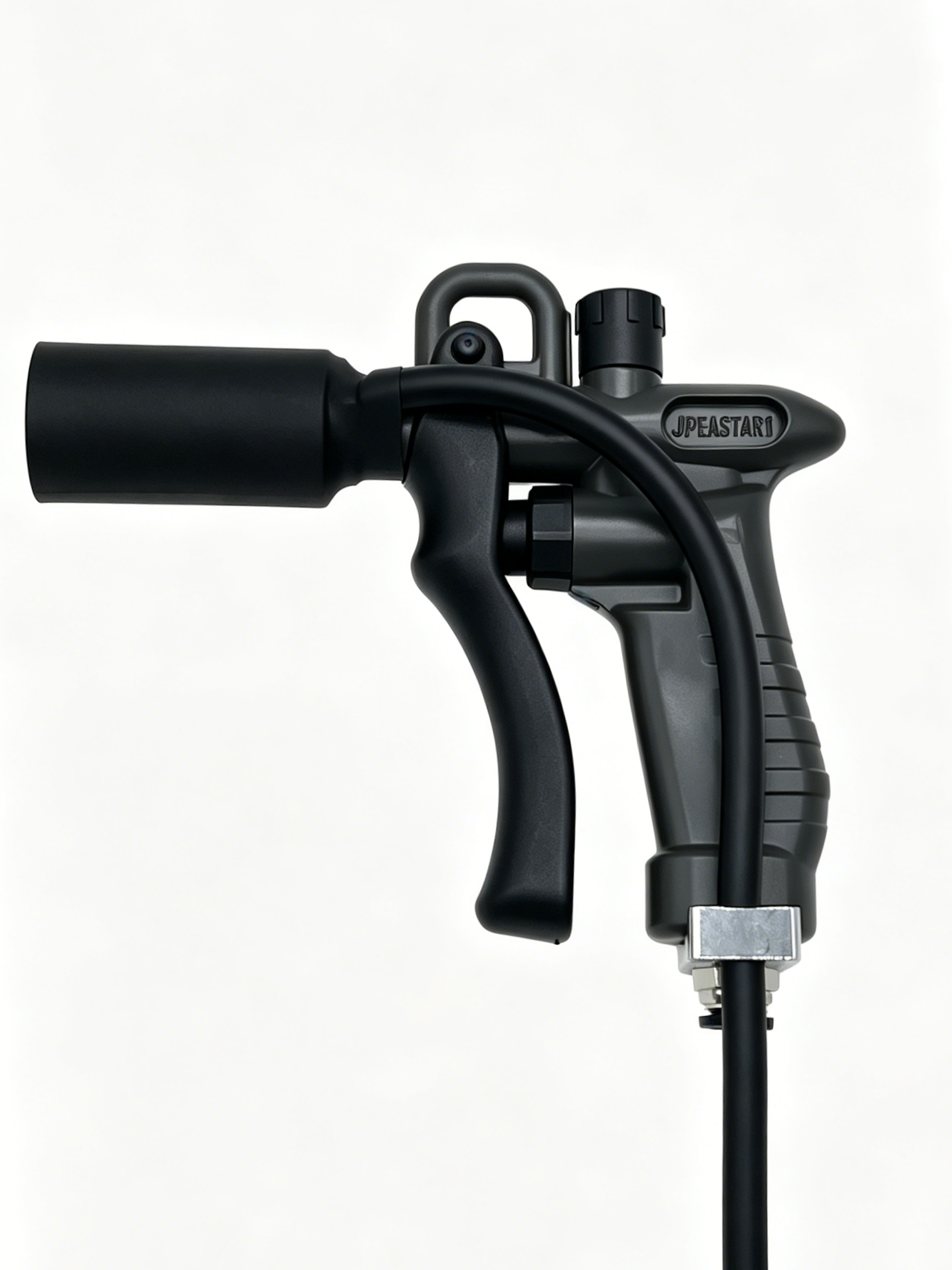

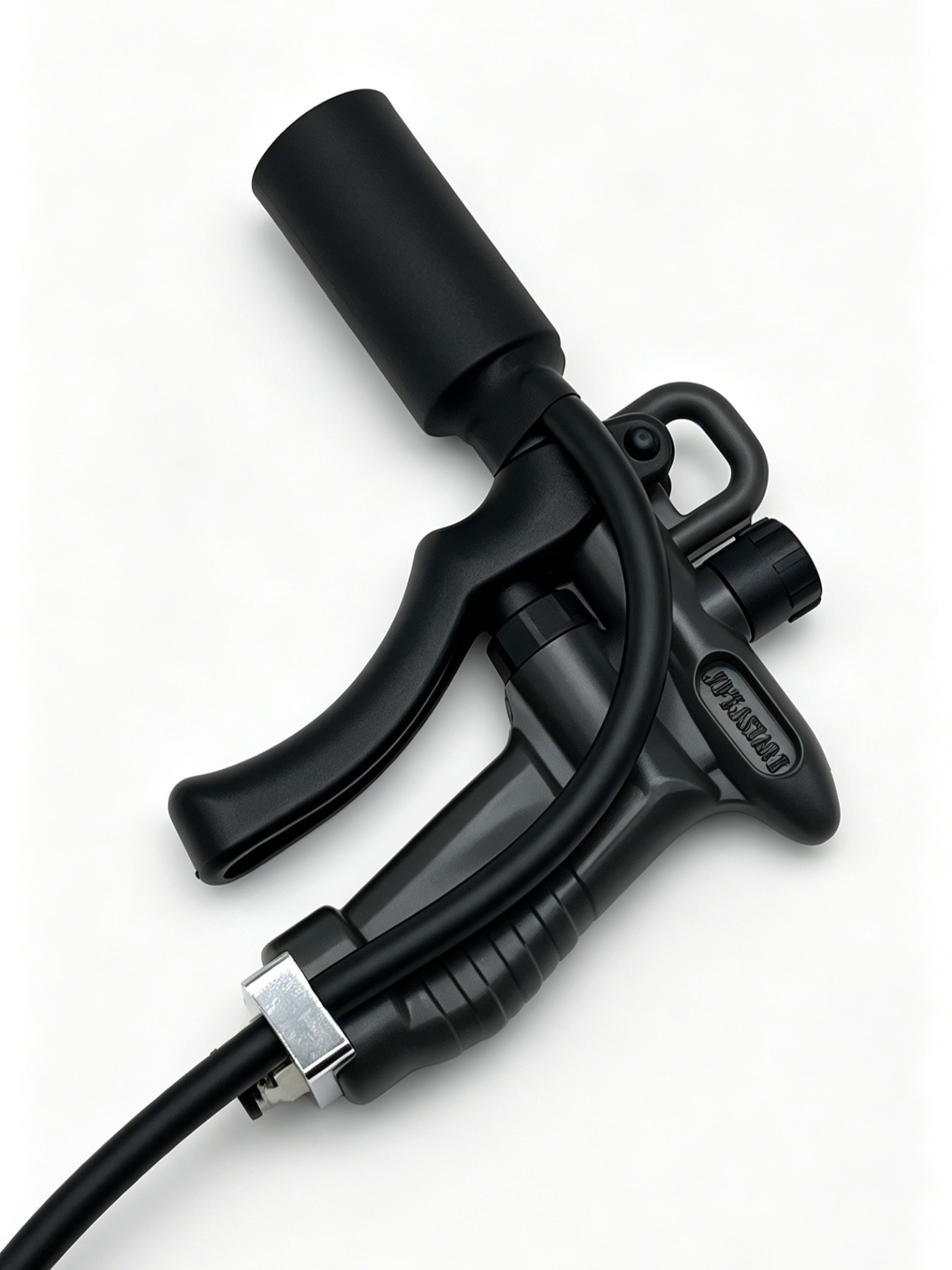

DC-204D Ion Air Gun is a handheld special device for static elimination. It belongs to the compressed air series of static removing products. It features simple installation, stable operation, strong air flow and rapid static neutralization.
The air gun body is made of imported plastic, which is lightweight and allows free adjustment of air volume by trigger control.
The DC-204D ion air gun generates a large number of air clusters with positive and negative charges, which are blown out at high speed by compressed air to neutralize static charges on object surfaces.
If an object carries negative static charges, it attracts positive ions in the airflow;
If an object carries positive static charges, it attracts negative ions in the airflow.
Static electricity on the surface is thus fully neutralized. Meanwhile, the high-speed compressed air can blow away stubborn dust attached to workpieces.

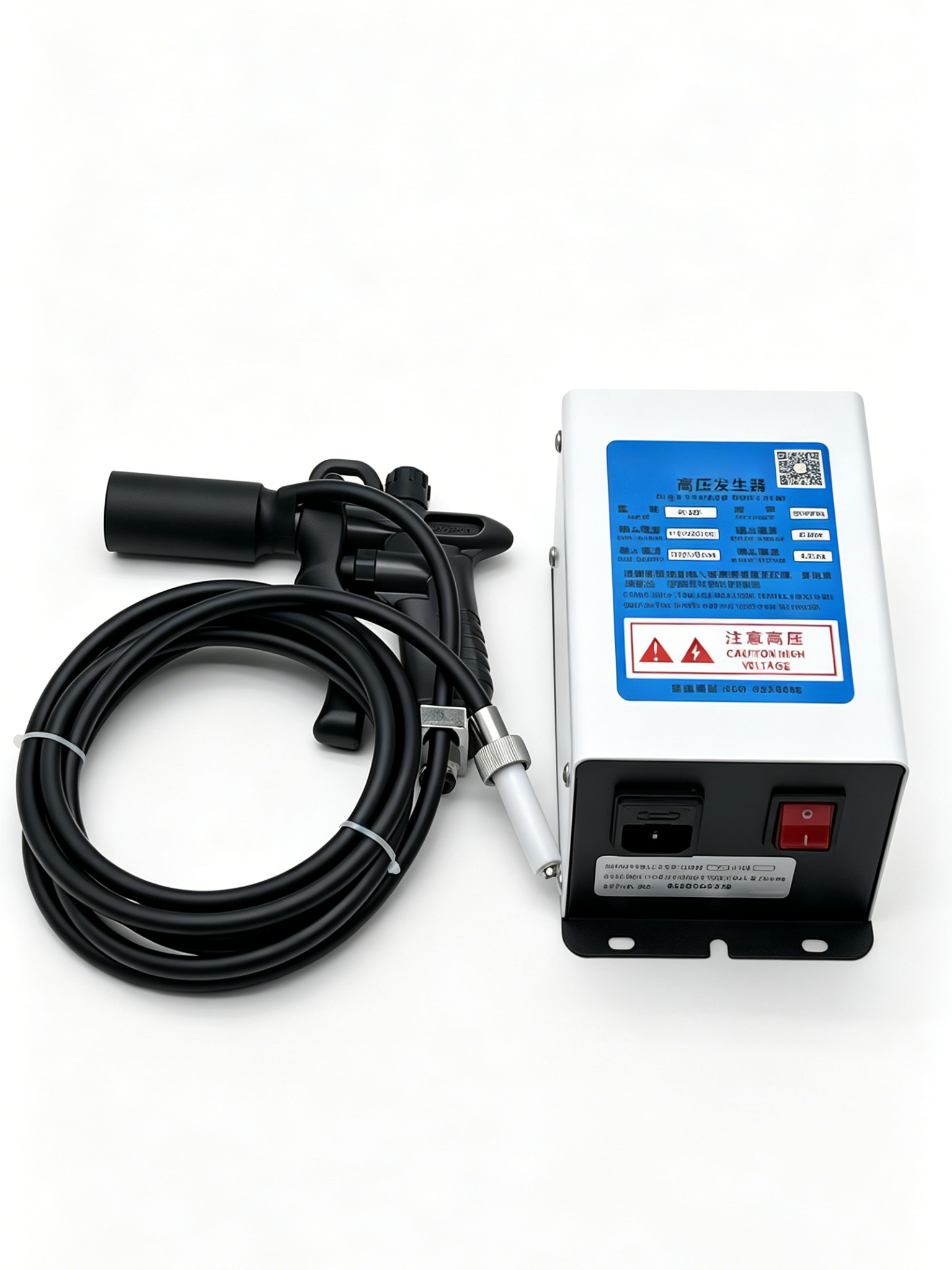

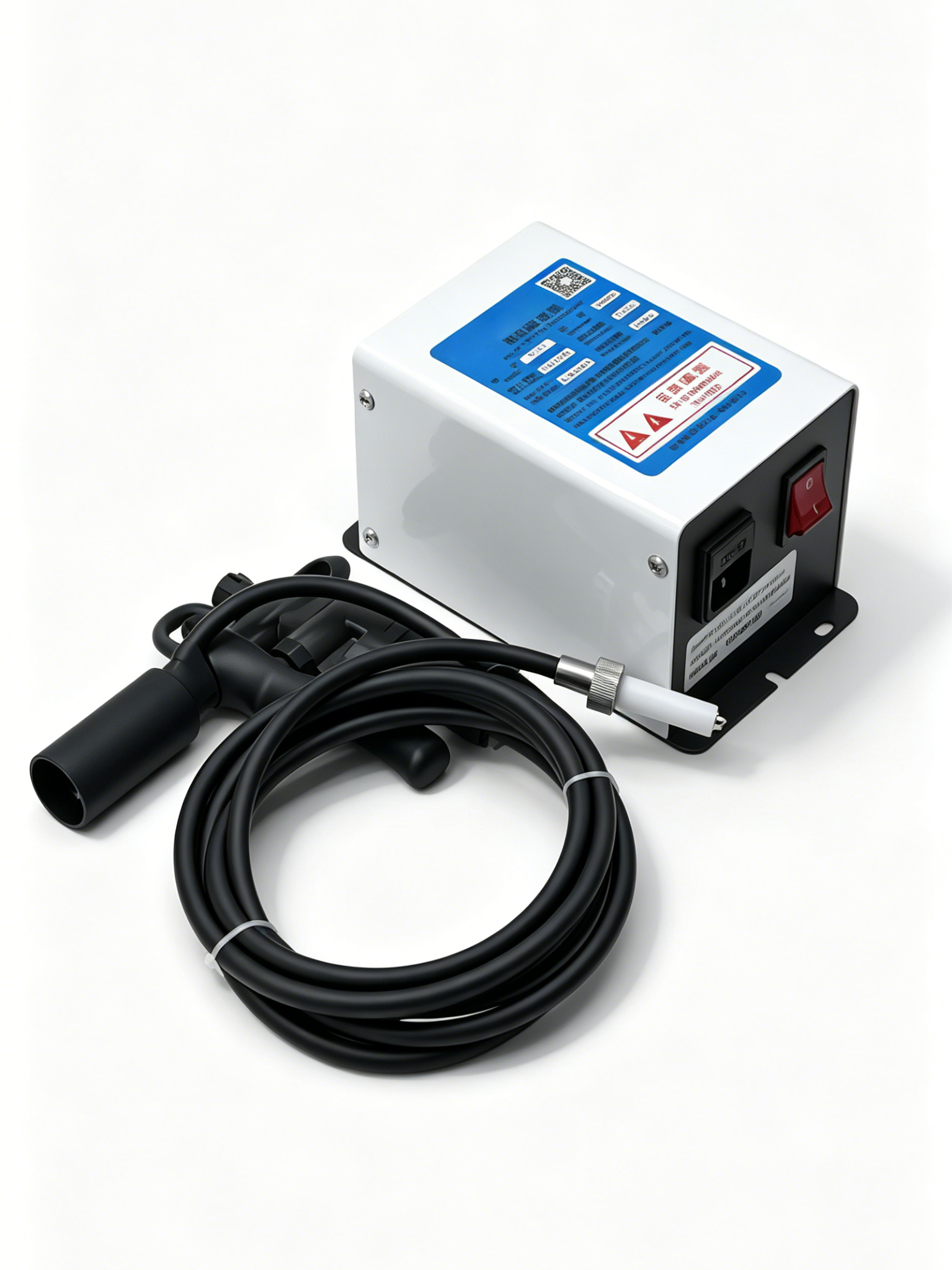

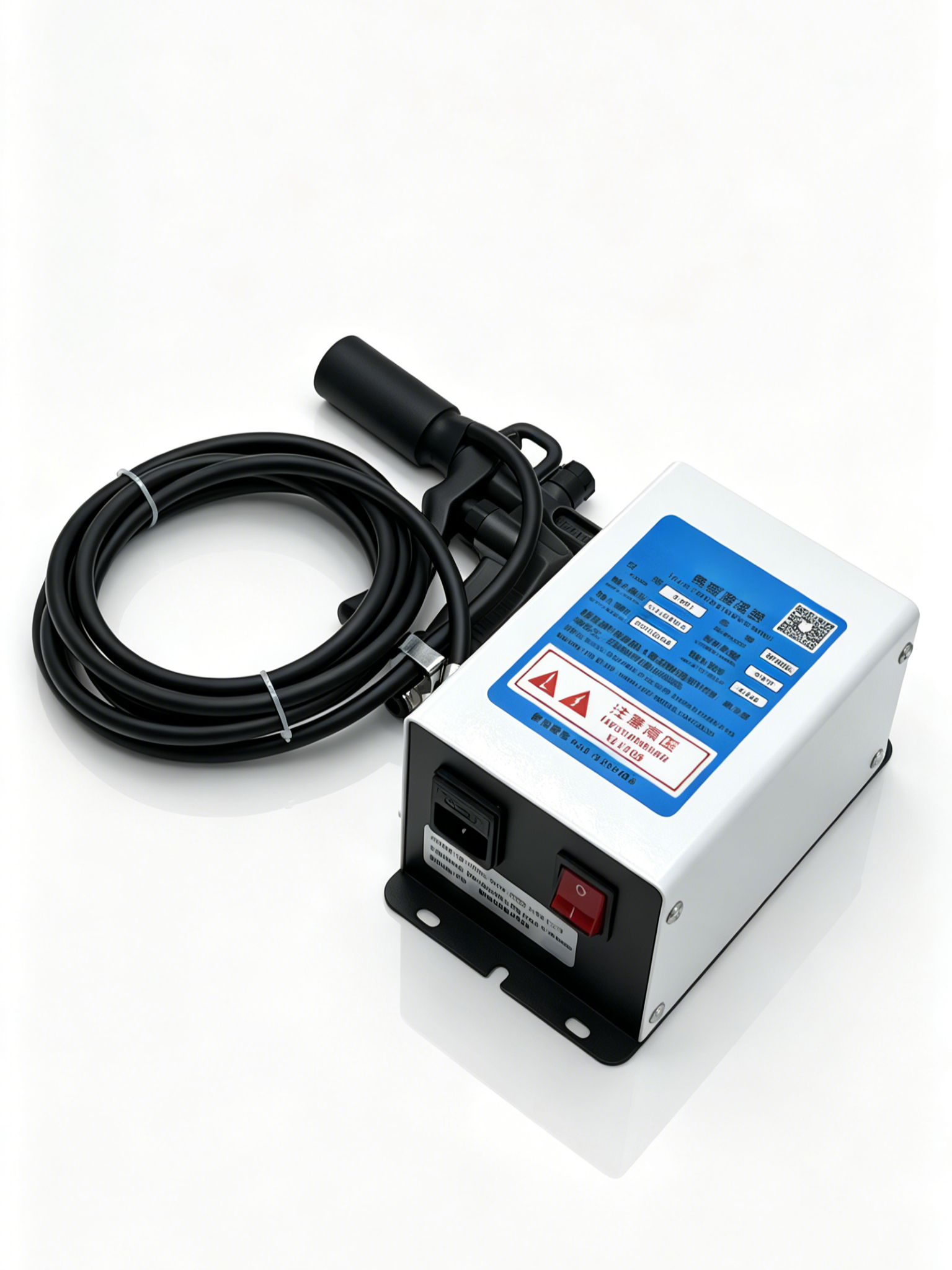

This unit is equipped with an R-007 high-voltage power supply.
Item | Specification |
|---|---|
Input Voltage | 220V / 50Hz |
Current Consumption | 0.12A |
Operating Temperature | -10～50℃ |
Weight | 3.3Kg |
Output Voltage | 4.0kV |
Max Output Current | 4.5mA |
Overall Product Technical Specifications
English Parameter | Specification |
|---|---|
Operating Voltage | 4kV |
Current Consumption | Max 4.5mA |
Operating Temperature | 0–50℃ |
Total Weight | Gun 0.5kg + Power Supply 3.3kg |
HV Cable Length | 2.5 meters |
Compressed Air Pressure | 40~70psi |
Working Air Velocity | ＞10m/sec |
Operating Voltage: 4.6kV
Test Voltage Range: 1kV down to 100V
Ambient Temperature: 22℃
Test Distance: 300mm
Test Item | Value |
|---|---|
Positive Charge Decay Time | 0.4s |
Negative Charge Decay Time | 0.4s |
Positive Offset Voltage | -23V |
Negative Offset Voltage | -29V |
Test data measured by ME268A static charge tester.
Test results may vary subject to ambient conditions, air quality, temperature and humidity.
