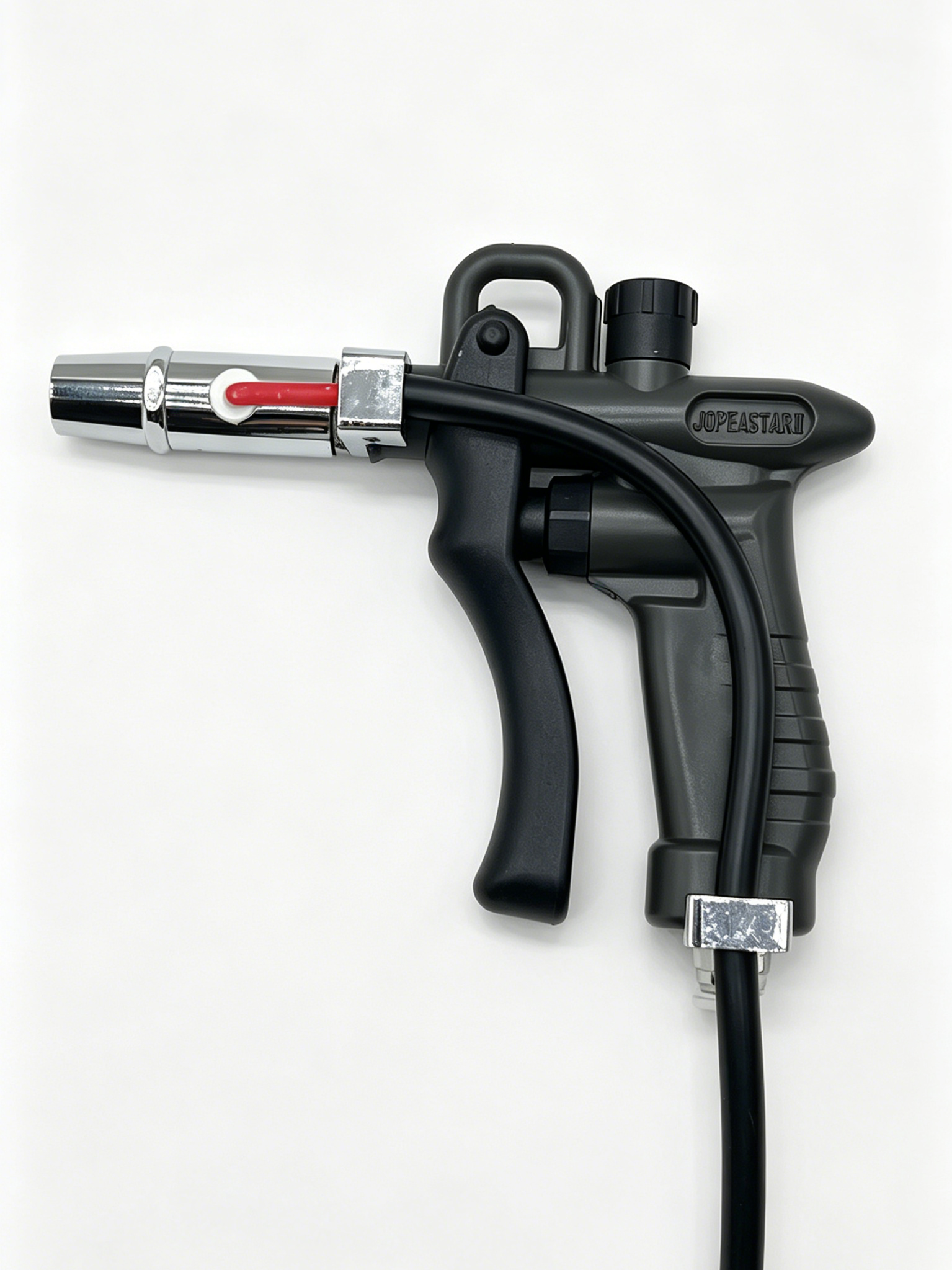

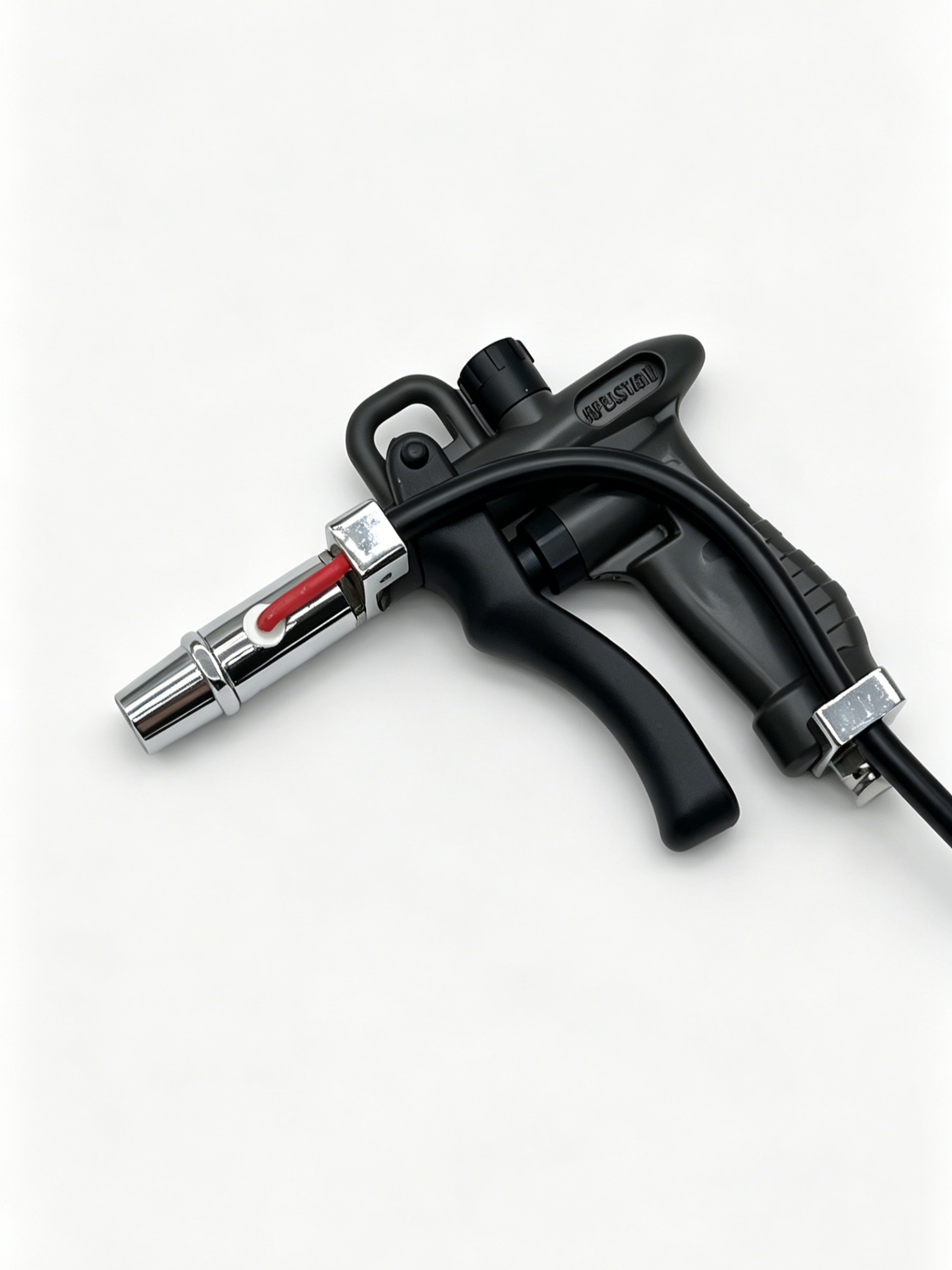

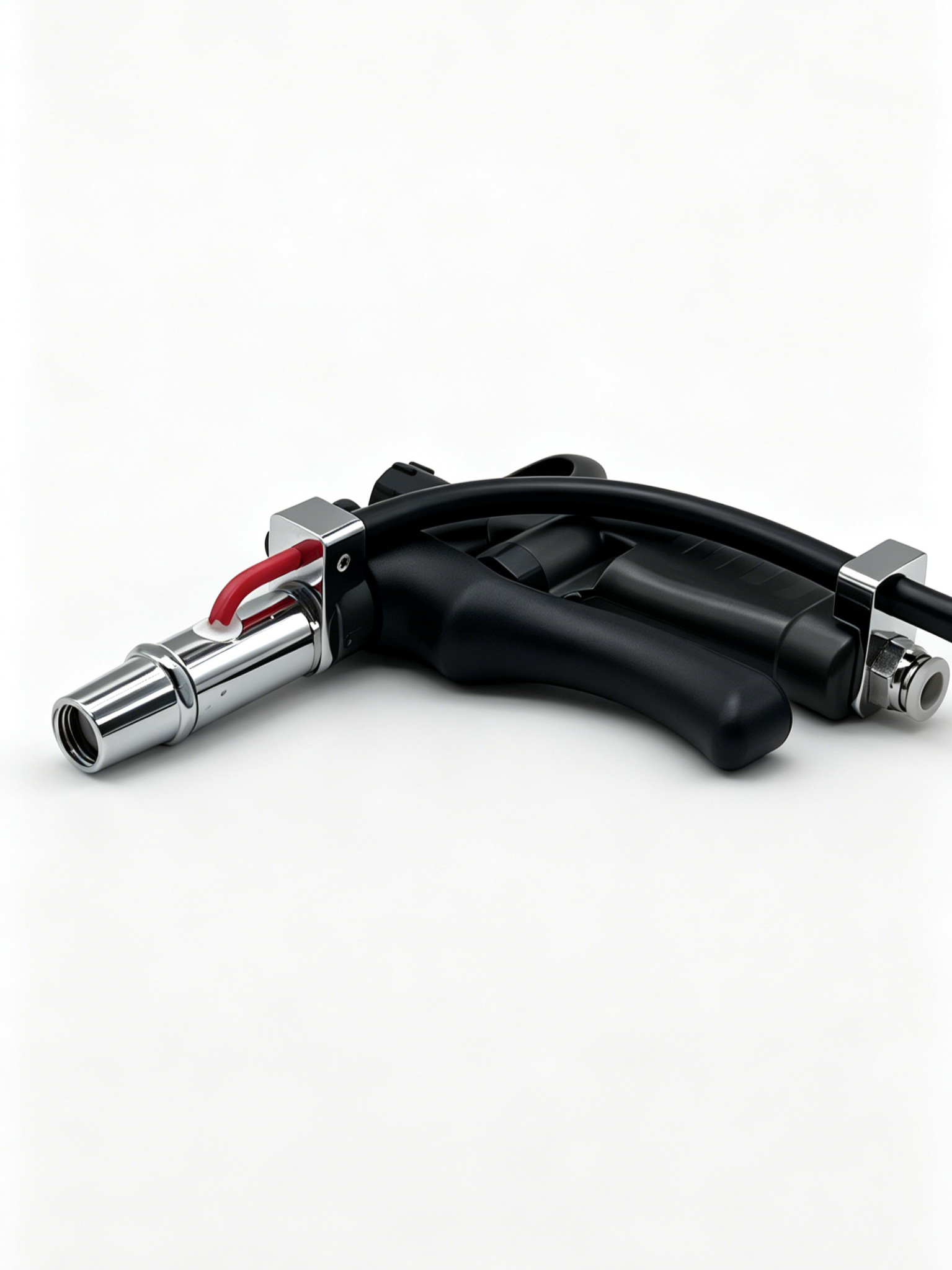

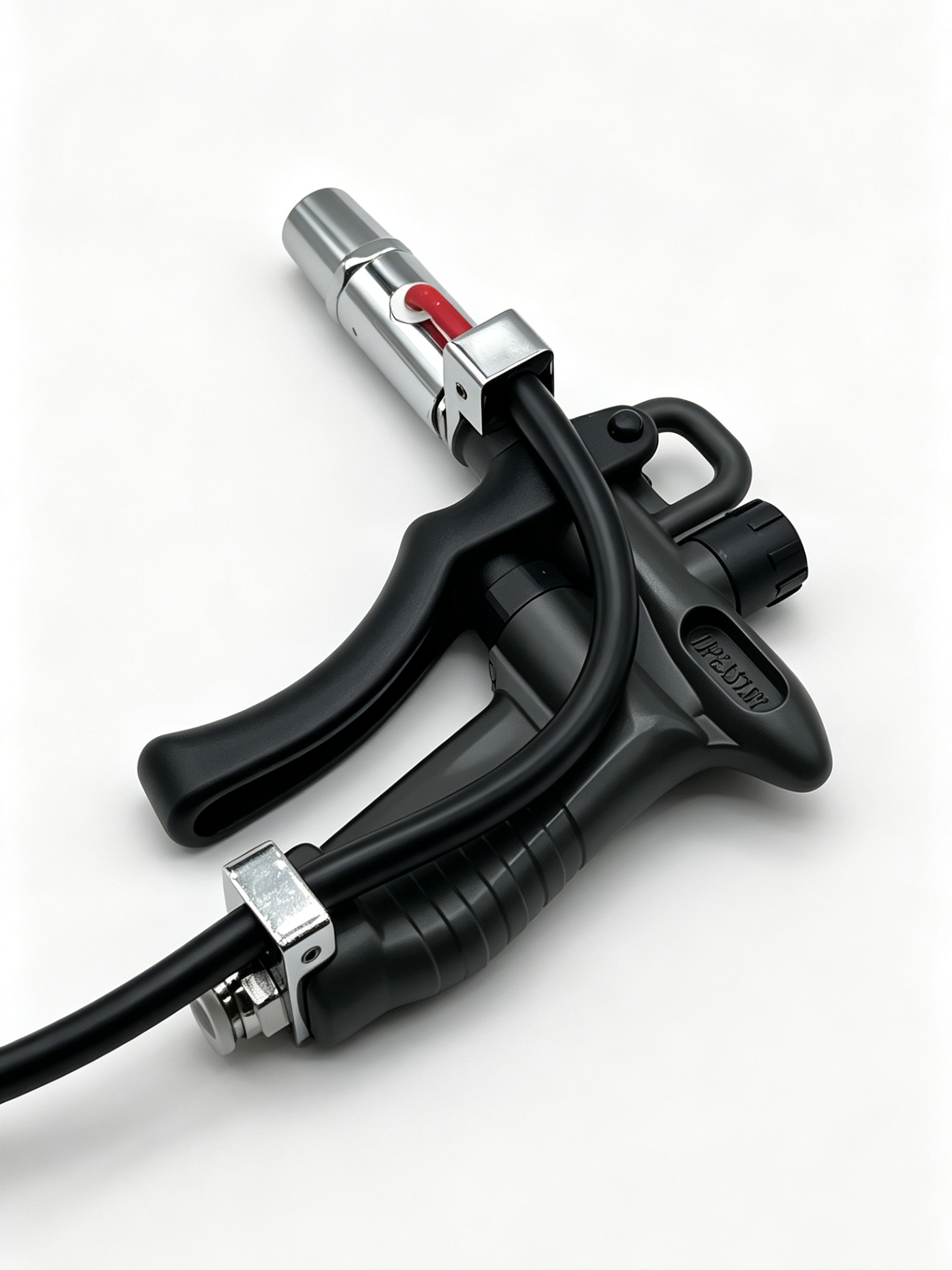

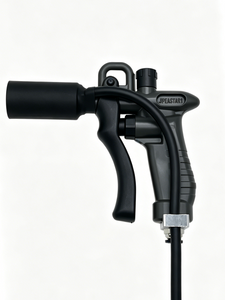

DC-204T Ion Air Gun is a handheld special device for static elimination, categorized as induction needle static removing equipment. Its powerful ion airflow neutralizes static electricity and removes foreign particles and dust on workpiece surfaces. It is an industrial device designed for initial static removal and dust cleaning of irregular-shaped objects, widely applied in plastic, electronics, mold, packaging and other industries.
DC-204T ion air gun uses compressed air to blow out airflow carrying positive and negative ions to neutralize static charges on objects:
If the workpiece surface carries negative static charges, it attracts positive ions in the airflow;
If the workpiece surface carries positive static charges, it attracts negative ions in the airflow.
Thereby static electricity on the surface is fully neutralized.
Under low-current high voltage generated by the high-voltage power supply, the ionization component forms a stable high-voltage electric field, ionizes air to produce plasma, which is carried by airflow to workpiece surfaces to eliminate static.
Eliminating static can resolve common production issues caused by static electricity, such as dust adhesion, sticking problems during processing of plastic, film and paper products, and jumping of tiny electronic components due to static repulsion.
Fast static neutralization
Wide coverage area of ion airflow
Handheld manual operation to boost working efficiency
Easy installation with small footprint
Reliable earthing protection
Inductive ionization design, safer to use with no electric shock risk
One high-voltage generator can support two ion air guns simultaneously
Metal connector design for extended service life
Item | Parameter |
|---|---|
Operating Voltage | 220V/50Hz, 110V/60Hz |
Current Consumption | 0.12A / 0.25A |
Ion Output Volume | 0.12 m³/min |
Operating Temperature | -10°C ~ 70°C |
Ozone Output | 0.003 PPM |
Cable Length | 2.5 meters |
Gun Body Material | Plastic |
Ion Balance Offset | ≤ ±30V |
Test Voltage: 1.0 kV ~ 100V
Ambient Temperature: 22°C
Humidity: ≤ 60%
Test Distance: 300 mm
Test Item | Value |
|---|---|
Positive Charge Decay Time | 1.0 s |
Negative Charge Decay Time | 0.8 s |
Positive Ion Balance Offset | ≤ ±30V |
Negative Ion Balance Offset | ≤ ±30V |
Ion balance voltage and static decay time comply with ESD standards; decay time is measured from 1000V down to 100V.
Tested with ME268A Comprehensive Static Tester.
Test data may fluctuate with ambient temperature and humidity changes.
4.1 Read the full operation manual before installation and operation.
4.2 Ensure reliable earthing before operation.
4.3 Do not operate in environments with flammable or explosive gas/liquid.
4.4 Do not disassemble or repair the unit without authorization.

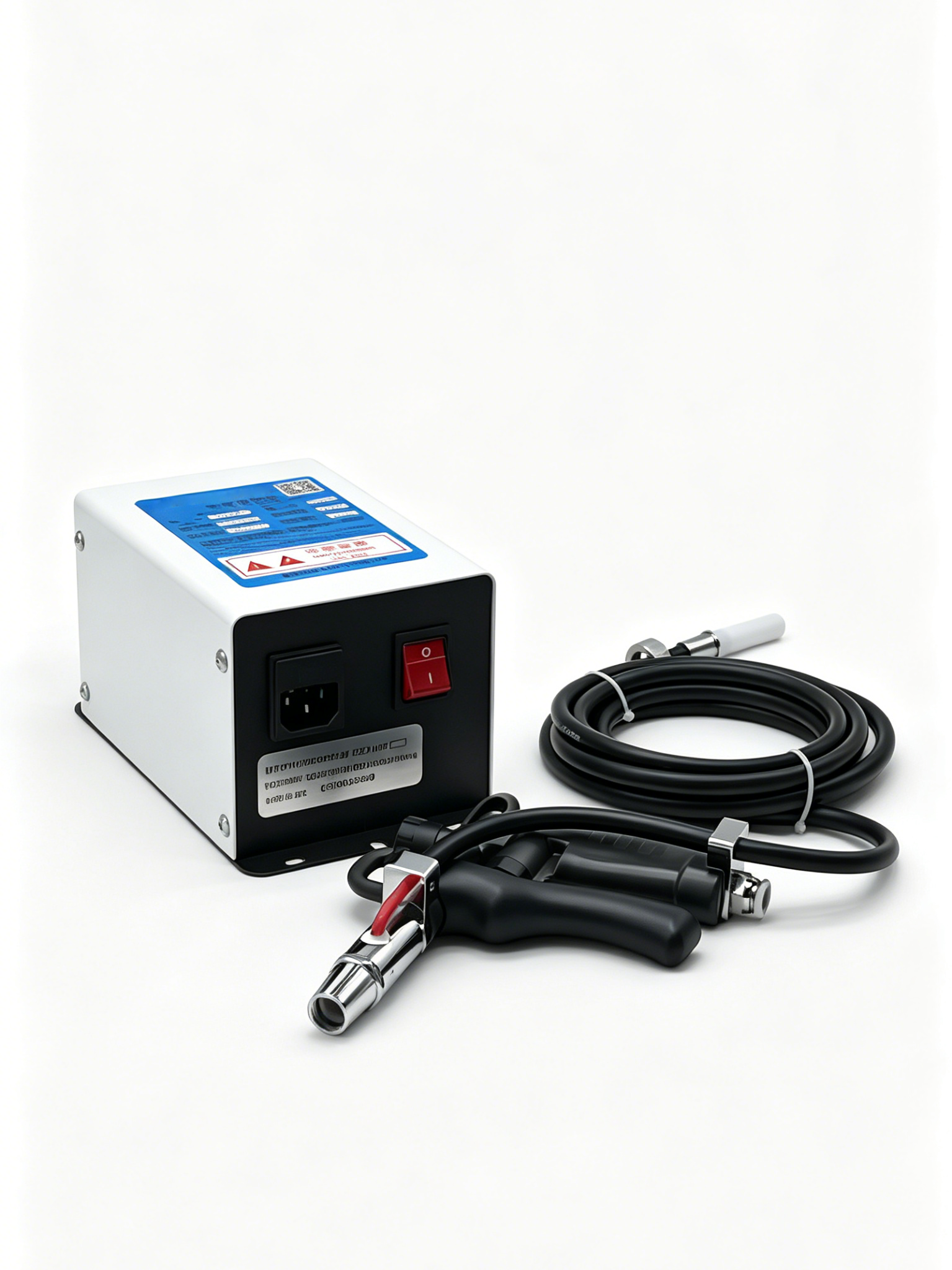

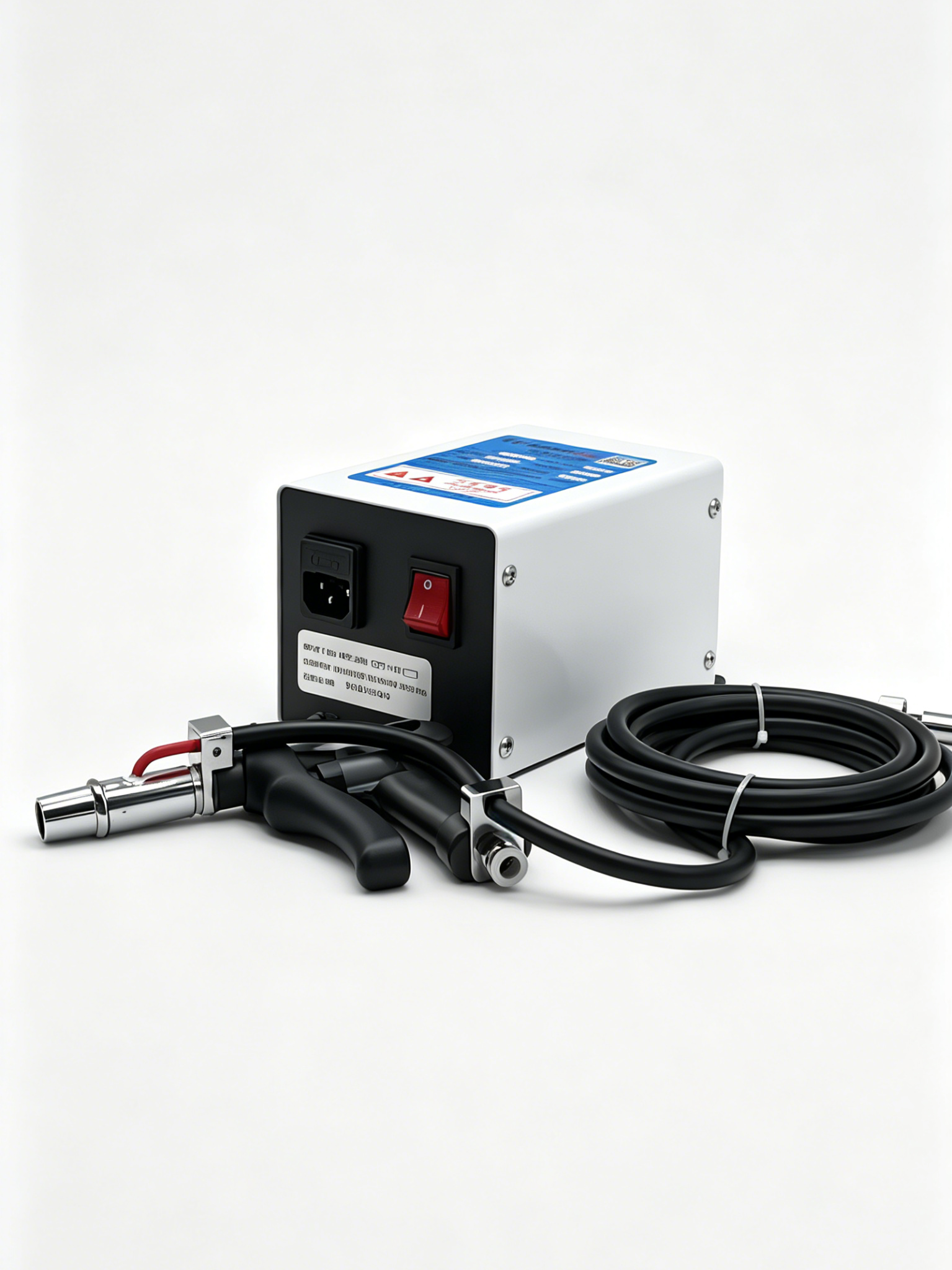

The ion air gun must be used together with DC-007 High Voltage Generator:
Insert the high-voltage connector of the air gun into the high-voltage output port of the generator, and tighten the nut securely.
Connect the air gun to a compressed air pipeline.
Plug the high-voltage generator into power supply to start operation.
Mount the high-voltage generator in a concealed position.

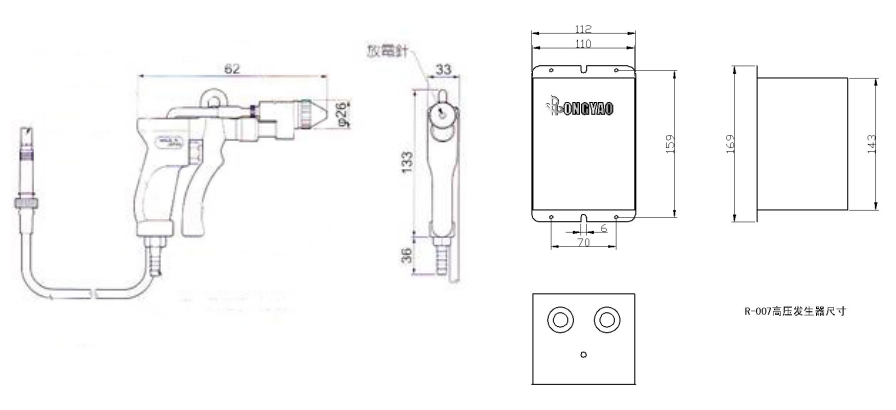

Ion air gun outline dimensions
R-007 High Voltage Generator overall dimensions
Our company adheres to the tenet of "Quality First, Reputation Foremost, Customer Oriented". Warranty commitment as below:
All products sold by our company enjoy a 1-year warranty. Within one year from the date of purchase, any quality defects caused by internal mechanical parts, raw materials or manufacturing craftsmanship will be repaired free of charge.
