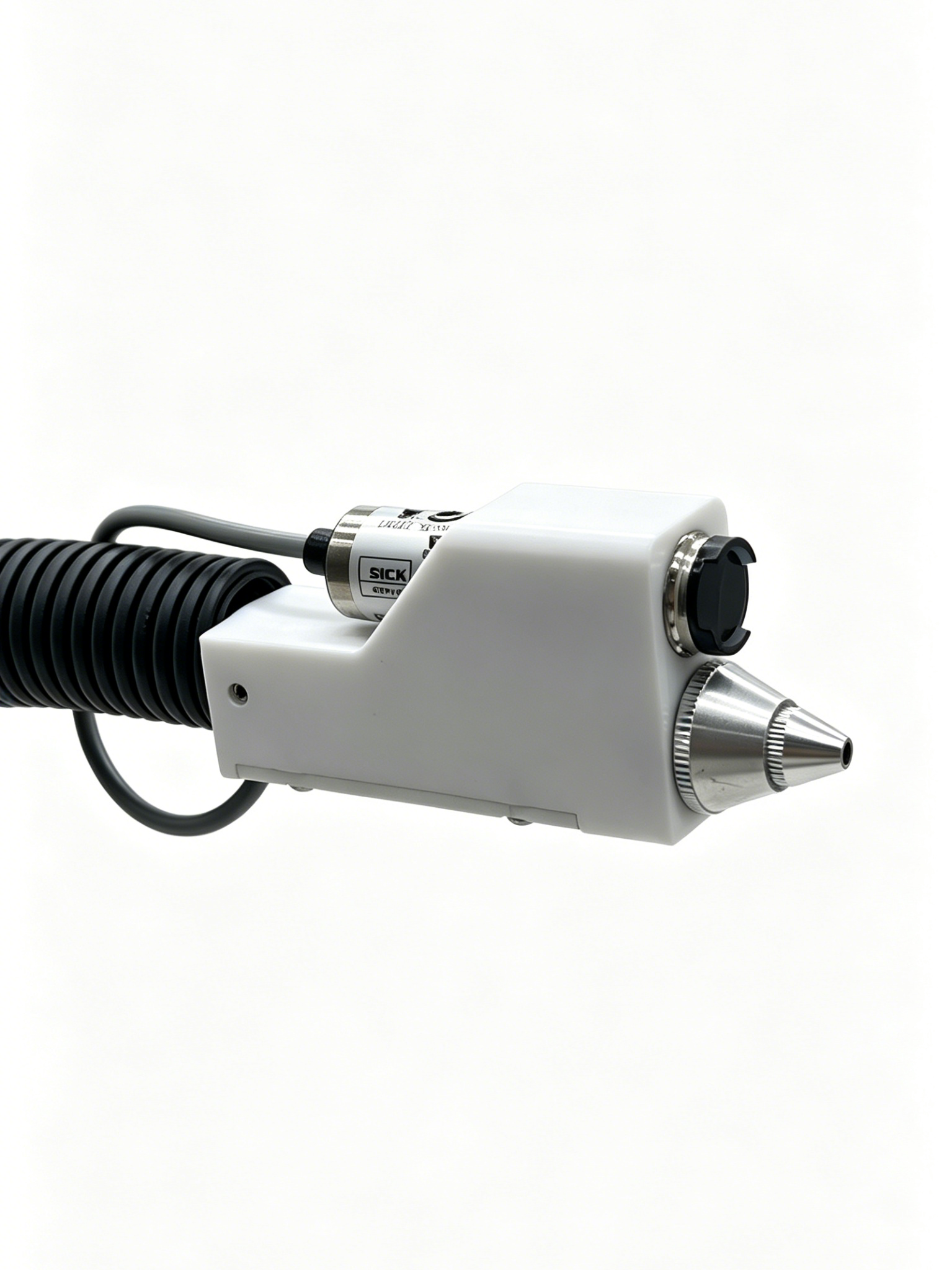

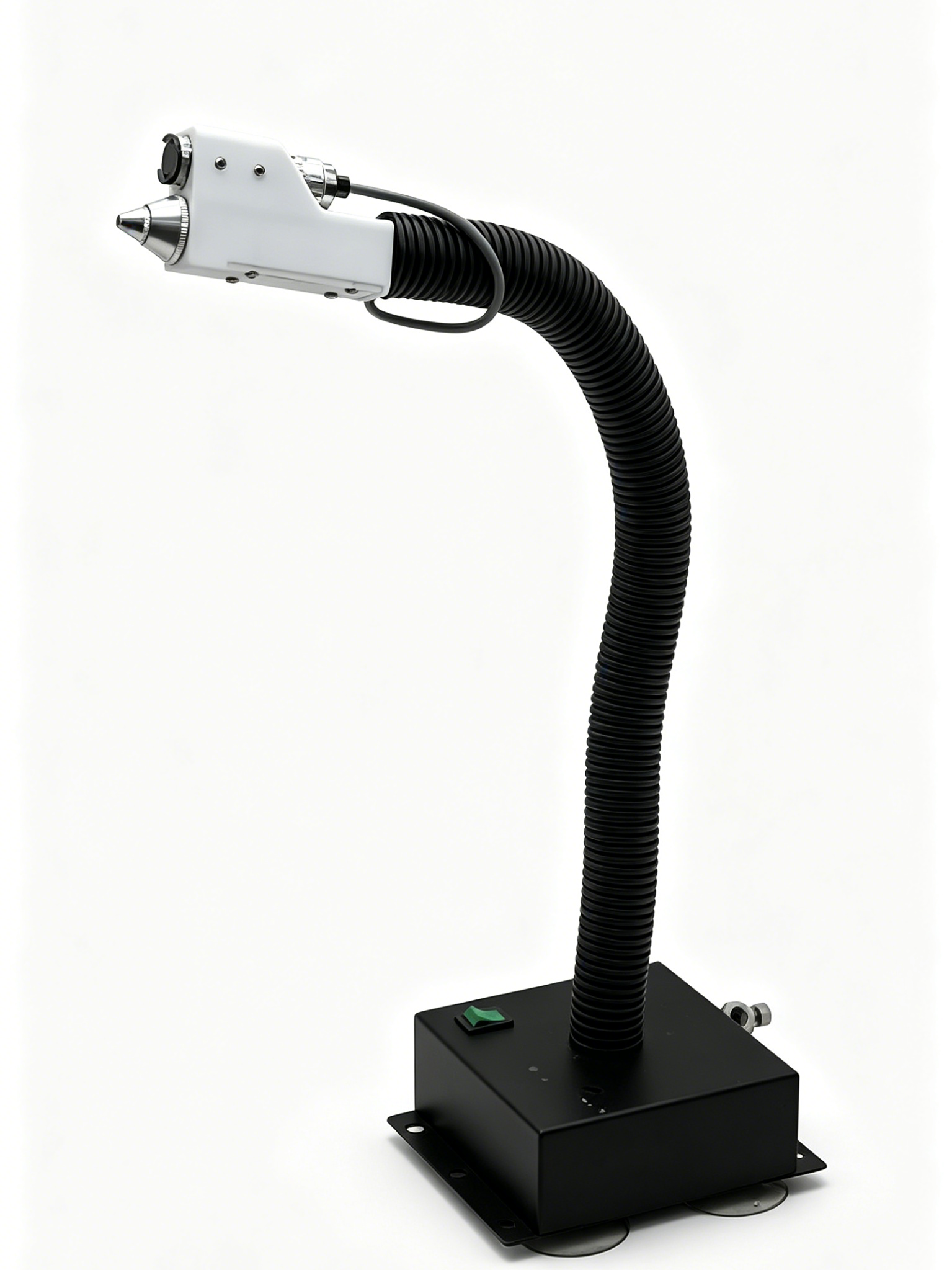

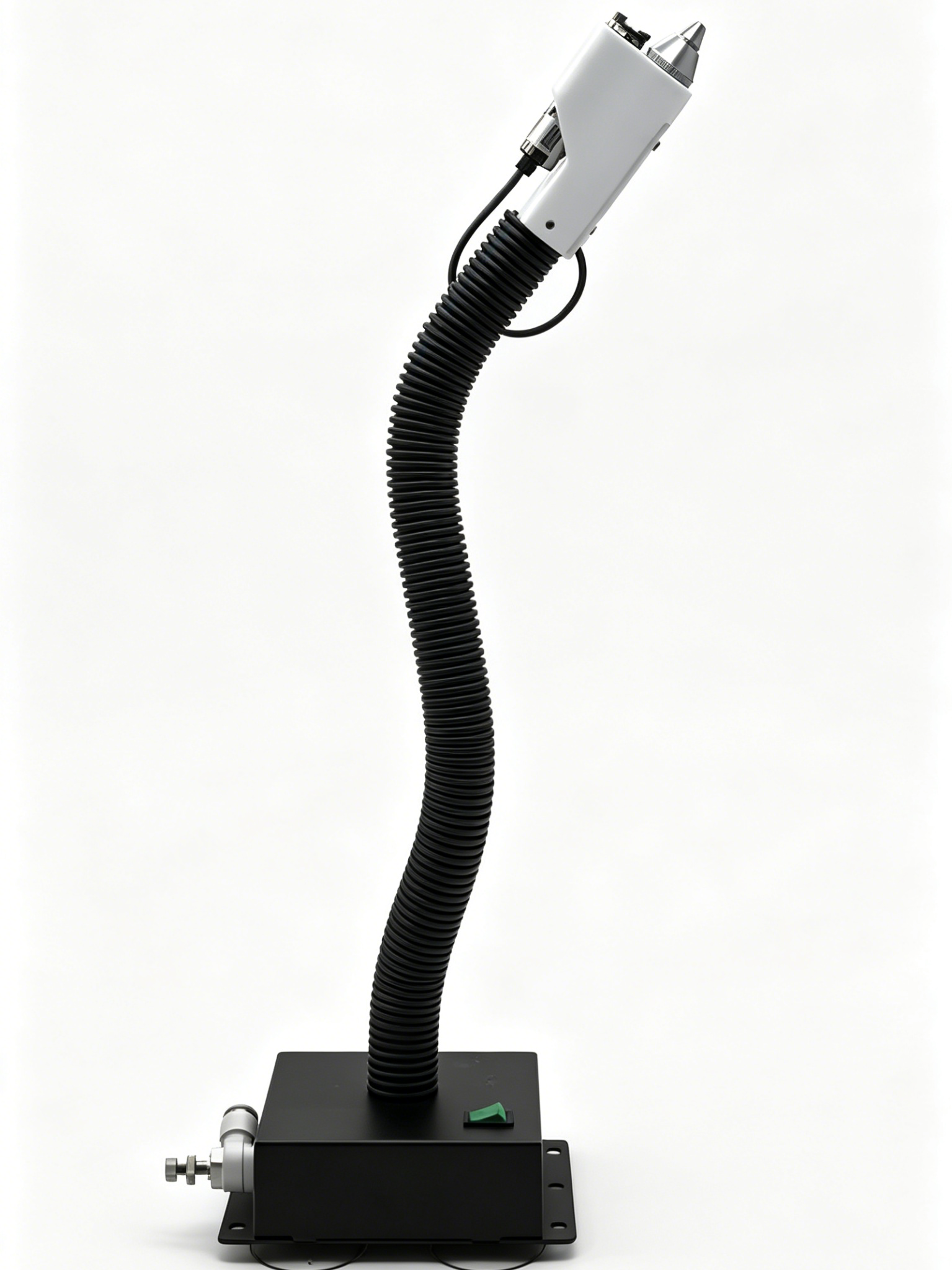

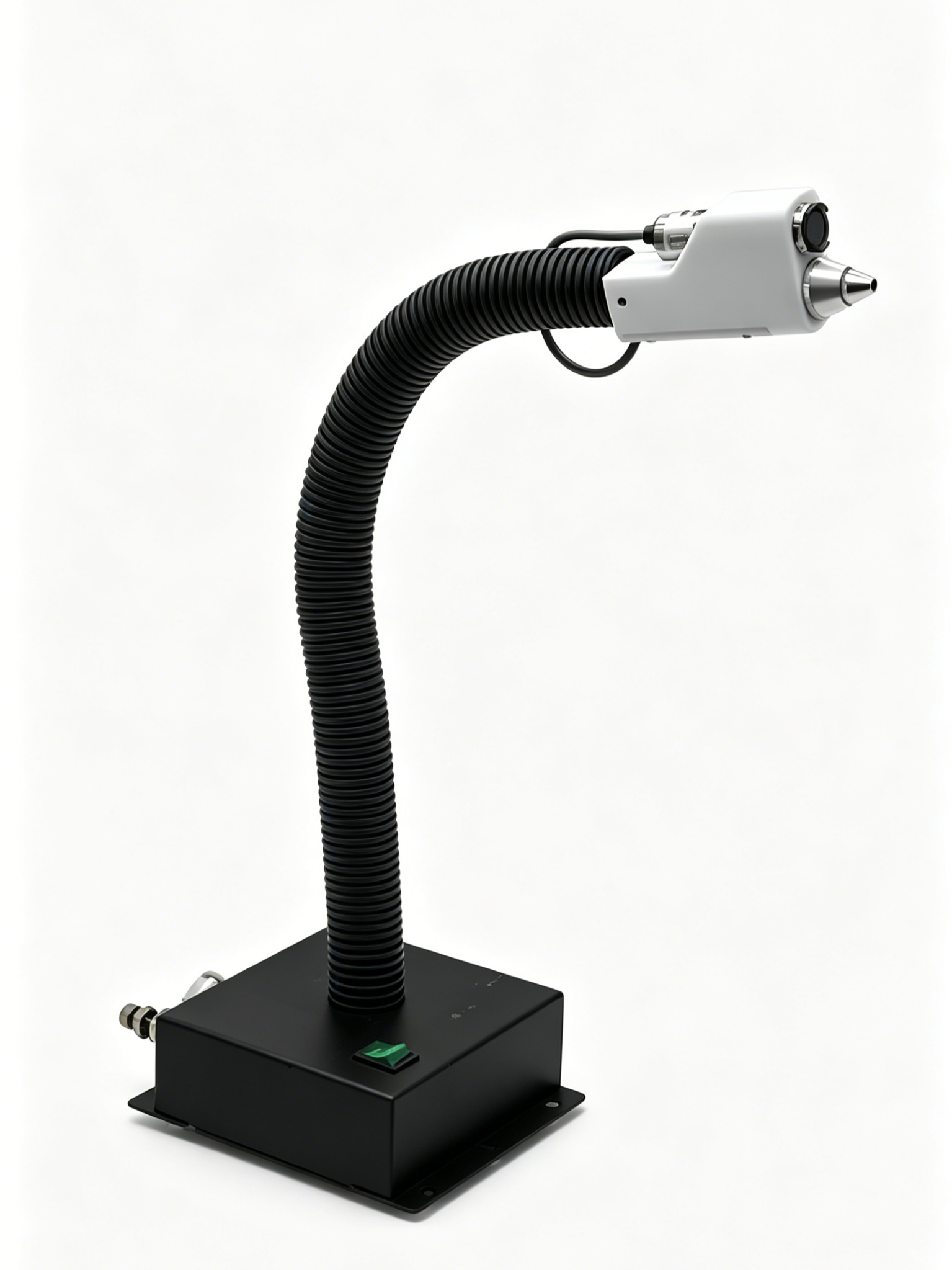

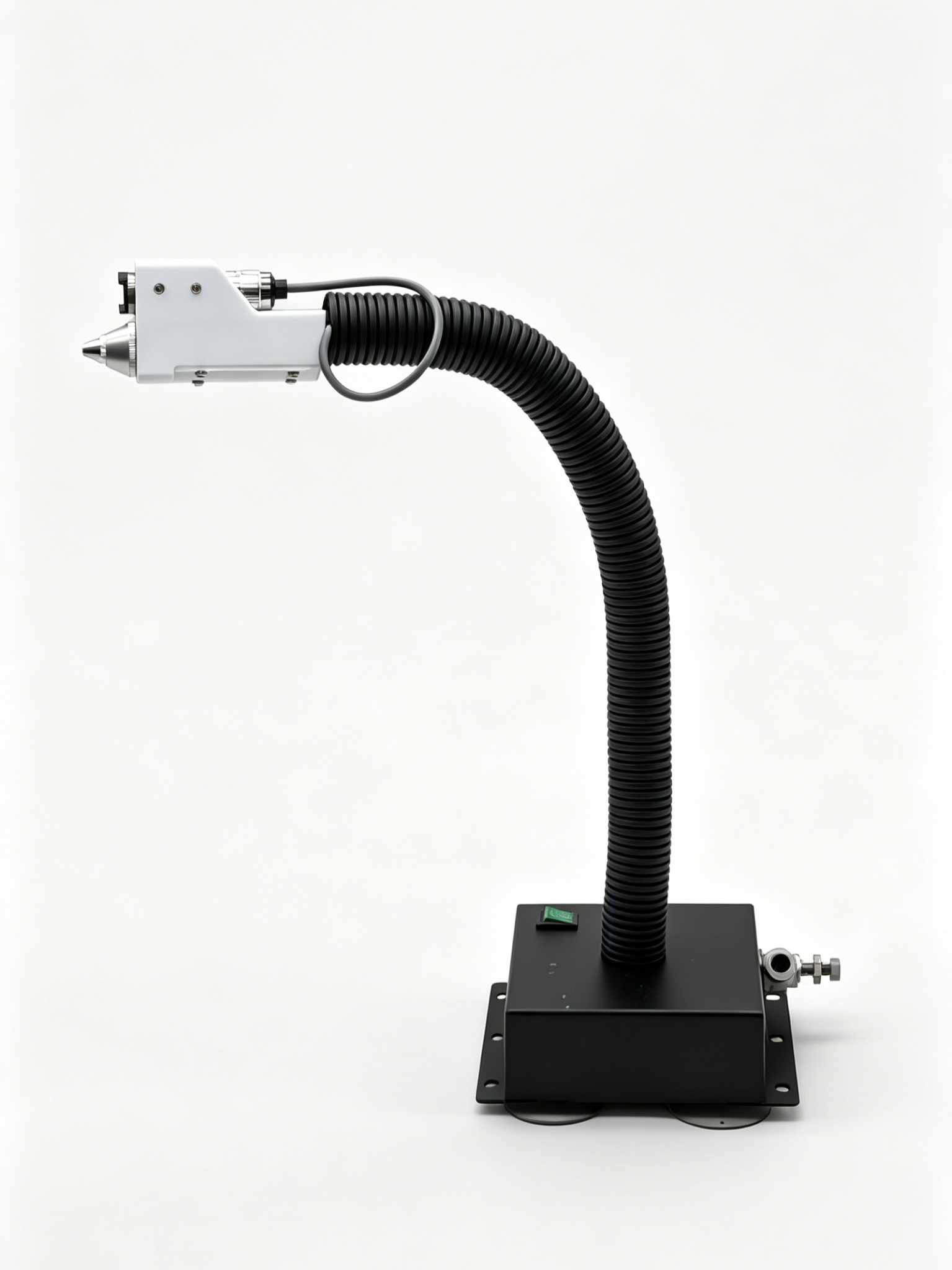

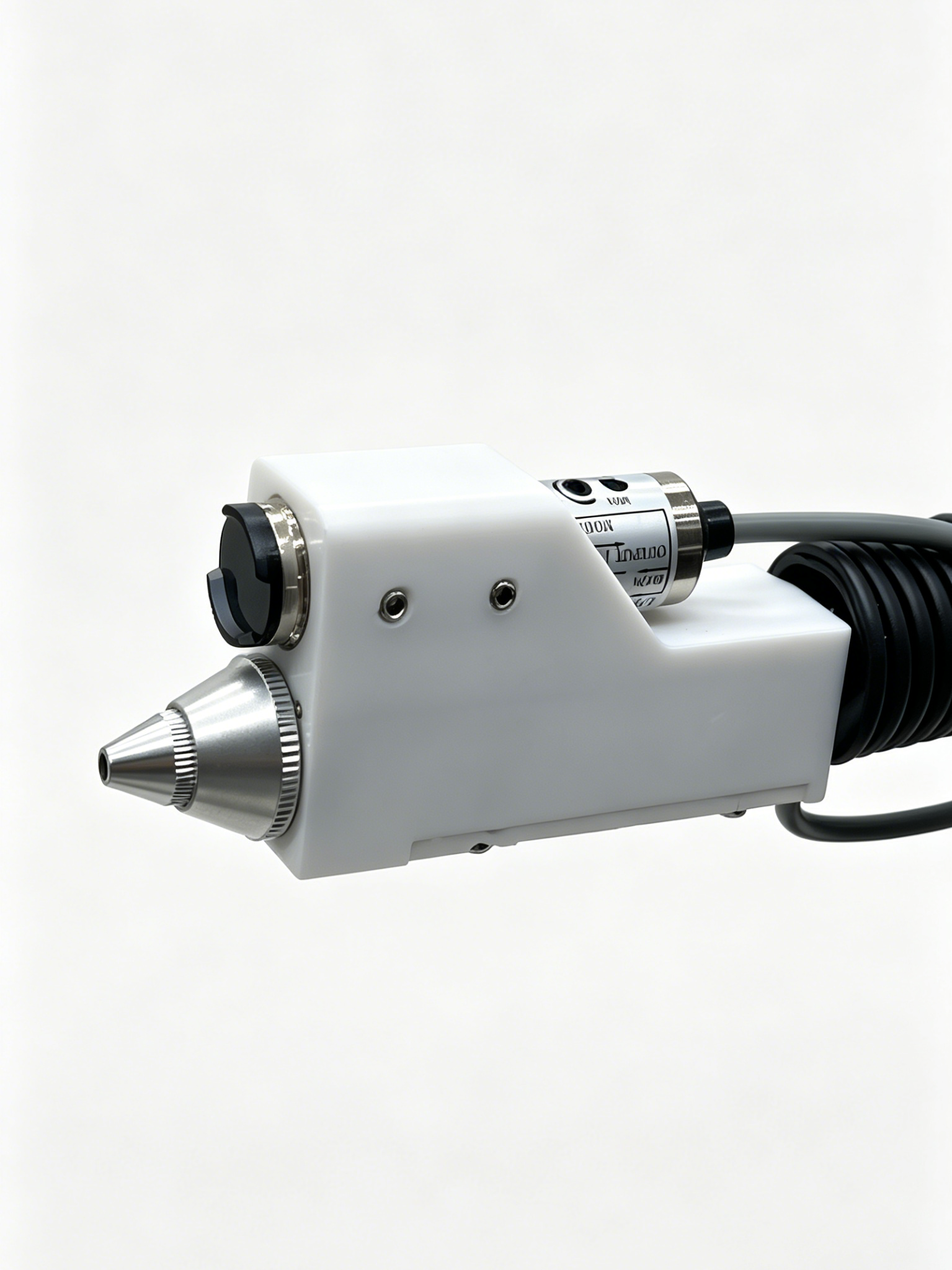

The DC-380G ion air snake eliminates static electricity and dust on hard-to-reach or contactable objects. Its flexible gooseneck tube can be bent freely to aim the air nozzle at target positions, enabling ion airflow to blow directly onto target surfaces without manual operation.
Compact, delicate and easy to move; multi-angle flexible tube design, suitable for static elimination in various scenarios.
Fast static neutralization; ion balance voltage: 0V±20V, airflow speed continuously adjustable.
24V input configuration for stable performance.
Alloy body with sturdy structure, low maintenance requirement and long service life.
Sensor-triggered air blowing to save compressed air consumption.
Easily replaceable ion needle for simple maintenance.
Compatible with foot switch accessory.
Precision electronic product manufacturing; electronic assembly lines, microelectronics production, optoelectronics; pharmaceutical manufacturing & assembly lines, printing, packaging; molding of tiny parts, slitting of plastic films, ring winding & film lamination, mold demolding, etc.
Power Switch
8mm Air Inlet Connector
Air Pressure Regulating Valve
AC220V to DC24V Power Adapter
Power Cord
Automatic Induction Sensor
Built-in Tungsten Ion Needle
Air Outlet

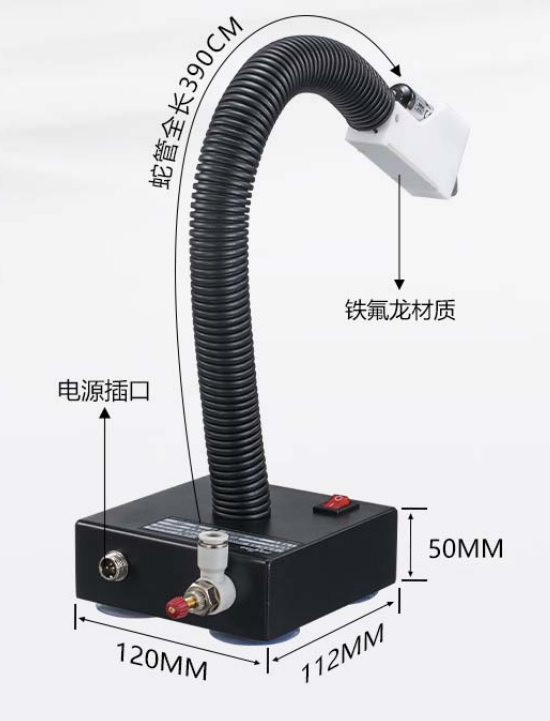

Main Dimensions
Total length of gooseneck tube: 390CM
Gooseneck material: Teflon
Base length: 120MM
Base width: 112MM
Base height: 50MM
Power socket
Item | Parameter |
|---|---|
Input Voltage | 24V |
Operating Voltage | 4.0KV |
Current Consumption | 200uA |
Operating Temperature Range | -5℃ ~ 50℃ |
Length of Hose | 400mm |
Net Weight | 2.2kg |
Power Cord Length | 1.5 meters |
Compressed Air Pressure | 0.3MPa – 0.8MPa |
Operating Air Velocity | ＞10m/sec |
Unified test environment: Operating Voltage: 4.6kV; Test Voltage: 1kV down to 100V; Ambient Temperature: 22℃
Test Distance | 30mm | 90mm | 150mm |
|---|---|---|---|
Neutralization Decay Time (Positive Charge) | 0.1s | 0.2s | 0.9s |
Neutralization Decay Time (Negative Charge) | 0.1s | 0.2s | 0.7s |
Offset Residual Voltage (Positive Charge) | -2V | -3V | +9V |
Offset Residual Voltage (Negative Charge) | -1.3V | -3.6V | +9.1V |
Test data measured by ME268A static tester.
Test results may vary subject to test environment, air condition, temperature and humidity.
