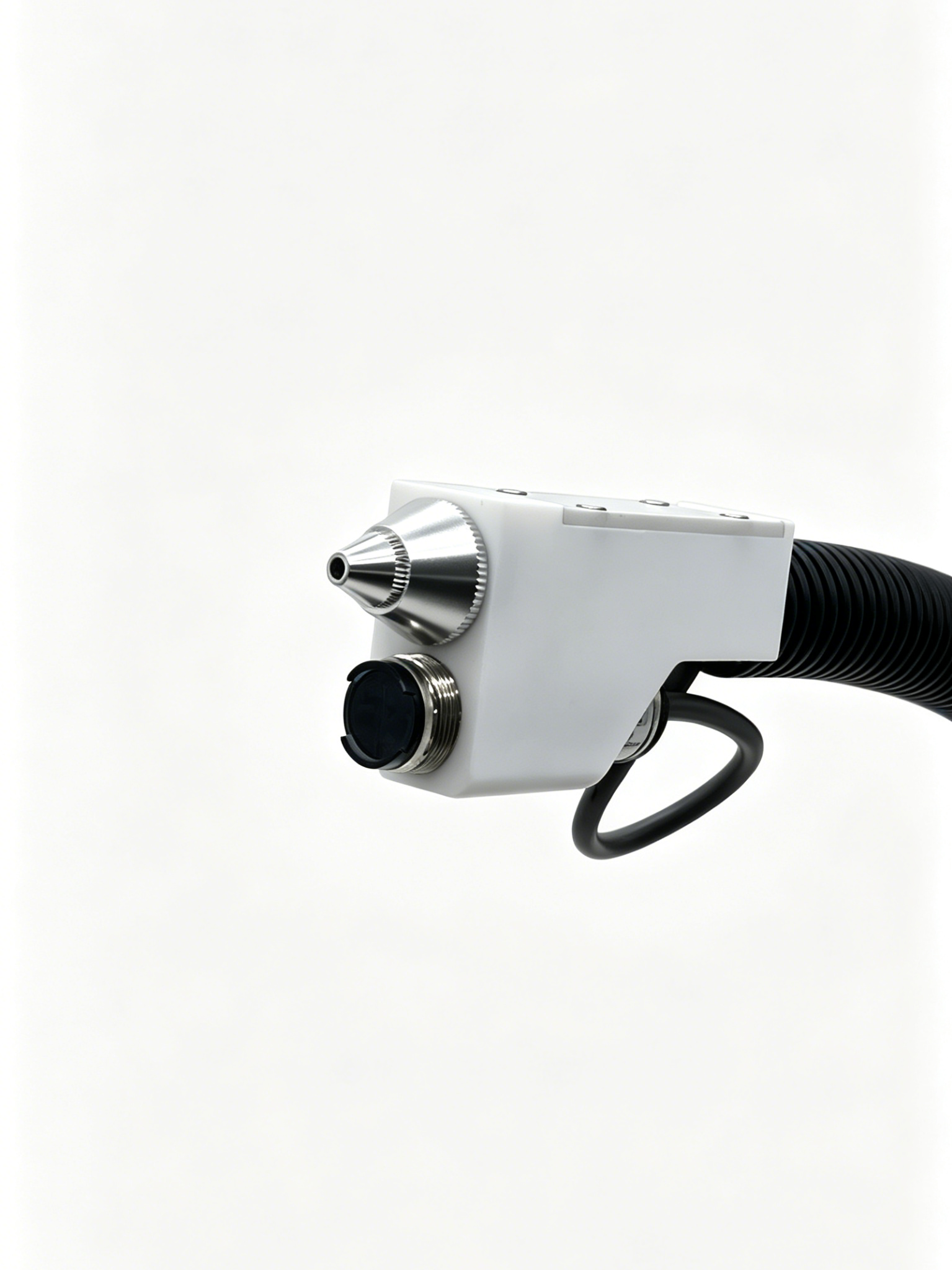

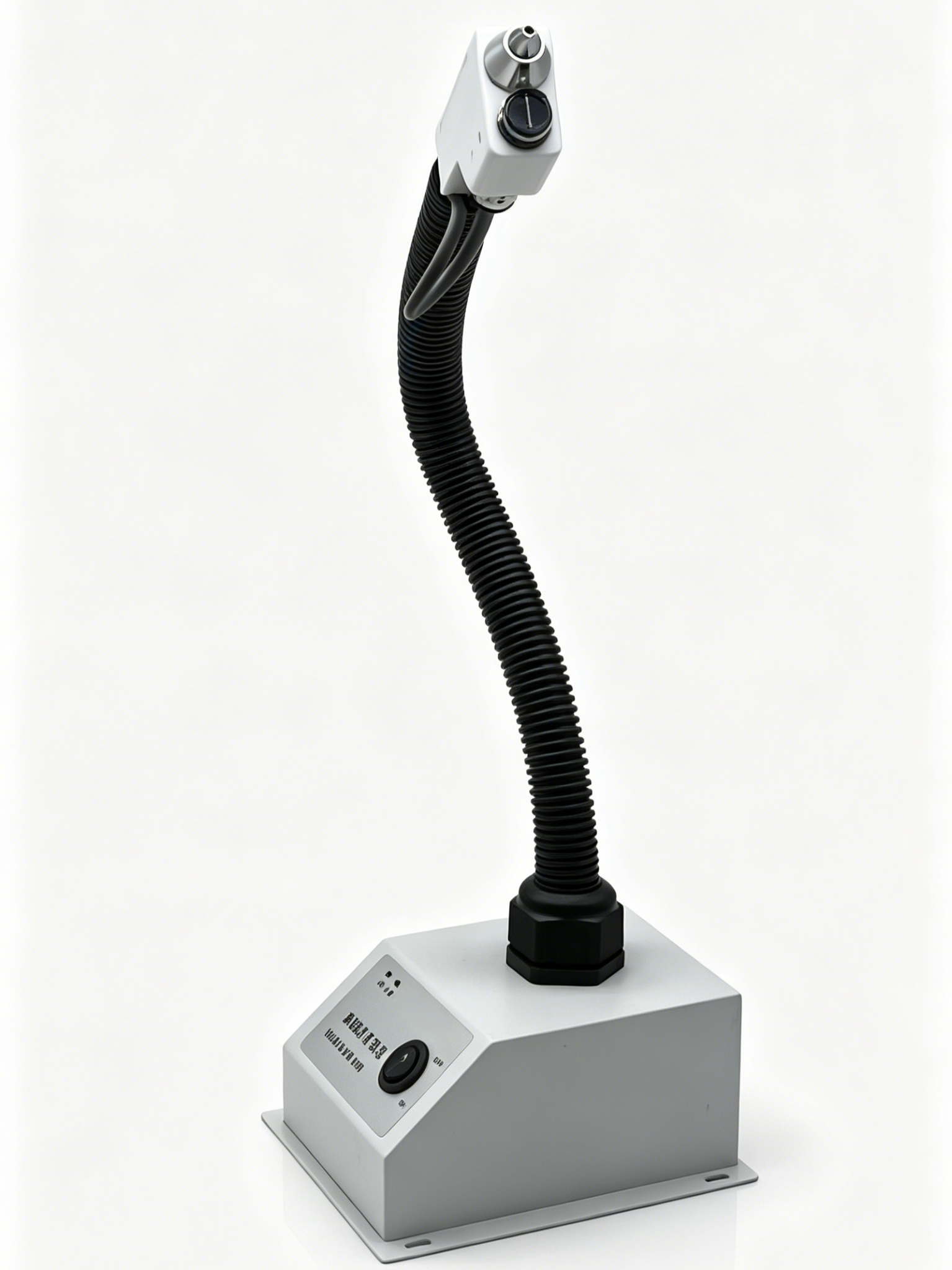

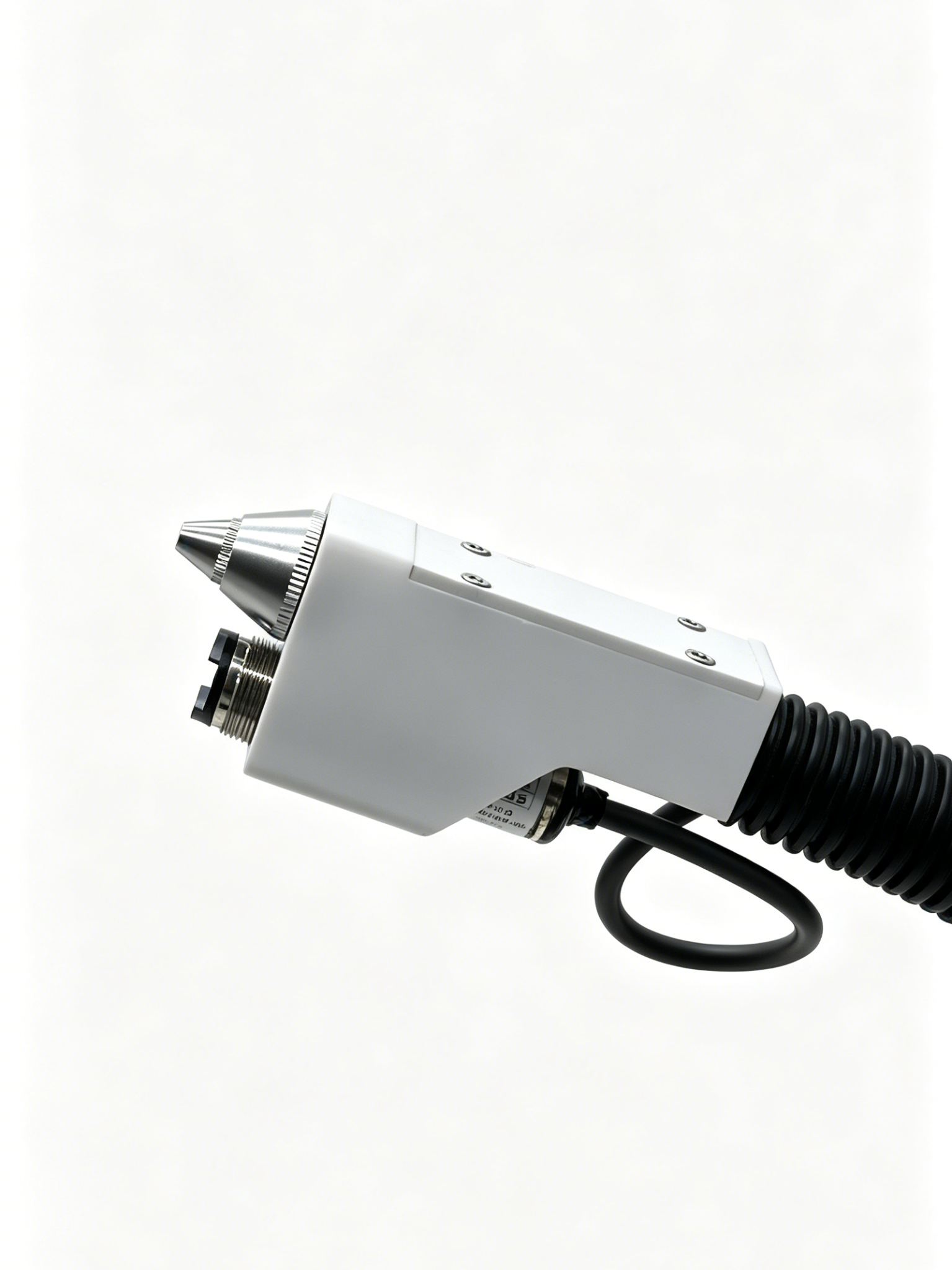

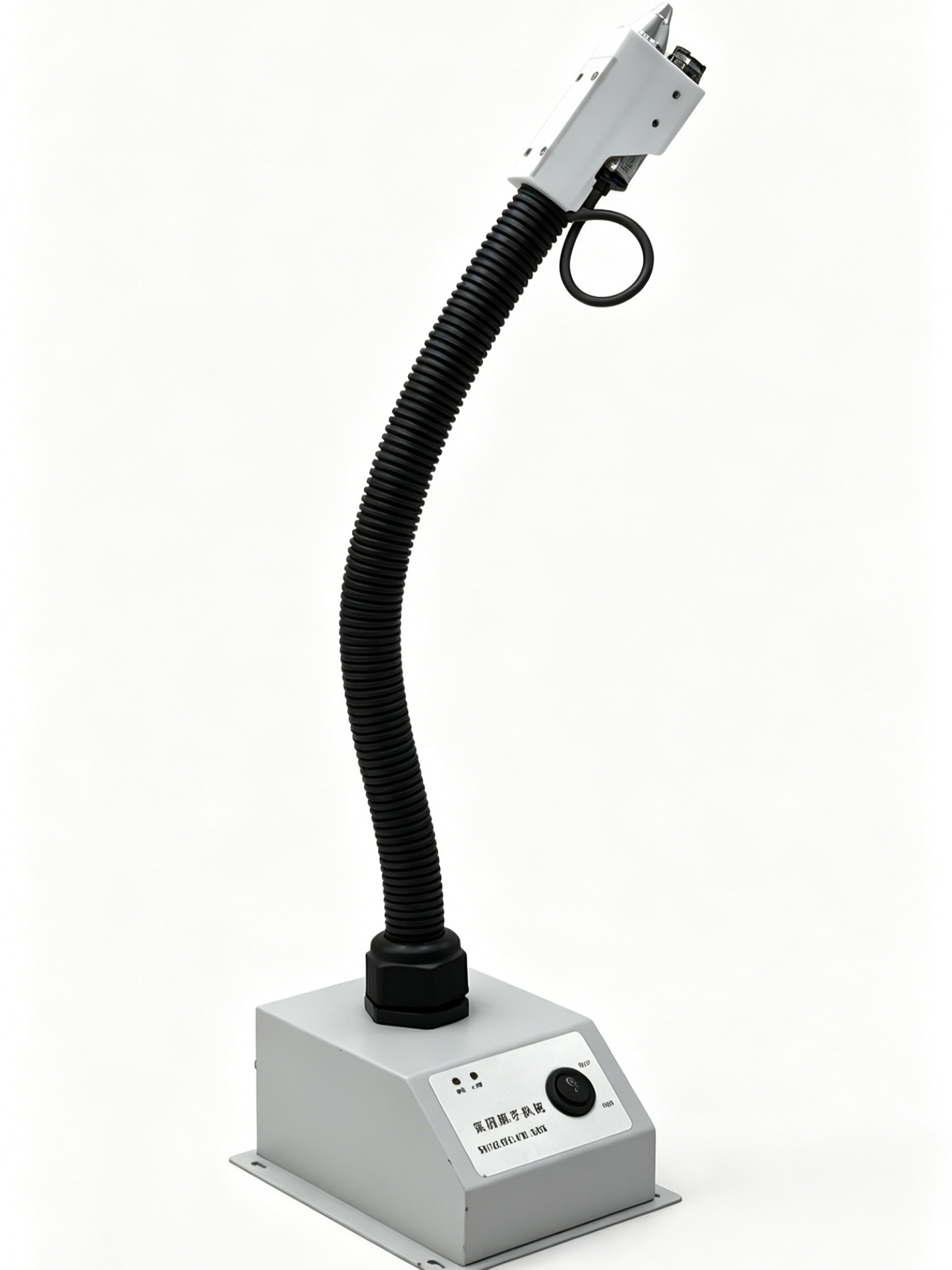

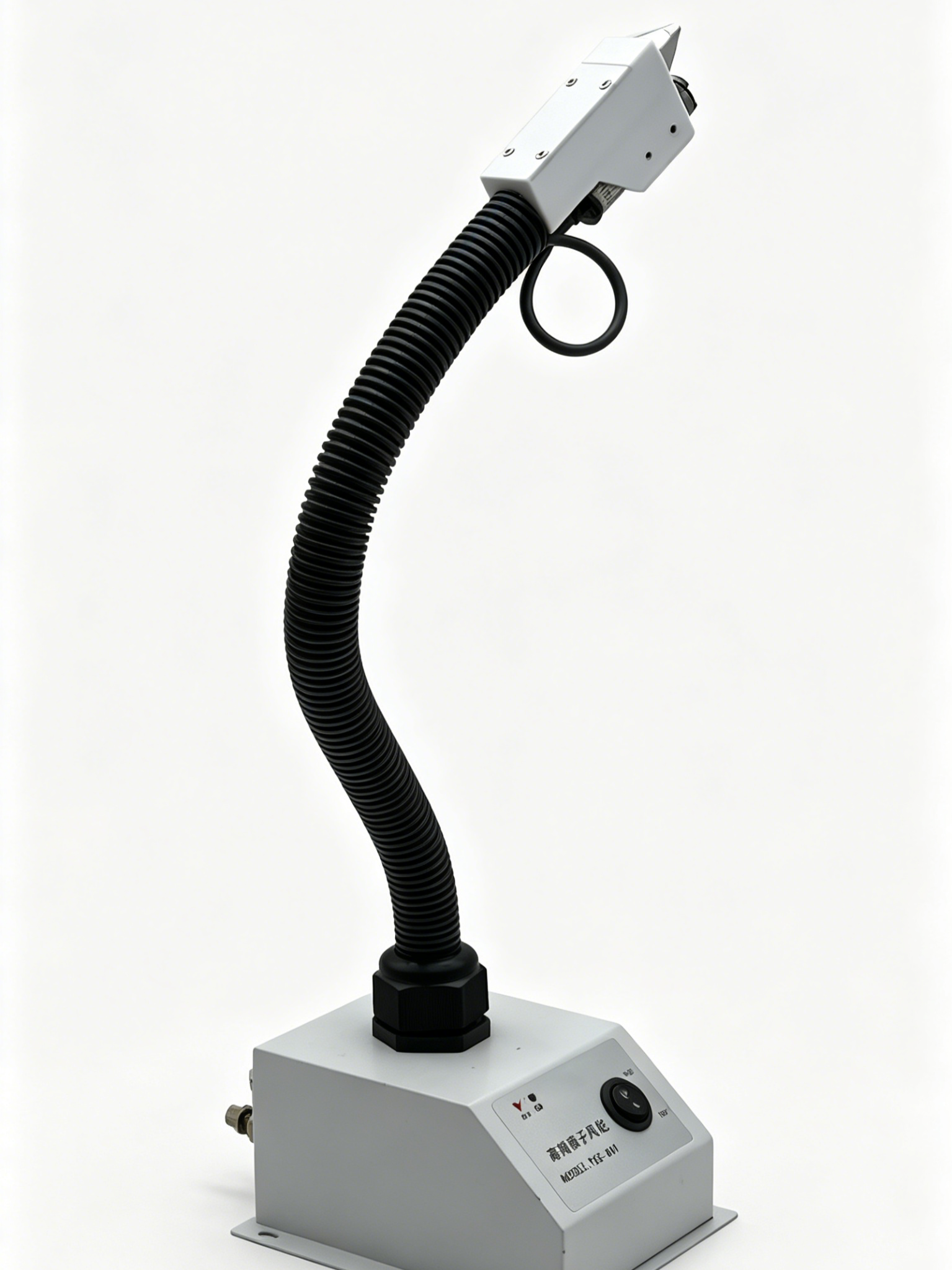

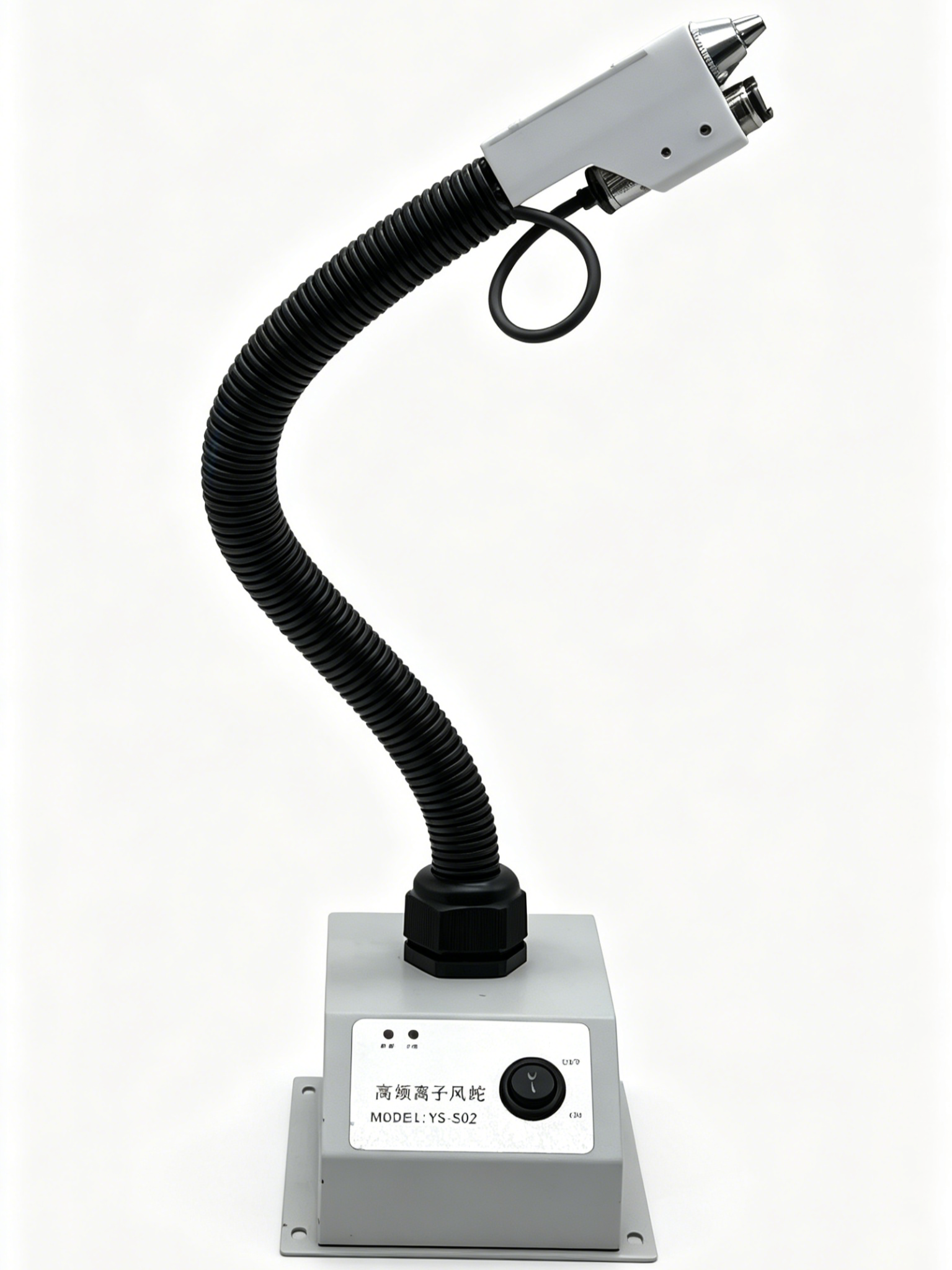

DC-HFS high-frequency DC ion air snake features a built-in piezoelectric high-voltage power supply. It is lightweight and compact with no electromagnetic interference for safe operation. It is equipped with an automatic ion balance system and a high-voltage fault monitoring system.
Adopts the world’s smallest and lightest design with user-friendly operation.
Built-in piezoelectric high-voltage power supply without external high-voltage wiring, safe and convenient to use.
Built-in photoelectric sensor at the nozzle; the device activates automatically when an object is detected (only requiring the built-in power supply and external air source), delivering extremely high work efficiency and easy operation.
Automatic ion balance system, ion balance voltage within 0V±10V.
Equipped with static elimination operation indicator light and high-voltage fault alarm indicator light.
Discharge needle made of special alloy, wear-resistant for long-term service, applicable for cleanroom environments.
Item | Parameter |
|---|---|
Power Supply Voltage | DC24V |
Power Capacity | 12VA |
High-Voltage Output | AC2200V |
Safety Performance | Built-in ion output monitoring system |
Static Elimination Time | Approx. 0.3s |
Ion Balance | Automatic ion balance system, 0V±10V |
Operating Air Pressure | 0.1–0.6MPa |
Net Weight | 106g |
All test data are measured by ME268A static tester.
Test results may vary due to ambient air, temperature and humidity.
