Dynamic Response of Ionizing Air Bars in High-Speed Electrostatic Charge Accumulation Environments

Abstract

Ionizing air bars are widely used for electrostatic discharge (ESD) mitigation in industries such as semiconductor manufacturing, roll-to-roll film processing, precision electronics assembly, pharmaceutical packaging, and high-speed automation systems. In many modern production lines, materials move at high velocities, leading to rapid electrostatic charge accumulation due to triboelectric effects, contact separation, and frictional interactions. Under such conditions, the static charge generation rate can exceed the neutralization capacity of conventional ionization systems if not properly designed.

This paper presents a comprehensive study of the dynamic response characteristics of ionizing air bars operating in high-speed electrostatic accumulation environments. It analyzes the physical mechanisms governing charge generation, corona discharge kinetics, ion transport, space charge formation, airflow-assisted delivery, and feedback effects. The transient behavior of neutralization under rapidly varying charge densities is modeled using time-dependent charge transport equations. System-level engineering strategies are proposed to improve response speed, stability, ion balance, and reliability under extreme electrostatic conditions.

---

1. Introduction

Electrostatic charge accumulation in industrial environments arises from:

• Triboelectric charging between materials

• Contact and separation processes

• Friction between moving films and rollers

• Fluid flow in pipelines

• Powder transport

• High-speed web handling systems

In high-speed manufacturing lines, surface velocities may exceed several meters per second. The rate of charge accumulation may reach kilovolts per second, creating dynamic electrostatic fields that evolve rapidly in space and time.

Ionizing air bars must respond dynamically to:

• Rapidly increasing surface charge

• Changing electric field distribution

• Moving charged targets

• Time-dependent ion demand

Unlike static scenarios, high-speed charge accumulation introduces strong transient effects and nonlinear feedback between ion generation and external fields.

Understanding the dynamic response characteristics of ionizing air bars is essential for preventing ESD events, product defects, and operational instability.

---

2. Mechanisms of High-Speed Electrostatic Charge Accumulation

2.1 Triboelectric Effect

When two materials contact and separate, electrons transfer according to their relative positions in the triboelectric series. The surface charge density $\sigma$ can increase rapidly with repeated contact cycles.

Charge generation rate:

dQdt=f(v,A,Δϕ)\frac{dQ}{dt} = f(v, A, \Delta \phi)dtdQ=f(v,A,Δϕ)

Where:

• $v$ = relative velocity

• $A$ = contact area

• $\Delta \varphi$ = work function difference

Higher speed increases contact frequency, raising charge generation rate.

---

2.2 Capacitance and Surface Voltage Growth

Surface voltage is related to charge and capacitance:

V=QCV = \frac{Q}{C}V=CQ

For insulating films with low capacitance, even small charges produce high voltage. Rapid accumulation leads to voltage spikes.

---

2.3 Moving Charged Surfaces

When charged surfaces move under an ionizer:

• Electric field distribution changes continuously.

• Charge density varies spatially.

• Ion demand becomes time-dependent.

The ionizer must neutralize charge within limited exposure time.

---

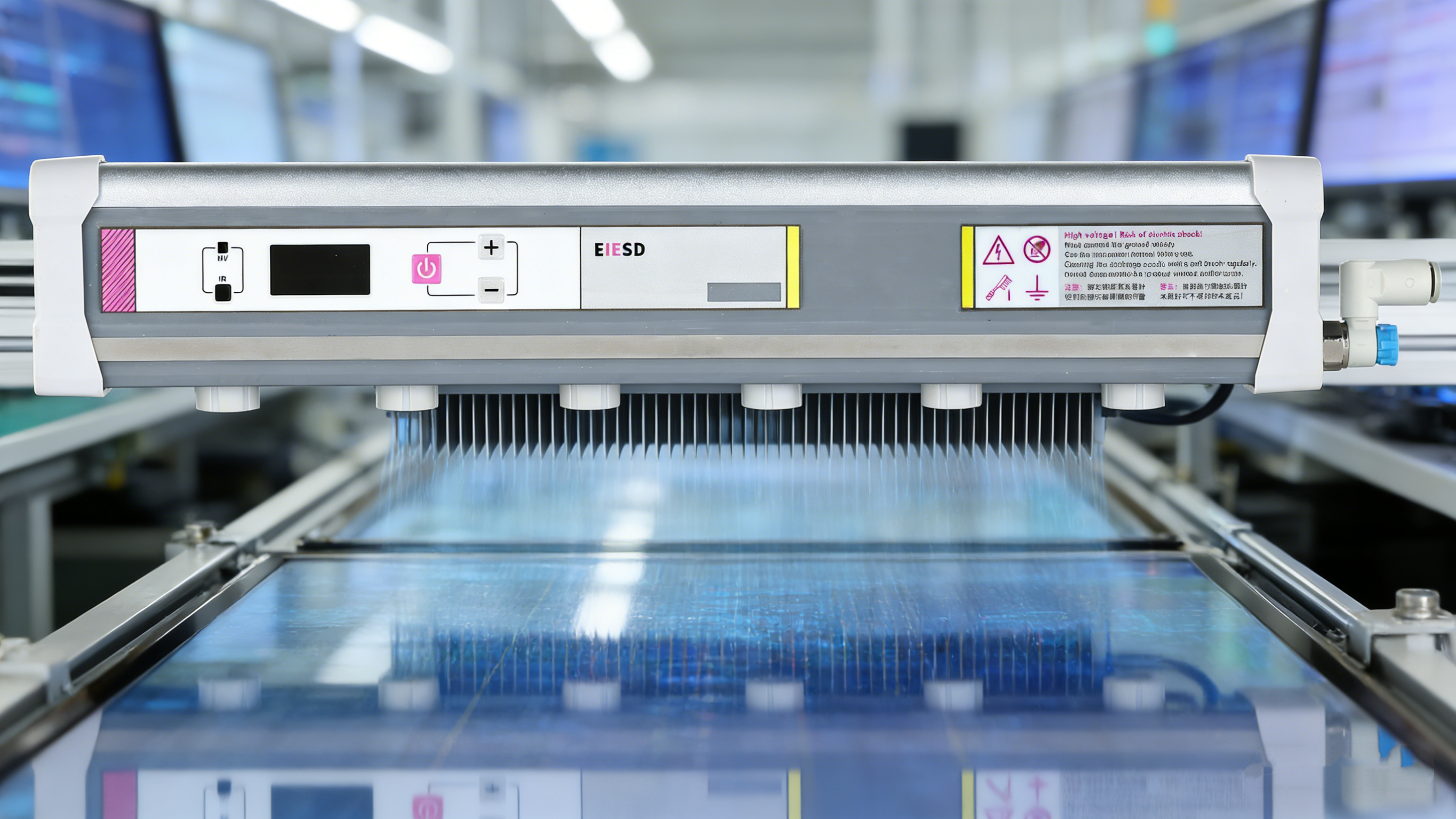

3. Ionizing Air Bar Operating Principles

Ionizing air bars generate ions via corona discharge from sharp emitter needles. Electric field intensity near tip:

E≈VrE \approx \frac{V}{r}E≈rV

Where:

• $V$ = applied voltage

• $r$ = tip radius

When $E$ exceeds air breakdown threshold (~3 × 10^6 V/m), ionization occurs.

Generated ions are transported by:

• Electric field drift

• Airflow convection

• Diffusion

Under high-speed charge accumulation, demand for ions becomes dynamic.

---

4. Time-Dependent Neutralization Model

The surface charge evolution equation:

dQsdt=Gcharge−Gneutralization\frac{dQ_s}{dt} = G_{charge} - G_{neutralization}dtdQs=Gcharge−Gneutralization

Where:

• GchargeG_{charge}Gcharge = rate of charge accumulation

• GneutralizationG_{neutralization}Gneutralization = rate of ion neutralization

Neutralization rate:

Gneutralization=nμEAG_{neutralization} = n \mu E AGneutralization=nμEA

Where:

• $n$ = ion density

• $\mu$ = ion mobility

• $E$ = electric field

• $A$ = effective interaction area

If Gcharge>GneutralizationG_{charge} > G_{neutralization}Gcharge>Gneutralization, voltage rises.

The response time constant:

τ=CG\tau = \frac{C}{G}τ=GC

For high-speed environments, $\tau$ must be much smaller than exposure time.

---

5. Dynamic Response Characteristics

5.1 Ion Generation Delay

Corona discharge is nearly instantaneous once voltage threshold is exceeded. However:

• Power supply response time

• Pulse modulation frequency

• Internal control circuitry

introduce microsecond to millisecond delay.

In high-speed systems, this delay may influence performance.

---

5.2 Ion Transport Lag

Ion drift velocity:

$$v=\mu E$$

Typical mobility:

μ≈1−2×10−4 m2/(V⋅s)\mu \approx 1-2 \times 10^{-4} \, m^2/(V \cdot s)μ≈1−2×10−4m2/(V⋅s)

At field strength 1000 V/m:

$$v\approx 0.1-0.2m/s$$

If surface speed exceeds ion drift speed, airflow assistance becomes critical.

---

5.3 Airflow-Assisted Ion Transport

Total ion flux:

J=n(μE+vair)J = n(\mu E + v_{air})J=n(μE+vair)

High airflow (5–20 m/s) dominates ion delivery in fast-moving web systems.

Airflow reduces response time significantly.

---

5.4 Space Charge Accumulation

High ion output creates space charge near emitter.

Space charge modifies electric field:

∇2ϕ=−ρε0\nabla^2 \phi = -\frac{\rho}{\varepsilon_0}∇2ϕ=−ε0ρ

Under rapid charge accumulation, strong surface field may attract ions asymmetrically, causing localized ion cloud concentration.

---

6. Nonlinear Feedback Mechanisms

6.1 Field Enhancement Feedback

Rising surface voltage enhances electric field near emitter, increasing ion generation rate.

This negative feedback helps stabilization.

However, excessive field may cause micro-arcing.

---

6.2 Saturation Effect

Ion output capacity is limited by:

• Power supply current limit

• Corona discharge stability

• Ozone generation constraints

Beyond certain charge rate, neutralization saturates.

---

6.3 Oscillatory Behavior

In some pulsed DC systems:

• Rapid charging

• Delayed neutralization

• Overcompensation

can produce voltage oscillations.

---

7. Performance Metrics in High-Speed Environments

Key indicators:

1. Neutralization time under dynamic load

2. Maximum compensable charge rate

3. Residual voltage stability

4. Ion balance drift

5. Ozone production under high output

---

8. Comparison of AC vs Pulsed DC in High-Speed Scenarios

AC Systems

Advantages:

• Simple design

• Continuous bipolar ion generation

Limitations:

• Less flexible under rapidly changing polarity demands

---

Pulsed DC Systems

Advantages:

• Adjustable pulse width

• Dynamic ion balance control

• Faster adaptive response

Better suited for high-speed dynamic charge environments.

---

9. Engineering Optimization Strategies

9.1 Increase Ion Density

Methods:

• Higher voltage

• Multi-needle arrays

• Optimized tip geometry

---

9.2 Optimize Distance

Shorter distance reduces ion transport time.

However, too short may cause field instability.

---

9.3 High-Velocity Laminar Airflow

Ensures ions reach fast-moving surfaces before recombination.

---

9.4 Real-Time Feedback Control

Install electrostatic field sensors.

Adjust output dynamically:

Voutput=f(Vsurface,dV/dt)V_{output} = f(V_{surface}, dV/dt)Voutput=f(Vsurface,dV/dt)

---

9.5 Segmented Ionization Zones

Multiple ionizers placed along motion path provide staged neutralization.

---

10. Industrial Case Studies

10.1 Roll-to-Roll Film Processing

Film speed: 5–10 m/s
High triboelectric charging.

Solution:

• Multi-emitter high-density bars

• Strong airflow

• Pulsed DC control

---

10.2 Semiconductor Wafer Handling

Rapid robotic motion creates transient charging.

Solution:

• Localized ionizers

• Fast-response pulsed systems

• Cleanroom airflow integration

---

10.3 High-Speed Packaging Lines

Plastic packaging accumulates charge quickly.

Solution:

• Wide-area ionization

• Redundant arrays

• Adaptive control

---

11. Limitations and Challenges

• Power supply current limit

• Emitter erosion under high output

• Increased ozone production

• Noise and EMI

• Maintenance frequency

---

12. Advanced Modeling Techniques

Coupled equations:

1. Poisson equation

2. Continuity equation

3. Drift-diffusion equation

4. Navier–Stokes (for airflow)

Numerical simulation via finite element modeling (FEM) predicts:

• Transient field distribution

• Ion density evolution

• Surface voltage decay

---

13. Energy and Safety Considerations

High output increases:

• Power consumption

• Thermal stress

• Ozone concentration

Design must balance response speed and environmental safety.

---

14. Future Development Directions

• AI-based dynamic compensation

• Real-time electrostatic imaging

• Nano-structured high-efficiency emitters

• Distributed smart ionization networks

• Ultra-fast power electronics

---

15. Conclusion

In high-speed electrostatic accumulation environments, ionizing air bars operate under dynamic and nonlinear conditions. Their effectiveness depends on:

• Ion generation rate

• Ion transport speed

• Space charge behavior

• Airflow assistance

• Adaptive control mechanisms

The ability of an ionizer to respond rapidly to high charge generation rates determines its suitability for modern high-speed manufacturing.

Optimal performance requires integration of:

• High-density ion output

• Fast-response power supply

• Intelligent feedback control

• Proper mechanical positioning

• Environmental management

Future systems will combine plasma physics optimization with real-time adaptive algorithms to ensure stable and efficient neutralization even under extreme dynamic electrostatic conditions.
