The installation distance of an ionizing air bar has a direct influence on static neutralization speed, ion distribution, treatment coverage, and overall process stability. In industrial environments such as electronics manufacturing, plastic film processing, printing, packaging, semiconductor production, coating, laminating, converting, and automated assembly, even a correctly selected ionizing air bar may perform poorly if it is installed too close to or too far from the charged material.
Choosing the correct installation distance therefore requires more than finding enough physical space above a conveyor or production line. Engineers must evaluate ion density, target dimensions, material speed, airflow, static voltage, machine geometry, product movement, emitter condition, and the required residual electrostatic level. The optimum distance is the position that allows ions to reach the entire target efficiently while maintaining sufficient ion concentration for fast and stable neutralization.
The correct installation distance for an ionizing air bar is the distance at which the target receives sufficient positive and negative ion density across the complete treatment area while achieving the required static decay time. The final distance should be determined according to the ionizer operating range, target width, production speed, airflow, machine structure, and actual electrostatic measurements rather than by using one universal distance for every application.
In general, a shorter distance can provide stronger ion concentration and faster neutralization, while a longer distance can increase the geometric spread of ions but reduce ion density. This creates a balance between treatment strength and coverage width. The correct installation position should therefore be selected through a combination of engineering calculation and practical verification.
This article explains how installation distance affects ionizing air bar performance, how to calculate a suitable starting distance, how to adjust the position for different production conditions, and how to verify the final installation using electrostatic measurements.
Installation distance is important because it determines how efficiently positive and negative ions travel from the emitter points to the charged surface and therefore directly affects ion density, static decay speed, and treatment coverage.

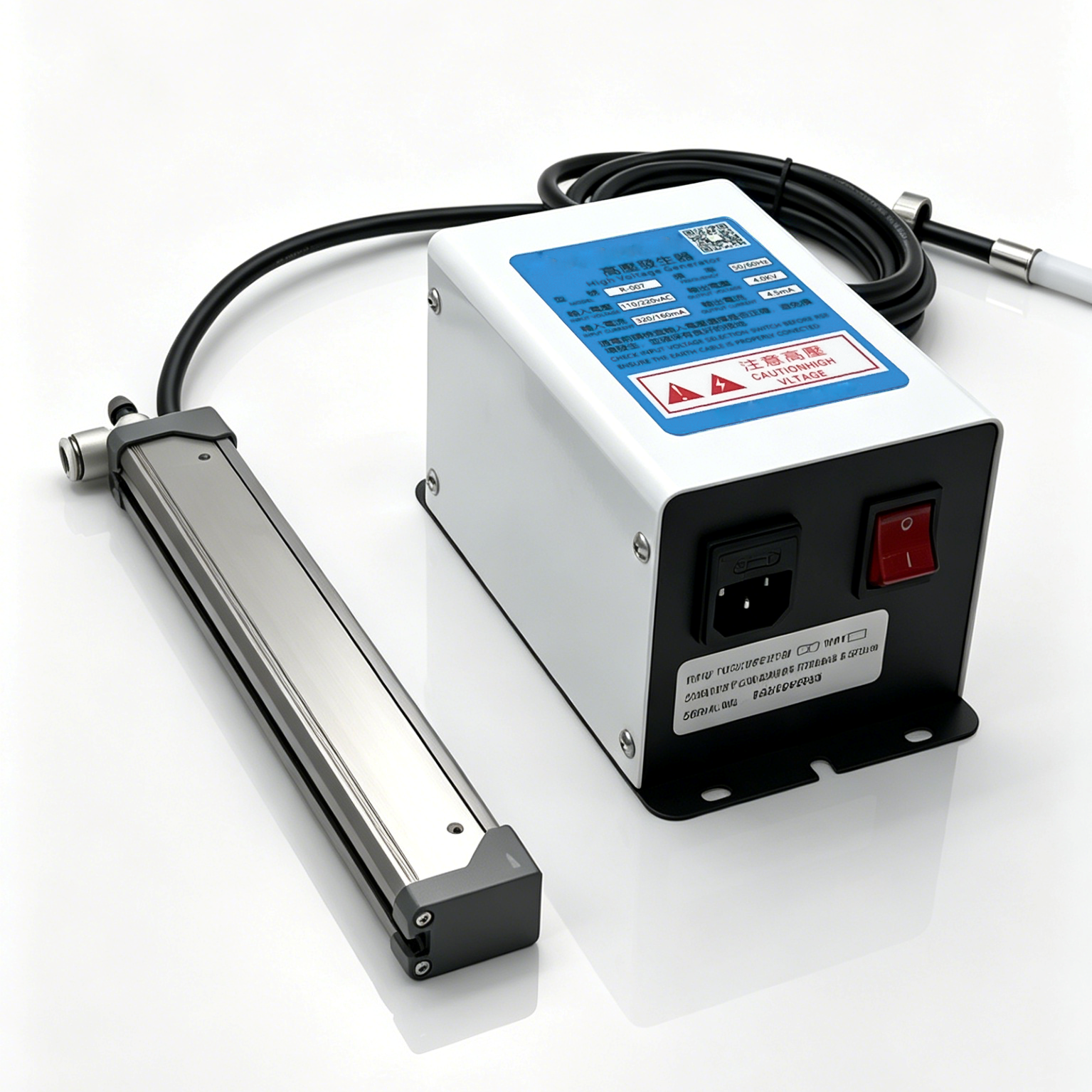

An ionizing air bar generates positive and negative ions around its emitter points. These ions must travel through the surrounding air before reaching the charged material. The greater this travel distance becomes, the more opportunities there are for ions to recombine, disperse, or be attracted toward nearby grounded objects.
When the bar is positioned within an appropriate working range, a large proportion of the generated ions can reach the target and neutralize the surface charge efficiently. If the bar is installed at an unsuitable distance, the available ion concentration may become too low or the treatment area may become uneven.
Installation distance also affects the relationship between treatment width and neutralization speed. A close installation can produce a relatively concentrated ion field, while a greater distance allows the ion field to spread over a wider region. Engineers must therefore balance coverage requirements with the required static decay performance.
| Performance Factor | Effect of Installation Distance |
|---|---|
| Ion Density | Generally decreases as distance increases |
| Static Decay Speed | Generally becomes slower as distance increases |
| Geometric Coverage | May become wider as distance increases |
| Edge Coverage | May improve geometrically but can weaken if ion density becomes too low |
| Influence of Airflow | Usually becomes more important at longer distances |
| Influence of Grounded Objects | Can increase when the ion path is longer |
For this reason, installation distance should be treated as an important engineering parameter rather than simply a mechanical mounting dimension.
When an ionizing air bar is installed too close to the target, the ion field may become overly concentrated, the treatment width may become narrower, and mechanical or electrical safety limitations may be created depending on the equipment design and process environment.
Installing the ionizing air bar closer to the material can increase the ion concentration reaching the charged surface. This often improves static decay performance because ions have a shorter path to travel. For applications requiring rapid neutralization, a relatively short working distance can therefore be beneficial.
However, closer is not always better. If the target is wider than the effective ion distribution at that short distance, the center of the material may receive strong treatment while the outer edges receive fewer ions. A bar that appears powerful during a center point measurement may still provide inadequate total coverage.
Another concern is mechanical clearance. Moving films, sheets, products, fixtures, or robot components can shift during operation. Installing the ionizer too close can increase the risk of contact with the product or machine components. Sufficient clearance should therefore be maintained for normal production movement, vibration, and maintenance.
A short installation distance can be highly effective when the active ionization length already covers the complete target and sufficient physical clearance is available. However, it should not be selected without considering coverage and machine movement.
When an ionizing air bar is installed too far from the charged surface, ions spread over a larger area and ion density decreases, which can lead to slower static decay, uneven neutralization, and higher residual electrostatic voltage.
As ions move away from the emitter points, they disperse into a larger volume of air. This can create a broader geometric treatment area, but the number of useful ions reaching each unit of surface area normally decreases. The result can be wider but weaker ionization.
During a long travel path, positive and negative ions may also recombine before reaching the target. Nearby grounded machine structures may attract ions away from the intended surface. Air currents can further redirect the ion stream, especially in open production environments.
Therefore, increasing installation distance simply to obtain wider coverage can be misleading. The treatment zone may look wider geometrically while the static decay performance becomes insufficient for the actual process.
If static elimination performance decreases significantly after the bar is moved farther away, the installation should be adjusted or the overall ionization arrangement should be reconsidered.
Installation distance affects static decay time because the farther ions must travel, the longer it generally takes for enough positive or negative ions to reach the charged surface and neutralize the existing electrostatic potential.
Static decay time is one of the most useful performance indicators when evaluating an ionizing air bar. It describes how quickly the system can reduce an electrostatic potential under defined conditions. In industrial production, a shorter decay time generally provides more effective control when materials move quickly.
At shorter working distances, ions usually reach the target more efficiently because less travel time and less dispersion are involved. This can result in faster electrostatic voltage reduction. As the distance increases, ion concentration decreases and decay time may become longer.
However, decay time should always be evaluated together with coverage. A very short distance may produce excellent decay performance at the center but insufficient coverage at the outer edges. The best position is therefore not necessarily the shortest possible distance but the distance that provides acceptable decay performance across the entire treatment width.
| Relative Installation Distance | Ion Density | Expected Decay Performance | Coverage Characteristics |
|---|---|---|---|
| Short | High | Generally Fast | More Concentrated |
| Medium | Moderate | Balanced | Balanced Coverage |
| Long | Lower | Generally Slower | Wider Geometric Spread |
These relationships are general engineering tendencies rather than fixed specifications. Actual decay performance depends on ionizer design, emitter condition, airflow, target material, humidity, and surrounding structures.
Increasing installation distance can widen the geometric ion field, but effective coverage only improves if sufficient ion density remains available across the complete target area.
Ion coverage is influenced by the way positive and negative ions spread after leaving the emitter points. At a short distance, the ion field remains relatively concentrated. At a larger distance, the ions can spread laterally and potentially reach areas beyond the active emitter length.
A simplified geometric relationship can be used to understand this concept:
Wcoverage ≈ Lactive + 2D tan(θ)
Where Wcoverage represents theoretical coverage width, Lactive represents active ionization length, D represents working distance, and θ represents the effective ion dispersion angle.
This formula is useful for understanding geometry, but it should not be used as a universal performance calculation. Ion dispersion is not necessarily uniform, and actual effective coverage must be confirmed by static measurements.
| Installation Condition | Potential Coverage Width | Ion Strength | Typical Application Consideration |
|---|---|---|---|
| Close Position | Narrower | Stronger | Useful for rapid local neutralization |
| Moderate Position | Balanced | Moderate | Suitable for many production lines |
| Far Position | Wider | Weaker | Requires careful performance verification |
The correct installation distance should therefore provide both sufficient width and sufficient ion density. Coverage that cannot reduce the required static voltage is not effective coverage.
Higher production speed generally requires stronger and faster ionization, which can make a shorter effective installation distance more important because the material remains inside the treatment zone for less time.
When a product moves through an ionization zone, the ionizing air bar only has a limited amount of time to reduce the electrostatic charge. The faster the material moves, the shorter this exposure time becomes.
Exposure time can be calculated using:
Exposure Time = Effective Treatment Length / Material Speed
If the effective treatment length is 0.30 meters and the material travels at 1 meter per second, the exposure time is 0.30 seconds. If production speed increases to 3 meters per second, exposure time decreases to 0.10 seconds.
At higher speed, a long working distance may result in insufficient ion concentration during this short treatment period. Reducing the distance can improve ion delivery, provided that the target remains fully covered.
| Treatment Length | Production Speed | Exposure Time |
|---|---|---|
| 0.30 m | 0.5 m/s | 0.60 s |
| 0.30 m | 1.0 m/s | 0.30 s |
| 0.30 m | 2.0 m/s | 0.15 s |
| 0.30 m | 3.0 m/s | 0.10 s |
For high speed production lines, installation distance should therefore be selected in combination with line speed and static decay requirements rather than independently.
Airflow influences installation distance because moving air can help transport ions toward the target, but uncontrolled airflow can redirect ions and reduce static neutralization consistency, especially at greater working distances.
In many industrial environments, ions do not travel through still air. Cooling fans, ventilation systems, compressed air, exhaust systems, cleanroom airflow, moving films, and machine motion can all change the direction and speed of ion transport.
When airflow is directed from the ionizing air bar toward the charged surface, it can improve ion transportation and may allow effective treatment over a greater distance. This is particularly useful when machine geometry prevents close mounting.
However, cross airflow can have the opposite effect. If air moves laterally across the treatment area, ions may be displaced toward one side. The side facing the airflow may receive less ionization while the opposite side receives more, creating uneven static control.
Long installation distances are generally more sensitive to airflow because ions spend more time traveling through the surrounding air. Therefore, airflow should always be evaluated when selecting the final mounting position.
Target geometry affects installation distance because flat materials, curved surfaces, recessed objects, conveyors, three dimensional products, and irregular components require different ion paths and coverage patterns.
Flat materials such as film, paper, sheet plastic, or circuit boards are relatively easy to treat because the ionizing air bar can often be mounted parallel to the target. The working distance remains almost constant across the complete surface.
Three dimensional products are more complicated. Different parts of the object may be positioned at different distances from the bar. A raised area may receive strong ionization while a recessed area receives much less. In these applications, a larger distance can sometimes improve geometric coverage, but the resulting reduction in ion density must be considered.
Curved surfaces, trays, containers, and parts with deep recesses may require angled mounting or more than one ionization position. Instead of relying on one distant bar to reach every surface, multiple treatment directions may provide more consistent static neutralization.
| Target Type | Installation Consideration |
|---|---|
| Flat Film | Maintain consistent parallel distance across the width |
| Sheet Material | Allow for sheet vibration and movement |
| Conveyor Products | Consider differences in product height |
| Three Dimensional Parts | Evaluate multiple treatment directions |
| Recessed Surfaces | Consider airflow assistance or additional ionization positions |
| Curved Products | Verify distance variation across the surface |
Therefore, installation distance should always be measured relative to the actual charged surface rather than simply relative to the machine frame.
Installation distance should be selected according to the specific process, including material type, production speed, target size, available mounting space, airflow, and required static reduction.
Different industrial applications place different demands on an ionizing air bar. A slow conveyor with large plastic products may tolerate a longer treatment distance because exposure time is relatively long. A high speed film line may require a shorter distance because charge must be neutralized very quickly.
Electronics production can require consistent low residual voltage rather than simply reducing strong static charge. In such cases, stable ion balance and repeatable coverage may be more important than maximizing treatment width.
Plastic converting processes often generate high electrostatic charge during separation, winding, slitting, or peeling. The ionizer should be positioned as close as practical to the location where charge is generated because treating the material far downstream may allow static problems to occur before neutralization takes place.
| Application | Important Distance Consideration |
|---|---|
| Plastic Film Processing | Balance rapid decay with full web coverage |
| Printing | Position near charge generation points while avoiding moving components |
| Packaging | Consider product height variation and conveyor movement |
| Electronics Assembly | Prioritize stable ion balance and repeatable treatment |
| Semiconductor Production | Consider process sensitivity, airflow, and contamination control |
| Coating and Laminating | Position near separation and contact points where charge develops |
| Sheet Processing | Allow for sheet vibration and position changes |
No single installation distance can be applied to every industrial process. The best distance is always process dependent.
The best installation distance can be determined by starting within the recommended operating range, measuring static performance at several points, adjusting the bar position gradually, and selecting the distance that provides complete coverage with acceptable residual voltage and decay time.
The most reliable method combines engineering calculation with actual measurement. Begin by identifying the maximum treatment width and determining a practical mounting position within the available machine space.
After installation, measure electrostatic voltage before and after ionization at several locations across the target. Measurements should include the center, both edges, and intermediate positions. The machine should operate at normal production speed during testing.
If the center shows excellent neutralization but the edges remain charged, the distance may be too short for the required coverage or the active ionization length may be insufficient. If the entire width shows slow static reduction, the bar may be too far away or the available ion output may be insufficient for the process.
This procedure provides more reliable results than using a fixed distance chosen without considering the actual process.
Common mistakes include installing the bar as close as possible without checking coverage, mounting it too far away to increase apparent treatment width, ignoring production speed, overlooking airflow, and evaluating performance at only one measurement point.
One common mistake is assuming that the shortest installation distance always produces the best performance. While a short distance can increase ion concentration, it may create insufficient treatment width or mechanical clearance problems.
Another mistake is placing the bar farther away simply because the ion field appears to cover more material. If ion concentration becomes too low, static decay performance may become unacceptable even though the geometric treatment zone is wide.
Testing conditions are also important. Measuring performance while the production line is stopped may produce misleading results because material speed and machine airflow are absent. Verification should be completed under representative operating conditions.
| Common Error | Possible Result | Corrective Action |
|---|---|---|
| Installing Too Close | Narrow coverage and insufficient clearance | Increase distance slightly and verify edge performance |
| Installing Too Far | Slow decay and weak ion density | Reduce working distance |
| Ignoring Line Speed | Insufficient treatment time | Test at maximum production speed |
| Ignoring Airflow | Uneven ion distribution | Test with ventilation and fans operating |
| Testing Only at Center | Weak edge performance remains undetected | Measure across the complete width |
| Ignoring Target Movement | Variable working distance | Include maximum expected movement |
| Ignoring Obstructions | Ions are intercepted before reaching the target | Provide a clear ion path |
Avoiding these mistakes helps maintain more reliable and consistent static control.
Installation distance can be optimized over time by periodically measuring static performance, monitoring process changes, maintaining emitter cleanliness, checking mechanical alignment, and readjusting the mounting position when production conditions change.
An installation that performs correctly when a production line is first commissioned may not always remain optimal. Product dimensions can change, line speed can increase, airflow systems can be modified, and new machine components can be added near the ionizer.
Emitter contamination can also change the apparent relationship between distance and performance. Dust, process residues, and other contaminants can accumulate around emitter points and reduce useful ion output. The bar may then appear to require a shorter working distance even though the actual problem is maintenance.
Mechanical movement should also be monitored. Vibration, maintenance work, or accidental contact can shift the mounting position. Even a small change in angle or distance may affect coverage on sensitive production lines.
Periodic verification helps distinguish between distance related problems and other causes such as contamination, airflow changes, or increased static generation.
Choosing the correct installation distance for an ionizing air bar requires balancing ion density, static decay speed, coverage width, production speed, airflow, target geometry, machine clearance, and the required residual electrostatic level.
A shorter working distance generally allows more ions to reach the target and can improve static decay speed. However, an excessively short distance can produce a narrow treatment area and insufficient clearance for moving materials. A longer working distance can increase geometric coverage, but ion density generally decreases and neutralization can become slower.
The correct distance is therefore not simply the shortest possible position or the maximum available distance. It is the position where the complete target receives enough positive and negative ions to achieve the required static reduction within the available treatment time.
Production speed should be considered carefully because faster moving materials spend less time inside the ionization zone. Exposure time can be estimated using:
Exposure Time = Effective Treatment Length / Material Speed
Airflow, grounded machine structures, product movement, and target geometry can further influence how ions travel from the emitter points to the charged surface. These factors become particularly important when the ionizing air bar is installed at a greater distance.
The most reliable installation method is to begin within an appropriate operating range, measure electrostatic performance across several points on the target, operate the production line at normal and maximum speeds, and adjust the mounting position until both coverage and static decay performance meet the process requirements.
Finally, installation distance should not be treated as a permanent setting that never needs review. Changes in material, production speed, airflow, machine layout, emitter cleanliness, and product dimensions can affect performance over time. Regular testing and maintenance help ensure that the ionizing air bar continues to provide consistent and effective static neutralization throughout the complete treatment area.
