Label dispensing requires a controlled transition from a supported label on a release liner to a precisely positioned label on a product or applicator. During that short movement, thin materials must separate, remain stable, and arrive at the correct location. Static electricity can interfere with this sequence by attracting labels toward liners, guides, applicator surfaces, or containers.
For manufacturers, the consequences may include inconsistent label presentation, transfer failures, contamination, and repeated machine adjustments. These problems can become more noticeable when processing lightweight film labels, small labels, or materials that retain electrical charge.
Ionizing air bars help improve label dispensing by reducing electrostatic charge on accessible label, liner, and product surfaces. When correctly selected and positioned, they can reduce unwanted attraction during peeling and transfer. Effective results depend on identifying static as a contributing cause and coordinating neutralization with suitable liner tension, peel geometry, airflow, and applicator settings.
Static control does not change the adhesive formulation or repair an unsuitable release liner. It also cannot compensate for every mechanical alignment problem. Its value comes from reducing an electrical force that can otherwise make a correctly configured dispensing process less predictable.
This guide focuses primarily on pressure sensitive labels dispensed from release liners. It explains where static develops, how ionizing equipment works, and how production teams can evaluate improvements without confusing electrostatic effects with material or machine faults.
Static electricity develops when contacting materials exchange charge and then separate. Label unwinding, roller contact, liner peeling, and product handling can all contribute to charging before or during dispensing.
A label roll contains several surfaces with different electrical properties. The face material may be paper or plastic film, while the adhesive contacts a release coating on a paper or film liner. When these materials separate, their newly exposed surfaces may carry charge.
The peel point is particularly important because it exposes surfaces immediately before label transfer. Neutralizing the outside of the roll earlier in the process does not necessarily control the charge generated during this later separation event.
Many film labels and release liners are electrically insulating. Charge can remain on them even when the dispenser frame and conductive rollers are properly grounded. Grounding controls conductive equipment, but it does not automatically neutralize charge distributed across an insulating material.
The receiving product may also arrive charged. Plastic bottles, trays, and other containers can acquire charge during conveying and handling. A useful investigation therefore considers the label, liner, applicator, and product rather than assuming that the label web is the only relevant source.
Static can contribute to unwanted label attraction, unstable presentation, transfer difficulties, and dust accumulation. These symptoms require verification because release behavior, adhesive condition, and machine settings can produce similar problems.
A lightweight label may be attracted toward the liner after partial separation or toward nearby machine surfaces. This additional force can alter how its leading edge presents to a product or applicator. The effect depends on the label’s stiffness, dimensions, charge distribution, and surrounding geometry.
During transfer, electrostatic attraction may interfere with a label leaving an applicator surface or approaching a container. Application guidance for bottle labeling identifies charge control during label separation as a way to support alignment with the receiving bottle. :chatgpt-content-reference{index="0"}
Static can also attract airborne particles to exposed material. Dust on labels, liners, or nearby components may become a cleanliness issue and can complicate inspection. However, a visible particle problem does not establish that electrostatic attraction is its only cause.
| Observed problem | Possible static contribution | Other causes to investigate |
|---|---|---|
| Unstable label presentation | Attraction toward the liner or nearby structures | Label stiffness, curl, peel geometry, and tension |
| Inconsistent transfer | Unwanted attraction during release from an applicator | Vacuum, timing, adhesive contact, and product position |
| Label misalignment | Electrical forces influence a lightweight label | Guides, conveyor stability, and applicator alignment |
| Dust accumulation | Charged surfaces attract particles | Dirty rolls, airborne contamination, and handling |
| Liner handling difficulty | Charged waste liner clings to nearby surfaces | Rewind tension, routing, and mechanical interference |
These observations should guide testing rather than justify an immediate equipment purchase. A controlled neutralization trial is most useful when the original symptom and operating conditions have already been documented.

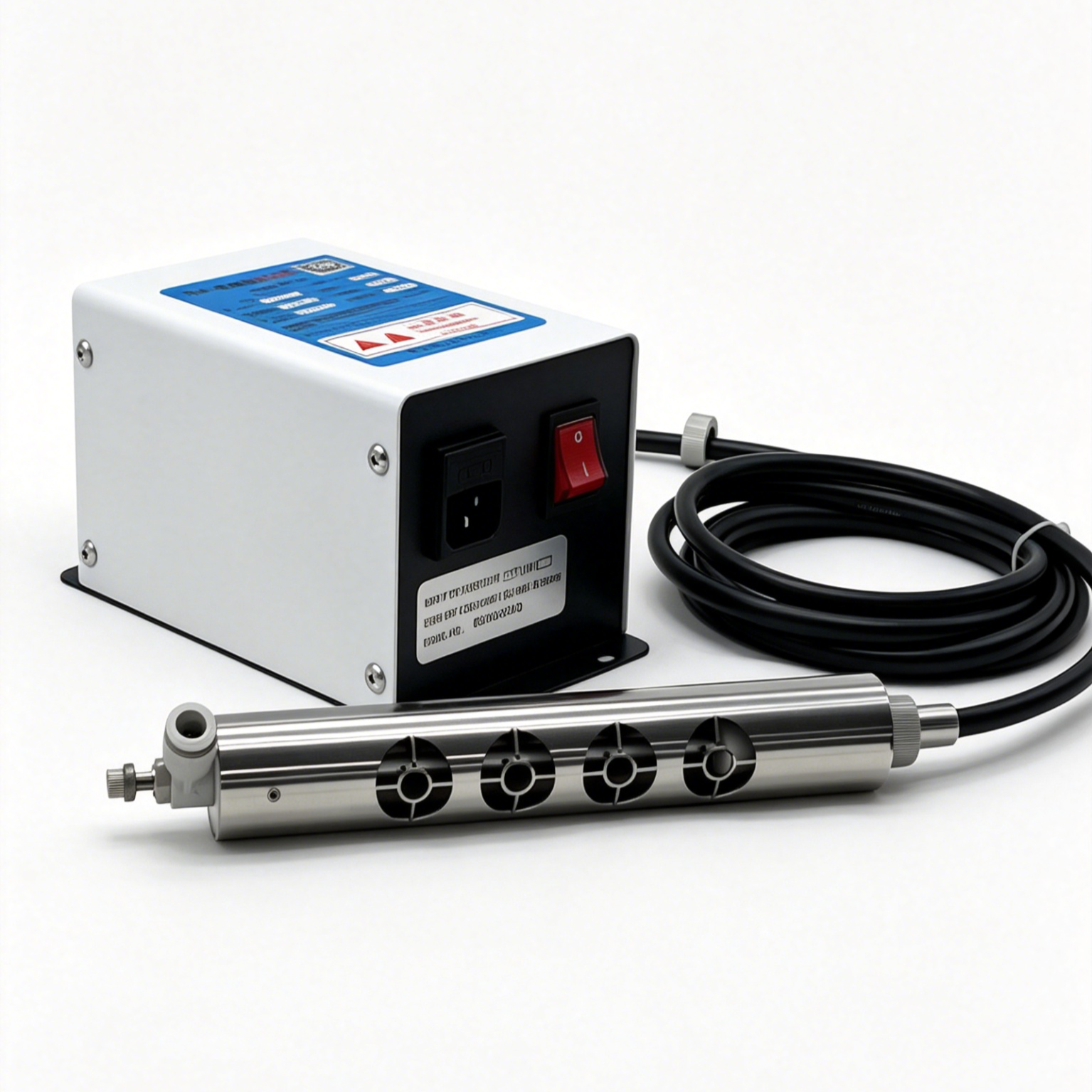

Ionizing air bars supply positive and negative air ions that reduce charge on accessible surfaces. Lower electrostatic attraction can make label movement more consistent when static is interfering with peeling or transfer.
Emitter points supplied with high voltage ionize nearby air. A charged surface attracts ions of the opposite polarity, reducing its net charge. This allows treatment of insulating materials that do not readily discharge through grounding.
The term ionizing air bar can describe different equipment arrangements. Some bars include dedicated air outlets, while other ionizing bars operate without compressed air. Buyers should establish how the proposed equipment delivers ions and whether its airflow is necessary for the intended installation.
Ionization reduces an electrical force; it does not reduce the adhesive’s intrinsic bond strength or change the release coating. A label that remains attached because of excessive release force, incomplete die cutting, or unsuitable construction still requires a material or process correction.
Ions need a path to the surface requiring treatment. Before peeling, the adhesive and release interface is buried. Once separation begins, newly exposed surfaces become accessible. Equipment placement must account for this sequence rather than relying only on treatment of the printed label face.
Charge can develop after an upstream treatment location. The liner may charge during peeling, and a product may arrive with its own charge. Separate treatment points are justified when measurements and trials identify distinct problems along the process.
Distinguish static problems by combining electrostatic measurements with inspection of release behavior and a controlled production trial. Mechanical and material conditions should be checked before attributing dispensing failures to charge.
Start with the label construction. Confirm the face material, thickness, dimensions, liner type, and adhesive specification. Small or highly flexible labels may need particular dispensing arrangements because they do not resist bending in the same way as larger, stiffer labels.
Inspect the peel edge and web path. Incorrect routing, contamination, worn components, or unsuitable tension can prevent consistent presentation. Where labels remain connected to surrounding material, inspect cut quality and material bridges rather than assuming electrostatic attachment.
Check the applicator sequence. Vacuum, air timing, product detection, conveyor movement, and label sensing can all affect transfer. Static control cannot correct a label being presented at the wrong moment or a product arriving outside its intended position.
If neutralization produces a repeatable improvement, static is likely contributing. If no improvement occurs, first confirm that the ions reached the relevant surfaces. An ineffective installation does not prove that static is absent.
Install ionizing equipment where it can reach charged surfaces before those charges disturb dispensing. Useful positions may include the exposed peel region, incoming product path, label transfer area, and waste liner route.
Near the peel edge, treatment should reach the label as relevant surfaces become exposed. Space is often limited, so a compact bar or localized nozzle may be more practical than a larger assembly. Dedicated labeling application guidance describes directing ionized airflow across a label as it separates from its release film. :chatgpt-content-reference{index="1"}
For product treatment, position equipment upstream of application where containers have a stable path and adequate exposure time. The treatment should address a measured issue rather than adding airflow around the final bonding point without a defined purpose.
Waste liner treatment can be considered when charge contributes to clinging after separation. However, liner rewind instability also requires checks of routing, tension, and roll condition. Neutralization should support a mechanically stable waste path.
| Potential position | Purpose | Key installation concern |
|---|---|---|
| Near the peel region | Reduce charge as surfaces become exposed | Access without disturbing label presentation |
| Incoming container path | Reduce product charge before application | Coverage, distance, and exposure time |
| Applicator transfer area | Address measured attraction during transfer | Interaction with vacuum and transfer airflow |
| Waste liner path | Reduce charge related clinging | Safe routing and repeatable clearance |
Maintain the clearances specified by the equipment manufacturer. Nearby grounded metalwork can influence ion delivery. Brackets should preserve alignment, allow cleaning, and keep cables and air hoses away from moving parts and access points.
Select an ionizing air bar according to treatment width, working distance, line speed, available space, material behavior, and environmental requirements. Verify performance on the actual dispensing process rather than relying only on nominal specifications.
Active treatment length must cover the relevant label or product path. Housing length alone does not establish useful coverage. Multiple label lanes or changing product formats may require a wider treatment area or separately positioned devices.
Distance and speed must be evaluated together. A bar effective close to a slowly moving surface may not provide sufficient treatment across a larger gap at full output. On intermittent dispensers, the timing of exposure can be as important as the average web speed.
Air assisted equipment introduces additional requirements for supply quality, consumption, pressure, and control. Equipment without dedicated airflow may be preferable where label movement is particularly sensitive, provided the required neutralization performance is demonstrated.
| Selection factor | Information to provide | What to verify |
|---|---|---|
| Label construction | Face material, liner, adhesive, and dimensions | Performance on representative production stock |
| Operating cycle | Speed, acceleration, and dwell periods | Adequate treatment during the actual cycle |
| Installation space | Available distance and surrounding structures | Approved clearances and surface access |
| Air supply | Available quality and capacity | Consumption and effect on label stability |
| Maintenance access | Cleaning opportunities and restrictions | Practical inspection and emitter cleaning |
| Environment | Temperature, cleaning conditions, and area requirements | Documented suitability for the location |
Monitoring features can help detect faults or maintenance needs, but they do not replace application testing. A useful purchasing specification defines the operating conditions and required dispensing result, not simply the presence of an ionizing system.
Airflow should deliver ions without destabilizing the label or interfering with the applicator. Direction, timing, and distribution should be optimized before increasing pressure.
Thin film labels respond readily to moving air. Excessive flow can change leading edge position, create flutter, or move a label away from its intended transfer path. The result may resemble the original dispensing problem even though electrostatic charge has been reduced.
Coordinate ionizing airflow with existing machine functions. A tamp applicator, vacuum belt, or air transfer system already uses controlled forces to hold and move the label. An additional air source should not undermine that balance.
Compressed air quality must suit the product and process. Oil, water, or particles introduced near exposed adhesive can create contamination. Verify filtration and air condition at the point of use rather than relying only on the central compressor arrangement.
During trials, record nozzle direction, pressure, and timing alongside electrical settings. Where practical, use a controlled comparison that helps distinguish the effect of airflow from the effect of ionization. This makes the source of improvement easier to assess.
Static control can reduce electrostatic particle attraction, which may support cleaner label application. It does not remove established adhesive contamination or directly increase the adhesive’s bonding capability.
Charged labels and containers can attract dust before bonding. Reducing charge may lower this attraction, particularly where contamination is present in the surrounding environment. However, source control and suitable cleaning remain necessary.
Particles already attached to exposed adhesive may remain bonded after neutralization. Preventing contamination before adhesive exposure is therefore preferable to attempting removal afterward. Keep packaging debris, dirty tools, and airborne dust away from the dispensing region.
Poor final adhesion also requires checks of substrate compatibility, surface cleanliness, application pressure, temperature, and contact time. A label that lifts because of unsuitable adhesive or a contaminated container needs those causes corrected.
Evaluate cleanliness and adhesion as separate outcomes during validation. An improvement in label positioning does not prove that bond strength has improved, and a cleaner appearance does not establish long term adhesion performance.
Verify improvement by measuring dispensing failures, placement consistency, and electrostatic conditions under comparable production settings. Acceptance should reflect sustained performance across representative materials and operating cycles.
Establish a baseline before installation. Separate missed applications, label presentation faults, transfer failures, and placement errors. Combining all rejects into one number can hide which problem responds to neutralization.
Use consistent electrostatic measurement geometry. Distance, target size, nearby conductors, and multilayer construction influence readings. A small label may require a different measurement arrangement from a broad moving web, and the instrument should be suitable for the intended assessment.
Normalize production results by the number of opportunities for failure. For example, dispensing faults per 10,000 application cycles are easier to compare than raw totals from runs of different lengths. This is an example reporting unit rather than a universal acceptance limit.
| Measure | Recommended record | Purpose |
|---|---|---|
| Dispensing reliability | Defined faults per application quantity | Tracks the original problem |
| Placement consistency | Position relative to a defined product reference | Checks alignment performance |
| Production downtime | Minutes lost to the relevant fault | Measures operational impact |
| Electrostatic condition | Reading, distance, position, and cycle state | Supports repeatable comparison |
| Material and settings | Lot, speed, tension, vacuum, and airflow | Controls important trial variables |
Repeat verification after representative operating time and during relevant roll changes or product format changes. Performance immediately after cleaning may differ from performance later in the shift. Final acceptance should include normal operating variability.
Reliable maintenance keeps emitters clean, air delivery consistent, mounting positions correct, and dispensing components free from contamination. Performance checks should confirm that maintenance restores the intended result.
Dust, liner fibers, and adhesive residue can accumulate around the dispensing area. Deposits near ionizing emitters may reduce useful ion delivery even while the power indicator remains illuminated. Inspect the equipment according to its instructions and actual contamination exposure.
Use approved cleaning methods and follow the plant isolation procedure. Avoid scraping emitter points or using chemicals that could damage insulating components. Where cleaning liquids are permitted, observe the specified drying requirements before restarting.
Inspect air filters, hoses, outlets, and connections on air assisted systems. Restricted flow can change treatment, while contaminated air can affect the product. Check the peel edge, guides, applicator surfaces, and sensors as part of the same maintenance routine.
After cleaning, confirm the verified mounting position and relevant settings. Record contamination observed, work completed, and postmaintenance performance. These records help establish an appropriate service interval and distinguish gradual fouling from material related changes.
Implement static control through a defined problem statement, baseline measurements, a controlled equipment trial, and documented operating limits. Expand the installation only when evidence identifies additional treatment needs.
Choose a representative label and product combination with a recurring problem. Document the symptom, frequency, operating speed, and current settings. Inspect release behavior and mechanical conditions before selecting equipment.
Trial treatment where the suspected charge becomes accessible. Keep major machine settings stable while evaluating neutralization, then optimize airflow and positioning through recorded adjustments. This approach makes the result reviewable and easier to reproduce.
Evaluate the complete cost and benefit. Include reduced rejects, fewer interventions, downtime changes, installation, maintenance, and air consumption where applicable. Avoid assuming a fixed percentage improvement because results depend on how strongly static contributed to the original fault.
Some specialized labeling processes deliberately use electrostatic charge to hold labels in position. Any neutralization project in such a process must preserve that intended function. Confirm the role of charge before applying a general strategy to remove it everywhere.
Ionizing air bars can improve label dispensing by reducing unwanted electrostatic attraction during peeling, presentation, and transfer. Their effectiveness depends on correct diagnosis, surface access, equipment selection, and integration with the applicator.
The first step is to distinguish electrical forces from release, adhesive, and mechanical problems. Static control delivers the greatest value when it addresses a confirmed contributor to an otherwise suitable dispensing process.
Position treatment where ions can reach the relevant surfaces, manage airflow carefully, and verify the actual dispensing result. Maintain both the ionizing equipment and the surrounding machine components so the improvement remains stable.
With measured acceptance criteria and repeatable operating procedures, manufacturers can use ionizing air bars to support more consistent label presentation, fewer transfer interruptions, and reliable production.
