Dust contamination before film lamination can turn a small surface cleanliness problem into a permanent product defect. Once two layers enter the laminating nip, trapped particles may appear as visible specks, raised spots, local bonding interruptions, or optical imperfections. Removing those particles afterward is often impractical, making prevention essential for consistent production.
The challenge is especially important when processing transparent packaging films, protective films, adhesive tapes, optical materials, and decorative laminates. These products combine surfaces that can retain static electricity with quality requirements that make even small contamination noticeable.
To reduce dust attraction before film lamination, neutralize static electricity on exposed film surfaces, remove existing particles with a suitable web cleaning system, capture the removed contamination, and protect the cleaned material until it reaches the laminating nip. Reliable results require coordinated control of incoming rolls, rollers, airflow, handling, and equipment maintenance.

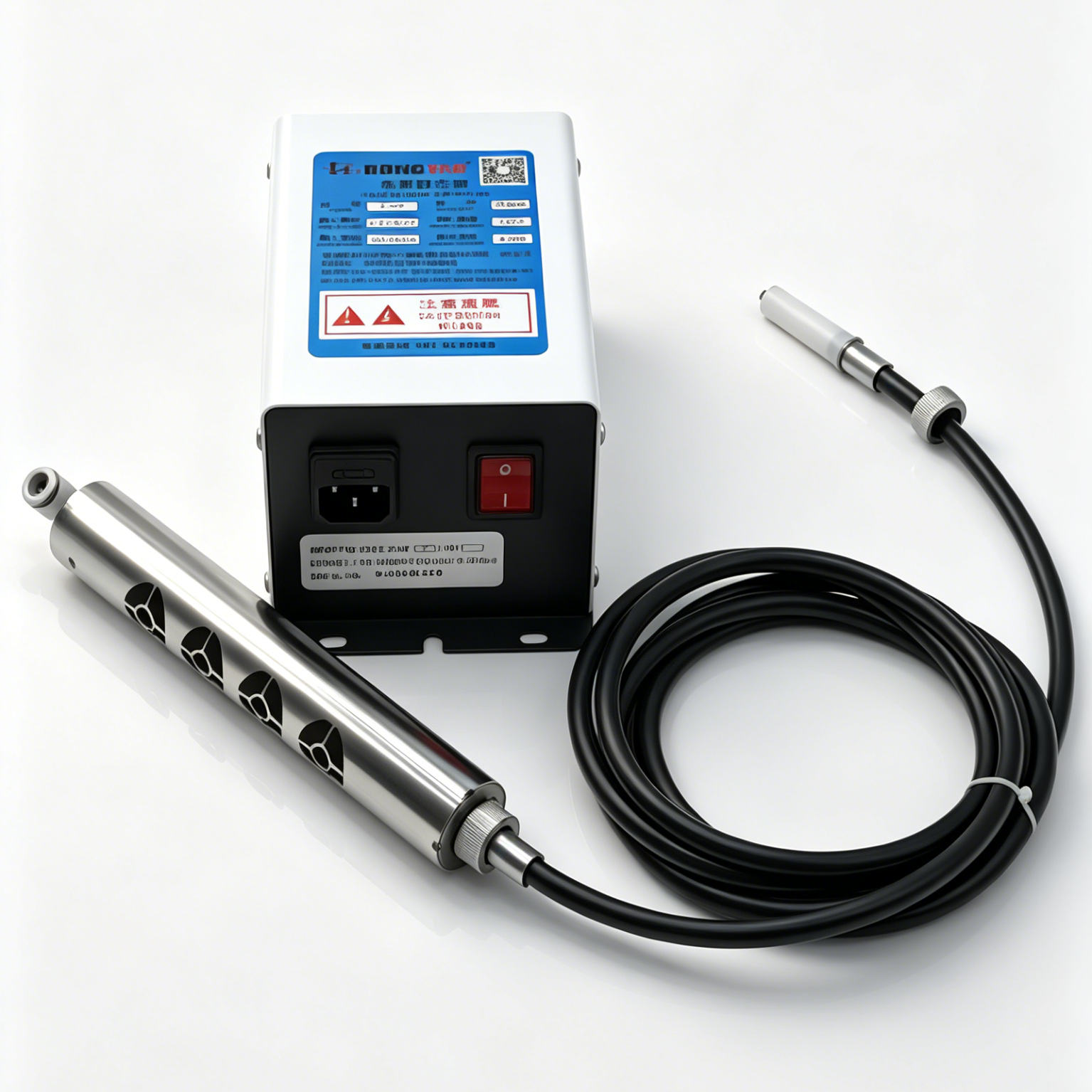

Installing an ionizing air bar can address electrostatic attraction, but it does not automatically remove particles already attached to the film. Likewise, cleaning a web provides limited benefit if the material immediately becomes charged again or passes through contaminated air.
A practical strategy therefore follows the complete material path. The sections below explain how to identify contamination sources, select cleaning and static control equipment, and verify improvements under actual production conditions.
Film attracts or retains dust because electrostatic forces, airflow, surface adhesion, and direct contact can all transfer particles to the web. Static electricity is an important contributor, but it is only one part of the contamination mechanism.
Plastic films repeatedly contact and separate from rollers, adjacent wound layers, protective liners, and other surfaces. These interactions can transfer electrical charge. Because many films are good electrical insulators, the charge may remain on their surfaces instead of readily flowing to ground.
A charged film can attract oppositely charged particles. It can also attract some electrically neutral particles through polarization. This helps explain why a film can collect contamination even when the airborne dust has not been deliberately charged.
Moving webs also carry a layer of air near their surfaces. Effective cleaning must interact with this airflow while removing particles. Equipment suppliers therefore combine different particle removal mechanisms with static control rather than relying on ordinary air blowing alone. :chatgpt-content-reference{index="0"}
Other forces remain important after electrostatic charge has been reduced. Fine particles may adhere through surface forces, moisture, oily residues, or tacky coatings. Consequently, a low static reading does not prove that a film is clean, and neutralization alone cannot guarantee removal of every particle.
Identify contamination sources by inspecting incoming materials, examining collected particles, and comparing film cleanliness at successive points along the web path. The objective is to determine where contamination first appears and where it increases.
Begin with incoming rolls. Outer wraps may carry warehouse dust, packaging fibers, or debris from transport and handling. Some rolls also contain contamination introduced during an earlier manufacturing stage. Comparing several material lots can reveal whether the problem follows the supplied material or the laminating process.
Next, inspect local sources around the machine. Cardboard cores, paper liners, worn rollers, trimming operations, damaged belts, and cleaning materials can release particles. Overhead structures and cable trays may accumulate dust that later falls onto exposed film.
Particle appearance can provide useful clues. Fibers suggest paper, textiles, or wiping materials. Repeating deposits may indicate a contaminated roller. Oily spots require investigation of lubricants, compressed air, or handling practices. These observations guide the investigation, although visual identification alone may not establish the exact source.
| Observed contamination | Possible source | Useful investigation |
|---|---|---|
| Paper fibers | Cores, cartons, liners, or wiping materials | Compare particles with nearby materials |
| Repeating marks | Contaminated or damaged roller | Compare defect spacing with roller circumference |
| Contamination concentrated near edges | Slitting debris, trim handling, or edge contact | Inspect cutting and extraction conditions |
| Random particles after a clean section | Airborne deposition or downstream contact | Inspect airflow and the remaining web path |
| Oily or smeared deposits | Lubrication, air supply, or handling residue | Check transfer points and air quality |
Use a fixed inspection method when comparing positions. Keep the inspected area, lighting, magnification, and particle classification consistent. Without this discipline, changes in inspection technique can be mistaken for changes in cleanliness.
Static neutralization reduces the electrostatic forces that attract particles to insulating film. An ionizing bar supplies positive and negative air ions to accessible surfaces, helping reduce charge before cleaning and contamination sensitive operations.
Ionizing equipment creates ions near its emitter points. A charged surface attracts ions of the opposite polarity, reducing its net charge. This makes ionization useful for plastic webs that cannot be effectively neutralized simply by grounding the machine frame.
Grounding remains necessary for conductive machine components. However, a grounded roller does not guarantee that an insulating film leaving it is neutral. The distinction matters when a production team sees properly grounded machinery and assumes that electrostatic dust attraction has already been controlled.
Ionization should be matched to the actual working distance, web speed, and treatment width. Equipment positioned outside its intended operating range may provide inadequate treatment even when it appears to function normally. Nearby metal structures, emitter contamination, and unfavorable airflow can also affect performance.
A reading from one side does not establish the condition of the other side. Where both surfaces contribute to contamination or where two separate webs enter a laminating nip, evaluate each relevant surface independently. Ions need access to the surface requiring treatment and cannot reliably neutralize an interface already buried inside a laminate.
Neutralization does not permanently change the film into a material that cannot charge. Later roller contact, liner peeling, or other separation events may generate new charge. Treatment positions should therefore follow the actual process sequence rather than a rule that one bar at the unwind station is always sufficient.
Choose a web cleaning method according to particle characteristics, film sensitivity, coating condition, production speed, and the required cleanliness. Contact and noncontact systems offer different advantages, and both require application specific validation.
Contact cleaning systems use a surface that touches the web and transfers particles away from it. Some arrangements use cleaning rollers with a separate collection mechanism. These systems can be effective for loose contamination on compatible substrates, but contact pressure, surface condition, and potential material transfer must be assessed.
Noncontact systems use controlled airflow, vacuum, or related mechanisms to remove particles without a cleaning surface touching the film. They can be useful where contact might damage a delicate coating or optical surface. Their effectiveness depends on cleaning geometry, web stability, particle adhesion, and adequate extraction.
Integrated systems often combine static neutralization with particle removal. The purpose is to reduce electrostatic holding forces while providing a separate mechanism to lift and collect contamination. The appropriate combination depends on the web rather than a universal preference for one technology. :chatgpt-content-reference{index="1"}
| Method | Potential application | Main consideration |
|---|---|---|
| Contact roller cleaning | Compatible dry films with loose particles | Check scratching, transfer, pressure, and collection capacity |
| Noncontact air and vacuum cleaning | Surfaces where contact is undesirable | Validate removal, capture, and film stability |
| Brush assisted extraction | Materials that tolerate mechanical agitation | Assess abrasion, brush wear, and particle shedding |
| Manual cleaning during setup | Accessible stationary components and limited preparation tasks | Control lint, residues, and repeatability |
| Ionization alone | Reduction of electrostatic attraction | Does not provide a complete particle collection mechanism |
Trials should use the actual film construction and relevant contaminants. A demonstration on a robust uncoated film may not represent a thin printed film or a sensitive functional coating. Inspect the cleaned surface for damage and residue as well as for remaining particles.
Exposed adhesive requires particular caution. Once contamination is bonded to a tacky surface, neutralization will not undo that adhesive bond. Wherever practical, remove contamination before coating or before exposing the adhesive interface.
Install cleaning and neutralization equipment where it can treat the relevant surfaces effectively while leaving the shortest practical, protected path to lamination. Positioning must also account for downstream rollers, charging events, web stability, and safe access.
Cleaning too far upstream leaves more opportunities for recontamination. The web may pass over dirty rollers, collect airborne particles, or become charged again. However, placing equipment immediately beside the nip is not automatically better if the available space prevents effective extraction or maintenance.
Evaluate both incoming webs. Cleaning the primary film while leaving a contaminated secondary film untreated can still produce particles trapped inside the laminate. The surfaces that will become the bonding interface deserve particular attention.
Where liner stripping occurs before lamination, the newly exposed surface may need treatment after separation. This arrangement must avoid disturbing exposed adhesive or directing dirty air toward it. Each outgoing liner path should also be examined because discarded material can carry contamination into nearby process areas.
The sequence may include neutralization within a cleaning head and further treatment downstream where fresh charge develops. The exact arrangement should be confirmed through measurements rather than adding equipment without identifying its purpose.
Control airflow so that clean film is protected from airborne contamination and removed dust is captured near its source. Avoid uncontrolled air jets, turbulent crossflows, and ventilation patterns that carry debris toward the laminating nip.
Ordinary compressed air can move dust without removing it from the production environment. A particle blown off one surface may land on another web, roller, or coating station. Where air cleaning is used, its direction and volume should work with a suitable collection system.
Air quality also matters. Compressed air may introduce particles, water, or oil if it is not treated appropriately. Specify air quality according to the film, coating, and product requirements, and verify the condition at the point of use rather than relying only on the compressor specification.
Local enclosures can reduce exposure between cleaning and lamination. Their design should preserve access and avoid creating new dust traps. Where filtered supply air or pressure control is used, the arrangement must be coordinated with extraction and any process ventilation requirements.
Humidity should remain within a range compatible with the materials and process. Increasing humidity may reduce charging for some surfaces, but it is not a dependable replacement for ionization on highly insulating films. Excess moisture can also affect certain substrates, adhesives, or storage conditions.
Thin or lightly tensioned films can flutter under excessive airflow. This may reduce cleaning consistency or introduce handling problems. Increasing pressure is therefore not a reliable first response to poor cleaning. Check nozzle geometry, extraction, distance, and web support before changing airflow settings.
Prevent recontamination by protecting incoming rolls, using clean handling practices, controlling particle generating materials, and keeping cleaned film away from unnecessary contact and exposure.
Keep rolls protected until they are needed. Remove dusty packaging in a designated preparation area where practical, rather than directly over an open web. Avoid placing roll ends, cores, or film surfaces on contaminated benches or floors.
Handling materials should suit the product. Low lint wipes, compatible gloves, clean tools, and appropriate protective covers can reduce contamination transfer. Gloves still become dirty during use, so wearing them does not eliminate the need for disciplined handling.
Outer wraps may require special treatment if they have been exposed during storage. Any removal or rejection procedure should be defined so operators do not unwind contaminated material through an otherwise clean path. Record recurring incoming contamination and discuss it with the material supplier.
Machine preparation is equally important. Clean rollers, guides, nearby ledges, and accessible enclosures before threading a fresh web. A clean roll can become contaminated immediately if it contacts residue left from the previous production run.
Verify improvement by measuring surface contamination, residual static, and finished laminate defects under comparable production conditions. Use all three measures because no single reading fully describes the cleanliness of the process.
For contamination measurement, define the inspected area and relevant particle size categories. Depending on the product, inspection may use controlled lighting, magnification, image analysis, or another validated method. Transparent and optical films often require attention to viewing conditions because contrast strongly affects detection.
For static measurements, use consistent instrument positioning and follow the instrument instructions. Distance, nearby conductors, web geometry, and multilayer construction can influence readings. Opposite charges on adjacent surfaces may partially cancel the external field, so a low reading does not always prove every surface is neutral.
For product quality, classify defects rather than recording only total rejects. Separate confirmed particle inclusions from bubbles, coating gels, wrinkles, and other defects. Otherwise, an unrelated process change can obscure whether the dust control measures worked.
| Measure | What to record | Why it matters |
|---|---|---|
| Surface particles | Count by defined size category and inspected area | Shows cleaning performance directly |
| Residual static | Reading, location, distance, speed, and material | Tracks electrostatic conditions consistently |
| Laminate inclusions | Confirmed particle defects per inspected area | Connects cleanliness to product quality |
| Operating conditions | Speed, tension, material lot, and environment | Supports meaningful comparisons |
| System condition | Cleaning status, extraction, and consumable condition | Helps explain performance changes |
Report normalized results. For example, comparing particle defects per 1,000 square meters is more informative than comparing raw defect totals from runs of different lengths. This unit is an example, not a universal acceptance standard.
Test at the intended production speed and across the web width. An acceptable center result at reduced speed does not demonstrate consistent performance at the edges or at maximum output. Repeat checks after representative operating time to identify deterioration as components collect contamination.
Effective maintenance keeps emitters clean, particle collection systems functional, cleaning surfaces suitable for use, and equipment positions repeatable. Maintenance intervals should follow instructions and observed performance trends.
Ionizing emitters can accumulate dust and process residue. Contamination may reduce useful ion delivery even while the power indicator remains on. Clean the equipment using approved methods, observe isolation procedures, and verify performance after maintenance.
Extraction systems require attention to filters, ducts, seals, and collection containers. A running fan does not prove that sufficient capture airflow reaches the cleaning head. Use the system’s specified checks and indicators to identify restrictions or leaks.
Contact cleaning components need inspection for contamination loading, wear, surface damage, and material transfer. Consumables should be changed according to validated limits rather than waiting until obvious defects appear in finished production.
Document equipment settings and mounting positions. Cleaning heads or ionizing bars moved during maintenance should return to their verified operating position. Small changes in distance, angle, or web clearance can affect results and make troubleshooting unnecessarily difficult.
Build the improvement plan around a defined defect, a measured baseline, and a controlled trial. Address obvious contamination sources first, then validate the combination of neutralization, cleaning, capture, and protected transport.
Begin with one representative product and identify its main dust related defect. Record where it occurs, how it is inspected, and its frequency per production area. This gives the team a concrete outcome to improve.
Correct visible housekeeping and handling weaknesses before evaluating new equipment. Dirty rollers, open cartons beside the web, ineffective extraction, or contaminated air can overwhelm an otherwise suitable cleaning system. Removing these sources also makes equipment trials easier to interpret.
Run trials under comparable conditions and record each change. Where practical, separate the effect of static neutralization from the effect of particle removal, then evaluate the combined arrangement. This helps identify whether remaining contamination reflects poor cleaning, reattraction, or a new downstream source.
Translate the successful trial into a written operating procedure. Include material preparation, approved settings, inspection frequency, maintenance triggers, and actions when performance falls outside the accepted range. This makes the improvement repeatable across shifts and material changes.
Reducing dust attraction before film lamination requires a complete contamination control process: limit particle sources, neutralize static, remove and capture existing dust, and protect the cleaned surfaces until bonding.
Ionizing air bars are valuable where electrostatic attraction contributes to contamination. Their performance depends on surface access, working distance, web speed, and maintenance. They should support a cleaning strategy that physically removes particles rather than being expected to perform that task alone.
The remaining web path deserves equal attention. Clean rollers, controlled airflow, protected material handling, and suitable equipment placement help preserve the benefit achieved at the cleaning station.
The most reliable approach is to measure the problem, validate improvements on the actual film, and maintain the conditions that produced the result. This gives manufacturers a practical route to cleaner laminate interfaces, fewer particle inclusions, and more consistent product quality.
