Plastic sheets that refuse to separate can interrupt printing, packaging, thermoforming, die cutting, and automated assembly. A feeder designed to lift one sheet may pick up two, miss a cycle, or deliver material at an incorrect angle. Operators may respond by increasing air pressure or adjusting vacuum, only to find that the problem returns with the next stack.

These feeding problems often involve several interacting causes. Electrostatic attraction is common, but surface blocking, contamination, restricted air entry, sheet deformation, and unsuitable feeder settings can create similar symptoms. Understanding the attachment mechanism is essential before choosing a corrective action.

Plastic sheets stick together during feeding because electrostatic attraction, surface blocking, contamination, or resistance to air entering between sheets can prevent clean separation. Feeder settings, stack condition, and sheet geometry can make the problem worse. Effective correction combines diagnosis, suitable static neutralization, controlled sheet separation, clean material handling, and verified machine settings.

An ionizing air bar can reduce electrostatic forces, but it cannot remove an adhesive bond or correct damaged sheet edges. Likewise, increasing separation airflow may temporarily improve feeding while leaving the underlying cause unresolved.

This guide explains how to identify the main causes of sheet sticking, select appropriate corrective measures, and verify reliable feeding under actual production conditions.

What Causes Plastic Sheets to Stick Together?

The main causes are electrostatic attraction, surface blocking, contamination, restricted air entry between contacting sheets, and mechanical feeding conditions that fail to separate them consistently.

Plastic sheets often have smooth surfaces and relatively low electrical conductivity. When stacked closely together, they can develop extensive surface contact while retaining electrical charge. These properties make separation more demanding than it may appear from a simple manual handling test.

Different attachment mechanisms require different solutions. Electrostatic attraction responds to effective neutralization. Surface blocking may require changes in material formulation, storage, cooling, or coating condition. Contamination requires cleaning or source elimination, while feeder problems require mechanical adjustment.

The sheet construction also matters. Thin flexible film, rigid plastic sheet, coated stock, and protective film covered panels behave differently. A feeder setup that works well for one material may be unsuitable for another material of similar dimensions.

More than one cause may be present. For example, static attraction can hold sheets together while insufficient separation airflow prevents the feeder from overcoming that attraction. Correcting only one contributor may improve performance without fully resolving the problem.

How Does Static Electricity Interfere with Sheet Feeding?

Static electricity creates attractive forces that can make adjacent sheets move together instead of separating individually. It can also make sheets cling to guides, conveyors, and other machine surfaces.

Charge can develop during extrusion, protective film removal, cutting, conveying, stacking, and feeding. Contact followed by separation transfers charge between surfaces. Many plastic materials retain that charge because it does not readily flow through the material to ground.

Oppositely charged surfaces attract each other. A charged surface may also attract another surface through polarization, so the behavior cannot be explained simply by assuming that every sheet has the same polarity. Charge distribution can vary across a sheet and between its two faces.

During pickup, the second sheet may follow the first because electrostatic attraction resists separation. Static can also interfere with alignment as sheets slide or overlap during feeding. Industrial sheet feeder guidance describes introducing ionized air between upper sheets to reduce the charge holding them together. :chatgpt-content-reference{index="0"}

Grounding conductive machine components remains necessary, but it does not guarantee that an insulating plastic sheet is neutral. A grounded feed table can remain electrically controlled while the material above it retains charge. This distinction is important when diagnosing a feeder that appears properly grounded.

How Is Surface Blocking Different from Static Attraction?

Surface blocking is adhesion between contacting material surfaces, while static attraction is an electrical force. Blocking can remain after neutralization and may require material, temperature, pressure, or coating related corrections.

Some plastic surfaces adhere more strongly after prolonged contact, especially when the material is warm or subjected to pressure. The extent depends on the polymer, surface layers, coatings, additives, and storage conditions. A stack may therefore become harder to separate after storage even if the feeder has not changed.

Coatings introduce additional possibilities. Inadequately dried or cured surfaces may transfer or adhere under stack pressure. Adhesive contamination, oils, and other residues can also create localized sticking that an ionizing bar cannot remove.

Material suppliers may use antiblock additives to reduce intimate contact between suitable film surfaces. Slip additives address friction and should not automatically be treated as interchangeable with antiblock additives. Supplier technical guidance explains that antiblock particles can create microscopic surface separation that helps reduce blocking. :chatgpt-content-reference{index="1"}

Any formulation change requires validation against the finished product requirements. Additives may influence appearance, surface behavior, printing, bonding, or other functions. Manufacturers should avoid applying powders, sprays, or improvised release agents without confirming compatibility with downstream operations.

Why a Neutralization Trial Helps

If controlled neutralization substantially improves separation under otherwise comparable conditions, static is likely contributing. If strong attachment remains, investigate blocking and other mechanisms. Neither result should be interpreted without considering whether ions actually reached the contacting surfaces.

How Can You Diagnose the Cause of Double Feeding?

Diagnose double feeding by comparing material condition, electrostatic measurements, separation behavior, and feeder performance under controlled conditions. Change one major variable at a time and record the result.

Begin by identifying when the problem occurs. Record whether it follows a particular material lot, appears after long storage, worsens near the bottom of a stack, or develops only at higher speeds. These patterns help distinguish material problems from machine setup limitations.

Inspect representative sheets from different stack depths. Look for curl, rough edges, coating transfer, contamination, and differences in surface appearance. Where manual separation is assessed, remove samples safely and use a consistent procedure rather than reaching into operating equipment.

Measure electrostatic conditions at repeatable positions using the instrument instructions. Instrument distance, sheet size, nearby metalwork, and stack geometry influence the result. A reading above the stack does not necessarily describe the electrical condition at every interface within it.

1. Document the material, thickness, dimensions, and storage history.
2. Record the feeder speed, stack height, vacuum, and air settings.
3. Inspect sheets for deformation, residue, and edge defects.
4. Measure accessible surfaces using consistent geometry.
5. Trial suitable neutralization without changing other major settings.
6. Evaluate controlled airflow and pickup adjustments separately.
7. Compare failure rates over a representative production quantity.

A low external field reading does not prove that all sheets are free of charge. Opposite charges within a stack can partially cancel the field measured outside it. Measurements should therefore support the investigation rather than replace observation of actual separation performance.

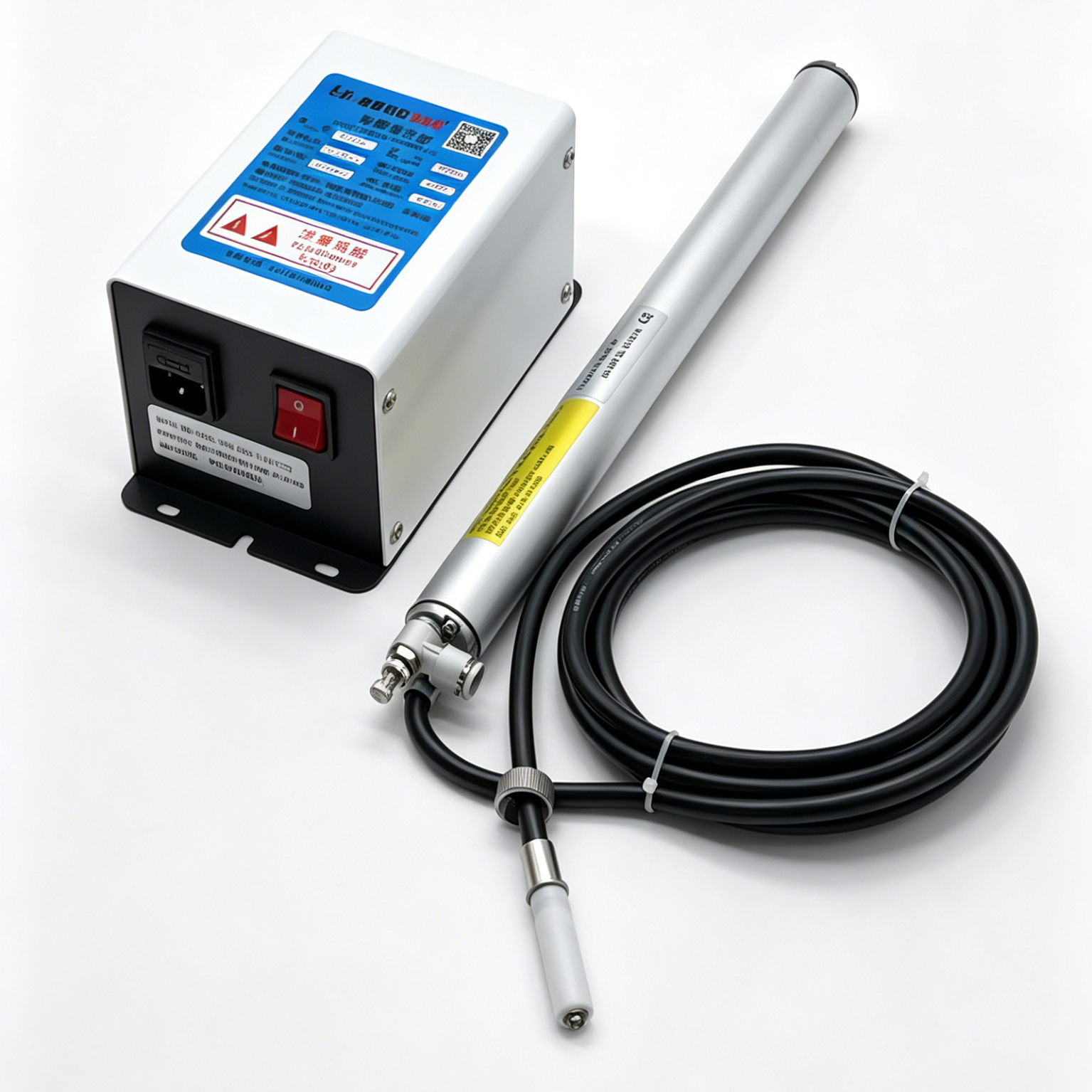

How Can Ionizing Equipment Improve Sheet Separation?

Ionizing equipment can improve separation by reducing charge on accessible sheet surfaces. Where sheets are tightly stacked, ionized airflow may help deliver ions into the opening created between the upper sheets.

Ionizing emitters generate positive and negative air ions. Charged surfaces attract ions of the opposite polarity, reducing their net charge. This treatment can lower the electrostatic force that causes a second sheet to follow the first during pickup.

Access is critical. An ionizing bar aimed only at the top face of a stack cannot reliably neutralize every buried interface. Effective sheet feeder arrangements often coordinate ion delivery with edge lifting or controlled air separation so treatment reaches the relevant surfaces.

Equipment selection should consider sheet width, available distance, feeder speed, and material sensitivity. An ionizing nozzle may suit a focused opening, while a bar or air curtain may provide broader coverage. The appropriate arrangement depends on the feeder geometry rather than a universal preference for one device type.

Airflow should be strong enough to support the intended separation function without scattering sheets or disrupting alignment. Excessive pressure can create flutter and inconsistent pickup. Validate the complete arrangement at the intended production speed and across the full operating sheet size.

Which Feeder Settings Should Be Checked?

Check vacuum level, pickup cup condition, separation airflow, timing, stack presentation, and mechanical separator settings. These controls must match the sheet’s thickness, stiffness, surface condition, and dimensions.

Vacuum should provide reliable pickup without unnecessary deformation. Excessive suction can lift a flexible sheet in a way that allows the next sheet to follow, while insufficient suction can cause missed feeds. Cup size, location, cleanliness, and wear also influence the result.

Separation air must reach the relevant edges at the correct point in the cycle. A nozzle with adequate pressure but poor direction may contribute little useful separation. Check blocked outlets, leaks, timing, and the actual airflow pattern around the stack.

Stack height control affects pickup geometry. If the top sheet moves outside the intended operating range as the stack changes, feeding can become inconsistent. Guides that are too tight may restrain separation, while excessive clearance can allow skewing.

Mechanical separator devices should follow the machine instructions. Where a feeder uses fingers, brushes, pads, or other separation features, inspect their condition and adjustment. Increasing contact force without understanding the material can scratch sheets or create new feeding resistance.

Use Speed Reduction as a Diagnostic Step

A temporary reduction in speed can reveal whether timing or available separation time contributes to the problem. However, successful feeding at a reduced rate does not establish that the process is suitable for the required output. Final acceptance should use the intended production conditions.

How Do Storage and Handling Affect Feeding?

Storage and handling influence charge, blocking, sheet flatness, and contamination. Protecting material and controlling temperature exposure, stack pressure, and preparation practices can reduce feeding variability.

Store sheets according to supplier guidance. Avoid unnecessary exposure to heat and excessive loading that may change surface contact or flatness. A material that separates well when freshly produced may behave differently after extended storage under unsuitable conditions.

Where temperature differences are significant, allow material to reach suitable processing conditions using a defined procedure. Avoid opening cold material in a way that permits condensation on its surfaces. Any conditioning period should reflect the actual material and packaging rather than a fixed rule for every plastic.

Protect sheet edges and maintain stack alignment. Rough cutting, burrs, curl, and damaged corners can mechanically interfere with separation. Check whether problems originate during sheeting or transport before assuming the feeder is responsible.

Remove dirty packaging away from exposed production surfaces where practical. Use clean handling tools and suitable gloves, and avoid sliding sheets across contaminated benches. Handling controls should preserve the surface properties needed for printing, coating, or bonding.

What Role Do Humidity, Cleanliness, and Air Quality Play?

Environmental conditions can influence charging and contamination, but they should support direct process control rather than substitute for it. Maintain conditions compatible with the material, keep the feeder clean, and use suitable air quality at the point of application.

Low humidity can increase charge retention for some materials and surfaces. However, the relationship depends on material chemistry and surface condition. Highly insulating plastics may still require ionization under otherwise comfortable factory conditions.

There is no single humidity setting that guarantees reliable feeding for every plastic sheet. Excess moisture may affect certain coatings, adhesives, or adjacent materials. Establish an appropriate operating range with the material supplier and verify its effect on production.

Contamination on pickup cups, rollers, and guides can change friction or transfer residue to the sheets. Dust may also affect sensors and make feeding errors harder to detect. A cleaning routine should cover the complete feeder path rather than only the visible top of the stack.

Compressed air used for separation should meet the process cleanliness requirements. Oil, water, or particles introduced through the air system can create defects or localized adhesion. Inspect filtration and drainage, and verify air condition where it reaches the feeder.

How Should Feeding Improvements Be Measured?

Measure improvements using normalized feeding failure rates, downtime, sheet damage, and electrostatic observations under comparable conditions. A successful solution should provide stable separation throughout a representative production run.

Define failure categories before testing. Double feeds, missed pickups, skewed sheets, and downstream jams should be recorded separately. Combining all interruptions into one total can hide whether a change fixed one problem while creating another.

Use comparable production quantities and material conditions. For example, failures per 10,000 feeding cycles provide a clearer comparison than raw failure totals from runs of different lengths. This is an example reporting unit rather than a universal acceptance requirement.

Record operating speed, sheet specification, material lot, stack condition, environmental conditions, and equipment settings. Include ionizer condition and separation air settings where relevant. These details make the result reproducible across shifts.

Verify performance through changes in stack height and after representative operating time. A short test using only the upper sheets may overlook problems deeper in the stack. Where double sheet detection is fitted, confirm that it functions correctly as an additional process control.

How Can Manufacturers Prevent Recurring Problems?

Prevent recurrence by documenting material requirements, validated feeder settings, static control positions, maintenance routines, and inspection limits. Review these controls whenever the sheet construction or production conditions change.

Create setup records for each relevant material family. Include thickness, dimensions, surface construction, pickup arrangement, air settings, and approved operating speed. Materials that appear similar may require different settings because their stiffness, friction, or electrical behavior differs.

Maintain ionizing equipment according to its instructions. Emitter contamination, changed mounting distance, or restricted air delivery can reduce performance. After cleaning or adjustment, return the equipment to its verified position and confirm the feeding result.

Inspect feeder consumables and air systems routinely. Worn cups, dirty filters, blocked nozzles, and damaged guides can gradually reduce the operating margin until intermittent sticking becomes a frequent stoppage. Maintenance records help identify this deterioration before it affects a full production run.

1. Define incoming sheet flatness, cleanliness, and separation requirements.
2. Document approved storage and preparation practices.
3. Maintain material specific feeder setup records.
4. Verify static treatment at the relevant surfaces.
5. Inspect pickup and separation components regularly.
6. Track feeding failures by material lot and operating condition.
7. Revalidate after significant material or machine changes.

Work with the material supplier when sticking follows a particular lot or construction. Provide storage history, separation observations, and production data. This evidence supports investigation of blocking, coating condition, or formulation compatibility without assuming that every problem originates in the feeder.

Conclusion

Plastic sheets stick together during feeding when electrical attraction, surface adhesion, restricted air entry, or unsuitable handling conditions prevent individual separation. Reliable correction starts with identifying the mechanism and matching the solution to it.

Ionizing equipment can reduce electrostatic attraction when ions reach the affected surfaces. Controlled airflow and appropriate pickup settings then help the feeder separate and transport one sheet at a time.

Persistent attachment after effective neutralization requires investigation of blocking, residues, sheet deformation, and mechanical conditions. Storage and handling practices should also be reviewed because material condition can change before it reaches the machine.

Documented settings, consistent measurements, and routine maintenance make the improvement repeatable. With these controls in place, manufacturers can reduce double feeding, unnecessary adjustments, and production interruptions while protecting sheet quality.
