Ionizing air bars are widely used in electronics manufacturing, plastic processing, printing, packaging, film converting, semiconductor production, automotive assembly, optical manufacturing, and other industrial environments where static electricity can interfere with production. When correctly installed, an ionizing air bar can deliver balanced positive and negative ions across a target surface, helping reduce electrostatic charge, dust attraction, material adhesion, electrostatic discharge risk, and unstable product handling.
However, installation quality has a direct impact on static elimination performance. Even a properly selected ionizing air bar may provide unsatisfactory results if it is mounted too far from the target, positioned at the wrong angle, blocked by machine components, exposed to unsuitable airflow, or installed without proper electrical and mechanical consideration. Correct installation therefore requires more than simply attaching the bar to a machine frame.
To install an ionizing air bar correctly, position the active ionization section so that it covers the complete charged area, maintain an appropriate working distance from the target, keep the ion path free from unnecessary obstructions, use secure mechanical mounting, route power and air connections safely, avoid unsuitable grounded objects near the emitter points, and verify static decay performance after installation. The final mounting position should be determined according to the material width, line speed, static generation point, airflow, machine geometry, and required neutralization performance.
The installation should also be planned around where static electricity is actually generated. In many production processes, the strongest electrostatic charge appears immediately after separation, peeling, friction, rolling, cutting, unwinding, or contact between different materials. Installing the ionizing air bar close to the correct process location can significantly improve performance compared with placing it at a convenient but ineffective location.
This guide explains how to determine the best installation position, how to select the correct working distance and angle, how to mount the bar safely, how to avoid common installation errors, and how to test the system after installation. It can be used as a practical reference for new equipment installation, production line modification, and static control optimization.
Before installing an ionizing air bar, check the target dimensions, static generation location, available mounting space, working distance, production speed, airflow, nearby grounded structures, electrical requirements, air supply requirements, and maintenance access.
A successful installation begins with understanding the process rather than choosing a mounting location based only on convenience. Static electricity is generated through contact, separation, friction, peeling, material movement, and induction. The ionizing air bar should therefore be installed where it can treat the charged material before that charge creates a production problem.
For example, a plastic film may become strongly charged as it separates from a roller. Installing the ionizer far upstream may provide little benefit because the film can become charged again after passing the treatment point. In such a case, the more effective position is often after the separation point, where the newly generated electrostatic charge can be neutralized quickly.
The physical dimensions of the target should also be measured carefully. The active ionization area must cover the complete treatment width, including expected material movement and edge variation. If a web moves from side to side during production, the installation should allow sufficient treatment margin so that both edges remain inside the effective ionization zone.
Collecting this information before mounting the bar helps avoid repeated adjustments after the machine has already entered production.
An ionizing air bar should be installed as close as practical to the point where static electricity is generated or where static begins to affect the process, while maintaining a clear and effective ion path to the charged surface.
The installation point is one of the most important factors affecting static neutralization. Static electricity can be generated repeatedly throughout a machine. A material that has been neutralized at one location may become charged again after passing over rollers, through guides, across belts, or through cutting and separation processes.
For this reason, the ionizing bar should normally be positioned downstream of the major static generation point. In film processing, this may be after unwinding or roller separation. In printing, it may be before a sensitive feeding or stacking section. In electronics assembly, it may be above the handling area where charged components or trays are exposed.
The best mounting position should also allow ions to reach the target without passing through unnecessary metal structures. Guards, brackets, frames, rollers, and covers can intercept ions or distort the electric field. A direct and unobstructed path generally improves ion transfer efficiency.
| Production Process | Common Static Generation Point | Possible Ionizing Bar Position |
|---|---|---|
| Film Unwinding | Material separation from roll | After separation point |
| Printing | Feed rollers and sheet separation | Before feeding or stacking area |
| Plastic Converting | Slitting, peeling, or rolling | Near the charged material after separation |
| Electronics Assembly | Component handling and tray movement | Above or beside the handling area |
| Packaging | Film feeding and sealing | Before material handling problem occurs |
| Sheet Processing | Sheet separation and stacking | Before stack formation |
In many applications, identifying the actual static generation point is more important than simply finding the most convenient empty space on the machine.
The correct installation distance is the distance that allows sufficient ion density to reach the target while covering the required area and achieving the necessary static decay performance.
Working distance directly influences how effectively ions reach the charged surface. At shorter distances, ion concentration is generally higher because the ions travel through less air before reaching the target. This can improve static decay speed and reduce losses caused by ion recombination and surrounding structures.
At longer distances, the ionized area may spread more widely, but ion concentration usually decreases. This can result in slower neutralization, particularly when the material moves quickly or carries a high electrostatic charge.
The installation distance should therefore be selected according to the actual operating range of the ionizing bar and the needs of the process. The closest possible mounting position is not always practical because moving products, machine vibration, material thickness changes, or maintenance requirements may require additional clearance.
| Working Distance | Ion Density at Target | Coverage Spread | Typical Static Decay |
|---|---|---|---|
| Short | Higher | More Concentrated | Generally Faster |
| Medium | Moderate | Balanced | Suitable for Many Processes |
| Long | Lower | Potentially Wider | Generally Slower |
Installation distance should be verified through actual static measurements because machine geometry, airflow, emitter condition, and target material can all influence real performance.
The active ionization area should be aligned directly with the charged surface so that the complete target, including both edges and normal product movement, remains within the effective treatment zone.
Correct alignment is essential for consistent static neutralization. If the ionizing bar is shifted too far to one side, the opposite edge may receive insufficient ion density. This is especially common in web processing, where a bar is mounted according to the machine centerline while the actual material position changes during operation.
The active emitter section should therefore be centered over the required treatment area whenever a symmetrical installation is appropriate. If the material can move laterally, the bar should provide enough additional coverage to account for this movement.
The target surface should also face the ionizing section as directly as possible. Installing the bar behind a roller, cover, shield, or frame may significantly reduce effective ion delivery. If direct mounting is impossible, the installation angle and airflow should be adjusted to create a clear path toward the charged area.
Alignment should always be evaluated according to the active ionization section rather than the overall physical housing.
The ionizing air bar should generally be positioned so that ions are directed toward the charged surface with the clearest possible path, while the exact angle should be adapted to machine geometry, product movement, airflow, and accessibility.
A direct orientation toward the target usually provides the simplest ion transport path. In many applications, the emitter side faces the target surface at a near perpendicular orientation. However, some machines do not provide enough space for direct mounting, making an angled installation necessary.
An angled position can also be useful when the ionizing bar needs to treat a material near a roller, edge, or separation point. Instead of directing ions toward a grounded roller, the bar may be angled slightly toward the free material surface so that more ions reach the charged target.
The installation angle should not create a situation where ions are directed primarily toward metal structures. Grounded machine components can attract ions and reduce the quantity reaching the intended material.
The most effective angle is therefore the one that creates a clear ion path and delivers the required static reduction across the entire target.
The ionizing air bar should be mounted securely using rigid supports that prevent vibration, movement, or contact with the product while still allowing adjustment and maintenance access.
Mechanical stability is important because changes in position can alter working distance and ion distribution. A mounting bracket that gradually loosens due to machine vibration can change the static elimination performance without any obvious electrical fault.
The mounting structure should therefore be strong enough to maintain the selected position during normal production. Long bars may require support at multiple points to prevent sagging or vibration. The mounting method should also allow technicians to clean the emitter points and inspect the bar without requiring major machine disassembly.
Clearance from moving equipment is equally important. Film, sheets, conveyor products, robot arms, fixtures, and operators should not come into contact with the emitter area. The bar should be positioned outside the normal movement envelope while remaining close enough for effective treatment.
A mechanically stable installation helps ensure that the static control performance measured during commissioning remains consistent during long term operation.
Power and air connections should be routed securely, protected from mechanical damage, kept away from moving machine parts and excessive heat, and installed according to the electrical and pneumatic requirements of the ionizing system.

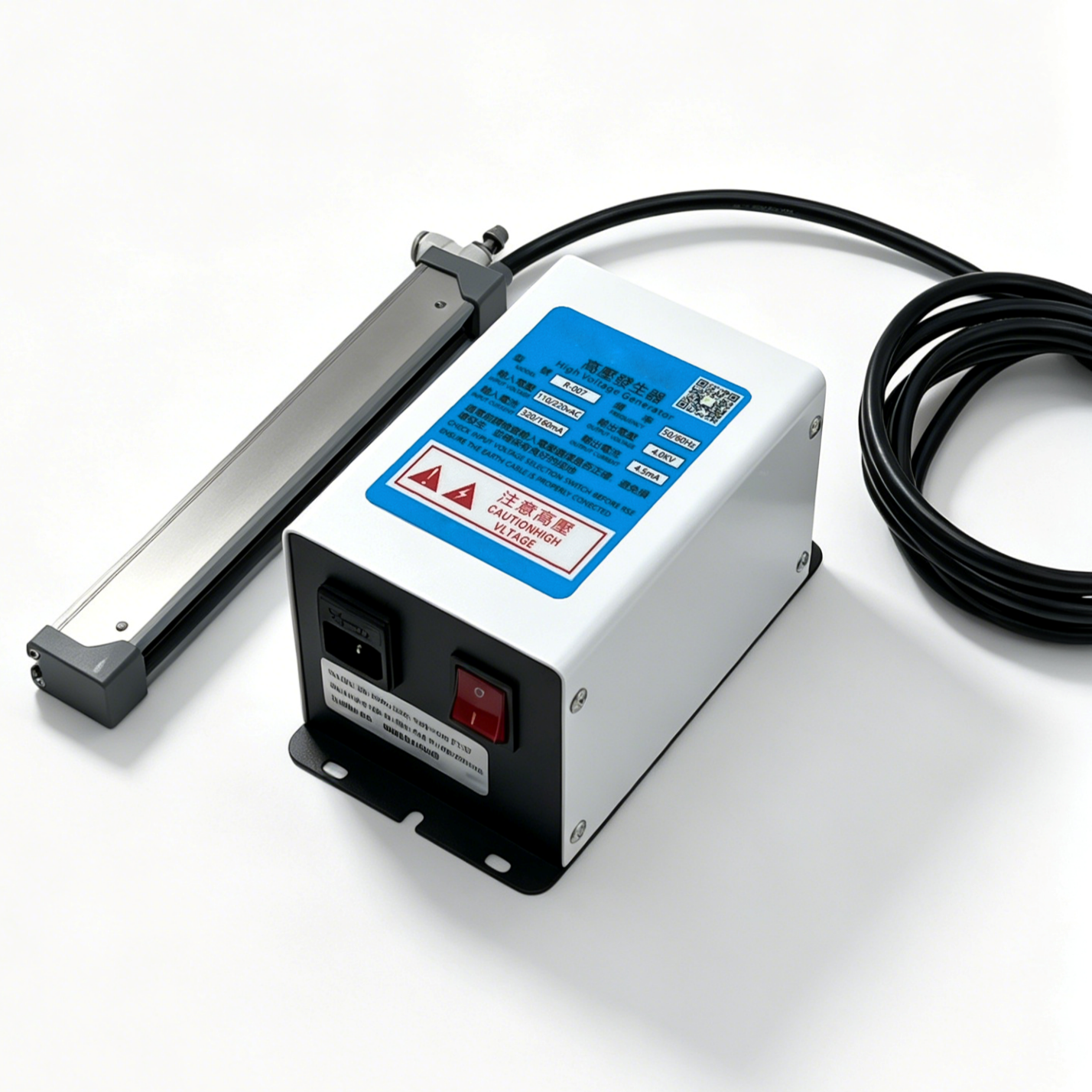

Ionizing air bars may use different power architectures. Some systems contain integrated high voltage generation, while others rely on an external power source. Regardless of configuration, electrical cables should be routed so that they are not repeatedly bent, crushed, pulled, or exposed to sharp edges.
Cables should not be allowed to hang loosely near moving rollers, belts, conveyor systems, or robot mechanisms. Cable routing should also allow enough service access for maintenance without placing tension on connectors.
If the ionizing bar uses compressed air, the air line should be connected using appropriate fittings and should be kept free from leaks, sharp bends, and unnecessary restrictions. Clean air is important because oil, moisture, or particulate contamination can accumulate near the emitter points and reduce performance.
Correct connection installation improves both performance and reliability while reducing unexpected machine stoppages caused by damaged cables or contaminated air supply.
Grounded machine components can attract ions and distort the electric field, so unnecessary grounded objects should not be positioned directly between the ionizing air bar and the charged target.
Metal machine frames, rollers, brackets, guards, and covers are often electrically grounded for safety and process reasons. These grounded structures can influence ion movement because ions may be attracted toward them before reaching the charged material.
If an ionizing bar is mounted very close to a large grounded metal surface, a significant portion of the ion output may be directed toward the metal rather than the target. This reduces useful ion density and can create uneven static neutralization.
For example, mounting a bar so that its emitter points face a grounded roller while the charged film passes behind the roller can be less effective than positioning the bar where the emitters face the free film surface directly.
Grounded structures cannot always be removed, but their effect should be considered when choosing the final installation position.
Airflow can improve ion transport when it moves ions toward the target, but cross airflow, exhaust systems, cooling fans, or excessive turbulence can redirect ions and reduce coverage consistency.
Industrial machines often contain substantial air movement. Cooling fans, pneumatic systems, dust extraction, cleanroom ventilation, material movement, and machine enclosures can all change the path of ions.
If airflow moves in the same general direction as the ion transport path, it may help carry ions toward the target and improve treatment at longer distances. If airflow moves sideways or away from the material, it can reduce ion concentration where neutralization is needed.
Airflow should therefore be evaluated while the machine operates normally. A static test performed with fans or exhaust systems turned off may give results that do not represent actual production conditions.
| Airflow Condition | Possible Effect | Installation Consideration |
|---|---|---|
| Airflow Toward Target | May improve ion transport | Can support greater working distance |
| Cross Airflow | May shift ion field sideways | Check edge performance |
| Airflow Away From Target | May reduce ion delivery | Reposition bar if possible |
| Strong Turbulence | May create uneven ion distribution | Test multiple points |
Where airflow cannot be changed, the bar position and angle may need to be adjusted to compensate.
On moving production lines, the ionizing air bar should be installed where the material receives complete width coverage and enough exposure time for charge reduction before reaching the next sensitive process stage.
Production speed has a direct effect on neutralization because fast moving materials remain inside the treatment zone for less time. An installation that performs well at low speed may become insufficient when the machine reaches full production speed.
The available treatment time can be estimated from the effective treatment length and material velocity.
Exposure Time = Effective Treatment Length / Material Speed
For example, if a material passes through an effective ionization zone of 0.30 m while moving at 2 m/s:
Exposure Time = 0.30 / 2 = 0.15 seconds
The ionizing system therefore has approximately 0.15 seconds to reduce the charge before the material leaves the treatment zone.
For very fast lines, the ionizing bar may need to be positioned closer to the material or multiple treatment points may be necessary to provide enough exposure time.
Multiple ionizing air bars should be positioned so that their treatment zones provide continuous coverage without weak areas, while each bar is located near the relevant static generation point.
Multiple bars may be required when the target is wider than one active ionization section, when both sides of a material require treatment, or when static is regenerated at several stages of the production process.
When two bars are installed side by side across a wide web, the treatment zones should be arranged so that the junction does not create a low ion density region. The required overlap should be determined through practical measurement because effective ion distribution varies with distance and airflow.
Bars installed at different process stages should be treated as separate static control points. Each unit should be positioned according to the local static generation mechanism rather than simply spaced evenly along the production line.
Each treatment zone should be tested independently and as part of the complete process.
After installation, test the ionizing air bar by measuring electrostatic voltage or static decay performance at several positions across the target while the machine operates under normal production conditions.
Visual inspection alone cannot confirm whether the ionizing bar is installed correctly. The bar may appear properly aligned while providing insufficient edge coverage, slow neutralization, or uneven ion distribution. Measurement is therefore essential.
Testing should begin by recording the electrostatic condition without ionization. The ionizing system should then be activated and the residual voltage measured at the same locations. The difference provides useful information about actual neutralization performance.
Measurements should be taken across the full treatment width rather than only at the center. For a wide web, possible measurement positions include the left edge, left center, center, right center, and right edge.
A charged plate monitoring method can also be used where static decay time and ion balance need to be evaluated in a controlled manner.
Common installation mistakes include mounting the bar too far from the target, installing it before rather than after the main static generation point, blocking the ion path, ignoring edge coverage, placing the emitters near grounded structures, and failing to test performance at full production speed.
One of the most common mistakes is selecting a convenient mounting position instead of the most effective process position. If static is generated after the ionizer, the material can quickly become charged again and the installation may appear ineffective.
Another common problem is excessive working distance. A greater distance can increase geometric spread but reduce ion density. The system may appear to cover a wide area while providing slow or incomplete neutralization.
Failure to consider machine airflow is also common. A bar can perform well when the equipment is stopped but lose much of its effectiveness when cooling fans, exhaust systems, or moving webs create cross airflow.
| Installation Mistake | Possible Result | Recommended Correction |
|---|---|---|
| Installed too far from target | Slow static decay | Reduce distance where practical |
| Installed before static generation point | Static quickly returns | Move treatment downstream |
| Ion path blocked by machine parts | Reduced ion delivery | Create a clearer path |
| Insufficient edge coverage | Residual charge at material edges | Reposition or increase active coverage |
| Emitters face grounded metal | Ions are attracted away from target | Change position or angle |
| Airflow ignored | Uneven ion distribution | Test with normal airflow |
| Mounting bracket is unstable | Working distance changes | Strengthen mechanical support |
| No performance testing | Installation problems remain hidden | Measure static after installation |
Avoiding these mistakes can significantly improve both initial performance and long term system reliability.
Ionizing air bar installation performance can be maintained by regularly inspecting mounting position, cleaning emitter points, checking electrical and air connections, measuring static performance, and reassessing the installation whenever production conditions change.
Correct installation is not a one time activity. Production equipment vibrates, materials change, machine speeds increase, airflow conditions are modified, and emitter points accumulate contamination. Any of these factors can reduce static neutralization performance over time.
Emitter contamination is particularly important. Dust, resin, adhesive particles, oil, and other deposits can reduce ion output. Even if the bar remains mechanically aligned, the effective static decay performance may deteriorate gradually.
The mounting brackets should also be inspected periodically. Vibration can loosen fasteners or alter the working distance. Long bars should be checked for movement or sagging that could create uneven spacing between the emitter section and target.
A documented inspection schedule can help maintenance teams detect performance deterioration before it causes production defects.
Correct ionizing air bar installation requires the bar to be positioned near the relevant static generation point, aligned with the complete charged area, mounted at an appropriate working distance and angle, kept clear of unnecessary obstructions, securely supported, correctly connected, and verified through actual static measurements.
The most effective installation begins with understanding where static electricity is generated. Processes involving friction, contact, separation, unwinding, peeling, cutting, slitting, conveying, and material handling can generate new electrostatic charges repeatedly. The ionizing bar should therefore be located where it can neutralize charge before the material reaches a sensitive process stage.
Working distance is equally important. A shorter distance generally provides stronger ion concentration, while a longer distance may increase geometric spread but reduce neutralization intensity. The goal is not simply to mount the bar as close or as far as possible, but to achieve sufficient coverage and static decay performance across the entire target.
Mechanical installation should maintain a stable position during normal machine operation. The active ionization section should cover the complete material width, including edge movement, and the ion path should remain free from unnecessary rollers, guards, brackets, and other grounded structures.
Electrical cables and air lines should be securely routed and protected from heat, abrasion, vibration, and moving machine components. Where compressed air is used, clean and stable air supply helps maintain consistent ion transport and reduces contamination.
After installation, static performance should be verified at several positions across the target. Measurements should be performed under normal production speed and normal airflow conditions. Testing both the center and edges is important because uneven ion distribution can remain hidden if only one point is measured.
For long term reliability, the installation should be inspected periodically. Emitter points should be cleaned, mounting brackets checked, cables inspected, airflow reviewed, and static measurements repeated after major process changes.
By following a systematic installation procedure, manufacturers can improve static neutralization speed, achieve more uniform treatment across wide production areas, reduce dust attraction and material sticking, lower electrostatic discharge risk, and maintain more stable production performance. Correct installation allows an ionizing air bar to operate as an effective part of the overall industrial static control system rather than simply as an accessory mounted on the machine.
