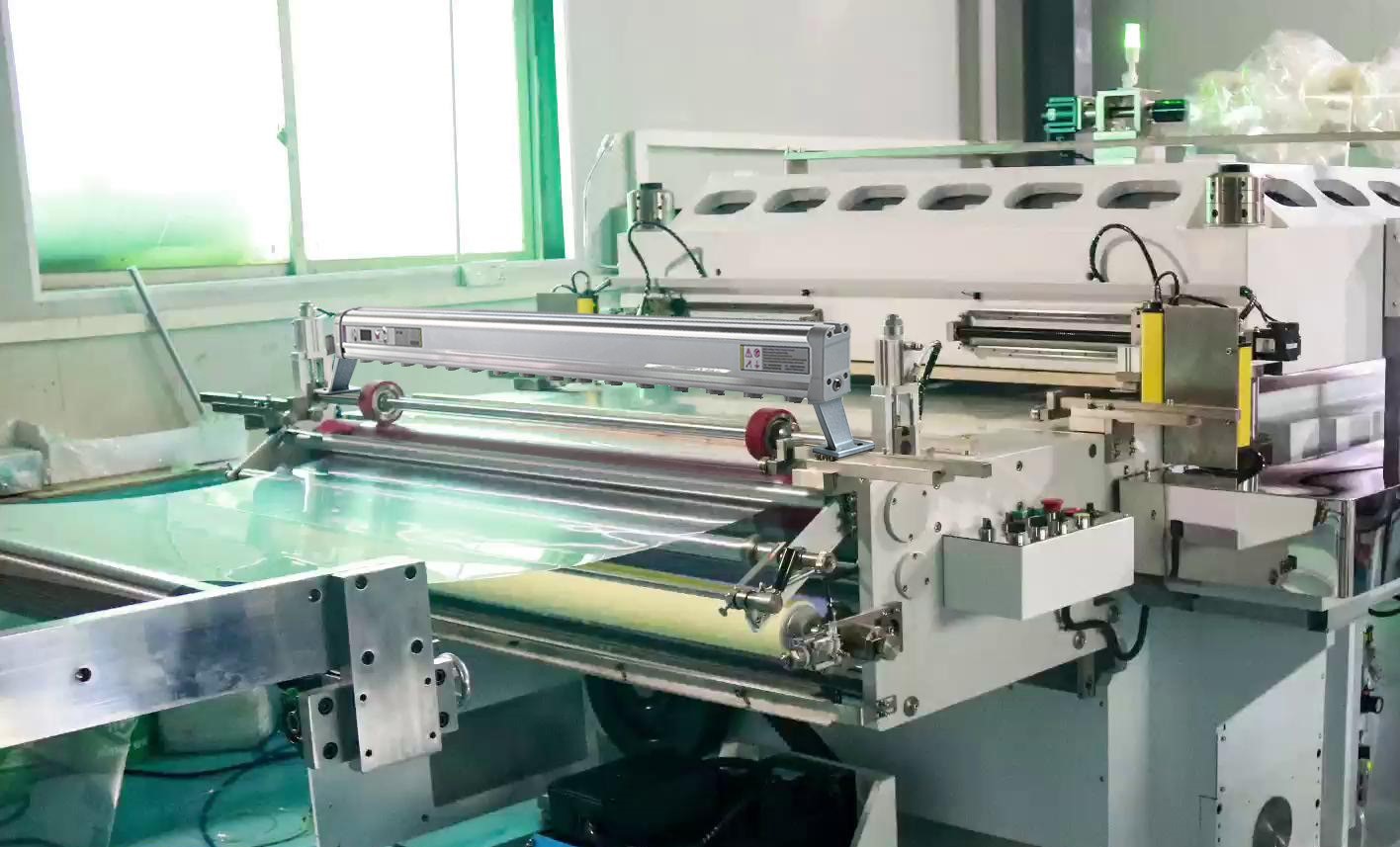

EIESD Ion Air Bar: ESD Concerns in Flexible Electronics Manufacturing

Flexible electronics manufacturing has transformed multiple industries by enabling lightweight, bendable, and highly compact electronic products. From wearable devices and flexible displays to medical sensors and smart packaging, manufacturers are increasingly relying on advanced flexible substrates and miniaturized conductive components. However, alongside these technological advancements comes a significant operational challenge: electrostatic discharge (ESD).

Unlike traditional rigid electronic assemblies, flexible electronics are more sensitive to static electricity because of thinner conductive traces, delicate polymer substrates, and highly integrated micro-components. Even a minor electrostatic event can damage circuits, reduce product lifespan, or create latent defects that remain undetected until the product reaches the end user. As production volumes continue to rise, ESD management has become a critical factor in manufacturing quality, yield optimization, and long-term reliability.

ESD concerns in flexible electronics manufacturing primarily involve protecting ultra-sensitive materials and components from electrostatic damage that can reduce product performance, increase failure rates, and negatively impact production efficiency. Effective ESD control requires a combination of grounding systems, environmental controls, conductive materials, operator training, and continuous monitoring throughout the manufacturing process.

Manufacturers working with flexible circuits, printed electronics, conductive inks, and thin-film components must establish comprehensive ESD protection strategies across every stage of production. Because flexible electronics often involve nontraditional materials such as polymers, adhesives, and organic semiconductors, static generation behavior differs significantly from conventional PCB manufacturing environments.

In this article, we will explore the major ESD concerns affecting flexible electronics manufacturing, examine the causes of electrostatic failures, discuss preventive measures, and review industry best practices for improving manufacturing reliability and product consistency.

Table of Contents

• Understanding ESD in Flexible Electronics Manufacturing

• Why Flexible Electronics Are Highly Vulnerable to ESD

• Major Sources of Electrostatic Discharge in Production Facilities

• Common ESD Failures in Flexible Electronic Components

• ESD Control Measures for Flexible Electronics Manufacturing

• Importance of Environmental Control in ESD Prevention

• Role of ESD Safe Materials and Equipment

• ESD Testing and Monitoring Procedures

• Operator Training and ESD Awareness Programs

• Future Challenges of ESD Management in Flexible Electronics

• Conclusion

Understanding ESD in Flexible Electronics Manufacturing

Electrostatic discharge in flexible electronics manufacturing refers to the sudden transfer of static electricity between objects with different electrical potentials, which can damage delicate flexible circuits and electronic materials.

Electrostatic discharge occurs when accumulated static charges move rapidly from one surface to another. In manufacturing environments, static charges are commonly generated by friction, material separation, conveyor movement, packaging interactions, and human activity. While static electricity may appear harmless in ordinary environments, it becomes a serious reliability issue in flexible electronics production.

Flexible electronic products contain ultra-thin conductive pathways, microscopic semiconductors, and sensitive dielectric materials. These structures can be permanently damaged by discharge voltages that are far below human perception levels. In many cases, a person cannot even feel a discharge below 3000 volts, yet electronic components may be damaged by less than 100 volts.

The manufacturing process itself increases ESD risks because flexible substrates often use plastic-based materials with high insulating properties. These materials tend to accumulate electrostatic charges easily during printing, laminating, cutting, or roll-to-roll processing operations.

The following table highlights the relationship between human perception and component sensitivity:

Why Flexible Electronics Are Highly Vulnerable to ESD

Flexible electronics are highly vulnerable to ESD because they use thin conductive materials, sensitive substrates, and compact component architectures that are easily disrupted by static discharge events.

Traditional rigid printed circuit boards typically contain thicker copper traces and mechanically stable substrates. In contrast, flexible electronics rely on thin conductive films, printed silver inks, conductive polymers, and flexible semiconductor layers. These materials are inherently more fragile and susceptible to electrical overstress.

One major challenge is the reduction in conductor thickness. As conductive traces become narrower and thinner, their ability to tolerate electrical surges decreases significantly. Even small static events can create localized overheating, trace fractures, or dielectric breakdown within the flexible substrate.

Flexible devices also experience repeated bending and mechanical stress during use. If ESD damage weakens conductive paths, repeated flexing can accelerate crack formation and eventual device failure. This means ESD damage not only creates immediate defects but can also shorten long-term operational life.

Another factor is material composition. Many flexible substrates are made from polymer films that act as excellent electrical insulators. Insulating materials tend to accumulate static charges easily, especially in dry manufacturing environments. During roll-to-roll processing, static generation can increase dramatically due to continuous friction and material movement.

Key vulnerability factors include:

• Ultra-thin conductive traces

• Miniaturized electronic architectures

• High-density component integration

• Static-prone polymer substrates

• Low operating voltage tolerance

• Organic semiconductor sensitivity

• Roll-to-roll process friction

Major Sources of Electrostatic Discharge in Production Facilities

The primary sources of ESD in flexible electronics manufacturing include personnel movement, material handling, automated equipment, packaging materials, and environmental conditions.

Human operators remain one of the largest contributors to electrostatic generation. Walking across floors, handling plastic materials, or wearing non-conductive clothing can generate thousands of volts of static electricity. Without proper grounding, operators may unintentionally transfer charges directly to sensitive electronic assemblies.

Automated manufacturing systems also create significant ESD risks. Conveyor belts, robotic arms, rollers, laminators, and pick-and-place equipment generate friction during operation. In flexible electronics production, roll-to-roll systems are particularly problematic because continuous substrate movement creates persistent electrostatic buildup.

Packaging materials are another overlooked source of static generation. Conventional plastics, foam inserts, and adhesive tapes can accumulate charges during transportation and storage. Improper packaging may expose components to electrostatic fields long before assembly begins.

Environmental factors strongly influence electrostatic generation levels. Low humidity conditions increase charge accumulation because dry air reduces surface conductivity. Manufacturing facilities operating in dry climates or air-conditioned environments often experience elevated ESD risks.

The following list summarizes common ESD sources:

1. Operator movement and clothing friction

2. Plastic trays and packaging materials

3. Roll-to-roll substrate handling systems

4. Automated assembly equipment

5. Conveyor belts and rollers

6. Dry air and low humidity conditions

7. Insulating work surfaces

8. Non-grounded tools and instruments

Common ESD Failures in Flexible Electronic Components

Common ESD failures in flexible electronics include dielectric breakdown, conductive trace damage, semiconductor degradation, latent defects, and complete circuit failure.

ESD damage may occur as either catastrophic failure or latent failure. Catastrophic failures are immediately visible because the component stops functioning entirely after discharge exposure. These failures are easier to identify during quality inspections.

Latent defects are more dangerous because they may not appear during initial testing. Instead, the electrostatic event weakens internal structures, making the product more vulnerable to future operational stress. The device may pass quality control but fail prematurely in real-world use.

Flexible circuits are especially susceptible to conductive trace damage. Thin conductive inks and metal films can melt or fracture under electrostatic stress. Because flexible products often experience bending during operation, weakened traces can eventually crack and disconnect.

Semiconductor degradation is another major concern. Flexible electronics increasingly use thin-film transistors, organic semiconductors, and miniaturized integrated circuits. These components operate at lower voltage thresholds and therefore require stricter ESD protection standards.

Typical ESD failure mechanisms include:

ESD Control Measures for Flexible Electronics Manufacturing

Effective ESD control measures involve grounding systems, ionization equipment, conductive flooring, ESD safe workstations, and strict handling procedures throughout production.

Grounding is the foundation of any ESD control program. All conductive objects, equipment, and personnel should maintain the same electrical potential to prevent sudden discharge events. Grounding wrist straps, conductive footwear, and grounded workstations are commonly used in manufacturing environments.

Ionization systems play a critical role when working with insulating flexible materials. Since many polymer substrates cannot be grounded directly, ionizers neutralize static charges by releasing balanced positive and negative ions into the surrounding air.

Manufacturing facilities should also implement ESD protected areas where all work surfaces, tools, and storage containers meet conductivity requirements. ESD safe mats, conductive carts, and anti-static packaging materials reduce charge accumulation during production and transportation.

Procedural controls are equally important. Manufacturers should establish standardized handling guidelines, component transfer procedures, and equipment maintenance schedules. Continuous compliance monitoring ensures ESD protection systems remain effective over time.

Core ESD control strategies include:

• Personnel grounding systems

• Conductive flooring installation

• Ionization air blowers

• Anti-static workstation surfaces

• ESD safe packaging materials

• Grounded production equipment

• Regular compliance verification

• Controlled material handling procedures

Importance of Environmental Control in ESD Prevention

Environmental control is essential for reducing electrostatic generation because humidity, temperature, airflow, and contamination levels directly affect charge accumulation and dissipation.

Humidity control is one of the most effective methods for minimizing static electricity. Moisture in the air increases surface conductivity, allowing charges to dissipate naturally instead of accumulating on insulating materials. Extremely dry conditions significantly increase electrostatic risks.

Most electronics manufacturing facilities maintain relative humidity levels between 40% and 60% to balance ESD protection with product quality requirements. However, flexible electronics may require additional environmental optimization depending on substrate sensitivity and material chemistry.

Airflow management also affects electrostatic behavior. Rapid air movement across insulating surfaces can increase charge separation. Poorly designed ventilation systems may unintentionally contribute to static buildup around production equipment.

Cleanroom contamination control is another important consideration. Dust particles can carry electrostatic charges and introduce contamination-related defects simultaneously. Maintaining clean production environments helps reduce both particulate contamination and ESD-related failures.

Environmental monitoring parameters typically include:

Role of ESD Safe Materials and Equipment

ESD safe materials and equipment help prevent charge buildup, minimize discharge risks, and maintain stable electrical conditions during manufacturing operations.

Selecting appropriate manufacturing materials is critical for ESD control. Standard plastics and insulating surfaces should be replaced with static dissipative or conductive alternatives wherever possible. This includes trays, containers, workstation surfaces, and transport systems.

Flexible electronics production often requires specialized tooling because delicate substrates can be damaged mechanically as well as electrically. Vacuum handling systems, conductive rollers, and grounded assembly fixtures help minimize direct contact and electrostatic accumulation.

Packaging solutions must also support ESD protection objectives. Anti-static bags, shielding materials, and conductive transport containers reduce electrostatic exposure during shipping and storage. Improper packaging can negate the benefits of carefully controlled manufacturing environments.

Monitoring equipment is equally important. Surface resistance meters, electrostatic field meters, and continuous grounding monitors help manufacturers verify compliance with ESD standards. Real-time monitoring enables rapid identification of emerging risks before product damage occurs.

Common ESD safe materials and tools include:

• Static dissipative workstation mats

• Conductive storage bins

• Grounded vacuum pick-up tools

• Anti-static gloves and garments

• ESD safe conveyor systems

• Shielding transport bags

• Continuous wrist strap monitors

• Electrostatic field measurement devices

ESD Testing and Monitoring Procedures

ESD testing and monitoring procedures ensure manufacturing environments remain compliant with electrostatic safety standards and help identify potential risks before failures occur.

Regular testing is necessary because ESD control systems can degrade over time. Grounding connections may loosen, ionizers may lose balance, and conductive materials may wear out. Continuous verification helps maintain stable protection levels throughout production.

Manufacturers typically perform resistance testing on workstations, flooring systems, and grounding equipment. Surface resistance measurements confirm that materials remain within acceptable conductivity ranges required for static dissipation.

Ionization systems require periodic balance testing to ensure equal positive and negative ion output. Improperly balanced ionizers may unintentionally increase static buildup instead of neutralizing it effectively.

Advanced facilities increasingly use automated monitoring systems that continuously track grounding integrity, humidity levels, and electrostatic field strength. Real-time alerts allow immediate corrective action when abnormal conditions appear.

Key ESD monitoring activities include:

1. Ground continuity testing

2. Surface resistance measurement

3. Ionizer performance verification

4. Humidity monitoring

5. Electrostatic field measurement

6. Equipment grounding inspection

7. Personnel compliance checks

8. Packaging material evaluation

Operator Training and ESD Awareness Programs

Operator training programs are essential because human behavior significantly influences electrostatic risk levels in flexible electronics manufacturing environments.

Even advanced ESD protection systems cannot fully eliminate risks if personnel fail to follow proper handling procedures. Employees must understand how static electricity is generated, how discharge events occur, and how their daily actions affect manufacturing reliability.

Training programs should include practical demonstrations showing how common activities generate static charges. Workers who understand the invisible nature of ESD risks are more likely to follow grounding and handling procedures consistently.

Regular refresher courses help maintain compliance awareness. As manufacturing technologies evolve, ESD control procedures may also require updates. Continuous education ensures operators remain informed about changing process requirements and safety standards.

Effective ESD awareness programs typically cover:

• Fundamentals of static electricity

• Proper grounding procedures

• Correct use of wrist straps and footwear

• Safe material handling techniques

• Packaging and transportation requirements

• Cleanroom behavior guidelines

• Equipment inspection procedures

• Incident reporting protocols

Future Challenges of ESD Management in Flexible Electronics

The future of ESD management will become more challenging as flexible electronics continue shrinking in size while incorporating increasingly sensitive materials and advanced manufacturing technologies.

The rapid growth of wearable electronics, biomedical sensors, flexible displays, and printed electronic systems is driving demand for thinner, lighter, and more compact products. As component geometries shrink further, ESD sensitivity thresholds will continue decreasing.

Emerging materials such as organic semiconductors, nanomaterials, and conductive polymers introduce new electrostatic behaviors that are not fully addressed by traditional ESD standards. Manufacturers may need to develop customized protection strategies tailored to specific material systems.

Automation and high-speed roll-to-roll production will also create additional ESD challenges. Faster production speeds increase frictional charging, while highly automated systems require sophisticated monitoring and grounding architectures.

Artificial intelligence and smart manufacturing technologies may improve future ESD management capabilities. Predictive monitoring systems could analyze environmental data, equipment performance, and electrostatic trends to identify risks before failures occur.

Future industry trends include:

Conclusion

Electrostatic discharge remains one of the most critical reliability challenges in flexible electronics manufacturing. As products become thinner, lighter, and more sophisticated, sensitivity to static electricity continues increasing across the industry. Even low-level electrostatic events can cause catastrophic failures, latent defects, reduced product lifespan, and costly production losses.

Successful ESD management requires a comprehensive approach that combines grounding systems, environmental controls, conductive materials, operator training, equipment monitoring, and standardized manufacturing procedures. Flexible electronics manufacturers must recognize that ESD prevention is not a single process but an integrated quality management strategy spanning every stage of production.

Companies that invest in robust ESD control programs can improve production yields, enhance product reliability, reduce warranty failures, and strengthen long-term operational efficiency. As flexible electronics technology continues advancing, proactive electrostatic management will remain essential for maintaining competitive manufacturing performance and delivering reliable products to global markets.
