Electrostatic discharge has become one of the most critical reliability concerns in modern semiconductor manufacturing. As semiconductor devices continue to shrink in geometry while increasing in functionality and integration density, their sensitivity to electrostatic events becomes significantly higher. A minor electrostatic discharge during manufacturing, assembly, transportation, or end-user operation can permanently damage sensitive semiconductor components, resulting in product failures, reduced lifespan, and costly field returns.
In highly competitive electronics industries such as automotive electronics, industrial automation, telecommunications, medical systems, and consumer electronics, semiconductor device qualification for ESD robustness is no longer optional. Manufacturers and component suppliers must ensure that devices can survive real-world electrostatic threats while maintaining stable electrical performance and long-term reliability.
Semiconductor device qualification for ESD robustness is the process of evaluating, testing, and validating a semiconductor component’s ability to withstand electrostatic discharge events without functional degradation or permanent damage. This qualification process ensures product reliability, manufacturing stability, regulatory compliance, and reduced field failure risks across various electronic applications.
A comprehensive ESD qualification strategy involves multiple testing models, reliability assessments, failure analysis procedures, process optimizations, and international compliance standards. Companies that implement robust ESD qualification programs can improve product quality, strengthen customer trust, reduce warranty claims, and achieve higher production yields.
This article explores the fundamentals of semiconductor ESD robustness qualification, major testing models, qualification procedures, industry standards, failure mechanisms, and best practices for achieving high reliability in semiconductor devices.
Understanding ESD in Semiconductor Devices
Why ESD Robustness Qualification Is Important
Major ESD Testing Models Used in Semiconductor Qualification
Key Stages of Semiconductor ESD Qualification
Common Failure Mechanisms in ESD Events
International Standards for ESD Qualification
Design Techniques for Improving ESD Robustness
Challenges in Advanced Semiconductor Technologies
Best Practices for Semiconductor ESD Qualification
Future Trends in ESD Robustness Testing
Electrostatic discharge in semiconductor devices refers to the sudden transfer of electrical charge between objects with different electrical potentials, which can cause catastrophic or latent damage to integrated circuits and electronic components.
Electrostatic discharge occurs when accumulated static electricity rapidly flows between conductive materials. Semiconductor devices are especially vulnerable because modern integrated circuits contain extremely thin oxide layers and densely packed transistor structures. Even a relatively low discharge voltage may exceed the tolerance threshold of sensitive semiconductor junctions.
ESD events may occur during multiple stages of the semiconductor lifecycle. Common scenarios include wafer fabrication, device packaging, printed circuit board assembly, shipping, equipment handling, and final product usage. Human operators, automated machinery, and environmental conditions can all generate static charges capable of damaging semiconductor devices.
There are two primary categories of ESD damage:
Catastrophic Failure
Latent Failure
Catastrophic failure causes immediate device malfunction, making the issue easier to identify during production testing. Latent failure is more dangerous because the device may continue functioning temporarily before failing later in the field, leading to reliability concerns and customer dissatisfaction.
The impact of ESD on semiconductor devices can include:
ESD Impact | Description |
|---|---|
Gate Oxide Breakdown | Permanent damage to thin oxide layers in MOS structures |
Junction Damage | Thermal damage caused by excessive current flow |
Metal Melting | Localized overheating resulting in conductor failure |
Leakage Current Increase | Degraded electrical performance and instability |
Functional Failure | Complete or partial device malfunction |
As semiconductor technologies continue evolving toward smaller process nodes, ESD protection and qualification become increasingly complex and critical.
ESD robustness qualification is essential because it verifies that semiconductor devices can survive electrostatic events encountered during manufacturing, transportation, assembly, and end-user operation while maintaining reliable performance.
Semiconductor manufacturers face enormous financial risks from ESD-related failures. A single defective component may result in costly recalls, warranty claims, production delays, or system-level failures. Industries such as automotive electronics and medical equipment demand extremely high reliability standards, making ESD qualification a critical quality assurance process.
ESD qualification also helps manufacturers improve production yields. By identifying weaknesses in device structures early in the development cycle, engineers can optimize layouts, protection circuits, and fabrication processes before mass production begins.
Key benefits of ESD robustness qualification include:
Reduced field failure rates
Improved product reliability
Higher manufacturing yields
Enhanced customer confidence
Compliance with international standards
Lower warranty and replacement costs
Improved long-term device stability
For industries such as automotive electronics, ESD robustness directly affects safety and operational reliability. Failure of semiconductor components in braking systems, power management modules, or sensor networks may lead to critical system malfunctions.
Consumer electronics manufacturers also rely heavily on ESD qualification because portable devices frequently encounter electrostatic exposure during normal user handling. Smartphones, wearable devices, laptops, and smart home systems all require strong ESD protection capabilities.
Without proper ESD qualification, semiconductor devices may experience unpredictable performance degradation that damages both brand reputation and long-term business profitability.
Semiconductor ESD qualification uses standardized testing models to simulate different real-world electrostatic discharge scenarios and evaluate device survivability under controlled conditions.
Several internationally recognized ESD testing models are used throughout the semiconductor industry. Each model represents a different type of electrostatic event and helps engineers understand device vulnerability under various conditions.
The Human Body Model simulates electrostatic discharge generated when a human touches an electronic component. This model remains one of the most widely used qualification standards in semiconductor manufacturing.
The Human Body Model typically involves:
Capacitance of 100 pF
Series resistance of 1500 ohms
Voltage ranges from hundreds to several thousand volts
Human Body Model testing evaluates whether semiconductor devices can survive handling by operators during manufacturing and assembly operations.
Charged Device Model testing simulates situations where the semiconductor device itself becomes electrically charged and suddenly discharges upon contacting grounded surfaces.
This model is especially important for automated high-speed manufacturing environments because devices may accumulate static charges during robotic handling processes.
Charged Device Model failures often involve:
Fast current rise times
High peak current levels
Localized thermal damage
Severe stress on internal structures
Machine Model testing represents electrostatic discharges originating from manufacturing equipment or automated machinery. Although less commonly emphasized today, Machine Model testing historically played a significant role in semiconductor qualification programs.
System-level ESD testing evaluates complete electronic systems rather than individual semiconductor devices. This testing verifies overall product immunity to electrostatic events encountered during normal user operation.
Testing Model | Main Simulation Target | Typical Application |
|---|---|---|
Human Body Model | Human handling discharge | Manufacturing and assembly |
Charged Device Model | Charged component discharge | Automated handling systems |
Machine Model | Equipment discharge | Manufacturing machinery |
System Level Testing | End-user interaction | Finished electronic products |
Each testing model provides unique insights into semiconductor reliability and contributes to a comprehensive ESD qualification strategy.
Semiconductor ESD qualification involves multiple stages including design evaluation, stress testing, electrical characterization, failure analysis, and reliability validation.
The qualification process begins during the semiconductor design phase. Engineers incorporate ESD protection structures directly into integrated circuit layouts to minimize susceptibility to electrostatic events.
Design teams use simulation tools to predict ESD current paths, voltage distribution, and thermal stress behavior. Early simulations help identify weak structures before fabrication begins.
Important design considerations include:
Protection diode placement
Clamp circuit efficiency
Current distribution paths
Parasitic resistance control
Thermal management capability
After fabrication, wafer-level testing evaluates ESD robustness before device packaging. This stage helps manufacturers identify process variations and manufacturing defects early in production.
Semiconductor packaging significantly influences ESD behavior. Package materials, lead structures, and interconnect configurations can alter device sensitivity to electrostatic events.
Package qualification evaluates:
Package-induced stress effects
Pin-level protection performance
Thermal reliability
Signal integrity under stress conditions
Electrical characterization measures semiconductor performance before and after ESD exposure. Engineers analyze parameters such as leakage current, threshold voltage, timing behavior, and signal integrity.
Failure analysis identifies root causes of ESD-induced damage using advanced inspection techniques including:
Scanning electron microscopy
Optical microscopy
Thermal imaging
Emission microscopy
Cross-sectional analysis
This stage provides critical information for improving future semiconductor designs and manufacturing processes.
ESD events can cause multiple semiconductor failure mechanisms including thermal breakdown, oxide rupture, junction damage, and metallization failure.
Understanding failure mechanisms is essential for developing effective ESD protection strategies. Different semiconductor technologies may exhibit unique vulnerability patterns depending on device architecture and fabrication methods.
Thermal failure occurs when excessive current generated during an ESD event produces localized heating that exceeds material limits. This can melt interconnects, damage junctions, or destroy conductive pathways.
Thermal damage is particularly severe in advanced semiconductor nodes because smaller geometries provide less heat dissipation capability.
Modern MOS devices contain ultra-thin gate oxides that are highly sensitive to voltage spikes. ESD events can puncture oxide layers, creating permanent conductive paths that degrade transistor functionality.
Gate oxide breakdown commonly results in:
Increased leakage current
Threshold voltage instability
Functional logic errors
Reduced device lifespan
High ESD current density may create localized junction heating that damages PN junction structures. Junction spiking can alter electrical characteristics and lead to unpredictable circuit behavior.
Metal layers inside integrated circuits may suffer electromigration, cracking, or melting during high-current ESD events. Interconnect failures often create open circuits or increased resistance.
Failure Mechanism | Main Cause | Potential Result |
|---|---|---|
Thermal Failure | Excessive current heating | Permanent structural damage |
Oxide Breakdown | High electric field stress | Leakage and instability |
Junction Damage | Localized overheating | Electrical degradation |
Metal Damage | Current overload | Open or short circuits |
Comprehensive failure analysis helps engineers strengthen future semiconductor designs against these mechanisms.
International ESD qualification standards provide consistent testing methodologies and reliability benchmarks for semiconductor manufacturers worldwide.
Standardized qualification procedures ensure consistency across global semiconductor supply chains. Customers rely on these standards to evaluate component reliability and compatibility with system-level requirements.
JEDEC standards are among the most widely used semiconductor qualification guidelines. They define testing procedures for Human Body Model and Charged Device Model evaluations.
JEDEC standards help manufacturers achieve:
Consistent testing conditions
Comparable qualification data
Reliable customer communication
Industry-wide quality alignment
IEC standards primarily focus on system-level immunity testing for complete electronic products. These standards are commonly used in consumer electronics, industrial systems, and automotive applications.
Automotive semiconductor applications require especially strict ESD qualification due to harsh environmental conditions and safety-critical operational requirements.
Automotive qualification programs often involve:
Extended stress testing
Higher voltage requirements
Long-term reliability verification
Environmental stress integration
Compliance with international standards strengthens market acceptance and customer confidence in semiconductor products.
Semiconductor designers improve ESD robustness by integrating protection structures, optimizing layouts, controlling current paths, and enhancing thermal performance.
Effective ESD protection begins at the integrated circuit design stage. Engineers must balance performance, power efficiency, area consumption, and protection capability.
Protection structures divert ESD current away from sensitive internal circuitry. Common structures include:
Protection diodes
Silicon controlled rectifiers
Clamp circuits
Rail-based protection networks
These structures activate during electrostatic events and safely dissipate excess energy.
Integrated circuit layout significantly affects ESD performance. Poor current distribution may create localized hot spots that increase damage risk.
Designers optimize:
Metal width
Current path symmetry
Via density
Ground network integrity
Spacing between sensitive structures
Efficient heat dissipation improves ESD survivability by reducing localized temperature buildup during discharge events.
Advanced thermal management techniques include:
Improved substrate engineering
Enhanced metallization layers
Thermal spreading structures
Optimized package materials
Combining multiple design techniques produces stronger ESD protection without significantly affecting semiconductor performance.
Advanced semiconductor technologies face increasing ESD qualification challenges due to shrinking geometries, higher integration density, lower operating voltages, and complex packaging structures.
As semiconductor manufacturing moves toward increasingly smaller process nodes, traditional ESD protection strategies become less effective. Thin oxide layers and reduced voltage margins create higher vulnerability to electrostatic stress.
Technology scaling reduces available space for protection circuits while simultaneously increasing device sensitivity. Designers must achieve stronger protection using smaller structures.
Modern high-speed communication interfaces require extremely low parasitic capacitance, limiting the size and complexity of ESD protection elements.
Applications affected include:
High-speed data transmission
RF communication systems
Advanced sensor networks
Artificial intelligence processors
Modern semiconductor packages such as 3D integration and wafer-level packaging introduce new ESD current paths and thermal management challenges.
Complex packaging technologies require:
Advanced simulation models
Multi-physics analysis
Improved interconnect protection
Package-level qualification testing
The semiconductor industry continues investing heavily in new ESD protection methodologies capable of supporting future technology generations.
Effective semiconductor ESD qualification requires integrated design strategies, strict process control, standardized testing, employee training, and continuous reliability monitoring.
Successful ESD qualification programs involve collaboration across design, manufacturing, quality assurance, and reliability engineering teams.
Manufacturing facilities should maintain controlled ESD environments using:
Grounded workstations

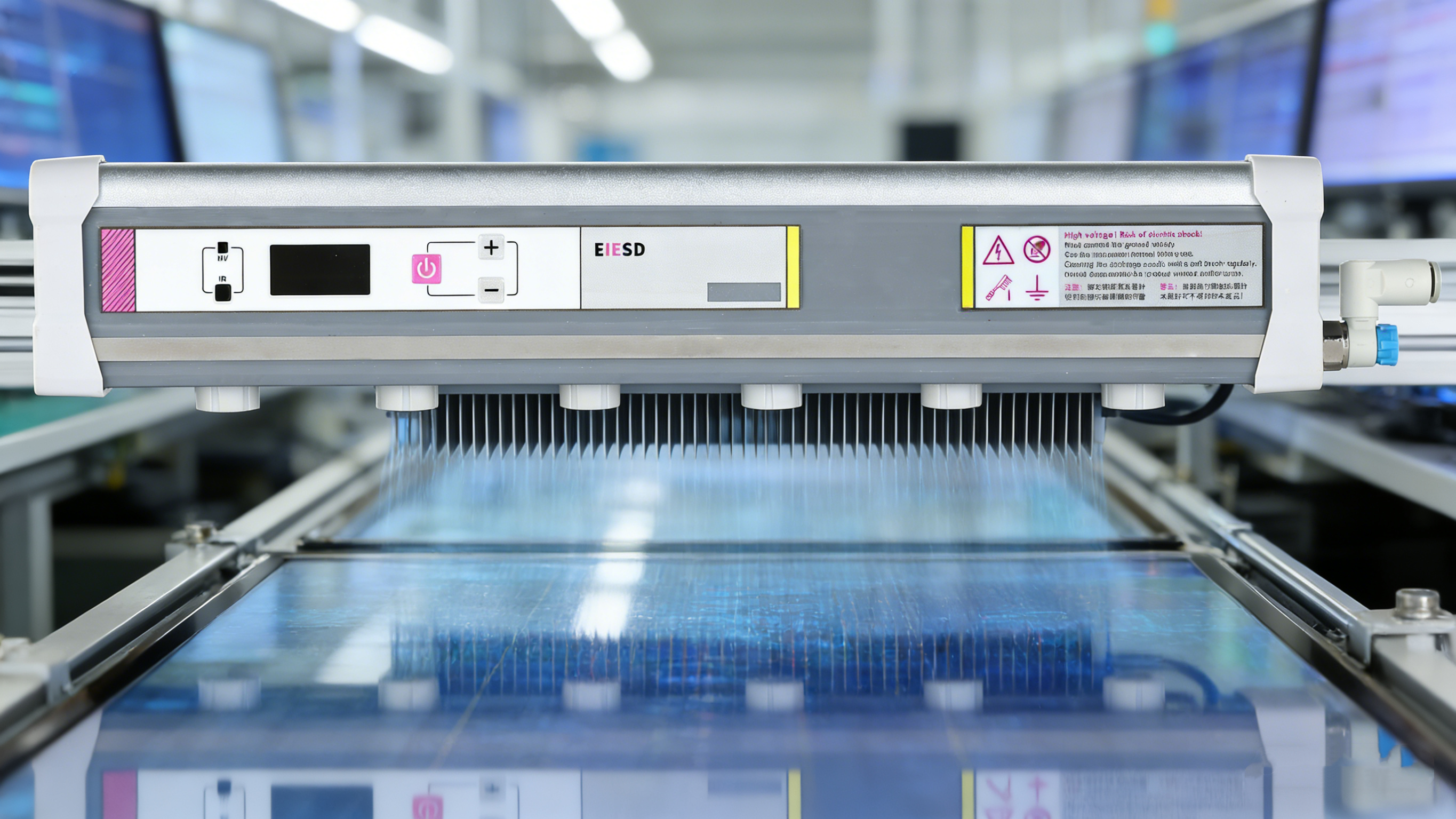

Ionization systems
Antistatic materials
Humidity control systems
ESD-safe transportation containers
Continuous monitoring helps manufacturers identify process drifts and emerging reliability concerns before they impact production quality.
Combining wafer-level, package-level, and system-level testing provides more accurate reliability assessments.
Detailed failure analysis supports continuous improvement by identifying weaknesses in semiconductor designs and manufacturing processes.
Best practice implementation often leads to:
Best Practice | Main Benefit |
|---|---|
Controlled Manufacturing Environment | Reduced accidental ESD exposure |
Multi-Level Testing | More accurate qualification data |
Continuous Monitoring | Early issue detection |
Employee Training | Improved handling procedures |
Organizations that establish strong ESD management cultures typically achieve higher reliability performance and lower failure rates.
Future semiconductor ESD qualification trends include artificial intelligence driven analysis, advanced simulation technologies, machine learning based failure prediction, and integrated system-level reliability modeling.
As semiconductor technologies become more complex, qualification methods must evolve accordingly. Traditional testing approaches alone may no longer provide sufficient reliability coverage for advanced applications.
Artificial intelligence technologies are increasingly used to analyze large reliability datasets and identify hidden failure patterns. Predictive analytics can help engineers optimize protection structures earlier in development cycles.
Digital twin technologies enable highly detailed simulation of semiconductor behavior under ESD stress conditions. These models improve qualification accuracy while reducing development costs.
Future qualification requirements will likely become more stringent as electronic systems expand into safety-critical applications such as autonomous vehicles, industrial robotics, and advanced medical systems.
Emerging qualification priorities include:
Higher reliability margins
Real-time monitoring systems
Advanced package qualification
Cross-domain reliability integration
Faster qualification cycles
The semiconductor industry will continue prioritizing ESD robustness as electronic systems become increasingly interconnected and performance-driven.
Semiconductor device qualification for ESD robustness is a critical process that ensures semiconductor components can withstand electrostatic discharge events while maintaining long-term reliability and stable performance.
With increasing semiconductor complexity, shrinking device geometries, and expanding application demands, ESD qualification has become more important than ever. Manufacturers must adopt comprehensive qualification strategies that include advanced testing models, detailed failure analysis, optimized design methodologies, and strict process controls.
By implementing effective ESD robustness qualification programs, semiconductor companies can improve production yields, reduce field failures, strengthen customer confidence, and meet the growing reliability demands of industries such as automotive electronics, industrial automation, telecommunications, and consumer devices.
As future semiconductor technologies continue evolving, ESD qualification methodologies will also advance through artificial intelligence, predictive modeling, and integrated reliability analysis, ensuring that next-generation electronic systems remain safe, stable, and highly reliable.
