Photopolymer resin–based 3D printing technologies, including SLA, DLP, LCD, and advanced hybrid additive manufacturing systems, are widely adopted in electronics, medical devices, dental applications, automotive prototyping, and precision industrial production. As resolution increases and materials become more chemically complex, electrostatic charge has emerged as a critical but often underestimated process risk.
This article provides a comprehensive, engineering-level analysis of electrostatic phenomena in photopolymer resin 3D printing and presents systematic strategies for static control using ionizing air bars. Topics include charge generation mechanisms, resin-specific electrostatic behavior, print-quality impacts, equipment-level integration, airflow and cleanliness considerations, post-processing risks, validation methods, standards alignment, advanced configurations, and future development trends. The objective is to position ionizing air bars as a core process-control technology in high-precision resin-based additive manufacturing.
Resin-based 3D printing is valued for its ability to produce parts with:
Extremely high surface resolution
Fine feature detail (often <50 μm)
Complex geometries and internal structures
Smooth surface finishes suitable for end-use components
However, these same advantages also increase sensitivity to electrostatic charge. Liquid photopolymer resins, polymer films, build platforms, recoating systems, and post-processing workflows all introduce static generation mechanisms. Uncontrolled electrostatic effects can lead to print defects, contamination, process instability, and long-term reliability issues.
Ionizing air bars provide an effective, non-contact method to neutralize static electricity throughout the resin 3D printing workflow. Proper application requires a deep understanding of both electrostatics and additive manufacturing process physics.
Electrostatic charge in photopolymer printing arises from multiple sources:
Relative motion between resin and polymer films (e.g., FEP, PDMS)
Separation of cured layers from release films
Movement of build platforms and recoaters
Interaction between printed parts and support structures
Handling during washing, drying, and post-curing
These mechanisms frequently overlap, creating dynamic and spatially non-uniform charge distributions.
Most photopolymer resins are electrically insulating. Once charged, they retain static electricity for extended periods, particularly in low-humidity environments. This makes grounding ineffective as a primary control method.
While ESD events are relatively rare in resin printing, electrostatic fields exert continuous forces that:
Attract dust and airborne particles
Distort thin structures
Influence resin flow and recoating behavior
Ionizing air bars primarily mitigate these field effects.
Uses a scanning laser to cure resin point by point. Peeling forces during layer separation are major sources of static generation.
These systems cure entire layers simultaneously using projected light. Large-area separation events can generate significant electrostatic charge.
Advanced systems introduce continuous motion, resin circulation, and automated handling, increasing static complexity.
Applications such as dental, hearing aid, and microfluidic components require resolutions below 25 μm. At this scale, even minor electrostatic forces can distort thin walls and delicate features.
Static electricity attracts particles that become embedded in the resin, causing:
Surface pitting
Optical defects
Reduced mechanical strength
Electrostatic forces can interfere with layer release, increasing failure rates for delicate geometries.
Fine lattice structures, walls, and support tips can deflect under electrostatic forces, leading to dimensional inaccuracies.
Charged surfaces may attract dust or resin droplets during washing, drying, or UV post-curing, reducing part quality and consistency.
Typical resin 3D printers include:
Resin vat and release film
Build platform and Z-axis mechanism
Optical exposure system
Enclosure and airflow system
Resin handling and refill modules
Post-processing stations (washing, drying, curing)
Ionization must be compatible with all subsystems.
Ionizing air bars can be mounted above the resin surface to neutralize charge during layer recoating.
For large-format vats, multiple bars may be needed for uniform coverage.
Rapid platform movements can generate static during layer separation.
Ionization along the build axis helps stabilize thin and tall structures.
Protecting lenses, mirrors, and light guides from charged particle deposition improves optical efficiency and reduces maintenance.
Careful positioning of ionizers prevents interference with light paths.

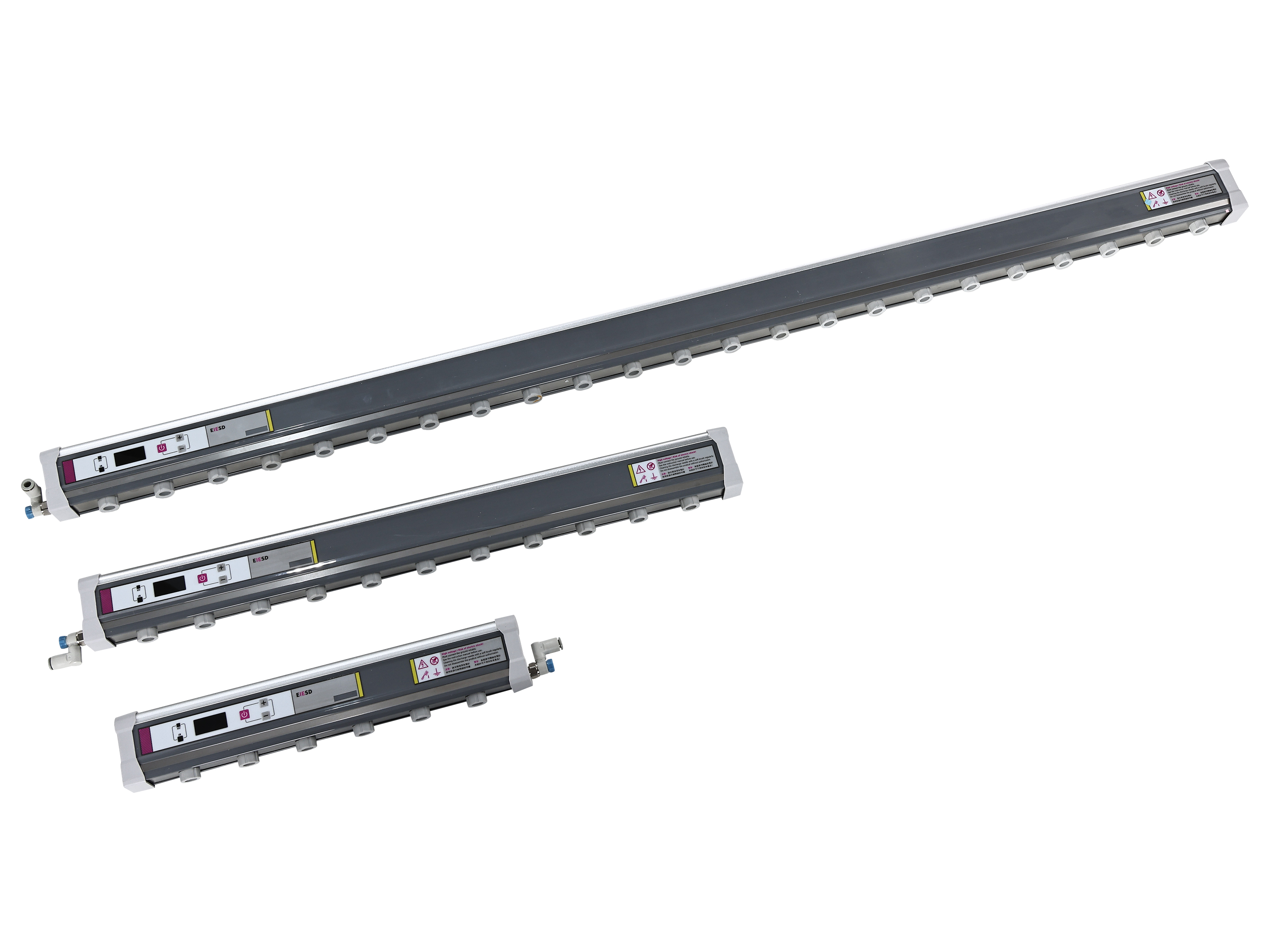

Ionizing air bars generate balanced positive and negative ions via corona discharge, neutralizing surface charges through recombination.
AC ionizers: General-purpose applications
DC ionizers: Faster neutralization, better stability
Pulsed DC ionizers: Superior balance and control for high-precision printing
Resin printing benefits most from low-balance-drift DC or pulsed DC systems.
Ion balance: ±10–30 V for micro-precision applications
Static decay time: <0.5–1 second from ±5 kV to ±100 V
Adjustable airflow to minimize disturbance
A structured evaluation should include:
Identification of charge generation points
Measurement of electrostatic fields at build surface and surrounding components
Observation of print defects, dust attraction, and recoating issues
Correlation with environmental conditions (humidity, temperature)
Documentation for repeatability and compliance
Neutralize charge close to the source
Avoid airflow that disturbs resin surfaces or cured layers
Ensure uniform ion coverage across build area
Maintain safe distances from optical elements
Place bars above and around the build area
Provide coverage during platform movement and layer peeling
Use adjustable airflow nozzles for large-format or micro-feature printers
Position ionizing bars near recoater blades or wiper systems
Reduce adhesion of charged resin droplets to recoaters and FEP films
Minimize surface tension disruptions caused by static
Ionization near washing stations stabilizes part handling
Neutralize parts before UV post-curing to prevent dust attraction
Protect delicate supports from deflection caused by residual charge
Excessive velocity can disturb resin surfaces, bubbles, or thin walls
Low-velocity, laminar ionized airflow is preferred
Combine HEPA filtration and ionization to minimize particle deposition
Reduce airborne contamination in both build and post-processing areas
Low humidity increases static retention
Ionization mitigates humidity dependence for stable production
Ground conductive components (metal vats, rails, sensors)
Use ionization for insulative parts (resin, FEP/PDMS films, build plates)
Personnel grounding complements, but does not replace, ionization
Chemical compatibility: resin vapors can corrode emitters
Splash and spill protection for ionizer electronics
Compliance with IEC and UL electrical safety standards
Positioning to avoid interference with moving components
Ion balance measurement across full build area
Static decay testing on resin surfaces and supports
Observation of print quality improvements pre- and post-installation
Record keeping for regulatory and quality audits
Regular cleaning of emitter points
Scheduled performance verification
Environmental monitoring to detect ion output drift
Documentation for process control and audit readiness
Reduced surface defects (pitting, dust spots)
Stable layer adhesion and reduced delamination
Improved dimensional accuracy for fine structures
Increased print repeatability across shifts and seasons
Lower scrap and reprint costs
Reduced maintenance frequency for optical components
Decreased operator intervention time
Faster production throughput
ROI typically within 6–12 months for high-volume operations
ANSI/ESD S20.20 and IEC 61340 series for ESD control
ISO 13485 for medical and dental applications
Inclusion of ionization performance in IQ/OQ/PQ and SOP documentation
Dental lab experienced surface defects due to dust attraction
Installed pulsed DC ionizing air bars above build areas and post-processing stations
Surface defects reduced by 40%, cleaning frequency lowered, and consistency improved
Seasonal variations in humidity no longer impacted print quality
Tough, flexible, and high-temperature resins often have higher electrostatic susceptibility
Ultra-fine resolution prints (<25 μm) require low-balance ionization
Multi-material prints introduce differential charge accumulation between polymers
Integration with printer control systems for real-time monitoring
Predictive maintenance and ionizer status alerts
Data-driven correlation between electrostatic metrics and print outcomes
Adaptable ionization for multi-build or high-speed continuous systems
High-resolution printers benefit from multiple, independently controlled ionizing bars
Modular placement allows flexible adaptation for different part geometries
Zonal control can reduce airflow disturbance while maintaining ion coverage
Resin vapor contamination: use protective shields and scheduled cleaning
Airflow interference: low-velocity laminar design, adjustable nozzles
Space constraints in compact printers: custom miniaturized ionizing modules
Include ionization from pre-processing (resin handling) through post-processing (washing, drying, curing)
Ensures end-to-end static mitigation
Minimizes defect propagation through workflow
High-precision microchannels (<100 μm) prone to static-induced deformation
Multi-point pulsed DC ionizing system installed around build area and washing station
Layer adhesion improved, defect rates decreased by 35%, dimensional accuracy stabilized
ROI achieved in under nine months
Design ionization into printers, not as an aftermarket addition
Use data-driven placement and airflow modeling
Include ionization metrics in process control, FMEA, and audits
Regular maintenance and performance verification
Integrate with environmental monitoring and automated alerts
Photopolymer resin 3D printing is inherently sensitive to electrostatic effects due to the insulating nature of materials and the precision of the process. Static electricity directly impacts print quality, yield, cleanliness, and operational stability.
Ionizing air bars, when properly selected, positioned, maintained, and integrated into the workflow, provide a powerful solution for electrostatic control throughout the resin printing lifecycle. As additive manufacturing continues to evolve toward higher precision, complex geometries, and industrial-scale production, systematic ionization will become an essential element of robust, high-quality resin-based 3D printing systems.
