In modern manufacturing, production lines are the backbone of efficient and consistent output, spanning industries from electronics and plastics to packaging and printing. A critical yet often overlooked component of these production lines is the ion air bar, a fixed electrostatic elimination device designed to neutralize static charges on surfaces, prevent dust accumulation, and avoid product damage or defects caused by static electricity. Ion air bars are available in various lengths, typically categorized as short (under 1 meter) and long (1 meter and above), and selecting the right length to match the production line’s dimensions is essential for optimizing electrostatic elimination performance, reducing operational costs, and ensuring product quality. Choosing an incorrectly sized ion air bar—whether too short to cover the entire line width or too long for the available space—can lead to uneven static neutralization, increased maintenance needs, and wasted energy, ultimately hindering production efficiency.

To match long or short ion air bars with production line length, you first need to accurately measure the effective width of the production line (the actual area requiring electrostatic elimination), consider the ion air bar’s effective coverage range, and factor in production line speed, product type, and installation constraints. Short ion air bars (under 1 meter) are ideal for narrow production lines (width ≤ 0.8 meters), such as small electronic component assembly lines or narrow packaging lines. Long ion air bars (1 meter and above) are suitable for wide production lines (width > 0.8 meters), including large-scale plastic film production lines, wide-format printing lines, or heavy-duty conveyor systems. For non-standard or extra-wide lines, modular long ion air bars can be spliced to achieve full coverage, while short bars can be installed in parallel for multi-point coverage on medium-width lines.

Many manufacturing facilities struggle with suboptimal ion air bar selection, often choosing a length based solely on rough estimates rather than precise measurements and operational requirements. This oversight can result in costly inefficiencies, such as static-related product defects, increased downtime for maintenance, and higher energy consumption. Understanding the key factors that influence the matching process—from production line dimensions and ion air bar specifications to environmental conditions and product characteristics—is critical for making an informed decision. This article will break down the entire matching process step by step, providing detailed guidance on measuring production line length, evaluating ion air bar types, and implementing best practices to ensure optimal performance.

Whether you’re upgrading an existing production line or designing a new one, this guide will help you navigate the complexities of matching ion air bar length to production line dimensions, ensuring that your electrostatic elimination system operates at peak efficiency and supports consistent, high-quality production.

Table of Contents

1. Understanding Ion Air Bars: Short vs. Long Types and Their Core Functions

2. Key Steps to Measure Production Line Length for Ion Air Bar Matching

3. Factors Determining Whether to Choose a Short or Long Ion Air Bar

4. Step-by-Step Guide to Matching Ion Air Bar Length with Production Line

5. Common Mistakes to Avoid When Matching Ion Air Bars to Production Lines

6. Maintenance and Optimization Tips for Matched Ion Air Bars and Production Lines

7. Real-World Case Studies: Successful Ion Air Bar and Production Line Matching

1. Understanding Ion Air Bars: Short vs. Long Types and Their Core Functions

Short ion air bars (typically 0.2m to 1m in length) are compact, portable, and designed for narrow production areas, while long ion air bars (1m to 6m or more) are larger, fixed-installation units built to cover wide production lines; both types generate ionized air to neutralize static charges, but their size, coverage, and application scenarios differ significantly based on production line dimensions.

Ion air bars are essential electrostatic elimination tools in manufacturing, working on the principle of generating large quantities of positive and negative ions that neutralize static charges on product surfaces, equipment, or conveyor belts. When an object carries a negative charge, it attracts positive ions from the air bar; conversely, positive charges attract negative ions, resulting in complete static neutralization. This process not only prevents static-related issues such as product sticking, dust adsorption, and electrostatic discharge (ESD) damage but also improves production efficiency and product quality across various industries, including electronics, plastics, printing, and packaging.

To effectively match ion air bars to production line length, it is first necessary to distinguish between short and long types, their specifications, and their core functions. Short ion air bars, generally ranging from 0.2 meters to 1 meter in length, are characterized by their compact design, easy installation, and suitability for small-scale or narrow production lines. They are often used in applications where space is limited, such as small electronic component assembly lines, precision parts processing stations, or narrow packaging lines (e.g., small product packaging or tube filling lines). Short ion air bars typically have a smaller ion coverage range, usually 0.3 meters to 0.8 meters, and are often powered by low-voltage compressed air to extend their effective neutralization distance beyond their physical length.

Long ion air bars, by contrast, range from 1 meter to 6 meters or more, with some modular designs allowing for even longer lengths through splicing. These units are designed for large-scale, wide production lines, such as plastic film extrusion lines, wide-format printing presses, or heavy-duty conveyor systems that process large or wide products. Long ion air bars have a broader ion coverage range, typically 0.5 meters to 1.5 meters, and are often equipped with multiple ion emitters to ensure uniform static neutralization across the entire width of the production line. They are usually fixed above or alongside the conveyor belt, providing continuous, consistent ionized air to cover the entire product surface as it moves along the line.

The core function of both short and long ion air bars is the same—static neutralization—but their design and application are tailored to the specific dimensions of the production line. Short bars excel in narrow, space-constrained environments, offering flexibility and targeted static elimination. Long bars, on the other hand, provide comprehensive coverage for wide lines, ensuring that every part of the product is exposed to ionized air, thus preventing uneven static neutralization. Understanding these differences is the foundation for successfully matching ion air bar length to production line dimensions, as it allows manufacturers to align the air bar’s capabilities with the line’s specific needs.

Additionally, both short and long ion air bars require a high-voltage power supply to generate ions, and their performance is influenced by factors such as air pressure, airflow rate, and ion balance. Short bars often operate at lower air pressure (5-7 Kg) and airflow rates (10 m/sec), making them energy-efficient for small-scale applications. Long bars, which need to cover a larger area, may require higher airflow rates to ensure ions reach the entire product surface, especially on fast-moving production lines. This further emphasizes the need to match not just the length of the air bar to the line, but also its operational parameters to the production environment.

2. Key Steps to Measure Production Line Length for Ion Air Bar Matching

To measure production line length for ion air bar matching, you need to focus on three key measurements: the effective width of the production line (the actual area where products pass and require static elimination), the conveyor belt width (if applicable), and the available installation space; these measurements, combined with the ion air bar’s coverage range, determine the appropriate length of the air bar.

Accurate measurement of production line dimensions is the most critical step in matching ion air bar length. Many manufacturers make the mistake of using the overall length of the production line (the distance from the start to the end of the conveyor) as the basis for selecting an ion air bar, but this is incorrect. Ion air bars are designed to cover the width of the production line (the horizontal span where products are processed), not the length of the conveyor. The goal is to ensure that the entire surface of the product, as it moves along the line, is exposed to the ionized air generated by the air bar. Therefore, the key measurement is the effective width of the production line, not its overall length.

The first step in measuring is to define the effective width of the production line. This is the maximum width of the area where products are placed or processed on the conveyor belt. To measure this accurately, follow these steps: 1) Identify the widest product that will be processed on the line, as this will determine the minimum effective width required. 2) Measure the distance from the leftmost edge to the rightmost edge of the conveyor belt where products are placed—this is the conveyor width. 3) Add a small buffer (typically 5-10 cm) to account for any product movement or misalignment during production. This buffer ensures that even if products shift slightly during transport, they will still be within the ion air bar’s coverage range. For example, if the conveyor belt width is 0.6 meters and the widest product is 0.5 meters, adding a 5 cm buffer on each side results in an effective width of 0.7 meters.

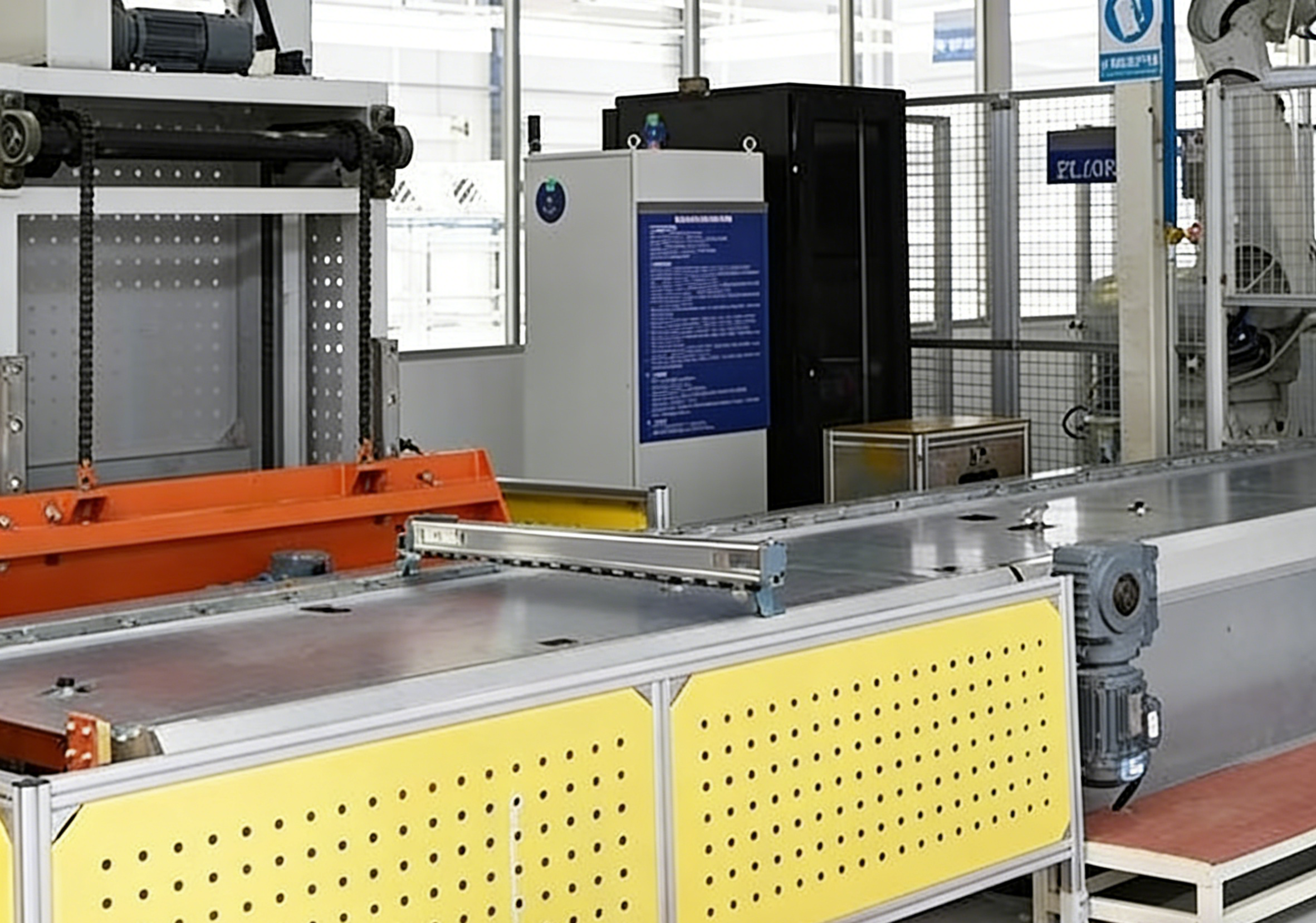

The second key measurement is the available installation space for the ion air bar. Ion air bars are typically installed above the conveyor belt (at a height of 0.3-1.0 meters) or alongside the line, depending on the production process. It is important to measure the available space above or beside the line to ensure that the selected ion air bar (especially long ones) can be installed without interfering with other equipment, such as sensors, lights, or other production tools. For example, if the space above the conveyor is limited by overhead pipes or machinery, a shorter ion air bar may be necessary, or a modular long bar that can be installed in sections to fit the available space.

The third measurement to consider is the production line’s operational parameters, such as conveyor speed and product spacing. While these do not directly measure the line’s width, they influence the required coverage range of the ion air bar. For fast-moving lines (speed > 5 m/min), the ion air bar needs to have a wider coverage range to ensure that the product is exposed to ionized air for a sufficient amount of time to neutralize static charges. In such cases, the effective width measurement may need to be adjusted to account for the product’s movement, ensuring that the air bar’s coverage is sufficient to neutralize static even as the product moves quickly along the line.

To ensure accuracy, it is recommended to use a measuring tape or laser distance meter for these measurements, and to take multiple measurements at different points along the conveyor belt (e.g., at the start, middle, and end) to account for any variations in width. It is also important to involve production line operators in the measurement process, as they are familiar with the typical product sizes, movement patterns, and potential obstacles that may affect ion air bar installation. By taking these precise measurements, manufacturers can avoid selecting an ion air bar that is too short (resulting in incomplete coverage) or too long (wasting space and energy).

3. Factors Determining Whether to Choose a Short or Long Ion Air Bar

The choice between a short or long ion air bar depends on five key factors: production line effective width, product type and size, production line speed, installation space constraints, and electrostatic elimination requirements; narrow lines, small products, and limited space favor short bars, while wide lines, large products, and high-speed operations require long bars.

While production line effective width is the primary factor in determining ion air bar length, several other critical factors must be considered to ensure optimal performance. These factors work together to influence the type of ion air bar that will best meet the production line’s needs, and ignoring any of them can lead to suboptimal static neutralization, increased costs, or equipment damage.

The first factor is production line effective width, which we discussed in detail earlier. As a general rule of thumb: short ion air bars (0.2m-1m) are suitable for production lines with an effective width of ≤ 0.8 meters. This includes small electronic component assembly lines, narrow packaging lines (e.g., small bottle filling or blister packaging), and precision parts processing stations. Long ion air bars (1m+) are required for lines with an effective width of > 0.8 meters, such as plastic film extrusion lines (which can be 2m-5m wide), wide-format printing lines, or large conveyor systems used in automotive or heavy manufacturing. For lines with an effective width between 0.8m and 1m, either a long ion air bar (1m) or multiple short bars installed in parallel can be used, depending on other factors such as installation space and cost.

The second factor is product type and size. Products with large surface areas (e.g., plastic sheets, large printed materials, or automotive components) require broader ion coverage, making long ion air bars the better choice. These products are often processed on wide production lines, and a long air bar ensures that the entire surface is exposed to ionized air, preventing static buildup in hard-to-reach areas. Conversely, small products (e.g., electronic chips, small hardware, or tiny packaging) have smaller surface areas and are processed on narrow lines, making short ion air bars sufficient. Additionally, products with irregular shapes or uneven surfaces may require multiple short ion air bars installed at different angles to ensure complete coverage, as a single long bar may not reach all areas of the product.

Production line speed is the third key factor. Fast-moving production lines (speed > 5 m/min) require ion air bars with a wider coverage range and faster ion generation to ensure that static charges are neutralized before the product moves out of the air bar’s range. Long ion air bars are typically equipped with more ion emitters, allowing them to generate a higher volume of ions and cover a larger area, making them ideal for high-speed lines. Short ion air bars, with their smaller coverage range, may be insufficient for fast-moving lines unless multiple bars are installed in series along the conveyor.

Installation space constraints are another critical factor. In facilities with limited overhead space or narrow work areas, short ion air bars are more practical, as they are compact and can be installed in tight spaces. Long ion air bars require more installation space, both in terms of length and height, and may not be suitable for facilities with low ceilings or crowded production areas. Modular long ion air bars can help address this issue, as they can be spliced into sections to fit the available space, but this may increase installation complexity and cost.

The fifth factor is electrostatic elimination requirements, which vary based on the industry and product. For industries with strict ESD requirements (e.g., electronics manufacturing), where even small static charges can damage sensitive components, long ion air bars may be necessary to ensure uniform, consistent static neutralization across the entire production line. In industries with less strict requirements (e.g., general packaging), short ion air bars may be sufficient, as long as they cover the product’s surface. Additionally, environments with high levels of dust or humidity may require longer ion air bars with higher airflow rates to ensure that ions reach the product surface despite dust buildup or moisture.

To summarize these factors, the table below provides a quick reference guide for choosing between short and long ion air bars based on common production line characteristics:

4. Step-by-Step Guide to Matching Ion Air Bar Length with Production Line

To match ion air bar length with production line length, follow these six steps: 1) Measure the production line’s effective width and available installation space; 2) Determine the required ion coverage range based on product size and line speed; 3) Evaluate short vs. long ion air bar specifications; 4) Select the appropriate length (or modular setup) based on the above factors; 5) Test the installation for coverage and static neutralization efficiency; 6) Adjust and optimize as needed for peak performance.

Matching ion air bar length to production line dimensions is a systematic process that requires careful planning, measurement, and testing. By following these step-by-step instructions, manufacturers can ensure that they select the right ion air bar for their specific needs, avoiding common pitfalls and optimizing static elimination performance.

Step 1: Measure the production line’s effective width and available installation space. As discussed earlier, the effective width is the key measurement here. Use a laser distance meter or measuring tape to measure the width of the conveyor belt where products are placed, add a 5-10 cm buffer for product movement, and record this as the effective width. Next, measure the available installation space above or beside the conveyor, noting the maximum length and height available for the ion air bar. This will help narrow down the options—for example, if the available space above the conveyor is only 0.5 meters in length, a long ion air bar (1m+) will not fit, and multiple short bars will be required.

Step 2: Determine the required ion coverage range. The ion coverage range of an air bar is the distance from the bar to the product surface where static neutralization is effective. This range varies based on the air bar’s design, air pressure, and ion generation rate. For most short ion air bars, the effective coverage range is 0.3m-0.8m; for long ion air bars, it is 0.5m-1.5m. To determine the required coverage range, measure the distance between the installation point (e.g., above the conveyor) and the product surface. If the distance is 0.6 meters, a short air bar with a coverage range of 0.3m-0.8m will be sufficient. If the distance is 1.0 meter, a long air bar with a wider coverage range is needed.

Additionally, consider the production line speed. For fast-moving lines (speed > 5 m/min), the coverage range needs to be wider to ensure that the product is exposed to ionized air for enough time to neutralize static. For example, a product moving at 10 m/min will pass a fixed ion air bar in a shorter time, so a wider coverage range (or multiple air bars) is necessary to ensure complete neutralization.

Step 3: Evaluate short vs. long ion air bar specifications. Once you have the effective width and required coverage range, evaluate the specifications of available short and long ion air bars. Key specifications to consider include: length, ion coverage range, ion generation rate, air pressure requirement, power consumption, and installation type (fixed or portable). For short air bars, focus on compact design and flexibility; for long air bars, focus on uniform ion distribution, modularity (for splicing), and compatibility with high-speed lines. It is also important to check the ion balance (typically 0V ±10V) to ensure that the air bar does not introduce additional static charges.

Step 4: Select the appropriate length (or modular setup). Based on the effective width, coverage range, and specifications, select the ion air bar length. Use the following guidelines to make your selection: 1) If the effective width is ≤ 0.8 meters: Choose a short ion air bar (0.2m-1m) with a coverage range that matches the distance from the installation point to the product. 2) If the effective width is > 0.8 meters: Choose a long ion air bar (1m+) with a length equal to or slightly longer than the effective width (adding a 5-10 cm buffer). 3) If the effective width is extra-wide (e.g., 5m+): Use modular long ion air bars that can be spliced together to cover the entire width. 4) If installation space is limited: Use multiple short ion air bars installed in parallel or series to cover the effective width.

For example, a production line with an effective width of 0.6 meters, installation height of 0.5 meters, and line speed of 3 m/min would be best suited for a 0.7m short ion air bar with a coverage range of 0.3m-0.8m. A production line with an effective width of 2 meters, installation height of 0.8 meters, and line speed of 8 m/min would require a 2.1m long ion air bar with a coverage range of 0.5m-1.5m.

Step 5: Test the installation for coverage and static neutralization efficiency. After installing the ion air bar, it is critical to test its performance to ensure that it provides complete coverage and effective static neutralization. Use an ion tester (such as the ME268A) to measure the ion balance and neutralization speed at different points along the production line. Test the left, center, and right edges of the conveyor to ensure that the ion coverage is uniform. Additionally, monitor product quality for any static-related defects (e.g., sticking, dust adsorption) during a test run. If defects are found, adjust the air bar’s position (height or angle) or add additional air bars to fill coverage gaps.

Step 6: Adjust and optimize as needed. Based on the test results, make any necessary adjustments to the ion air bar setup. This may include adjusting the air pressure (to increase or decrease coverage range), repositioning the air bar (to ensure uniform coverage), or adding additional air bars (for incomplete coverage). It is also important to monitor the air bar’s performance over time, as factors such as dust buildup on ion emitters can reduce efficiency. Regular cleaning and maintenance (discussed in Section 6) will help ensure long-term performance.

5. Common Mistakes to Avoid When Matching Ion Air Bars to Production Lines

The most common mistakes when matching ion air bars to production lines include: using overall production line length instead of effective width, ignoring installation space constraints, underestimating production line speed, selecting based solely on cost, and neglecting to test coverage and performance after installation; avoiding these mistakes ensures optimal static elimination and reduces operational costs.

Even with careful planning, many manufacturers make avoidable mistakes when matching ion air bars to their production lines. These mistakes can lead to poor static neutralization, increased maintenance costs, product defects, and wasted energy. By identifying and avoiding these common pitfalls, manufacturers can ensure that their ion air bar setup is efficient, effective, and cost-effective.

The first and most common mistake is using the overall production line length (the distance from the start to the end of the conveyor) instead of the effective width to select the ion air bar length. As discussed earlier, ion air bars are designed to cover the width of the line, not its length. For example, a production line that is 10 meters long but only 0.5 meters wide does not require a 10m long ion air bar—instead, a 0.6m short air bar is sufficient. Using the overall length leads to selecting an unnecessarily long (and expensive) air bar, which wastes space and energy without providing any additional benefit.

The second mistake is ignoring installation space constraints. Many manufacturers select a long ion air bar based on the effective width but fail to consider the available installation space. For example, a production line with an effective width of 1.5 meters may require a 1.6m long air bar, but if the available space above the conveyor is only 1.2 meters, the long air bar cannot be installed. This leads to costly rework, as the air bar must be returned or modified, and production may be delayed. Always measure the available installation space before selecting an air bar length, and consider modular or multiple short bars if space is limited.

Underestimating production line speed is another common mistake. Fast-moving lines require ion air bars with a wider coverage range and faster ion generation to ensure that static charges are neutralized before the product moves out of the air bar’s range. For example, a production line moving at 10 m/min with a 1m long air bar may not provide sufficient exposure time for static neutralization, leading to product defects. Manufacturers often select an air bar based on width alone, ignoring speed, which results in suboptimal performance. Always factor in line speed when determining the required coverage range and air bar specifications.

Selecting an ion air bar based solely on cost is a fourth common mistake. While cost is an important consideration, choosing the cheapest option (often a short air bar for a wide line) can lead to incomplete coverage, static-related defects, and higher long-term costs. For example, using a 0.8m short air bar for a 1.2m wide line may save money upfront, but it will result in uneven static neutralization, product damage, and increased downtime. It is better to invest in the correct length air bar (or modular setup) upfront to avoid these costly issues.

The fifth mistake is neglecting to test coverage and performance after installation. Even if the air bar is selected based on accurate measurements and specifications, there may be gaps in coverage or issues with ion balance that are only apparent during operation. For example, the air bar may be installed at the wrong height, leading to uneven coverage, or the ion emitters may be misaligned, reducing neutralization efficiency. Testing with an ion tester and monitoring product quality during a test run is critical to identifying and resolving these issues before full-scale production.

Other common mistakes include: using a single air bar for an irregularly shaped product (which may require multiple bars for full coverage), ignoring environmental factors (e.g., high humidity or dust, which can reduce ion effectiveness), and failing to consider future production line expansions. By avoiding these mistakes, manufacturers can ensure that their ion air bar setup is optimized for their specific production needs, providing reliable static elimination and supporting high-quality output.

6. Maintenance and Optimization Tips for Matched Ion Air Bars and Production Lines

To maintain optimal performance of matched ion air bars and production lines, follow these tips: regularly clean ion emitters and air filters, monitor ion balance and coverage, adjust air pressure and position as needed, schedule routine inspections, and align maintenance with production line downtime; these steps extend the air bar’s lifespan and ensure consistent static neutralization.

Selecting the correct ion air bar length is only the first step in ensuring effective static elimination. Regular maintenance and optimization are essential to keep the air bar operating at peak efficiency, extend its lifespan, and avoid costly downtime. Ion air bars, like all manufacturing equipment, require routine care to prevent dust buildup, maintain ion generation, and ensure uniform coverage.

The first maintenance tip is to regularly clean the ion emitters and air filters. Ion emitters (the small needles or nozzles that generate ions) can become clogged with dust, dirt, or debris over time, reducing ion generation and coverage. This is especially common in dusty environments, such as plastic or woodworking facilities. To clean the emitters, turn off the power to the air bar, remove the emitters (if detachable), and wipe them with a soft cloth dipped in无水酒精. For air filters (if equipped), remove and clean or replace them every 1-3 months, depending on the environment. Clean filters ensure that the air flow to the ion emitters is unobstructed, maintaining consistent ion distribution.

Monitoring ion balance and coverage is another critical maintenance step. Ion balance refers to the ratio of positive to negative ions generated by the air bar, and it should be maintained at 0V ±10V to avoid introducing additional static charges. Use an ion tester to measure ion balance monthly, and adjust the air bar’s settings (if adjustable) to correct any imbalance. Additionally, monitor coverage by testing different points along the production line to ensure that the ion air bar is still providing uniform coverage. If coverage gaps are found, adjust the air bar’s height, angle, or position, or add additional air bars to fill the gaps.

Adjusting air pressure and position as needed is also important for optimization. Air pressure affects the ion air bar’s coverage range—too low, and ions may not reach the product surface; too high, and energy is wasted, and product movement may be disrupted. Monitor air pressure regularly (using a pressure gauge) and adjust it to the manufacturer’s recommended range (typically 5-7 Kg for most ion air bars). Additionally, check the air bar’s position periodically to ensure that it has not shifted due to vibration or equipment movement. A shifted air bar can lead to uneven coverage and reduced static neutralization efficiency.

Scheduling routine inspections is essential to catch potential issues before they become major problems. Inspect the ion air bar’s power supply, wiring, and connections monthly to ensure that there are no loose wires or damage. Check for signs of wear and tear, such as cracked casings or damaged emitters, and replace any worn parts immediately. It is also important to inspect the installation brackets to ensure that the air bar is securely mounted, especially on high-speed production lines where vibration is common.

Aligning maintenance with production line downtime is a practical tip to minimize disruption. Schedule maintenance tasks (such as cleaning, filter replacement, and inspections) during scheduled downtime, such as shift changes, weekends, or production breaks. This ensures that maintenance does not interfere with production and reduces the risk of unplanned downtime due to equipment failure. Additionally, keep a record of all maintenance tasks, including dates, actions taken, and any issues found, to track the air bar’s performance over time and identify patterns or recurring problems.

Finally, consider seasonal adjustments to account for changes in environmental conditions. Humidity levels can affect ion generation—low humidity (common in winter) increases static buildup, requiring higher ion generation rates, while high humidity (common in summer) can reduce ion effectiveness. Adjust the air bar’s settings (e.g., air pressure, ion generation rate) seasonally to maintain optimal performance. For example, in low humidity conditions, increase the air pressure slightly to extend the coverage range and ensure effective static neutralization.

7. Real-World Case Studies: Successful Ion Air Bar and Production Line Matching

Real-world case studies demonstrate that matching ion air bar length to production line effective width, considering line speed and product type, and following proper installation and maintenance practices leads to improved static elimination, reduced product defects, and lower operational costs across various industries.

To illustrate the importance of correctly matching ion air bars to production line length, let’s examine three real-world case studies from different industries. These case studies highlight the challenges faced by manufacturers, the solutions implemented, and the results achieved by selecting the right ion air bar length and following best practices.

Case Study 1: Electronics Manufacturing Facility (Narrow Production Line) A small electronics manufacturer specializing in mobile phone component assembly was experiencing frequent static-related defects, including damaged microchips and dust adsorption on circuit boards. The production line had an effective width of 0.5 meters, a conveyor speed of 4 m/min, and limited overhead space (0.4 meters). Initially, the manufacturer had installed a 1m long ion air bar, which was too long for the available space and caused interference with other equipment. The long air bar also wasted energy, as it covered an area larger than the production line’s effective width.

Solution: The manufacturer measured the effective width of the line (0.5 meters) and available installation space (0.4 meters) and selected a 0.6m short ion air bar with a coverage range of 0.3m-0.8m. The short air bar was installed above the conveyor at a height of 0.3 meters, ensuring complete coverage of the circuit boards. Additionally, the manufacturer implemented a weekly cleaning schedule for the ion emitters and monthly ion balance testing.

Results: Static-related defects decreased by 85% within the first month. The short ion air bar fit perfectly in the available space, eliminating equipment interference, and reduced energy consumption by 30% compared to the long air bar. The manufacturer also reported improved product quality and reduced downtime for maintenance.

Case Study 2: Plastic Film Extrusion Facility (Wide Production Line) A plastic film manufacturer operated a production line with an effective width of 3 meters, a conveyor speed of 10 m/min, and strict requirements for static elimination (to prevent film sticking and dust buildup). Initially, the manufacturer used three 1m short ion air bars installed in parallel, but this resulted in uneven coverage, with gaps between the bars leading to static-related defects in the film.

Solution: The manufacturer switched to a modular long ion air bar system, splicing three 1.2m long bars to cover the 3-meter effective width (with a 0.6m buffer). The modular system was installed above the conveyor at a height of 0.8 meters, with each bar aligned to ensure overlapping coverage, eliminating gaps. The manufacturer also adjusted the air pressure to 6 Kg to extend the coverage range and accommodate the high line speed.

Results: Static-related film defects decreased by 90%, and the film quality improved significantly. The modular long air bar system provided uniform coverage across the entire 3-meter width, and the overlapping design eliminated coverage gaps. The manufacturer also reduced maintenance time, as the modular system was easier to clean and inspect than three separate short bars.

Case Study 3: Printing Facility (Medium-Width Production Line) A wide-format printing facility had a production line with an effective width of 1.2 meters, a conveyor speed of 6 m/min, and limited overhead space (0.8 meters). The manufacturer initially installed a 1.2m long ion air bar, but the available space was too narrow, leading to installation difficulties and interference with the printer’s sensors. The long air bar also had a coverage range that was larger than needed, wasting energy.

Solution: The manufacturer opted for two 0.7m short ion air bars installed in parallel, with a 0.1m overlap to ensure complete coverage of the 1.2-meter effective width. The short bars were installed beside the conveyor (instead of above) to avoid interference with the printer’s sensors, and the air pressure was adjusted to 5.5 Kg to ensure that ions reached the printed material. The manufacturer also implemented a monthly inspection schedule to check the bars’ position and ion balance.

Results: The parallel short air bars fit perfectly in the available space, eliminating equipment interference. Static-related printing defects (such as ink smudging and dust adsorption) decreased by 80%, and energy consumption was reduced by 25% compared to the long air bar. The manufacturer also reported increased flexibility, as the short bars could be repositioned easily if the production line’s effective width changed.

These case studies demonstrate that matching ion air bar length to production line effective width, considering installation space, line speed, and product type, is critical for achieving optimal static elimination. By following the step-by-step guide and avoiding common mistakes, manufacturers can improve product quality, reduce operational costs, and ensure consistent production efficiency.

Conclusion

Matching long or short ion air bars to production line length is a critical step in optimizing static elimination performance, reducing product defects, and lowering operational costs in manufacturing. The key to successful matching lies in accurately measuring the production line’s effective width (not its overall length), understanding the differences between short and long ion air bars, and considering factors such as product type, line speed, installation space, and electrostatic requirements.

By following the step-by-step guide outlined in this article—measuring effective width and installation space, determining required coverage range, evaluating air bar specifications, selecting the appropriate length, testing performance, and maintaining the system—manufacturers can ensure that their ion air bar setup is tailored to their specific production needs. Avoiding common mistakes, such as using overall line length, ignoring space constraints, or selecting based solely on cost, is essential to achieving optimal results.

Regular maintenance and optimization, including cleaning ion emitters, monitoring ion balance, and adjusting air pressure and position, will extend the ion air bar’s lifespan and ensure consistent performance over time. Real-world case studies from electronics, plastic, and printing industries demonstrate that correct matching leads to significant improvements in product quality, reduced defects, and lower energy consumption.

Whether you’re operating a narrow electronic component line or a wide plastic film extrusion line, taking the time to match the ion air bar length to your production line’s dimensions will pay off in improved efficiency, better product quality, and reduced operational costs. By prioritizing this critical step, manufacturers can ensure that their static elimination system supports their production goals and helps them stay competitive in today’s fast-paced manufacturing environment.
