Ion Attenuation Principle And Calibration Method Of EIESD Ion Air Bar

Static electricity is a major challenge in modern industrial manufacturing environments. In industries such as electronics, printing, plastics, packaging, medical devices, and semiconductor production, static charge accumulation can damage sensitive products, attract contaminants, reduce production efficiency, and create safety hazards. To solve these issues, ion air bars are widely used as an effective static elimination solution.

An ion air bar works by generating balanced positive and negative ions that neutralize electrostatic charges on material surfaces. However, maintaining consistent ion performance requires understanding the ion attenuation principle and implementing accurate calibration methods. Proper calibration ensures stable ion balance, efficient charge neutralization, and reliable production quality.

Understanding the attenuation behavior of ions and the calibration process is essential for improving static control performance in industrial applications. Factors such as airflow, environmental humidity, electrode contamination, installation distance, and power supply stability all influence ion efficiency. By mastering these principles, manufacturers can improve operational consistency, reduce defects, and extend equipment lifespan.

This article explores the ion attenuation principle, the working mechanism of ion air bars, common attenuation causes, calibration procedures, maintenance methods, and practical industrial applications. The discussion also covers testing standards and optimization strategies for achieving stable static elimination performance.

Table of Contents

• What Is An Ion Air Bar

• How The Ion Attenuation Principle Works

• Main Factors Affecting Ion Attenuation

• Importance Of Ion Air Bar Calibration

• Step By Step Calibration Method Of Ion Air Bar

• Common Calibration Instruments And Testing Standards

• Maintenance Methods To Reduce Ion Attenuation

• Industrial Applications Of Ion Air Bars

• Comparison Between Different Static Elimination Technologies

• Future Development Trends Of Ion Air Bar Technology

• Conclusion

What Is An Ion Air Bar

An ion air bar is an industrial static elimination device that generates positive and negative ions through high voltage discharge and distributes them with compressed air to neutralize electrostatic charges on material surfaces.

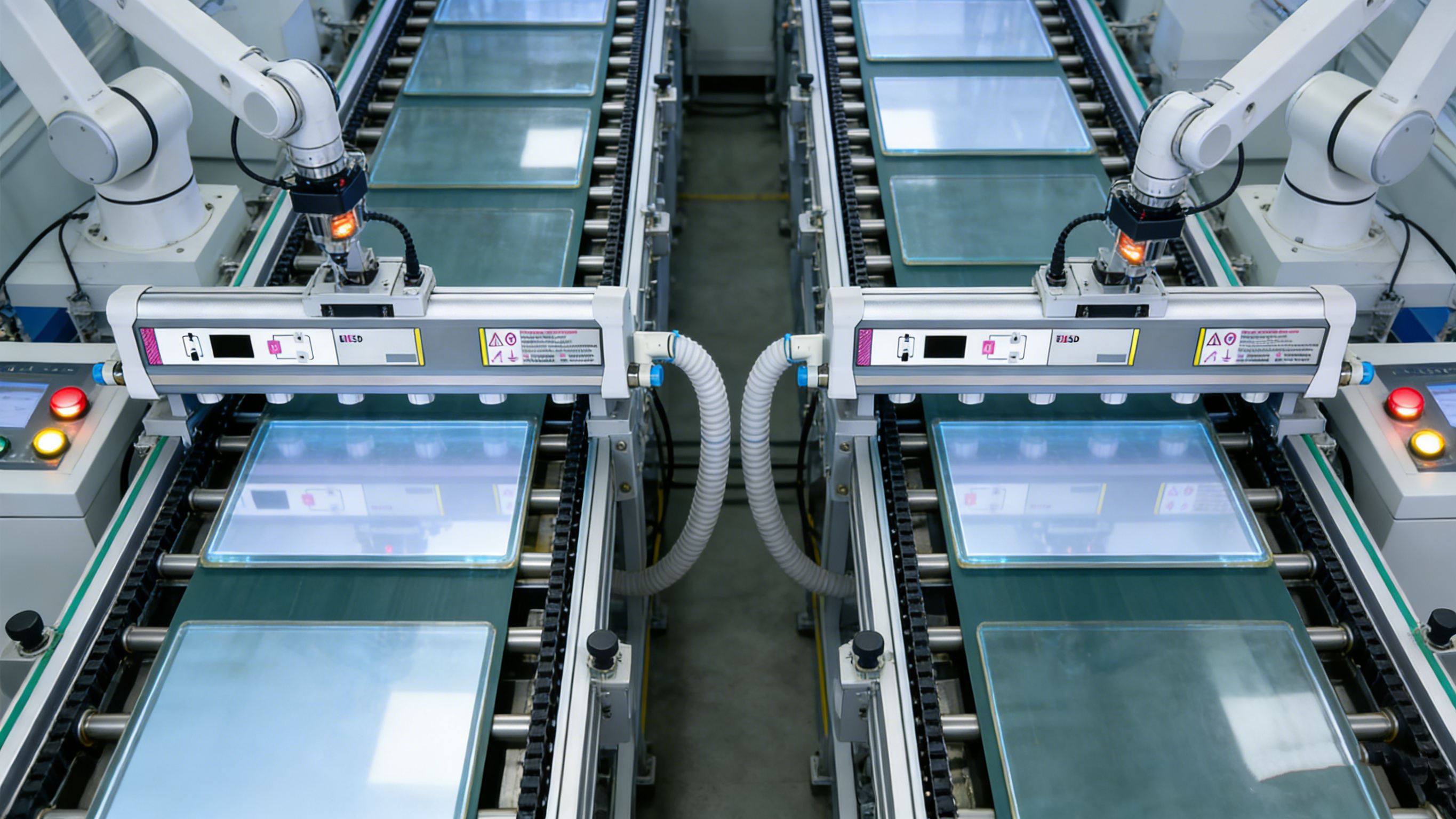

Ion air bars are commonly installed in automated production lines where static electricity creates operational problems. These devices combine ionization technology with controlled airflow to provide fast and efficient static neutralization. They are especially useful in high speed manufacturing processes where traditional grounding methods are insufficient.

The core structure of an ion air bar generally includes emitter needles, a high voltage power supply, an air distribution channel, and a protective housing. When high voltage is applied to the emitter points, air molecules surrounding the electrodes become ionized. The generated ions are then transported to the target surface by compressed air.

The operating principle is based on corona discharge. Positive and negative ions attach to oppositely charged surfaces and neutralize the electrostatic field. This process helps prevent problems such as dust attraction, product sticking, electronic component damage, and inaccurate material feeding.

Ion air bars are widely used because they provide several advantages:

• Fast static neutralization speed

• Stable ion output

• Wide coverage area

• Suitable for continuous operation

• Compatible with automated production systems

• Reduced contamination risk

The effectiveness of an ion air bar depends heavily on ion balance stability and attenuation control. If ion concentration decreases before reaching the target surface, static elimination efficiency will decline significantly.

How The Ion Attenuation Principle Works

The ion attenuation principle refers to the gradual reduction of ion concentration and neutralization capability as ions travel through the air from the ion source to the target surface.

Ion attenuation occurs naturally because ions are unstable particles that continuously interact with surrounding air molecules, dust particles, humidity, and electromagnetic fields. During transportation, some ions recombine with opposite charges and become electrically neutral, reducing the total number of active ions available for static elimination.

The attenuation process can be divided into several stages:

1. Ion generation at the emitter needle

2. Ion transportation through airflow

3. Ion collision and recombination

4. Ion neutralization on target surfaces

One of the most important factors affecting attenuation is the transportation distance. The farther ions travel, the greater the probability of recombination and energy loss. This is why installation position is critical in industrial applications.

Environmental conditions also strongly influence ion attenuation. High humidity increases air conductivity, which may improve ion mobility in some conditions but can also accelerate recombination. Dust contamination can absorb ions and reduce effective ion concentration.

The following table summarizes major attenuation influences:

Ion attenuation directly impacts static elimination speed and ion balance accuracy. Therefore, understanding attenuation behavior is essential for optimizing ion air bar performance.

Main Factors Affecting Ion Attenuation

Ion attenuation is mainly influenced by environmental conditions, equipment structure, airflow characteristics, electrode condition, and electrical stability.

Environmental humidity is one of the most significant factors. In low humidity environments, static electricity accumulates more easily, increasing the demand for effective ionization. However, extremely high humidity can destabilize ion transport and increase recombination rates.

Airflow quality also determines ion delivery efficiency. Uniform airflow helps transport ions directly toward the target surface. Turbulent airflow, on the other hand, disperses ions and weakens neutralization performance.

Electrode contamination is another critical issue. Over time, dust, oil, and industrial residues accumulate on emitter needles. This contamination changes the electric field distribution and reduces ion production efficiency. In severe cases, unstable discharge may occur.

Power supply quality greatly influences ion stability. Voltage fluctuations can cause inconsistent ion output, leading to poor ion balance. Stable high voltage generation is necessary for precise static elimination applications.

The installation position of the ion air bar is equally important. Incorrect placement may increase ion travel distance and reduce ion density at the target location.

Key influencing factors include:

• Temperature variations

• Compressed air pressure stability

• Distance from target surface

• Air cleanliness

• Electromagnetic interference

• Production line speed

Manufacturers must evaluate these variables carefully to minimize attenuation and maintain consistent ionization performance.

Importance Of Ion Air Bar Calibration

Calibration ensures that the ion air bar maintains accurate ion balance, stable discharge performance, and reliable static neutralization efficiency.

Without proper calibration, ion air bars may generate excessive positive or negative ions. This imbalance can create secondary charging problems instead of eliminating static electricity. Accurate calibration helps maintain neutral ion output.

Calibration also improves process consistency. In precision industries such as semiconductor manufacturing and electronics assembly, even minor electrostatic fluctuations can damage sensitive components. Regular calibration minimizes these risks.

Another important benefit is compliance with industrial quality standards. Many manufacturing facilities follow electrostatic discharge control regulations that require periodic ionizer testing and documentation.

Proper calibration provides the following advantages:

• Improved static elimination efficiency

• Stable ion balance performance

• Reduced product defects

• Longer equipment lifespan

• Lower maintenance costs

• Better production reliability

Calibration intervals vary depending on production conditions. Dusty or high usage environments usually require more frequent inspections and adjustments.

Step By Step Calibration Method Of Ion Air Bar

The calibration method of an ion air bar involves cleaning, electrical inspection, ion balance measurement, decay time testing, airflow verification, and performance adjustment.

The first step is equipment inspection and cleaning. Technicians should examine emitter needles, airflow channels, and electrical connections. Any contamination on the emitter points must be removed carefully using approved cleaning tools.

After cleaning, the ion air bar should be powered on and stabilized for a specific warm up period. Stable operating conditions are necessary before measurement begins.

The next step is ion balance testing. A charged plate monitor is commonly used to measure the residual voltage generated by the ionizer. The measured offset indicates whether positive and negative ions are balanced correctly.

Typical calibration procedure:

1. Disconnect production materials from the test area

2. Clean emitter needles thoroughly

3. Verify air pressure and airflow stability

4. Measure ion balance using a charged plate monitor

5. Record positive and negative discharge values

6. Adjust output parameters if necessary

7. Repeat measurements for verification

Decay time testing is another critical step. In this test, a charged plate is electrically charged and exposed to the ion air bar. The time required to reduce the charge to a specified voltage level is measured. Faster decay indicates better neutralization performance.

The following table shows typical testing targets:

After calibration, all test data should be documented for quality control and maintenance records.

Common Calibration Instruments And Testing Standards

Ion air bar calibration requires specialized instruments such as charged plate monitors, electrostatic field meters, airflow gauges, and high voltage testers.

The charged plate monitor is the most widely used calibration instrument. It measures ion balance and static decay performance under standardized conditions. This device simulates electrostatic charge accumulation and evaluates neutralization efficiency.

Electrostatic field meters are used to measure surface charge levels before and after ionization treatment. These meters help verify real production performance.

Airflow measurement devices are also important because airflow directly affects ion transportation. Insufficient airflow reduces ion coverage and increases attenuation.

Common testing standards focus on:

• Ion balance accuracy

• Static decay time

• Operational stability

• Safety performance

• Environmental adaptability

Industrial facilities usually establish routine testing schedules based on production criticality. High precision manufacturing environments may require daily verification, while standard industrial lines may perform monthly inspections.

Maintenance Methods To Reduce Ion Attenuation

Regular cleaning, stable airflow control, proper installation, and environmental management are essential for reducing ion attenuation.

Preventive maintenance significantly improves ion air bar reliability. The most important maintenance task is emitter needle cleaning because contamination directly affects ion generation quality.

Compressed air quality should also be monitored carefully. Oil or moisture contamination inside compressed air systems can damage ionization performance and increase maintenance frequency.

Routine maintenance recommendations include:

• Cleaning emitter points regularly

• Inspecting power supply stability

• Checking airflow pressure

• Monitoring ion balance trends

• Replacing worn components

• Maintaining clean installation environments

Proper installation positioning reduces unnecessary ion travel distance and minimizes attenuation losses. In many cases, moving the ion air bar closer to the target surface significantly improves static elimination efficiency.

Environmental control also plays a major role. Maintaining stable humidity and reducing airborne dust can improve long term ion stability.

Industrial Applications Of Ion Air Bars

Ion air bars are widely used in industries requiring reliable static control, contamination prevention, and protection of sensitive materials.

In electronics manufacturing, static electricity can destroy semiconductor components and integrated circuits. Ion air bars neutralize surface charges during assembly and packaging operations.

The printing industry uses ion air bars to reduce paper sticking and dust attraction. Static neutralization improves print quality and feeding accuracy.

Plastic film production also benefits significantly from ionization technology. Static charge accumulation during film winding can create handling difficulties and contamination risks.

Major industrial applications include:

As automation continues to expand, the demand for precise static control technology is increasing rapidly across global manufacturing industries.

Comparison Between Different Static Elimination Technologies

Ion air bars provide a balanced combination of fast neutralization speed, large coverage area, and compatibility with automated production compared with other static elimination technologies.

Several technologies are available for static control, including passive grounding, ion blowers, ionizing nozzles, and ion air bars. Each solution has different performance characteristics and application suitability.

Passive grounding methods are simple but ineffective for insulating materials. Ion blowers provide wide coverage but may lack concentrated airflow. Ionizing nozzles offer precision targeting but cover smaller areas.

Ion air bars are often preferred because they combine strong airflow with efficient ion distribution across wider surfaces.

Selecting the correct technology depends on production speed, material type, installation space, and cleanliness requirements.

Future Development Trends Of Ion Air Bar Technology

Future ion air bar technology focuses on intelligent monitoring, energy efficiency, improved ion balance control, and integration with automated manufacturing systems.

Modern manufacturing increasingly requires real time process monitoring. Advanced ion air bars are being developed with integrated sensors capable of continuously measuring ion balance and performance stability.

Smart control systems can automatically adjust voltage output and airflow parameters according to environmental conditions. This adaptive capability improves efficiency and reduces manual maintenance requirements.

Energy efficiency is another major development direction. Manufacturers are designing systems that deliver higher ion output with lower power consumption while maintaining operational stability.

Future technology trends include:

• Automatic self calibration systems

• Remote monitoring capabilities

• Predictive maintenance functions

• Improved contamination resistance

• Compact equipment structures

• Integration with industrial automation networks

As industrial quality standards continue to rise, ion air bar systems will become more intelligent, precise, and energy efficient.

Conclusion

Ion air bars play a critical role in modern industrial static control systems. Their ability to generate balanced ions and neutralize electrostatic charges makes them essential in industries requiring precision manufacturing and contamination control.

The ion attenuation principle explains how ion concentration decreases during transportation due to recombination, environmental factors, airflow instability, and contamination. Understanding these mechanisms is essential for optimizing ionization performance and reducing production risks.

Proper calibration ensures stable ion balance, fast static decay performance, and reliable operation. Regular testing, preventive maintenance, and environmental management are all necessary for maintaining high efficiency and extending equipment lifespan.

As industrial automation continues to evolve, ion air bar technology is expected to become more intelligent and efficient. Advanced monitoring systems, automatic calibration functions, and integrated smart manufacturing solutions will further improve static control performance in the future.

By mastering the principles of ion attenuation and calibration methods, manufacturers can achieve better product quality, higher production reliability, and improved operational efficiency across a wide range of industrial applications.
