Electrostatic discharge (ESD) and static electricity are among the most critical yet frequently underestimated risks in capacitor assembly lines. From aluminum electrolytic capacitors and multilayer ceramic capacitors (MLCCs) to film and tantalum capacitors, modern capacitor manufacturing involves high-speed automation, ultra-lightweight components, and insulating materials that are highly prone to electrostatic charge accumulation. Uncontrolled static can lead to particle attraction, component misalignment, dielectric damage, latent defects, yield loss, and long-term reliability failures.
This article presents a comprehensive, engineering-oriented strategy for the application of ionizing air bars in capacitor assembly lines. It explains static generation mechanisms, risk points across different capacitor types, ionization principles, placement strategies, airflow and control design, ESD coordination, maintenance, validation, and economic impact. The objective is to provide manufacturers, process engineers, and equipment integrators with a systematic and practical framework for deploying ionizing air bars effectively and compliantly in capacitor production environments.
The global electronics industry continues to demand smaller, lighter, and higher-performance capacitors. Assembly lines have evolved toward higher speeds, tighter tolerances, and increased automation. At the same time, materials commonly used in capacitor manufacturing—polymer films, ceramic powders, epoxy resins, plastic carriers, tapes, and reels—are predominantly insulative. These conditions create an ideal environment for static electricity generation and accumulation.
While ESD protection is well understood in semiconductor back-end assembly, capacitor production is sometimes incorrectly perceived as less sensitive. In reality, capacitors are highly vulnerable to both catastrophic and latent electrostatic damage, especially during winding, stacking, coating, curing, trimming, testing, and taping processes.
Ionizing air bars represent one of the most effective non-contact static control technologies for capacitor assembly lines. However, their effectiveness depends entirely on correct strategy—selection, placement, airflow design, integration with ESD grounding, and maintenance discipline. This article addresses these factors in detail.
Capacitor assembly lines combine several static-prone characteristics:
High-speed motion of films, foils, and tapes
Frequent contact and separation of dissimilar materials
Extensive use of plastics and polymers
Dry production environments (often <45% RH)
Lightweight components with low inertia
Even relatively small electrostatic fields can exert forces strong enough to disrupt component positioning or attract contaminants.
Unmanaged static electricity in capacitor assembly can cause:
Particle contamination on dielectric layers
Misalignment during winding or stacking
Adhesion and sticking of films or electrode foils
Electrostatic discharge damage to dielectric structures
Latent reliability defects that pass testing but fail in the field
Reduced yield and increased rework
Unlike obvious ESD events, many static-related defects remain invisible until reliability testing or customer use, significantly increasing quality risk.
Key static-sensitive stages include:
Aluminum foil unwinding
Paper separator handling
Electrolyte impregnation zones
Sleeve insertion and shrink processes
Static attraction of particles to foils can compromise dielectric integrity and shorten capacitor lifetime.
MLCC assembly involves extremely thin ceramic layers and electrode structures. Static risks include:
Green sheet handling
Layer stacking and lamination
Chip separation and singulation
Tape-and-reel packaging
Even low-level electrostatic forces can cause layer misregistration or micro-cracking.
Film capacitors are particularly susceptible to static due to:
Long polymer film paths
High-speed winding operations
Low mass of dielectric films
Static can cause films to repel or attract, leading to uneven winding tension and defects.
Powder handling, pellet forming, and resin coating stages require strict static control to prevent contamination and ESD-related degradation.

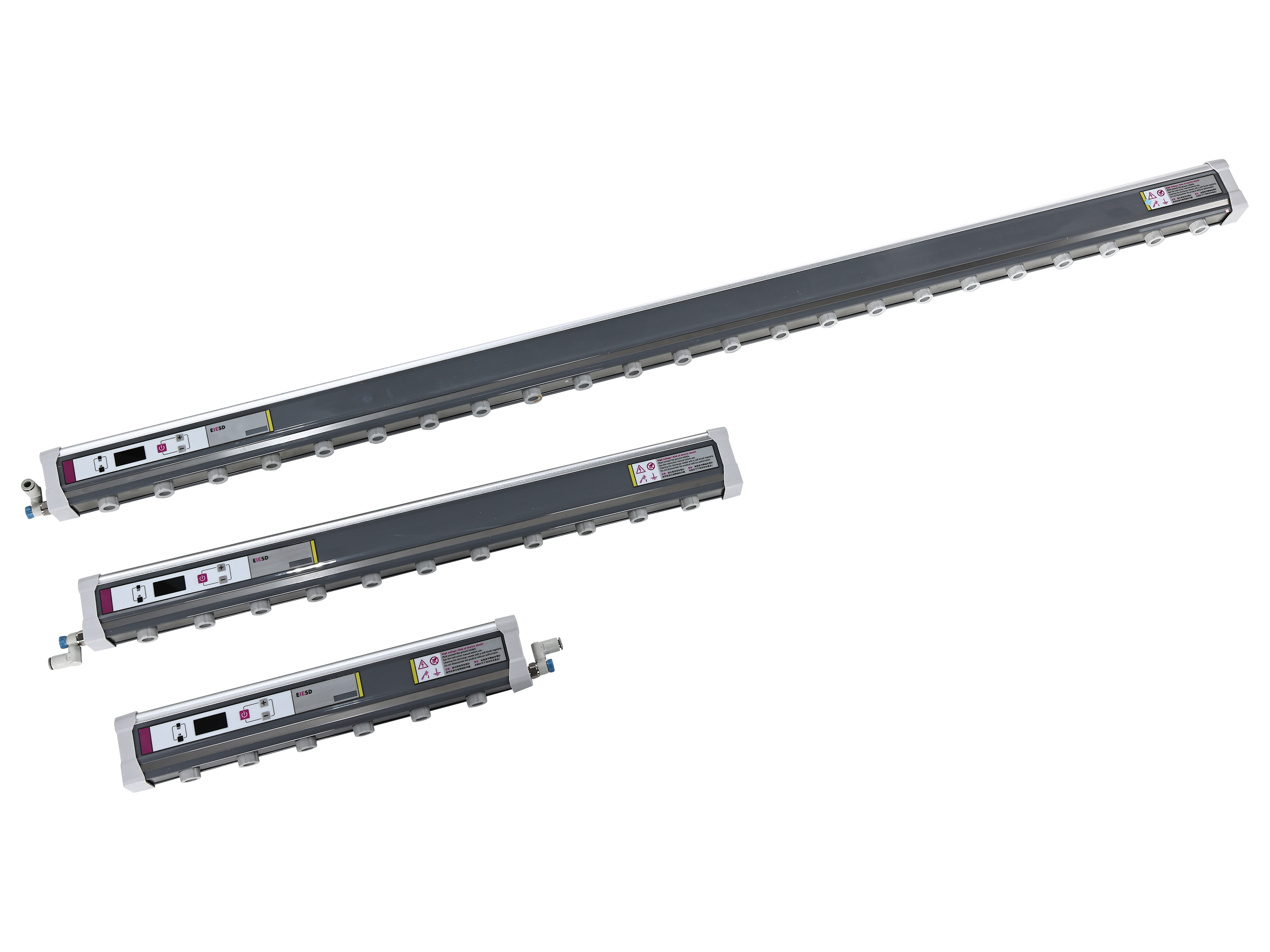

Ionizing air bars generate positive and negative ions through high-voltage corona discharge at emitter points. These ions are transported by airflow toward charged surfaces, where they neutralize static by recombining with excess surface charges.
AC ionizing bars: Simple, alternating output, suitable for general applications
DC ionizing bars: Separate positive and negative emitters, faster response
Pulsed DC ionizing bars: High precision, ideal for high-speed capacitor lines
DC and pulsed DC systems are typically preferred for capacitor manufacturing due to their balance stability and low particle emission.
For capacitor assembly, typical performance targets include:
Ion balance: ±30 V or better
Static decay time: <1 second from ±5 kV to ±500 V
Before deploying ionizing air bars, a structured static audit should be conducted:
Identification of static generation points
Measurement of surface voltage levels
Observation of component behavior (sticking, jumping)
Correlation with defect data
This assessment forms the foundation of an effective ionization strategy.
Place ionizers as close as safely possible to the target
Neutralize static immediately after generation
Avoid shielding or airflow obstruction
Coordinate with grounded conductors
Ionizing air bars should be installed at:
Film and foil unwind stations
Tape feeders
Separator paper feed paths
This prevents charge buildup before materials enter precision processes.
Ionization must be carefully balanced to avoid disturbing lightweight films while ensuring charge neutralization.
High static is often generated during cutting and separation. Ionizers should be positioned immediately downstream of these operations.
Static control improves measurement stability and reduces false rejects in automated inspection systems.
Ionizing bars are essential to prevent components from sticking to carrier tapes or covers.
Air supplied to ionizing bars must be:
Oil-free
Dry
Filtered to sub-micron levels
Excessive airflow can disturb lightweight capacitor components. Proper regulation ensures ion transport without mechanical interference.
Ionization does not replace grounding. Effective static control requires:
Proper grounding of equipment frames
Conductive rollers and guides
ESD-safe work surfaces
Ionizing air bars neutralize charges on insulators; grounding safely dissipates charges on conductors.
Rigid, vibration-free mounting
Shielded high-voltage cabling
Compliance with electrical safety standards
Static field measurements
Ion balance testing
Process observation under full speed
Emitter points must be cleaned regularly to maintain ion output and balance.
Advanced systems include ion output monitoring and fault alarms for preventive maintenance.
Ionization systems should be included in:
Process FMEA
Control plans
Periodic audits
Installation records
Calibration logs
Maintenance schedules
Equipment investment
Installation and validation
Yield improvement
Reduced downtime
Lower warranty and field failure costs
Many capacitor manufacturers achieve payback within one year.
Over-ionization without grounding
Poor placement far from static source
Neglecting maintenance
Using ionizers as a substitute for ESD control
Smart ionizers with real-time feedback
Integration with MES and Industry 4.0
Improved emitter materials for ultra-low particle generation
Ionizing air bars are a critical component of modern capacitor assembly line static control strategies. When applied systematically—based on static mapping, proper placement, airflow design, and integration with ESD grounding—they significantly enhance process stability, product quality, and long-term reliability.
As capacitor designs continue to evolve toward higher energy density, smaller form factors, and higher automation levels, robust and intelligent static control will become not only a best practice but a necessity. Ionizing air bar technology, applied with engineering discipline, provides a proven and scalable solution to meet these challenges.
In a high-speed film capacitor winding line, polypropylene dielectric film and aluminum metallized film are unwound, tension-controlled, aligned, and wound onto cores at speeds exceeding several hundred meters per minute. The combination of high speed, low-mass films, and insulating polymer materials creates extreme conditions for static charge generation.
Before ionization optimization, the manufacturer observed:
Film edge attraction causing lateral drift
Electrostatic repulsion leading to unstable winding tension
Dust attraction on dielectric surfaces
Increased scrap rate due to uneven winding
Surface voltage measurements showed peaks exceeding ±10 kV at the unwind and immediately before the winding head.
The implemented strategy included:
Ionizing air bars installed directly at film unwind exits
Secondary ionizers positioned before the winding mandrel
Low-velocity, wide-area airflow to avoid film flutter
The ionizers were synchronized with line speed changes to maintain consistent ion density.
After implementation:
Surface voltage reduced to below ±800 V
Winding stability improved significantly
Scrap rate reduced by over 35%
Cleaning intervals extended due to reduced dust attraction
Relative humidity strongly influences static behavior. While increasing humidity can reduce static generation, it is often limited by product or process constraints. Ionizing air bars provide a stable solution independent of humidity fluctuations.
Temperature variations affect air density and ion mobility. Advanced ionizing systems compensate automatically to maintain consistent neutralization performance.
In cleanroom or controlled environments, ionizers must be selected for low particle emission and minimal airflow disturbance. Laminar flow compatibility is critical in MLCC and tantalum capacitor lines.
Modern ionizing air bars increasingly feature closed-loop control systems that monitor ion balance and output in real time. Sensors provide feedback to the power supply, automatically correcting imbalances caused by contamination or emitter wear.
Ionization performance data can be integrated into MES platforms, enabling:
Predictive maintenance
Traceability for quality investigations
Correlation between static levels and yield data
Smart ionization aligns with Industry 4.0 principles by transforming static control from a passive measure into an active, data-driven process parameter.
Even the best ionization system can fail if operators are unaware of static risks. Training programs should cover:
Basic static principles
Correct handling of ionizers
Visual indicators of malfunction
Static control should be clearly assigned to process or equipment engineering teams, not treated as an ad-hoc maintenance issue.
While antistatic rollers and coatings can reduce charge accumulation, they cannot neutralize charges on free-moving insulators.
Humidity control is slow to respond and energy-intensive, making it insufficient as a standalone solution.
Ionizing air bars uniquely offer fast, non-contact, and localized static neutralization, making them indispensable in capacitor assembly lines.
Effective static control in capacitor manufacturing is not achieved through isolated measures but through a system-level strategy. Ionizing air bars, when properly selected, positioned, and managed, form the backbone of this strategy. Their role will continue to expand as capacitor technologies advance and manufacturing tolerances tighten.
Manufacturers who treat ionization as a core process parameter rather than an auxiliary accessory will gain measurable advantages in yield, reliability, and customer confidence.
