Electrostatic discharge (ESD) has long been recognized as one of the most persistent and costly hidden risks in modern manufacturing. As production systems evolve toward higher speed, higher automation, and higher integration density, traditional ESD control methods alone are no longer sufficient. Within this context, ionizing air bars occupy a unique, irreplaceable, and strategic position in the ESD protection system.
This comprehensive paper systematically analyzes the role, functional positioning, technical value, and strategic importance of ionizing air bars within a complete ESD protection framework. It integrates electrostatic theory, international ESD standards, industrial practice, and future manufacturing trends to explain why ionizing air bars are not auxiliary accessories, but essential system-level components in advanced ESD control.
Electrostatic charge arises from the imbalance of electrons on the surface of materials. In manufacturing environments, static electricity is primarily generated through:
Triboelectric charging during contact and separation
Inductive charging near charged objects
Friction in high-speed transport and handling
While conductors can often be grounded to dissipate charge, insulators retain charge on their surfaces, making them the dominant source of uncontrolled ESD risk.
ESD events can cause:
Catastrophic failures (immediate device destruction)
Latent defects (hidden damage leading to early-life failure)
Process instability and yield loss
Latent defects are particularly dangerous because they evade detection during production and testing, emerging later as field failures that damage brand reputation and customer trust.
According to ANSI/ESD S20.20 and IEC 61340 series standards, an effective ESD protection system consists of three complementary control strategies:
Grounding and bonding
Use of conductive and dissipative materials
Ionization
Ionizing air bars represent the most widely applied and industrially scalable form of ionization.
Grounding and dissipative materials are highly effective for people, tools, and fixtures. However, they are fundamentally limited when dealing with:
Insulating materials
Isolated conductors
Moving products
Airborne particles
These limitations create gaps in ESD protection that only ionization can close.
Ionization neutralizes static charge by generating positive and negative air ions that recombine with charged surfaces, restoring electrical neutrality without physical contact.
Ionization is:
Non-contact
Independent of grounding
Effective on insulators and isolated objects
No other ESD control method shares these characteristics.

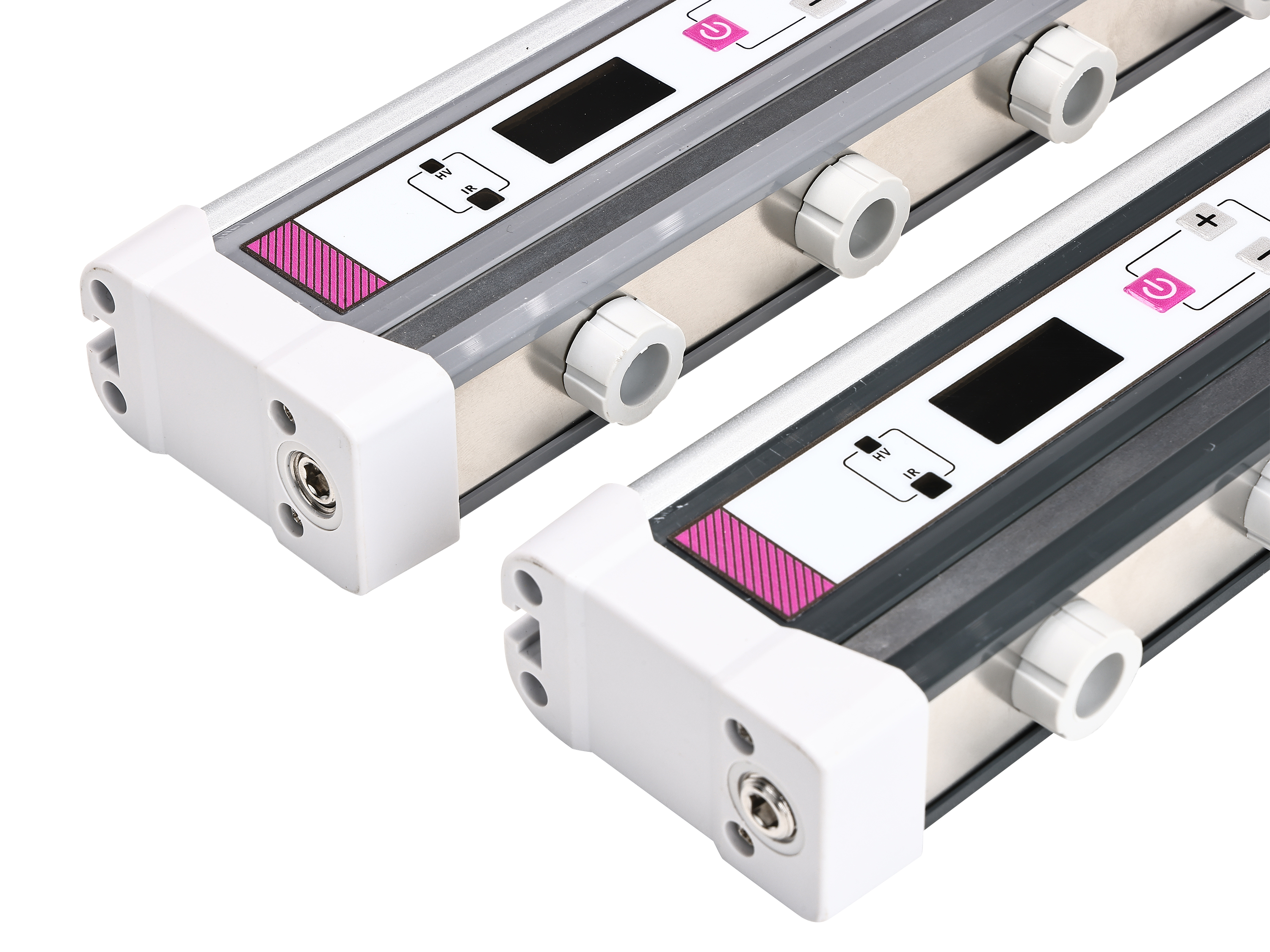

An ionizing air bar is a linear ionization device designed to provide continuous, uniform ion coverage across a defined width. It is optimized for integration into production lines and automated equipment.
Ion balance
Charge decay time
Effective working distance
Coverage uniformity
Stability over time
These parameters directly determine the effectiveness of ESD risk mitigation.
Ionizing air bars are the primary and often only viable solution for neutralizing static charge on insulating materials such as plastics, films, resins, and composite structures.
Unlike grounding, which is static, ionizing air bars provide continuous dynamic protection, neutralizing charge as it is generated during processing.
Within an ESD Protected Area (EPA), ionizing air bars act as the final safeguard against residual and newly generated static charges.
Ionizing air bars differ fundamentally from ionizing blowers, guns, and nozzles in that they provide system-level, continuous protection rather than localized or temporary control.
Automation increases speed, repetition, and proximity, all of which intensify static generation and ESD risk.
Ionizing air bars are easily integrated into robotic cells, conveyors, and transfer stations, providing protection where human-based grounding is impossible.
By suppressing low-level ESD events, ionizing air bars significantly reduce latent damage and improve long-term reliability.
Stable static control improves handling accuracy, reduces particle attraction, and stabilizes automated processes.
Ionization is explicitly required when insulators cannot be removed or grounded.
IEC standards emphasize performance verification, ion balance limits, and ongoing monitoring.
Regular testing of ion balance and decay time is essential to maintain ESD control integrity.
Emitter cleaning, calibration, and performance logging ensure long-term stability.
Poorly selected or maintained ionizing air bars can introduce imbalance, increasing rather than reducing ESD risk.
Ultra-low balance and cleanroom compatibility are mandatory.
Protection of components and assemblies throughout automated lines is critical.
Ionizing air bars protect sensitive electronics and reduce particle contamination.
Strict quality, cleanliness, and validation requirements elevate the importance of stable ionization.
The hidden cost of ESD failures far exceeds the investment in effective ionization.
Improved yield, reduced scrap, and higher uptime generate measurable returns.
Ionizing air bars are process-control tools.
They are risk-reduction instruments.
They are strategic investments in brand protection.
Smart ionizing air bars with monitoring and connectivity will become standard.
Integration with sensors and control systems enables adaptive static management.
Misunderstanding the role of ionizing air bars often leads to under-protection or misuse.
Ionizing air bars should be designed into ESD systems from the outset, not added reactively.
Real-world case studies consistently demonstrate the decisive role of ionizing air bars in preventing costly ESD incidents.
Effective ionization reduces operational risk and supports long-term business continuity.
Ionizing air bars occupy a central, irreplaceable position in modern ESD protection systems. They bridge the gap left by grounding and material controls, enabling reliable manufacturing in an era dominated by insulators, automation, and high-speed processes. Organizations that recognize and correctly implement ionizing air bars move beyond basic ESD compliance toward robust, future-proof electrostatic risk management.
To fully understand the irreplaceable role of ionizing air bars, it is necessary to examine ionization from a physics-based perspective rather than only an application-oriented view.
On insulating materials, electrostatic charge is not free to move across the surface or into ground. Instead, charge remains localized, forming high electric fields that can persist for long periods. These localized fields are precisely what cause:
Sudden ESD events when a conductive object approaches
Attraction of airborne particles
Electrostatic interference with sensors and automation
Ionizing air bars directly address this phenomenon by supplying mobile charge carriers (ions) into the surrounding air, enabling recombination at the surface level.
In real production environments, static charge generation is continuous rather than discrete. Ionizing air bars therefore function not as one-time neutralizers, but as dynamic equilibrium devices, continuously balancing charge generation and dissipation rates.
Despite their effectiveness, ionizing air bars introduce specific risks if poorly designed or maintained:
Ion imbalance due to emitter contamination
Reduced decay performance caused by insufficient airflow
Electrical drift in high-voltage power supplies
An imbalanced ionizer can increase ESD risk by charging products with a net polarity. This highlights why ionizing air bars must be treated as controlled ESD devices, not passive accessories.
In systems relying solely on grounding and dissipative materials, residual static charge accumulates on insulators, leading to unpredictable discharge events.
When ionizing air bars are correctly deployed, static potential is continuously suppressed, dramatically reducing both catastrophic and latent ESD failures.
Advanced packaging technologies such as fan-out wafer-level packaging rely heavily on ionizing air bars to maintain ultra-low ESD risk during die handling and bonding.
In electronics manufacturing services (EMS), ionizing air bars provide standardized ESD control across diverse product mixes, simplifying compliance and reducing variability.
Traditional ESD programs rely heavily on human behavior (wrist straps, footwear). Ionizing air bars reduce this dependence by providing environment-level control.
When ionizing systems are visible and monitored, they reinforce ESD awareness and discipline across the organization.
Initial qualification establishes baseline performance metrics against which future drift can be detected.
Regular audits ensure ionization performance remains within defined limits throughout the equipment lifecycle.
Ionizing air bars support ISO 9001, IATF 16949, and medical-device quality systems by reducing process variability and undocumented risk sources.
Global enterprises increasingly standardize ionizing air bar specifications to ensure consistent ESD protection worldwide.
Robust ionization strategies enhance confidence among customers, auditors, and regulatory bodies.
Future ionizing systems may leverage machine learning to predict static risk and adjust ion output proactively.
Centralized dashboards will allow real-time visibility of ionization performance across entire factories.
As manufacturing systems become increasingly complex and sensitive, the role of ionizing air bars will continue to expand. Far from being optional accessories, they represent a cornerstone of modern ESD protection philosophy—bridging physics, engineering, quality, and strategic risk management.
