In industrial manufacturing environments, static electricity poses a hidden threat that can disrupt production processes, damage sensitive components, and even compromise workplace safety. From plastic film production to electronic assembly lines, static buildup on surfaces can attract dust and debris, cause product defects, and create electrostatic discharge (ESD) that harms delicate equipment. As industries strive for higher efficiency, product quality, and safety compliance, the need for reliable static elimination solutions has become increasingly critical. One such solution that has gained widespread adoption in B2B settings is the ion air bar—a specialized device designed to neutralize static electricity efficiently and consistently across large surfaces and production lines.
An ion air bar is a fixed static elimination device that generates and emits a steady stream of positive and negative ions to neutralize static electricity on surfaces, materials, or components. Its working principle relies on corona discharge to ionize air molecules, creating a balanced mix of ions that are then blown across the target area to neutralize any static charge. The primary functions of an ion air bar include static neutralization, dust and debris removal, prevention of ESD damage, and maintenance of production line efficiency, making it an essential tool in industries such as electronics, plastics, printing, and packaging.
Understanding the ins and outs of an ion air bar—from its basic definition to its working mechanism, core functions, and practical applications—is crucial for businesses looking to mitigate static-related issues. This article will break down every key aspect of ion air bars, providing detailed insights into how they work, what functions they serve, the different types available, and how to choose the right one for your industrial needs. Whether you’re a plant manager, an operations engineer, or a procurement professional, this guide will equip you with the knowledge to leverage ion air bars effectively in your production environment.
Below is a detailed overview of the topics covered in this article:
What Is an Ion Air Bar? Definition and Core Characteristics
How Does an Ion Air Bar Work? Step-by-Step Working Principle
Key Functions of an Ion Air Bar in Industrial Settings
Different Types of Ion Air Bars and Their Applications
Key Technical Specifications to Consider When Choosing an Ion Air Bar
Installation, Maintenance, and Safety Guidelines for Ion Air Bars
Common Challenges with Ion Air Bars and How to Troubleshoot Them
Conclusion: The Value of Ion Air Bars in Modern Manufacturing
An ion air bar is a fixed, industrial-grade static elimination device that produces and distributes positive and negative ions to neutralize static charge on surfaces, materials, or components moving along production lines. It is designed to cover large areas consistently, making it ideal for high-speed manufacturing processes, and it operates by ionizing air through corona discharge, then using airflow to deliver these ions to the target area.
To fully grasp what an ion air bar is, it’s important to distinguish it from other static elimination tools and understand its unique characteristics that make it suitable for B2B industrial applications. Unlike handheld static eliminators (such as ion guns) or compact ion fans, ion air bars are designed for permanent installation above or alongside production lines, providing continuous, automated static neutralization without the need for manual operation. This makes them particularly well-suited for high-volume, high-speed manufacturing environments where consistency and efficiency are paramount.
At its core, an ion air bar consists of three main components: a high-voltage generator, ion-emitting needles (or electrodes), and an airflow system (either built-in fans or connections to compressed air). The high-voltage generator supplies the electrical energy needed to create corona discharge at the ion-emitting needles, while the airflow system ensures that the ionized air is distributed evenly across the target surface. This combination of components allows the ion air bar to neutralize static charge quickly and effectively, even on large or moving surfaces.
One of the key characteristics of ion air bars is their ability to produce a balanced mix of positive and negative ions. This balance is critical because static charge on surfaces can be either positive or negative, and an imbalance in ions would only replace one type of static charge with another, rather than neutralizing it. High-quality ion air bars maintain an ion balance of ±30V or better, ensuring that static charge is neutralized completely, not just shifted. Another important characteristic is their coverage area—ion air bars are available in various lengths (from a few inches to several feet) to match the width of production lines, ensuring that every part of the target surface receives the necessary ionized air.
Ion air bars are also known for their durability and low maintenance requirements, which are essential in industrial settings where downtime can be costly. Most models are constructed with rugged materials (such as aluminum or stainless steel) to withstand harsh manufacturing environments, including high temperatures, dust, and moisture. Additionally, their design minimizes the buildup of dust and debris on the ion-emitting needles, reducing the need for frequent cleaning and ensuring consistent performance over time.
An ion air bar works by using corona discharge to ionize air molecules into positive and negative ions, then directing these ions via airflow to the target surface with static charge. The ions neutralize the static charge by attaching to the surface—positive ions attach to negatively charged surfaces, and negative ions attach to positively charged surfaces—until the surface reaches a neutral electrical state.
To understand the working principle in detail, it’s helpful to break it down into four key steps: power supply and corona discharge, ion generation, airflow distribution, and static neutralization. Each step plays a critical role in ensuring the ion air bar operates effectively, and any disruption to one step can impact the device’s performance.
The first step in the process is power supply and corona discharge. The ion air bar is connected to a high-voltage generator, which converts standard electrical power (110V/60Hz or 220V/50Hz) into a high-voltage, low-current output (typically 5.6KV or higher). This high voltage is delivered to the ion-emitting needles (electrodes) located along the length of the air bar. When the high voltage reaches the tips of the needles, it creates a strong electric field around the needles—a phenomenon known as corona discharge. Corona discharge is a process where electrical energy ionizes the air molecules (primarily oxygen and nitrogen) in the vicinity of the electrodes, breaking them down into positive and negative ions.
The second step is ion generation. As corona discharge occurs, the air molecules near the needles lose or gain electrons. Oxygen molecules, for example, may gain an electron to become negative ions (O₂⁻) or lose an electron to become positive ions (O₂⁺). The ion air bar is designed to produce a balanced ratio of positive and negative ions, typically 1:1, to ensure that any static charge on the target surface can be neutralized, regardless of whether it is positive or negative. The number of ions generated depends on several factors, including the voltage applied, the number and size of the ion-emitting needles, and the distance between the needles and the target surface.
The third step is airflow distribution. Once the ions are generated, they need to be delivered to the target surface to neutralize static charge. Ion air bars use one of two main airflow systems to achieve this: built-in fans or compressed air connections. Models with built-in fans draw in ambient air, pass it over the ion-emitting needles to pick up ions, and then blow the ionized air across the target surface. Models that use compressed air connect to an industrial air supply, which forces air through the air bar and over the needles, creating a high-velocity stream of ionized air. The airflow rate is typically adjustable, allowing users to tailor the device’s performance to the specific needs of their production line—higher airflow rates are ideal for high-speed lines or large surfaces, while lower rates are suitable for delicate components that could be damaged by strong airflow.
The final step is static neutralization. When the ionized air reaches the target surface, the positive and negative ions are attracted to the surface’s static charge. For example, if the surface has a negative static charge, positive ions from the ion air bar will be drawn to it, attaching to the surface and neutralizing the negative charge. Conversely, if the surface has a positive static charge, negative ions will attach to it. This process continues until the surface’s electrical charge is reduced to near zero (typically ±30V or less), effectively eliminating static electricity. The speed of neutralization depends on several factors, including the distance between the ion air bar and the target surface, the airflow rate, the ion concentration, and the initial static charge on the surface. In most industrial settings, neutralization occurs in less than 1 second when the ion air bar is properly positioned and adjusted.
It’s important to note that proper grounding is essential for the ion air bar to work effectively. The high-voltage generator and the ion air bar itself must be grounded to prevent electrical shocks and ensure that the corona discharge is stable. Without proper grounding, the ion air bar may produce an imbalance of ions, fail to generate enough ions, or even pose a safety hazard to workers.
The primary functions of an ion air bar are static neutralization, dust and debris removal, prevention of ESD damage, maintenance of production line efficiency, and improvement of product quality—all of which are critical for optimizing industrial manufacturing processes and reducing costly defects.
Static neutralization is the core function of an ion air bar, and it addresses the root cause of many production issues related to static electricity. In manufacturing environments, static charge can build up on a wide range of materials, including plastics, textiles, paper, and electronic components. This static charge can cause materials to stick together (e.g., plastic films or sheets), repel each other (e.g., small electronic parts), or attract dust and debris from the surrounding environment. By neutralizing this static charge, the ion air bar eliminates these issues, allowing materials to move smoothly through the production line and reducing the risk of jams or delays.
Dust and debris removal is another important function of ion air bars, and it is closely tied to static neutralization. Static-charged surfaces act like magnets, attracting dust, lint, and other small particles from the air. This can be particularly problematic in industries where product cleanliness is critical, such as electronics manufacturing, pharmaceutical production, and food packaging. For example, dust on electronic circuit boards can cause short circuits or reduce the performance of the final product, while dust on food packaging can compromise hygiene and consumer safety. The ion air bar’s ionized airflow not only neutralizes the static charge but also blows away any dust or debris that has already attached to the surface, ensuring that products remain clean throughout the production process.
Prevention of electrostatic discharge (ESD) damage is a critical function for industries that handle sensitive electronic components, such as semiconductors, microchips, and circuit boards. ESD occurs when a static-charged surface comes into contact with a sensitive component, causing a sudden flow of electricity that can damage the component’s internal circuitry. Even a small ESD event (as low as 100 volts) can damage delicate electronic components, leading to product failures, costly rework, and reduced yield. Ion air bars neutralize static charge on both the components and the surrounding surfaces (e.g., conveyor belts, workstations), preventing ESD events and protecting valuable equipment and products.
Maintenance of production line efficiency is another key function of ion air bars. Static-related issues such as material jams, product sticking, and dust buildup can slow down production lines, increase downtime, and reduce overall efficiency. For example, in a plastic film production line, static charge can cause the film to stick to the conveyor belt or to itself, leading to jams that require manual intervention. By eliminating static charge, ion air bars ensure that materials move smoothly through the line, reducing downtime and increasing throughput. This is particularly important in high-speed production environments, where even small delays can result in significant losses.
Improvement of product quality is a natural outcome of the ion air bar’s other functions. By neutralizing static charge, removing dust and debris, and preventing ESD damage, ion air bars help to reduce product defects and ensure that products meet the required quality standards. For example, in printing and packaging industries, static charge can cause ink smudges, misalignment of labels, or damage to packaging materials. Ion air bars eliminate these issues, resulting in cleaner, more consistent products that are less likely to be rejected. In electronics manufacturing, ESD prevention ensures that components work as intended, reducing the number of defective products and improving customer satisfaction.
To illustrate the impact of these functions, consider the following examples: In a plastic injection molding facility, an ion air bar installed above the conveyor belt neutralizes static charge on the molded parts, preventing them from sticking together and attracting dust. This reduces the number of defective parts and speeds up the packaging process. In an electronic assembly line, an ion air bar positioned near the pick-and-place machine neutralizes static charge on the circuit boards and components, preventing ESD damage and ensuring that components are placed correctly. In a printing facility, an ion air bar installed before the printing press neutralizes static charge on the paper, preventing ink smudges and ensuring consistent print quality.
Ion air bars are available in several types, categorized by their airflow system, power source, and design, each tailored to specific industrial applications and production environments. The main types include compressed air ion air bars, fan-driven ion air bars, static bar ionizers (without airflow), and cleanroom-compatible ion air bars.
Understanding the different types of ion air bars and their applications is crucial for businesses to choose the right device for their needs. Each type has its own strengths and limitations, and selecting the wrong type can result in ineffective static elimination, increased costs, or reduced production efficiency. Below is a detailed breakdown of each type, including their design, working characteristics, and ideal applications.
Compressed air ion air bars (also known as compressed air ionizers) rely on an external compressed air supply to deliver ionized air to the target surface. They are designed with a series of air nozzles along the length of the bar, which distribute compressed air over the ion-emitting needles. The compressed air picks up the ions and blows them across the target area at high velocity, making this type of ion air bar ideal for long-distance static neutralization (up to 3 meters) or large surfaces.
One of the key advantages of compressed air ion air bars is their ability to deliver ionized air over long distances, which makes them suitable for production lines where the ion air bar cannot be installed close to the target surface (e.g., large machinery or high-temperature environments). They also produce a high-velocity airflow, which is effective for removing dust and debris from surfaces, in addition to neutralizing static charge. However, they require a reliable compressed air supply, which can add to operational costs, and they may produce more noise than fan-driven models.
Ideal applications for compressed air ion air bars include: plastic film and sheet production, where the ion air bar is installed above the extruder to neutralize static on the film; metal fabrication, where static charge can attract metal dust and debris; and printing industries, where long-distance static neutralization is needed for large rolls of paper or fabric.

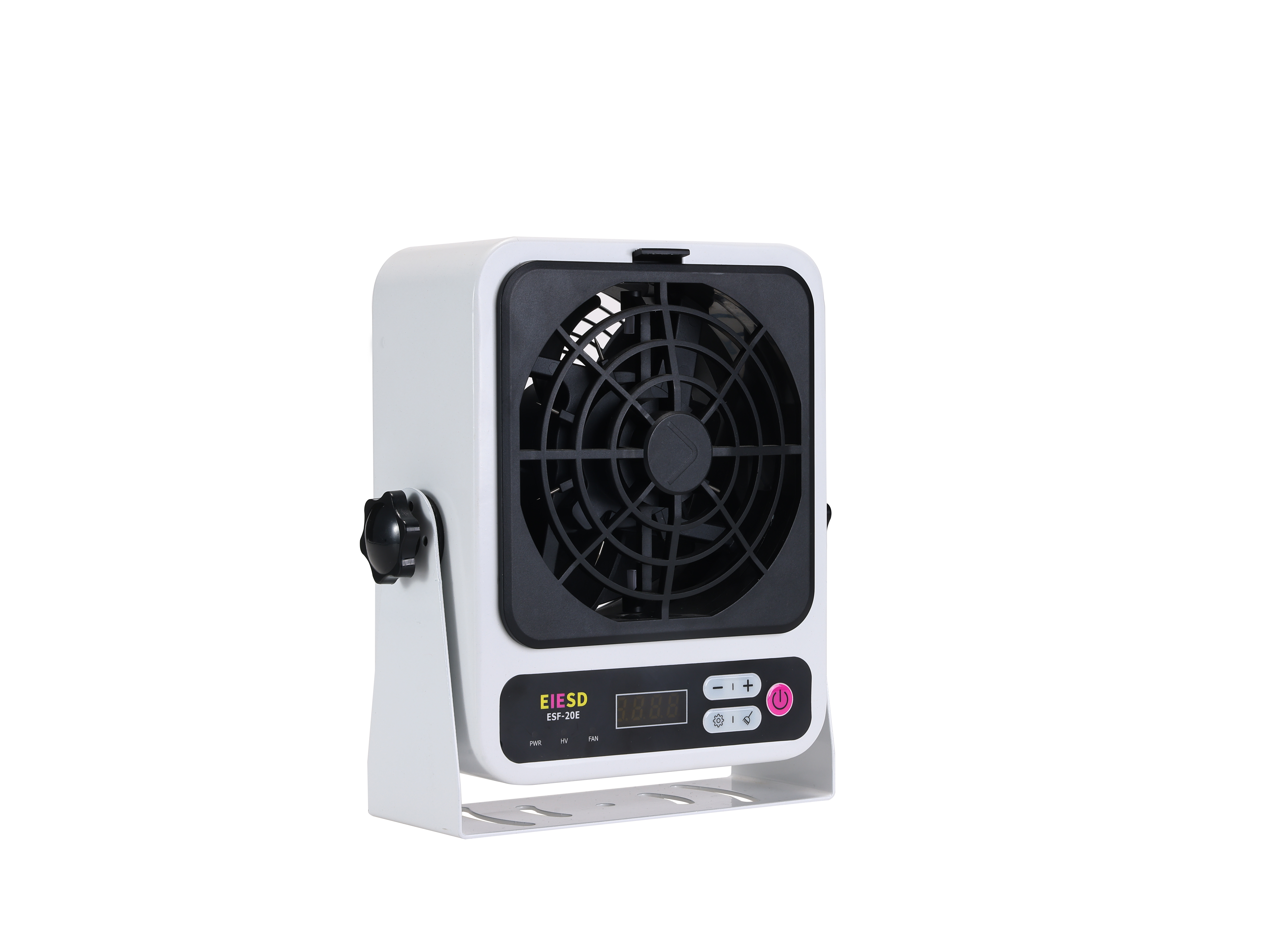

Fan-driven ion air bars (also known as forced-air ionizers) have built-in fans that draw in ambient air, pass it over the ion-emitting needles, and blow the ionized air across the target surface. They do not require an external compressed air supply, making them more cost-effective to operate than compressed air models. They are available in both axial and centrifugal fan designs, with adjustable airflow rates to suit different applications.
The main advantage of fan-driven ion air bars is their simplicity and cost-effectiveness. They are easy to install and maintain, as they do not require a compressed air system, and they produce less noise than compressed air models. They are also ideal for short to medium distance static neutralization (up to 1 meter) and are well-suited for production lines where space is limited. However, their coverage distance is shorter than compressed air models, and they may not be suitable for environments with high levels of dust or debris, as the fans can become clogged.
Ideal applications for fan-driven ion air bars include: electronic assembly lines, where the ion air bar is installed near workstations to neutralize static on circuit boards and components; packaging industries, where static charge can cause packaging materials to stick together; and textile manufacturing, where static charge can cause fibers to clump or stick to machinery.
Static bar ionizers (also known as passive ion air bars) do not have a built-in airflow system or require compressed air. Instead, they rely on natural air movement (e.g., from the production line’s conveyor belt or ambient air currents) to deliver ions to the target surface. They are designed with closely spaced ion-emitting needles, which generate a high concentration of ions that disperse naturally into the surrounding air.
The main advantage of static bar ionizers is their compact design and low maintenance requirements. They are ideal for applications where airflow could damage delicate components (e.g., small electronic parts or fragile materials) or where space is extremely limited. They are also cost-effective, as they do not require a fan or compressed air supply. However, their effectiveness depends on natural air movement, which can be inconsistent, and they are only suitable for short-distance static neutralization (up to 30 centimeters).
Ideal applications for static bar ionizers include: microelectronics manufacturing, where delicate components could be damaged by airflow; precision printing, where airflow could cause ink smudges; and small-scale production lines where space is limited.
Cleanroom-compatible ion air bars are designed specifically for use in cleanroom environments (e.g., ISO Class 5 to Class 8), where dust and contamination are strictly controlled. They are constructed with materials that do not shed particles, have sealed enclosures to prevent dust buildup, and are designed to minimize ozone production (a byproduct of corona discharge that can be harmful in enclosed spaces).
The main advantage of cleanroom-compatible ion air bars is their ability to neutralize static charge without introducing dust or contaminants into the cleanroom. They are also designed to meet strict cleanroom standards, making them suitable for industries such as pharmaceutical manufacturing, semiconductor production, and medical device manufacturing. However, they are more expensive than standard ion air bars and require regular maintenance to ensure they remain compliant with cleanroom standards.
Ideal applications for cleanroom-compatible ion air bars include: semiconductor manufacturing, where cleanroom conditions are critical to product quality; pharmaceutical production, where contamination must be minimized; and medical device manufacturing, where sterile conditions are required.
The table below summarizes the key characteristics and applications of each type of ion air bar:
Ion Air Bar Type | Airflow Source | Coverage Distance | Key Advantages | Ideal Applications |
|---|---|---|---|---|
Compressed Air | External compressed air | Up to 3 meters | Long coverage distance, high-velocity airflow for dust removal | Plastic film production, metal fabrication, printing |
Fan-Driven | Built-in fan | Up to 1 meter | Cost-effective, low noise, no external air supply needed | Electronic assembly, packaging, textile manufacturing |
Static Bar Ionizer | Natural air movement | Up to 30 centimeters | Compact, low maintenance, no airflow damage | Microelectronics, precision printing, small-scale production |
Cleanroom-Compatible | Built-in fan or compressed air (sealed) | Up to 1 meter | Dust-free, low ozone, cleanroom compliant | Semiconductor, pharmaceutical, medical device manufacturing |
When selecting an ion air bar for industrial use, key technical specifications to consider include ion balance, neutralization time, coverage length, airflow rate, operating voltage, temperature range, and ozone emission—all of which directly impact the device’s performance and suitability for your specific application.
Choosing the right ion air bar requires careful consideration of your production environment, the materials you handle, and your specific static elimination needs. While the type of ion air bar (compressed air, fan-driven, etc.) is an important first decision, evaluating the technical specifications will ensure that the device you choose can effectively neutralize static charge, integrate with your production line, and operate reliably over time. Below is a detailed breakdown of the most critical technical specifications to consider.
Ion balance refers to the ratio of positive to negative ions generated by the ion air bar. It is measured in volts (V) and indicates how effectively the device can neutralize both positive and negative static charges. A balanced ion air bar will have an ion balance of ±30V or better, meaning that the number of positive and negative ions is nearly equal. If the ion balance is outside this range, the device may replace one type of static charge with another, rather than neutralizing it.
For example, an ion air bar with an ion balance of +50V will generate more positive ions than negative ions, which can leave surfaces with a slight positive charge after neutralization. This can still cause issues such as dust attraction or material sticking. For most industrial applications, an ion balance of ±10V to ±30V is ideal, as it ensures complete neutralization of static charge. Some high-end ion air bars include adjustable ion balance controls, allowing users to fine-tune the device’s performance based on their specific needs.
Neutralization time is the amount of time it takes for the ion air bar to reduce the static charge on a surface to near zero (typically ±30V). It is measured in seconds and is a critical specification for high-speed production lines, where materials move quickly and static charge must be neutralized rapidly to prevent issues.
Neutralization time depends on several factors, including the distance between the ion air bar and the target surface, the airflow rate, the ion concentration, and the initial static charge on the surface. Most industrial ion air bars have a neutralization time of 0.5 to 2 seconds when installed at the recommended distance (typically 10 to 30 centimeters for fan-driven models and 30 to 100 centimeters for compressed air models). For high-speed production lines (e.g., plastic film production with speeds of 10 meters per minute or more), a neutralization time of 0.5 to 1 second is recommended to ensure that static charge is neutralized before the material moves past the ion air bar.
Coverage length refers to the length of the ion air bar, which determines the width of the surface it can cover. Ion air bars are available in lengths ranging from 10 centimeters (4 inches) to 3 meters (10 feet), with custom lengths available for specialized applications. The coverage length should match the width of your production line or the target surface to ensure that every part of the surface receives ionized air.
For example, a plastic film production line with a width of 1 meter would require an ion air bar with a coverage length of 1 meter or more to ensure that the entire width of the film is neutralized. If the coverage length is too short, some parts of the surface will not receive ionized air, leading to uneven static neutralization and potential production issues. It’s important to note that the coverage length is not the same as the coverage distance—coverage length refers to the width of the ion air bar, while coverage distance refers to how far the ionized air can reach from the bar.
Airflow rate (measured in cubic meters per minute or cubic feet per minute) determines how quickly ionized air is delivered to the target surface. For fan-driven ion air bars, the airflow rate is adjustable, typically ranging from 0.5 to 5 cubic meters per minute. For compressed air ion air bars, the airflow rate is determined by the pressure of the compressed air supply (typically 5 to 7 kg/cm²) and the number of nozzles on the bar.
The ideal airflow rate depends on the application. For delicate components (e.g., microchips), a lower airflow rate is recommended to avoid damaging the components. For large surfaces or high-speed lines, a higher airflow rate is needed to ensure that ionized air reaches the target surface quickly and evenly. Additionally, a higher airflow rate is more effective for removing dust and debris from surfaces, making it ideal for applications where cleanliness is critical.
Operating voltage refers to the high voltage supplied to the ion-emitting needles to generate corona discharge. Most ion air bars operate at a voltage of 5.6KV to 7KV, which is sufficient to ionize air molecules effectively without posing a safety hazard (when properly grounded). The operating voltage is typically supplied by a separate high-voltage generator, which converts standard electrical power (110V/60Hz or 220V/50Hz) into the required high voltage.
It’s important to choose an ion air bar with an operating voltage that is compatible with your facility’s electrical system. Additionally, some ion air bars include voltage adjustment controls, allowing users to fine-tune the voltage based on the static charge levels in their environment. Higher voltages may generate more ions, but they can also increase ozone production, so it’s important to balance performance with safety and environmental considerations.
Temperature range refers to the range of ambient temperatures in which the ion air bar can operate reliably. Most industrial ion air bars have an operating temperature range of -10°C to 50°C, which is suitable for most manufacturing environments. However, if your facility operates in extreme temperatures (e.g., high-temperature plastic extrusion or cold storage), you may need an ion air bar designed for a wider temperature range.
Extreme temperatures can affect the performance of the ion air bar—high temperatures can cause the ion-emitting needles to wear out more quickly, while low temperatures can reduce ion generation and airflow. It’s important to check the manufacturer’s specifications to ensure that the ion air bar can operate reliably in your facility’s temperature conditions.
Ozone is a byproduct of corona discharge, and while small amounts of ozone are harmless, high concentrations can be harmful to workers and the environment. Most industrial ion air bars have an ozone emission rate of less than 0.03 ppm (parts per million), which is within the safety limits set by regulatory bodies such as the Occupational Safety and Health Administration (OSHA).
For applications in enclosed spaces (e.g., cleanrooms or small production areas), it’s important to choose an ion air bar with low ozone emission to ensure worker safety. Some ion air bars include ozone reduction technology, which minimizes ozone production while maintaining effective ion generation. Additionally, proper ventilation in the production area can help to dissipate any ozone that is generated.
Proper installation, regular maintenance, and adherence to safety guidelines are essential for ensuring the effective and safe operation of ion air bars, minimizing downtime, extending the device’s lifespan, and protecting workers from potential hazards.
Ion air bars are relatively easy to install and maintain, but improper installation or neglecting maintenance can lead to reduced performance, increased downtime, and safety risks. Below are detailed guidelines for installation, maintenance, and safety, tailored to industrial B2B environments.
Proper installation is critical for ensuring that the ion air bar effectively neutralizes static charge. The following steps should be followed when installing an ion air bar:
Determine the optimal position: The ion air bar should be installed above or alongside the production line, with the ion-emitting needles facing the target surface. The distance between the ion air bar and the target surface should be between 10 and 100 centimeters, depending on the type of ion air bar (fan-driven models require a shorter distance, while compressed air models can be installed further away). The bar should be aligned parallel to the target surface to ensure even coverage.
Ensure proper grounding: The ion air bar and its high-voltage generator must be properly grounded to prevent electrical shocks and ensure stable corona discharge. The grounding wire should be connected to a dedicated ground source (e.g., a ground rod or the facility’s electrical ground system) and should have a resistance of less than 1 ohm. Avoid grounding the ion air bar to metal surfaces that are not properly grounded (e.g., ungrounded machinery).
Connect the power supply: Connect the high-voltage generator to a standard electrical outlet (110V/60Hz or 220V/50Hz) that is properly grounded. Ensure that the electrical outlet can handle the generator’s power requirements (typically 0.17A to 0.35A for most models). Do not use extension cords, as they can cause voltage drops and reduce the device’s performance.
Adjust airflow and ion balance: For fan-driven models, adjust the airflow rate to suit your application (lower for delicate components, higher for large surfaces). For all models, check the ion balance and adjust if necessary (most models have a built-in ion balance indicator or adjustment control).
Test the device: After installation, test the ion air bar to ensure it is working properly. Use a static meter to measure the static charge on the target surface before and after the ion air bar is turned on. The static charge should be reduced to ±30V or less within the recommended neutralization time.
Regular maintenance is essential for extending the lifespan of the ion air bar and ensuring consistent performance. The following maintenance tasks should be performed on a regular basis:
Clean the ion-emitting needles: Over time, dust and debris can build up on the ion-emitting needles, reducing ion generation and performance. Clean the needles using a soft brush or a cotton swab dipped in isopropyl alcohol. Be sure to turn off the ion air bar and disconnect the power supply before cleaning to avoid electrical shocks. For fan-driven models, also clean the fan blades to prevent dust buildup and ensure proper airflow.
Check the grounding: Periodically check the grounding wire to ensure it is securely connected and not damaged. A loose or damaged grounding wire can cause the ion air bar to produce an imbalance of ions or pose a safety hazard.
Inspect the high-voltage generator: Check the high-voltage generator for signs of damage (e.g., cracks, loose connections, or overheating). If the generator is making unusual noises or not supplying power to the ion air bar, it may need to be repaired or replaced.
Replace worn components: The ion-emitting needles and fan blades (for fan-driven models) will wear out over time and may need to be replaced. Most manufacturers recommend replacing the needles every 6 to 12 months, depending on usage. Check the manufacturer’s guidelines for replacement intervals.
Calibrate the ion balance: Periodically calibrate the ion balance using a static meter to ensure that the device is producing a balanced mix of positive and negative ions. If the ion balance is outside the recommended range, adjust the ion balance control (if available) or clean the needles.
The frequency of maintenance depends on the operating environment—ion air bars used in dusty or high-humidity environments will require more frequent cleaning and inspection than those used in clean, dry environments. It’s recommended to create a maintenance schedule and document all maintenance tasks to ensure consistency.
Ion air bars operate at high voltages, so it’s important to follow safety guidelines to protect workers from electrical shocks and other hazards. The following safety guidelines should be strictly adhered to:
Turn off and disconnect power before maintenance: Always turn off the ion air bar and disconnect the power supply (both the high-voltage generator and the electrical outlet) before performing any maintenance tasks (e.g., cleaning the needles, inspecting the grounding wire). This will prevent electrical shocks.
Do not operate in explosive or flammable environments: Ion air bars produce corona discharge, which can generate sparks. Do not use ion air bars in environments with flammable gases, liquids, or dust (e.g., paint booths, chemical storage areas), as this can pose a fire or explosion hazard.
Ensure proper ventilation: If the ion air bar is used in an enclosed space, ensure that the area is properly ventilated to dissipate any ozone that is generated. High concentrations of ozone can cause respiratory irritation and other health issues.
Do not touch the ion-emitting needles while the device is on: The ion-emitting needles operate at high voltages and can cause electrical shocks if touched while the device is turned on. Keep hands and other objects away from the needles during operation.
Train workers on proper use: Ensure that all workers who operate or work near the ion air bar are trained on its proper use and safety guidelines. This includes understanding how to turn the device on and off, how to perform basic maintenance, and how to recognize potential hazards.
Common challenges with ion air bars include ineffective static neutralization, ion imbalance, reduced airflow, ozone buildup, and electrical issues—most of which can be resolved through proper troubleshooting, maintenance, or adjustments to the device’s settings.
Even with proper installation and maintenance, ion air bars may experience issues from time to time. Understanding common challenges and how to troubleshoot them can help minimize downtime and ensure that the device continues to operate effectively. Below are the most common challenges, their possible causes, and step-by-step troubleshooting solutions.
The most common challenge with ion air bars is ineffective static neutralization, which is characterized by static charge remaining on the target surface after the ion air bar has been turned on. Possible causes and troubleshooting steps include:
Cause: The ion air bar is installed too far from the target surface. Troubleshooting: Move the ion air bar closer to the target surface (within the recommended distance of 10 to 100 centimeters, depending on the type). Test the static charge with a static meter to see if it improves.
Cause: The ion-emitting needles are dirty or worn.Troubleshooting: Turn off the ion air bar, disconnect the power supply, and clean the needles with a soft brush or cotton swab dipped in isopropyl alcohol. If the needles are worn (e.g., bent or corroded), replace them.
Cause: The airflow rate is too low. Troubleshooting: For fan-driven models, increase the airflow rate. For compressed air models, check the compressed air pressure and ensure it is within the recommended range (5 to 7 kg/cm²). Clean any clogged nozzles.
Cause: The ion balance is imbalanced.Troubleshooting: Use a static meter to check the ion balance. If it is outside the recommended range (±30V), adjust the ion balance control (if available) or clean the needles.
Ion imbalance occurs when the ion air bar produces more positive ions than negative ions (or vice versa), leading to incomplete static neutralization. Possible causes and troubleshooting steps include:
Cause: Dirty or worn ion-emitting needles. Troubleshooting: Clean or replace the needles as described above. Dirty needles can cause uneven ion generation, leading to imbalance.
Cause: Improper grounding. Troubleshooting: Check the grounding wire to ensure it is securely connected and not damaged. A loose or damaged ground can cause the ion air bar to produce an imbalance of ions.
Cause: Voltage issues. Troubleshooting: Check the high-voltage generator to ensure it is supplying the correct voltage (5.6KV to 7KV). If the voltage is too low or too high, adjust the generator’s settings or replace the generator.
Fan-driven ion air bars may experience reduced airflow over time, which can affect ion distribution and static neutralization. Possible causes and troubleshooting steps include:
Cause: Fan blades are dirty or clogged.Troubleshooting: Turn off the ion air bar, disconnect the power supply, and clean the fan blades with a soft brush. Remove any dust or debris that is blocking the fan.
Cause: Fan motor is worn or damaged. Troubleshooting: If the fan is making unusual noises or not spinning, the motor may be worn or damaged. Replace the fan motor or the entire ion air bar if necessary.
Cause: Air intake is blocked. Troubleshooting: Check the air intake (usually located on the back of the ion air bar) and remove any dust or debris that is blocking it. A blocked air intake can reduce airflow.
Ozone buildup can occur in enclosed spaces, leading to respiratory irritation for workers. Possible causes and troubleshooting steps include:
Cause: Operating voltage is too high. Troubleshooting: Reduce the operating voltage of the ion air bar (if adjustable). Higher voltages generate more ozone, so lowering the voltage can reduce ozone production.
Cause: Poor ventilation. Troubleshooting: Improve ventilation in the area by opening windows, using exhaust fans, or increasing airflow. This will help to dissipate ozone.
Cause: Ion-emitting needles are dirty. Troubleshooting: Clean the needles to ensure that corona discharge is stable. Dirty needles can cause irregular ion generation, leading to increased ozone production.
Electrical issues (e.g., no power, intermittent power, or electrical shocks) can pose safety hazards and prevent the ion air bar from operating. Possible causes and troubleshooting steps include:
Cause: Power supply is disconnected or faulty. Troubleshooting: Check the electrical outlet and ensure it is working. Disconnect and reconnect the power cord to the high-voltage generator. If the outlet is faulty, use a different outlet.
Cause: Grounding wire is loose or damaged. Troubleshooting: Check the grounding wire and ensure it is securely connected to a dedicated ground source. Replace the grounding wire if it is damaged.
Cause: High-voltage generator is faulty. Troubleshooting: If the ion air bar is not receiving power from the generator, check the generator for signs of damage (e.g., overheating, loose connections). Replace the generator if necessary.
In modern industrial manufacturing, static electricity is a pervasive problem that can disrupt production, damage valuable components, and compromise product quality. Ion air bars have emerged as a reliable, efficient solution for static elimination, offering a range of benefits that make them essential tools in a wide variety of industries—from electronics and plastics to printing and packaging.
As we’ve explored in this article, an ion air bar is a fixed static elimination device that uses corona discharge to generate positive and negative ions, which are then delivered to the target surface via airflow to neutralize static charge. Its core functions—static neutralization, dust and debris removal, ESD prevention, production efficiency maintenance, and product quality improvement—address the key challenges posed by static electricity in industrial settings.
The different types of ion air bars—compressed air, fan-driven, static bar ionizers, and cleanroom-compatible—are tailored to specific applications, ensuring that businesses can find a device that meets their unique needs. By considering key technical specifications such as ion balance, neutralization time, coverage length, and airflow rate, businesses can select an ion air bar that delivers optimal performance for their production line.
Proper installation, regular maintenance, and adherence to safety guidelines are critical for ensuring the effective and safe operation of ion air bars. By following these guidelines, businesses can minimize downtime, extend the device’s lifespan, and protect workers from potential hazards. Additionally, understanding common challenges and how to troubleshoot them can help businesses resolve issues quickly and keep their production lines running smoothly.
In today’s competitive manufacturing landscape, where efficiency, product quality, and safety are paramount, ion air bars offer a cost-effective solution for mitigating static-related issues. Whether you’re looking to reduce product defects, increase production efficiency, protect sensitive components, or ensure a clean production environment, an ion air bar is a valuable investment that can deliver long-term benefits for your business.
By integrating an ion air bar into your production line, you can eliminate the hidden costs of static electricity—including rework, product rejection, equipment damage, and downtime—and position your business for greater success in the modern manufacturing industry.
