Electrostatic discharge is one of the most critical hidden threats in modern clean room environments. Industries such as semiconductor manufacturing, pharmaceutical production, electronics assembly, precision optics, aerospace engineering, and medical device manufacturing all rely on strict electrostatic control systems to maintain product quality and operational safety. Among various anti static solutions, the ion air bar has become one of the most effective tools for neutralizing static electricity in controlled environments.
In clean rooms, even a small electrostatic discharge can damage sensitive components, attract airborne contaminants, interrupt automated production systems, or compromise product reliability. This is why anti static grade standards for ion air bars are increasingly important for manufacturers seeking higher production yields and stricter quality compliance.
The anti static grade standard of an ion air bar for clean rooms mainly evaluates ion balance, static decay time, airflow performance, ozone generation, cleanliness compatibility, and compliance with international electrostatic control standards. A high quality ion air bar should provide rapid static neutralization, stable ion output, minimal particle generation, and reliable long term performance in clean room environments.
Understanding the performance standards and selection criteria of ion air bars is essential for engineers, procurement managers, and factory operators. Different clean room grades require different levels of ionization efficiency, airflow precision, and contamination control. Selecting the correct ion air bar not only improves static elimination efficiency but also reduces production defects and maintenance costs.
This article provides a detailed explanation of anti static grade standards for ion air bars used in clean rooms. It covers operating principles, performance specifications, testing methods, international standards, application scenarios, maintenance practices, and key selection considerations for industrial users.
What Is An Ion Air Bar In A Clean Room
Why Anti Static Control Is Important In Clean Rooms
Main Performance Standards Of Ion Air Bars
Ion Balance Requirements For Clean Room Applications
Static Decay Time Standards Explained
Clean Room Compatibility And Particle Control
Ozone Emission Standards For Ion Air Bars
International Standards Related To Anti Static Equipment
How To Select The Correct Ion Air Bar
Testing Methods For Ion Air Bar Performance
Maintenance Requirements For Stable Anti Static Performance
Applications Of Ion Air Bars In Different Industries
Future Trends In Clean Room Anti Static Technology
Conclusion
An ion air bar is a static elimination device designed to neutralize electrostatic charges by generating positive and negative ions in controlled airflow environments.
Ion air bars are widely used in clean rooms where static electricity can interfere with manufacturing precision or attract contamination particles. The equipment typically combines ionization technology with compressed air or built in airflow systems to distribute ions evenly across product surfaces.
When static electricity accumulates on materials such as plastic films, electronic components, wafers, or packaging materials, the ion air bar releases balanced ions to neutralize surface charges. Positive ions neutralize negative charges, while negative ions neutralize positive charges.

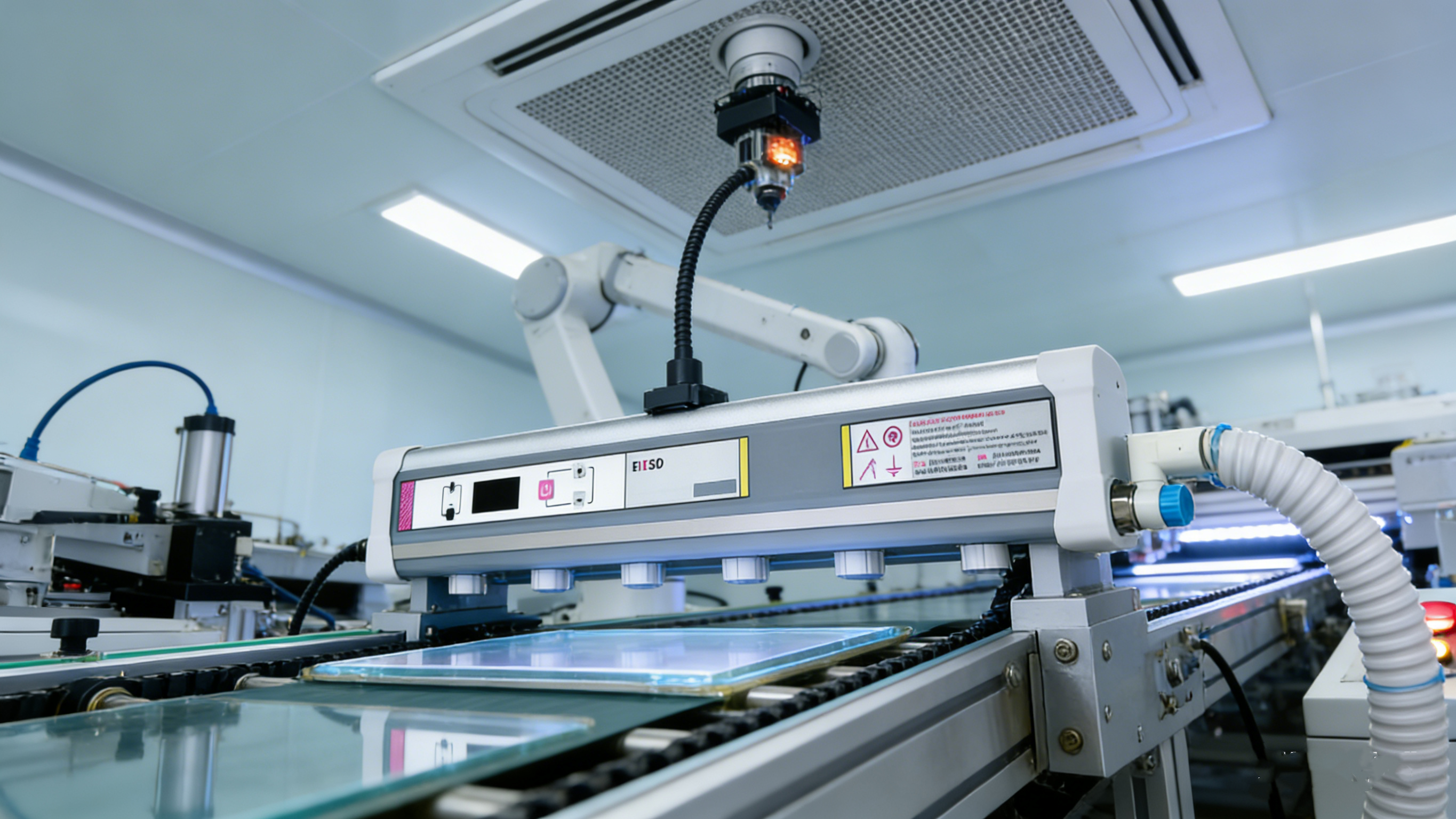

In clean room environments, ion air bars are commonly installed above conveyor systems, assembly lines, printing equipment, coating systems, and automated handling stations. Their ability to provide non contact static elimination makes them ideal for sensitive manufacturing applications.
The effectiveness of an ion air bar depends on several technical factors including:
Ion balance stability
Static decay speed
Airflow consistency
Ozone control
Particle emission level
Operational durability
Modern ion air bars are engineered specifically for high cleanliness environments where contamination control and electrostatic protection are equally important.
Anti static control is essential in clean rooms because electrostatic discharge can damage products, attract contaminants, disrupt automation systems, and reduce manufacturing yield.
Electrostatic discharge can occur when materials rub together, separate, or move through automated systems. In clean rooms, many materials such as plastic films, synthetic fabrics, paper, and electronic substrates naturally generate static charges during production processes.
One major risk associated with static electricity is particle attraction. Charged surfaces attract airborne dust and microscopic contaminants, making it difficult to maintain clean room classifications. This contamination can damage semiconductor wafers, optical lenses, and medical devices.
Electrostatic discharge also presents a significant threat to electronic components. Sensitive integrated circuits and microchips can fail instantly when exposed to small voltage discharges that may not even be detectable by human operators.
The following table shows common risks caused by poor electrostatic control:
Problem | Impact On Production |
|---|---|
Particle Attraction | Contamination of products and surfaces |
Electronic Damage | Component failure and reduced reliability |
Material Sticking | Production interruptions and handling issues |
Equipment Interference | Sensor malfunction and automation errors |
Fire Risk | Potential ignition in sensitive environments |
Because of these risks, clean room facilities implement strict electrostatic discharge control programs using ion air bars, grounding systems, anti static flooring, conductive materials, and humidity management systems.
The main performance standards of ion air bars include ion balance, static decay time, cleanliness level, airflow stability, ozone generation, and operational reliability.
Manufacturers and clean room operators evaluate ion air bars based on several measurable parameters. These standards ensure the equipment performs effectively without compromising clean room conditions.
Ion balance is one of the most important indicators. It measures the difference between positive and negative ion output. Poor ion balance can result in residual electrostatic charges remaining on product surfaces.
Static decay time measures how quickly the ion air bar neutralizes static charges. Faster decay times are preferred in high speed manufacturing environments where materials move continuously.
Another critical standard is particle generation. Since clean rooms require strict contamination control, ion air bars must minimize particle release during operation.
The following list summarizes common performance requirements:
Stable ion generation
Fast static neutralization
Low ozone emission
Minimal particle contamination
Consistent airflow coverage
Long operational lifespan
Low maintenance frequency
Industrial clean rooms often require ion air bars to undergo testing under controlled environmental conditions before installation approval.
Ion balance standards ensure that ion air bars produce equal amounts of positive and negative ions to prevent residual charging.
Ion balance is typically measured in volts. A lower ion balance value indicates better neutralization accuracy. In high precision manufacturing environments, ion balance requirements are extremely strict.
For semiconductor and electronics manufacturing, acceptable ion balance values are often maintained within plus or minus 10 volts. More general industrial applications may allow wider tolerances.
Poor ion balance can create secondary electrostatic problems. If an ionizer produces excessive positive ions or negative ions, surfaces may become oppositely charged instead of fully neutralized.
The table below shows typical ion balance requirements:
Industry | Typical Ion Balance Requirement |
|---|---|
Semiconductor | ±10V or better |
Medical Device | ±20V |
Electronics Assembly | ±30V |
General Manufacturing | ±50V |
To maintain stable ion balance, manufacturers often incorporate automatic feedback control systems that continuously monitor and adjust ion output during operation.
Static decay time measures how quickly an ion air bar can reduce electrostatic voltage from a charged surface to a safe level.
Static decay performance is usually tested by charging a metal plate to a specified voltage and measuring the time required to reduce the voltage to a lower target level.
Typical testing conditions may involve reducing voltage from 1000V to 100V. Faster decay times indicate more effective static elimination performance.
In automated manufacturing lines where materials move rapidly, slow static neutralization can create bottlenecks or contamination risks. Therefore, high performance ion air bars are designed to achieve rapid discharge rates.
Several factors affect static decay performance:
Distance between ion bar and target surface
Airflow pressure
Environmental humidity
Material type
Ion density
Air velocity
Advanced ion air bars may achieve decay times below one second under optimized operating conditions, making them suitable for ultra high speed production systems.
Clean room compatible ion air bars must minimize particle generation while maintaining stable anti static performance.
Clean rooms are classified according to airborne particle concentration. Equipment installed in these environments must not introduce contamination sources that exceed allowable limits.
Ion air bars used in clean rooms are often manufactured using specialized materials such as stainless steel, anodized aluminum, and low outgassing polymers. Internal components are designed to reduce wear particles and contamination risks.
Another important factor is airflow design. Turbulent airflow can disturb settled particles and compromise clean room stability. High quality ion air bars use controlled laminar airflow patterns to maintain environmental cleanliness.
Clean room compatibility is especially important in industries such as:
Semiconductor wafer fabrication
Pharmaceutical packaging
Medical device manufacturing
Optical lens production
Precision electronics assembly
Manufacturers may conduct particle emission testing using airborne particle counters to verify compliance with clean room standards.
Ozone emission standards ensure ion air bars operate safely without generating harmful levels of ozone gas.
Some ionization technologies produce ozone as a byproduct during high voltage discharge processes. Excessive ozone concentration can affect worker safety, damage sensitive materials, and compromise clean room environments.
Modern ion air bars are designed with low ozone technologies to reduce gas generation during operation. Many systems use pulse DC or AC ionization methods optimized for low ozone production.
Regulatory organizations establish exposure limits for workplace ozone concentration. Ion air bar manufacturers must ensure their equipment remains within these safety thresholds.
The following table shows common ozone considerations:
Factor | Importance |
|---|---|
Low Ozone Output | Improves workplace safety |
Stable Voltage Control | Reduces excessive discharge |
Clean Emitter Design | Maintains efficient ionization |
Regular Maintenance | Prevents abnormal ozone increase |
Facilities with stringent environmental controls often prioritize ultra low ozone ionization systems for continuous operation.
International anti static standards provide guidelines for evaluating electrostatic control equipment and clean room ionization performance.
Several global standards organizations publish electrostatic discharge control specifications relevant to ion air bars and clean room systems.
These standards help manufacturers establish consistent testing procedures, performance benchmarks, and quality assurance practices.
Common international standards include:
ANSI ESD S20.20
IEC 61340 series
ISO 14644 clean room standards
ESD Association ionization guidelines
ANSI ESD S20.20 is widely used in electronics manufacturing to establish electrostatic discharge control programs. IEC 61340 provides international requirements for electrostatic protection methods.
ISO 14644 focuses on clean room classification and airborne particle control. Ion air bars used in clean rooms often need to support compliance with these environmental standards.
Adherence to international standards improves manufacturing consistency, customer confidence, and global supply chain compatibility.
Selecting the correct ion air bar requires evaluating clean room grade, application type, airflow requirements, ion balance performance, and installation conditions.
Different industrial applications require different levels of static elimination performance. A semiconductor clean room may require ultra precise ion balance and rapid decay time, while general packaging operations may prioritize airflow coverage and durability.
Before selecting equipment, operators should analyze:
Target material sensitivity
Production line speed
Available installation space
Clean room classification
Maintenance accessibility
Compressed air availability
Another important consideration is airflow distance. Some ion air bars are optimized for close range static neutralization, while others provide effective ion distribution across wider areas.
The following comparison table may assist equipment selection:
Application | Recommended Feature |
|---|---|
Semiconductor | Ultra precise ion balance |
Printing | Wide airflow coverage |
Medical Packaging | Low particle generation |
Automated Assembly | Fast static decay |
Proper equipment selection improves process stability and reduces long term operational costs.
Ion air bar testing methods evaluate ion balance, static decay speed, airflow consistency, and contamination performance.
Testing procedures are essential for validating anti static performance before installation and during routine maintenance.
Ion balance testing typically uses charged plate monitors that measure residual voltage after ion neutralization. Static decay testing measures discharge speed under standardized conditions.
Particle emission testing may involve airborne particle counters placed near operating ion air bars to detect contamination levels.
Common testing equipment includes:
Charged plate monitors
Electrostatic field meters
Airflow analyzers
Particle counters
Ozone concentration meters
Regular testing helps maintain compliance with clean room quality standards and ensures stable long term anti static performance.
Regular maintenance is necessary to maintain stable ion output, low contamination levels, and reliable long term operation.
Ion air bars operate continuously in demanding industrial environments. Over time, emitter points can accumulate contamination that affects ionization efficiency.
Dust accumulation, oil residue, and airborne particles may reduce ion balance accuracy and increase static decay time. Regular cleaning is essential for maintaining optimal performance.
Maintenance procedures often include:
Cleaning emitter electrodes
Inspecting airflow channels
Checking electrical connections
Measuring ion balance performance
Verifying ozone levels
Some advanced ion air bars include automatic cleaning systems or self monitoring diagnostics that reduce maintenance frequency and improve operational stability.
Preventive maintenance programs help reduce unexpected production downtime and extend equipment lifespan.
Ion air bars are widely used across industries that require electrostatic control and contamination prevention.
In semiconductor manufacturing, ion air bars protect wafers and microelectronic components from electrostatic discharge damage during fabrication and assembly.
In pharmaceutical production, anti static control helps prevent contamination during packaging and powder handling operations.
Electronics manufacturers use ion air bars to eliminate static charges from printed circuit boards, plastic housings, and assembly materials.
Other important applications include:
Optical lens manufacturing
Film and sheet processing
Automated robotics systems
Battery manufacturing
Display panel production
Precision coating lines
As manufacturing precision requirements continue increasing, ion air bar technology becomes more important for stable and contamination free production processes.
Future anti static technologies focus on intelligent monitoring, lower contamination risk, energy efficiency, and improved ionization precision.
Modern manufacturing facilities increasingly integrate smart factory technologies into electrostatic control systems. Advanced ion air bars may include digital monitoring interfaces that provide real time performance data.
Artificial intelligence and predictive maintenance systems are expected to improve operational reliability by identifying maintenance needs before failures occur.
Energy efficiency is another growing trend. Manufacturers seek ionization systems that reduce compressed air consumption and power usage while maintaining high performance.
Future developments may also include:
Wireless monitoring systems
Automatic ion balance calibration
Enhanced clean room compatibility
Compact modular designs
Lower ozone ionization technology
As industries demand stricter contamination control and higher production precision, anti static technology will continue evolving toward smarter and cleaner solutions.
Ion air bars play a critical role in maintaining electrostatic control within clean room environments. Their performance directly affects product quality, contamination prevention, manufacturing efficiency, and equipment reliability.
The anti static grade standard of an ion air bar involves multiple technical parameters including ion balance, static decay speed, ozone generation, cleanliness compatibility, and international compliance standards. Understanding these factors helps manufacturers select the appropriate equipment for specific industrial applications.
As clean room technologies continue advancing, demand for higher precision anti static systems will increase across semiconductor, pharmaceutical, electronics, and medical industries. Investing in high performance ion air bars and proper maintenance programs can significantly improve operational stability and long term manufacturing quality.
