Dust contamination can create serious quality problems in industrial production. Fine particles may interfere with printing, coating, laminating, bonding, painting, inspection, assembly, and packaging. In electronics and optical manufacturing, even a small particle can affect product performance or create a visible defect. In plastics, paper, and textile processes, dust can accumulate rapidly because moving materials generate strong static charges.
Ordinary compressed air may fail to clean a charged surface effectively. It can move loose particles, but dust held by electrostatic attraction may remain attached. Increasing air pressure can also spread particles into the surrounding environment rather than removing them from the process. Ionizing air bars address the electrical force that makes this contamination difficult to control.
Yes, ionizing air bars can help remove dust by neutralizing the static electricity that holds particles against a material. However, ionization does not collect dust by itself. For effective industrial cleaning, the ionizing air bar should normally be combined with controlled airflow, an air knife, vacuum extraction, filtration, or another suitable particle removal system.
The difference between releasing dust and collecting dust is important. Ionization weakens the electrostatic attraction between the surface and particle. Airflow then lifts and transports the released particle, while an extraction system captures it before it settles again.
This guide explains how ionizing air bars support dust removal, where they should be installed, which applications benefit most, and how manufacturers can design an effective static controlled cleaning process.
Ionizing air bars release dust held by static electricity, but a separate airflow and collection method is normally required to remove the released particles from the product and production area.

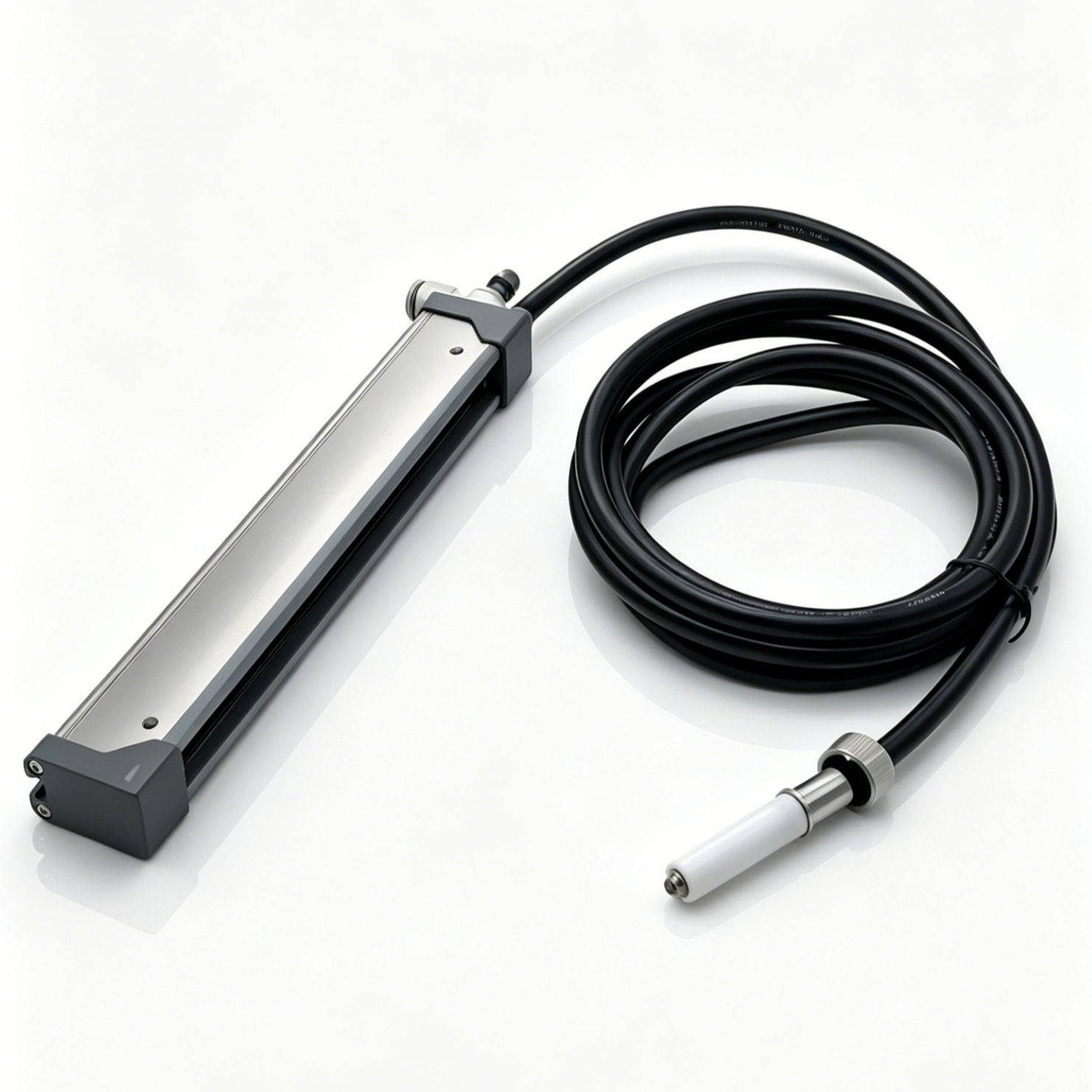

An ionizing air bar is primarily a static neutralization device. It produces positive and negative ions that reduce electrical charges on material surfaces. When dust is attached because of electrostatic attraction, reducing this charge makes the particles easier to move.
If the bar includes compressed air outlets, the ionized airflow can perform two functions at the same time. The ions weaken the static attraction, while the airflow lifts particles from the surface. This combination can clean more effectively than ordinary compressed air.
However, the particles do not disappear after leaving the product. Without vacuum extraction or controlled collection, they may remain airborne, contaminate nearby machinery, or settle back onto the cleaned surface. The most reliable system therefore follows three stages: neutralize, dislodge, and capture.
Ionizing air bars are most effective when dust is loose but strongly attracted by static. They are less effective against particles held by moisture, oil, adhesive, or mechanical trapping.
A charged industrial material creates an electrical field that attracts oppositely charged particles and polarizes neutral dust, causing contamination to cling to the surface.
Static charge commonly develops when two materials contact and separate. Plastic film unwinding from a roll, paper passing over a guide, a protective liner separating from adhesive, or a molded part leaving a tool can all create a large electrical imbalance.
Insulating materials cannot release this charge easily through grounding. Plastic, glass, coated paper, textiles, and composite products may remain charged for a long period, particularly in dry environments. During that time, airborne particles are attracted to the surface.
Dust particles do not need to have an opposite net charge before attraction occurs. The electrical field around the product can redistribute electrical charges within a neutral particle. The side closest to the product develops an effective opposite polarity, creating an attractive force.
The strength of dust attraction depends on surface voltage, particle properties, distance, humidity, surface texture, and surrounding airflow. Higher static voltage generally creates stronger attraction and makes ordinary air cleaning less effective.
Ionizing air bars release dust by supplying ions of the opposite polarity to the charged surface, reducing the electrical force that holds the particles in place.
An ionizing air bar contains a row of sharp emitter needles. When electrical power is applied, the field around each needle tip becomes strong enough to ionize nearby air molecules. This process creates positive and negative ions.
A positively charged material attracts negative ions, while a negatively charged material attracts positive ions. As the opposite polarity ions reach the surface, they reduce its electrical imbalance. Dust particles may also receive ions, reducing the attraction between the particles and product.
After neutralization, a lower mechanical force is needed to remove the particles. Controlled air can then lift them from the surface without requiring extremely high pressure. This is valuable when cleaning thin film, optical surfaces, electronic components, and lightweight products.
Ionization should occur immediately before or during the mechanical cleaning action. If too much time or distance separates neutralization and extraction, new static or environmental contamination may reduce the cleaning result.
Ionizing air bars should generally be combined with controlled air delivery, local vacuum extraction, suitable filtration, and process guarding to create a complete dust removal system.
Compressed air outlets can be integrated near the emitter needles or provided by separate nozzles. The airflow transports ions toward the product and dislodges the neutralized particles. Pressure should be high enough to remove dust but low enough to avoid disturbing the product.
An air knife can provide a continuous sheet of airflow across wide film, paper, glass, panels, or conveyor products. When combined with ionization, it can clean the complete material width more uniformly than separate round nozzles.
Vacuum extraction collects the released dust. The extraction opening should be positioned so that cleaning airflow carries particles directly toward it. Poor extraction positioning can allow particles to pass around the hood and contaminate the machine or product again.
| Equipment | Main Function | Key Design Consideration |
|---|---|---|
| Ionizing air bar | Neutralizes static electricity | Distance, coverage, and emitter condition |
| Compressed air nozzle | Dislodges localized particles | Pressure, angle, and air quality |
| Air knife | Cleans a continuous width | Uniform flow and product stability |
| Vacuum hood | Captures released dust | Position and capture velocity |
| Filter | Removes particles from extracted air | Particle size and pressure loss |
| Enclosure | Prevents dust from spreading | Access, airflow, and product movement |
| Static measuring instrument | Verifies neutralization | Calibration and measuring distance |
The cleaning and extraction flows must be balanced. Too much cleaning air and too little extraction will spread particles. Excessive extraction may pull ions away from the product before they complete neutralization.
Ionized dust removal is particularly useful in processes involving insulating materials, sensitive surfaces, high cleanliness requirements, and static related particle contamination.
Plastic film frequently attracts dust during unwinding, printing, coating, laminating, slitting, and packaging. Particles trapped between laminated layers can create bubbles, visible defects, and weak bonding. Cleaning the film immediately before surface processing can reduce these problems.
Printing and paper converting operations generate paper fibers and cutting dust. Static can hold these particles on sheets, webs, printing plates, and machine components. Ionized cleaning can improve print quality and reduce contamination at coating and bonding stations.
Electronics, semiconductor, optical, and display manufacturing require careful contamination control. Ionization can release particles without direct surface contact while also reducing the risk of electrostatic discharge. Air quality and filtration must satisfy the specific production environment.
| Industry | Typical Dust Issue | Recommended Treatment Point |
|---|---|---|
| Plastic film | Particles attracted before printing or coating | After unwinding and before processing |
| Paper converting | Fibers and cutting dust | After cutting and before printing or stacking |
| Packaging | Dust inside containers or on sealing surfaces | Before filling and sealing |
| Electronics | Particles on boards and components | Before assembly and inspection |
| Optical manufacturing | Visible contamination on lenses and glass | Before coating, bonding, and packaging |
| Automotive finishing | Dust causing paint defects | Immediately before coating |
| Injection molding | Dust attracted to molded parts | After ejection and before assembly |
| Textile processing | Fibers and lint on material surfaces | Before printing, coating, or packaging |
Application testing is important because dust characteristics and cleanliness requirements vary. A system designed for paper dust may not be suitable for delicate optical surfaces or fine particles in a controlled environment.
Install the ionizing air bar after the main static generation point and immediately before the process where a clean, neutral surface is required.
A common installation location is after material unwinding or separation. At this point, the surface charge is often high and dust attraction begins. Neutralizing and cleaning the material early can prevent contamination from affecting several downstream operations.
The bar should also be close to the extraction point. Released particles should be captured before the product travels through another dusty area. If the clean surface remains exposed for a long period, new dust can settle even when static has been removed.
Keep grounded rollers, guards, frames, and other metal objects out of the path between the emitter points and product. These components can absorb ions and reduce the amount reaching the charged surface.
If both product surfaces require cleaning, bars and extraction may be necessary on both sides. Three dimensional products may require several treatment directions to reach cavities, corners, and hidden surfaces.
The best working distance is the closest safe position that provides complete ion coverage and effective cleaning airflow without allowing the product to contact the emitter needles.
Ion density decreases as the distance from the bar increases. Positive and negative ions can recombine before reaching the product. They may also be attracted to nearby grounded machine structures.
Airflow loses speed and direction over distance as well. When the bar is too far away, the surface may be partially neutralized, but the air may not provide enough force to release the dust. External ventilation can further redirect the weakened air stream.
A position that is too close can create mechanical risks. Thin film may flutter into the emitters, irregular parts may strike the housing, and strong localized airflow may create uneven cleaning. The selected distance must account for normal product movement.
| Working Distance | Ionization Result | Cleaning Result |
|---|---|---|
| Too close | Strong ion delivery | Possible product contact or unstable airflow |
| Correct range | Fast and uniform neutralization | Controlled dust release |
| Slightly excessive | Slower decay | Reduced particle removal |
| Far beyond the effective range | Incomplete neutralization | Dust remains attached |
| Changing distance | Inconsistent voltage reduction | Variable cleaning quality |
Determine the optimum position through testing. Record the final distance and inspect it regularly because vibration, maintenance, and product changes can alter the bar position.
Cleaning airflow should be strong enough to lift neutralized particles, while extraction should be sufficient to capture them without pulling useful ions away from the target.
Start with moderate cleaning airflow and increase it gradually. Observe whether particles leave the surface, whether lightweight materials remain stable, and whether dust moves toward the extraction opening.
If dust escapes from the enclosure or settles on nearby equipment, the cleaning air may be too strong, the extraction may be too weak, or the airflow direction may be incorrect. Increasing compressed air pressure without improving capture can make environmental contamination worse.
Compressed air should be clean and dry. Oil, water, and particles from the air system can contaminate the product and accumulate around emitter needles. Suitable filters, moisture separation, and maintenance are essential.
Airflow should be checked during full production. Other machines sharing the same air system may create pressure changes. Moving products and operating ventilation systems can also change the cleaning pattern.
The active ionization, cleaning airflow, and extraction areas must all cover the complete contaminated surface without gaps, weak zones, or untreated edges.
A bar may neutralize the center of a material while leaving charged edges. Dust will continue to collect in these untreated zones. The physical length of the housing does not always represent the active emitter width.
Measure static and inspect dust at the left edge, center, right edge, and intermediate positions. A strip of contamination can indicate a blocked outlet, dirty emitter, incorrect mounting angle, or insufficient overlap between multiple bars.
The extraction opening should match the treatment width. A wide ionizing bar combined with a narrow vacuum hood may release dust across the product but capture only the center portion.
For complex parts, use several treatment angles. Cavities, corners, ribs, and overlapping surfaces can shield particles from ionized airflow. Product rotation or additional nozzles may improve coverage.
Evaluate performance by measuring surface voltage, decay time, ion balance, particle reduction, product defects, and cleaning consistency under normal production conditions.
Measure static voltage before and after treatment. If voltage decreases significantly but dust remains, ionization is working and the problem is probably related to airflow, mechanical adhesion, or extraction.
If voltage remains high, inspect the bar position, working distance, emitter cleanliness, grounding, power, and coverage. Positive and negative decay time measurements can show whether the ionizer produces sufficient ions of both polarities.
Particle removal should be evaluated separately from static neutralization. Depending on the application, inspection methods may include controlled lighting, magnification, surface particle counting, image analysis, airborne particle measurement, or product rejection data.
| Measurement | What It Indicates | Possible Action |
|---|---|---|
| Static voltage before treatment | Initial charge level | Determine required ionization capacity |
| Static voltage after treatment | Residual surface charge | Adjust distance, position, or ion output |
| Ion balance | Positive and negative ion relationship | Clean, inspect, or adjust the ionizer |
| Decay time | Neutralization speed | Improve emitter condition, distance, or airflow |
| Surface particle count | Actual cleaning result | Improve air delivery or extraction |
| Airborne particle count | Dust escaping from the cleaning zone | Improve enclosure and capture |
| Product defect rate | Commercial impact of contamination | Review the complete cleaning process |
Create baseline values when the system is clean and operating correctly. Trend future results to identify gradual emitter contamination, filter blockage, airflow reduction, or process changes.
Maintain ionized dust removal through regular emitter cleaning, air filter service, extraction inspection, grounding checks, performance measurements, and documented preventive maintenance.
Emitter needles are exposed to the same particles that the system removes. Dust accumulation changes the electrical field around the tips and reduces ion output. The ionizer may remain powered while decay time gradually becomes longer.
Switch off and isolate electrical power before cleaning. Remove loose dust with a clean soft brush. Use a lint free swab with an approved cleaning solution for deposits that cannot be removed through dry cleaning. Allow all parts to dry completely before restoring power.
Compressed air and extraction filters also require maintenance. A blocked air filter can reduce cleaning force, while a blocked extraction filter can allow released dust to escape. Check pressure loss and airflow rather than relying only on a fixed calendar interval.
| Interval | Recommended Task | Main Objective |
|---|---|---|
| Every shift | Check power, alarms, airflow, extraction, and visible contamination | Detect immediate problems |
| Weekly | Inspect emitter needles, hoses, outlets, and mounting position | Identify developing performance loss |
| Monthly | Clean emitters and inspect air and extraction filters | Restore normal operating condition |
| Quarterly | Measure voltage, ion balance, decay time, and particle reduction | Verify actual cleaning performance |
| Annually | Complete a detailed electrical, mechanical, and airflow review | Support long term reliability |
These intervals should be adjusted according to contamination, operating hours, and process sensitivity. Frequent heavy deposits indicate that cleaning should occur more often or that extraction and shielding should be improved.
Ionizing air bars are less effective against contamination bonded by oil, grease, adhesive, moisture, chemical residue, or mechanical trapping because these forces remain after static is neutralized.
Loose dry particles held mainly by electrostatic attraction are the best candidates for ionized cleaning. Once the charge is reduced, gentle airflow can usually move them toward extraction.
Oil bonded particles often require a compatible wet cleaning process. Adhesive residue may need specialized chemical or mechanical treatment. Ionization can reduce surrounding static, but it cannot dissolve or remove these substances.
Dust trapped in deep texture, woven fibers, cavities, holes, or overlapping parts may require several air directions, vacuum nozzles, vibration, or controlled brushing. Product geometry can prevent both ions and airflow from reaching the contamination.
| Contamination Condition | Expected Ionized Cleaning Result | Additional Treatment |
|---|---|---|
| Loose dry dust held by static | Highly effective | Controlled airflow and extraction |
| Fine dust on a smooth surface | Effective with correct settings | Precision airflow and capture |
| Particles in a cavity | Variable | Directed nozzles or product rotation |
| Oil bonded dust | Limited | Suitable wet cleaning |
| Adhesive contamination | Limited | Specialized chemical or mechanical cleaning |
| Moisture attached particles | Limited | Drying and additional cleaning |
| Embedded particles | Low | Mechanical surface treatment |
A sample test with the actual product and contamination is the most reliable way to determine whether ionized cleaning is suitable.
The most common mistakes are using ionization without extraction, applying excessive air pressure, installing the bar too far away, leaving coverage gaps, and failing to clean emitter needles.
Released dust must be captured. If extraction is missing or incorrectly positioned, particles can settle again. Some may move from the product to sensitive machine components, creating a different contamination problem.
Excessive compressed air can make the cleaning area appear active while reducing actual control. Strong uncontrolled airflow spreads particles, disturbs lightweight materials, creates noise, and consumes unnecessary energy.
Failure to measure static can also lead to incorrect conclusions. If voltage is already low but particles remain, the problem may involve oil, moisture, surface texture, or poor extraction rather than ionization.
Change one factor, record the result, and repeat the same test. This systematic method helps identify whether ionization, airflow, extraction, or mechanical adhesion is limiting performance.
Select the ionizing air bar according to product width, surface shape, working distance, line speed, charge level, particle type, environmental conditions, and required cleanliness.
The active treatment width should cover the complete contaminated surface. For wide film, paper, glass, or panels, the first and last emitter positions must be considered. Several bars may be required for very wide or complex products.
Working distance and production speed determine how quickly the bar must deliver ions. Fast moving materials and longer distances generally require stronger ion transport or a longer treatment zone.
The system must also be suitable for the production environment. Clean manufacturing may require low particle materials and carefully filtered air. Dusty or chemically aggressive operations may require stronger environmental protection and more frequent maintenance.
Selection should be confirmed through testing with the actual product whenever practical. Testing can determine whether the dust is held mainly by static, whether airflow removes it successfully, and whether extraction prevents it from returning.
A complete checklist should verify static neutralization, particle release, extraction, filtration, coverage, air quality, maintenance condition, and performance at normal production speed.
The checklist should address the complete cleaning system rather than only the ionizing air bar. A perfectly operating bar cannot compensate for weak extraction, incorrect airflow direction, or particles bonded by oil.
Document approved settings for working distance, air pressure, extraction flow, mounting angle, and treatment position. These values create a reference for maintenance and troubleshooting.
If voltage remains high, troubleshoot the ionization system. If voltage is low but dust remains, evaluate particle adhesion and cleaning airflow. If dust leaves the product but returns, improve extraction, filtration, and enclosure design.
Ionizing air bars can make industrial dust removal significantly more effective by neutralizing the static force that holds particles to a surface, but they should normally be combined with controlled airflow and particle extraction.
The bar performs the electrical stage of the cleaning process. Positive and negative ions reduce surface charge on plastic, paper, glass, textiles, electronic components, molded parts, and other industrial products. This makes loose particles easier to dislodge.
Compressed air, an air knife, or another controlled airflow method then moves the released dust away from the product. Vacuum extraction and filtration capture the particles before they spread or settle again.
For the best results, install the ionizing air bar after the main static generation point and immediately before the process requiring a clean surface. Maintain a suitable working distance, complete coverage, clean air, stable extraction, and a clear path between emitters and product.
Regular maintenance is essential because dust accumulates around emitter needles and reduces ion output. Clean emitters safely, service air and extraction filters, inspect grounding, and verify static voltage, ion balance, decay time, and particle reduction.
Ionizing air bars are most effective against loose dry particles held by electrostatic attraction. Contamination bonded by oil, moisture, adhesive, or mechanical trapping may require additional cleaning methods. By understanding this distinction and designing a complete neutralization and collection system, manufacturers can reduce contamination, improve product quality, and create a more reliable production process.
