Static electricity is a widespread manufacturing problem that can affect product quality, equipment reliability, operator comfort, workplace safety, and production efficiency. It develops when materials contact and separate, especially during unwinding, conveying, cutting, molding, printing, laminating, coating, assembly, and packaging.
The effects of static vary between processes. Plastic film may cling to rollers, paper sheets may feed together, molded parts may attract dust, operators may receive shocks, and sensitive electronic devices may suffer electrostatic discharge damage. Because these risks are different, no single piece of equipment is the best choice for every factory.
The best anti static equipment for manufacturing is a coordinated system that uses grounding for conductive objects, ionization for insulating materials, personnel grounding for operators, suitable work surfaces, static measuring instruments, and environmental controls selected according to the actual production risk.
A reliable solution begins with identifying where charge is generated, where it causes a problem, and whether the charged object is conductive or insulating. This information determines whether grounding, ionization, material modification, environmental control, or a combination of methods is required.
This guide compares the main types of industrial anti static equipment and explains how manufacturers can choose, install, test, and maintain an effective static control system.
This guide covers the primary anti static technologies used in manufacturing and explains how each one should be selected for a particular material, process, and risk level.
The discussion begins with the causes of industrial static and the basic difference between grounding and ionization. It then compares ionizing bars, blowers, nozzles, personnel grounding devices, work surfaces, monitoring instruments, and environmental controls.
Later sections explain equipment selection for different industries, installation principles, performance measurement, maintenance, purchasing criteria, and common mistakes. Together, these topics provide a practical method for developing a complete static control program.
Manufacturers can use the following sections to evaluate a new system or identify gaps in an existing static control process.
Manufacturing needs anti static equipment because uncontrolled charge can cause contamination, material handling problems, electric shocks, electronic damage, ignition risks, quality defects, and production interruptions.
Static charge commonly develops through contact and separation. When two materials touch, electrons may transfer from one surface to the other. After separation, one surface can retain a positive charge while the other retains a negative charge. Friction and repeated contact can increase the effect.
Insulating materials are especially difficult because charge cannot move freely through them. Plastic, paper, rubber, glass, synthetic textile, film, foam, and coated materials may retain charge for a long period. Grounding an insulator does not normally remove charge from its complete surface.
Static can also create indirect losses. A charged product may attract dust before printing, coating, painting, bonding, inspection, or packaging. The resulting contamination can reduce adhesion, create visible defects, affect optical quality, or cause rejected products.
In electronics production, electrostatic discharge can damage sensitive components. Some damage causes immediate failure, while other damage weakens the device and produces a later reliability problem. A formal static control program is therefore essential where sensitive components are handled.
The best equipment is the device or coordinated system that controls the specific charge source, material type, product sensitivity, and production condition without creating new safety, quality, or maintenance problems.
Conductive machine frames, tools, fixtures, and containers should normally be grounded. Grounding allows electrical charge to flow to a common reference. It is usually the first control method considered because it is simple, continuous, and economical when applied correctly.
Insulating materials require ionization because their charge cannot flow easily to ground. Ionizing air bars, blowers, nozzles, and guns generate positive and negative ions that neutralize surface charge. The equipment type depends on target size, distance, shape, speed, and treatment area.
Personnel may require wrist straps, footwear, grounded flooring, garments, or other controls. Work surfaces, storage containers, and packaging materials may also need controlled electrical properties. Measuring instruments are necessary to confirm that these measures remain effective.
| Static Control Need | Typical Equipment | Primary Purpose |
|---|---|---|
| Conductive machine parts | Grounding cables and connection points | Provide a safe charge dissipation path |
| Wide insulating materials | Ionizing air bars | Neutralize charge across a continuous width |
| Workstations and open areas | Ionizing blowers | Provide wider area ionization |
| Small or recessed targets | Ionizing nozzles | Direct ions into a focused area |
| Manual cleaning | Ionizing guns | Combine directed ionization and air |
| Operators | Wrist straps, footwear, and garments | Control charge on personnel |
| Work areas | Controlled work surfaces and floors | Support gradual charge dissipation |
| Verification | Field meters and charged plate monitors | Measure charge and ionizer performance |
The best solution frequently combines several controls. Ionization should not replace grounding where grounding is possible, and grounding should not be expected to neutralize an insulating film or plastic surface.
Grounding equipment should be used for conductive and static dissipative objects that can be connected safely to a verified electrical reference.
Machine frames, metal rollers, conductive tools, fixtures, carts, containers, and work surfaces can accumulate charge if they are electrically isolated. Bearings, plastic feet, paint, oil, corrosion, and loose connections may interrupt an intended ground path.
Grounding cables, bonding straps, conductive hardware, and verified connection points create a path for charge to dissipate. The connection should be secure, protected from damage, and included in the preventive maintenance program.
A visual connection does not prove electrical continuity. Paint or contamination may prevent contact even when a cable appears firmly attached. Suitable instruments should be used to verify resistance or continuity according to the application requirements.
Grounding is not effective for every material. Connecting a grounding clip to one edge of a plastic sheet will not normally neutralize the entire surface. Insulators require ionization, a material change, or another suitable control method.

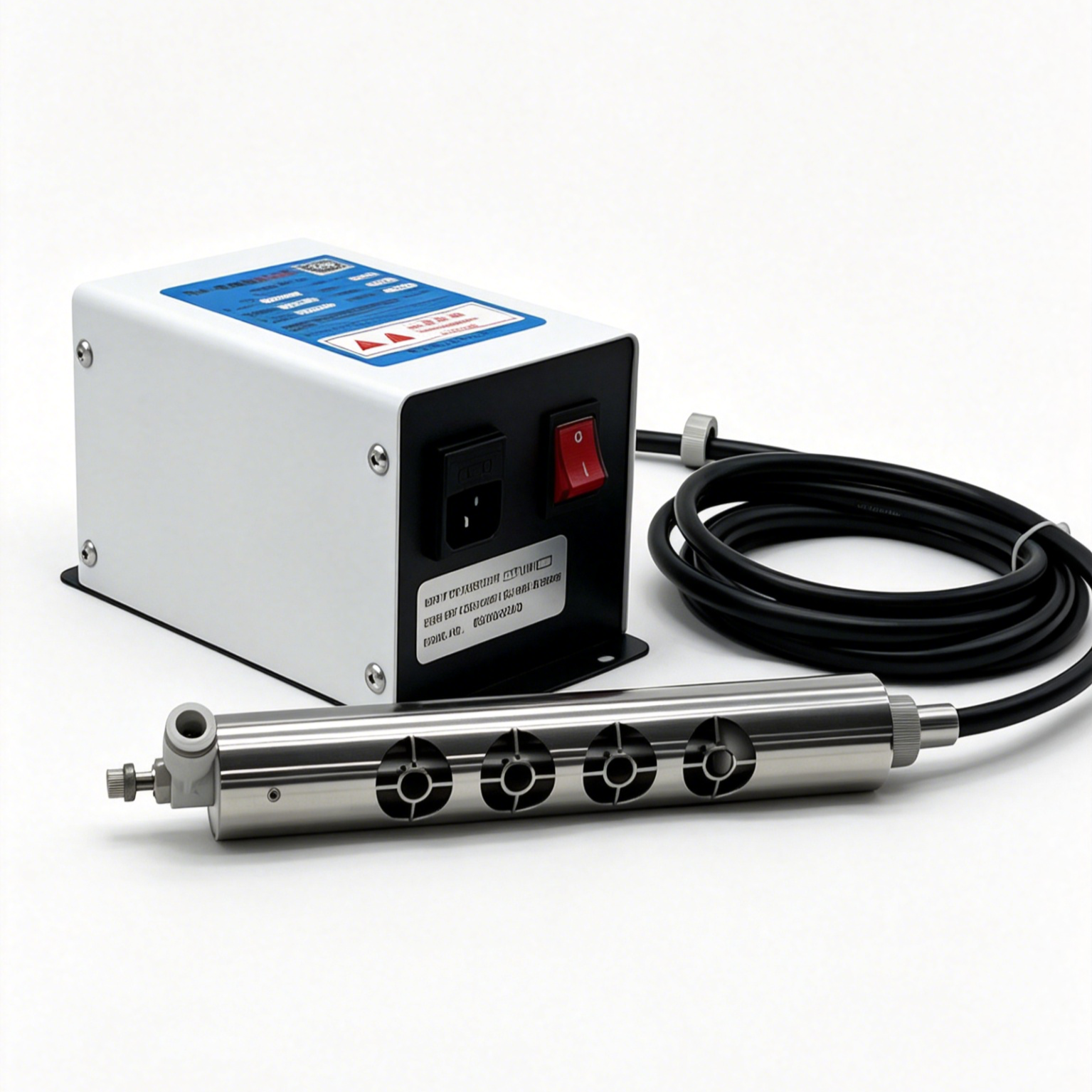

Ionizing air bars are the best choice for neutralizing static across webs, sheets, conveyors, production lines, and other wide or continuous treatment areas.
An ionizing air bar contains multiple emitter points arranged along a housing. The emitters generate positive and negative ions, allowing a charged surface to attract the opposite polarity until its voltage is reduced.
These bars are widely used near film, paper, foil, textiles, labels, molded parts, glass, conveyors, and automated assembly equipment. Their linear shape supports uniform treatment across a defined working width.
Bar length should be selected according to the active treatment width rather than the external housing length. End caps, connectors, and internal components may create inactive sections. The active area should cover the complete product width, including lateral movement.
Installation position is critical. A bar should normally be placed after the primary contact and separation event and before static causes a process problem. A bar installed before a major roller or liner separation point may provide little lasting benefit.
Ionizing blowers are suitable for workstations, assembly areas, inspection locations, and larger open spaces that need flexible and continuous ionized airflow.
A blower uses a fan to carry positive and negative ions over an area. It can treat products that remain at a workstation for several seconds or minutes, including electronic assemblies, trays, optical components, and manually handled parts.
Blower performance depends on distance, fan speed, direction, obstruction, and the size of the treatment zone. Tools, shelves, machine guards, and storage containers can block airflow and create untreated areas.
Excessive airflow can disturb lightweight components, move dust, dry process materials, or reduce operator comfort. The fan setting should deliver adequate ions without creating unnecessary turbulence.
Several blowers may be needed for a large station. Coverage should be confirmed using decay and balance measurements at the actual product locations rather than only directly in front of the fan.
Ionizing nozzles and guns are suitable for focused static elimination, recessed surfaces, small components, cavities, manual cleaning, and locations where wide area equipment cannot reach.
An ionizing nozzle combines concentrated ion generation with directed compressed air. It can deliver ions into molded part cavities, small containers, machine openings, narrow material paths, and difficult corners.
An ionizing gun gives an operator manual control over the treatment direction. It is useful for cleaning parts before painting, coating, bonding, inspection, or packaging. The operator can direct ionized air toward areas that automatic equipment may miss.
Compressed air quality is important. Oil, water, and particles can contaminate the emitter and the product. Air should be filtered and regulated according to the cleanliness requirements of the process.
Operator technique influences gun performance. Distance, angle, treatment time, and movement should be standardized. For repetitive high volume production, an automatically positioned nozzle may provide more consistent results than a manual gun.
Personnel grounding equipment may include wrist straps, conductive footwear, grounded flooring, controlled garments, and continuous monitoring selected according to worker movement and product sensitivity.
A wrist strap connects an operator to a verified ground through a controlled resistance. It is generally suitable for seated work where the operator remains at one station. The strap must fit correctly and maintain contact with the skin.
Footwear and grounded flooring provide an alternative for standing and mobile personnel. The complete path includes the person, footwear, floor, grounding connection, and environmental conditions. Each element must function correctly for the system to work.
Garments can help control charge on ordinary clothing and reduce the exposure of sensitive products. Their effectiveness depends on material, design, condition, and proper use. Garments should be cleaned and tested according to the applicable program.
Continuous monitors can provide an immediate warning if a grounding connection fails. They are valuable in critical operations but do not replace training, inspection, and periodic testing.
Controlled work surfaces and floors provide predictable charge dissipation paths for tools, products, equipment, carts, and personnel within a static controlled area.
A suitable work surface reduces the risk of charge remaining on conductive or static dissipative items. It also supports personnel grounding systems and creates a defined area for handling sensitive products.
Flooring works together with compatible footwear to control mobile personnel. Its performance can be affected by contamination, cleaning materials, wear, moisture, and incorrect grounding. Regular testing is therefore necessary.
Conductivity that is too high can create electrical safety concerns, while resistance that is too high may prevent effective charge dissipation. Materials should be selected for the application rather than according to a general claim that they are anti static.
Cleaning procedures must preserve the electrical properties of the surface. Waxes, residues, oils, and unsuitable cleaning agents can change resistance and create inconsistent performance.
Manufacturers typically need electrostatic field meters, charged plate monitors, resistance measuring instruments, grounding testers, and personnel grounding testers to verify static control performance.
An electrostatic field meter measures the electric field associated with a charged surface. It is useful for identifying charge generation points and comparing voltage before and after treatment. Distance and target geometry affect the reading, so a consistent method is essential.
A charged plate monitor measures ionizer decay time and ion balance. Decay time shows how quickly an ionizer reduces a known positive or negative charge. Ion balance shows whether the ion field creates a positive or negative electrical offset.
Resistance instruments evaluate work surfaces, floors, garments, packaging, and other controlled materials. Grounding testers verify electrical connections, while wrist strap and footwear testers help confirm personnel grounding performance.
| Instrument | Main Measurement | Typical Use |
|---|---|---|
| Electrostatic field meter | Surface related electric field | Locate and compare static charge |
| Charged plate monitor | Decay time and ion balance | Evaluate ionizer performance |
| Resistance meter | Electrical resistance | Test floors, surfaces, and materials |
| Grounding tester | Continuity or grounding path | Verify equipment connections |
| Personnel tester | Wrist strap or footwear condition | Confirm operator grounding |
| Environmental meter | Temperature and humidity | Document test conditions |
Instruments should be suitable for the expected measurement range and should receive periodic verification. Test records should include the location, distance, environment, machine condition, and operator.
Environmental control can reduce static generation and retention, but it should support rather than replace grounding and ionization.
Low humidity often increases static problems because charge remains on insulating surfaces for longer periods. Dry air can make a previously stable process develop strong material attraction, operator shocks, or electronic risk.
Increasing humidity may reduce static in some processes, but it is not universally suitable. High humidity can affect product quality, corrosion, coating behavior, dimensional stability, cleanroom control, and microbial risk.
Temperature, airflow, and airborne contamination also influence static control. Exhaust systems and cooling fans can carry ions away from the target. Dust, oil mist, and fibers can contaminate ionizer emitter points.
Environmental measurements should be included in troubleshooting records. If a problem occurs only during a particular season or shift, humidity, temperature, ventilation, and production conditions may reveal the cause.
The best equipment varies by industry because the materials, production speeds, contamination risks, product sensitivity, and required residual voltage are different.
Electronics and semiconductor facilities often need personnel grounding, controlled work surfaces, ionizing blowers, compact ionizers, monitoring systems, and regular performance verification. Stable ion balance is particularly important.
Printing, packaging, paper, label, and converting lines commonly use ionizing air bars because wide materials move continuously. High speed processes may require compressed air assistance, multiple treatment points, or longer ionization zones.
Plastic molding and automotive production frequently use ionizing nozzles, bars, or guns before painting, printing, bonding, and inspection. Directed treatment helps neutralize irregular surfaces and reduce dust attraction.
| Industry | Recommended Equipment Combination |
|---|---|
| Electronics assembly | Personnel grounding, controlled surfaces, blowers, compact ionizers, and monitors |
| Semiconductor production | Precision ionization, monitoring, grounding, and controlled materials |
| Printing | Ionizing bars, field meters, grounding, and suitable cleaning tools |
| Flexible packaging | Wide ionizing bars, compressed air where required, and voltage measurement |
| Plastic molding | Ionizing nozzles, bars, guns, and localized air treatment |
| Automotive production | Bars or nozzles before coating, bonding, painting, and inspection |
| Textile processing | Wide area bars, grounding, and environmental monitoring |
| Medical device production | Clean ionization, controlled work areas, and documented testing |
| Optical manufacturing | Low disturbance ionization and particle control |
| Battery manufacturing | Clean ionization, grounding, monitoring, and risk specific controls |
Industry experience can guide initial selection, but the final decision should be based on measured conditions at the actual machine.
Manufacturers should select equipment by defining the static problem, classifying the charged material, measuring the process, and comparing verified performance under relevant operating conditions.
First, identify the symptom and confirm that static is involved. Dust attraction, material sticking, feeding errors, and product movement can also have mechanical causes. A suitable meter should confirm the presence and location of excessive charge.
Second, determine whether the charged object is conductive, dissipative, or insulating. Conductors usually require grounding. Insulators usually require ionization. Personnel and work areas may require separate controls.
Third, document the process requirements. These include material width, speed, initial voltage, available distance, target shape, environmental conditions, and acceptable residual voltage.
Performance data should state test distance, voltage range, airflow, temperature, humidity, and measuring method. General claims without conditions are not sufficient for a technical comparison.
Anti static equipment should be installed at the correct charge generation point, within its effective range, with complete coverage, reliable grounding, and safe access for cleaning and testing.
Ionizers should normally be positioned after the main contact and separation event. If a film is neutralized before it leaves a roller, the separation may immediately create a new charge. Treatment after separation is generally more effective.
The ion path should remain clear. Grounded rollers, machine frames, guards, brackets, and other structures may capture ions before they reach the target. Machine airflow may also redirect ions away from the material.
Grounding connections should contact conductive surfaces directly. Paint, corrosion, oil, and loose hardware can interrupt continuity. Connections should be protected from mechanical damage and tested after installation.
Maintenance access must be considered during installation. Emitter points, filters, fans, cables, and grounding connections require inspection. Equipment placed in an inaccessible location is less likely to receive proper service.
Performance is verified by measuring surface voltage, decay time, ion balance, grounding continuity, resistance, and personnel grounding under documented production conditions.
Surface voltage should be measured before and after the treatment point. This shows whether the control method reduces the actual process charge. Measurements farther downstream can reveal whether the material becomes charged again.
Ionizer decay and balance should be measured at the real product position. For wide equipment, testing should include the center, edges, and intermediate locations. A single center measurement cannot confirm complete coverage.
Grounding and resistance tests should include equipment, work surfaces, floors, carts, fixtures, garments, and personnel systems where applicable. Results should be compared with the facility requirements and relevant control plan.
Baseline results should be recorded during commissioning. Later measurements can then identify gradual deterioration before it causes production defects.
Anti static equipment requires regular cleaning, inspection, electrical testing, performance verification, and replacement of worn or damaged components.
Ionizer emitter points attract contamination because of the electric field around them. Dust, oil, adhesive, powder, ink, and fibers can reduce output and shift ion balance. Cleaning frequency should reflect the process environment.
Blower filters and fans require inspection to maintain airflow. Compressed air systems need clean filters, stable regulators, unrestricted tubing, and leak free connections. Air pressure should be checked near the equipment during production.
Grounding cables, wrist straps, footwear, work surfaces, and floors can wear or become contaminated. Their electrical performance cannot be confirmed by appearance alone, so regular testing is required.
| Equipment | Typical Maintenance |
|---|---|
| Ionizing air bar | Clean emitters, inspect cables, and test decay and balance |
| Ionizing blower | Clean emitters, filters, and fans, then verify coverage |
| Ionizing nozzle | Clean the emitter and inspect air passages |
| Grounding cable | Inspect connections and verify continuity |
| Wrist strap | Inspect condition and complete electrical testing |
| Floor and footwear system | Clean correctly and test the complete grounding path |
| Measuring instruments | Inspect, maintain, and verify measurement accuracy |
Maintenance records should include test results rather than only completion dates. Measured trends help determine whether the service interval is appropriate.
Common mistakes include using grounding on insulators, installing ionizers before charge generation, selecting equipment by price alone, ignoring coverage, using excessive air pressure, and failing to measure performance.
One frequent mistake is treating all static problems in the same way. Grounding is effective for conductors but usually ineffective for insulating film, plastic, or glass. Ionization is needed when charge cannot move through the material.
Another mistake is installing an ionizer where space is convenient rather than where treatment is effective. The equipment may be too far from the product, blocked by a guard, or placed before another major charging event.
Buyers may also focus on the highest advertised output or longest distance. These specifications are meaningful only when connected to decay time, balance, coverage, and actual process speed.
Finally, many systems are never tested after installation. Without baseline measurements, a factory cannot confirm whether the equipment works, detect gradual deterioration, or determine when cleaning is required.
The best anti static equipment for manufacturing is a properly designed combination of grounding, ionization, personnel controls, controlled surfaces, measurement instruments, and environmental management.
Grounding should be used for conductive objects, while ionization is required for insulating materials and isolated conductors. Ionizing bars are well suited to wide moving materials, blowers serve workstations and larger areas, and nozzles provide focused treatment for small or recessed targets.
Selection should be based on measured static voltage, material properties, process speed, working width, installation distance, airflow, product sensitivity, and required residual voltage. Performance claims should always include the test conditions.
Correct installation and maintenance are essential. Even advanced equipment can perform poorly if it is installed before the main charging point, obstructed by machine structures, exposed to unsuitable airflow, or allowed to accumulate contamination.
By combining suitable equipment with regular measurement and documented maintenance, manufacturers can reduce dust attraction, feeding errors, material adhesion, shocks, electronic damage, product defects, and unplanned downtime while improving overall process stability.
