Best Practices for Industrial Static Eliminators

Static electricity is a common but frequently underestimated problem in industrial production. It develops when materials contact, separate, slide, unwind, mix, or move through processing equipment. Plastic film, paper, textiles, labels, electronic components, powders, and coated materials can accumulate significant electrostatic charges during normal manufacturing operations.

Uncontrolled static electricity can attract dust, cause materials to stick together, interfere with printing, produce painful shocks, disrupt sensors, ignite flammable substances, and damage sensitive electronic components. Industrial static eliminators generate balanced positive and negative ions that neutralize these charges before they affect product quality, process stability, or workplace safety.

The best practices for industrial static eliminators include identifying where static is generated, selecting the correct ionizer, installing it close to the problem area, providing effective coverage, maintaining proper grounding, controlling airflow, cleaning emitter points regularly, measuring performance, training operators, and documenting all inspection and test results.

Simply purchasing an ionizer does not guarantee effective static control. Performance depends on product selection, installation distance, material speed, charge level, environmental conditions, emitter condition, and maintenance quality. An ionizer that performs well in one application may produce inadequate results in another process with a wider material, faster speed, or greater working distance.

This guide presents practical recommendations for selecting, installing, operating, testing, and maintaining industrial static eliminators. It also explains how to avoid common mistakes and how to develop a reliable static control program for long term production use.

Identify the Source of Static Electricity

Before installing a static eliminator, identify where charge is generated, where it creates a problem, and whether the material becomes charged again after treatment.

Static electricity is usually generated when two different materials contact and separate. This process transfers electrons from one surface to another. The amount and polarity of the resulting charge depend on material properties, contact pressure, separation speed, surface condition, humidity, and process geometry.

Common static generation points include unwinding rolls, separating sheets, removing protective film, passing material over rollers, cutting, laminating, printing, coating, molding, conveying, and transferring products between machine sections. The location where static becomes visible may not be the location where the charge was originally generated.

For example, plastic film may become charged as it separates from an unwind roll but may not attract dust until it reaches a later inspection or packaging station. Installing an ionizer only at the dust attraction point may reduce the symptom, while treating the film immediately after unwinding may prevent the charge from affecting several downstream operations.

  1. Observe the complete production process from material entry to finished product.
  2. Identify every point where materials contact and separate.
  3. Measure static voltage before and after each suspected generation point.
  4. Record material type, line speed, distance, temperature, and humidity.
  5. Determine where static first reaches an unacceptable level.
  6. Identify the exact location where static creates a quality or safety problem.
  7. Check whether the material becomes charged again after ionization.
  8. Repeat measurements under different normal production conditions.

Measurements should be taken with a suitable static voltage instrument at a consistent distance from the material. Readings can change significantly with measuring distance, product movement, humidity, and nearby grounded objects. Record all test conditions so that results can be compared accurately.

A complete static survey provides the foundation for equipment selection and positioning. Without this information, users may install too few ionizers, select the wrong operating range, or place equipment where ions cannot reach the charged surface effectively.

Select the Correct Static Eliminator

Select a static eliminator according to material width, working distance, line speed, charge level, available space, environmental conditions, and the required neutralization time.

Industrial static eliminators are available in several configurations, including ionizing air bars, ionizing air blowers, ionizing nozzles, ionizing guns, and specialized point ionizers. Each configuration is suited to different treatment areas and operating requirements.

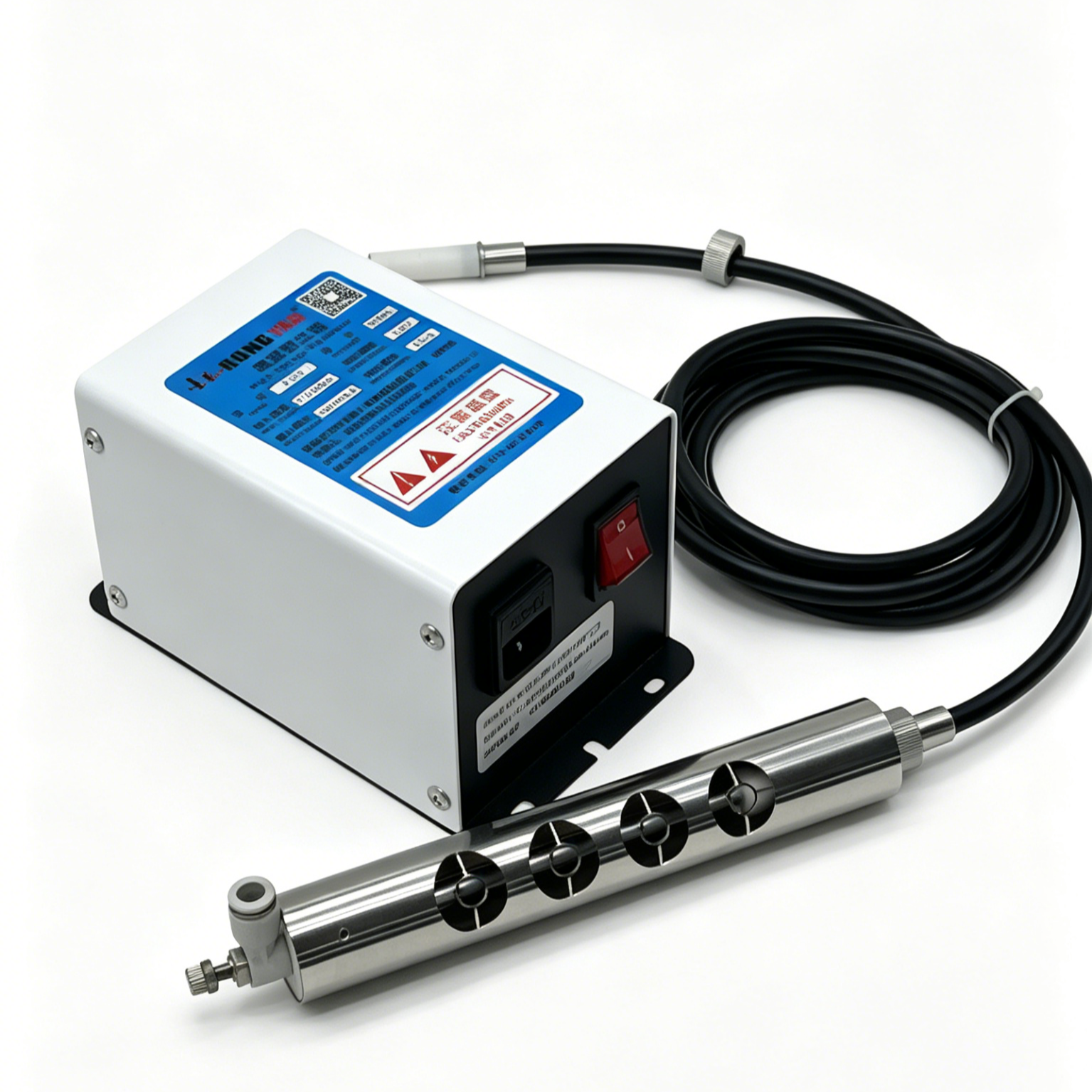

An ionizing air bar is commonly used for continuous materials such as plastic film, paper, textiles, labels, sheets, and conveyor products. Ionizing nozzles are useful for concentrated treatment in cavities, narrow machine spaces, and localized cleaning applications. Ionizing blowers can cover larger workstations or areas where compressed air is unavailable.

The required working distance is especially important. Some static eliminators are designed for close range treatment, while others use airflow or pulsed ion generation to cover a longer distance. Installing a close range device too far from the target can lead to slow or incomplete neutralization.

Static Eliminator Type Typical Application Primary Advantage Important Consideration
Ionizing air bar Film, paper, sheet, textile, and conveyor processes Continuous coverage across a defined width Length and installation distance must match the process
Ionizing nozzle Cavities, parts, containers, and local problem areas Concentrated ionized airflow Requires correct aiming and air pressure
Ionizing air blower Assembly stations and larger open areas Wide area treatment without external compressed air Airflow may be affected by obstacles and distance
Ionizing gun Manual cleaning and part preparation Flexible operator controlled treatment Results depend on operator technique
Point ionizer Narrow processing locations Compact installation Limited treatment area

Equipment selection should also consider the production environment. Cleanrooms may require low particle materials, controlled airflow, and easy cleaning. Wet, dusty, corrosive, or chemically aggressive applications may require additional environmental protection. Processes involving flammable materials require a formal safety assessment and appropriately approved equipment.

Do not select an ionizer based only on purchase price or physical size. Evaluate neutralization performance, coverage, maintainability, environmental suitability, power requirements, air consumption, integration options, and total operating cost.

Choose the Best Installation Position

Install the static eliminator as close as practical to the charged surface and near the point where static is generated, while maintaining a clear path for ions to reach the material.

Ion density generally decreases as the distance between the ionizer and target increases. Positive and negative ions can recombine in the air or be attracted to nearby grounded objects before reaching the charged material. An unnecessarily long distance therefore reduces neutralization speed.

The ionizer should normally be positioned after the material separates from a roller, roll, plate, mold, liner, or another surface. If it is placed before the separation point, the material may become charged immediately after passing the ionizer. Treating the material after the final major charge generation event usually produces better downstream control.

Avoid positioning the ionizer where machine frames, grounded rollers, guards, ducts, or other conductive objects block the ion path. Grounded metal can attract ions and reduce the quantity reaching the product. The emitter points must also be protected from direct impact by moving material or machine parts.

Installation Position Checklist

  • Place the ionizer near the charge generation point.
  • Position it after material separation whenever practical.
  • Maintain the recommended working distance.
  • Provide a clear path between emitters and the charged surface.
  • Avoid nearby grounded metal that can absorb ions.
  • Keep the ionizer away from direct product contact.
  • Use rigid brackets that resist movement and vibration.
  • Allow access for inspection and emitter cleaning.
  • Protect cables and air hoses from abrasion and heat.
  • Confirm that the position remains effective at full production speed.

For moving webs, directing ions toward the material across its complete width is generally more effective than treating only one edge. For irregular products, angled installation or several treatment points may be necessary. Testing should confirm the actual performance rather than relying only on a drawing or theoretical distance.

Mark or record the approved installation position after successful commissioning. During future maintenance, technicians can verify that the bar has not moved. This is valuable in machines where vibration, product impact, or adjustment work may alter the mounting position.

Provide Complete Ionization Coverage

The active ionization area should cover the entire charged material with sufficient overlap to prevent untreated edges, gaps, and local high voltage zones.

Physical bar length and effective treatment width are related but are not always identical. The position of the first and last emitter points, working distance, airflow pattern, mounting angle, and surrounding machine structure all influence actual coverage.

A bar that is slightly shorter than the material may leave charged edges. These untreated areas can continue to attract dust or create handling problems. In sensitive processes, a narrow untreated zone may be enough to cause contamination, misalignment, or electrostatic discharge.

When multiple static eliminators are required, their treatment zones should overlap. Gaps between bars can create stripes of residual charge. The amount of overlap should be confirmed by static voltage measurement across the complete product width.

Factors That Affect Effective Coverage

  • Emitter spacing
  • Distance from the target
  • Material width and shape
  • Airflow direction and speed
  • Line speed
  • Charge density
  • Nearby grounded structures
  • Mounting angle
  • Environmental air movement
  • Position of the first and last emitter points

For wide webs, test static voltage at the left edge, center, right edge, and intermediate positions. For three dimensional products, measure several surfaces because one side may shield another from ionized airflow.

Coverage should be reviewed whenever product width, machine speed, material type, or equipment layout changes. An ionizer that was correctly sized for the original process may no longer provide adequate treatment after production expansion.

Maintain Effective Grounding

Ground all conductive machine components and install the static eliminator according to the required grounding arrangement to support safe and stable static control.

Ionization and grounding perform different but complementary functions. Conductive objects can often be discharged effectively through grounding, while insulating materials require positive and negative ions to neutralize surface charge. A complete control strategy frequently uses both methods.

Machine frames, rollers, metal guards, work surfaces, and conductive containers should have reliable electrical continuity to ground where required. Paint, corrosion, dirt, loose fasteners, and damaged conductors can interrupt the grounding path even when components appear mechanically connected.

The ionizer and its power supply must be grounded according to the equipment design. Inadequate grounding can cause unstable operation, unreliable measurements, and electrical safety concerns. Ground connections should be short, secure, protected from damage, and inspected periodically.

Grounding Inspection Points

  • Condition of grounding conductors
  • Tightness of grounding terminals
  • Electrical continuity across machine sections
  • Corrosion or contamination at connection points
  • Paint or coating under grounding hardware
  • Grounding of power supply enclosures
  • Grounding of mounting brackets where required
  • Protection of conductors from vibration and abrasion

Grounding should be verified using a suitable measuring instrument and the facility’s approved procedure. A visual check alone cannot prove electrical continuity. Record measurements as part of preventive maintenance and safety documentation.

Do not assume that grounding an insulating material will eliminate its static charge. Plastic film, paper, glass, and many coated surfaces do not conduct charge efficiently to ground. These materials normally require ionization at the location where the charge is present.

Optimize Airflow and Compressed Air

Use only enough clean and stable airflow to transport ions effectively to the target without disturbing materials, spreading contamination, or wasting energy.

Air assisted ionizers use compressed air to move ions toward the charged surface. This can improve neutralization over longer distances or inside cavities. However, more pressure does not always produce better results. Excessive airflow can move lightweight products, generate turbulence, increase noise, and raise operating costs.

Air pressure should remain stable while the production line is operating. A regulator reading taken when other machines are stopped may not represent actual conditions during peak demand. Measure pressure at an appropriate location and check for drops caused by blocked filters, leaks, undersized piping, or shared air demand.

Compressed air quality is also important. Oil, moisture, rust, and particles can contaminate emitter points and product surfaces. Suitable filtration and moisture control should be installed according to process requirements.

Airflow Condition Possible Effect Recommended Action
Pressure too low Slow ion transport and incomplete neutralization Check regulator, filters, leaks, and supply capacity
Pressure too high Material movement, noise, turbulence, and wasted energy Reduce pressure and verify performance
Unstable pressure Inconsistent decay time Evaluate shared demand and line sizing
Oil in air supply Emitter and product contamination Improve filtration and inspect the compressor system
Moisture in air supply Corrosion and electrical instability Service moisture separation and drying equipment
Blocked air outlets Uneven coverage Clean outlets using an approved procedure

External airflow from fans, extraction systems, cleanroom ventilation, or fast moving material can redirect ions away from the target. Evaluate these air currents during normal production. Static performance measured while the machine is stopped may differ from performance at full operating speed.

Consider Environmental and Process Conditions

Evaluate humidity, temperature, contamination, airflow, material type, production speed, and chemical exposure because these conditions can change static generation and ionizer performance.

Low humidity often allows static charges to remain on insulating surfaces longer because surface conductivity decreases. Higher humidity can improve charge dissipation on some materials, but humidity control alone is rarely a complete industrial solution. Production requirements may also prevent significant humidity adjustment.

Temperature can affect electronic components, insulation, airflow, and process materials. An ionizer installed near ovens, dryers, heated rollers, or cooling zones should be suitable for the local temperature. The actual temperature at the mounting point may differ considerably from the general room temperature.

Dust, fibers, adhesive residue, oil mist, powder, and coating material can accumulate on emitter points. Highly contaminated operations require shorter cleaning intervals. If the contamination source can be reduced through shielding, extraction, filtration, or improved positioning, emitter life and performance stability may improve.

Process Variables to Record

  • Material composition
  • Material thickness
  • Surface coating
  • Roll or web speed
  • Product width
  • Ambient temperature
  • Relative humidity
  • Airflow direction
  • Dust and chemical exposure
  • Working distance
  • Initial static voltage
  • Residual static voltage

Material substitutions can produce major changes in static behavior. A new film, coating, adhesive, liner, or packaging material may charge differently even when machine settings remain unchanged. Static control should be reevaluated during process qualification.

Production speed is equally important. Faster movement can generate more charge while allowing less time for neutralization. When line speed increases, measure actual residual voltage and determine whether additional ion output, airflow, or treatment length is required.

Clean and Maintain Emitter Points

Inspect and clean emitter points at scheduled intervals using approved soft tools and compatible cleaning materials while the ionizer is completely isolated from power.

Emitter contamination is one of the most common causes of declining static eliminator performance. Deposits around the sharp points weaken or distort the electrical field used to generate ions. The ionizer may remain powered but require significantly more time to neutralize the same charge.

Before cleaning, switch off and isolate the power source. If compressed air is used, close the air supply and release stored pressure. Use a soft brush to remove loose dust. Persistent residue may be cleaned with a lint free swab lightly moistened with an approved solution.

Avoid hard metal brushes, knives, abrasive paper, and aggressive scraping. These methods can bend the emitter or round its sharp tip. Excessive cleaning liquid can enter electrical components, damage insulation, or leave conductive residue.

  1. Stop the equipment using the approved procedure.
  2. Disconnect and isolate electrical power.
  3. Close and release compressed air pressure.
  4. Inspect emitters before cleaning.
  5. Remove loose contamination with a soft brush.
  6. Use an approved damp swab for persistent residue.
  7. Inspect needles for wear, bending, and corrosion.
  8. Allow all surfaces to dry completely.
  9. Restore power and airflow safely.
  10. Measure performance after cleaning.

Cleaning frequency should reflect actual contamination and performance. Daily checks may be appropriate in extremely dusty applications, while cleaner environments may support longer intervals. Begin with a conservative schedule and adjust it using inspection records.

Replace emitters that are broken, severely bent, deeply corroded, or permanently contaminated. Some ionizers use individually replaceable needles, while others require replacement of a complete emitter cartridge or module. Use compatible components and verify performance after replacement.

Measure Ion Balance and Decay Time

Use suitable calibrated instruments to measure ion balance, positive decay time, negative decay time, and residual static voltage under repeatable operating conditions.

A status light only confirms that some part of the ionizer is energized. It does not prove that sufficient ions are reaching the target. Performance testing is therefore essential during commissioning, preventive maintenance, troubleshooting, and process changes.

Ion balance indicates the residual voltage created by the relative output of positive and negative ions. If one polarity dominates, the ionizer can leave an offset voltage on the target. Sensitive electronic and clean manufacturing applications may require particularly stable balance.

Decay time shows how quickly the ionizer reduces a known charge between defined voltage levels. Both positive and negative decay should be measured because the results may differ. A charged plate monitoring instrument is commonly used for this purpose.

Conditions Required for Repeatable Testing

  • Use the same measuring instrument.
  • Confirm that calibration is valid.
  • Maintain the same instrument position.
  • Record the distance from the ionizer.
  • Use the same airflow setting.
  • Record temperature and humidity.
  • State whether the machine is stopped or running.
  • Record material speed and product type.
  • Measure several locations across wide treatment areas.
  • Compare results with established acceptance criteria.

Create a baseline when the ionizer is clean, correctly installed, and operating normally. Future measurements can be compared with this reference to identify gradual deterioration. Trending is often more informative than evaluating a single reading.

If decay time becomes longer, inspect emitter cleanliness, distance, airflow, power, grounding, and obstacles. If ion balance shifts, check for uneven contamination, damaged emitters, incorrect adjustment, or electrical faults. Correct the cause and repeat the test before returning the equipment to service.

Monitor Production Performance

Monitor actual static voltage and process results during normal production because laboratory or stationary tests may not represent full speed operating conditions.

A static eliminator can perform well when the machine is stopped but become insufficient when material speed increases. Moving webs may generate additional charge, and strong process airflow can redirect ions. Measurements should therefore be completed under representative production conditions whenever safe and practical.

Static related defects can provide useful monitoring information. Dust attraction, double sheet feeding, web misalignment, material wrapping, operator shocks, electronic failures, printing defects, and unexpected sensor signals may indicate declining ionizer performance.

However, these symptoms can have more than one cause. Dust may result from poor housekeeping, and feeding problems may involve mechanical alignment. Confirm static voltage and ionizer performance before making major adjustments.

Useful Performance Indicators

  • Static voltage before treatment
  • Static voltage after treatment
  • Ion balance
  • Positive decay time
  • Negative decay time
  • Product rejection rate
  • Dust related defects
  • Material handling interruptions
  • Operator shock reports
  • Cleaning frequency
  • Emitter replacement frequency
  • Compressed air consumption

Connect maintenance information with quality data. If defect rates increase as decay time becomes longer, the relationship can support better maintenance limits. Instead of waiting for complete ionizer failure, the team can service the equipment when performance approaches the point where quality begins to decline.

Automatic alarms and remote monitoring can be useful, but they should support rather than replace physical inspection and measurement. Sensors, cables, and communication systems also require maintenance and verification.

Follow Electrical and Operational Safety Practices

Always isolate electrical and pneumatic energy before servicing a static eliminator and use equipment that is suitable for the hazards present in the production environment.

Industrial ionizers use a high electrical potential to generate ions. Even when current is limited, maintenance personnel should never touch emitter points, electrical connectors, or internal components while the equipment is energized. Follow the facility’s approved energy isolation procedure.

Compressed air systems also store energy. Close the supply valve and release pressure before removing hoses, fittings, nozzles, or emitter assemblies. Unexpected airflow can eject particles or small components.

Applications involving flammable gases, vapors, dust, or solvents require special attention. Standard ionizers should not be assumed suitable for hazardous environments. A formal risk assessment must consider equipment approval, ventilation, grounding, process materials, ignition risks, and local safety requirements.

Essential Safety Practices

  • Identify all electrical and pneumatic energy sources.
  • Stop the machine before maintenance.
  • Disconnect and isolate ionizer power.
  • Release stored compressed air pressure.
  • Prevent unexpected machine restart.
  • Use suitable personal protective equipment.
  • Keep hands away from energized emitters.
  • Do not modify power supplies or safety circuits.
  • Replace damaged cables immediately.
  • Use approved equipment in hazardous environments.
  • Allow only qualified personnel to perform internal electrical repairs.

Inspect cables for abrasion, crushing, cuts, heat damage, and loose connectors. Route cables away from moving parts, sharp edges, hot surfaces, and chemical exposure. Temporary repairs should not reduce insulation integrity or safety.

Safety procedures should be included in operator and maintenance training. Clear labels and equipment identification help personnel isolate the correct power source when several ionizers are installed on one machine.

Train Operators and Maintenance Personnel

Train personnel to recognize static problems, inspect ionizer status, follow safe cleaning procedures, report abnormalities, and understand the limits of their responsibilities.

Operators observe the equipment during daily production and are often the first to notice changes. They should know how to identify unusual noise, alarms, reduced airflow, dust attraction, material sticking, and visible emitter contamination.

Maintenance personnel require more detailed training on power isolation, emitter cleaning, component replacement, grounding verification, airflow inspection, and performance testing. Staff who use measuring instruments should understand correct distance, environmental effects, instrument grounding, and safe measurement techniques.

Responsibilities should be clearly defined. Operators may perform visual checks and report issues, while trained maintenance personnel complete cleaning and mechanical inspection. Qualified electrical personnel should handle internal power supply diagnosis and repairs.

  • Basic causes of industrial static electricity
  • Static related product and safety risks
  • Purpose of each static eliminator
  • Normal operating indicators
  • Warning signs of declining performance
  • Safe energy isolation
  • Approved emitter cleaning methods
  • Correct measuring instrument use
  • Acceptance criteria and reporting procedures
  • Documentation requirements

Provide simple checklists near the equipment where appropriate. A short daily inspection form can help operators identify problems consistently. More detailed procedures should be available for maintenance and technical personnel.

Refresher training is useful when new equipment, materials, products, or measuring methods are introduced. Training should also be reviewed after a static related incident or repeated maintenance failure.

Avoid Common Static Elimination Mistakes

Avoid treating only the visible symptom, installing the ionizer too far away, leaving gaps in coverage, ignoring grounding, using excessive air pressure, and operating without performance testing.

One frequent mistake is installing an ionizer where static causes a problem without identifying where the charge originates. The material may already have affected several upstream operations, or it may become charged again immediately after treatment.

Another mistake is assuming that a longer distance provides wider and better coverage. Although the ion cloud may spread, ion density decreases with distance. A distant ionizer may cover the width physically but neutralize the material too slowly for the production speed.

Maintenance errors are also common. Cleaning emitters while energized, using abrasive tools, applying too much solvent, or failing to dry the equipment can create safety and reliability problems. An ionizer should be tested after maintenance to confirm that performance was restored.

Common Problems and Corrective Actions

Common Mistake Likely Result Better Practice
Installing before the final separation point Material becomes charged again Position treatment after charge generation
Excessive working distance Slow neutralization Move the ionizer closer within the approved range
Incomplete width coverage Charged edges or local defects Extend or overlap treatment zones
Poor grounding Unstable performance and unreliable measurements Verify continuity with a suitable instrument
Excessive compressed air Noise, turbulence, and wasted energy Optimize pressure using performance measurements
Dirty emitter points Long decay time and balance shift Establish scheduled inspection and cleaning
No testing after installation Hidden performance gaps Measure balance, decay time, and product voltage
No maintenance records Repeated failures and inconsistent servicing Document condition, actions, and results

Static elimination should be managed as a complete system. Equipment selection, grounding, placement, airflow, environment, maintenance, and measurement are connected. Correcting only one factor may not provide stable results if other conditions remain unsuitable.

Industrial Static Eliminator Best Practices Checklist

A complete best practices checklist should cover process assessment, equipment selection, installation, commissioning, operation, maintenance, testing, safety, training, and documentation.

A standardized checklist helps teams apply the same requirements across different production lines. It can also support internal audits, preventive maintenance, process qualification, and troubleshooting.

The checklist should be adapted to the risk and sensitivity of each application. General dust control may require different acceptance limits and test frequency from semiconductor manufacturing or electronic assembly.

Assign a unique identification number to every static eliminator and its power supply. This prevents maintenance and measurement records from being assigned to the wrong unit.

Process Assessment

  • Identify where static is generated.
  • Identify where static creates a problem.
  • Measure voltage before and after suspected generation points.
  • Record material type, width, speed, and environmental conditions.
  • Determine whether charge develops again after treatment.

Equipment Selection

  • Select the correct ionizer configuration.
  • Confirm working distance and coverage.
  • Evaluate required neutralization time.
  • Check environmental suitability.
  • Confirm electrical and compressed air requirements.
  • Consider cleaning and component access.

Installation

  • Install near the static generation point.
  • Maintain a clear ion path.
  • Cover the complete product width.
  • Use rigid and adjustable mounting brackets.
  • Protect cables, hoses, and emitter points.
  • Verify grounding connections.

Commissioning

  • Check power and operating indicators.
  • Confirm compressed air pressure where applicable.
  • Measure ion balance.
  • Measure positive and negative decay time.
  • Measure product static voltage at normal speed.
  • Test several positions across the treatment width.
  • Record baseline results.

Routine Operation and Maintenance

  • Inspect status indicators every shift.
  • Check emitter contamination regularly.
  • Clean emitters using approved materials.
  • Inspect cables, connectors, brackets, and hoses.
  • Service filters and moisture separators.
  • Replace damaged or worn emitters.
  • Verify performance after maintenance.

Documentation and Review

  • Record inspection and cleaning dates.
  • Document test conditions and results.
  • Track alarms, defects, and static related interruptions.
  • Review performance trends.
  • Adjust maintenance intervals using actual data.
  • Reassess the system after process changes.

When a checklist item fails, define the required corrective action and responsibility. The equipment should not be released for critical production until failed performance tests have been investigated and acceptable results have been documented.

Conclusion

Effective industrial static elimination depends on correct assessment, suitable equipment, precise installation, complete coverage, reliable grounding, controlled airflow, regular maintenance, measured verification, and trained personnel.

Industrial static eliminators can reduce dust attraction, material handling problems, electronic damage, operator shocks, printing defects, and production interruptions. However, these benefits are achieved only when ions reach the charged surface in sufficient quantity and within the available process time.

Begin by identifying where static is generated and where it affects production. Select an ionizer according to material width, charge level, line speed, working distance, environmental conditions, and required decay time. Install it near the charge generation point with a clear path to the target.

Ground conductive components properly, optimize airflow, and consider humidity, temperature, contamination, and process changes. Inspect and clean emitter points regularly because contamination can reduce ion output even when the system appears to operate normally.

Use measured data to verify success. Ion balance, positive decay time, negative decay time, and actual product voltage provide objective evidence of performance. Record these values under consistent conditions and compare them with established acceptance criteria and baseline results.

Finally, integrate static elimination into the wider maintenance and quality program. Training, documentation, preventive inspection, and performance trending allow industrial users to identify gradual deterioration before it causes significant defects or downtime. Following these best practices helps create a safer, cleaner, and more reliable production environment while extending the useful life of the complete static control system.

Table of Content list
Decent Static Eliminator: The Silent Partner in Your Quest for Efficiency!

Quick Links

About Us

Support

Contact Us

  Telephone: +86-188-1858-1515
  Phone: +86-769-8100-2944
  WhatsApp: +8613549287819
  Email: Sense@decent-inc.com
  Address: No. 06, Xinxing Mid-road, Liujia, Hengli, Dongguan, Guangdong
Copyright © 2025 GD Decent Industry Co., Ltd. All Rights Reserved.
