Ionizing air bars are widely used in electronics manufacturing to control static electricity on printed circuit boards, semiconductor devices, sensors, displays, optical components, plastic housings, trays, films, and automated handling equipment. By supplying positive and negative ions, an ionizing bar can neutralize charges on insulated materials and isolated conductors that cannot be protected through grounding alone.
Despite their protective purpose, production managers and equipment buyers sometimes worry that the high voltage used inside an ionizing air bar could damage electronic products. This concern is reasonable because modern electronic components may be highly sensitive to electrostatic discharge, electrical fields, contamination, excessive airflow, and electromagnetic interference.
A properly designed, correctly installed, and regularly maintained ionizing air bar should not damage electronics. Its purpose is to reduce electrostatic risk. However, an unsuitable, poorly balanced, incorrectly positioned, contaminated, damaged, or improperly grounded ionizer can create conditions that increase the risk of residual charging, electrical interference, particle contamination, or damage to sensitive components.

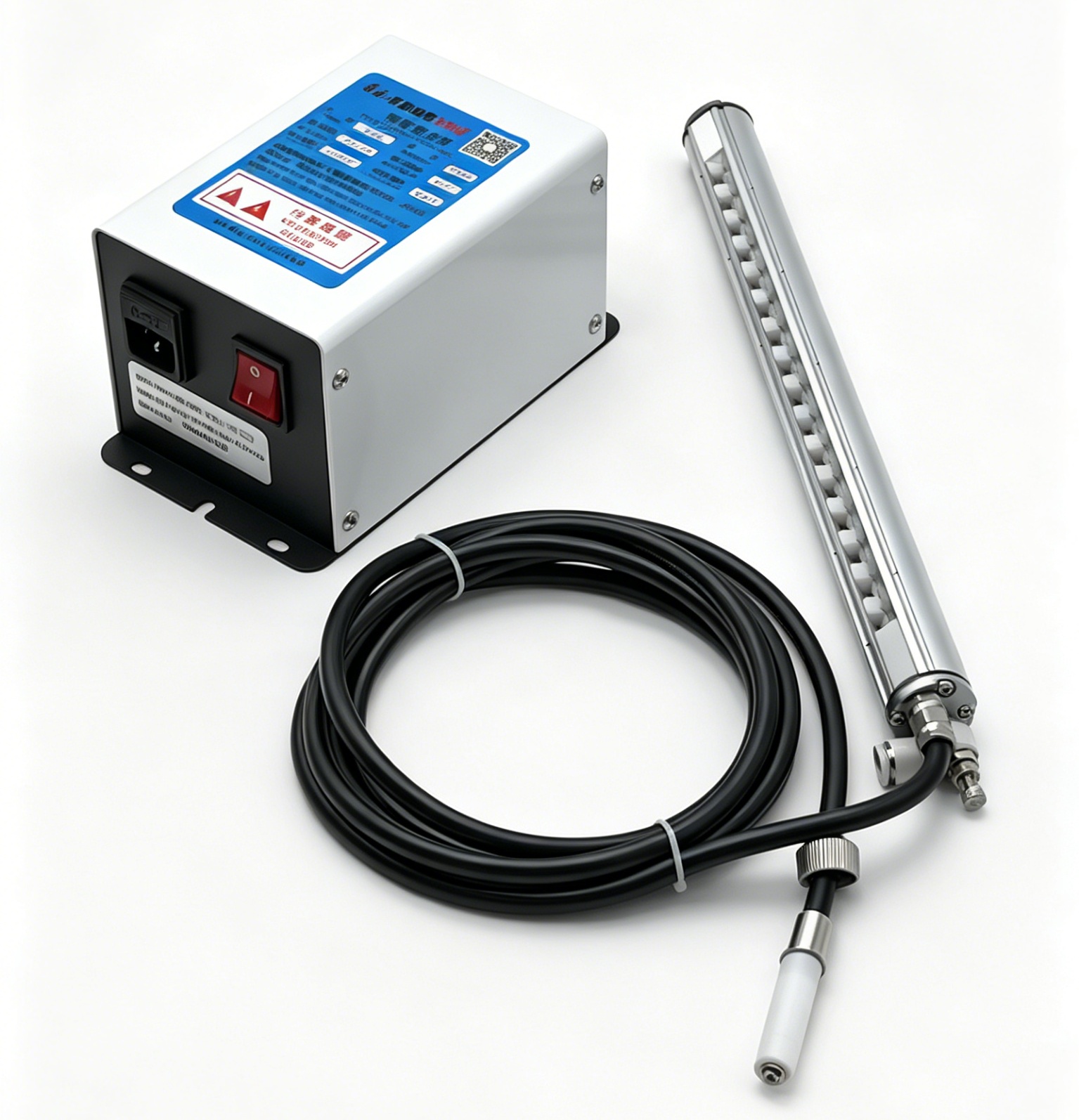

The high voltage inside an ionizing air bar is normally applied to low current emitter points rather than directly to the electronic product. The ions produced around these points travel through the air and neutralize surface charge. Under normal conditions, the target does not come into electrical contact with the high voltage circuit.
Safe and effective operation depends on more than selecting an ionizer and switching it on. Ion balance, decay time, working distance, airflow, grounding, emitter cleanliness, product sensitivity, and installation geometry must all be evaluated. This guide explains the possible risks and the engineering controls needed to protect electronic products.
This article covers how ionizing air bars protect electronics, the conditions under which problems can occur, and the methods used to select, install, test, and maintain ionization equipment safely.
An ionizing air bar is only one part of an effective static control program. Personnel grounding, grounded work surfaces, suitable packaging, conductive equipment, humidity management, process monitoring, and employee training may also be required.
The following sections focus on practical production risks and measurable equipment performance. They are intended to help engineers, quality managers, static control coordinators, maintenance teams, and purchasing professionals make informed decisions.
Each topic should be considered within the actual production environment. A system that works safely at one workstation may require different settings when installed near a high speed conveyor, sensitive measurement circuit, clean assembly area, or automated component handling system.
Ionizing air bars protect electronic components by supplying positive and negative ions that neutralize static charges before those charges can produce electrostatic discharge or attract contamination.
Electronic products can become charged through contact, separation, friction, induction, and movement. Plastic trays, protective films, conveyor belts, component carriers, labels, packaging materials, and machine surfaces can all generate or hold static electricity.
Grounding is highly effective for conductive objects, but many materials used in electronics manufacturing are electrical insulators. A plastic housing or insulating film cannot release its charge quickly through a grounding wire. Ionization provides charged air molecules that move toward the surface and compensate for the excess electrical charge.
If an object is positively charged, it attracts negative ions. If it is negatively charged, it attracts positive ions. As the required ions reach the surface, its voltage moves closer to a neutral condition. This lowers the electrical potential that could otherwise produce a damaging discharge.
Ionizing bars are particularly useful above conveyors and automated work areas. A correctly sized bar can provide continuous coverage across a product path without requiring physical contact. It can also treat both components and insulating carriers as they move through the ionization zone.
Static neutralization can prevent more than immediate catastrophic damage. It can also reduce latent damage, where a component continues to operate but has suffered internal weakening that may reduce reliability later. Because latent damage may not be identified during ordinary testing, prevention is especially valuable.
Ionization also helps control electrostatic attraction of dust and particles. Contamination can affect optical surfaces, connectors, sensors, displays, coatings, and precision electronic assemblies. By reducing surface charge, an ionizing bar makes particle control and cleaning more effective.
An ionizing air bar can cause problems when it has poor ion balance, an electrical fault, incorrect grounding, excessive airflow, unsuitable output, contaminated emitters, insufficient clearance, or an installation that does not match the sensitivity of the product.
The presence of ionization does not guarantee protection. If the bar delivers too many ions of one polarity, a neutral or weakly charged product may acquire a residual charge. Sensitive components could then experience an electrostatic event during the next contact or handling step.
Physical installation is another important concern. The bar must have adequate clearance from the product, machine structure, operators, and moving components. If products strike the emitter area, they can damage the bar and may be exposed to an abnormal electrical condition.
Contamination can distort the electrical field around emitter points. In severe cases, deposits may contribute to unstable discharge, current leakage, or arcing. These conditions can reduce neutralization performance and increase the possibility of electrical noise or contamination near the product.
| Condition | Possible Effect on Electronics | Recommended Control |
|---|---|---|
| Poor ion balance | Residual positive or negative charge | Measure and adjust ion balance |
| Slow decay time | Charge remains when the product leaves the treatment area | Reduce distance or increase treatment time |
| Dirty emitter points | Uneven output and possible instability | Clean at a controlled interval |
| Electrical arcing | Electrical noise and possible safety risk | Stop operation and arrange qualified inspection |
| Excessive airflow | Movement of components or contamination | Reduce and balance airflow |
| Incorrect grounding | Unstable performance and increased electrical risk | Verify the grounding arrangement |
| Insufficient clearance | Contact with products or machine parts | Correct the mounting position |
| Unsuitable equipment type | Failure to meet sensitivity requirements | Select equipment based on verified process data |
Equipment should be evaluated as part of the complete process. A bar may neutralize a component successfully, but the component can become charged again when it separates from a conveyor belt, slides through a plastic guide, or enters unsuitable packaging.
Abnormal sound, visible sparking, repeated fault indications, sudden performance changes, or damage to cables and insulation should never be ignored. The system should be switched off according to the approved safety procedure and inspected by qualified personnel.
Yes, poor ion balance can place an unwanted residual charge on sensitive electronics, reducing the protective value of the ionizer and potentially increasing electrostatic discharge risk.
Ion balance describes the difference between the positive and negative ion effects at the target. It is generally expressed as an offset voltage. An offset close to zero means that the two polarities are approximately equal in their charging effect.
If positive ions dominate, an isolated neutral object may gradually acquire a positive voltage. If negative ions dominate, the same object may acquire a negative voltage. The resulting offset may be small or substantial depending on the bar, settings, distance, airflow, and exposure time.
The acceptable ion balance range depends on product sensitivity. General packaging or plastics applications may tolerate a wider offset, while semiconductor devices and sensitive electronic assemblies often require much tighter control.
| Ion Balance Condition | Effect on an Isolated Target | Potential Risk |
|---|---|---|
| Near zero offset | Minimal residual charging tendency | Low when decay performance is also adequate |
| Small positive offset | Target may become slightly positive | Depends on component sensitivity |
| Small negative offset | Target may become slightly negative | Depends on component sensitivity |
| Large positive offset | Target can develop significant positive voltage | Potentially unsuitable for sensitive electronics |
| Large negative offset | Target can develop significant negative voltage | Potentially unsuitable for sensitive electronics |
Average balance alone may not provide a complete picture. Some ionizers alternate or pulse between positive and negative output. The average may appear close to zero while instantaneous positive and negative peaks are much larger. Peak behavior may be important for highly sensitive devices.
Ion balance should be measured at the actual product location. A reading taken close to the bar may differ from the offset at the work surface. The center, edges, and any important intermediate locations should be checked to confirm uniform performance.
Emitter contamination is a common cause of balance drift. Cleaning may restore normal operation, but worn emitters, uneven airflow, incorrect settings, or electrical deterioration may require adjustment or component replacement.
During normal noncontact operation, the high voltage inside an ionizing air bar should not be transferred directly to the electronic product because the target is treated by airborne ions rather than an electrical connection.
The voltage applied to the emitter points creates the electrical field needed for ionization. Although this voltage may be high, the available current is typically limited by the system design. The product is positioned at a controlled distance and receives ions through the air.
Safe separation is essential. Products, tools, operators, and moving machine parts should not contact the emitter points or damaged electrical components. Contact can damage the emitters, disturb production, and create an abnormal condition outside the intended operating design.
Insulation prevents high voltage from reaching the housing, mounting system, or low voltage circuits. Cracked insulation, carbon tracking, damaged cables, moisture, or severe contamination can reduce this protection. Regular visual inspection helps identify such problems before they develop into a serious fault.
| Condition | Electrical Situation | Required Action |
|---|---|---|
| Correct distance and intact insulation | Product receives ions without direct electrical contact | Continue routine monitoring |
| Product contacts the emitter area | Normal clearance is lost | Stop and correct the mounting arrangement |
| Cracked insulation | Possible leakage or unstable discharge | Remove the unit from service |
| Damaged power cable | Electrical safety may be compromised | Replace through qualified service |
| Visible arcing | Abnormal discharge is occurring | Stop operation and investigate immediately |
| Moisture inside the bar | Possible leakage and insulation failure | Disconnect and inspect before reuse |
Users should never test high voltage output by touching the emitter or bringing a conductive object close to it. Performance should be evaluated using appropriate ion balance, decay time, and static voltage measuring equipment.
Grounding should follow the equipment and facility requirements. A reliable grounding arrangement supports safe operation and may also reduce electrical noise. Ground continuity should be verified rather than assumed from physical contact with a machine frame.
If the installation is located near exposed circuitry, the mounting distance and orientation should be selected carefully. The goal is to deliver sufficient ions to the target while maintaining safe mechanical clearance and avoiding unnecessary exposure of sensitive circuits to strong local electrical fields.
Airflow, ozone, and contamination can affect electronic products if they are not controlled, although these risks can normally be managed through correct equipment selection, clean air, suitable ventilation, and proper maintenance.
Compressed air and blower assisted ionizing bars transport ions over longer distances and can produce fast neutralization. However, excessive airflow may move lightweight components, disturb solder materials, spread particles, dry sensitive processes, or force contamination into connectors and assemblies.
Air pressure should be set according to the required decay performance rather than simply adjusted to the highest available value. Uniform low pressure airflow may provide better product protection than a strong turbulent stream.
Compressed air quality is critical. Air containing water, oil, rust, or particles can deposit contamination on printed circuit boards, optical sensors, contacts, and other sensitive surfaces. Suitable filtration, moisture separation, and air system maintenance are therefore necessary.
Electrical ionization may create a small amount of ozone as a byproduct. Properly designed industrial ionizers should normally keep ozone generation low. Actual workplace concentration depends on electrical design, emitter condition, airflow, ventilation, operating time, and the number of units in the area.
Excessive ozone can affect certain elastomers, coatings, adhesives, and other sensitive materials over time. Applications with many ionizers, enclosed machinery, limited ventilation, or ozone sensitive products should include an appropriate air quality and material compatibility assessment.
Emitter cleaning should not introduce contamination. Cleaning liquid must be suitable for the electrode and insulation materials, and the bar should be completely dry before power is restored. Residue from an unsuitable cleaner can affect electrical performance and may be carried toward the product.
Ionizing air bars can generate some electrical noise, but correctly designed and installed equipment should normally operate without disrupting nearby electronics.
The high voltage circuit switches or alternates electrical output to create positive and negative ions. This activity can generate electromagnetic emissions. The level and frequency depend on the power design, waveform, cable arrangement, grounding, shielding, and operating condition.
Sensitive measurement equipment, communication circuits, analog sensors, vision systems, and low level signal devices may require additional evaluation. An installation that causes no issue beside general production machinery may behave differently near precision laboratory instruments.
Electrical arcing creates a greater interference risk than stable corona ionization. Dirty emitters, damaged insulation, loose connectors, and unsuitable grounding can produce irregular electrical activity. Abnormal clicking or sparking should be investigated promptly.
Cable routing is frequently overlooked. Power and ionizer cables should be organized separately from low level sensor wiring where practical. Long unnecessary cable loops should be avoided, and cables should not be crushed against metal edges.
Grounding problems can create both safety and performance issues. Multiple uncontrolled grounding paths may produce unwanted current flow, while missing ground connections can reduce shielding effectiveness. The grounding plan should be developed by qualified personnel.
Electromagnetic compatibility should be verified under normal operating conditions. Testing should include startup, normal output, airflow changes, and any automatic output adjustment. The production equipment should be observed for sensor errors, communication interruptions, false triggers, or measurement drift.
An ionizing air bar should be installed at a verified working distance, directed toward the charged surface, securely mounted, properly grounded, and kept clear of products, operators, grounded obstructions, and sensitive signal wiring.
Installation begins by identifying where static charge is generated and where it causes a problem. Charge may develop when protective film is removed, plastic separates from a roller, components move through a feeder, or products slide against insulating guides.
The bar should normally be positioned after the final significant charge generating event and before the point where static can damage the product or disrupt the process. Installing it too early may allow the product to become charged again later.
Working distance affects ion density, decay time, balance, and coverage. A short distance often provides fast neutralization, but the bar must not interfere with moving products. A long distance may require airflow assistance or a longer exposure time.
Grounded machine structures can attract ions before they reach the target. A bar hidden behind a grounded guard or roller may show normal electrical operation while providing poor neutralization. The ion path should remain as clear as possible.
Wide conveyors and large work areas should be tested at the center and edges. Overlapping treatment zones or multiple bars may be needed for complex geometry, fast movement, or treatment of both sides of an insulating material.
The mounting position should allow safe maintenance access. If technicians cannot reach the emitter points without removing extensive machine structures, cleaning may be delayed and performance may decline.
Performance should be verified by measuring ion balance, positive and negative decay time, residual product voltage, and coverage uniformity under actual production conditions.
A charged plate monitor is commonly used to evaluate ion balance and decay performance. The isolated test plate is positioned at the intended product location. It is charged to a defined positive or negative voltage, and the time required to reduce the voltage to a lower level is recorded.
Ion balance indicates the voltage that develops on the isolated plate when it is exposed to the ionizer. A positive offset means positive ions have a stronger charging effect, while a negative offset means negative ions are dominant.
Decay time determines whether the ionizer can neutralize the product within the available process time. If a conveyor moves the product through the ionization zone in one second, a decay time of several seconds may be inadequate even if the balance is excellent.
| Measurement | Purpose | Potential Problem Revealed |
|---|---|---|
| Ion balance | Measures polarity offset | Risk of residual charging |
| Positive decay time | Evaluates negative ion delivery | Slow removal of positive charge |
| Negative decay time | Evaluates positive ion delivery | Slow removal of negative charge |
| Residual product voltage | Confirms actual process result | Charge remains after treatment |
| Coverage uniformity | Compares positions across the work area | Weak center, edge, or corner zones |
| Long term stability | Tracks change over time | Contamination, wear, or electrical drift |
Testing should use normal airflow, machine guards, production speed, product height, temperature, and humidity. Laboratory data obtained under ideal conditions may not represent the final installation.
Residual voltage should also be measured on actual products where possible. This confirms the effectiveness of the complete process, including charge generation after the ionizing bar. A calibrated field meter should be used at the correct sensing distance.
Results should be documented as a baseline after installation. Repeated measurements can then reveal contamination, emitter wear, output drift, or airflow changes before product damage occurs.
Buyers should select an ionizing air bar according to verified ion balance, positive and negative decay time, product sensitivity, working distance, coverage width, cleanliness requirements, monitoring capability, and electromagnetic compatibility.
The selection process should begin with the electronic product rather than the ionizing bar. Buyers should understand the sensitivity of components, the maximum acceptable residual voltage, the production speed, the target size, and the amount of time available for neutralization.
Ion balance data should be provided at the intended operating distance. A tight balance measured at a very short distance may not remain equally tight at the actual product position. Positive and negative peaks may also be relevant for highly sensitive applications.
Decay performance should be reported for both charge polarities. A single fast decay value does not show whether the ionizer performs equally in both directions. Test conditions, including plate size, distance, airflow, and voltage range, should be clear.
Equipment designed for general web handling may not provide the control needed for highly sensitive electronic devices. Buyers should avoid selecting a bar only by length, price, or maximum working distance.
Maintenance and calibration requirements influence long term protection. Easily accessible emitters, replaceable components, fault indication, and clear testing procedures make it easier to keep performance within the required range.
A production trial is valuable for critical processes. Testing with actual products, normal machine speed, real airflow, and complete machine guards can identify risks that are not visible from technical data alone.
Regular cleaning, electrical inspection, airflow checks, ion balance testing, decay measurement, and performance documentation help prevent an ionizing air bar from becoming a risk to electronic products.
Emitter points attract dust and process contamination because of their strong electrical field. As deposits accumulate, ion output can decrease or become uneven. Cleaning frequency should reflect the actual environment rather than relying on one universal schedule.
Power must be isolated before cleaning or servicing the bar. Maintenance personnel should use approved tools and cleaning materials. Metal brushes, aggressive abrasives, or excessive force can damage emitter tips and insulation.
After cleaning, the bar should be completely dry before power is restored. Ion balance and decay performance should then be measured to confirm that maintenance has restored normal operation.
Trend records are particularly useful. A gradual increase in decay time may indicate contamination or emitter wear. A sudden balance shift may indicate damage, blocked airflow, a setting change, or an electrical fault.
Maintenance should also be performed after production changes. A new material may generate more static, release different contaminants, or require a different working distance. Increased conveyor speed may reduce treatment time.
A unit with cracked insulation, a damaged cable, repeated arcing, or unstable output should be removed from service for qualified evaluation. It should not remain in operation simply because some neutralization is still occurring.
Ionizing air bars do not normally damage electronics when they are correctly selected, installed, grounded, tested, and maintained. They are designed to protect electronic products by reducing electrostatic charge and preventing damaging discharges.
Problems can occur when ion balance is poor, decay time is too slow, emitters are contaminated, insulation is damaged, airflow carries particles toward the product, or electrical noise affects sensitive circuits. These risks are manageable through appropriate engineering and maintenance controls.
Ion balance and decay time are the two most important performance values. Ion balance indicates whether the bar may leave a positive or negative residual voltage. Decay time indicates whether static can be removed within the available production time.
The high voltage used for ion generation should remain isolated from the product during normal noncontact operation. Adequate mechanical clearance, intact insulation, safe cable routing, and proper grounding are essential. Any visible arcing, cable damage, or insulation failure requires immediate attention.
Air assisted ionization can provide fast and long range neutralization, but compressed air must be clean, dry, and correctly regulated. Excessive airflow can move lightweight components or transport contamination toward sensitive surfaces.
Buyers should compare verified performance at the intended working distance rather than selecting equipment only by price or physical length. Product sensitivity, coverage, positive and negative decay time, peak balance behavior, monitoring capability, maintenance access, and environmental compatibility should all be considered.
With a documented testing and maintenance program, ionizing air bars can significantly reduce electrostatic discharge risk, latent electronic damage, dust attraction, process interruptions, and product defects. The result is safer handling, more consistent production, and improved long term reliability of electronic products.
