Ionizing air bars are widely used to control static electricity in electronics manufacturing, printing, packaging, plastics processing, textile production, pharmaceutical operations, and other industrial environments. Their emitter points generate positive and negative ions that neutralize electrical charges on nearby materials. Over time, however, dust, oil, adhesive residue, fibers, and process contaminants can accumulate around these emitter points.
Contaminated emitters may reduce ion output, slow static decay, disturb ion balance, and increase the risk of production defects. Regular cleaning is therefore essential, but it must be performed correctly. Ionizing equipment contains high voltage components, and improper cleaning can damage emitter points, expose employees to electrical hazards, or leave chemical residue that affects performance.
To clean ionizing air bar emitters safely, shut down and isolate all electrical and pneumatic energy, wait for stored electrical energy to dissipate, use a manufacturer approved nonmetallic brush or lint free applicator, remove contamination gently, allow the bar to dry completely, and verify performance before returning it to production.
A safe cleaning procedure is not simply a matter of wiping visible dust from the bar. Maintenance personnel must consider the emitter material, contamination type, cleaning agent, installation environment, and electrical design of the equipment. The correct method should restore ion generation without bending the points, damaging insulation, introducing moisture, or affecting sensitive production processes.
This guide explains how to recognize contaminated emitters, prepare for maintenance, select suitable cleaning materials, perform the cleaning procedure, and verify that the ionizing air bar is operating correctly afterward. It also provides practical cleaning frequencies and recommendations for building a preventive maintenance program.
This article covers the complete process for inspecting, cleaning, testing, and maintaining ionizing air bar emitters safely.
The following sections are arranged in the order typically followed during industrial maintenance. The process begins with understanding why emitter contamination matters and identifying the signs that cleaning is required.
The guide then explains shutdown preparation, cleaning tools, step by step procedures, and methods for dealing with different contaminants. It concludes with inspection, performance verification, cleaning frequency, and preventive maintenance planning.
Maintenance teams can use these sections to create an internal work instruction. However, site safety procedures and the technical instructions supplied with the equipment should always take priority.
Safe cleaning restores reliable ion generation while protecting employees, emitter points, insulation, and high voltage components from avoidable damage.

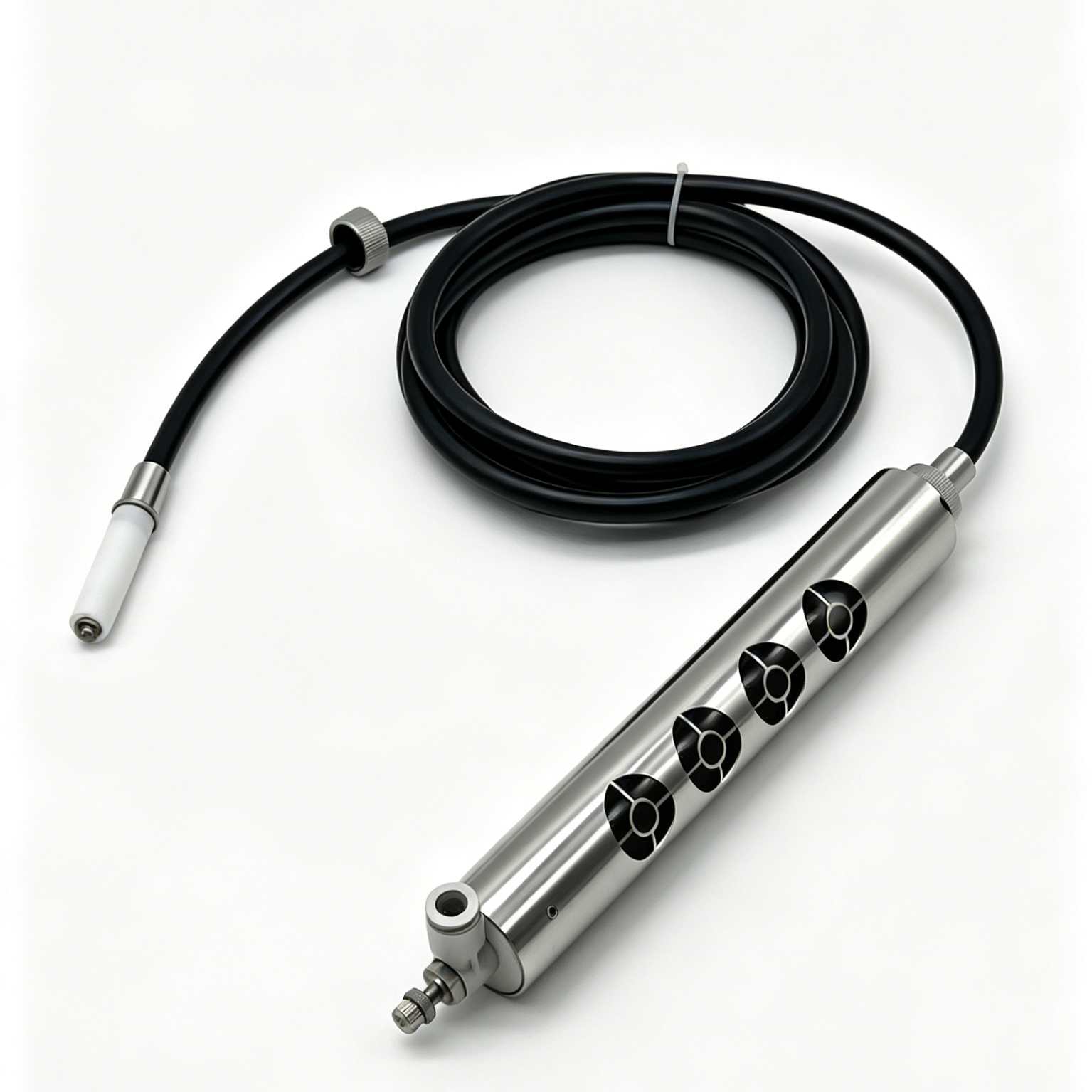

An ionizing air bar works by applying high voltage to a series of emitter points. The electrical field around each point ionizes molecules in the surrounding air. These ions are then transported toward a charged surface through natural airflow or compressed air. When contamination coats an emitter, it changes the shape and strength of the electrical field, reducing the point’s ability to generate ions efficiently.
Contamination does not always affect every emitter equally. One section of a bar may collect more dust or oil because of its position relative to a moving web, exhaust system, operator station, or lubrication source. Uneven contamination can cause irregular ion distribution across the working width. A machine may appear to have active ionization while some areas of the product remain insufficiently neutralized.
Cleaning also affects electrical safety. Using a conductive metal brush, spraying liquid into an energized bar, or touching emitter points before power has been isolated can create serious hazards. Even when the operating current is limited, unexpected electrical discharge may cause injury, equipment damage, or an involuntary movement near operating machinery.
Emitter points are precision components. Aggressive scrubbing may bend, blunt, scratch, or break them. Damage can change discharge characteristics and make stable ion balance difficult to maintain. In some cases, a damaged emitter cannot be restored through adjustment and must be replaced.
Effective maintenance must achieve two goals at the same time: remove contamination thoroughly and preserve the original geometry and insulation of the ionizing system.
Emitters usually need cleaning when static decay becomes slower, ion balance becomes unstable, alarms appear, contamination is visible, or production defects associated with static electricity begin to increase.
Visible contamination is the simplest warning sign. Maintenance personnel may see a dark ring around emitter points, fibers attached to the tips, dust deposits on the bar body, or oily residue around the air outlets. A visual inspection should be performed under adequate lighting, with the equipment safely isolated before personnel approach the emitters closely.
A decline in production performance may be the first operational indication. Plastic film may cling to rollers, sheets may feed incorrectly, dust may return to cleaned surfaces, or labels may fail to separate consistently. In electronics manufacturing, operators may record elevated electrostatic voltage or longer neutralization times at sensitive work areas.
Ion balance drift is another important sign. Contamination can affect positive and negative ion generation differently. This may leave the treated object with a residual charge even though the air bar is still producing ions. Applications involving sensitive electronic components normally require more careful monitoring because relatively small balance changes can become significant.
These symptoms should not automatically be attributed to dirty emitters. Incorrect mounting distance, poor grounding, blocked air outlets, inadequate air pressure, a damaged cable, or process changes can create similar problems. Cleaning is a logical first maintenance action when contamination is present, but the complete system should be inspected if performance does not recover.
Before cleaning, stop the production equipment when required, isolate all energy sources, release pneumatic pressure, wait for electrical energy to dissipate, and confirm that the air bar cannot restart unexpectedly.
Preparation begins with reviewing the applicable maintenance instructions and workplace safety procedure. Different ionizing air bars may use separate power supplies, integrated high voltage modules, remote controllers, or pneumatic connections. Maintenance personnel must understand how energy reaches the bar and how it can be isolated reliably.
Turning off a control panel may not provide complete isolation. The high voltage power supply should be disconnected according to the approved procedure, and any automatic restart function should be disabled. Where required by company policy, lockout and tagout controls should be applied. Personnel should verify the isolated condition using an appropriate method approved for the equipment.
If compressed air is connected to the ionizing bar, close the supply valve and release residual pressure before removing hoses or inspecting outlets. Unexpected airflow can propel loosened contamination toward the eyes or into sensitive machinery. Pressure also creates a risk if fittings are disconnected without depressurizing the system.
Allow sufficient time for stored electrical energy to dissipate. The required waiting period depends on the electrical design and should follow the equipment documentation. Personnel should never assume that the emitter points are safe immediately after the control switch has been turned off.
| Inspection Item | Required Condition | Reason |
|---|---|---|
| Electrical power | Switched off and safely isolated | Prevents electric shock and unexpected ion generation |
| Stored energy | Allowed to dissipate for the required time | Reduces residual electrical risk |
| Compressed air | Closed and depressurized when applicable | Prevents unexpected airflow and hose movement |
| Machine movement | Stopped and secured when access creates risk | Protects personnel from rollers, webs, and actuators |
| Work area | Clean, illuminated, and accessible | Supports careful inspection and prevents contamination |
| Personal protection | Selected for the site and cleaning agent | Protects the eyes, skin, and respiratory system |
Personal protective equipment should be chosen through the site risk assessment. Safety glasses and suitable gloves may be needed, especially when cleaning agents are used. In cleanrooms or controlled production areas, personnel must also follow gowning and contamination control requirements.
Use soft nonconductive tools, lint free materials, and a compatible cleaning agent that evaporates completely without leaving a conductive or sticky residue.
A small nonmetallic brush is commonly used to remove loose dust from emitter points. The bristles should be firm enough to dislodge contamination but soft enough to avoid bending or scratching the points. Some installations use a purpose designed emitter cleaning brush that controls the contact angle and reduces the likelihood of damage.
Lint free swabs or wipes can help clean the surrounding housing and accessible insulating surfaces. Ordinary paper tissue and cotton materials may leave fibers behind. These fibers can attach to sharp emitter tips and create new contamination immediately after cleaning.
A cleaning agent may be necessary for oily or adhesive deposits. It should be compatible with the emitter material, plastic housing, seals, insulation, and surrounding process. It must also be suitable for workplace ventilation and fire safety conditions. Apply only a controlled amount to the cleaning tool unless the equipment instructions specifically permit another method.
| Material | Suitable Use | Main Precaution |
|---|---|---|
| Soft nonmetallic brush | Loose dust and dry particles | Use gentle movement to avoid bending emitters |
| Lint free swab | Localized cleaning around emitter bases | Do not leave fibers on sharp points |
| Lint free wipe | Cleaning the external bar housing | Keep liquid away from internal openings |
| Compatible fast evaporating cleaner | Oil, grease, or light adhesive residue | Confirm material and process compatibility |
| Clean low pressure air | Removing loose particles where permitted | Use only if approved and avoid spreading contamination |
Metal brushes, screwdrivers, abrasive pads, knives, and sharp scraping tools should not be used on emitter points. They can alter point geometry, remove protective surfaces, or create conductive debris. Water, household cleaners, and cleaners that leave fragrance, oil, or detergent residue are generally unsuitable for precision ionizing equipment.
The correct procedure is to isolate the system, inspect the emitters, remove loose deposits gently, treat persistent residue with a compatible cleaner, dry the assembly completely, and inspect it before power is restored.
Begin by confirming that the electrical and pneumatic isolation steps have been completed. Make sure the bar is cool, stationary, and accessible without reaching through dangerous machine areas. If the bar must be removed for cleaning, support it properly and protect its cable, connectors, and mounting hardware.
Inspect the full length of the bar before disturbing the contamination. Note whether deposits are uniform or concentrated in particular areas. Uneven deposits may reveal a process problem such as an oil mist source, poor extraction, excessive dust generation, or incorrect mounting orientation.
Use a dry nonmetallic brush to loosen dust around each emitter point. Move carefully and apply minimal force. Work systematically from one end of the bar to the other so that no emitter is missed. Do not push contamination into air outlets or openings in the housing.
For persistent residue, moisten a lint free swab with the approved cleaning agent. The swab should be damp rather than saturated. Gently clean the contaminated area without flooding the emitter socket or nearby insulation. Replace the swab as it becomes dirty so contamination is removed rather than redistributed.
Clean the external housing separately with a lint free wipe. Particular attention may be required around air outlets, but tools should never be inserted deeply into openings unless the equipment procedure explicitly permits it. A blocked outlet may require further inspection rather than aggressive probing.
After cleaning, allow the bar to dry completely. This step is critical because trapped liquid can affect insulation, create leakage paths, or attract more contamination. Do not restore high voltage simply because the surface appears dry. Follow the specified drying time and confirm that no cleaner remains in emitter sockets, seams, or air outlets.
The cleaning method should match the contaminant: dry brushing is normally suitable for dust and fibers, while oil and adhesive residue may require a compatible fast evaporating cleaning agent.
Dry dust is generally the easiest contamination to remove. It often accumulates because charged particles are attracted to the electrical field near the emitters. Gentle brushing may be sufficient. If compressed air is permitted, it must be clean, dry, oil free, and used at controlled pressure so that particles are not driven deeper into the equipment.
Fibers are common in textile, paper, converting, and nonwoven applications. Long fibers may wrap around emitter points or collect between outlets. Remove them carefully with a nonconductive tool. Pulling aggressively can bend the emitter or leave small fragments attached to the point.
Oil contamination may originate from machine lubrication, pneumatic systems, process vapors, or airborne mist. Dry brushing alone can spread the oil into a thinner film. A compatible cleaner and lint free swab are usually more effective. The source of the oil should also be investigated, since frequent recontamination will reduce maintenance efficiency.
Adhesive residue is common in label, tape, printing, and packaging operations. It can be difficult to remove because it captures dust and develops a thick deposit. Only a cleaner confirmed as compatible with the air bar materials should be used. Scraping the residue with a blade or metal tool may permanently damage the emitter or insulating surface.
| Contamination Type | Preferred Initial Method | Additional Action |
|---|---|---|
| Dry dust | Soft nonmetallic brush | Check extraction and surrounding cleanliness |
| Paper or textile fibers | Careful removal with a nonconductive brush | Inspect nearby cutting and feeding processes |
| Oil mist | Compatible cleaner on a lint free swab | Identify leaks or airborne lubrication sources |
| Adhesive residue | Approved cleaner with repeated gentle wiping | Review bar position relative to adhesive application |
| Process powder | Controlled dry removal | Confirm whether the material presents a special hazard |
| Unknown deposit | Stop and identify the substance first | Review chemical and workplace safety information |
Unknown contamination requires special caution. Maintenance personnel should not select a solvent by trial and error. The substance should be identified, and its chemical properties, electrical behavior, and workplace hazards should be reviewed before cleaning begins.
The most serious mistakes are cleaning energized equipment, using metal or abrasive tools, applying excessive liquid, bending emitter points, and restarting the bar before it is completely dry.
Cleaning while the bar is operating is unsafe, even if a brush has an insulated handle. The emitter points are energized by high voltage, and the cleaner could bring a person or conductive object too close to the electrical field. Power isolation is a fundamental requirement rather than an optional precaution.
Spraying cleaner directly onto the bar is another common mistake. Liquid may enter emitter sockets, seams, air passages, electrical connectors, or the internal power module. Surface evaporation does not prove that internal areas are dry. Applying cleaner to a swab or wipe offers much better control.
Excessive force can bend or blunt emitter points. The tips may appear robust, but their shape is important to ion generation. Maintenance personnel should not attempt to straighten a damaged point unless an approved repair procedure is available. Replacement of the emitter assembly may be safer and more reliable.
Another mistake is cleaning the emitters without investigating the reason they became contaminated. If deposits return rapidly, the installation may need better filtration, extraction, shielding, mounting orientation, or process control. Repeated cleaning treats the symptom but may not address the source.
After cleaning, inspect every emitter for cleanliness, straightness, secure mounting, physical damage, remaining moisture, and obstructions around air outlets.
Use adequate lighting to examine the full working length. Each emitter point should appear clean and should match the general position and geometry of neighboring points. A bent, loose, broken, heavily corroded, or missing emitter requires technical evaluation before the bar returns to service.
Inspect the surrounding insulating material for cracks, discoloration, burns, carbon tracking, or chemical damage. Dark surface deposits that cannot be removed may indicate electrical tracking rather than ordinary dirt. Energizing an assembly with damaged insulation can result in unstable performance or further deterioration.
Check the external housing, mounting brackets, cable, connector, and grounding connection. Cleaning activities can unintentionally loosen a cable or change the bar’s mounting angle. The bar should remain at the intended working distance and face the target area correctly.
For pneumatic models, inspect the air outlets and tubing. Outlets should be free from visible blockage, and hoses should not be kinked, cracked, or loose. After the air supply is safely restored, listen for leakage and confirm that airflow is distributed consistently across the active length.
| Component | Acceptable Condition | Action if Unacceptable |
|---|---|---|
| Emitter points | Clean, straight, secure, and undamaged | Evaluate or replace damaged components |
| Insulation | Clean, dry, and free from tracking or cracks | Keep the unit out of service for technical inspection |
| Air outlets | Clear and evenly distributed | Inspect for internal blockage |
| Cable and connector | Secure and free from visible damage | Repair or replace before operation |
| Mounting system | Tight and correctly aligned | Restore the specified position |
| Grounding connection | Secure and compliant with site requirements | Correct the connection before testing |
If damage is found, record it and keep the equipment isolated until an authorized person determines the correct action. Cleaning cannot correct failed insulation, a damaged power cable, a broken emitter, or a defective high voltage module.
Verify cleaning effectiveness by checking system indicators, airflow, static decay time, and ion balance under controlled conditions before normal production resumes.
An illuminated power indicator only confirms that part of the electrical system is active. It does not prove that ion output is uniform or that the bar can neutralize the target material within the available process time. Performance testing is therefore an important part of the cleaning procedure.
A charged plate monitor can be used to evaluate static decay and ion balance. Measurements should follow the site’s established test method, including the specified distance, plate position, airflow condition, operating mode, and environmental conditions. Consistent test conditions make results comparable over time.
Static decay testing measures how quickly the ionizer reduces a known charge level. Ion balance testing measures the residual electrical tendency at the test position. Acceptance limits depend on the sensitivity of the application, the installation geometry, and the organization’s electrostatic control plan.
| Test Item | Before Cleaning | After Cleaning | Acceptance Decision |
|---|---|---|---|
| Positive decay time | Record measured value | Record measured value | Compare with approved limit |
| Negative decay time | Record measured value | Record measured value | Compare with approved limit |
| Ion balance | Record measured value | Record measured value | Compare with approved limit |
| Airflow condition | Record observed condition | Record observed condition | Confirm uniform operation |
| System alarms | Record status | Record status | Confirm normal status |
If performance remains poor after cleaning, inspect mounting distance, bar alignment, airflow pressure, grounding, cables, controller settings, and nearby grounded objects. Environmental humidity and strong process airflow can also influence measurements. The test should distinguish between an ionizer fault and an installation problem.
Production should resume only after the equipment meets the required acceptance criteria. In sensitive environments, maintenance records should include the test instrument identification, test date, operator, environmental conditions, and measured results.
Cleaning frequency should be based on actual contamination and performance data, although many industrial applications begin with weekly or monthly inspections and adjust the interval according to operating conditions.
There is no universal cleaning interval suitable for every ionizing air bar. A bar operating near paper cutting, adhesive coating, textile processing, or powder handling may collect contamination quickly. A unit in a controlled clean environment may remain stable for a much longer period.
Operating time also matters. Equipment running continuously accumulates more exposure than a bar used for one shift per day. However, calendar time alone is not a reliable guide. A short period in a highly contaminated process can have a greater effect than months in a controlled area.
A practical approach is to begin with frequent visual inspection and performance testing. Maintenance personnel can record the condition and test results, then determine how quickly performance deteriorates. The cleaning interval should be shorter than the time required for the system to reach an unacceptable condition.
| Operating Environment | Suggested Initial Inspection | Possible Cleaning Approach |
|---|---|---|
| Heavy dust, fibers, or adhesive exposure | Daily or several times per week | Clean whenever deposits begin to form |
| General printing and packaging | Weekly | Clean weekly or according to measured performance |
| Plastics converting and molding | Weekly to monthly | Adjust according to dust and oil exposure |
| General electronics assembly | Weekly visual inspection | Clean based on ionizer verification results |
| Controlled clean environment | Monthly inspection | Use performance data to determine the interval |
These intervals are starting points rather than fixed requirements. The appropriate schedule should follow equipment instructions, process risk, internal standards, and measured performance. Any unexpected increase in static related defects should trigger an additional inspection.
An effective preventive maintenance program combines scheduled inspection, safe cleaning instructions, performance testing, maintenance records, staff training, and investigation of recurring contamination.
The program should define who is authorized to clean the ionizing equipment and what training is required. Personnel need to understand electrical isolation, compressed air hazards, chemical handling, emitter sensitivity, and the correct use of test instruments. A short written procedure supported by practical training can reduce variation between technicians.
Each ionizing air bar should have an identifiable maintenance record. The record can include installation location, equipment identification, cleaning date, contamination type, materials used, visible damage, decay results, ion balance results, and corrective actions. Historical records make it easier to recognize gradual deterioration.
Performance based maintenance is generally more reliable than cleaning only at fixed calendar intervals. If test results begin to worsen before visible contamination becomes heavy, the interval can be shortened. If performance remains stable and emitters stay clean, the organization may extend the interval carefully while continuing routine verification.
Recurring contamination patterns should lead to process improvement. A bar that becomes oily every few days may be too close to a lubrication source. Heavy dust deposits may indicate inadequate extraction. Adhesive buildup may be reduced by changing the mounting position while maintaining effective ion coverage.
Spare parts planning should also be included. Suitable replacement emitters, cables, connectors, and cleaning supplies should be available when required. Using improvised tools or incompatible materials because approved supplies are unavailable can turn a routine maintenance task into an equipment failure.
Safe emitter cleaning requires complete energy isolation, appropriate nonconductive tools, controlled use of compatible cleaners, gentle handling, thorough drying, careful inspection, and documented performance verification.
Clean emitter points help an ionizing air bar maintain effective ion output, stable balance, and consistent static decay. This supports better material handling, less dust attraction, improved product quality, and more reliable electrostatic control across industrial processes.
Safety must remain the first priority. Personnel should never clean energized emitters, use metal scraping tools, flood the air bar with liquid, or restart the unit before it is completely dry. Site safety rules and the technical instructions applicable to the equipment must always be followed.
Finally, cleaning should form part of a broader preventive maintenance system. Visual inspection, decay testing, ion balance measurement, record keeping, and contamination source control provide a more dependable result than occasional cleaning alone. By combining these practices, industrial users can protect their employees, extend equipment service life, and maintain consistent static neutralization throughout production.
