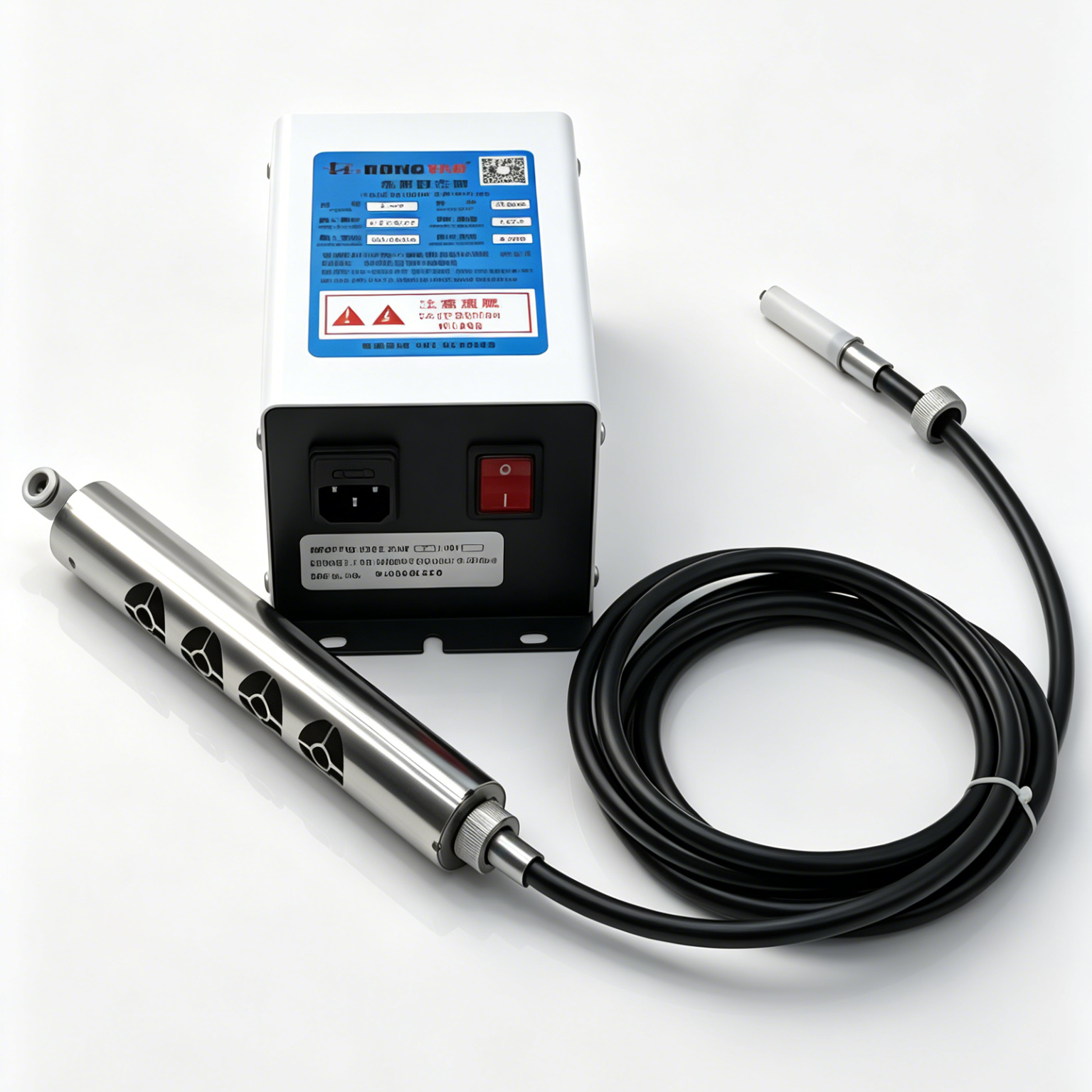

Correct installation is essential for obtaining reliable performance from an ionizing air bar. Even a technically capable static control device may produce disappointing results when it is positioned too far from the target, mounted at the wrong angle, connected to an unsuitable air supply, or installed without proper grounding. These mistakes can lead to slow static decay, uneven ion distribution, dust attraction, material handling problems, and unnecessary production interruptions.
Installation problems are sometimes difficult to recognize because the air bar may appear to operate normally. Its power indicator may be active, airflow may be present, and ions may be generated. However, if those ions do not reach the charged surface at the correct location and within the available treatment time, static electricity will remain a production risk.
The most common ionizing air bar installation mistakes include selecting the wrong bar length, using an incorrect working distance, choosing a poor mounting angle, treating static at the wrong process location, failing to ground the equipment, using unsuitable compressed air, obstructing ion flow, and neglecting performance verification after installation.
These problems can usually be prevented through careful application analysis and a structured commissioning process. Installers should understand where static is generated, how fast the material moves, how wide the treatment area is, and what residual charge level the process can accept.
This guide explains the most common installation mistakes, their effects on static neutralization, and the practical steps required to correct them. It also provides inspection tables and commissioning recommendations for electronics, printing, packaging, plastics, textile, pharmaceutical, and other industrial applications.
This article covers the mechanical, electrical, pneumatic, environmental, and performance related mistakes that commonly reduce ionizing air bar effectiveness.
The first sections examine application planning, air bar length, working distance, mounting position, and treatment location. These factors determine whether the generated ions can reach the complete charged surface within the available process time.
Later sections focus on grounding, compressed air quality, cable installation, environmental airflow, accessibility, and equipment compatibility. Each of these conditions can influence safety, reliability, and long term maintenance requirements.
The final sections explain how to commission an installation, measure actual performance, and create an installation checklist that prevents repeated problems across multiple production lines.
Inadequate application planning is a major mistake because an ionizing air bar must be selected and positioned according to the material, charge level, production speed, treatment width, working distance, and process environment.
Some installations begin with a general request to remove static without identifying where the charge is generated or how much charge is present. This can result in an air bar being installed at a convenient location rather than the location where it can provide the greatest process benefit.
Before selecting or installing an ionizing air bar, static voltage should be measured at several points along the production process. This helps identify the main charge generation sources. Common sources include material separation, film unwinding, sheet feeding, cutting, peeling, friction against rollers, and contact between different materials.
Production speed must also be considered. A material moving slowly through an ionized area receives more treatment time than a material moving at high speed. If the available exposure period is short, the installation may require a closer working distance, stronger ion transport, a longer treatment zone, or more than one ionizing device.
| Application Factor | Question to Answer | Installation Impact |
|---|---|---|
| Material type | What material carries the charge? | Influences charge generation and retention |
| Material width | How wide is the treatment area? | Determines the required active bar length |
| Production speed | How quickly does the material pass the bar? | Determines available treatment time |
| Initial charge | What voltage and polarity are present? | Indicates required neutralization capacity |
| Charge source | Where is static generated? | Determines the best treatment location |
| Residual charge limit | What result must be achieved? | Defines the acceptance criteria |
| Environment | Are dust, moisture, chemicals, or strong airflow present? | Influences equipment selection and maintenance |
Good planning prevents the installer from treating symptoms instead of causes. It also makes commissioning easier because the required performance, measurement points, and acceptance limits are defined before installation begins.
Selecting an air bar that is too short creates untreated or weakly treated areas, while an unnecessarily long bar may increase cost, installation difficulty, air consumption, and maintenance requirements.
The active ionizing length should cover the full width of the charged material. Installers should not assume that the physical length of the housing is equal to the active treatment length. End sections may contain connectors, mounting components, or spaces without emitter points.
If the active area is narrower than a film, sheet, conveyor, or product group, the outer edges may remain charged. This can cause edge lifting, dust attraction, poor winding, feeding errors, or operator shocks even when the center section is neutralized effectively.
The required length should also account for material movement. A flexible web may shift from side to side, and products on a conveyor may not always follow an identical path. A suitable coverage margin allows the ionizer to treat the entire expected movement range.
| Installation Condition | Likely Result | Recommended Action |
|---|---|---|
| Bar shorter than material width | Charged edges remain | Select a longer active treatment length |
| Bar equal to nominal width without allowance | Material movement may create untreated areas | Include a practical coverage margin |
| Bar much longer than required | Higher cost and possible air waste | Match the active length to the application |
| Several bars without treatment overlap | Charged gaps may remain between units | Create suitable overlap and test the junctions |
| Bar blocked at one end | Effective coverage becomes narrower | Remove the obstruction or change the position |
When several bars are installed across a wide process, their treatment areas should overlap sufficiently. Performance should be measured between adjacent units because the presence of two physical bars does not guarantee continuous ion coverage.
Incorrect working distance is common because installers often choose a convenient mechanical position without considering ion travel, recombination, airflow, coverage, and the time available for neutralization.
If the air bar is installed too far from the target, many generated ions may recombine or be redirected before reaching the charged surface. Static decay becomes slower, and the bar may not achieve the required result at normal production speed.
A distance that is too short can also create problems. The ionized area may become too narrow, allowing only a small section of the product to receive treatment. Close mounting may increase the risk of material contact, contamination, electrical interference, or damage from vibration.
The correct distance depends on the design of the ionizer, airflow arrangement, material speed, charge level, and treatment width. The installer should begin with the applicable technical guidance and then confirm the final position through measurement under actual operating conditions.
Distance should be measured from the active emitter area to the actual charged surface, not to the machine frame or mounting bracket. If the material position changes during operation, measurements should include the minimum and maximum working distances.
Poor positioning reduces performance when the ionizing air bar does not face the charged surface directly, is mounted at an unsuitable angle, or allows ions to be diverted by machine structures and process airflow.
An ionizing air bar should direct ions toward the area where charge must be neutralized. A bar installed parallel to a surface may work well in one application, while a slight angle may be necessary in another to avoid contamination or improve access. The correct orientation should be determined by the material path and surrounding equipment.
Nearby grounded metal components can attract ions before they reach the target. Rollers, machine frames, guards, extraction ducts, and support structures may reduce the number of useful ions reaching the charged material. A bar mounted too close to a grounded roller may treat the roller more effectively than the moving web.
Mechanical stability is also important. A weak bracket may allow vibration to change the bar angle or working distance. Over time, loose hardware can produce inconsistent treatment and increase the risk of cable damage or contact with moving material.
After installation, the mounting position should be marked or documented. This makes it easier to identify movement during later inspections and allows technicians to restore the approved geometry after machine maintenance.
Treating static at the wrong location is ineffective because a charge may be generated again after the material leaves the ionizing area or may cause production problems before reaching the air bar.
Static should generally be controlled close to the source of charge generation or immediately before the process stage that requires a neutral surface. Installing an air bar far from either location gives the material more time to attract dust, cling to machine components, or create a discharge.
For example, neutralizing film before it passes over several friction generating rollers may not solve a winding problem at the end of the machine. The film can become charged again through contact and separation. An additional treatment point may be required near the final roll.
Similarly, an ionizer installed after a critical cleaning or coating stage cannot prevent static related contamination that occurs before that stage. The air bar must be placed where neutralization protects the specific process operation.
Static measurements should be taken at multiple positions while the process is running. If a material is neutral immediately after the air bar but becomes charged farther downstream, the installation is not necessarily defective. The process is probably generating a new charge after treatment.
Incorrect grounding can cause unstable ionizer operation, unreliable performance, electrical noise, safety concerns, and difficulty obtaining repeatable decay and balance measurements.
Grounding requirements vary according to the electrical design and installation environment, but all specified grounding connections should be completed correctly. A metal machine frame should not automatically be assumed to provide an acceptable ground without verification.
Paint, corrosion, contamination, loose hardware, and flexible mechanical joints can interrupt electrical continuity. A mounting bracket may hold the bar securely while providing a poor electrical connection. A designated conductor should be used where required by the equipment and site electrical procedure.
Grounding should be planned before cables and brackets are installed. The connection should remain accessible for inspection and should be protected from vibration, mechanical damage, moisture, and process contamination.
| Mistake | Possible Consequence | Corrective Measure |
|---|---|---|
| Assuming the machine frame is grounded | Unverified electrical path | Confirm grounding according to site requirements |
| Connecting over paint or corrosion | High resistance connection | Use an approved connection point |
| Leaving the conductor loose | Intermittent continuity | Secure and inspect the connection |
| Routing the conductor through moving parts | Mechanical damage | Use a protected route |
| Ignoring grounding after machine modification | Loss of continuity | Verify the connection after changes |
Grounding work should follow applicable electrical safety rules and be completed by qualified personnel where required. Improvised grounding arrangements should not be used as substitutes for a verified installation.
Compressed air installation mistakes can cause slow ion delivery, uneven coverage, rapid contamination, moisture problems, excessive noise, and unnecessary energy consumption.
Air assisted ionizers require a stable supply of clean and dry compressed air. If the supply contains oil or moisture, contamination can collect around emitters and insulating surfaces. This may reduce ion output and create repeated maintenance problems.
Pressure should be measured while the ionizer is operating. A regulator may show an acceptable value when airflow is stopped but fall below the required level when production begins. Long hoses, small tubing, blocked filters, leaking fittings, and competing equipment can all create pressure loss.
Excessive pressure is another common mistake. More airflow does not always produce better neutralization. It may disturb lightweight materials, redirect particles, increase noise, waste energy, and alter ion distribution.
| Inspection Item | Correct Condition | Problem if Incorrect |
|---|---|---|
| Air cleanliness | Free from process oil and particles | Rapid emitter contamination |
| Air dryness | Moisture controlled | Electrical instability and deposits |
| Operating pressure | Stable during full production | Inconsistent ion delivery |
| Hose size | Sufficient for required airflow | Excessive pressure loss |
| Hose route | Free from kinks and crushing | Restricted airflow |
| Fittings | Secure and free from leakage | Energy waste and reduced pressure |
| Air outlets | Clear across the active length | Uneven static neutralization |
The air supply should be installed so that filters, regulators, and drainage points remain accessible. If these components cannot be maintained easily, air quality and pressure are more likely to deteriorate unnoticed.
Ion flow should remain unobstructed because guards, brackets, machine frames, ducts, rollers, cables, and product supports can capture or redirect ions before they reach the charged surface.
An air bar may be physically close to the target but still perform poorly if a structural component blocks the direct treatment path. This is particularly common when a bracket is designed for mechanical convenience without considering the direction of ion movement.
Grounded metal obstructions can attract ions strongly. If a guard or roller sits between the emitter points and the charged product, much of the ion output may be lost to that object. The remaining ion concentration may be insufficient for rapid neutralization.
Process airflow can act as an invisible obstruction. Extraction systems, cooling fans, air knives, and ventilation may push or pull ions away from the target. The installation should be evaluated while all normal airflow systems are operating.
Smoke or airflow visualization methods may help identify strong air movement, provided they are permitted in the production environment. Final effectiveness should always be confirmed through static measurements rather than visual judgment alone.
Cables should not be stretched, crushed, sharply bent, routed through moving machinery, exposed to damaging chemicals, or placed where electrical interference and mechanical wear are likely.
Power and high voltage cables are essential parts of the ionizing system. A cable may fail gradually if it is repeatedly flexed, pulled, or exposed to vibration. Intermittent cable faults are especially difficult to diagnose because the ionizer may operate normally when the machine is stopped.
Connectors should be fully engaged and protected from dust, moisture, oil, and accidental impact. A loose connector may create intermittent operation or abnormal alarms. Connections should never be forced or modified to fit an unsuitable socket.
Cable routing should also consider electrical interference. Where practical and required by the installation design, ionizer cables should be separated from strong electrical noise sources. Excess cable should be supported safely rather than tightly coiled around sensitive equipment.
The electrical supply should match the required voltage, frequency, current capacity, and connection method. Power compatibility should be confirmed before energizing the system. Guessing or adapting an unsuitable supply may damage the equipment.
Environmental conditions affect installation by influencing static generation, contamination, ion transport, material compatibility, electrical insulation, and maintenance frequency.
Low humidity can increase charge persistence on insulating materials. An installation that performs adequately during humid conditions may show slower decay during a dry season. Commissioning should consider the most demanding environmental conditions expected in production.
Dust, fibers, oil mist, adhesive vapor, moisture, and chemical exposure can contaminate or damage an ionizing air bar. The installation position should reduce direct exposure without preventing ions from reaching the target. Protective measures must not obstruct the active treatment path.
Temperature should remain within the acceptable operating range of the complete ionizing system. Excessive heat near dryers, heaters, ovens, or process equipment may shorten component life or change performance. Rapid temperature changes may also create condensation.
| Environmental Factor | Possible Effect | Installation Response |
|---|---|---|
| Low humidity | Stronger and more persistent static | Verify performance under dry conditions |
| High dust concentration | Rapid emitter contamination | Improve extraction and inspection frequency |
| Oil mist | Sticky deposits and leakage paths | Change position or control the source |
| Moisture | Insulation and contamination problems | Prevent condensation and wet exposure |
| High temperature | Reduced equipment life | Move the unit or provide suitable protection |
| Strong ventilation | Ions redirected from the target | Optimize position under operating airflow |
| Chemical exposure | Material degradation or corrosion | Confirm compatibility before installation |
Applications involving unusual hazards require additional evaluation. General industrial ionizing equipment should not be installed in a hazardous atmosphere, wet process, or chemically aggressive environment unless it is specifically suitable for that condition.
Maintenance access must be considered because emitters, air outlets, cables, connectors, mounting hardware, and filters require regular inspection, cleaning, testing, and possible replacement.
A bar installed in a narrow inaccessible space may perform well initially but become difficult to maintain. Technicians may postpone cleaning because access requires extensive machine disassembly, allowing contamination and performance problems to increase.
Safe access is equally important. Employees should not have to reach through moving equipment, stand on unstable surfaces, or work close to exposed hazards. Installation planning should allow maintenance after the required energy sources have been isolated.
Connectors and mounting hardware should remain accessible without forcing or bending cables. If the bar must be removed for cleaning, the design should allow it to return to the same approved position without requiring complete recommissioning.
Maintenance requirements should be reviewed with operators and technicians before the bracket design is finalized. Their practical experience can identify access problems that may not be visible in an installation drawing.
Performance testing is essential because electrical power and visible airflow do not prove that the ionizing air bar achieves the required static decay and ion balance at the target surface.
Commissioning should include measurements before and after treatment. Static voltage measurements help identify whether charge is being reduced and whether the material becomes charged again downstream. Measurements should cover the complete material width rather than only the center.
A charged plate monitor can be used to measure positive decay time, negative decay time, and ion balance. The test position, working distance, air pressure, machine speed, and environmental conditions should be recorded so future measurements can be compared accurately.
Testing should be performed under actual production conditions. A bar may produce excellent results when the machine is stopped but fail when extraction, cooling airflow, high material speed, or strong charge generation is present.
| Measurement | Purpose | Recommended Location |
|---|---|---|
| Incoming static voltage | Determines the initial charge level | Before the treatment area |
| Residual static voltage | Confirms neutralization effectiveness | Immediately after treatment |
| Downstream static voltage | Identifies new charge generation | At the protected process stage |
| Positive decay time | Measures neutralization speed | At the defined target position |
| Negative decay time | Measures neutralization speed | At the defined target position |
| Ion balance | Measures residual ion tendency | At the defined target position |
| Air pressure | Confirms stable pneumatic operation | During full production |
Acceptance limits should be established before commissioning. If performance does not meet the requirement, the position, distance, airflow, coverage, and process conditions should be adjusted systematically. The final approved settings should be documented.
An installation checklist should confirm application requirements, bar length, working distance, mounting angle, treatment location, grounding, power compatibility, airflow quality, cable routing, maintenance access, and measured performance.
A checklist creates consistency when several ionizing air bars are installed across a facility. It also provides evidence that important electrical, mechanical, pneumatic, and process conditions were reviewed before production began.
The checklist should contain measurable information rather than simple statements such as “installation acceptable.” Record the actual distance, material width, active bar length, operating air pressure, decay results, ion balance, and static voltage before and after treatment.
Photographs or installation drawings can support the record where permitted. They help maintenance personnel restore the correct geometry after machine changes and identify whether brackets, guards, cables, or nearby equipment have moved.
Commissioning records should be retained as a performance baseline. When problems occur later, technicians can compare current conditions with the original approved installation and determine whether the geometry, airflow, electrical condition, or environment has changed.
A successful ionizing air bar installation requires correct application planning, complete treatment coverage, suitable working distance, stable mounting, proper grounding, clean compressed air, protected cable routing, maintenance access, and documented performance testing.
Many static control problems are caused by installation rather than equipment failure. A bar may generate ions correctly but still provide poor results if it is too far from the target, positioned behind a grounded structure, installed before a new charge generation point, or supplied with unstable airflow.
Installers should evaluate the complete production process instead of selecting a position based only on available space. Material speed, charge level, treatment width, environmental airflow, humidity, and downstream friction all influence the final result.
Performance must be measured after installation. Static voltage, decay time, ion balance, operating air pressure, and treatment coverage provide objective evidence that the bar meets the application requirement. Testing across the complete product width is especially important for identifying weak edges and gaps between multiple units.
By avoiding these common installation mistakes and following a structured commissioning checklist, manufacturers can achieve faster static decay, more uniform ion distribution, fewer production defects, easier maintenance, lower energy consumption, and more reliable long term static control.
