Standard ionizing air bars can solve many common static electricity problems, but not every production line has standard requirements. Machines may have limited mounting space, unusual working widths, irregular product shapes, high material speeds, demanding cleanliness requirements, or specialized control systems. In these cases, a standard product may not provide sufficient coverage, integration, or neutralization performance.
Custom ionizing air bar solutions allow the equipment to be adapted to the actual production process. Dimensions, active length, ionization method, emitter arrangement, cable position, air delivery, mounting structure, control interface, monitoring functions, and environmental protection can all be considered during the design process.
A custom ionizing air bar solution is a static control system designed around a specific material, machine layout, working width, process speed, charge level, installation distance, environment, and performance target. It provides value when a standard ionizer cannot deliver reliable coverage, integration, safety, or neutralization performance.
Customization should not mean adding complexity without a clear purpose. Every design change should solve a defined production problem, improve measurable performance, simplify installation, reduce maintenance, or support machine control.
This guide explains when customization is necessary, which features can be modified, how a custom solution is developed, and how industrial buyers can evaluate its technical and commercial value.
This guide covers the complete process of evaluating, designing, testing, installing, and maintaining a custom ionizing air bar solution.
The discussion begins with the differences between standard and custom ionizers. It then examines the applications that benefit from customization, the technical information required for design, and the individual features that can be adapted.
Additional sections explain performance validation, machine integration, environmental considerations, maintenance, cost, supplier selection, and project risks. Together, these topics provide a practical framework for industrial purchasing and engineering teams.
Readers can use the guide to prepare a design request, compare proposals, or determine whether a custom solution offers enough value to justify its additional development cost.

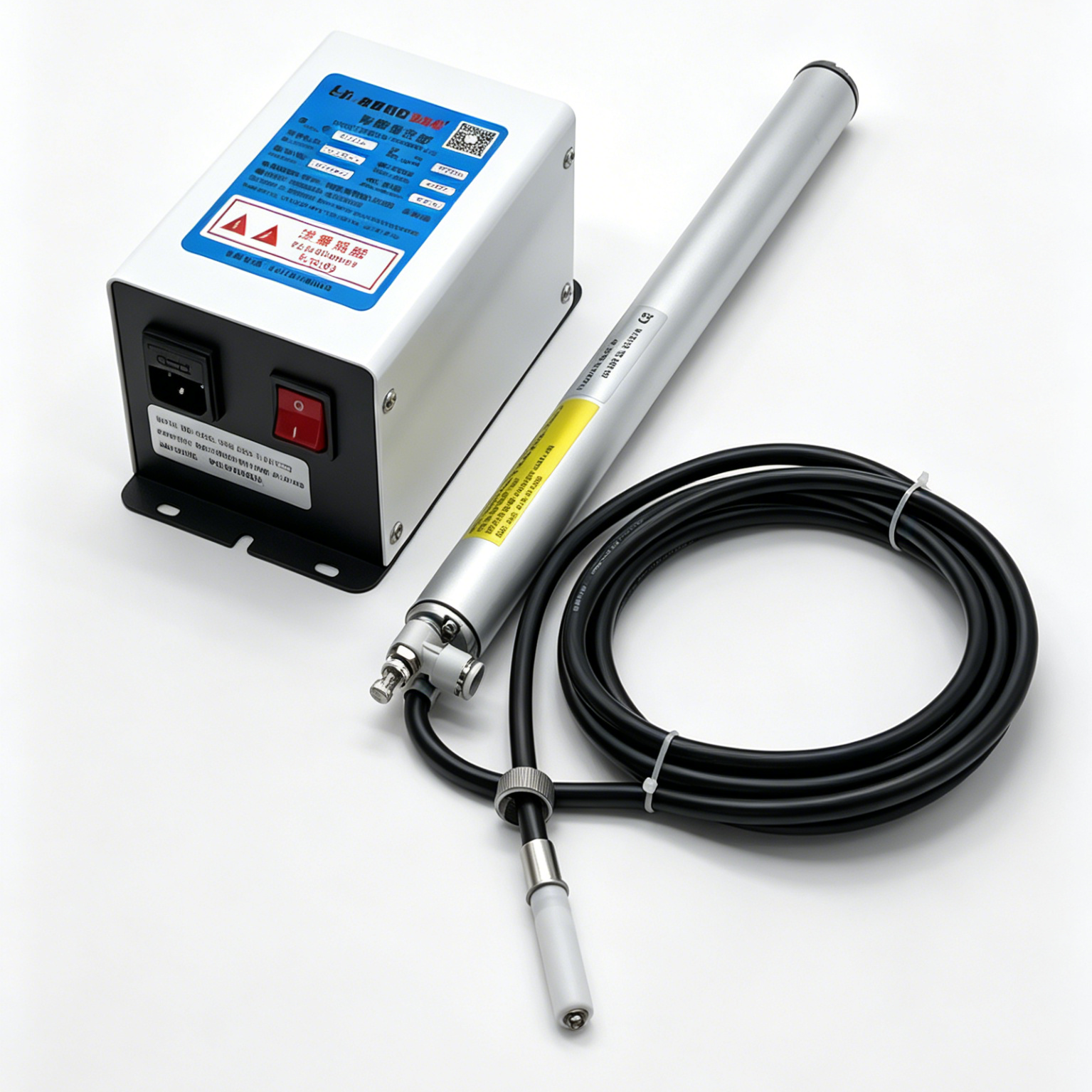

A custom ionizing air bar solution is an ionization system whose physical, electrical, airflow, control, or performance characteristics are adapted to a specific industrial application.
A standard ionizing air bar is produced in established lengths and configurations. It may have fixed cable locations, mounting points, electrical connections, emitter spacing, and operating controls. Standard products are often economical and quickly available when the production process matches their design.
A custom solution begins with the application rather than an existing product specification. Engineers evaluate where static is generated, how the material moves, the available installation space, the required treatment width, and the time available for neutralization. The bar is then configured to fit those conditions.
Customization can range from a minor dimensional change to the development of a complete static control system. A simple project may require only a special length or cable position. A complex project may involve multiple bars, controlled air delivery, automatic ion balance adjustment, remote monitoring, custom mounting, and communication with the production machine.
The objective is not to make the ionizer unique. The objective is to achieve stable and measurable static neutralization while preserving safe operation, serviceability, and reasonable cost.
A custom ionizing air bar is necessary when standard equipment cannot provide adequate coverage, fit the available space, reach the target, withstand the environment, connect to the machine, or meet the required static control performance.
Limited installation space is a common reason for customization. Existing machines may have narrow gaps between rollers, guards, frames, and moving materials. A standard housing may be too large, or its cable and air connection may interfere with machine components.
Unusual working widths can also create problems. A standard bar may be too short and leave charged edges, while the next available length may be too large for the machine. A custom active length can provide more appropriate coverage without unnecessary size.
High speed production may require a specialized emitter arrangement, stronger ion delivery, multiple treatment stages, or compressed air. Irregular products and recessed areas may need directed ion flow rather than general surface treatment.
Customization may also be justified when the ionizer must communicate with a central machine controller, report alarms, operate according to production recipes, or meet demanding environmental requirements. However, if a standard product can achieve the required result safely and reliably, it is usually the more economical choice.
Applications with unusual dimensions, high process speeds, sensitive products, complex shapes, restricted installation space, or strict environmental controls receive the greatest benefit from custom static control.
Film, foil, paper, textile, and label converting lines may need custom bars because working widths vary substantially. Wide webs require uniform ion distribution across the center and edges. High speed movement also reduces treatment time and can require a longer ionization zone.
Electronics and semiconductor processes may require stable ion balance, low particle generation, remote monitoring, and precise control. The ionizer may need to fit within inspection equipment, automated handling systems, assembly modules, or enclosed production tools.
Plastic molding and automotive applications often involve irregular parts. Static can attract dust to curved surfaces, cavities, corners, and recessed areas. A custom arrangement can direct ionized air toward difficult locations without disturbing the part or interfering with robotic handling.
| Application | Typical Challenge | Possible Custom Solution |
|---|---|---|
| Wide film converting | Uneven charge across a large width | Custom length with verified coverage uniformity |
| Electronics assembly | Sensitive components and limited space | Compact bar with controlled ion balance |
| Plastic molding | Curved and recessed products | Directed ionized airflow |
| Printing | High speed sheets and ink contamination | Accessible bar with suitable output and cleaning design |
| Battery production | Particles and process sensitivity | Clean configuration with monitoring functions |
| Optical manufacturing | Dust attraction on delicate surfaces | Low disturbance treatment with stable balance |
| Automated machinery | Control system integration | Remote start, alarm, and operating feedback |
| Packaging equipment | Different product widths and speeds | Adjustable or multiple bar arrangement |
Custom solutions are also useful for original equipment manufacturers that need an ionizer to become part of a machine design. Standardized electrical interfaces, controlled dimensions, repeatable mounting, and consistent supply become important for future machine production.
Custom design requires complete information about the material, static level, working width, process speed, machine layout, installation distance, environment, power, airflow, control interface, and performance target.
The design process should begin with the static problem. Engineers need to know where charge is generated and where it creates a defect. Common charge generation points include rollers, guides, conveyors, release liners, cutting tools, molding surfaces, and winding operations.
Static voltage and polarity should be measured whenever possible. Measurements taken before and after the proposed treatment point help determine the incoming charge and the required reduction. The measuring distance and instrument should be documented so that the results can be compared later.
Mechanical information is equally important. Machine drawings, photographs, available space, mounting surfaces, product movement, vibration, web flutter, and cleaning access should be reviewed. A custom bar that fits physically but cannot be cleaned or tested safely is not a successful design.
Customizable features include bar length, active treatment length, emitter arrangement, housing dimensions, cable length, connector type, mounting design, air inlet position, control interface, balance settings, and monitoring functions.
Mechanical customization is often the simplest form. The housing can be adapted to fit restricted space, while cable exits and air connections can be positioned to avoid machine interference. Brackets can be designed for fixed, adjustable, or quick removal mounting.
Electrical customization may involve power input, cable type, connector style, switching signals, alarm outputs, and communication with the machine controller. These changes must be reviewed carefully to preserve insulation, electrical protection, and serviceability.
Performance customization can include emitter spacing, ionization method, air delivery, output control, and balance adjustment. These changes should be supported by testing because they directly influence ion distribution, decay time, and residual voltage.
| Custom Feature | Purpose | Design Consideration |
|---|---|---|
| Bar length | Match the working width | Confirm the active rather than external length |
| Housing size | Fit restricted installation space | Preserve insulation and mechanical strength |
| Emitter arrangement | Adjust ion distribution | Validate balance and coverage |
| Cable position | Avoid machine interference | Maintain safe routing and bend radius |
| Air connection | Simplify pneumatic installation | Confirm flow uniformity |
| Mounting bracket | Support correct distance and angle | Allow cleaning access |
| Control interface | Connect with machine automation | Define signals and electrical compatibility |
| Monitoring functions | Report operating condition | Define alarms and response actions |
Custom features should be prioritized according to their effect on production. Necessary modifications should be separated from optional features to control development cost and reduce design complexity.
Custom length and coverage are determined by the maximum material width, product movement, installation distance, emitter position, ion spread, edge performance, and required neutralization uniformity.
The total housing length is not necessarily equal to the active ionizing length. End caps, cable entries, electrical components, and mounting sections may not provide treatment. Buyers should specify the required active area rather than ordering according to external dimensions alone.
A bar should normally cover the complete material width, including expected lateral movement. If a web shifts during production, the active area must remain wide enough to treat both edges. Insufficient coverage can leave charged zones that attract dust or create winding problems.
Increasing the installation distance may expand the physical ion field, but it also reduces ion concentration. Greater coverage does not automatically mean acceptable neutralization. The design must balance working width with decay performance.
Very wide processes may use multiple bars instead of one continuous unit. Adjacent treatment areas should overlap so that no gap remains between them. The final arrangement should be verified at several locations across the width, including the center, edges, and overlap zones.
Airflow can be customized through pressure control, air channel design, outlet position, flow distribution, and directional delivery so that ions reach the target evenly without disturbing the product.
Compressed air is useful when the target is far from the bar, has an irregular shape, or contains recessed areas. It can also improve neutralization speed when material moves rapidly. However, more pressure is not always better.
Excessive airflow can move lightweight components, disturb powder, create web vibration, spread contaminants, or reduce process stability. The objective is to use the lowest stable airflow that delivers sufficient ions to the entire target.
Air distribution should remain uniform across the active length. Uneven internal passages or restricted outlets can create strong and weak zones. Custom air channels should therefore be tested at several positions rather than evaluated only at the inlet.
Air quality must also be considered. Oil, water, and particles can contaminate emitters and internal passages. The custom system may require filtration, regulation, drainage, or dedicated clean air depending on the production environment.
Machine integration requires coordinated mechanical mounting, electrical connection, grounding, pneumatic supply, control signals, safety interlocks, and maintenance access.
Mechanical integration should maintain the specified distance and angle during operation. Brackets must resist vibration and should not allow the bar to rotate toward the moving material. Adjustment features may be useful during commissioning but should lock securely afterward.
Electrical integration includes power input, cable routing, grounding, remote control, alarms, and communication. High voltage cables should be protected from crushing, heat, chemicals, sharp bends, and moving components. Signal cables may require separation from motors, drives, and other sources of electrical interference.
Pneumatic integration should provide stable pressure at the bar while the complete machine is operating. Pressure measured at a central supply may not represent the actual value at the ionizer. Filters, valves, regulators, tubing, and connectors should be sized for the required flow.
The ionizer should also be accessible for inspection, cleaning, and measurement. A design that requires extensive machine disassembly for routine maintenance will increase downtime and may cause maintenance to be postponed.
Environmental requirements are addressed by selecting suitable housing materials, emitter materials, insulation, sealing, airflow, cleaning methods, and protection features for the actual production conditions.
Dusty processes can contaminate emitter points quickly. A custom design may improve accessibility, change the mounting orientation, or include monitoring that indicates declining performance. The maintenance interval should be based on actual contamination rather than a fixed general schedule.
Oil mist, adhesive vapor, ink residue, coating material, and chemical exposure can affect housings, seals, emitters, and insulation. Material compatibility should be reviewed before the design is approved. A surface that withstands dry dust may not resist aggressive cleaning agents or solvents.
Clean manufacturing applications may require low particle generation, clean compressed air, smooth surfaces, and materials suitable for repeated cleaning. The design should minimize areas that trap contamination and should support the facility cleaning procedure.
Applications involving flammable gases, vapors, solvents, or combustible dust require a formal hazard assessment. A standard or simply modified ionizer must not be assumed suitable for a classified environment. Specialized equipment and documented suitability may be necessary.
Custom systems can include power status, fault alarms, cleaning reminders, output monitoring, balance adjustment, operating data, remote switching, and communication with production control systems.
A basic status signal can confirm whether the ionizer is energized. More advanced monitoring may detect abnormal output, power faults, or conditions that require maintenance. The machine controller can then warn operators or stop production when static control is critical.
Remote switching allows the bar to operate only when production is running. This may reduce unnecessary operating hours and coordinate ionization with material movement. The control logic should prevent unintended shutdown during critical process stages.
Adjustable balance and output can support applications with changing distances or material conditions. Automatic feedback may provide additional stability, but it requires suitable sensors and careful control design. Monitoring should complement rather than replace periodic performance testing.
Every signal should have a defined meaning and response. An alarm is valuable only when operators know whether to clean the bar, inspect a cable, check air pressure, or contact maintenance.
A custom ionizing air bar is developed through requirement definition, technical review, concept selection, design approval, prototype production, laboratory testing, production validation, and final documentation.
The first stage is to define measurable requirements. Statements such as strong static or good performance are too general. The project should specify working width, installation distance, line speed, incoming voltage, required residual voltage, balance range, and environmental limits.
During concept selection, engineers compare possible ionization methods, lengths, mounting arrangements, airflow options, and control functions. A design review should identify safety concerns, maintenance access, machine interference, and manufacturing feasibility.
A prototype or sample unit may be produced for a demanding application. Laboratory testing can confirm decay time, balance, coverage, electrical operation, and airflow. Production testing then determines whether the design performs with the actual material and machine conditions.
Once approved, the custom configuration should be controlled so that future units are produced consistently. Any later component or design change should be reviewed for its effect on fit, performance, safety, and compatibility.
A custom solution should be tested for positive and negative decay time, ion balance, coverage uniformity, electrical operation, airflow, mechanical fit, and production performance.
A charged plate monitor can measure decay time and ion balance under defined conditions. Tests should be completed at the planned installation distance and airflow setting. Both positive and negative decay results should be recorded.
Coverage testing should include multiple positions across the active length. Measurements near the center alone cannot confirm that the edges receive adequate ionization. Multiple bar arrangements should also be tested within the overlap areas.
Production validation should use the actual material at normal and maximum process speeds. Exhaust systems, fans, guards, rollers, and surrounding equipment should operate normally because they can alter ion movement.
| Test | Purpose | Recommended Condition |
|---|---|---|
| Positive decay | Measure positive charge neutralization | Specified distance and airflow |
| Negative decay | Measure negative charge neutralization | Same conditions as positive decay |
| Ion balance | Identify electrical offset | Stable production environment |
| Coverage profile | Confirm uniformity | Center, edges, and overlap areas |
| Surface voltage | Verify actual process results | Before and after treatment |
| Maximum speed trial | Confirm sufficient exposure time | Normal material and full machine operation |
| Extended operation | Check stability and temperature | Representative production duration |
| Mechanical inspection | Confirm fit and access | Final machine installation |
Acceptance conditions should be agreed upon before production. This prevents disagreement about whether the custom system meets its intended purpose.
A custom solution is worth the cost when it prevents defects, reduces downtime, improves coverage, fits the machine correctly, supports automation, or solves a static problem that standard equipment cannot control reliably.
Custom equipment usually has a higher initial cost because it requires engineering, drawings, special materials, setup, prototype work, or additional testing. Delivery may also take longer than for a standard product.
The value should be compared with the cost of the unresolved static problem. Rejected products, dust contamination, material jams, electronic damage, operator shocks, web breaks, and production stoppages can create substantial losses.
A total cost analysis should include installation, energy, compressed air, maintenance, spare parts, service life, and downtime. A design that reduces air consumption or simplifies cleaning may recover its additional purchase cost through lower operating expenses.
Customization is less attractive when the required change has no measurable benefit, creates difficult spare part requirements, or makes future replacement unnecessarily complicated. The preferred design is usually the simplest configuration that meets all critical performance requirements.
Buyers should select a supplier with strong application knowledge, design capability, manufacturing control, performance testing, clear documentation, responsive service, and consistent configuration management.
The supplier should ask detailed questions before recommending a solution. A proposal created only from the desired bar length is unlikely to consider speed, charge level, distance, airflow, balance, or environmental risk.
Technical proposals should contain dimensions, active length, mounting information, power requirements, air requirements, control signals, expected performance, test conditions, and environmental limitations. Buyers should request clarification whenever a claim lacks supporting conditions.
Manufacturing capability is also important. The supplier must reproduce the approved design consistently for future orders. Inspection records, product identification, and controlled drawings can support repeatability and traceability.
Service capability should include installation guidance, testing support, troubleshooting, maintenance instructions, and replacement parts. A technically good custom design provides limited long term value if the supplier cannot support it after delivery.
Common mistakes include customizing without measured requirements, focusing only on physical dimensions, ignoring maintenance access, using excessive airflow, omitting performance tests, and adding unnecessary complexity.
The first mistake is beginning the design without measuring the static problem. If incoming voltage, polarity, material speed, and required residual voltage are unknown, the project lacks a measurable target.
Another mistake is treating customization as only a mechanical exercise. A bar may fit perfectly but still provide insufficient decay performance or incomplete edge coverage. Mechanical, electrical, airflow, and performance requirements must be reviewed together.
Maintenance is often overlooked. Emitter points require cleaning and may eventually require inspection or replacement. The final mounting position should allow safe access without major machine disassembly.
Buyers should also avoid adding advanced monitoring simply because it is available. Each function should have a clear operational purpose. Unnecessary controls increase development cost, training requirements, and possible failure points.
Custom ionizing air bar solutions provide the greatest value when they solve a clearly defined static problem that standard equipment cannot address reliably, safely, or efficiently.
A successful custom system begins with accurate application information. Material type, charge level, polarity, working width, line speed, installation distance, machine layout, airflow, environmental conditions, and required residual voltage should all be documented.
Customization may involve bar length, emitter arrangement, housing dimensions, cable position, air delivery, mounting, monitoring, or machine communication. Every modification should support a measurable performance, integration, maintenance, or safety objective.
Laboratory data alone is not enough for critical applications. Positive and negative decay time, ion balance, coverage uniformity, and actual surface voltage should be verified under representative production conditions. Testing should include normal and maximum process speeds.
When designed and validated correctly, a custom ionizing air bar can improve static neutralization, reduce contamination, stabilize material handling, protect sensitive products, simplify machine integration, and lower the total cost of production. The best result is a solution that is technically effective, easy to maintain, properly documented, and no more complex than the application requires.
