Static electricity is a common source of production problems in electronics manufacturing, plastics processing, printing, packaging, converting, automotive assembly, medical device production, and many other industries. It can attract dust, cause materials to stick together, interrupt feeding, create electric shocks, damage sensitive components, and reduce product quality. Because static is often invisible, choosing an appropriate control method can be challenging.
Ionizing air bars are widely used to neutralize electrostatic charges on insulating materials and moving products. However, buyers and production managers often have questions about operating principles, installation distance, coverage, air requirements, safety, maintenance, performance testing, and equipment selection.
An ionizing air bar is an industrial static elimination device that produces positive and negative ions. These ions are delivered to a charged surface, where they neutralize the surface charge and help prevent dust attraction, material adhesion, electric shocks, processing instability, and electrostatic discharge damage.
Successful static control depends on more than simply installing an ionizer near a machine. The equipment must be selected and positioned according to the material, working width, line speed, charge level, available installation space, environmental conditions, and required performance.
The following frequently asked questions explain the essential technical and practical considerations for using ionizing air bars in industrial environments.
This guide answers the most important questions about how ionizing air bars work, where they are used, how they should be selected, and how their performance can be maintained.
The questions are organized according to the typical decision process of an industrial buyer. The guide begins with basic operating principles and then discusses applications, equipment types, installation, compressed air, coverage, testing, maintenance, safety, and purchasing considerations.
Each section provides a direct answer followed by a more detailed explanation. This structure allows production managers, engineers, purchasing teams, and maintenance personnel to locate practical information quickly.
Readers evaluating a new static control system can use the complete guide as a selection reference. Companies with existing ionizers can use the sections about testing, cleaning, and troubleshooting to improve current performance.
An ionizing air bar is a static elimination device that generates positive and negative ions and delivers them across a defined working area to neutralize electrical charges on materials, components, and products.
Static charge frequently accumulates on insulating materials because electrons cannot move freely through the material and return to ground. Plastic film, paper, synthetic textiles, glass, rubber, labels, printed sheets, and electronic substrates can therefore retain substantial electrostatic charges after contact, separation, friction, pressure, or rapid movement.

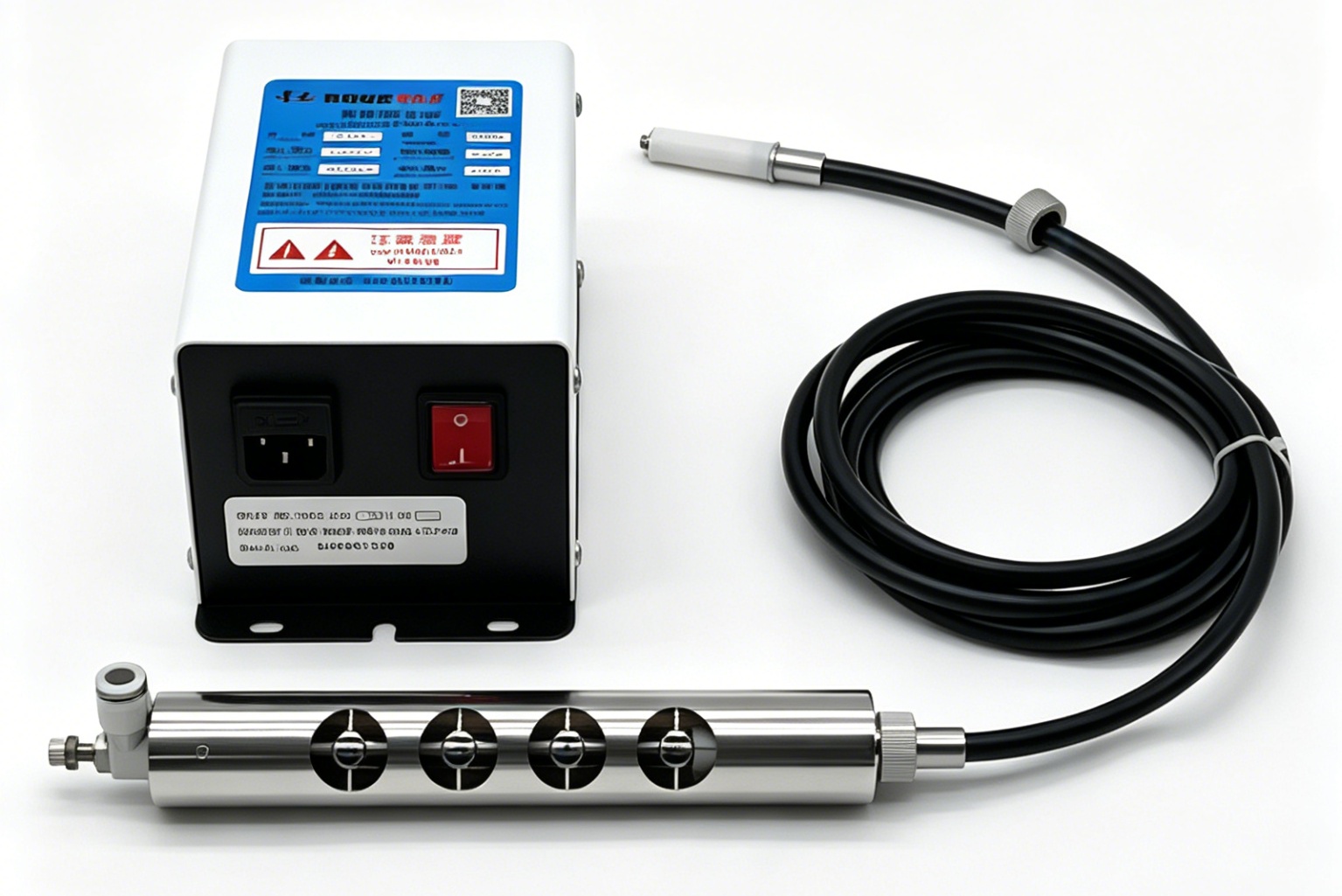

An ionizing air bar usually contains a row of emitter points connected to a controlled high voltage power source. These points create an electric field that ionizes nearby air molecules. The resulting ions are directed toward the charged target by natural airflow, compressed air, a fan, or existing machine airflow.
The bar format allows ions to be distributed across a relatively wide or continuous area. This makes ionizing air bars particularly suitable for conveyors, production webs, assembly stations, sheet processing machines, and other applications where static must be treated across a defined width.
An ionizing air bar works by creating both positive and negative ions, allowing the charged material to attract the opposite polarity until its electrical charge approaches a neutral condition.
If a surface has a negative charge, it attracts positive ions from the ionizing bar. If the surface has a positive charge, it attracts negative ions. As the appropriate ions reach the material, they combine with the excess electrical charge and reduce the surface voltage.
The ionizer does not mechanically remove electricity from the surface. Instead, it provides a controlled supply of opposite polarity ions. This is especially valuable for insulating materials that cannot be effectively neutralized through ordinary grounding.
Neutralization speed depends on ion output, working distance, airflow, material speed, initial charge level, emitter cleanliness, environmental conditions, and the size of the treated surface. For this reason, two ionizers installed in different processes may provide very different decay times even if they use a similar operating principle.
Ionizing air bars are used wherever static causes dust attraction, material handling problems, operator shocks, electronic damage, quality defects, or production interruptions.
In electronics manufacturing, ionizing bars help protect sensitive devices, circuit boards, optical components, and assemblies from electrostatic discharge. They are commonly installed near conveyors, workstations, inspection systems, component handling equipment, and automated assembly processes.
In printing, packaging, and converting, the bars neutralize paper, film, foil, labels, and laminates. Static control can prevent sheets from sticking together, reduce misfeeding, improve stacking, support accurate web handling, and limit the attraction of dust before printing, coating, or lamination.
Ionizing air bars are also used in plastic molding, automotive manufacturing, battery production, medical device assembly, textile processing, optical production, glass processing, and clean manufacturing. The following table summarizes typical applications.
| Industry | Typical Static Problem | Common Treatment Position |
|---|---|---|
| Electronics | Electrostatic discharge damage | Assembly and inspection stations |
| Printing | Sheet adhesion and dust attraction | Feeding, printing, and delivery sections |
| Flexible packaging | Web sticking and winding problems | After rollers and before winding |
| Plastic molding | Dust on molded surfaces | After part removal |
| Label converting | Unstable labels and liner separation charge | After peeling and cutting |
| Medical devices | Particle attraction and sensitive component risk | Assembly and packaging areas |
| Automotive production | Dust before painting or bonding | Before surface treatment |
| Textile processing | Fiber attraction and handling instability | Near rollers and finishing equipment |
An ionizing air bar can reduce problems caused by excessive surface charge, including dust attraction, material adhesion, feeding errors, electric shocks, electrostatic discharge, unstable movement, and contamination related defects.
One of the most visible static problems is particle attraction. A charged plastic, glass, or film surface can attract dust and fibers from the surrounding air. The particles may remain attached through cleaning, inspection, printing, coating, bonding, or packaging. Neutralizing the surface before these operations can significantly reduce additional particle attraction.
Static also affects material handling. Thin sheets may cling together, lightweight products may stick to conveyors, labels may fail to release correctly, and film webs may wrap around rollers. These effects can cause misfeeds, jams, inaccurate positioning, and inconsistent winding.
In sensitive electronics applications, electrostatic discharge can damage components immediately or weaken them in ways that produce a later failure. Ionization supports an overall electrostatic control program by neutralizing charge on insulating objects and isolated conductors that cannot be controlled through grounding alone.
However, an ionizing bar does not correct every production defect. Mechanical misalignment, unsuitable tension, contaminated rollers, excessive vibration, incorrect temperature, and poor material quality can create symptoms similar to static problems. Static voltage should be measured before deciding that ionization is the required solution.
Common types include alternating current bars, direct current bars, pulsed direct current bars, compressed air bars, windless bars, and intelligent models with automatic balance control or performance monitoring.
Alternating current designs generate positive and negative ions in alternating cycles. They are widely used for industrial static elimination and can provide stable treatment at suitable working distances. Direct current systems generally use separate positive and negative outputs, while pulsed designs adjust the delivery cycle to support longer range treatment or process specific balance requirements.
Compressed air models use clean air to carry ions toward the material. They are useful when the target is farther away, has an irregular shape, or is located in a recessed area. Windless bars rely more heavily on natural ion movement and nearby process airflow, making them suitable for short distance treatment where additional air could disturb the product.
More advanced systems may include balance adjustment, fault alarms, cleaning reminders, output monitoring, communication interfaces, or feedback control. These functions are valuable in critical applications, but they do not replace correct installation, regular cleaning, or objective performance testing.
| Ionizer Type | Main Advantage | Typical Consideration |
|---|---|---|
| Alternating current | Reliable general industrial performance | Must match the required working distance |
| Direct current | Controlled positive and negative ion generation | Balance requires proper setup and maintenance |
| Pulsed direct current | Suitable for selected longer range applications | Pulse settings must match the process |
| Compressed air | Improved ion transport | Requires clean and stable air |
| Windless | Does not disturb lightweight materials | Usually requires a suitable short distance |
| Monitored system | Provides alarms and operating information | Higher system complexity |
Choose an ionizing air bar by evaluating the material, charge level, process speed, working width, installation distance, required decay time, environment, airflow conditions, and maintenance requirements.
The selection process should begin with the application rather than the physical size of the available installation space. Identify the material being treated, where the charge is generated, the charge polarity, the maximum voltage, the line speed, and the point where neutralization must be completed.
The bar must cover the complete effective working width. A bar that is shorter than the material may leave charged areas along the edges. A longer bar may be appropriate if the product moves laterally or if the process requires a wider treatment field. The active ionizing length should be confirmed rather than assuming that the external housing length represents full coverage.
The production environment also affects selection. Clean areas may require low particle generation and compatible materials. Wet, dusty, oily, or chemically aggressive environments require suitable protection and more frequent maintenance. Processes containing flammable substances may require specialized safety evaluation and equipment designed for the classified area.
Before purchasing, buyers should document the following requirements:
The correct installation distance is the range that allows ions to reach the entire target quickly and evenly without creating contact risk, narrow coverage, or excessive ion loss.
There is no universal installation distance for every ionizing air bar. The appropriate value depends on the ionizer design, output method, airflow, bar length, target shape, material speed, and surrounding equipment. The recommended operating range supplied for the selected equipment should be treated as the starting point.
If the bar is positioned too far away, ions may recombine or be carried away before reaching the material. Neutralization becomes slower and less consistent. Nearby grounded metal parts may capture some of the ions, further reducing the amount delivered to the target.
If the bar is too close, the ion field may not spread across the required area. The product could also contact the bar because of vibration, web flutter, thickness variation, or positioning errors. The final distance should be validated at normal production speed with the machine guards, exhaust systems, and airflow operating.
The ionizer should normally be positioned after the main static generation event. For example, charge commonly develops where film separates from a roller or where a label separates from its liner. Installing the bar before that event may produce little benefit because the material becomes charged again immediately afterward.
One ionizing air bar can cover an area determined by its active length, working distance, emitter arrangement, airflow pattern, material width, and required neutralization performance.
The external length of a bar should not be confused with effective coverage. End caps, electrical connections, and inactive housing sections may not produce ions. Buyers should confirm the active treatment length and ensure that it covers the widest possible product position.
Coverage can increase as the bar moves farther away because the ions spread over a wider area. However, the concentration of useful ions generally decreases with distance. Wider coverage therefore does not always mean better performance. The goal is to achieve both complete coverage and acceptable decay time.
Multiple bars may be necessary for wide webs, complex product shapes, extremely high line speeds, or processes that generate static at several locations. When bars are installed side by side, their effective treatment areas should overlap to avoid untreated gaps.
Coverage should be verified by measuring performance at multiple positions, including the center, both edges, and any location where products regularly shift. A single measurement in the middle of the line cannot confirm uniform treatment across the complete width.
Not all ionizing air bars require compressed air, but compressed air can improve ion delivery when the target is distant, irregular, recessed, or moving rapidly.
Windless ionizing bars can work effectively at suitable short distances. They are often preferred where strong airflow could move lightweight parts, disturb powder, affect web stability, or introduce unnecessary operating cost. Existing machine airflow may also assist ion transport in some applications.
Compressed air bars carry ions directly toward the charged surface. This can reduce neutralization time and improve access to complex areas. However, the pressure must be controlled. Excessive pressure may create turbulence, spread contamination, disturb the material, or use unnecessary energy.
Air quality is essential. Oil, moisture, and particles can contaminate emitter points and internal passages. The supply should be clean, stable, and appropriate for the process. Filters, regulators, tubing, connectors, and air openings require periodic inspection.
Air pressure should be measured near the ionizer while the production line is operating. A reading at the central compressor does not necessarily represent the pressure available at the bar, especially when multiple machines share the same supply.
Static elimination performance is commonly evaluated through surface voltage measurements, ion balance testing, and charged plate decay time testing under documented operating conditions.
An electrostatic field meter can measure charge before and after the treatment position. This shows whether the ionizing bar reduces the actual process voltage. The instrument must be used at the correct distance and angle because the measurement can be influenced by target size and nearby grounded structures.
A charged plate monitor evaluates the performance of the ionizer itself. Decay time describes how long the ionizer takes to reduce a known positive or negative voltage between defined limits. Ion balance indicates whether the ion field creates a positive or negative offset on a neutral plate.
Tests should be performed under repeatable conditions. Material speed, installation distance, air pressure, temperature, humidity, bar settings, and measurement location should be recorded. Results obtained while the machine is stopped may differ from results during full production because material movement and machine airflow affect ion delivery.
| Measurement | What It Indicates | Important Control |
|---|---|---|
| Surface voltage | Actual charge on the product | Consistent distance and location |
| Positive decay time | Ability to neutralize positive charge | Defined starting and ending voltage |
| Negative decay time | Ability to neutralize negative charge | Same equipment position and environment |
| Ion balance | Positive or negative ion offset | Stable test location |
| Coverage profile | Uniformity across the working width | Measurements at several positions |
Ionizing air bars generally require regular emitter cleaning, visual inspection, grounding checks, and periodic performance testing, with the exact frequency determined by process contamination and application risk.
Emitter points attract dust because of the strong electric field around them. Dust, oil, adhesive residue, fibers, ink mist, and powder can gradually cover the sharp points. This reduces ion generation, slows decay time, and may shift the ion balance.
Cleaning frequency should be based on measured performance. A clean electronics environment may permit a longer interval than a printing, textile, coating, or plastic processing line. Maintenance records can show how quickly performance changes and help establish an efficient schedule.
Power must be isolated according to approved safety procedures before direct cleaning. The cleaning tools and agents should be compatible with the emitter material, insulation, and housing. Abrasive tools can damage the points and should not be used unless specifically permitted.
A practical maintenance program includes:
Ionizing air bars are generally safe when correctly selected, installed, grounded, maintained, and operated according to applicable electrical and workplace safety requirements.
Although an ionizer uses high voltage to create corona discharge, many industrial systems are designed with limited current and protected emitter structures. Nevertheless, installation and servicing should only be performed by qualified personnel following the approved instructions and facility procedures.
Power should be disconnected before cleaning, wiring, repositioning, or inspecting internal components. Cables should not be crushed, sharply bent, exposed to unsuitable chemicals, or placed where moving machine parts can damage them. Guards should not block ion delivery or create unsafe maintenance access.
Potential ozone generation, electromagnetic compatibility, environmental protection, and compressed air safety should be evaluated for the intended application. Equipment used near flammable gases, vapors, dust, or solvents requires a formal hazard assessment. A standard industrial ionizer should never be assumed suitable for a classified environment without verification.
Safety also depends on maintenance. Heavy contamination, damaged insulation, loose wiring, and unauthorized modifications can create risks or reduce performance. Regular inspection should therefore be part of both the safety program and the static control program.
Poor performance is usually caused by contaminated emitters, incorrect distance, obstructed ion flow, inadequate coverage, excessive material speed, unstable air pressure, poor grounding, equipment damage, or static generated after treatment.
Contaminated emitters are among the most common causes. The bar may appear to operate normally while its ion output gradually declines. Cleaning the emitter area and comparing decay time before and after cleaning can confirm whether contamination is responsible.
Installation errors can also produce weak results. A bar located too far from the target may provide insufficient ions, while a bar located too close may not cover the full surface. Machine frames, rollers, and guards can capture or block ions before they reach the product.
Process changes should be investigated whenever performance declines. Higher speed reduces exposure time. A new material may generate a stronger charge. An additional roller may recharge the product after it has been neutralized. New exhaust airflow may carry ions away from the surface.
Troubleshooting should proceed in a controlled sequence:
An ionizing air bar can provide years of service, but its actual operating life depends on emitter wear, contamination, operating hours, environmental conditions, electrical stability, cleaning methods, and preventive maintenance.
There is no single service life that applies to every application. A bar operating continuously in a dusty coating process experiences different conditions from one used periodically in a controlled assembly area. Maintenance history is therefore more informative than age alone.
Emitter points can gradually wear or become damaged. Cables, connectors, power components, insulation, and air passages may also deteriorate. Frequent improper cleaning can shorten service life, while careful maintenance can preserve both performance and physical condition.
Replacement should be considered when the bar cannot meet required decay time or ion balance limits after cleaning, inspection, and correct adjustment. Visible damage, unstable output, repeated alarms, damaged insulation, or unavailable replacement components may also justify replacement.
Performance trends provide the best basis for planning. If decay time gradually increases over several inspections despite consistent cleaning and installation conditions, the maintenance team can schedule service or replacement before the equipment causes a production interruption.
Ionizing air bars provide effective industrial static control when their design, length, output, installation, airflow, and maintenance are matched to the actual production process.
These devices neutralize positive and negative surface charges on insulating materials that cannot be controlled through grounding alone. They can reduce dust attraction, material adhesion, feeding errors, electric shocks, web handling problems, contamination, and electrostatic discharge risks.
Reliable results depend on correct equipment selection. Buyers should evaluate material properties, charge level, working width, process speed, installation distance, environmental conditions, compressed air availability, and required performance. The bar should be installed after the main charge generation point with a clear path to the target.
Regular cleaning and objective testing are equally important. Surface voltage measurements, ion balance checks, and decay time tests allow manufacturers to identify deterioration before it affects quality. Documented results also make troubleshooting faster when materials or production settings change.
By treating static control as a complete process rather than a single equipment purchase, manufacturers can improve production stability, protect sensitive products, reduce contamination, and obtain more reliable long term performance from their ionizing air bars.
